NLB27097TX27MHz REMOTE CONTROL TRANSMITTER

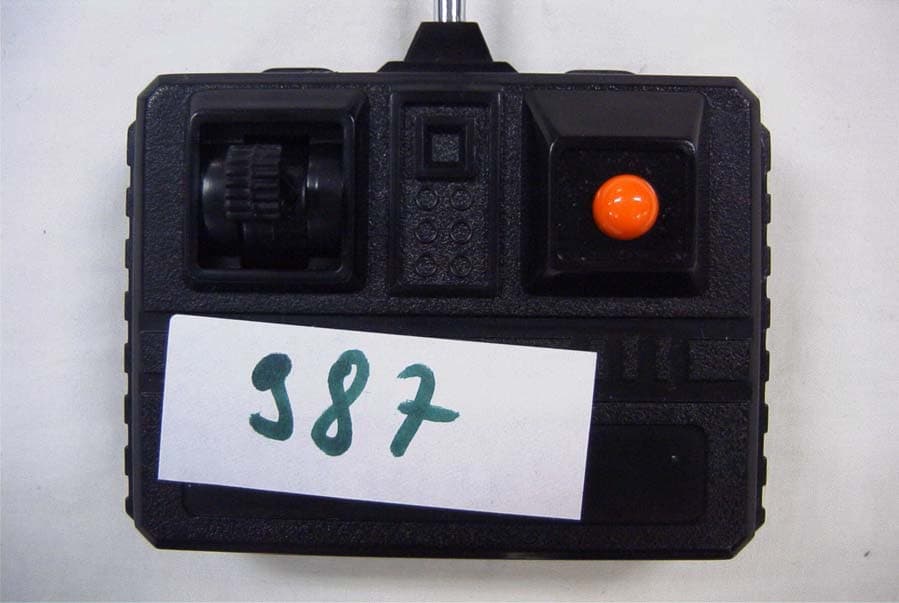

DICKIE-SPIELZEUG GMBH & CO KG. FCC ID: NLB27097TX EXTERNAL PHOTOS

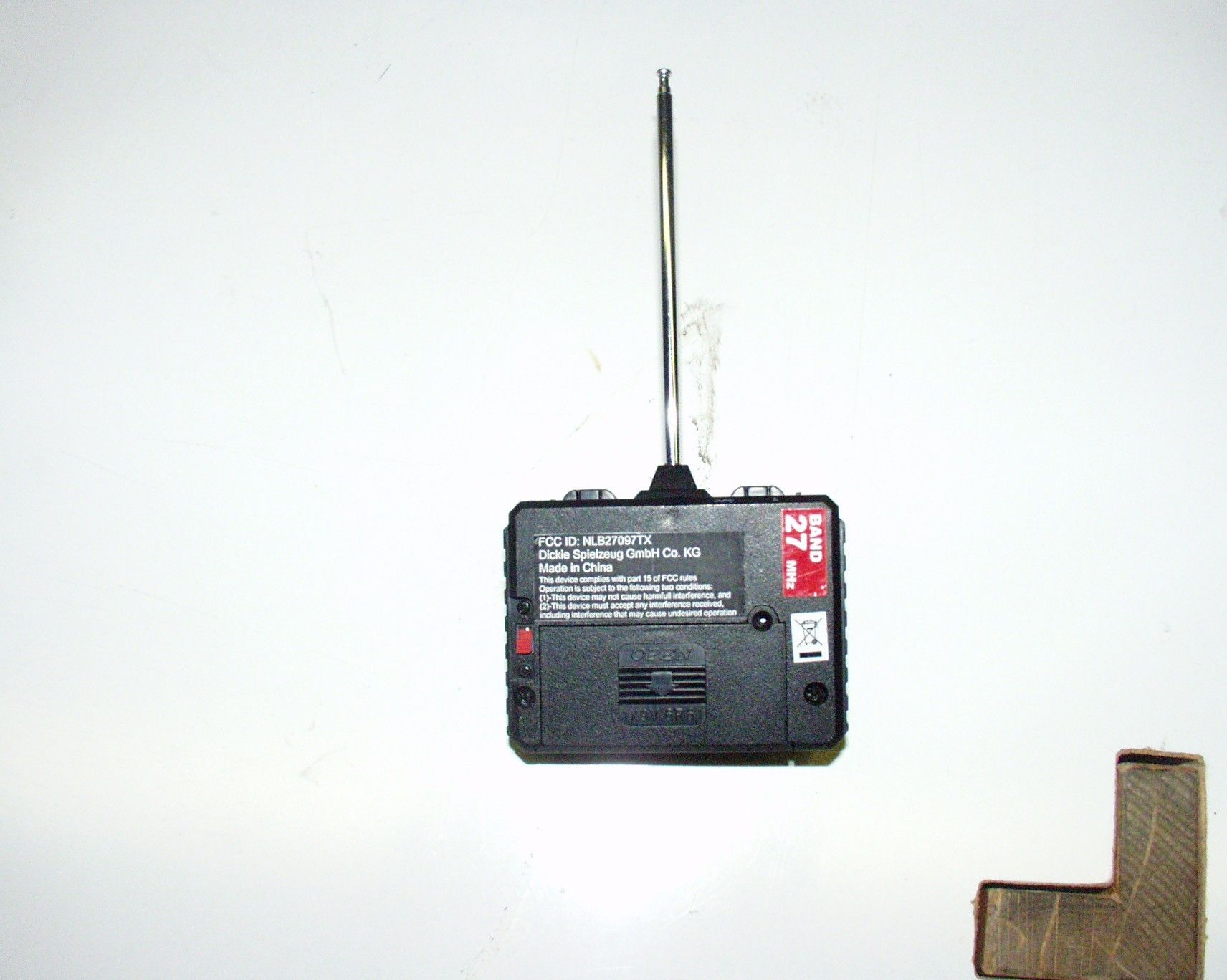

FCC ID: NLB27058TX Dickie Spielzeug GmbH Co. KG Made in China This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1)-This device may not cause harmful interference, and (2)-This device must accept any interference received, including interference that may cause undesired operation FCC ID: NLB27097TX Dickie Spielzeug GmbH Co. KG Made in China This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1)-This device may not cause harmful interference, and (2)-This device must accept any interference received, including interference that may cause undesired operation

DICKIE-SPIELZEUG GMBH & CO KG. FCC ID: NLB27097TX INTERNAL PHOTOS

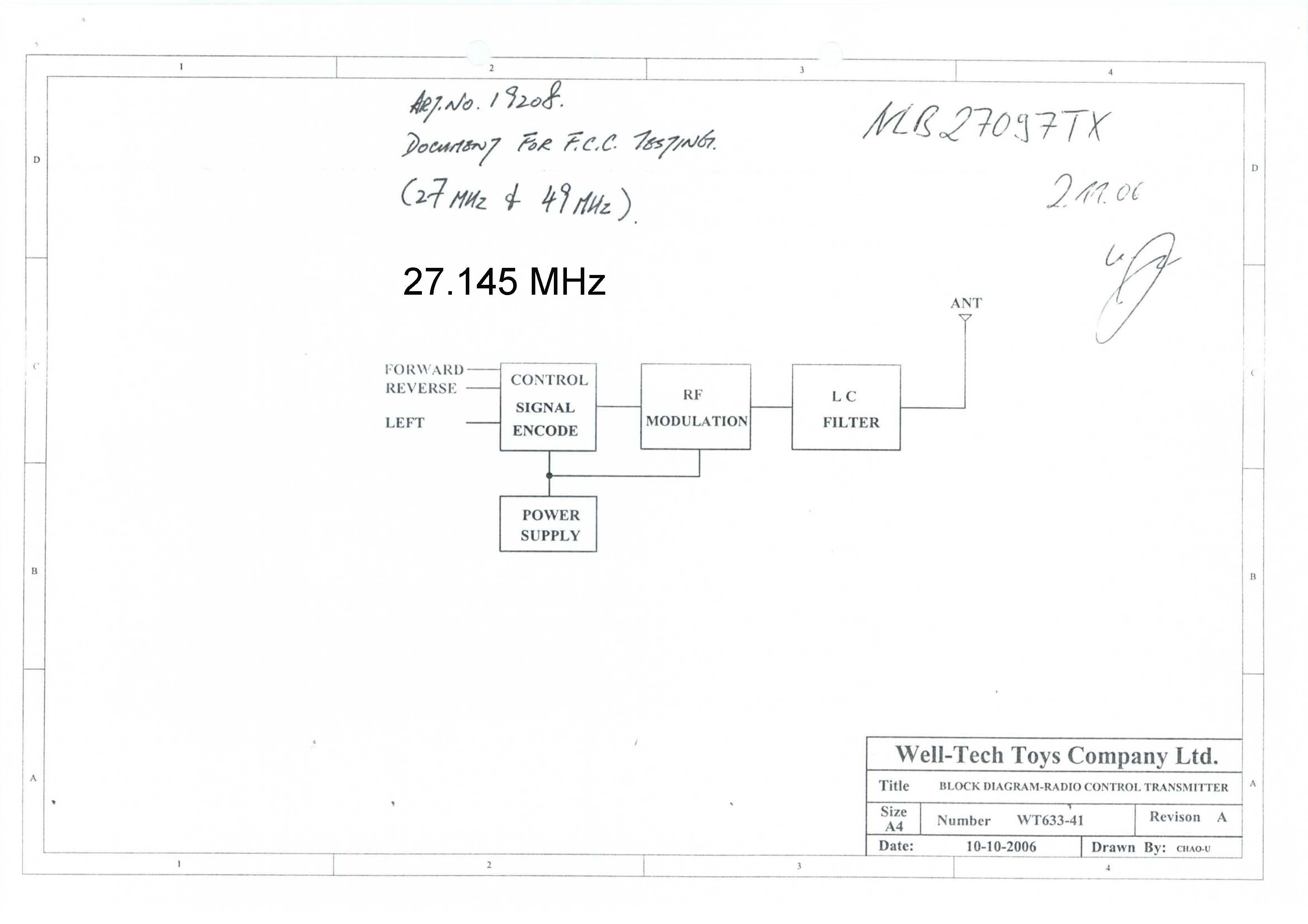

Dickie Spielzeug GmbH & Co. KG; Module 27097TX Circuit Description (With reference to Circuit Diagram and Block diagram) The circuit of module 27097TX is basically divided in four parts: 1. Oscillator (carrier frequency) 2. Modulation of signal 3. RF amplifier 4. Output circuit with antenna The Oscillator unit produces an carrier frequency of 27,1444 MHz by using a quartz crystal, which is coupled via a transistor. The modulation is gained by an IC, being operated by the user trough the switches. Carrier and modulated signal are superposed at the base of a transistor, which amplifies the modulated carrier. The output circuit, being realised by capacitors and inductances matches the RF amplifier to the antenna providing RF-power being transferred to the antenna.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27097TX REPORT #: D\DICKIE\3326UT6\3326UT6TestReport.doc COVER SHEET Test Report Product Name: 27MHz REMOTE CONTROL TRANSMITTER FCC ID: NLB27097TX Applicant: DICKIE-SPIELZEUG GmbH & CO KG WERKSTRABE 1 D-90765 FUERTH D-90765 GERMANY Date Receipt: 12/6/2006 Date Tested: 12/11/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27097TX REPORT #: D\DICKIE\3326UT6\3326UT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27097TX TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURE PAGE 3...............RADIATION INTERFERENCE TEST DATA PAGE 4...............OCCUPIED BANDWIDTH PAGE 5...............OCCUPIED BANDWIDTH PLOT PAGE 6...............TEST SET UP PHOTO EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GMBH & CO KG FCC ID: NLB27097TX REPORT #: V:\D\DICKIE\3326UT6\3326UT6TestReport.doc Page 2 of 7 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro-Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro-Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 Antenna: Active Loop ETS-Lindgren 6502 00062529 CAL 3/30/06 3/30/08 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL 4/27/06 4/27/08 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GMBH & CO KG FCC ID: NLB27097TX REPORT #: V:\D\DICKIE\3326UT6\3326UT6TestReport.doc Page 3 of 7 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI standard C63.4- 2003 using a spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + CL + ACF = FS 33 20 dBuV + 1.00 + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GMBH & CO KG FCC ID: NLB27097TX REPORT #: V:\D\DICKIE\3326UT6\3326UT6TestReport.doc Page 4 of 7 APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB27097TX NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/m ABOVE 960 MHz 54.0 dBuV/m TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 27.15 38.6 H 0.80 7.40 46.80 33.20 54.20 16.8 V 1.01 9.51 27.32 12.68 54.20 19.7 H 1.01 10.07 30.78 9.22 81.40 16.6 V 1.24 8.74 26.58 13.42 81.40 17.9 H 1.24 8.64 27.78 12.22 108.50 13.3 H 1.46 10.29 25.05 18.45 108.50 14.7 V 1.46 10.82 26.98 16.52 135.70 13.6 V 1.65 14.94 30.19 13.31 135.70 13.8 H 1.65 14.34 29.79 13.71 162.80 11.3 H 1.84 16.26 29.40 14.10 162.80 16.5 V 1.84 17.23 35.57 7.93 190.00 15.5 V 2.03 14.50 32.03 11.47 190.00 17.2 H 2.03 14.10 33.33 10.17 217.10 6.2 H 2.19 11.59 19.98 26.02 217.10 8.7 V 2.19 11.46 22.35 23.65 244.30 5.9 V 2.32 12.16 20.38 25.62 244.30 7.5 H 2.32 12.17 21.99 24.01 271.40 3.6 H 2.46 13.24 19.30 26.70 271.40 3.8 V 2.46 13.27 19.53 26.47 All measurements below 30 MHz were taken using a Loop Antenna. PERFORMED BY: RICHARD BLOCK DATE: 12/11/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GMBH & CO KG FCC ID: NLB27097…
