NLB49009TX49 MHz TRANSMITTER

© Disney VW trademarks, design patents and copyrights are used with the approval of the Volkswagen AG. D: Bedienungsanleitung GB: Operating instructions F:Mode d’emploi I:Istruzioni per l’uso NL: Bedieningshandleiding E:Instrucciones de uso CZ:Návod k pouΩití H:Kezelési utasítás FIN: Käyttöohje S:Bruksanvisning DK: Betjeningsvejledning N: Betjeningsanvisning PL:Instrukcja u ̋ytkowania P:Instruções de utilização TR:Kullanım Talimatnamesi GR:∞Á·ËÙ¤ ÂÏ¿ÙË Art.-Nr. 308 9185 3x 1,5V AAA Micro R03 B A !! Nur Alkaline-Batterien oder wiederaufladbare NiMH-Batterien verwenden. Only alcaline-batteries or NiMH-batteries recommended. 12 C 1,5 V R03 1, 5 V U M 4 1,5 V R03 1, 5 V U M 4 1,5 V R03 1,5 V UM4 4 5 2 3 1 D Besonderheiten • 2-Kanal-Fernsteuerung mit integriertem Ladegerät • 7 Fahrfunktionen: Vorwärts-links-rechts Rückwärts-links-rechts-stopp • Akku im Fahrzeug fest integriert • Lenkungs-Feineinstellung • Lieferbar in 2 Frequenzen VORSICHT! 1. Niemals das Fahrzeug hochnehmen, solange die Räder noch drehen. 2. Finger, Haare und lose Kleidung nicht in die Nähe des Motors oder der Räder bringen, wenn das Fahrzeug betriebsbereit, oder in Betrieb ist. 3. Um unvorhergesehenen Betrieb zu vermeiden, müssen die Batterien bei Nichtverwendung aus dem Spielzeug genommen werden. La macchina non reagisce • Le batterie o gli accumulatori sono inseriti correttamente? • I contatti delle batterie sono deformati o sporchi? • Le batterie o gli accumulatori sono scarichi o guasti? La maccina non reagisce correttamente il raggio d’azione è insufficiente • La potenza degli accumulatori o delle batterie è ridotta? • Nelle vicinanze sono presenti altri modellini con radiocomando a distanza che trasmettono alla stessa frequenza? • Recinsioni o reticolati metallici provocano interferenze? • I pali della luce o i piloni di trasmissione provocano spesso un comportamento incontrollato del modellino di automobile. • Nelle vicinanze sono presenti dei walkie-talkie o dei trasmettitori CB che possono provocare interferenze? I A. Trasmettitore 1. La spia luminosa della funzione di trasmissione si accende solo quando si inserisce una funzione di comando. / Luce di controllo – Ricarica del veicolo 2. Marce (avanti/indietro) 3. Sterzo 4. Antenna di sicurezza 5. Vano batterie B. Veicolo 1. Presa di caricamento 2. Microregolazione dello sterzo Specifiche • Telecomando a due canali con caricabatterie integrato • 7 funzioni di guida: avanti-sinistra-destra- indietro-sinistra-destra-stop • Batteria ricaricabile fissa integrata all’interno del veicolo • Microregolazione dello sterzo • Disponibile in 2 frequenze ATTENZIONE! 1. NON prendere in mano il veicolo quando é in movimento. 2. Fare attenzione a non avvicinarsi con mani, capelli e indumenti larghi al motore o alle ruote quando il veicolo è pronto al funzionamento o durante il funzionamento. 3. Per evitare accensioni accidentali rimuovere le batterie quando non si utilizza il giocattolo. Le véhicule ne réagit pas • Les batteries/accus sont-ils bien mis en place? • Les contacts de la batterie sont-ils tordus ou encrassés? • Les batteries/accus sont-ils déchargés ou défectueux? Le véhicule ne réagit pas correctement, la portée est trop faible • Les batteries/accus perdent en puissance? • D’autres maquettes dans le voisinage sont téléguidées á la même fréquence? • Des grillages/clôtures métalliques provoquent des perturbations? • Des émetteurs ou pylônes électriques peuvent pertuber le fonctionnement des maquettes. • Des talkies-walkies ou cibistes dans le voisinage peuvent entraîner des perturbations? F A. Contrôle radio 1. La lampe témoin pour la fonction d’émission s’allume seulement lorsqu’une fonction de commande est entrée. / Lampe témoin – Charge du véhicule 2. Levier de contrôle (marche avant/marche arrière) 3. Levier de contrôle (direction) 4. Antenne télescopique 5. Boîtier à piles B. Véhicule 1. Prise de recharge 2. Réglage précis de la direction Description • Télécommande à deux canaux avec chargeur intégré • 7 fonctions de conduite: avant-gauche-droite-arrière- gauche-droite-stop • Accumulateur solidement intégré dans le véhicule • Réglage précis de la direction • Disponible en deux fréquences ATTENTION! 1. Ne pas saisir le véhicule en mouvement. 2. Ne pas approcher les doigts, les cheveux ou des vêtements amples du moteur ou des roues lorsque le véhicule est prêt à démarrer ou en marche. 3. Pour éviter tout fonctionnement accidentel, il faudra enlever le bloc batterie lorsque le véhicule n‘est pas utilisé. The model car is not responding to the signal • Have batteries been correctly inserted? • Are the battery contacts bent or dirty? • Are batteries empty or faulty? The model car is not responding properly the remote control is out of range • Are the batteries losing strength? • Are there other radio controlled vehicles being used in the vicinity, maybe using the same frequency? • Are metal grids / fences causing disturbance? • Transmitting towers or pylons often interfere with the control of the models. • Are walkie-talkies / CB senders being used in the vicinity, maybe causing interference? GB A. Radio Control 1. Control light transmission function will only light up if a control function is entered. / Control light – Charging of the vehicle 2. Control lever (forward/backward) 3. Control lever (steering) 4. Telescope antenna 5. Battery holder B. Vehicle 1. Charger 2. Adjustable steering alignment on the vehicle Specifications • 2-channel-remote control with integrated charging unit • 7 drive functions: forwards-left-right reverse-left-right-stop • Accumulator battery is permanently integrated into the vehicle • Adjustable steering alignment on the vehicle • Available in 2 frequencies ATTENTION! 1. Do not pick up vehicle while in motion. 2. Keep fingers, hair and loose clothing well away from the engine or the wheels when the vehicle is operational or running. 3. To avoid accidental operation, remove battery pack when not in use. Das Fahrzeug reagiert nicht • Sind Bat…

Text truncated - open the document above for the full version.

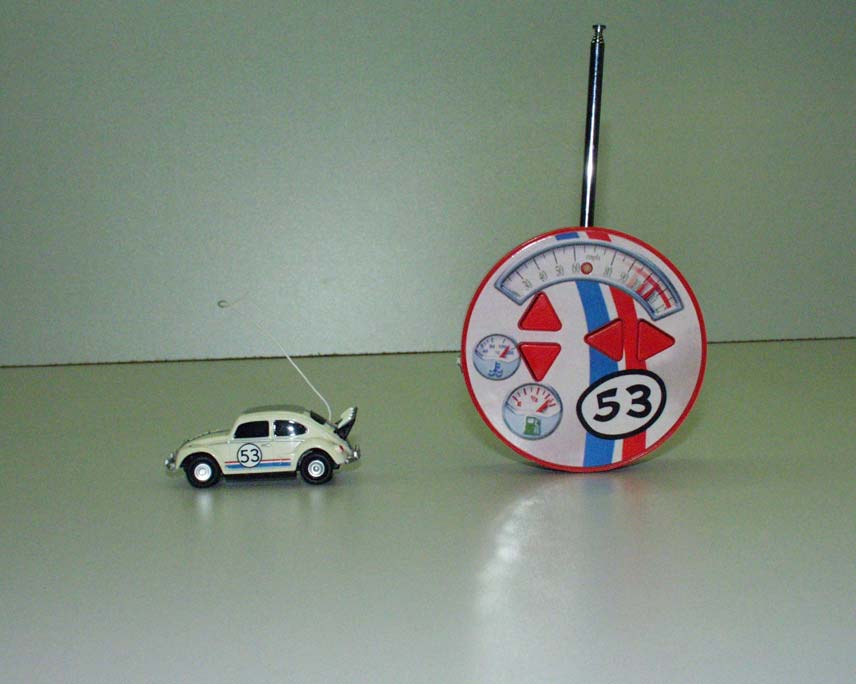

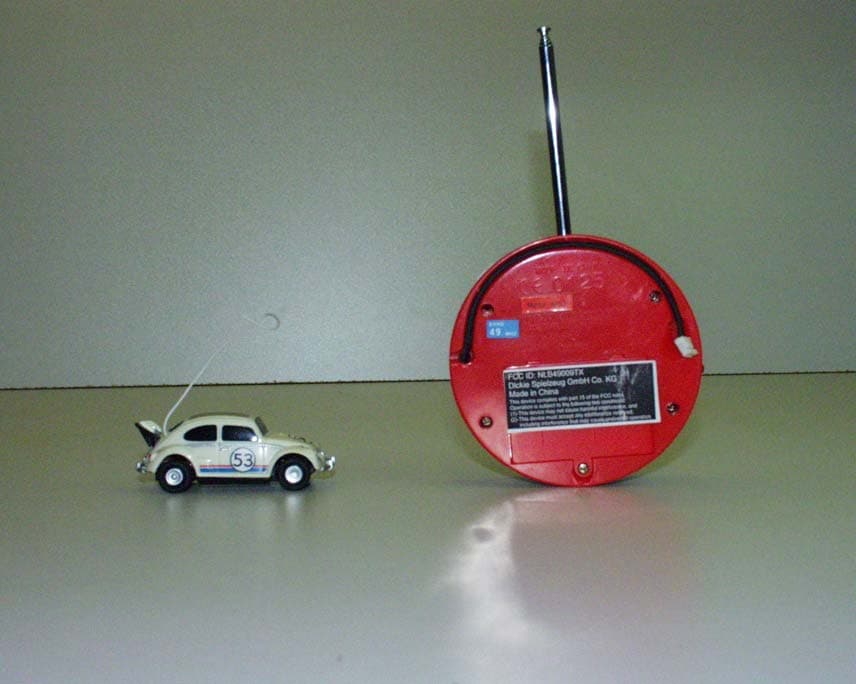

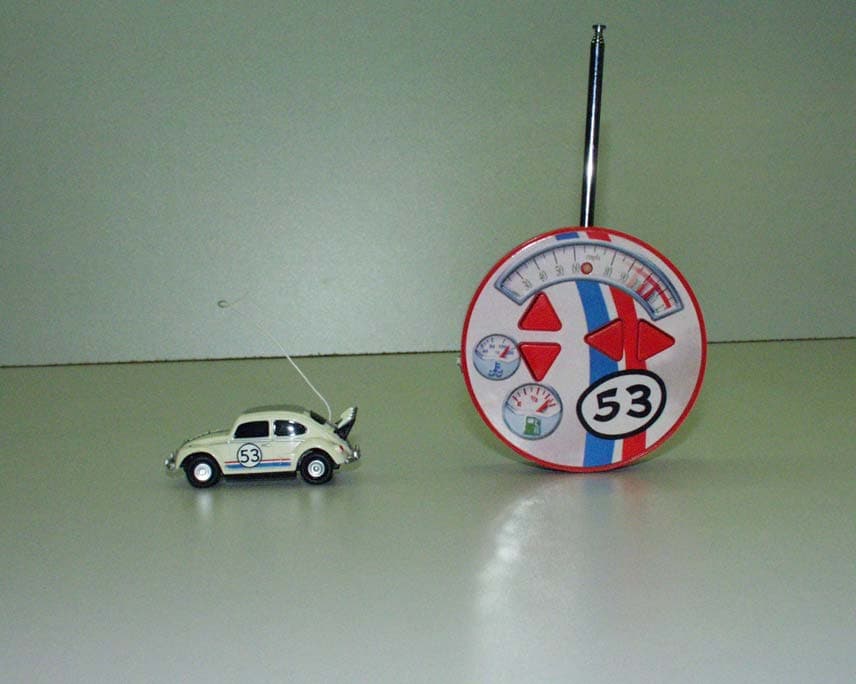

Dickie Spielzeug GmbH & CO KG FCC ID: NLB49009TX EXTERNAL PHOTOS

Dickie Spielzeug GmbH & CO KG NLB49009TX INTERNAL PHOTOS

Dickie Spielzeug GmbH & Co. KG; Module 49009TX Circuit Description (With reference to Circuit Diagram and Blockdiagram) The circuit of module 49009TX is basically divided in four parts: 1. Oszillator (carrier frequency) 2. Modulation of signal 3. RF amplifier 4. Output circuit with antenna The Oszillator unit produces an carrier frequency of 49,860 MHz by using a quartz crystal, which is coupled via a transistor. The modulation is gained by an IC, beeing operated by the user trough the switches. Carrier and modulated signal are superposed at the base of a transistor, which amplifies the modulated carrier. The output circuit, beeing realised by capacitors and inductances matches the RF amplifier to the antenna providing RF-power being transfered to the antenna.

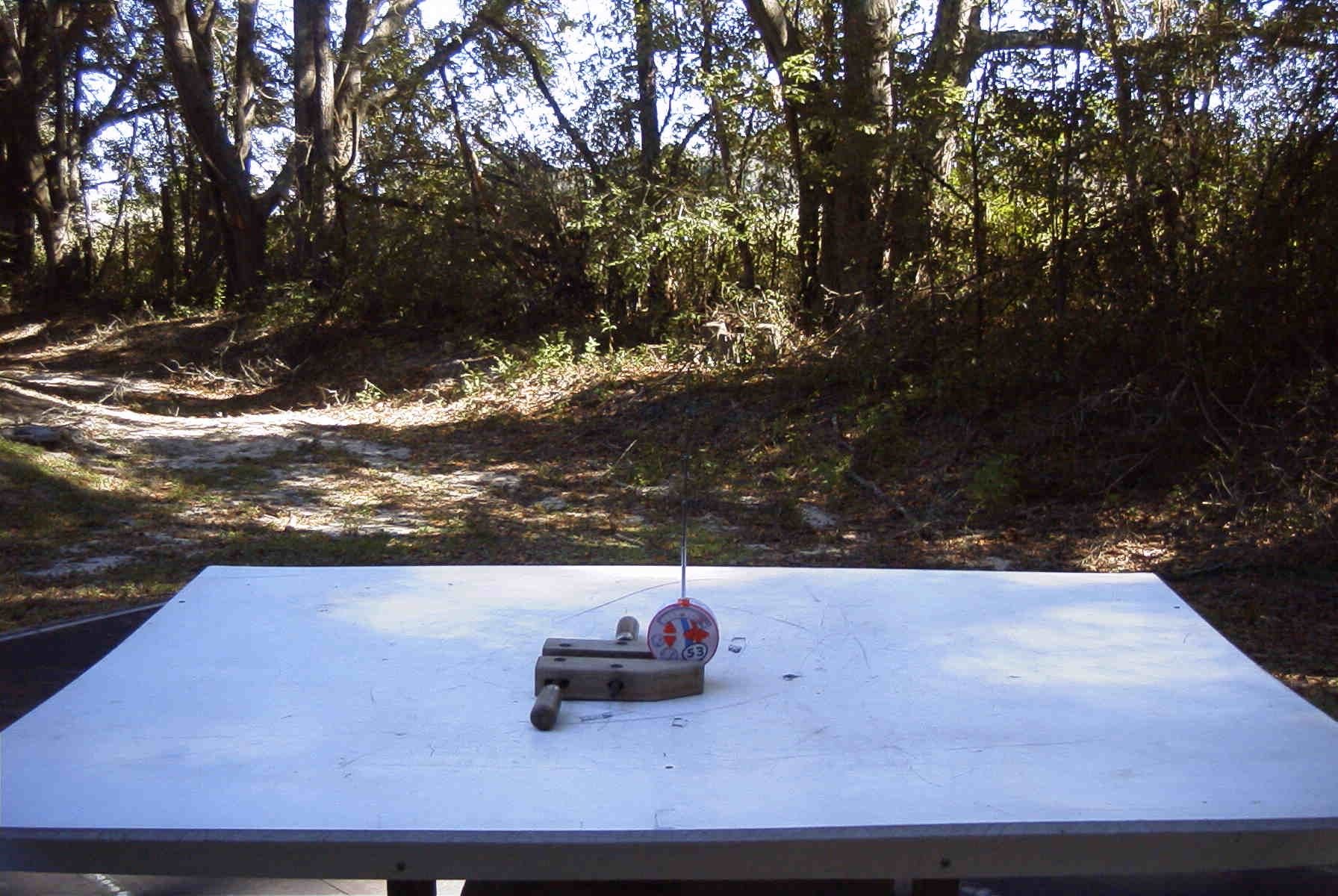

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG Test Report Product Name: 49 MHz TRANSMITTER FCC ID: NLB49009TX Applicant: DICKIE-SPIELZEUG GmbH & CO KG WERKSTRABE 1 D-90765 FUERTH D-90765 GERMANY Date Receipt: 10/12/2005 Date Tested: 10/12/2005 FCC ID: NLB49009TX REPORT #: D\DICKIE\2100UT5\2100UT5TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG TABLE OF CONTENTS LIST APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB49009TX TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3.............RADIATION INTERFERENCE TEST DATA PAGE 4.............OCCUPIED BANDWIDTH PAGE 5.............OCCUPIED BANDWIDTH PLOT EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH FCC ID: NLB49009TX REPORT #: D\DICKIE\2100UT5\2100UT5TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 8/3/05 8/3/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 FCC ID: NLB49009TX REPORT #: D\DICKIE\2100UT5\2100UT5TestReport.doc Page 1 of 5 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre- selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. FCC ID: NLB49009TX REPORT #: D\DICKIE\2100UT5\2100UT5TestReport.doc Page 2 of 5 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB49009TX NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEEDS 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Tuned Frequenc y MHz Emission Frequenc y MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correcti on Factor dB Field Strength dBuV/m Margin dB 49.9 49.86 47.1 H 0.97 11.63 59.70 20.30 49.9 49.86 60.2 V 0.97 10.71 71.88 8.12 49.9 99.72 19.2 H 1.40 10.89 31.49 12.01 49.9 99.72 21.3 V 1.40 11.42 34.12 9.38 49.9 149.58 7.0 V 1.75 16.86 25.61 17.89 49.9 149.58 11.7 H 1.75 16.16 29.61 13.89 49.9 199.44 10.2 H 2.10 17.10 29.40 14.10 49.9 199.44 12.0 V 2.10 17.70 31.80 11.70 49.9 249.30 6.5 H 2.35 12.37 21.22 24.78 49.9 249.30 8.1 V 2.35 12.46 22.91 23.09 49.9 299.16 7.6 V 2.60 14.29 24.49 21.51 49.9 349.02 5.0 V 2.85 14.43 22.28 23.72 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: MARIO R. de ARANZETA DATE: 10/12/2005 FCC ID: NLB49009TX REPORT #: D\DICKIE\2100UT5\2100UT5TestReport.doc Page 3 of 5 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG APPLICANT: DICKIE-SPIELZEUG GmbH & CO …

Text truncated - open the document above for the full version.
