NLB49021TX49 MHZ REMOTE CONTROL TRANSMITTER

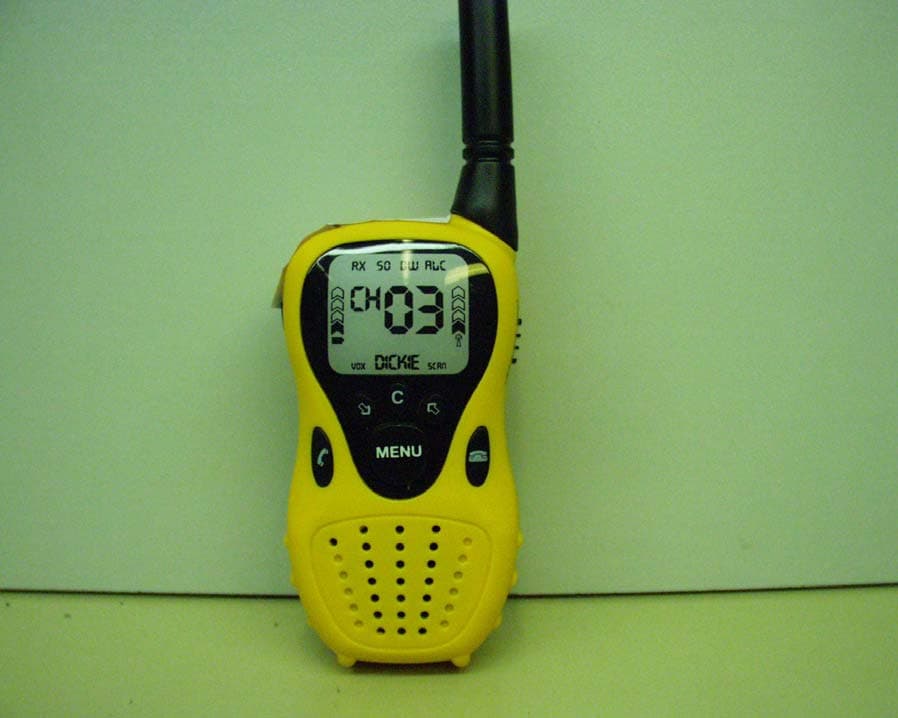

APPLICANT: DICKIE-SPIELZEUG GMBH & CO KG FCC ID: NLB49021TX EXTERNAL PHOTOS

Label for the US Transmitter Modul 49021 FCC ID: NLB49021TX Dickie Spielzeug GmbH Co. KG Made in China This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1)-This device may not cause harmful interference, and (2)-This device must accept any interference received, including interference that may cause undesired operation

APPLICANT: DICKIE-SPIELZEUG GMBH & CO KG FCC ID: NLB49021TX INTERNAL PHOTOS

Dickie Spielzeug GmbH & Co. KG; Module 49021TX Circuit Description (With reference to Circuit Diagram and Block Diagram) The circuit of module 49021TX is basically divided in four parts: 1. Oscillator (carrier frequency) 2. Modulation of signal 3. RF amplifier 4. Output circuit with antenna The Oscillator unit produces an carrier frequency of 49 MHz by using a quartz crystal, which is coupled via a transistor. The modulation is gained by an IC, being operated by the user trough the switches. Carrier and modulated signal are superposed at the base of a transistor, which amplifies the modulated carrier. The output circuit, being realised by capacitors and inductances matches the RF amplifier to the antenna providing RF-power being transferred to the antenna.

APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB49021TX REPORT: D\DICKIE\238UT8\238UT8TestReport.doc Page 2 of 10 mdea 09.20.2007 FCC PART 15.235 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant DICKIE-SPIELZEUG GmbH & CO KG Address WERKSTRASSE 1 D-90765 FUERTH D-90765 GERMANY FCC ID NLB49021TX Product Description 49 MHZ REMOTE CONTROL TRANSMITTER Date Sample Received 1/29/2008 Date Tested 2/6/2008 Tested By Joe Scoglio Approved By Mario de Aranzeta Timco Report No. 238UT8TestReport.doc Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB49021TX REPORT: D\DICKIE\238UT8\238UT8TestReport.doc Page 3 of 10 mdea 09.20.2007 TABLE OF CONTENTS GENERAL REMARKS ....................................................................................................4 REPORT SUMMARY ......................................................................................................5 TEST ENVIRONMENT....................................................................................................5 TEST SETUP .................................................................................................................5 DUT SPECIFICATION ....................................................................................................6 TEST EQUIPMENT LIST ................................................................................................7 TEST PROCEDURES .....................................................................................................8 RADIATION INTERFERENCE .........................................................................................9 OCCUPIED BANDWIDTH.............................................................................................10 APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB49021TX REPORT: D\DICKIE\238UT8\238UT8TestReport.doc Page 4 of 10 mdea 09.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 2/7/2008 APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB49021TX REPORT: D\DICKIE\238UT8\238UT8TestReport.doc Page 5 of 10 mdea 09.20.2007 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) FCC Pt 15.235, ANSI C63.4: 2003 Receiver The receiver portion of this system has been tested and meets all of the FCC requirements per FCC rules Part 15.109. A report was issued and a copy of this report is available upon request. TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control. APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB49021TX REPORT: D\DICKIE\238UT8\238UT8TestReport.doc Page 6 of 10 mdea 09.20.2007 DUT SPECIFICATION Applicant DICKIE-SPIELZEUG GmbH & CO KG Description 49 MHZ REMOTE CONTROL TRANSMITTER FCC ID NLB49021TX Frequency Range 49.86-49.86 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB49021TX REPORT: D\DICKIE\238UT8\238UT8TestReport.doc Page 7 of 10 mdea 09.20.2007 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 7/18/07 7/18/09 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 5/17/07 5/17/09 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 5/17/07 5/17/09 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 5/17/07 5/17/09 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 7/23/07 7/23/09 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/13/07 12/13/09 APPLICANT: DICKIE-SPIELZEUG GmbH & CO KG FCC ID: NLB49021TX REPORT: D\DICKIE\238UT8\238UT8TestReport.doc Page 8 of 10 mdea 09.20.2007 TEST PROCEDURES Spurious Emissions: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was always greater than the RBW. Occupied Bandwidth: A small sample…
