NLMDIGIMAXI5Digital Camera

ENGLISH User’s Manual Thank you for buying a Samsung Camera. This manual will guide you through using the camera, including capturing images, downloading images and using the application software. Please read this manual carefully before using your new camera. 《2》 Instructions ■Use this camera in the following order Insert the USB cable Set up the camera driver Before connecting the camera to a PC, via the USB cable, you will need to set up the camera driver. Install the camera driver that is contained in Application software CD-ROM. (p.117) Take a picture. (p.24) Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal. (p.127) Check the camera’s power. If the power is turned off, press the camera button to turn it on. (p.31) Take a picture Check the camera’s power Check [Removable Disk] Open Window’s EXPLORER and search for [Removable Disk]. (p.128) ●If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader. 《3》 Contents READY ●Getting to know your camera5 ●Danger6 ●Warning6 ●Caution7 ●An FCC warning 7 ●System chart8 ●Identification of features10 ■Front & Top10 ■Back & Bottom10 ■Side/ 5-function button 11 ■Cradle11 ■Self-timer lamp12 ■Camera Status Lamp12 ■Mode icon12 ●Connecting to a Power Source 13 ■Using the SAC-4114 ■Using the batteries18 ■Removing the battery18 ●Instructions on how to use the memory card 19 ●Inserting the memory card 21 ●Removing the memory card21 ●When Using the Camera for the First Time22 ●LCD monitor indicator23 ●Changing the recording mode24 ■Selecting the [Mode] menu 24 ■How to use the Auto mode 26 ■How to use the Movie clip mode26 ■Recording the movie clip without voice27 ■Using Successive Recording27 ■How to use the Manual mode27 ■How to use the Scene modes 28 ■How to use the VOICE RECORDING mode29 ■How to use the SF mode 29 ●Things to Watch Out for When Taking Pictures 30 ●Using the camera buttons to adjust the camera31 ■POWER button31 ■SHUTTER button31 ●ZOOM W/T button 31 ●Voice recording/ Voice memo/ UP button34 ●Macro/ Down button35 ●Focus lock36 ●Flash/ Left button37 ●Self-timer/ Right button 39 ●MENU/ OK button40 ●M (Mode) button 40 ●SF button 42 ●+/- button43 ●Using the LCD monitor to adjust the camera settings 47 ●How to use the menu49 ●Mode 49 ●Mode Set50 ●Size51 ●Quality / Frame rate 52 ●Metering53 ●Continuous shot 53 ●Sharpness54 ●OSD information54 ●Effect 55 ●Special Effect56 ●Special Effect : Preset focus frames 56 ●Special Effect : Composite shooting 58 ●Special Effect : Photo Frame60 ●Movie Clip frame stabiliser61 ●Starting play mode 62 ■Playing back a still image 62 RECORDING PLAY 《4》 Contents ■Playing back a movie clip63 ■How to capture the movie clip63 ■On camera movie trimming 64 ■Playing back a recorded voice65 ●LCD monitor indicator66 ●Using the camera buttons to adjust the camera67 ■Play mode button 67 ●Thumbnail/ Enlargement button 68 ●Voice memo/ Up button69 ●Play & Pause/ Down button70 ●Delete button 71 ●Left / Right / Menu / OK button 72 ●Album button73 ●Setting up the play back function using the LCD monitor76 ●Starting the slide show79 ●Protecting images 81 ●Deleting images82 ●Resize83 ●Rotating an image 84 ●Effect85 ●DPOF 85 ●DPOF : Standard 86 ●DPOF : Index86 ●DPOF : Print size 87 ●Copy To Card88 ●PictBridge89 ●PictBridge : Picture Selection 90 ●PictBridge : Print Setting91 ●PictBridge : Printing 92 ●PictBridge : RESET 93 ●Setup menu94 ●File name95 ●Auto power off 96 ●Language 97 ●Formatting a memory card97 ●Setting up the Date/ Time/ Date type98 ●Imprinting the recording date 98 ●Sound 99 ●Connecting an External Device (USB) 99 ●Auto Focus lamp100 ●LCD brightness100 ●Selecting Video out type 101 ●Quick view103 ●Initialisation103 ●Setting up the Mycam menu104 ●Start up image104 ●Start up sound 105 ●Shutter sound105 ●Important notes106 ●Warning indicator108 ●Before contacting a service centre109 ●Specifications 112 ●Software Notes 114 ●System Requirements114 ●About the software 115 ●Setting up the application software117 ●Starting PC mode 127 ●Removing the USB Driver for Windows 98SE130 ●Removable Disk 131 ●Removing the removable disk132 ●Setting up the USB Driver for MAC 133 ●Using the USB Driver for MAC 133 ●Digimax Viewer 2.1134 ●Digimax Reader135 ●Using PhotoImpression 137 ●FAQ139 SETUP SOFTWARE 《5》 Getting to know your camera Thank you for buying a Samsung Digital Camera. ●Prior to using this camera, please read the user manual thoroughly. ●When you require After Sales service, please bring the camera and the cause of the camera malfunction (such as Batteries, Memory card etc.) to the A/S centre. ●Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction. ●Keep the manual in a safe place. ҬMicrosoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries. ҬAll brand and product names appearing in this manual are registered trademarks of their respective companies. DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in a minor or moderate injury. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This mar…

Text truncated - open the document above for the full version.

《70》 Voice ( ) memo / Up button 3. Press the shutter button to start recording and voice will be recorded to the still image for 10 seconds. While the voice is recording, the recording status window will be displayed as shown alongside. 4. The recording can be stopped by pressing the shutter button again. 5. The ( ) icon will be displayed on the LCD monitor after voice memo recording has finished. - Voice memos can’t be recorded onto movie clip files. - A distance of 40cm between you and the camera (microphone) is the best distance to record sound. - The voice memo will be saved in ҭ.wav format, but has the same file name as the still image to which it corresponds. - If you add a new voice memo to the still image that already has a voice memo, the existing voice memo will be erased. Play & Pause ( ) / Down button ■In Play mode, the play & pause/ down button works as follows: - If the menu is displayed Press the DOWN button to move from the main menu to a sub menu, or to move down the sub menu cursor. - If a still image with a voice memo, a voice file, or a movie clip is playing In Stop mode: Plays a still image with a voice memo, a voice file, or a movie clip. During playback : Temporarily stops playback. In Pause mode : Resumes playback 100-0009 STOP:SHUTTER 100-0009 [Voice recording is stopped] 100-0004 [Voice recording is paused][Voice recording is playing] 100-0004100-0004 《71》 Delete ( ) button ■This deletes images stored on the memory card. ●Before deleting images from the camera, you should protect or download images to your computer that you wish to keep. INFORMATION ●Deleting Images in Thumbnail Display Mode 1. Use the UP, DOWN, LEFT, and RIGHT buttons to select the image you want to delete, and then press the DELETE ( ) button. 2. The following message will be displayed on the LCD monitor. 3. Select the submenu values by pressing the UP/DOWN button and then press the OK button. If [Delete] is selected : deletes the selected images. If [Cancel] is selected : cancels "Delete Image". ●Deleting Images in Play Mode 1. Select an image that you want to delete by pressing the LEFT / RIGHT button and press the DELETE( ) button. 2. A message will display as shown alongside on the LCD monitor. 3. Select the submenu values by pressing the UP/DOWN button and then press the OK button. If [Delete] is selected : deletes the selected images. If [Cancel] is selected : cancels "Delete Image". 100-0009 Delete? Delete Cancel Confirm:OK Press the DELETE button. Delete? Delete Cancel Confirm:OK 《72》 Left / Right / Menu / OK button ■LEFT / RIGHT/ MENU/ OK buttons activate the following. - LEFT button: While the menu is showing, press the LEFT button to select the menu tab to the left of the cursor. - RIGHT button : While the menu is showing, press the RIGHT button to select the menu tab to the right of the cursor, or to move an secondary menu. - MENU button : When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display. - OK button: When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is changed by using the 5 function button. 《73》 Album button Select Slide Add Remove ■You can organise the captured still images into albums by using the Album button. ■This camera has 8 albums and each album can take up to 100 images. ■The album menu loading time depends on the memory card type. ●Inserting still images into the album 1. Select an album. 2. Select the [Add] menu by pressing the Up/Down button and press the Right button. ■How to use the album ●Selecting the album 1. In the play mode, press the Album button. 2. Select the [Select] menu by pressing the Up/Down button and press the Right button. 3. Select a desired album by pressing the Up/Down/Left/Right buttons and press the OK button. -0009 Exit:MENU Move:   Select Slide Add Remove Set:OK Select Slide Add Remove Select:TSet:OK Select:TSet:OK Select Slide Add Remove Select:TSet:OK Select Slide Add Remove Set:OK 《74》 Album button Select All Pics 3. Select the still images you wish to add by pressing the Up/Down/Left/Right buttons and press the Zoom T button. marks are displayed on the selected images. ※To cancel the selection, press the Zoom T button again. 4. Press the OK button and a confirmation window will display. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button. - [Add]: Inserts the selected images into the album. - [Cancel] : Cancels the inserting images. ●Removing still images from the album 1. Select an album. 2. Select [Remove] menu by pressing the Up/Down button and press the Right button. 3. Select a desired sub menu and press the OK button. - [All] : All of the still images in the album will be removed. - [Select] : Specific still images in the album can be removed. ※If [Select] is selected - Select images that you want to remove by pressing the Up/Down/Left/Right buttons and press the Zoom T button. marks are displayed on the selected images. 4. Press the OK button and a confirmation window will display. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button. - [Remove] : Removes the selected images from the album. - [Cancel]: Cancels the removing images. ※The removed images are not deleted from the memory, but just removed from the album. Add? Add Cancel Confirm:OK Select:TSet:OK Remove? Remove Cancel Confirm:OK Select Slide Add Remove Select:TSet:OK 《75》 Album button ●If an image is deleted from the memory, the image doesn’t display on an album. ●An image can’t be added twice into the same album. ●An image can be added into the different albums. INFORMATION ●Playing back the albums ◎Playing back all of the albums 1. Select [All] menu and press the OK button. All of the albums will be selected. 2. Select [Slide] menu by pressing the Up/Down button and press the Right button. ※You can select [Start], [Interval], [Repeat] and [Effect] menus. - [Start]: Sta…

Text truncated - open the document above for the full version.

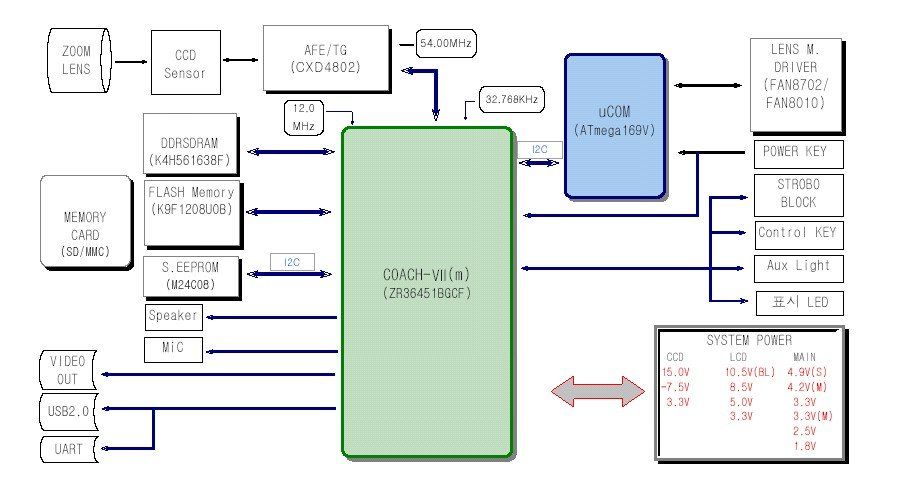

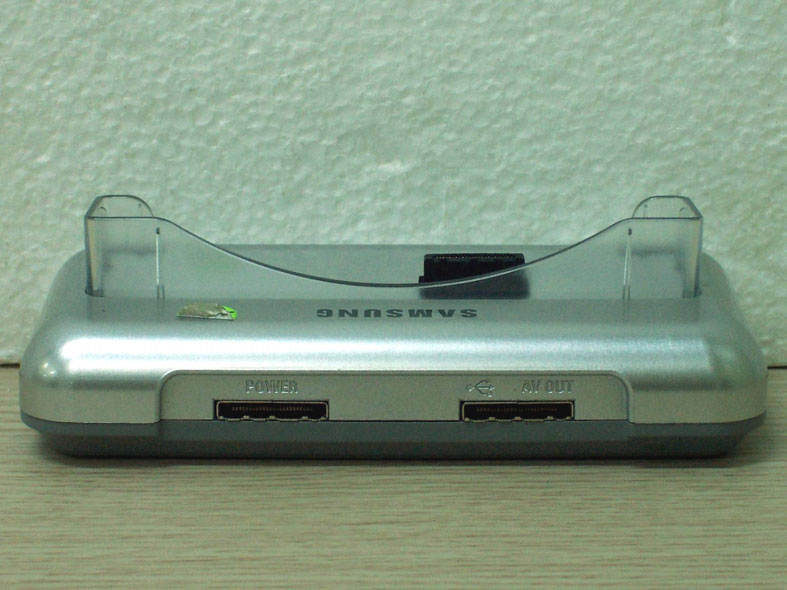

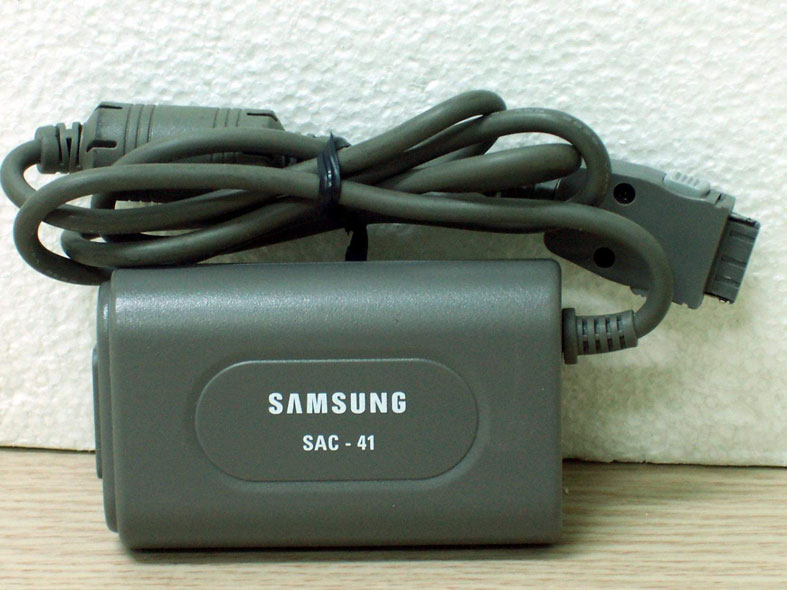

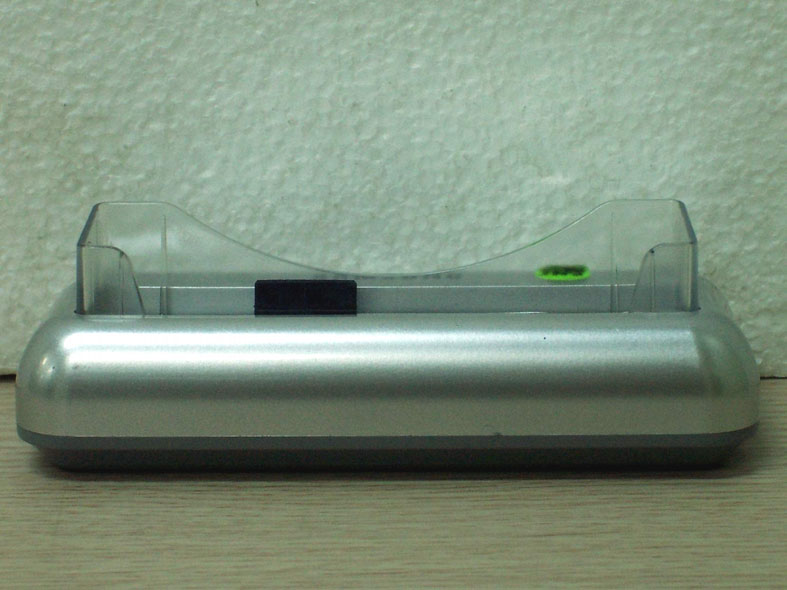

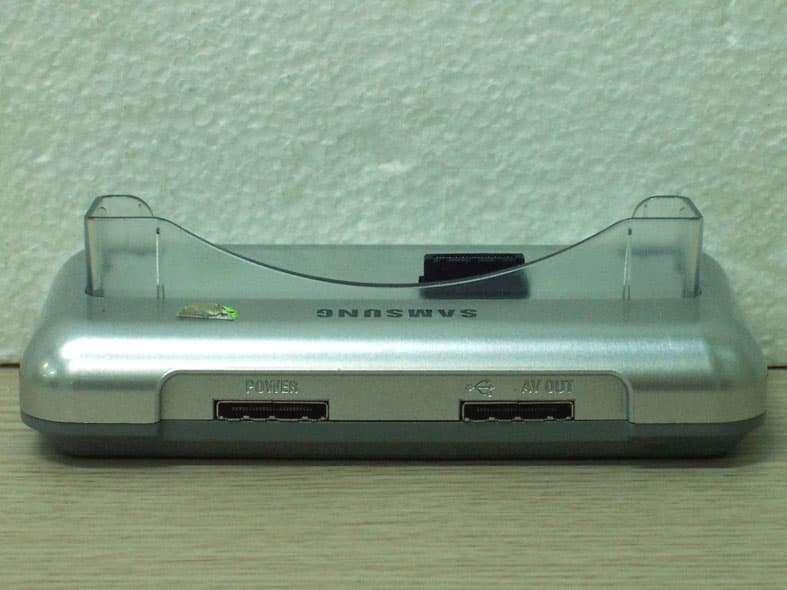

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 1 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K EUT External Photographs CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 2 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 3 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 4 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K

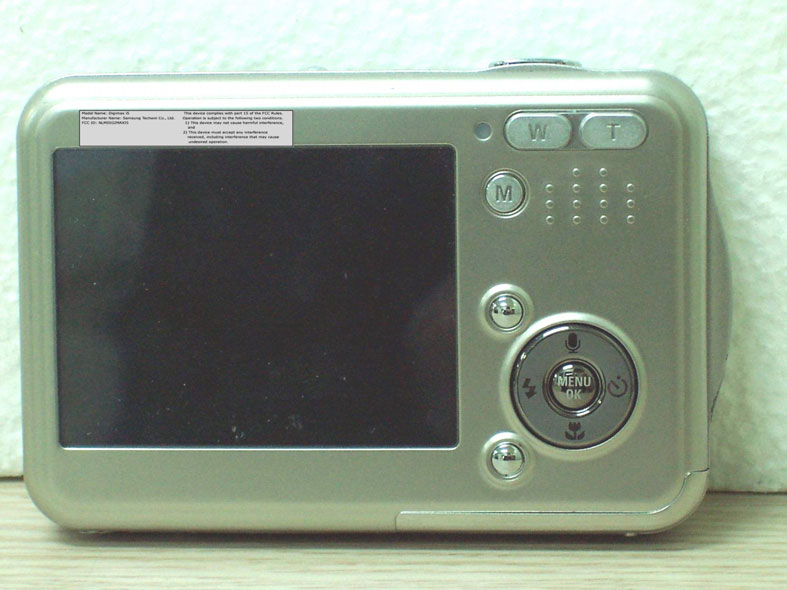

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 1 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K Photographs related to Label CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 2 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K FCC ID label location

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 1 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K EUT Internal Photographs CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 2 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K PCB CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 3 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 4 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 5 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 1 of 29 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K EMC TEST REPORT For FCC Test Report No. : 2005050020 Date of Issue : May 19, 2005 FCC ID : NLMDIGIMAXI5 Model/Type No. : Digimax i5 Kind of Product : Digital Camera Applicant : Samsung Techwin Co., Ltd. Applicant Address : 145-3 Sangdaewon 1-Dong, Jungwon-Gu, Sungnam-City, Kyungki-Do, Korea Manufacturer : 1) Samsung Techwin Co., Ltd. 2) Tianjin Samsung Opto-Electronics Co., LTD. Manufacturer Address : 1) 42,Sungju-dong, Changwon City, Kyungnam, Korea 2) 7 Pingchang Road, Nabkai Dist., Tianjin, China Contact Person : Kun-Sop, Kim (Manager) Telephone : +82-31-740-8253 Received Date : May 12, 2005 Test period : Start : May 16, 2005 End : May 17, 2005 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. CERTiTEK Standards Laboratory Co., Ltd. is accredited by Korea Laboratory Accreditation Scheme (KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Tested by Reviewed by Young-Joon, Park EMC Test Engineer James Hong EMC Technical Manager Date: May 19, 2005 Date: May 19, 2005 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 2 of 29 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K REPORT REVISION HISTORY Date Revision Page No May 19, 2005 Issued (2005050020) All This report shall not be reproduced except in full, without the written approval of CERTiTEK Standards Laboratory Co., Ltd. This document may be altered or revised by CERTiTEK Standards Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CERTiTEK Standards Laboratory Co., Ltd. will constitute fraud and shall nullify the document. CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 3 of 29 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K TABLE OF CONTENTS REPORT REVISION HISTORY ........................................................................................... 2 1.0 General Product Description ................................................................................ 4 1.1 Model Differences .............................................................................................. 4 1.2 Device Modifications........................................................................................... 5 1.3 EUT Configuration(s).......................................................................................... 6 1.4 Test Software .................................................................................................... 6 1.5 EUT Operating Mode(s) ...................................................................................... 6 1.6 Configuration .................................................................................................... 7 1.7 Calibration Details of Equipment Used for Measurement ......................................... 8 1.8 Test Facility....................................................................................................... 8 1.9 Measurement Procedure ..................................................................................... 8 1.10 Laboratory Accreditations and Listings.................................................................. 9 2.0 Emissions Test Regulations ............................................................................... 10 2.1 Conducted Voltage Emissions ............................................................................ 11 2.2 Radiated Electric Field Emissions ....................................................................... 12 APPENDIX A – TEST DATA............................................................................................. 13 Conducted Voltage Emissions .................................................................................. 13 Radiated Electric Field Emissions.............................................................................. 15 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 4 of 29 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K 1.0 General Product Description 1.0.1 Tested Equipment Unless otherwise indicated, all tests were conducted on Model Digimax i5. Tests performed on Model were considered to be representative of Model(s) . 1.0.2 Equipment Size, Mobility and Identification Dimensions: Approx. 89.6 by 59.8 by 17.3 mm inch Mobility: Hand-held Table-top Built-in Traveling Floor-standing Serial No.: Prototype 1.0.3 Electrical Ratings Adaptor Input: 100-240 Vac, 50/60Hz, 0.15 A Output: 4.2 Vdc, 750 mA EUT Input: 4.2 Vdc Output: - 1.0.4 Test Voltage & Frequency Unless indicated otherwise on the individual data sheet or test results, the test voltage and frequency was as indicated below. Voltage: 120 Vac Frequency: 60 Hz 1.0.5 Clock & Other Frequencies Utilized 32.768 kHz, 12 MHz, 54 MHz 1.1 Model Differences Not applicable CERTiTEK Standards Laboratory Co.,…

Text truncated - open the document above for the full version.

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 1 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K APPENDIX B - Test Setup Photos and Configuration Conducted Voltage Emissions CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005050020 Date: May 19, 2005 Page 2 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTE K Radiated Electric Field Emissions
