NLMDIGIMAXS500Digital Camera

Thank you for buying a Samsung Camera.This manual will guide you through using the camera, including capturing images, downloading images and using the application software. Please read this manual carefully before using your new camera. User’s Manual ENGLISH ŝ 1 Ş Instructions Getting to know your camera ƈ Use this camera in the following order Set up the camera driver Take a picture Insert the USB cable Check the camera’s power Check [Removable Disk] Before connecting the camera to a PC, viathe USB cable, you will need to set up thecamera driver. Install the camera driverthat is contained in Application softwareCD-ROM. (p.66)Take a picture. (p.14)Insert the supplied USB cable into thePC’s USB port and the camera’s USBconnection terminal. (p.67)Check the camera’s power. If the power isturned off, press the camera button to turnit on. Open Window Ŗ s EXPLORER and search for [Removable Disk]. (p.68) ƃ If you use a card reader to copy the images on the memory card to your PC, theimages could be damaged. When transferring the images taken with the camerato your PC, be sure to use the supplied USB cable to connect the camera toyour PC. Please note that the manufacturer holds no responsibility for loss ordamage of images on the memory card due to the use of a card reader. Thank you for buying a Samsung Digital Camera.ƃ Prior to using this camera, please read the user manual thoroughly. ƃ When you require After Sales service, please bring the camera and the cause ofthe camera malfunction (such as battery, Memory card etc.) to the A/S centre. ƃ Please check that the camera is operating properly prior to when you intend touse it (e.g. for a trip or an important event) to avoid disappointment. Samsungcamera takes no responsibility for any loss or damages that may result fromcamera malfunction. ƃ Keep the manual in a safe place. Ҭ Microsoft, Windows and Windows logo are registered trademarks of MicrosoftCorporation incorporated in the United States and/or other countries. Ҭ All brand and product names appearing in this manual are registered trademarksof their respective companies. DangerW arning ŝ 2 Ş Caution WARNING indicates a potentially hazardous situation, which, if not avoided, couldresult in death or serious injury.ƈ Do not use the flash in close proximity to people or animals. Positioning the flash tooclose to your subject’s eyes, may cause eyesight damage. ƈ For safety reasons keep this product and accessories out of reach of children oranimals to prevent accidents e.g.: Ү Swallowing battery or small camera accessories. If an accident should occur,please consult a doctor immediately. Ү There is the possibility of injury from the camera’s moving parts. ƈ battery and camera may become hot during prolonged use and it may result incamera malfunction. Should this be the case, allow the camera to sit idle for a fewminutes to allow it time to cool. ƈ Do not leave this camera in places subject to extremely high temperatures, such asa sealed vehicle, direct sunlight or other places of extreme variances in temperature.Exposure to extreme temperatures may adversely affect the camera’s internalcomponents and could cause a fire. ƈ When in use, do not cover the camera or Charger. This and distort the camera bodyor cause a fire. Always This may cause heat to build up and distort the camera bodyor cause a fire. Always use the camera and its accessories in a well-ventilated area. DANGER indicates an imminently hazardous situation which, if not avoided, will resultin death or serious injury.ƈ Do not attempt to modify this camera in any way. This may result in fire, injury,electric shock or severe damage to you or your camera. Internal inspection,maintenance and repairs should be carried out by your dealer or Samsung CameraService centre. ƈ Please do not use this product in close proximity to flammable or explosive gases,as this could increase the risk of explosion. ƈ Should any form of liquid or a foreign object enter the camera, do not use it. Switchoff the camera, and then disconnect the power source. You must contact yourdealer or Samsung Camera Service centre. Do not continue to use the camera asthis may cause a fire or electric shock. ƈ Do not insert or drop metallic or inflammable foreign objects into the camera throughaccess points e.g. the memory card slot and battery chamber. This may cause a fireor electric shock. ƈ Do not operate this camera with wet hands. This could pose a risk of electric shock. CAUTION indicates a potentially hazardous situation, which, if not avoided, mayresult in a minor or moderate injury.ƈ Leaking, overheating, or burst battery could result in fire or injury. Ү Use battery with the correct specification for the camera. Ү Do not short circuit, heat or dispose of battery in fire. Ү Do not insert the battery with the reverse polarities. ƈ Remove the battery when not planning to use the camera for a long period oftime. Battery may leak corrosive electrolyte and permanently damage thecamera’s components. ƈ Do not fire the flash while it is in contact with hands or objects. Do not touch theflash after using it continuously. It may cause burns. ƈ Do not move the camera while it is switched on, if you are using the AC Charger.After use, always switch off the camera before unplugging the cable from thewall socket. Then make sure that any connector cords or cables to other devicesare disconnected before moving the camera. Failure to do so may damage thecords or cables and cause a fire or electric shock. ƈ Take care not to touch the lens and where the lens cover is to avoid taking anunclear image and possibly causing camera malfunction. ƈ Avoid obstructing the lens or the flash when you capture an image. ŝ 3 Ş Contents READY ƃ System chart 4 ƃ Identification of features 5 ƈ Front & Top 5 ƈ Back & Bottom 6 ƈ Bottom / 5-function button 7 ƈ Cradle(Optional) 7 ƈ Self-timer lamp 8 ƈ Camera Status Lamp 8 ƈ Mode icon 8 ƃ Connecting to a Power Source 8 ƈ Using the batteries 8 ƃ Inserting t…

Text truncated - open the document above for the full version.

ŝ 40 Ş Delete ( ) button Printer button ƈ If you selectd [Computer] sub menu in the [USB]setup menu, [Connecting Computer] message willdisplay when you connect the camera to yourprinter and the conncection will not be established.In this case, press the Printer button. [ConnectingPrinter] message will display and the Easy printingmode will be selected. * In some instances the camera may not connect to the printer, this will depend on the make of the printer. - After the connection, the Easy printing menu will display on the LCD monitor. To display the PictBridge menu, press theMenu button. For more information about thePictBridge menu, refer to page 49. ƈ This deletes images stored on the memory. ƃ Deleting Images in Play Mode 1. Select an image that you want to delete by pressing the LEFT / RIGHT button and press theDELETE( ) button. 2. A message will display as shown alongside on the LCD monitor. 3. Select the submenu values by pressing the LEFT / RIGHT button and then press the OK button. If [Yes] is selected : deletes the selected images.If [No] is selected : cancels "Delete Image". ƃ Before deleting images from the camera, you should protect or downloadimages to your computer that you wish to keep. INFORMATION ƃ Deleting Images in Thumbnail Display Mode 1. Use the UP, DOWN, LEFT, and RIGHT buttons to select the image you want to delete, and then press the DELETE ( ) button. 2. The following message will be displayed on the LCD monitor.3. Select the submenu values by pressing the LEFT / RIGHT button and then press the OK button. If [Yes] is selected : deletes the selected images. If [No] is selected : cancels "Delete Image". Delete? Yes No Confirm:OK Delete? Yes No Confirm:OK Press the delete button. IMAGES One PicAll PicsExit:MENU Move:  ŝ 41 Ş ƈ PLAY mode functions can be changed by using the LCD monitor. In the PLAYmode, pressing the MENU button displays the menu on the LCD monitor. Themenus you can set up in Play mode are as follows. To capture an image aftersetting up the play menu, press the PLAY mode button or shutter button. Menu tab Main menu Sub menu Secondary menu Page Show Play / Repeat Play Interval 1, 3, 5, 10 sec OFF Select All Pics Select - All Pics - 2272 X 1704 - 2048 X 1536 - 1600 X 1200 - 1024 X 768 - 640 X 480 - User Image 1, 2 - SLIDE PROTECT DELETE RESIZE p.43~44 p.44p.45p.45 Effect Unlock / Lock Left / Right / Menu / OK button Setting up the play back function using the LCD monitor ƈ LEFT / RIGHT/ MENU/ OK buttons activate the following. - LEFT button : While the menu is showing, press the LEFT button to select the menu tab to the left of the cursor. While the menu is notshowing, press the LEFT button to select the previousimage. - RIGHT button : While the menu is showing, press the RIGHT button to select the menu tab to the right of the cursor, or to move ansecondary menu. While the menu is not showing, press theRIGHT button to select the next image. - MENU button : When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will returnthe LCD to the initial display. - OK button : When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is changed by usingthe 5 function button. ŝ 42 Ş Setting up the play back function using the LCD monitor Menu tab Main menu Sub menu Secondary menu Page One Pic - All Pics - No - Yes - Auto Postcard Card 4X6 L 2L Letter A4A3 Auto Full 12489 16 Index IMAGES AUTO SET CUSTOM SET Size p.50p.50p.51 ƈ This menu is available while the camera is connected to a PictBridge supportingprinter (direct connection to the camera, sold separately) with a USB cable. Layout Menu tab Main menu Sub menu Secondary menu Page Right 90º - Left 90º - 180º - Horizontal - Vertical - Standard Select / All Pics / Cancel DPOF Index No / Yes p.46 Size Select / All Pics / Cancel No - Yes - Full - Basic - OSD Off - p.49p.48p.46 ROTATE COPY TO CARD OSD INFORMATION ŝ 43 Ş ƃ Start the slide show : The slide show can start only in the [Show] menu. 1. Use the Up / Down buttons to select the [Show] menu and press the Right button. 2. Select a desired sub menu by pressing the Up / Down button. [Play] : The slide show is closed after one cycle. [Repeat Play] : The slide show is repeated until cancelled. 3. Press the OK button to save the configuration. ƃ Setting play interval: Set the slide show play interval. 1. Select the [Interval] sub menu by pressing the UP / DOWN button and press the RIGHT button. 2. Use the Up / Down buttons to select the desired interval. 3. Press the OK button to save the configuration. ƃ The loading time depends on the image size and quality. ƃ While the slide show is playing, only the first frame of a MOVIE file isdisplayed. ƃ While the slide show is playing, the voice recording file will not display. INFORMATION ƈ Images can be displayed continuously at pre-set intervals.You can view the slide show by connecting the camera to an external monitor. 1. Press the play mode button and press the menu button.2. Press the LEFT / RIGHT button and select the [SLIDE] menu tab. Setting up the play back function using the LCD monitor Starting the slide show SLIDE ShowIntervalEffectBack:  Set:OK PlayRepeat Play SLIDE ShowIntervalEffectBack:  Set:OK 1 sec3 sec5 sec10 sec Menu tab Main menu Sub menu Secondary menu Page Auto Plain Photo Fastphoto Auto Draft Normal Fine Auto Date Off On Auto File name Off On Standard - Index - No - Yes - No - Yes - Type p.51 s Menus are subject to change without prior notice. Quality CUSTOM SET p.51p.52p.52 PRINT DPOF PRINT RESET ŝ 44 Ş Starting the slide show Protecting images ƈ This is used to protect specific shots from being accidentally erased (Lock).It also unprotects images that have been previously protected (Unlock). ƃ Protecting Images 1. Press the play mode button and press the menu button. 2. Press the LEFT / RIGHT button and select the [PROTECT] menu tab. 3. Select a desired sub menu by pressing the UP / DOWN button and pres…

Text truncated - open the document above for the full version.

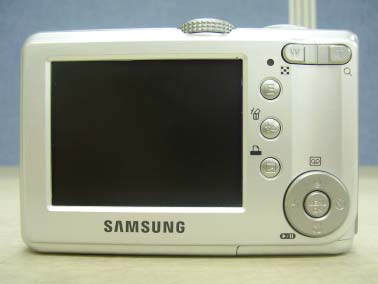

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EUT External Photographs Test Report No.: 2005120014 Date: December 16, 2005 Page 19 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2005120014 Date: December 16, 2005 Page 20 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Photographs related to Label Test Report No.: 2005120014 Date: December 16, 2005 Page 26 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK FCC ID label location Test Report No.: 2005120014 Date: December 16, 2005 Page 27 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EUT Internal Photographs Test Report No.: 2005120014 Date: December 16, 2005 Page 21 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK PCB Test Report No.: 2005120014 Date: December 16, 2005 Page 22 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2005120014 Date: December 16, 2005 Page 23 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2005120014 Date: December 16, 2005 Page 24 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2005120014 Date: December 16, 2005 Page 25 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ Test Report No.: 2005120014 Date: December 16, 2005 Page 1 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK EMC TEST REPORT For FCC Test Report No. : 2005120014 Date of Issue : December 16, 2005 FCC ID : NLMDIGIMAXS500 Model/Type No. : Digimax S500 Kind of Product : Digital Camera Applicant : Samsung Techwin Co., Ltd. Applicant Address : 145-3 Sangdaewon 1-Dong, Jungwon-Gu, Sungnam-City, Kyungki-Do, Korea Manufacturer : 1) Samsung Techwin Co., Ltd. 2) Tianjin Samsung Opto-Electronics Co., LTD. Manufacturer Address : 1) 42,Sungju-dong, Changwon City, Kyungnam, Korea 2) 7 Pingchang Road, Nabkai Dist., Tianjin, China Contact Person : Jae-Hyun, Cho (Manager) Telephone : +82-31-740-8256 Received Date : December 7, 2005 Test period : Start : December 14, 2005 End : December 14, 2005 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. CERTiTEK Standards Laboratory Co., Ltd. is accredited by Korea Laboratory Accreditation Scheme (KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Tested by Reviewed by Young-Kug, Song EMC Test Engineer James Hong EMC Technical Manager Date: December 16, 2005 Date: December 16, 2005 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK REPORT REVISION HISTORY Date Revision Page No December 16, 2005 Issued (2005120014) All This report shall not be reproduced except in full, without the written approval of CERTiTEK Standards Laboratory Co., Ltd. This document may be altered or revised by CERTiTEK Standards Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CERTiTEK Standards Laboratory Co., Ltd. will constitute fraud and shall nullify the document. Test Report No.: 2005120014 Date: December 16, 2005 Page 2 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK TABLE OF CONTENTS REPORT REVISION HISTORY..........................................................................................2 1.0General Product Description...............................................................................4 1.1Model Differences.............................................................................................4 1.2Device Modifications.........................................................................................5 1.3EUT Configuration(s).........................................................................................6 1.4Test Software...................................................................................................6 1.5EUT Operating Mode(s).....................................................................................6 1.6 Configuration...................................................................................................7 1.7Calibration Details of Equipment Used for Measurement.........................................8 1.8Test Facility......................................................................................................8 1.9Measurement Procedure....................................................................................8 1.10Laboratory Accreditations and Listings.................................................................9 2.0Emissions Test Regulations............................................................................... 10 2.1Conducted Voltage Emissions...........................................................................11 2.2Radiated Electric Field Emissions.......................................................................12 APPENDIX A – TEST DATA...........................................................................................13 Conducted Voltage Emissions.................................................................................13 Radiated Electric Field Emissions.............................................................................15 APPENDIX B - Test Setup Photos and Configuration.........................................................16 Conducted Voltage Emissions.................................................................................16 Radiated Electric Field Emissions.............................................................................17 APPENDIX C – EUT Photographs...................................................................................18 EUT External Photographs......................................................................................19 EUT Internal Photographs......................................................................................21 PCB....................................................................................................................22 Photographs related to Label..................................................................................26 FCC ID label location.............................................................................................27 Test Report No.: 2005120014 Date: December 16, 2005 Page 3 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK 1.…

Text truncated - open the document above for the full version.

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK APPENDIX B - Test Setup Photos and Configuration Conducted Voltage Emissions Test Report No.: 2005120014 Date: December 16, 2005 Page 16 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Radiated Electric Field Emissions Test Report No.: 2005120014 Date: December 16, 2005 Page 17 of 27 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF2.0
