NLMDIGIMAXU-CA3Digital Camera

Thank you for buying a Samsung Camera. This manual will guide you through using the Digimax U-CA 3, including taking images, downloading images and using the MGI PhotoSuite III SE software. Please read this manual before using your new camera. ENGLISH 2 Instructions Use this camera in the following order Insert the USB cable Set up the camera driver Before connecting the camera to a PC, via the USB cable, you will need to set up the camera driver. Install the camera driver that is contained in the Application S/W CD-ROM.(p.98) Take a picture (p.27) Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal.(p.82) Check the camera’s power If the power is turned off, press the camera button to power it on.(p.30) Take a picture Check the camera’s power Check [Removable Disk] Open Windows EXPLORER and search for [Removable Disk].(p.85) To play back a video shot with this camera, be sure to use the QuickTime player supplied on the software CD-ROM. Applications that do not support the MPEG-4 codec (e.g., Windows Media Player) may not be able to play back the video. A 3 Contents READY RECORDING PLAY / SETUP 4 Contents SOFTWARE A 5 Thank you for buying a Samsung Digital Camera. Prior to using this camera, please read the user manual thoroughly. When you require After Sales service, please bring the camera and the cause of the camera malfunction (such as Batteries, Memory card etc.) to the A/S center. Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction. Keep the manual in a safe place. Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries. Apple, Mac and QuickTime logo are registered trademarks of Apple computer. Memory Stick Duo is a registered trademark of Sony Corporation. All brand and product names appearing in this manual are registered trademarks of their respective companies. Getting to know your camera This manual contains instructions on using this camera that will help you to use this camera safely and correctly. This will help prevent danger and injury to others. About the icons DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in a minor or moderate injury. 6 Do not attempt to modify this camera in any way. This may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should be carried out by your dealer or Samsung Camera Service Center. Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion. Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera, and then disconnect the power source (batteries or AC Power Adapter). You must contact your dealer or Samsung Camera Service Center. Do not continue to use the camera as this may cause a fire or electric shock. Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock. Do not operate this camera with wet hands. This could pose a risk of electric shock. Danger Do not use the flash in close proximity to people or animals. Positioning the flash too close to your subject’s eyes, may cause eyesight damage. When taking photographs, never point the lens of the camera directly into very strong light. This may result in permanent damage to your eyesight. For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.: Swallowing batteries or small camera accessories. If an accident should occur, please consult a doctor immediately. There is the possibility of injury from the camera’s moving parts. Batteries and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it time to cool. Do not recharge non rechargeable batteries. This may cause an explosion. Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera s internal components and could cause a fire. When in use, do not cover the camera or AC Power Adapter. This may cause heat to build up and distort the camera body or cause a fire. Always use the camera and its accessories in a well-ventilated area. Warning A 7 Leaking, overheating, or burst batteries could result in fire or injury. Use batteries with the correct specification for the camera. Do not short circuit, heat or dispose of batteries in fire. Do not insert the batteries with the reverse polarities. Remove the batteries when not planning to use the camera for a long period of time. Batteries may leak corrosive electrolyte and irreparably damage the camera's components. Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it continuously. It may cause burns. Do not move the camera while it is switched on, if you are using the AC Power Adapter. After use, always switch off the camera before unplugging the adapter from the wall socket. Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or electric shock. Caution An FC…

Text truncated - open the document above for the full version.

DSC25 CCD 3M LENS SDRAM-256Mb FLASH-32Mb TG/CDS/AGC 48.6MHz M S DU O USB/ AV AUDIO CODEC RTC S.P MIC EMI,ESD FILTER VIDEO AMP LENS DRIVER VIDEO FILTER TFT LCD JTAG LCD DRIVER STOBO BLOCK AUX(SELF) LIGHT KEY SW (MODE,MENU..) 27.00MHz48.00MHz POWER/ PLAY KEY STATUS LED U C BLOCKDIAGRAM 11.2896MHz POWER 15V 8.5V 5V 4.2V3.3V 3V 1.8V -7.5V E2PROM 16 3 5615 2 (I2C) AUDIO PWDN 7 CRESET 32.768KHz LRESET HRESET USB ATTACH/CTL AV DET/CTL 2 2 4 2 23 EAR2O 3 (SHCNT TGVLD AGCVLD) LRESET CRESET USB ATTACH/CTL 2 11 AV CTL 1 1 (EN) SPI 4(AUDIO DATA) SPI 2 (ACK/INT) HOST CPU CLK/DATA RESET IC AF,STOBO LED 2 I2C USB VIDEO OUT MRESET 1 (EN) AUDIO PWDN 1 AV DET BATT/LITIUM CHECK 2

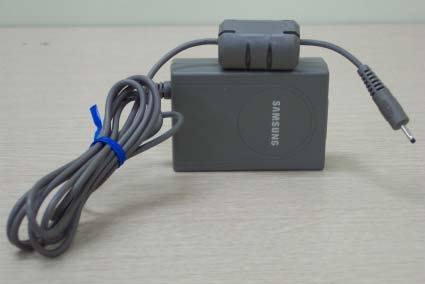

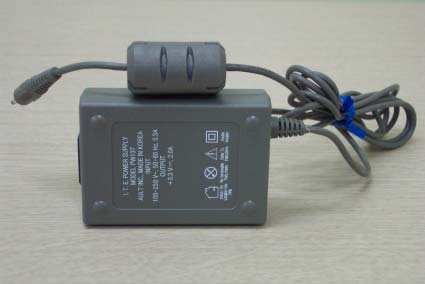

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EUT External Photographs Test Report No.: CTK03-F106 Date: September 26, 2003 Page 1 of 3 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: CTK03-F106 Date: September 26, 2003 Page 2 of 3 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: CTK03-F106 Date: September 26, 2003 Page 3 of 3 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Photographs related to Label Test Report No.: CTK03-F106 Date: September 26, 2003 Page 1 of 1 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EUT Internal Photographs Test Report No.: CTK03-F106 Date: September 26, 2003 Page 1 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK PCB Test Report No.: CTK03-F106 Date: September 26, 2003 Page 2 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: CTK03-F106 Date: September 26, 2003 Page 3 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: CTK03-F106 Date: September 26, 2003 Page 4 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: CTK03-F106 Date: September 26, 2003 Page 5 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: CTK03-F106 Date: September 26, 2003 Page 6 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EMC TEST REPORT For FCC Test Report No. : CTK03-F106 Date of Issue : September 26, 2003 Model/Type No: : Digimax U-CA3 Kind of Product : Digital Camera Applicant : Samsung Techwin Co., Ltd. Applicant Address : 145-3 Sangdaewon 1 dong, Chungwon-ku, Sungnam City, Kyungki-do, Korea Manufacturer : 1) Samsung Techwin Co., Ltd. 2) Tianjin Samsung Opto-Electronics Co., Ltd. Manufacturer Address : 1) 42, Sungju-dong, Changwon City, Kyungnam, Korea 2) 7 Pingchang Road, Nankai Dist., Tianjin, China Contact Person : Kun-Sop, Kim (Manager) Telephone : +82-31-740-8253 Received Date : September 18, 2003 Test period : Start: September 19, 2003 End: September 25, 2003 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. CERTiTEK Standards Laboratory Co., Ltd. is accredited by Korea Laboratory Accreditation Scheme (KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Tested by Reviewed by Young-Joon, Park EMC Test Engineer James Hong EMC Technical Manager Date: September 26, 2003 Date: September 26, 2003 Test Report No.: CTK03-F106 Date: September 26, 2003 Page 1 of 14 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK REPORT REVISION HISTORY Date Revision Page No September 26, 2003 Issued (CTK03-F106) All This report shall not be reproduced except in full, without the written approval of CERTiTEK Standards Laboratory Co., Ltd. This document may be altered or revised by CERTiTEK Standards Laboratory Co., Ltd. Personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CERTiTEK Standards Laboratory Co., Ltd. will constitute fraud and shall nullify the document. Test Report No.: CTK03-F106 Date: September 26, 2003 Page 2 of 14 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK TABLE OF CONTENTS 1.0 General Product Description.....................................................................................4 1.1 Model Differences...................................................................................................4 1.2 Device Modifications................................................................................................4 1.3 EUT Configuration(s) ...............................................................................................5 1.4 Test Software .........................................................................................................5 1.5 EUT Operating Mode(s)............................................................................................5 1.6 Calibration Details of Equipment Used for Measurement...............................................6 1.7 Test Facility............................................................................................................6 1.8 Measurement Procedure..........................................................................................6 1.9 Laboratory Accreditations and Listings .......................................................................7 2.0 Emissions Test Regulations.......................................................................................8 2.1 Conducted Voltage Emissions...................................................................................9 2.2 Radiated Electric Field Emissions.............................................................................10 Configurations ...........................................................................................................11 APPENDIX A - TEST DATA ............................................................................................12 Conducted Voltage Emissions (Quasi-Peak reading) ...................................................12 Radiated Electric Field Emissions (Quasi-Peak reading)...............................................14 Test Report No.: CTK03-F106 Date: September 26, 2003 Page 3 of 14 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK 1.0 General Product Description 1.0.1 Tested Equipment Unless otherwise indicated, all tests were conducted on Model Digimax U-CA3. Tests performed on Model were considered to be representative of Model(s) . 1.0.2 Equipment Size, Mobility and Identification Dimensions: 102 by 53.8 by 31.6 (WxHxD) mm in Mobility: Hand-Held Table-top Floor-standing - Serial No.: Prototype 1.0.3 Electrical Ratings Input: Adaptor : 100-250Vac, 50/60Hz, 0.3A EUT : 3.3Vdc Output: Adaptor : 3.3Vdc, 2.0A EUT : - 1.0.4 Test Voltage & Frequency (Using the adaptor) Unless indicated otherwise on the individual data sheet or test results, the test voltage and frequency was as indicated below. Voltage: 120Vac Frequency: 60Hz 1.0.5 Clock & Other Frequencies Utilized DSC25 : 48.00MHz, 27.00MHz TG/CDS/AGC : 48.6MHz AUDIO CODEC : 11.2896MHz RTC : 32.768kHz 1.1 Model Differences Not applicable 1.2 Device Modifications The following modifications were necessary for compliance: Not applicable Test Report No.: CTK03-F106 Date: September 26, 2003 Page 4 of 14 This Report shall not be repr…

Text truncated - open the document above for the full version.

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK APPENDIX B - Test Setup Photos and Configuration Conducted Voltage Emissions Test Report No.: CTK03-F106 Date: September 26, 2003 Page 1 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Radiated Electric Field Emissions Test Report No.: CTK03-F106 Date: September 26, 2003 Page 2 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2
