NLMDIGIMAXU-CA5Digital Camera

Thank you for buying a Samsung Camera. This manual will guide you through using the camera, including capturing images, downloading images and using the application software. Please read this manual carefully before using your new camera. ENGLISH User's Manual 2 Instructions Use this camera in the following order Insert the USB cable Set up the camera driver Before connecting the camera to a PC, via the USB cable, you will need to set up the camera driver. Install the camera driver that is contained in Application software CD-ROM. (p.90) Take a picture (p.19) * When taking a picture, you should use the rechargeable battery supplied with the camera. Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal. (p.98) Check the camera’s power. If the power is turned off, press the camera button to turn it on. (p.22) Take a picture Check the camera’s power Check [Removable Disk] Open Windows EXPLORER and search for [Removable Disk]. (p.99) If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader. 3 Contents Getting to know your camera5 About the icons5 Danger6 Warning6 Caution7 An FCC warning7 System chart8 Identification of features10 Front & Top10 Back & Bottom10 Side/ 5-function button11 Cradle12 Movie clip mode12 Voice recording mode12 Still image mode12 Connecting to a Power Source13 Using the SAC-41 (for both Charger and AC adapter) 14 How to charge the rechargeable battery (SLB-1137)14 Using the batteries17 Removing the battery17 Maintenance of the memory card18 Preserving the memory card data18 Instructions on how to use the memory card19 Inserting the memory card20 Removing the memory card20 When Using the Camera for the First Time21 LCD monitor indicator22 Starting the recording mode23 Things to Watch Out for When Taking Pictures26 Using the camera buttons to adjust the camera27 POWER button27 SHUTTER button27 ZOOM W/T button27 Voice memo/ UP button29 Recording a voice memo29 Macro / Down button30 Focus lock31 Flash/ Left button32 Self-timer/ Remote/ Right button35 MENU/ OK button37 M button : selecting preset scene modes38 +/- button39 LCD button43 Using the LCD monitor to adjust the camera settings44 How to use the menu46 Mode46 Size47 Quality48 Metering49 Continuous shot49 Sharpness50 Effect50 Special Effect51 Special Effect : Preset focus frames51 Special Effect : Composite shots52 Special Effect : Photo Frame51 Starting play mode55 Playing back a still image55 Playing back a movie clip56 How to capture the movie clip56 Playing back a movie clip56 RECORDING PLAY READY 4 Contents How to capture the movie clip56 Playing back a recorded voice56 Using the camera buttons to adjust the camera59 Thumbnail / Enlargement button 59 Voice memo / Up button60 Play & Pause/ Down button61 LEFT/ RIGHT/ MENU/ OK button62 LCD button 62 Album button (M button)63 How to use the album63 Removing still images from the album64 Playing back the albums65 Delete button66 Setting up the play back function using the LCD monitor67 Starting the slide show70 Protecting images71 Deleting images72 Resize73 Rotating an image74 DPOF 74 DPOF : STANDARD75 DPOF : INDEX75 DPOF : PRINT SIZE76 PictBridge77 PictBridge: Picture Selection78 PictBridge: Print Setting79 PictBridge: Printing80 PictBridge : RESET81 Setup menu82 File name83 Auto power off84 Language 85 Formatting a memory card85 Setting up the Date/ Time/ Date type86 Imprinting the recording date86 Sound 87 Connecting an External Device (USB) 87 Function lamp88 Auto Focus lamp89 LCD brightness89 Selecting Video out type90 Quick view92 Initialisation(RESET ALL)92 Setting up the MYCAM menu93 Start up image93 Start up sound94 Important notes95 Warning indicator97 Before contacting a service centre98 Specifications101 Software Notes88 System Requirements88 About the software89 Setting up the application software90 Starting PC Mode98 Removing the USB Driver for Windows 98SE101 Removable Disk102 Removing the removable disk103 Setting up the USB Driver for MAC104 Using the USB Driver for MAC104 Digimax Viewer 2.1105 Using PhotoImpression106 Digimax Reader107 FAQ109 SETUP SOFTWARE 5 Getting to know your camera Thank you for buying a Samsung Digital Camera. Prior to using this camera, please read the user manual thoroughly. When you require After Sales service, please bring the camera and the cause of the camera malfunction (such as Batteries, Memory card etc.) to the A/S centre. Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction. Keep the manual in a safe place. Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries. All brand and product names appearing in this manual are registered trademarks of their respective companies. This manual contains instructions on using this camera that will help you to use this camera safely and correctly. This will help prevent danger and injury to others. About the icons DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in a minor or moderate injury. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed …

Text truncated - open the document above for the full version.

61 Voice ( ) memo / Up button 3. Press the shutter button to start recording and voice will be recorded to the still image for 10 seconds. While the voice is recording, the recording status window will be displayed as shown alongside. 4. The recording can be stopped by pressing the shutter button again. 5. The ( ) icon will be displayed on the LCD monitor after voice memo recording has finished. - Voice memos can’t be recorded onto movie clip files. - A distance of 40cm between you and the camera (microphone) is the best distance to record sound. - The voice memo will be saved in *.wav format, but has the same file name as the still image to which it corresponds. - If you add a new voice memo to the still image that already has a voice memo, the existing voice memo will be erased. Play & Pause ( )/ Down button In Play mode, the play & pause/ down button works as follows: - If the menu is displayed Press the DOWN button to move from the main menu to a sub menu, or to move down the sub menu cursor. - If a still image with a voice memo, a voice file, or a movie clip is playing In Stop mode: Plays a still image with a voice memo, a voice file, or a movie clip. During playback : Temporarily stops playback. In Pause mode : Resumes playback [ Voice recording is stopped ][ Voice recording is paused ][ Voice recording is playing ] 333 Stop : Shutter PLAY PAUSE PLAY 62 LEFT/ RIGHT/ MENU/ OK button LEFT / RIGHT/ MENU/ OK buttons activate the following. - LEFT button : While the menu is showing, press the LEFT button to select the menu tab to the left of the cursor. - RIGHT button : While the menu is showing, press the RIGHT button to select the menu tab to the right of the cursor, or to move an secondary menu. - MENU button : When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to the initial display. - OK button: When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is changed by using the 5 function button. The shooting information will be displayed on the LCD monitor. The last image stored in the memory is displayed on the LCD monitor by pressing the play mode button. Pressing the LCD( ) button in the PLAY mode will change the display as shown below. [Image & Icons] [Image & Information] [Image only] [ Image & Icons ][ Image & Information ][ Image only ] Pressing the LCD button Pressing the LCD button Pressing the LCD button LCD ( ) button Size : 2592X1944 Av : F2.8 Tv : 1/60 ISO : 100 Flash : Off Date : 2005/01/01 63 Album button (M button) AllA1A2 A3A4A5 A6A7A8 Select Slide Add Remove Exit:MENU Move :   AllA1A2 A3A4A5 A6A7A8 Select Slide Add Remove Exit:MENU A4 Select Slide Add Remove Exit:MENU Move :   You can organise the captured still images into albums by using the M button. This camera has 8 albums and each album can take up to 100 images. How to use the album Selecting the album 1. In the play mode, press the M button. 2. Select [Select] menu by pressing the Up/Down button and press the Right button. 3. Select a desired album by pressing the Up/Down/Left/Right buttons and press the OK button. Inserting still images into the album 1. After selecting an album, press the menu button. 2. Select the [Add] menu by pressing the Up/Down button and press the Right button. 64 Album button (M button) A4 No Image! A4 A4 No Image! Add Add Cancel Confirm:OK A4 Remove Remove Cancel Confirm:OK A4 Select Slide Add Remove Exit:MENU Move : Select All Pics   3. Select the still images you wish to add by pressing the Up/Down/Left/Right buttons and press the Zoom T button. V marks are displayed on the selected images. * To cancel the selection, press the Zoom T button again. 4. Press the OK button and a confirmation window will display. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button. - [Add]: Inserts the selected images into the album. - [Cancel] : Cancels the inserting images. Removing still images from the album 1. Select a desired album and press the menu button. 2. Select [Remove] menu by pressing the Up/Down button and press the Right button. 3. Select a desired sub menu and press the OK button. - [All]: All of the still images in the album will be removed. - [Select] : Specific still images in the album can be removed. If [Select] is selected - Select images that you want to remove by pressing the Up/Down/Left/Right buttons and press the Zoom T button. V marks are displayed on the selected images. 4. Press the OK button and a confirmation window will display. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button. - [Remove] : Removes the selected images from the album. - [Cancel] : Cancels the removing images. * The removed images are not deleted from the memory, but just removed from the album. 65 Album button (M button) If a an image is deleted from the memory, the image doesn’t display on an album. An image can’t be added twice into the same album. An image can be added into the different albums. INFORMATION A4 Select Slide Add Remove Exit:MENU Move : Select All Pics   A4 Select Slide Add Remove Exit:MENU Move :   A4 Select Slide Add Remove Exit:MENU Move : Start Interval Repeat Effect 3 Sec Off Cancel   Start Interval Repeat Effect 3 Sec Off Cancel Playing back the albums Playing back all of the albums 1. Select [All] menu and press the OK button. All of the albums will be selected. 2. Press the menu button. 3. Select [Slide] menu by pressing the Up/Down button and press the Right button. You can select [Start], [Interval], [Repeat] and [Effect] menus. - [Start]: Start the slide show - [Interval] : Set the slide show play interval - [Repeat] : Choose to repeat the slide show after finishing the first cycle. - [Effect]: Unique screen effects can be used for the slide show. 4. Select [Start] menu by pressing the Up/Down button and press the OK button to start the slide show. Playing a desired album 1. Select a desi…

Text truncated - open the document above for the full version.

DSP 54MHz SP MIC 12.00MHz U-CA5 BLOCK DIAGRAM USB 2.0 FLASH Memory DDR-SDRAM CCD Sensor TG&CDS&AGC LENS M. DRIVER STROBO BLOCK SPEAKER AMP KEY SWITCH STATUS LED Battery Check TFT-LCD EEPROM CRADLECONNECTOR VIDEO FILTER FILTER VIDEO OUT CHARGER INPUT LENS POWER Block AUX(SELF)LIGHT POWER / PLAYKEY 32.768KHz SD CARD Remote Control VOICE OUT KEY LED MIC AMP C R A D L E CCD15V -7.5V 3.3V LCD 16.5V-7.5V 5V 3.3VMain2.5V4.2V3.3V1.8V Etc 4.5V

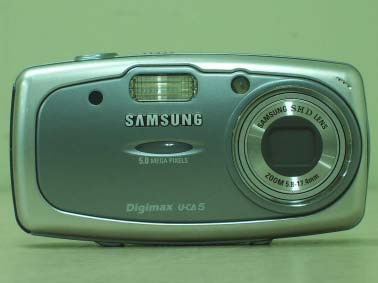

1 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EUT External Photographs Test Report No.: 2004120015 Date: December 15, 2004 Page 1 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2004120015 Date: December 15, 2004 Page 2 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 3 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2004120015 Date: December 15, 2004 Page 3 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 4 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2004120015 Date: December 15, 2004 Page 4 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2

1 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Photographs related to Label Test Report No.: 2004120015 Date: December 15, 2004 Page 1 of 1 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2

1 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EUT Internal Photographs [Digital camera] [Cradle] Test Report No.: 2004120015 Date: December 15, 2004 Page 1 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK PCB [Digital camera] Test Report No.: 2004120015 Date: December 15, 2004 Page 2 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 3 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2004120015 Date: December 15, 2004 Page 3 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 4 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2004120015 Date: December 15, 2004 Page 4 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 5 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK [Cradle] Test Report No.: 2004120015 Date: December 15, 2004 Page 5 of 5 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2

1 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EMC TEST REPORT For FCC Test Report No. : 2004120015 Date of Issue : December 15, 2004 FCC ID : NLMDIGIMAXU-CA5 Model/Type No. : Digimax U-CA 5 Kind of Product : Digital Camera Applicant : Samsung Techwin Co., Ltd. Applicant Address : 145-3, Sangdaewon 1-Dong, Jungwon-Gu, Sungnam-City, Kyungki-Do, Korea Manufacturer : 1) Samsung Techwin Co., Ltd. 2) Tianjin Samsung Opto-Electronics Co., Ltd. Manufacturer Address : 1) 42, Sungju-dong, Changwon City, Kyungnam, Korea 2) 7 Pingchang Road, Nankai Dist., Tianjin, China Contact Person : Mr. WonKyu, Jang/Research Engineer Telephone : +82-31-740-8354 Received Date : December 10, 2004 Test period : Start : December 11, 2004 End : December 14, 2004 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. CERTiTEK Standards Laboratory Co., Ltd. is accredited by Korea Laboratory Accreditation Scheme (KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Tested by Reviewed by Young-Joon, Park EMC Test Engineer James Hong EMC Technical Manager Date: December 15, 2004 Date: December 15, 2004 Test Report No.: 2004120015 Date: December 15, 2004 Page 1 of 17 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK REPORT REVISION HISTORY Date Revision Page No December 15, 2004 Issued (2004120015) All This report shall not be reproduced except in full, without the written approval of CERTiTEK Standards Laboratory Co., Ltd. This document may be altered or revised by CERTiTEK Standards Laboratory Co., Ltd. Personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CERTiTEK Standards Laboratory Co., Ltd. will constitute fraud and shall nullify the document. Test Report No.: 2004120015 Date: December 15, 2004 Page 2 of 17 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 3 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK TABLE OF CONTENTS REPORT REVISION HISTORY ..........................................................................................2 1.0 General Product Description...............................................................................4 1.1Model Differences.............................................................................................4 1.2Device Modifications.........................................................................................4 1.3EUT Configuration(s).........................................................................................5 1.4Test Software...................................................................................................6 1.5EUT Operating Mode(s).....................................................................................6 1.6Calibration Details of Equipment Used for Measurement.........................................7 1.7Test Facility......................................................................................................7 1.8Measurement Procedure ....................................................................................7 1.9Laboratory Accreditations and Listings .................................................................8 2.0Emissions Test Regulations.................................................................................9 2.1Conducted Voltage Emissions...........................................................................10 2.2Radiated Electric Field Emissions.......................................................................11 Configurations ...........................................................................................................12 APPENDIX A - TEST DATA ............................................................................................14 Conducted Voltage Emissions (Quasi-Peak reading) ...................................................14 Radiated Electric Field Emissions (Quasi-Peak reading)...............................................17 Test Report No.: 2004120015 Date: December 15, 2004 Page 3 of 17 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 4 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK 1.0 General Product Description 1.0.1 Tested Equipment Unless otherwise indicated, all tests were conducted on Model Digimax U-CA 5. Tests performed on Model were considered to be representative of Model(s) . 1.0.2 Equipment Size, Mobility and Identification Dimensions: 103.1(W) by 56(H) by 31.4(D) mm in Mobility: Hand-held Table-top Built-in Traveling Floor-standing Serial No.: Prototype 1.0.3 Electrical Ratings Input: Adapter – AC 100-240V, 50/60Hz EUT - DC 4.2V Output: Adapter – DC 4.2V, 750mA EUT - Not applicable 1.0.4 Test Voltage & Frequency Unless indicated otherwise on the individual data sheet or test results, the test voltage and frequency was as indicated below. Voltage: 120Vac Frequency: 60Hz 1.0.5 Clock & Other Frequencies Utilized 12.00MHz, 32.768MHz, 54MHz 1.1 Model Differences Not applicable 1.2 Device Modifications The following modifications were necessary for compliance: Not applicable Test Report No.: 2004120015 Date: December 15, 2004 Page 4 of 17 This Report shall not …

Text truncated - open the document above for the full version.

1 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK APPENDIX B - Test Setup Photos and Configuration Conducted Voltage Emissions [PC mode] Test Report No.: 2004120015 Date: December 15, 2004 Page 1 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK [CCTV mode] Test Report No.: 2004120015 Date: December 15, 2004 Page 2 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 3 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Radiated Electric Field Emissions [PC mode] Test Report No.: 2004120015 Date: December 15, 2004 Page 3 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 4 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK [CCTV mode] Test Report No.: 2004120015 Date: December 15, 2004 Page 4 of 4 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2
