NLMDIGIMAXV70Digital Camera

Thank you for buying a Samsung Camera. This manual will guide you through using the camera, including capturing images, downloading images and using the application software. Please read this manual carefully before using your new camera. ENGLISH User's Manual 2 Instructions Use this camera in the following order Insert the USB cable Set up the camera driver Before connecting the camera to a PC, via the USB cable, you will need to set up the camera driver. Install the camera driver that is contained in the Application S/W CD-ROM.(p.98) Take a picture (p.22) Insert the supplied USB cable into the PC’s USB port and the camera’s USB connection terminal.(p.107) Check the camera’s power If the power is turned off, press the camera button to power it on.(p.28) Take a picture Check the camera’s power Check [Removable Disk] Open Windows EXPLORER and search for [Removable Disk].(p.108) To play back a video shot with this camera, be sure to use the QuickTime player supplied on the software CD-ROM. Applications that do not support the MPEG-4 codec (e.g., Windows Media Player) may not be able to play back the video. If you use a card reader to copy the images on the memory card to your PC, the images could be damaged. When transferring the images taken with the camera to your PC, be sure to use the supplied USB cable to connect the camera to your PC. Please note that the manufacturer holds no responsibility for loss or damage of images on the memory card due to the use of a card reader. 3 Getting to know your camera5 About the icons5 Danger6 Warning6 Caution7 An FCC warning7 System chart8 Identification of features10 Front & Top10 Back & Bottom11 Side/ 5-function button 12 Mode dial12 Connecting to a Power Source15 Using the batteries15 Removing the battery15 Using the AC power adapter (SAC-51, 5.0V)16 Instructions on how to use the memory card17 Maintenance of the memory card17 Preserving the memory card data17 Inserting the memory card19 Removing the memory card19 When Using the Camera for the First Time20 LCD monitor indicator21 Starting the recording mode22 How to use the AUTO mode22 How to use the PROGRAM mode23 How to use the A/S/M mode23 How to use the MySET mode24 How to use the VOICE RECORDING mode24 How to use the MOVIE CLIP mode25 NIGHT SCENE mode25 How to use the SCENE mode26 Things to Watch Out for When Taking Pictures27 Using the camera buttons to adjust the camera28 POWER button 28 SHUTTER button/ Jog dial 28 ZOOM W/T button28 Voice memo/ UP button31 Macro/ Down button (Focusing)32 Focus lock33 FLASH/ LEFT button 34 Self-timer/ Remote/ Right button36 MENU/ OK button 38 S button 38 MF button 44 LCD button45 AEL button (Automatic Exposure Lock) 45 Using the LCD monitor to adjust the camera settings 46 How to use the menu48 Size 48 Quality 49 Metering 50 Effect 50 Sharpness 51 Continuous shot 51 Save / Load the camera configuration (MySET)52 Scene53 Starting play mode54 Playing back a still image54 Playing back a movie clip55 Contents READY RECORDING PLAY 4 Playing back a recorded voice55 LCD monitor indicator56 Using the camera buttons to adjust the camera57 Thumbnail/ Enlargement button 57 Voice memo / Up button58 Play & Pause/ Down button59 LEFT/ RIGHT/ MENU/ OK button60 LCD button 60 Delete button61 Setting up the play back function using the LCD monitor62 Deleting images64 Protecting images 65 Starting the slide show66 Resize67 Rotating an image68 DPOF 68 DPOF : STANDARD69 DPOF : INDEX69 DPOF : PRINT SIZE70 DPOF : CANCEL70 PictBridge71 PictBridge: Picture Selection72 PictBridge: Print Setting73 PictBridge: Picture Printing74 PictBridge : DPOF AUTO PRINT75 PictBridge : RESET75 Setup menu76 File name77 Auto power off78 Language79 Formatting a memory card79 Setting up the Date/ Time/ Date type80 Imprinting the recording date80 Function lamp81 Sound 82 LCD brightness82 Selecting Video out type83 Quick view84 Connecting an External Device (USB)84 Initialization(RESET ALL)85 Setting up the MYCAM menu86 Start up image86 Start up sound87 Shutter sound87 Important notes88 Warning indicator90 Before contacting a service center91 Specifications94 Software Notes96 System Requirements96 About the software97 Setting up the application software98 Starting PC Mode107 Removing the USB Driver for Windows 98SE110 Removable Disk111 Removing the removable disk112 Setting up the USB Driver for MAC113 Using the USB Driver for MAC113 Digimax Viewer 2.1114 Using PhotoImpression115 Digimax Reader116 FAQ118 Contents SOFTWARE SETUP 5 Getting to know your camera Thank you for buying a Samsung Digital Camera. Prior to using this camera, please read the user manual thoroughly. When you require After Sales service, please bring the camera and the cause of the camera malfunction (such as Batteries, Memory card etc.) to the A/S center. Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction. Keep the manual in a safe place. Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States and/or other countries. Apple, Mac and QuickTime logo are registered trademarks of Apple computer. All brand and product names appearing in this manual are registered trademarks of their respective companies. This manual contains instructions on using this camera that will help you to use this camera safely and correctly. This will help prevent danger and injury to others. About the icons DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in a minor or moderate injury. NOTE: This equipment has been …

Text truncated - open the document above for the full version.

38 MENU/ OK button If the menu is displayed, use the 5-Function buttons to change the data values and for your changes to be accepted If the menu is not displayed, press the MENU/OK button to display a menu for the current camera mode on the LCD monitor. Press the button again to return to the previous state. - There is no menu for VOICE RECORDING mode. - The menu screen may not show on the LCD when another button is pressed or image data is being processed. (The green lamp next to the view finder blinks) - When the menu is showing on the LCD monitor, it is not possible to operate the shutter button i.e. capture an image. To capture an image, simply cancel the menu display by pressing the MENU button. [ Menu on ] [ Menu off ] Pressing the MENU button S button You can use the S button to adjust the values for the exposure compensation, white balance, ISO, RGB, A/S/M mode and longtime shutter. Main menuSub menuAvailable camera mode Exposure compensation WHITE BALANCE ISO -2.0 ~ 0.0 ~ +2.0(0.5EV steps) AUTO, DAYLIGHT, CLOUDY, FLUORESCENT H, FLUORESCENT L, TUNGSTEN, CUSTOM. AUTO, 50, 100, 200, 400 SIZE 3072X2304 3072 2816X2112 2816 2592X1944 2592 2272X1704 2272 2048X1536 2048 39 S button Main menuSub menuAvailable camera mode A (Aperture priority mode) S (Shutter priority mode) M (Manual mode) Shutter speed, Aperture value (Changed by zoom scale) A/S/M mode LT RGB R(Red), G(Green), B(Blue) Compensating Exposure 1. Press the S button, and then use the UP and DOWN buttons to select the exposure compensation icon ( ). The exposure compensation menu bar will appear as shown. 2. Use the LEFT and RIGHT buttons to set the desired exposure compensation factor. 3. Press the OK button. The value you set will be saved and the Exposure Compensation setup mode will close. If you change the exposure value, the exposure indicator ( ) will be displayed on the bottom of the LCD monitor. * A negative exposure compensation value reduces the exposure. Note that a positive exposure compensation value increases the exposure and the LCD monitor will appear white or you may not get good pictures. Exposure compensation : This camera automatically adjusts the exposure according to the ambient lighting conditions. You can also select the exposure value by using the S button. 40 S button Selecting a White Balance 1. Press the S button, and then use the UP and DOWN buttons to select the white balance icon ( ). The white balance menu bar will appear as shown. 2. Use the LEFT and RIGHT buttons to set the white balance to the desired value. The value you set will be displayed on the LCD monitor. AUTO : The camera automatically selects the appropriate white balance settings, depending on the prevailing lighting conditions. DAYLIGHT : For taking images outside. CLOUDY : For taking images under a cloudy and overcast sky. Fluorescent H : For shooting under daylight fluorescent types of three-way fluorescent lighting. Fluorescent L : Shooting under white fluorescent lighting. TUNGSTEN : For shooting under tungsten (standard light bulb) lighting. CUSTOM : Allows the user to set the white balance according to the shooting condition. Different lighting conditions may cause a colour cast on your images. 3. Press the OK button. The value you set will be saved and White Balance setup mode will end. White balance : The white balance control allows you to adjust the colours to appear more natural looking. Using the Custom White Balance White balance settings may vary slightly depending on the shooting environment. You can select the most appropriate white balance setting for a given shooting environment by setting up the custom white balance. 1. Select the CUSTOM( ) menu of the White Balance. 2. Place a sheet of white paper in front of the camera so that the LCD monitor shows only white, and then press the shutter button. 3. Press the OK button and your custom white balance value is stored. - The custom white balance value will be applied, starting with the next picture you take. - The user configured white balance will remain effective until it is overwritten. [ White paper ] MEASURE:SHUTTER 41 S button Selecting an ISO Sensitivity 1. Press the S button, and then use the UP and DOWN buttons to select the ISO icon ( ). The ISO menu bar will appear as shown. 2. Use the LEFT and RIGHT buttons to select the desired ISO sensitivity value. - AUTO : The camera's sensitivity is automatically changed by variables such as lighting value or subject brightness. - 50, 100, 200, 400 : You can increase the shutter speed while the same amount of light is present, by increasing the ISO sensitivity. However, the image may be saturated in high luminance. The higher the ISO value, the higher the camera’s sensitivity to light is and therefore the greater its capacity to take pictures in dark conditions. However, the noise level in the image will increase as the ISO value increases, making the image appear coarse. 3. When you press the OK button, the value you set will be saved and ISO setup mode will end. ISO : You can select the ISO sensitivity when taking pictures. The speed or specific light-sensitivity of a camera is rated by ISO numbers. RGB : Allows the user to adjust the R (Red), G (Green), and B (Blue) values of the images to be captured. Setting RGB Values 1. Press the S button, and then use the UP and DOWN buttons to select the RGB icon ( RGB). The RGB menu bar will appear as shown. 2. Use the UP/ DOWN/ LEFT and RIGHT buttons to select the desired RGB value. - Up/ Down Button : Navigates between R, G, and B icons. - Left/ Right Button : Changes value of each icon. 3. When you press the OK button, the value you set will be saved and RGB setup mode will end. 42 S button A/S/M : The user can manually set shutter speed or aperture value in the menu. Selecting the A/S/M shooting mode. 1. Turn the mode dial to select the ASM shooting mode. 2. Press the S button and use the Up and Down buttons to select the A/S/M shooting mode icon ( ASM ) to open the …

Text truncated - open the document above for the full version.

78 File name The first stored folder name is 100SSCAM, and the first file name is SA700001. Whenever you store an image, the file number is increased by 1. The file numbers are named from SA700001 to SA709999 automatically, 9999 files will be stored in a folder. The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM 101SSCAM ~ 999SSCAM. The files used with the memory card conform to the DCF(Design rule for Camera File systems) format. INFORMATION Even if the batteries or AC adapter are removed and inserted again, the power off setting will be preserved. Note that the automatic power off function will not operate if the camera is in PC mode, slide show, playing back a voice recording or movie clip. INFORMATION Auto power off Setting Power Off 1. In any mode other than Voice Recording mode, press the MENU button. 2. Press the LEFT/ RIGHT button and select the [SETUP] menu tab. 3. Select the [PWR SAVE] menu by pressing the UP/ DOWN button and press the RIGHT button. 4. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button. Selecting [OFF]: The power off function will not operate. Selecting [1~10MIN] : The power will turn off automatically if not used for the period of time specified. This function switches the camera off after a set amount of time in order to prevent unnecessary battery drainage. SET UP FILE PWR SAVE LANGUAGE FORMAT DATE.TIME BACK:SET:OK 3072 OFF 79 Language Setting Language 1. In any mode other than Voice Recording mode, press the MENU button. 2. Press the LEFT/ RIGHT button and select the [SETUP] menu tab. 3. Select the [LANGUAGE] menu by pressing the UP/ DOWN button and press the RIGHT button. 4. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button. LANGUAGE sub menu - Type A : English, French, German, Spanish, Italian, Russian, Dutch and Portuguese. - Type B : English, Korean, Simplified Chinese, Traditional Chinese, Danish, Swedish, Thai, and Malaysian. Formatting a Memory Card 1. In any mode other than Voice Recording mode, press the MENU button. 2. Press the LEFT/ RIGHT button and select the [SETUP] menu tab. 3. Select the [FORMAT] menu by pressing the UP/ DOWN button and press the RIGHT button. 4. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button. If [NO] is selected : The memory card will not be formatted. Press the menu button twice and the menu display will disappear. If [YES] is selected : A [PLEASE WAIT!] message appears and the memory card will be formatted. If you ran FORMAT in Play mode, a [NO IMAGE!] message will appear. Be sure to run [FORMAT] on the following types of memory card. - A new memory card, or an unformatted memory card. - A memory card that has a file this camera cant recognize or one that has been taken from another camera. Always format the memory card using this camera. If you insert a memory card that has been formatted using other cameras, memory card readers, or PCs, you will get a [CARD ERROR!] message. There is a choice of languages that can be displayed on the LCD monitor. Even if the batteries or AC adapter are removed and inserted again, the language setting will be preserved. Formatting a memory card This is used for formatting the memory card. If you run [FORMAT] on the memory card, all images, including the protected images, will be deleted. Be sure to download important images to your PC before formatting the memory card. SET UP FILE PWR SAVE LANGUAGE FORMAT DATE.TIME BACK:SET:OK 3072 ENGLISH DANSK SET UP FILE PWR SAVE LANGUAGE FORMAT DATE.TIME BACK:SET:OK 3072 NO YES 80 Setting up the Date/ Time/ Date type You can change the date and time that will be displayed on the captured images and set up the date type. There is an option to include DATE/TIME on still images. Date Imprinting 1. In any mode other than Voice Recording mode, press the MENU button. 2. Press the LEFT/ RIGHT button and select the [SETUP] menu tab. 3. Select the [IMPRINT] menu by pressing the UP/ DOWN button and press the RIGHT button. 4. Use the UP and DOWN buttons to select the desired date imprint type, and then press the OK button. [OFF]: The DATE & TIME will not be imprinted on the image file. [DATE]: Only the DATE will be imprinted on the image file. [DATE&TIME]: The DATE & TIME will be imprinted on the image file. Imprinting the recording date Setting Date/Time & Selecting Date type 1. In any mode other than Voice Recording mode, press the MENU button. 2. Press the LEFT/ RIGHT button and select the [SETUP] menu tab. 3. Select the [DATE. TIME] menu by pressing the UP/ DOWN button and press the RIGHT button. 4. Use the UP, DOWN, LEFT, and RIGHT buttons to select the desired submenu value, and then press the OK button. RIGHT button : Selects the year/month/day/hour/minute/date type. LEFT button : Moves the cursor to the [DATE. TIME] main menu if the cursor is at the first item of the date and time setup. In all other cases, the cursor will be shifted to the left of its current position. UP and DOWN buttons: Changes the setting value. - Date type [YY/MM/DD] : year/ month/ day[MM/DD/YY] : month/ day/ year [DD/MM/YY] : day/ month/ year SET UP FILE PWR SAVE LANGUAGE FORMAT DATE.TIME BACK:SET:OK 3072 04/ 09/ 01 00:00 YY/MM/DD SET UP PWR SAVE LANGUAGE FORMAT DATE.TIME IMPRINT BACK:SET:OK 3072 OFF DATE DATE & TIME 81 Imprinting the recording date Function lamp You can turn on and off the function lamp located on the front of the camera. Setting the function lamp 1. In any mode other than Voice Recording mode, press the MENU button. 2. Press the LEFT/ RIGHT button and select the [SETUP] menu tab. 3. Select the [LAMP] menu by pressing the UP/ DOWN button and press the RIGHT button. 4. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button. If [OFF] is selected : The function lamp will not light up. If [ON] is selected : The function lamp will light up. Description of the Function lamp FunctionDescription Power onBlue light blink…

Text truncated - open the document above for the full version.

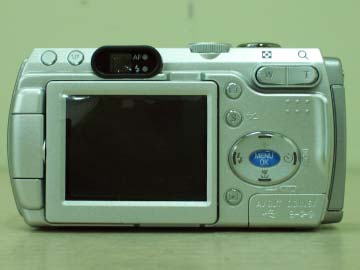

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EUT External Photographs Test Report No.: 2004100015 Date: October 15, 2004 Page 1 of 1 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Photographs related to Label Test Report No.: 2004100015 Date: October 15, 2004 Page 1 of 1 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK EUT Internal Photographs Test Report No.: 2004100015 Date: October 15, 2004 Page 1 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK PCB Test Report No.: 2004100015 Date: October 15, 2004 Page 2 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2004100015 Date: October 15, 2004 Page 3 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2004100015 Date: October 15, 2004 Page 4 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2004100015 Date: October 15, 2004 Page 5 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Test Report No.: 2004100015 Date: October 15, 2004 Page 6 of 6 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2

CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK APPENDIX B - Test Setup Photos and Configuration Conducted Voltage Emissions Test Report No.: 2004100015 Date: October 15, 2004 Page 1 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2 CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyungki-Do, Korea 449-100 Tel: +82-31-339-9970 Fax: +82-31-339-9855 http://www.certitek.com/ CERTiTEK Radiated Electric Field Emissions Test Report No.: 2004100015 Date: October 15, 2004 Page 2 of 2 This Report shall not be reproduced except in full without the written approval of CERTiTEK Form No.: CTK-FF1.2
