NLMSEP1001RWNWireless baby video camera

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 6. User manual SEW-3037W If you have additional questions or need further assistance, contact Samsung support at (877) 349-3149. To extend your one year warranty by three months, be sure to go to www.samsungsv.com and register your product. SafeVIEW User Manual English SEW-3037W-ENGLISH.indd 12012-08-17 오후 4:34:23 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/ accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lighting storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Copyright ©2012 Samsung Techwin Co., Ltd. All rights reserved. Trademark is the registered logo of Samsung Techwin Co., Ltd. The name of this product is the registered trademark of Samsung Techwin Co., Ltd. Other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin. Disclaimer Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice. SafeVIEW User Manual SEW-3037W-ENGLISH.indd 22012-08-17 오후 4:34:23 SPECIFY SERVICE INSTRUCTIONS AND WARRANTY TERMS FCC Caution : Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and monitor. • Connect the equipment into an outlet on a circuit different from that to which the monitor is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING • STRANGULATION HAZARD - Keep cord out of child's reach. NEVER place camera or cords within 3 feet of crib or playpen. Never use extension cords with AC Adapters. Only use the AC Adapters provided. • Some adult assembly or installation required. • This product contains small parts that may cause choking. Keep small parts away from children. • This product is NOT intended to replace proper supervision of children. You MUST check your child’s activity regularly, as this product will not alert parents to silent activities of a child. • Before using this product, read and follow all instructions contained in this booklet, and read and follow all instructions and warnings on the product. • NEVER use the transmitter or monitor near water, including near a bathtub, sink, laundry tub, wet basement, etc. • This product is intended for indoor use only. • This product is not intended for use as a medical monitor and its use should not replace adult supervision. • The transmitter detects normal sound levels within a range of 2 to 3 meters (6 to 10 feet) from a child. If the child moves outside of this range, i…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 4. Block Diagram SAMSUNG Date: 11 th July, 2012 Issue: 02 ECN #: Page: 6 of 10 TITLE:SEW-3037W System Design Specification Doc No. :SDS/SEW-3037W-USA-XX00/01 6 3.2.2 Block Diagram Baby unit block diagram

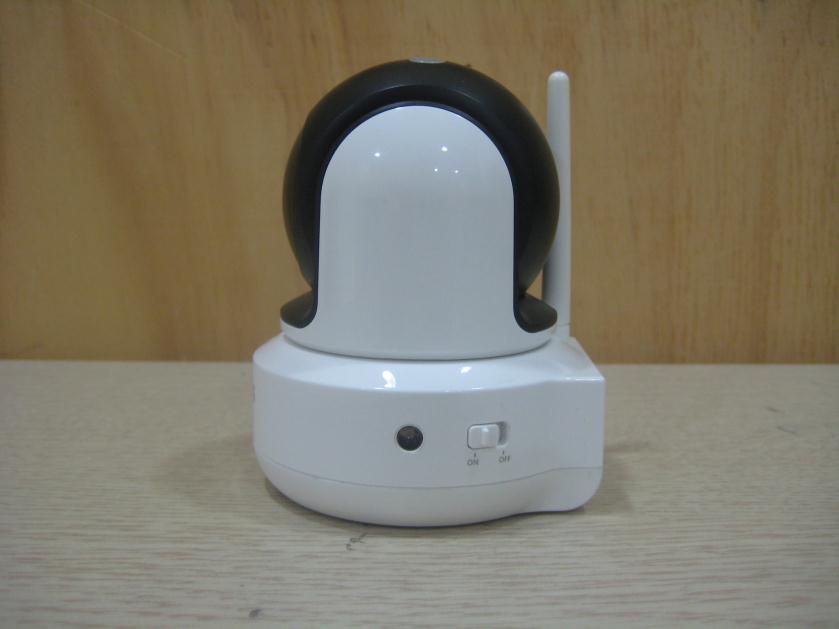

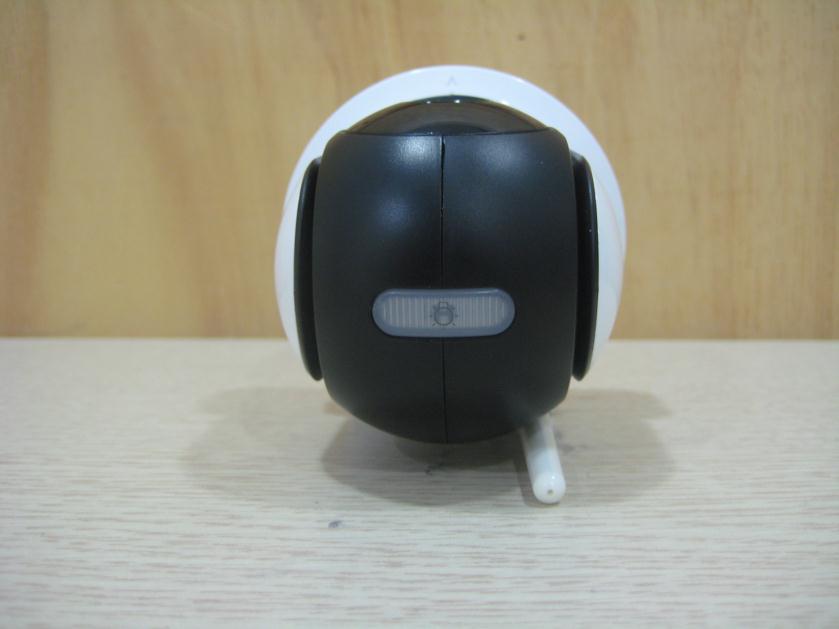

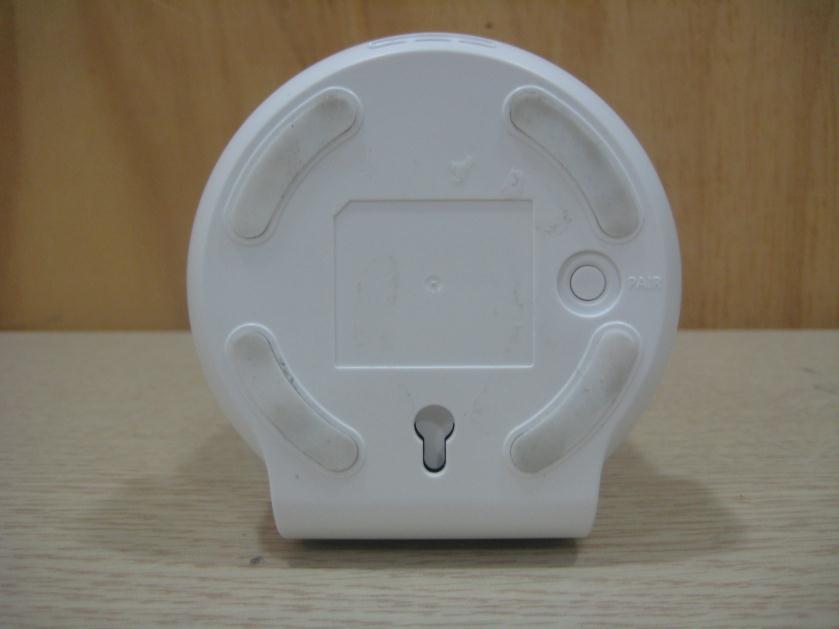

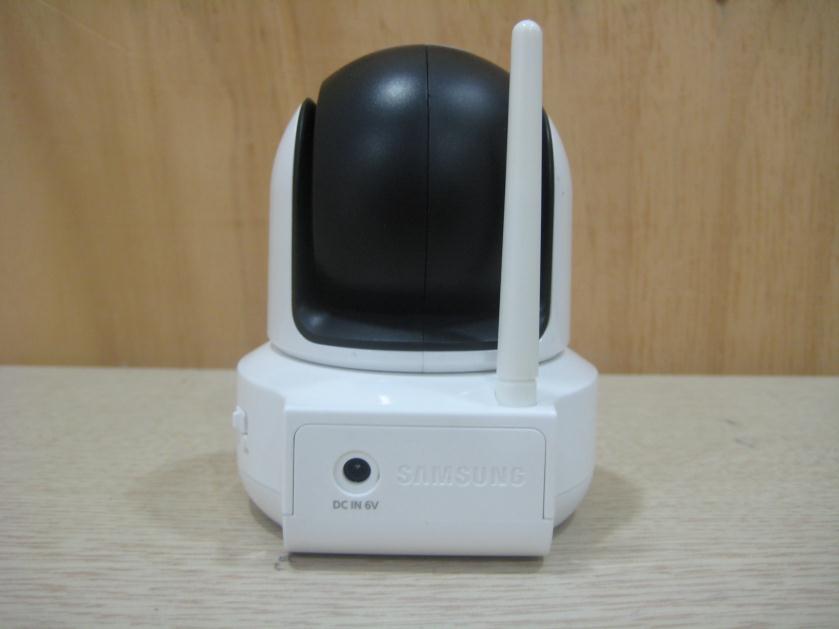

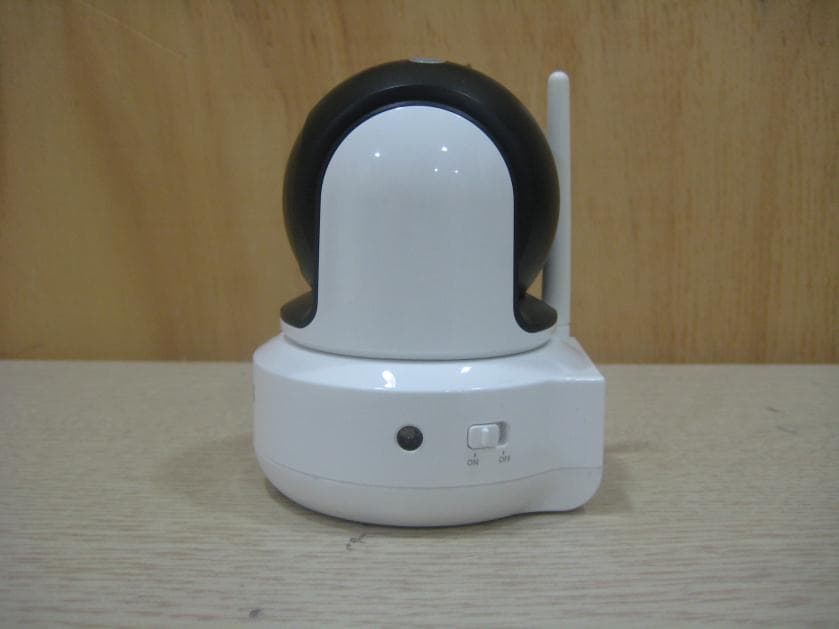

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. Page: 1 of 3 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 2. External photo of EUT http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. Page: 2 of 3 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. Page: 3 of 3 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R074 EMCcomplianceLtd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Label Location

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 3. Internal photo of EUT http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 9. Antenna specification 版权：深圳市华一通信技术有限公司 本文件之版权属深圳市华一通信技术有限公司所有，未经书面批准不得随意复制外传。 密级：AAA 深圳市华一通信技术有限公司 VM9610天线 BS LAT-O 2400 2 V 样品承认书 编 号：201207130001 版 本：V1.0 生效日期：2012-7-13 工程部： 部门／职位： 日期： 生产部： 部门／职位： 日期： 质量部： 部门／职位： 日期： 技术类/样品承认书 深圳市华一通信技术有限公司 目录i 目 录 1 客户信息 ............................................................. 1 2 产品信息 ............................................................. 1 3 技术要求及规格 ....................................................... 2 4 测试数据 ............................................................. 3 5 客户承认 ............................................................. 5 6 附件 ................................................................. 5 技术类/样品承认书 深圳市华一通信技术有限公司 - 1 - 1 客户信息 客户名称 客户代表 固定电话 移动电话 项目名称 项目编码 产品编码 图纸编码 备 注 以上信息由客户提供 2 产品信息 项目名称 VM9610天线 BS 项目编码 HY099 产品名称 VM9610天线 BS 产品编码 04.04.100086 图纸编码 HY9 099 042 版本/标记 A / V1.1 生产批号 20120713001 生产时间 2012-07-13 样品数量 5PCS 送样日期 2012-07-13 客服代表 詹淑女 联系电话 0755-2791 6655 合同编码 制造商 深圳市华一通信技术有限公司 技术类/样品承认书 深圳市华一通信技术有限公司 - 2 - 3 技术要求及规格 1. LAT-O 2400 2 V Antenna Specifications 技术类/样品承认书 深圳市华一通信技术有限公司 - 3 - 4 测试数据 电压驻波比（VSWR）: 回波损耗(Return Loss): 水平面方向图（H-plane Radiation Pattern）: 技术类/样品承认书 深圳市华一通信技术有限公司 - 4 - 垂直面方向图（E-plane Radiation Pattern）: 技术类/样品承认书 深圳市华一通信技术有限公司 - 5 - 5 客户承认 客户承认栏 客户确认： □ OK □ NG 客户签名： 日 期: 6 附件 1. Attached 1： HY9 099 040.pdf

SAMSUNG Date: 11 th July, 2012 Issue: 02 ECN #: Page: 1 of 10 TITLE:SEW-3037W System Design Specification Doc No. :SDS/SEW-3037W-USA-XX00/01 1 System Design Specification Project: SEW-3037W Wireless Baby Monitor REVISION NOTE NO Revision Date Description Draft 1 1.0 2012-05-22 System Design Specification Lawrence 2 2.0 2012-07-11 Review the engineering specification Lawrence 3 4 5 6 7 Date Charger Department SAMSUNG Date: 11 th July, 2012 Issue: 02 ECN #: Page: 2 of 10 TITLE:SEW-3037W System Design Specification Doc No. :SDS/SEW-3037W-USA-XX00/01 2 THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPROETARY TO GCT AND SHALL NOT BE REPRODUCED OR USED IN PART OR WHOLE WITHOUT GCT’S WRITTEN CONSENT. ALL RIGHTS RESERVED. Table of Contents Page 1. Overview..................................................................................................... 3 1.1 Purpose...................................................................................................... 3 1.2 Structure.................................................................................................... 3 1.3 Document chapter.... ..................................................................................... 3 2. Wireless monitor overview................................................................................ 3 3. Wireless monitor system introduction................................................................3 3.1 Conditions are considered during development .......................................................3 3.1.1 Environment conditions................................................................................3 3.1.1.1 Operation conditions.................................................................................3 3.1.1.2 Transportation conditions........................................................................... 3 3.1.1.3 Storage conditions....................................................................................3 3.1.2 Safety & EMC certificate..............................................................................4 3.2 Wireless baby monitor system structure...............................................................4 3.2.1 Layout....................................................................................................4，5 3.2.2 Block diagram............................................................................................6，7 3.2.3 Power supply..............................................................................................7 4. System interface..............................................................................................8 5. Hardware requirement.....................................................................................8 6. Software requirement....................................................................................... 8 7. Engineering specification................................................................................... 9 Appendix A: ..................................................... ...... ...................................... 10 SAMSUNG Date: 11 th July, 2012 Issue: 02 ECN #: Page: 3 of 10 TITLE:SEW-3037W System Design Specification Doc No. :SDS/SEW-3037W-USA-XX00/01 3 1. Overview 1.1 Purpose This document is subject to explain wireless baby monitor design specification and will be used for develop and verify the function of product. 1.2 Structure Wireless baby monitor include two sections as below. Parent unit: Receive video and audio signal that picked up baby unit and output at the speaker. It charges up the Li Ion battery and indicates loudness with sound bar. Baby unit: Capture video and audio signal from the environment and transit to the parent unit through RF. 1.3 Document chapter Chapter 2 Wireless baby monitor overview: Explain the wireless baby monitor Chapter 3 Wireless baby monitor description: Explain the structure of the system Chapter 4 System Interface: Define the specification of interface Chapter 5 H/W requirement: Define feature list Chapter 6 S/W requirement: Define S/W requirement Chapter 7 Engineering specification: Define H/W parameter specification 2. Wireless baby monitor overview Having a baby will entail you to sacrifice a lot of things. This could include work, a hobby, and even your normal way of living. But, you do not have to sacrifice that much anymore. If you are thinking that this is about nanny services, then you are wrong. This is really about a device named wireless baby monitor which helps you keep a close monitor on the activities and the status of your baby. In fact, you can even hear him sound even as you are both not in the same room. The wireless baby monitor, on the other hand, gives you the advantage of traveling even outside your home for as long as the reception is reachable. This will give you unlimited access within your home. Just make sure to check with the manufacturer the maximum distance that the coverage can reach. 3. Wireless baby monitor description 3.1 Conditions are considered during development. 3.1.1 Environment conditions 3.1.1.1 Operation conditions Temperature:-10~40 Celsius Humidity: <85% 3.1.1.2 Transportation conditions Temperature:-20~50 Celsius Humidity: <90% 3.1.1.3 Storage conditions Temperature:-20~50 Celsius Humidity: <90% SAMSUNG Date: 11 th July, 2012 Issue: 02 ECN #: Page: 4 of 10 TITLE:SEW-3037W System Design Specification Doc No. :SDS/SEW-3037W-USA-XX00/01 4 3.1.2 Safety &EMC Certificate EU version EN300 328 EN301 489 EN60950 FCC version FCC Part 15 3.2 Wireless baby monitor system structure. 3.2.1 Layout Baby unit layout SAMSUNG Date: 11 th July, 2012 Issue: 02 ECN #: Page: 5 of 10 TITLE:SEW-3037W System Design Specification Doc No. :SDS/SEW-3037W-USA-XX00/01 5 Parent unit layout SAMSUNG Date: 11 th July, 2012 Issue: 02 ECN #: Page: 6 of 10 TITLE:SEW-3037W System Design Specification Doc No. :SDS/SEW-3037W-USA-XX00/01 6 3.2.2 Block Diagram Baby unit block diagram Y1 12MHz SAMSUNG Date: 11 th…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 7. Part list Bill of Material for SEW-3037 RF section (MCP121V12) ItemComponentDescriptionSizeValueTol.Remark 1C1 NPO ceramic capacitor 0402 NC 2C2 NPO ceramic capacitor 0402100pF5% 3C4 Y5V ceramic capacitor 1206 10uF10% 4C5Chip R0402 0R 5% 5C6 NPO ceramic capacitor 04028.2pF5% 6C7 NPO ceramic capacitor 04020.5pF5% 7C8 NPO ceramic capacitor 04021pF5% 8C9 NPO ceramic capacitor 0402 NC 9C11Chip R0402 0R 5% 10C12 X7R ceramic capacitor 0402 NC 11C14 X7R ceramic capacitor 0402 100nF10% 12C15 X7R ceramic capacitor 0402 100nF10% 13C16 X7R ceramic capacitor 0402 100nF10% 14C17 X7R ceramic capacitor 0402 100nF10% 15C18 Y5V ceramic capacitor 0402 1uF20% 16C19 X7R ceramic capacitor 0402 470pF10% 17C20 NPO ceramic capacitor 0402 20pF 5% 18C21 X7R ceramic capacitor 04021nF 10% 19C22 NPO ceramic capacitor 0402 100nF10% 20C23 X7R ceramic capacitor 0402 100nF10% 21C25 X7R ceramic capacitor 0402 100nF10% 22C27 NPO ceramic capacitor 04028.2pF5% 23C28 Y5V ceramic capacitor 0603 NC 24C29 NPO ceramic capacitor 0402120pF 5% 25C30 X7R ceramic capacitor 04022.2nF 10% 26C31 NPO ceramic capacitor 0402 10pF 5% 27C32 NPO ceramic capacitor 0402 56pF 5% 28C33 Y5V ceramic capacitor 0402 1uF20% 29R1 Chip R040239K5% 30R2Chip R0402 100K 5% 31R4Chip R0402 6.8K 5% 32 Y52 Chip R0603 0R 5% 33 L1 Chip R0402 0R 5% 34 L3Chip L 0402 1.8nH 5% 35 U1TranceiverQFN32LA7121 AMICCOM 36 U2TranceiverQFN16 A77C00AQFI AMICCOM 37 U3TranceiverBF2520 38 U4 LDOSOT-23 BL8503-2.5V 39 Y22CrystalSMD 12PF18MHzYoketan 40 J1ConnectorHDR8_1.2CON14 41 Shield can1 42 PCB1 ITEM MAIN / SUB PART NUMBER DESCRIPTION QTY LOCATION 800-96101-84041-00 SEP-1001 USA NEW ERP ROHS FINAL ASSEMBLY(Samsung) MAIN 801-96101-84041-00 SEP-1001 USA NEW ERP ROHS FINAL PACKING ASSEMBLY 1 MAIN 803-96101-84041-00 SEP-1001 USA NEW ERP ROHS ELE PACKING ASSEMBLY 1 2 MAIN 153-70809-46105-01 SWITCHING ADAPTOR ROHS 100~240VAC 6VDC 800mA CEC LEVELV UL/CUL/FCC USA L-PLUG Φ 3.5*1.35mm L=9.5mm 1830MM WHITE 5E-AD060080-U 002-01060-08010-68 PAHs+REACH WITHOUT Y CAP WEEE 5ESP(Samsung ） 1 ADAPTOR MAIN 810-96101-84041-00 SEP-1001 USA NEW ERP ROHS BASE FINAL ASSEMBLY 1 1 MAIN 821-96101-84041-00 SEP-1001 USA NEW ERP ROHS BASE ELE ASSEMBLY 1 MAIN 821-96101-84041-00 SEP-1001 USA NEW ERP ROHS BASE ELE ASSEMBLY 1 1 MAIN 104-00900-00000-00 CONNECTOR PLUG ROHS ONE ROW 9PIN P=1.25MM UL1571 AWG30 SINGLE BLACKL=120MM±5MM 1 CN4 2 MAIN 104-01100-00103-00 CONNECTOR PLUG ROHS ONE ROW 11PIN P=1.25MM UL1571 AWG30 SINGLE BLACKL=120MM±5MM CHUANGXIONG *104+01100-0017X-00 1 CN3 3 MAIN 114-29610-20000-00 SHIELD CABLE ANTENNA ROHS VM9610 WIRE=156MM BASE CABLE REV00 1 ANTENNA 4 SUB 114-29610-20004-00 SHIELD CABLE ANTENNA ROHS VM9610 WIRE=156MM JSD-NZTSJ02 BASE CABLE REV00SUJIANG 1 ANTENNA 5 MAIN 118-09000-60000-00 CONNECTOR SOCKET ROHS ONE ROW 9PIN P=1.25MM 180° 1 CN4 6 MAIN 118-11000-60001-00 CONNECTOR SOCKET ROHS ONE ROW 11PIN P=1.25MM 180°CHUANGXIONG *118+11000-6007X-00 1 CN3 7 MAIN 121-12719-00006-00 RF MODULE ROHS 2.4GHZ BABY MONITOR FOR MCP121V13 RF MODULE MICRELCHIP 1 RF MODULE 8 MAIN 339-31924-40101-00 STEP-BY-STEP MOTOR WITH WIRE=160MM CONNECTOR PLUG P=1.5MM RATED VOLTAGE4V 24BYJ48-N02-03 HAISHENG ELE 1 TILT_MOTO 9 MAIN 831-96101-84041-00 SEP-1001 USA NEW ERP ROHS BASE MAIN BOARD ASSEMBLY 1 10 MAIN 837-96101-84041-00 SEP-1001 USA NEW ERP ROHS BASE POWER SUPPLY ASSEMBLY 1 MAIN 831-96101-84041-00 SEP-1001 USA NEW ERP ROHS BASE MAIN BOARD ASSEMBLY 1 1 MAIN 931-96101-84041-00 SEP-1001 USA NEW ERP ROHS BASE MAIN BOARD SMD ASSEMBLY 1 MAIN 931-96101-84041-00 SEP-1001 USA NEW ERP ROHS BASE MAIN BOARD SMD ASSEMBLY 1 1 MAIN 110-24017-92800-00 ROHS SMD FPC CONNECTOR SOCKET 24PIN PH=(0.2+0.3)MM COVER LOCK L=17.1MM W=6.5MM 1 CN1 2 MAIN 160-96105-30400-00 PCB ROHS VM9610-ALL-VM04 VIDEO MONITOR BASE MAIN BOARD FR4 1 PCB 3 MAIN 303-39040-90000-00 TR ROHS 3904 B NPN SMD SOT-23 1 Q11 4 MAIN 320-10703-63500-00 CAP SMD ELE ROHS 100UF 10V +/-20% 5X5.4 4 C14,C24,C85,C88 5 MAIN 336-00000-25200-00 RES SMD ROHS 0603 0 OHM 5% RL 1 R8 6 MAIN 336-00000-45200-00 RES SMD ROHS 0402 0R +/-5% YAGEO RC0402JR-070RL 1 R60 7 MAIN 336-10000-15200-00 RES SMD ROHS 0805 100 OHM 5% RL 1 L4 8 MAIN 336-10000-45202-00 RES SMD ROHS 0402 100R +/-5% YAGEO RC0402JR-07100RL 8 R75,R76,R77,R78,R79,R99,R100,R101 9 MAIN 336-10010-45200-00 RES SMD ROHS 0402 1K +/-5% YAGEO RC0402JR-071KL 4 R5,R31,R61,R63 10 MAIN 336-10020-45200-00 RES SMD ROHS 0402 10K +/-5% YAGEO RC0402JR-0710KL 1 R42 11 MAIN 336-10030-45200-00 RES SMD ROHS 0402 100K +/-5% YAGEO RC0402JR-07100KL 5 R1,R2,R10,R15,R55 12 MAIN 336-10040-45200-00 RES SMD ROHS 0402 1M OHM 5% RL 2 R3,R47 13 MAIN 336-22000-15200-00 RES SMD ROHS 0805 220 OHM 5% RL 2 L1,L3 14 MAIN 336-47010-45200-00 RES SMD ROHS 0402 4.7K OHM 5% RL 2 R26,R81 15 MAIN 336-60430-45000-00 RES SMD ROHS 0402 604K OHM 1% RL 1 R18 16 MAIN 336-68020-45200-00 RES SMD ROHS 0402 68K OHM 5% RL 1 R7 17 MAIN 336-91030-45200-00 RES SMD ROHS 0402 910K OHM 5% RL 1 R16 18 MAIN 340-10209-52100-00 CAP SMD CER ROHS 0402 1NF +/-10% 50V X7R 2 C31,C112 19 MAIN 340-10407-82200-00 CAP SMD CER ROHS 0402 100NF +80/-20% 25V Y5V 19 C1,C4,C5,C9,C10,C11,C13,C15,C18,C19,C20,C25,C27,C28,C29,C33,C36,C57,C60 20 MAIN 340-10507-61700-00 CAP SMD CER ROHS 0603 1UF +80/-20% 25V Y5V 1 C59 第 1 页，共 4 页 21 MAIN 340-10603-80300-00 CAP SMD CER ROHS 0805 10UF +80/-20% 10V Y5V 4 C2,C16,C22,C23 22 MAIN 340-10603-82300-00 CAP SMD CER ROHS 1206 10UF +80/-20% 10V Y5V 4 C30,C32,C34,C86 23 MAIN 340-15006-42104-01 CAP SMD CER ROHS 0402 15PF +/-5% 16V X7R MURATA GRM1555C1H150JZ01D 2 C3,C8 24 MAIN 340-22206-52100-00 CAP SMD CER ROHS 0402 2.2NF +/-10% 16V X7R 2 C6,C7 25 MAIN 340-22306-52100-00 CAP SMD CER ROHS 0402 22NF +/-10% 16V X7R 2 C17,C26 26 MAIN 340-56006-52100-00 CAP SMD CER ROHS 0402 …

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 5. Schematics 55 44 33 22 11 D D C C B B A A SPI_CS SPI_CLK SPI_TXD SPI_RXD VDD2.5 RX_CLKRX_SYNCD_TXENTRXDTXDF_CLKRESETNMS0 VDD2.5 FP_RDY BB_CLK MS1 VDD2.5LNA_OUTPA_INVDD2.5 VIN33 RFI PA_INLNA_OUT RFO RXSW TXSW VIN33 VDD2.5 VIN33 VDD_PATRX BB_CLKMS1MS0TRXDCD_TXENRXSWSPI_TXDSPI_RXDSPI_CLKSPI_CSVIN33TXSW VDD2.5 RESETN VDD2.5 VIN33 TitleSize Document Number Rev Date: Sheet of <Doc> V12 <Title> A 11 Monday, August 27, 2012 TitleSize Document Number Rev Date: Sheet of <Doc> V12 <Title> A 11 Monday, August 27, 2012 TitleSize Document Number Rev Date: Sheet of <Doc> V12 <Title> A 11 Monday, August 27, 2012 17dbm 2.4GHZ wireless RF module C302.2nFC302.2nF C250.1uFC250.1uF C33 1uF C33 1uF C1NCC1NC C9NCC9NC C29 120pF C29 120pF R2 39K R2 39K C24NCC24NC C15 100nF C15 100nF C10NCC10NC C70.5pFC70.5pF C17 100nF C17 100nF C20 20pF C20 20pF R4 6.8K R4 6.8K C22 100nF C22 100nF C31 10pF C31 10pF C23 100nF C23 100nF C19 470pF C19 470pF U3 BF2520 U3 BF2520 GND 1 OUT 2 GND 3 IN 4 L1 0R L1 0R C6 8.2pF C6 8.2pF J1 CON14 J1 CON14 123456789 1011121314 C27100pFC27100pF C16 100nF C16 100nF C410uF/6VC410uF/6V C2100nFC2100nF C5 0R C5 0R C13NCC13NC R1 39K R1 39K C3100nFC3100nF C18 1uF C18 1uF L3 2.4nH L3 2.4nH C128.2pFC128.2pF C81pFC81pF L20RL20R U4 LDO-2.5V U4 LDO-2.5V INPUT 1 GND 2 OUTPUT 3 C21 1nF C21 1nF E1E1 U1 A7121 U1 A7121 BP_LIM2 1 BP_LIM1 2 BP_BPF 3 VDD_A 4 RFI 5 RFO 6 VDD_VCO 7 BP_VCO 8 VT 9 CPO 10 VDD_PLL 11 XI 12 XS 13 FP_RDY 14 BB_CLK 15 MS1 16 MS0 17 RESETN 18 F_CLK 19 TXD 20 TRXD 21 CD_TXEN 22 RX_SYN 23 RX_CLK 24 VDD_D 25 SPI_RXD 26 SPI_TXD 27 SPI_CLK 28 SPI_CS 29 BP_LPF 30 BP_DS 31 RSSI 32 C14 100nF C14 100nF Y1 18MHZ Y1 18MHZ C3256pFC3256pF U2 A7700 U2 A7700 GND 1 ANT 2 NC 3 VDD_PA 4 GND 5 NC 6 NC 7 VDD_A 8 RFI 9 GND 10 RFO 11 NC 12 BG 13 TXSW 14 RXSW 15 HGM 16 C11 0R C11 0R

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMCcomplianceLtd.Page: 1 of 38 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. FCC TEST REPORT Test report No.:EMC- FCC- R0074 FCC ID:NLMSEP1001RWN Type of equipment:Wireless baby video camera Model Name:SEP-1001RWN Brand Name:- Applicant:Samsung Techwin Co., Ltd. FCC Rule Part(s):FCC Part 15 Subpart C Section 15.203, Section 15.209 Section 15.207, Section 15.247 Frequency Range:2410.875 MHz ~ 2471.625 MHz Test result:Complied The above equipment was tested by EMC compliance Testing Laboratory for compliance with the requirements of FCC Rules and Regulations. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of test: August 20, 2012 ~ August 27, 2012 Issued date: August 24, 2012 Tested by:Approved by:. LEE, CHANG WONKIM, CHANG MIN http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMCcomplianceLtd.Page: 2 of 38 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information.................................................................................................. 3 2. Laboratory information........................................................................................... 4 3. Description of E.U.T................................................................................................ 5 3.1 Basic description................................................................................................ 5 3.2 General description............................................................................................. 5 3.3 Test frequency................................................................................................... 6 3.4 Test Voltage..................................................................................................... 6 4. Summary of test results............................................................................................ 7 4.1 Standards & results............................................................................................. 7 4.2 Uncertainty...................................................................................................... 7 5. Test results.......................................................................................................... 8 5.1 Antenna Requirement........................................................................................... 8 5.2 Maximum Peak Output Power................................................................................. 9 5.3 Carrier Frequency Separation.................................................................................12 5.4 20 dB Channel Bandwidth....................................................................................14 5.5 Number of Hopping Channels................................................................................17 5.6 Time of Occupancy(Dwell Time).............................................................................19 5.7 SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BANDS..................................22 5.8 Peak Power Spectral Density..................................................................................31 5.9 Conducted Emission...........................................................................................34 5.10 RF Exposure..................................................................................................37 6. Test equipment used for test.................................................................................... 38 Appendix 1 Test setup photos Appendix 2 External photos of EUT Appendix 3 Internal photos of EUT Appendix 4 Block diagram Appendix 5 Schematics Appendix 6 User manual Appendix 7 Part list Appendix 8 Layout diagram Appendix 9 Antenna Specification http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMCcomplianceLtd.Page: 3 of 38 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: Samsung Techwin Co., Ltd. Address:#42 Seongju-Dong, Changwon-Shi, Kyungsangnam-Do, Korea Telephone number:+82-31-277-3695 Facsimile number : +82-31-277-3695 Contact person:Jeisoon Kang/[email protected] Manufacturer:GCT Address :FLAT/RM 308 3/F KWONG SANG HONG CENTRE 151-153 HOI BUN ROAD SWUN TONG http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0074 EMCcomplianceLtd.Page: 4 of 38 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC Compliance Ltd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea Teleph…

Text truncated - open the document above for the full version.
