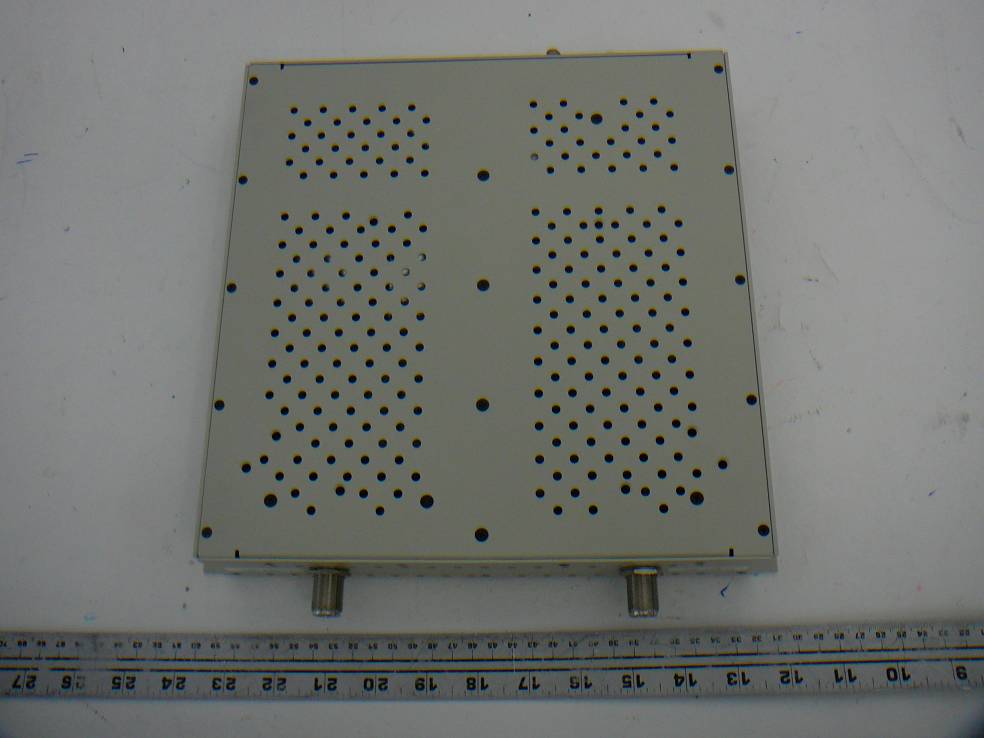

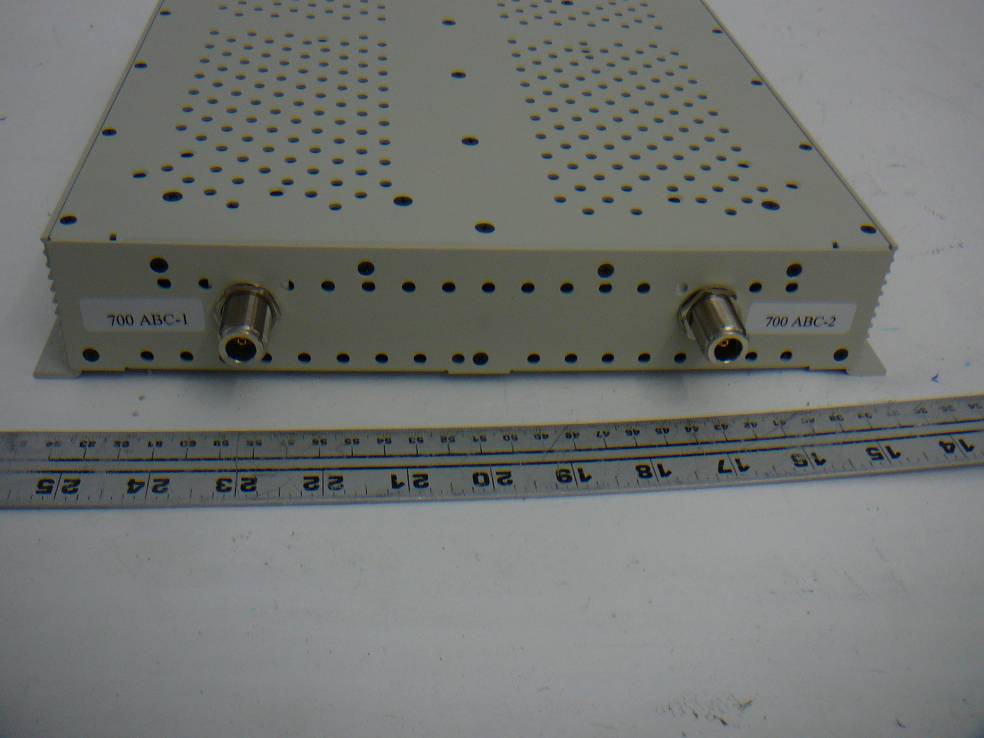

ADC Telecommunications Inc. FCC ID: NOO-F0687-012 Report Number: R1205314-27 Page 57 of 59 FCC Part 27 Test Report 13 Exhibit C – EUT Photographs 13.1 EUT - Top View 13.2 EUT - Bottom View ADC Telecommunications Inc. FCC ID: NOO-F0687-012 Report Number: R1205314-27 Page 58 of 59 FCC Part 27 Test Report 13.3 EUT - Front View 13.4 EUT - Rear View

ADC Telecommunications Inc. FCC ID: NOO-F0687-012 Report Number: R1205314-27 Page 54 of 59 FCC Part 27 Test Report 11 Exhibit A - FCC ID Labeling Requirements 11.1 FCC ID Label Requirements FCC §2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code. 11.2 FCC ID Label Contents 11.3 FCC Label Location on EUT

ADC Telecommunications Inc. FCC ID: NOO-F0687-012 Report Number: R1205314-27 Page 59 of 59 FCC Part 27 Test Report 13.5 EUT – PCB Board Component View 13.6 EUT – PCB Board Solder View --- END OF REPORT ---

ADC Telecommunications Inc. FCC ID: NOO-F0687-012 Report Number: R1205314-27 Page 53 of 59 FCC Part 27 Test Report 10 FCC §1.1307(b)(1) & §2.1091 – RF Exposure Information 10.1 Applicable Standard According to FCC §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 10.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Lower LTE Band - Downlink Maximum peak output power at antenna input terminal (dBm): 22.03 Maximum peak output power at antenna input terminal (mW): 159.59 Prediction distance (cm): 30 Prediction frequency (MHz): 737 Antenna Gain, typical (dBi): 15 Cable Loss (dB) 8.0 Maximum Antenna Net Gain (numeric): 5.01 Power density at predication frequency and distance (mW/cm 2 ): 0.1592 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.4913 The highest power density level at 20 cm is below the MPE uncontrolled exposure limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 27 TEST AND MEASUREMENT REPORT For ADC Telecommunications Inc. P.O. Box 1101, Minneapolis, MN 55440-1101, USA FCC ID: NOO-F0687-012 Report Type: Original Report Product Type: Remote Access Unit for InterReach Fusion System Test Engineer: Wei Sun Ning Ma Report Number: R1205314-27 Report Date: 2012-06-19 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 ADC Telecommunications Inc. FCC ID: NOO-F0687-012 Report Number: R1205314-27 Page 2 of 59 FCC Part 27 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION ................................................................................................................................. 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 EUT TEST CONFIGURATION........................................................................................................................... 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 SPECIAL EQUIPMENT......................................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT............................................................................................................................. 7 2.6 EUT INTERNAL CONFIGURATION DETAILS........................................................................................................ 7 2.7 EXTERNAL I/O CABLING LIST AND DETAILS..................................................................................................... 7 2.8 TEST SETUP BLOCK DIAGRAM........................................................................................................................... 8 3 SUMMARY OF TEST RESULTS........................................................................................................................ 9 4 FCC §2.1046 & §27.50 – RF OUTPUT POWER............................................................................................... 10 4.1 APPLICABLE STANDARD.................................................................................................................................. 10 4.2 TEST PROCEDURE............................................................................................................................................ 10 4.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 10 4.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 10 4.5 TEST RESULTS................................................................................................................................................. 10 5 FCC §2.1049 & §27.53 – OCCUPIED BANDWIDTH......................................................................................13 5.1 APPLICABLE STANDARD.................................................................................................................................. 13 5.2 TEST PROCEDURE............................................................................................................................................ 13 5.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 13 5.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 13 5.5 TEST RESULTS................................................................................................................................................. 14 6 FCC §2.1053 & §27.53 - SPURIOUS RADIATED EMISSIONS..................................................................... 30 6.1 APPLICABLE STANDARD.................................................................................................................................. 30 6.2 TEST P…
