NOO-S2787-111Spectrum 700 Path 1/AWS Path 1 SRAU

ADCP-77-168  Issue 3  July 2012 D-620731-0-20 Rev C InterReach Spectrum ™ Remote Access Unit Installation Guide - Preliminary Update - Issue 3 Main Remote Access Unit Secondary Remote Access Unit Copyright © 2012 TE Connectivity, Inc. All Rights Reserved. Information contained in this document is company private to TE Connectivity Ltd., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of TE. Trademark Information FlexWave, FlexWave Prism, InterReach Spectrum, Universal Radio Head, TE Connectivity, and TE connectivity (logo) are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. Disclaimer of Liability Contents herein are current as of the date of publication. TE reserves the right to change the contents without prior notice. Should the content of printed user documentation shipped with product differ from documentation provided on a product CD (inclusive of the associated Help modules), the printed user documentation supersedes the documentation on the product CD. In no event shall TE be liable for any damages resulting from loss of data, loss of use, or loss of profits, and TE further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Specific Disclaimer for High-Risk Activities This Product is not specifically designed, manufactured, tested or intended for use in high-risk activities including, without restricting the generality of the foregoing, on-line control of aircraft, air traffic, aircraft navigation or aircraft communications; or in the design, construction, operation or maintenance of any nuclear facility. TE (including its affiliates) and its suppliers specifically disclaim any express or implied warranty of fitness for such purposes or any other purposes. Screenshots in User Documentation Due to concurrent development of this documentation, artwork, and the InterReach Spectrum Element Management System (EMS), there may be some minor discrepancies between screenshots contained in this documentation and those actually displayed in the InterReach Spectrum EMS. These discrepancies will generally be few and minor and should not affect your understanding of InterReach Spectrum EMS. InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3Page 1 ADCP-77-168 • Issue 3 • December 2011©2012 TE Connectivity Ltd. TABLE OF CONTENTS Preface .................................................................................................................................................................2 Revision History......................................................................................................................................................2 InterReach Spectrum User Documentation ...........................................................................................................3 Standards Certification...........................................................................................................................................4 Product Overview.................................................................................................................................................5 Main Remote Access Units.....................................................................................................................................6 MRAU Ports, Cable, and Connectors..................................................................................................................................6 MRAU LEDs.........................................................................................................................................................................7 Secondary Remote Access Units ............................................................................................................................8 SRAU Ports, Cable, and Connectors....................................................................................................................................8 SRAU LEDs...........................................................................................................................................................................9 RAU N Connectors................................................................................................................................................10 Install the RAUs and Antennas............................................................................................................................11 Mount the RAUs and Antennas............................................................................................................................11 General Safety Precautions..................................................................................................................................11 Connect the IFEU to the MRAU............................................................................................................................12 Connect the MRAU to SRAUs...............................................................................................................................14 Configure the MRAUs and SRAUs.........................................................................................................................15 Appendix A: Specifications..................................................................................................................................16 Remote Access Unit Specifications ......................................................................................................................16 Spectrum System Specifications......................................................................................................................…

Text truncated - open the document above for the full version.

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com June 21, 2011 Attn: Application Examiner, Reviewing Engineer Re: Attestation Statement I, the undersigned, attest that all testing done under my supervision was done in accordance with the Federal Communications Commission’s CFR 47 Part 27. The EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 27. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

1(1) Attention: Application Examiner Re: Request for confidentiality Applicant: ADC Telecommunications, Inc. FCC ID: NOO-S2787-111 To whom it may concern, Permanent Confidentiality Request is hereby submitted by ADC Telecommunications, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Parts list Rationale for request for confidentiality: ADC Telecommunications, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, Joshua J. Wittman Compliance Engineer ADC Telecommunications, Inc.

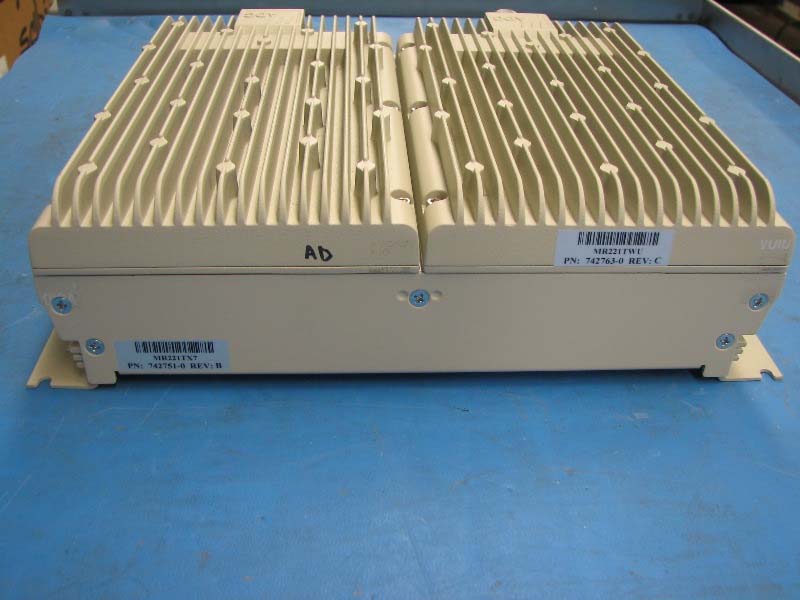

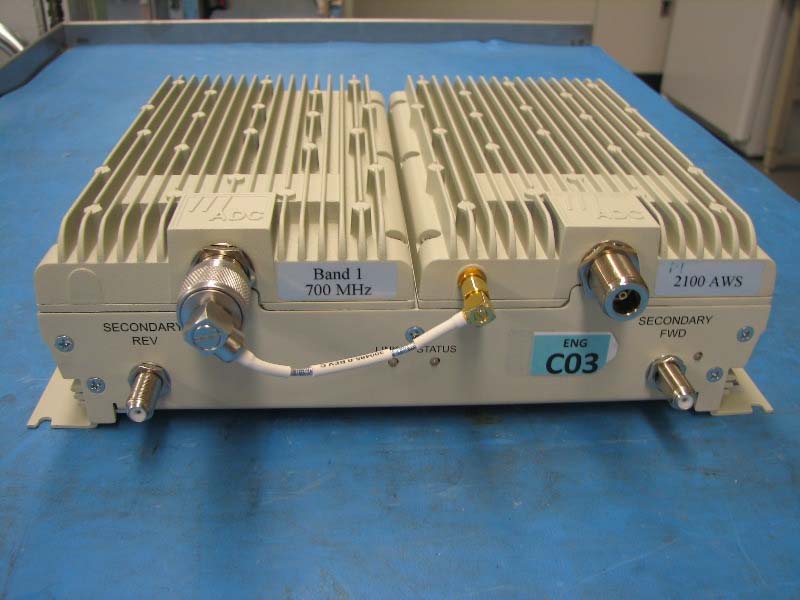

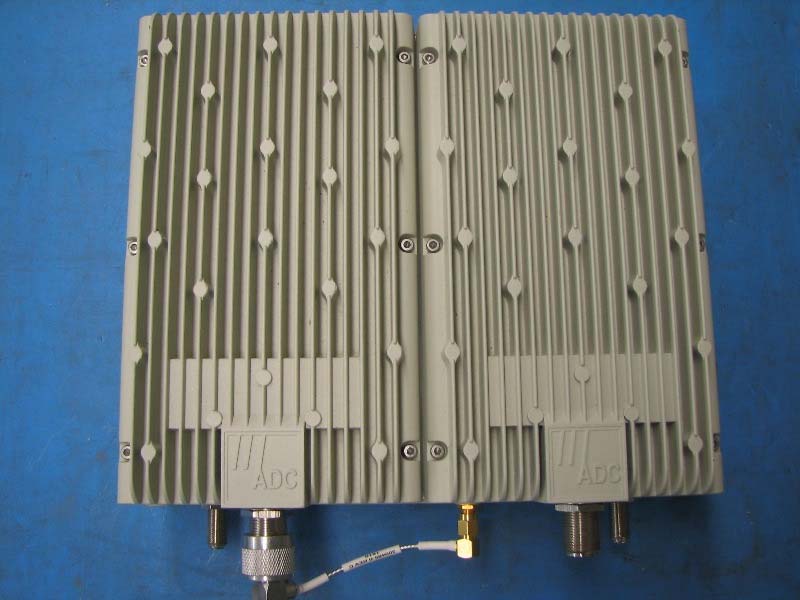

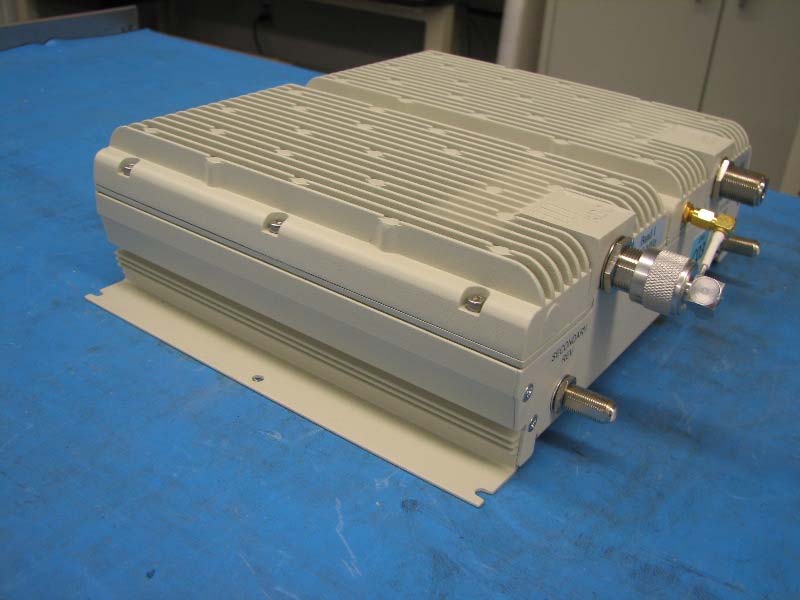

Spectrum 700 Path 1/AWS Path 1 SRAU Photos Front View 1 Rear View Top View Side View 1 Side View 2 Bottom View

Spectrum 800 SMR/AWS Path 1 MIMO SRAU FCC/IC Label Location

Internal Assembly 1 Internal Assembly 2 PCB IF Assembly Bottom View with shielding‐ SRAU PCB IF Assembly Bottom View without shielding‐ SRAU PCB IF Assembly Top View ‐ SRAU PCB Assembly Bottom View Ant Port with shielding – SRAU PCB Assembly Bottom View Ant Port without shielding – SRAU PCB Assembly Top View Ant Port with shielding ‐ SRAU PCB Assembly Top View Ant Port without shielding ‐ SRAU PCB Assembly Bottom View Ant Port with shielding – SRAU PCB Assembly Bottom View Ant Port without shielding – SRAU PCB Assembly Top View Ant Port with shielding ‐ SRAU PCB Assembly Top View Ant Port without shielding ‐ SRAU

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com July 26, 2012 Attn: Application Examiner, Reviewing Engineer The maximum TX output power of the Spectrum 700 Path1/700 Path 2 SRAU from the EUT antenna port for the 700 path 1 band is 21.10 dBm. The maximum gain antenna that could be for use with the EUT has a gain of 13.67 dBi. From the following equations: Peak Output of EUT at antenna Connector (dBm) + Gain of Antenna (dBd) = Peak TX Power (dBm) ERP 10*Log 10 (Peak TX Power * E 3 Watts) = Peak TX Power (dBm) ERP 21.10 dBm + 13.67 dBi = 34.77 dBm EIRP 34.77 dBm EIRP = 3.0 Watts EIRP To convert to EIRP use the relation: EIRP = ERP X 1.64. (2.55 EIRP = 1.56 ERP) To convert to dBi to dBd use the relation: dBi = dBd + 2.14. (7.14 dBi = 5.0 dBd) Power Density = EIRP(mW)/(4*π*r 2 ) 0.1491 mW/cm 2 = (128.8)(23.28)/(4*π*40 2 ) Per OET 65: Maximum Permissible Exposure is Freq. (MHz)/1500 = MPE mW/cm 2 737.0 MHz/1500= 0.4913 mW/cm 2 In addition, the following statement is in our installation manual: To comply with Maximum Permissible Exposure (MPE) requirements, antennas must be installed to provide at least 40 centimeters of separation from all persons per FCC 47CFR, Part 2.1091 and IC RSS-102, Section 2.5.2. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com July 30, 2012 Attn: Application Examiner, Reviewing Engineer July 30, 2012 Attn: Application Examiner, Reviewing Engineer The maximum TX output power of the Spectrum AWS Path1/AWS Path 2 MIMO SRAU P+ from the AWS EUT antenna port 1 is 20.12 dBm. The maximum gain antenna that could be for use with the EUT has a gain of 14.65 dBi. From the following equations: Peak Output of EUT at antenna Connector (dBm) + Gain of Antenna (dBd) = Peak TX Power (dBm) ERP 10*Log 10 (Peak TX Power * E 3 Watts) = Peak TX Power (dBm) ERP 20.12 dBm + 14.65 dBi = 34.77 dBm EIRP 34.77 dBm EIRP = 3.0 Watts EIRP To convert to EIRP use the relation: EIRP = ERP X 1.64. (2.55 EIRP = 1.56 ERP) To convert to dBi to dBd use the relation: dBi = dBd + 2.14. (7.14 dBi = 5.0 dBd) Per OET 65: Maximum Permissible Exposure is 1.0 mW/cm 2 over 30 minutes. (1500 MHz - 100,000 MHz) The following equations determine the distance from the antenna that the power density is ≤ 1.0 mW/cm 2 . 3.0 Watts EIRP = 3.0*10 3 mWatts EIRP 1.0 mW/cm 2 = 3.0*10 3 mW/(4*π*r 2 ) r= SQR(3.0*10 3 /4*π 1.0) r= 15.45 cm or 0.1545 Meters In addition, the following statement is in our installation manual: To comply with Maximum Permissible Exposure (MPE) requirements, antennas must be installed to provide at least 20 centimeters of separation from all persons per FCC 47CFR, Part 2.1091 and IC RSS-102, Section 2.5.2 Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com Email: [email protected]

M N 1 2 0 7 3 1 _ 7 0 0 P 1 _ A W S P 1 _ S R A U Page 1 Test Report Summary FCC CFR 47, Part 27 Wireless Communications Service Manufacturer: ADC Telecommunications, Inc. Name of Equipment: Spectrum 700 Path 1/AWS Path1 SRAU Model Number(s): SPT-S2-70AWS-1-SISO Manufacturer’s Address: 1187 Park Place Shakopee, MN 55739 Test Report Number: MN120731_700P1_AWSP1 SRAU Test Date(s): 16 - 20 June, 2012 (Intertek) 25, 27, 28 June, 2012 (ADC) 11, 12 & 13 July, 2012 (ADC) According to testing performed at Intertek, the above-mentioned unit is in accordance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 27. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. All testing was done in accordance with the Federal Communications Commission’s CFR 47 Part 27. The EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 27. Date: 31 July, 2012 Location: Intertek Testing Services (INTERTEK) ADC Telecommunications 7250 Hudson Blvd., Suite 100 1187 Park Place Oakdale, MN 55128 Shakopee, MN 55379 Phone: (651) 730-1188 Phone: (952) 403-8340 Fax: (651) 730-1282 Fax: (952) 403-8858 Testing Conducted by (ADC): And Report Written by: Joshua J. Wittman Compliance Engineer M N 1 2 0 7 3 1 _ 7 0 0 P 1 _ A W S P 1 _ S R A U Page 2 EMC Emission – T E S T R E P O R T Test Report File Number: MN120731_700P1_AWSP1 SRAU Date of Issue: 31 June, 2012 Model Number(s): SPT-S2-70AWS-1-SISO Product Name: Spectrum 700 Path 1/AWS Path1 SRAU Product Type: Repeater Applicant: ADC Telecommunications, Inc. Manufacturer: ADC Telecommunications, Inc. License Holder: ADC Telecommunications, Inc. Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Result: ▪ Positive ▫ Negative Test Project Number: 100790006MIN-001 Reference(s) Total pages including Appendices: 137 M N 1 2 0 7 3 1 _ 7 0 0 P 1 _ A W S P 1 _ S R A U Page 3 1.0 TABLE OF CONTENTS 1.0 Table of Contents .................................................................................................... 3 2.0 Revision Description ................................................................................................ 4 3.0 Documentation ....................................................................................................... 4 3.1 Test Regulations Results .................................................................................... 4 3.2 Test Operation Mode ............................................................................................. 5 3.3 Configuration of the Device Under Test: .................................................................. 5 3.4 Product Options: .................................................................................................. 5 3.5 EUT Specifications and Requirements: .................................................................... 5 3.6 Cables: ............................................................................................................... 5 3.7 Power Requirements: ........................................................................................... 5 3.8 Typical Installation and/or Operating Environment: .................................................. 5 3.9 Other Special Requirements: ................................................................................. 5 3.10 EUT Software: ................................................................................................... 5 3.11 EUT System Components ................................................................................... 6 3.12 Support Equipment ............................................................................................ 6 3.13 Deviations from Standard: .................................................................................. 6 3.14 General Remarks: ............................................................................................. 6 3.15 Summary: ........................................................................................................ 6 4.0 Test Set-Up Drawings and Photos ............................................................................. 7 4.1 Test Set-up Photo, Radiated Emissions ................................................................... 7 4.2 Test Set-up Drawings ........................................................................................... 8 5.0 Test Results ......................................................................................................... 10 5.1.1 27.50 RF Power Limits ................................................................................... 10 5.1.2 27.54 Frequency Stability .............................................................................. 11 5.1.3 27.53 Emission Limitations ............................................................................ 12 6.0 Test Equipment .................................................................................................... 13 7.0 Appendix A .......................................................................................................... 14 7.1 Conducted Emission Limits Test ........................................................................... 15 7.2 Conducted Output Power Test .............................................................................. 63 7.3 Frequency Stability Test ...................................................................................... 66 7.4 Intermodulation Test .......................................................................................... 68 7.5 Occupied Bandwidth Modulation Test .................................................................. 120 8.0 Appendix B ............…

Text truncated - open the document above for the full version.

TEST REPORT Report Number: 100790006MIN-001 Project Number: G100790006 Testing performed on the Spectrum 700p1/AWSp1 SRAU to 47 CFR, Part 27:2010, Enclosure Spurious Radiated Emissions For ADC Telecommunications Inc. - a TE Connectivity Company Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 USA ADC Telecommunications Inc.- a TE Connectivity Company 541 E Trimble Road San Jose, CA 95131 USA Prepared by: Date: July 23, 2012 Richard Blonigen Reviewed by: Date: July 23, 2012 Norman Shpilsher This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report No: 100790006MIN-001 Page 2 of 27 TABLE OF CONTENTS 1.0 DESCRIPTION OF THE SAMPLE (EUT)................................................................................. 3 2.0 TEST SUMMARY.......................................................................................................................... 4 2.1 Statement of the Measurement Uncertainty.............................................................................. 4 3.0 EQUIPMENT UNDER TEST....................................................................................................... 5 3.1 Power Configuration..................................................................................................................... 5 3.2 EUT Configuration......................................................................................................................... 5 3.3 Environmental conditions............................................................................................................. 6 4.0 TEST CONDITIONS AND RESULTS........................................................................................ 7 4.1 Enclosure Spurious Radiated Emissions................................................................................... 7 5.0 TEST EQUIPMENT..................................................................................................................... 27 EMC Report No: 100790006MIN-001 Page 3 of 27 1.0 DESCRIPTION OF THE SAMPLE (EUT) Model: Spectrum 700p1/AWSp1 SRAU: SPT-S2-70AWS-1-SISO Type of EUT: Repeater / Booster Operating Frequency Range: 728 – 757MHz (700 band) 2110 – 2155 MHz (AWS band) Company: ADC Telecommunications Inc. - a TE Connectivity Company Customer: Sue Cyr Address: 541 E. Trimble Road San Jose, CA 95131 USA Phone: 408-952-2445 Fax: 408-952-2645 e-mail: [email protected] Test Standards: EN 55022:2006 +A1:2007, Class EN 55011:2007 +A2:2007, Group , Class 47 CFR, Part 27:2010, Enclosure Spurious Radiated Emissions ICES-003, Issue 4:2004 EN 55014-1:2006 EN 61326-1:2006 Class for Radiated and Conducted Emissions Basic Immunity Test Requirements Immunity Test Requirements for Industrial Locations EN 60601-1-2:2001 +A1:2006 EN 61000-6-3:2007 EN 61000-6-4:2007 EN 61000-3-2:2006 EN 61000-3-3:1995 +A1:2001 +A2:2006 EN 61000-6-1:2007 EN 61000-6-2:2005 EN 55024:1998 + A1:2001 + A2:2003 Date Sample Submitted: July 16, 2012 Test Work Started: July 16, 2012 Test Work Completed: July 20, 2012 Test Sample Conditions: Damaged Poor (Usable) Good Prototype Production Used EMC Report No: 100790006MIN-001 Page 4 of 27 2.0 TEST SUMMARY Referring to the performance criteria and the operating mode during the tests specified in this report, the equipment complies with the requirements according to the following standards. TEST STANDARD TEST RESULT Part 27 Enclosure Spurious Radiated Emissions Pass 2.1 Statement of the Measurement Uncertainty Note: The measured result in this report is within the specification limits by more than the measurement uncertainty; the measured result indicates that the product tested complies with the specification limit. The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determined to be: ±4 dB at 10m and ±5.4 dB at 3m The expanded uncertainty (k = 2) for conducted emissions from 150 kHz to 30 MHz has been determined to be: ±2.6 dB EMC Report No: 100790006MIN-001 Page 5 of 27 3.0 EQUIPMENT UNDER TEST 3.1 Power Configuration Rated voltage: 120VAC 230VAC 400VAC 54VDC from external support Power Rated current: Amp. Rated frequency: 50Hz 60Hz Number of phases: 1 Phase 3 Phases 3.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Test program (H - Pattern) - Continuous Operation (see details below) - Specific test program - Operating modes of the EUT: No. Description 1 Continuous transmitting at 729MHz, 742MHz, and 756MHz at 20dBm output power 2 Continuous transmitting at 2111MHz, 2132MHz, and 2154MHz at 20dBm output power Cables: No. Type Length Designation Note 1 Two RF coax 10m each RF signal cables to the Support Equipment Support equipment/Services: No. Item Description 1 Aeroflex IRF 3413 Signal Generator 2 Prism Host Unit p/n 1449226 Host Unit 3 IFEU p/n MR2216G7 54 V Power Supply 4 Prism DRU unit DRU 5 Spectrum IFEU Unit IFEU 6 Spectrum Main RAU Remote Antenna General notes: None EMC Report No: 1…

Text truncated - open the document above for the full version.

EMC Report No: 100790006MIN-001 Page 8 of 27 Test Setup Photos EMC Report No: 100790006MIN-001 Page 9 of 27 Test Setup Photos
