NOO-S2791-011Spectrum CELL Path 2/PCS Path 2 SRAU

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com January 31, 2012 Attn: Application Examiner, Reviewing Engineer Re: Attestation Statement I, the undersigned, attest that all testing done under my supervision was done in accordance with the Federal Communications Commission’s CFR 47 Part 22 and Part 24. The EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 22 and 24. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com January 31, 2012 Attn: Application Examiner, Reviewing Engineer FCC ID: NOO-S2791-011 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Technical Description or Theory of Operation, Bill of Materials (BOM’s), and Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

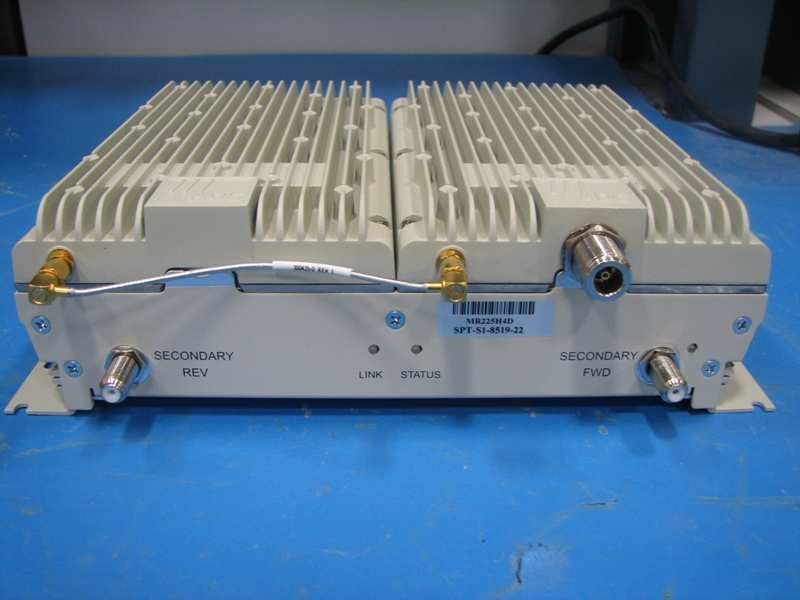

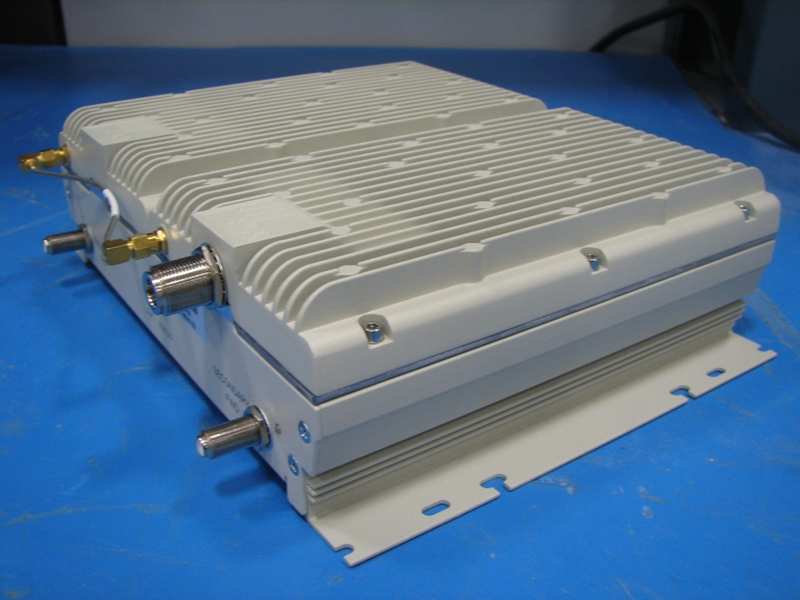

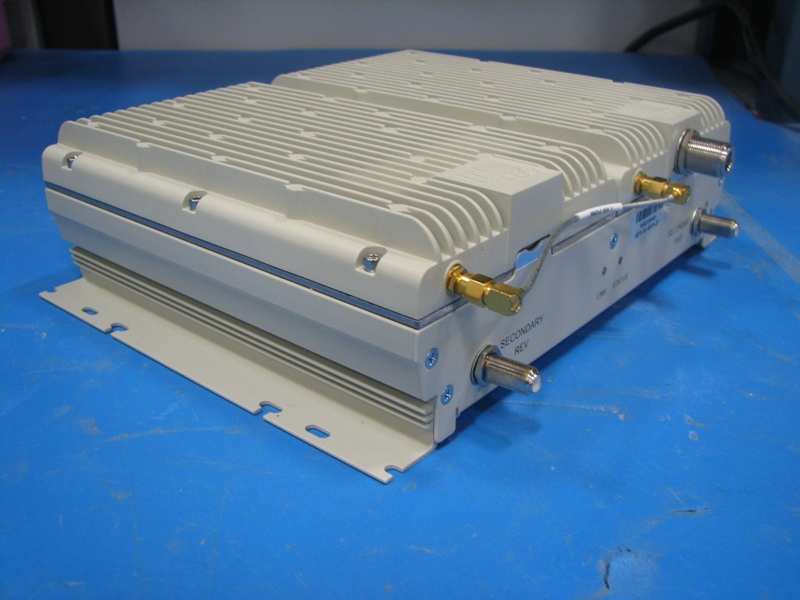

Spectrum CELL Path 2/PCS Path 2 SRAU Photos Front View 1 Rear View Top View Side View 1 Side View 2 Bottom View

Spectrum 800 SMR/AWS Path 1 MIMO SRAU FCC/IC Label Location

Internal Assembly 1 Internal Assembly 2 PCB IF Assembly Bottom View with shielding- SRAU PCB IF Assembly Bottom View without shielding- SRAU PCB IF Assembly Top View - SRAU PCB Assembly Bottom View Ant Port with shielding – SRAU PCB Assembly Bottom View Ant Port without shielding – SRAU PCB Assembly Top View Ant Port with shielding - SRAU PCB Assembly Top View Ant Port without shielding - SRAU PCB Assembly Bottom View Ant Port with shielding – SRAU PCB Assembly Bottom View Ant Port without shielding – SRAU PCB Assembly Top View Ant Port with shielding - SRAU PCB Assembly Top View Ant Port without shielding - SRAU

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com September 14, 2011 Attn: Application Examiner, Reviewing Engineer Re: Tune-up Procedure At installation, the system automatically configures its gain to compensate for coaxial cable loss between the IFEU and the RAUs. When the system is brought on-line, the pilots are used as reference signals for system to set its gain to the correct levels When an RAU is connected to any IFEU port, it will automatically be recognized and commanded into service. If an RAU is disconnected, the IFEU indicates disconnect with LED Red/Blank pattern on the corresponding port. The system will maintain RAU disconnects, even through a power cycle, and a user command will be required to clear the disconnect status. The purpose for this is to maintain the last valid RAU configuration (usually on commissioning) so that if any unit is accidentally disconnected (or powered off), that disconnect is indicated even if the Hub is power cycled. The Pilot tone will be two tones (Low and High end of band) used to adjust the gain and slope to compensate for 75 Ohm cable between the IFEU and the RAU. The Pilot tone will have an attenuator to set the pilot level to a constant fixed level over temperature. A calibration tone per band will be generated in the URH and sent to the RAU via the IFEU. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com February 1, 2012 Attn: Application Examiner, Reviewing Engineer Since the Spectrum CELL Path 2/PCS Path 2 SRAU is a low power device that is not hand- held, its antenna would rarely be within 20 cm of an individual and the ERP is less than 3 watts, we are in compliance with SAR requirements of 2.1091. The maximum TX output power from the EUT antenna port is 27.40 dBm. The maximum gain antenna that could be for use with the EUT has a gain of 7.37 dBi. From the following equations: Peak Output of EUT at antenna Connector (dBm) + Gain of Antenna (dBd) = Peak TX Power (dBm) ERP 10*Log 10 (Peak TX Power * E 3 Watts) = Peak TX Power (dBm) ERP 27.40 dBm + 7.37 dBi = 34.77 dBm EIRP 34.77 dBm ERP = 3.0 Watts EIRP To convert to EIRP use the relation: EIRP = ERP X 1.64. (2.55 EIRP = 1.56 ERP) To convert to dBi to dBd use the relation: dBi = dBd + 2.14. (7.14 dBi = 5.0 dBd) Per OET 65: Maximum Permissible Exposure is 1.0 mW/cm 2 over 30 minutes. (1500 MHz - 100,000 MHz) The following equations determine the distance from the antenna that the power density is ≤ 1.0 mW/cm 2 . 3.0 Watts EIRP = 3.0*10 3 mWatts ERP 1.0 mW/cm 2 = 3.0*10 3 mW/(4*π*r 2 ) r= SQR(3.0*10 3 /4*π 1.0) r= 15.45 cm or 0.1545 Meters In addition, the following statement is in our installation manual: To comply with Maximum Permissible Exposure (MPE) requirements, antennas must be installed to provide at least 20 centimeters of separation from all persons per FCC 47CFR, Part 2.1091 and IC RSS-102, Section 2.5.2. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

TEST DATA REPORT Report Number: 100616121MIN-001 Project Number: G100616121 Testing performed on the SPT-S1-8519-22 to 47 CFR, Part 24:2010, Enclosure Spurious Radiated Emissions 47 CFR, Part 22:2010, Enclosure Spurious Radiated Emissions For ADC Telecommunications Inc. - a TE Connectivity Company Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 USA ADC Telecommunications Inc.- a TE Connectivity Company 541 E Trimble Road San Jose, CA 95131 USA Prepared by: Date: January 23, 2012 Richard Blonigen Reviewed by: Date: January 23, 2012 Norman Shpilsher This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report No: 100616121MIN-001 Page 2 of 29 TABLE OF CONTENTS 1.0 DESCRIPTION OF THE SAMPLE (EUT)................................ ................................................................ ............................................................ ........................................................ ............................ 3 33 3 2.0 TEST SUMMARY................................ ................................................................ ................................................................ ................................................................ .......................................................... .................................................... .......................... 4 44 4 2.1 Statement of the Measurement Uncertainty............................................................4 3.0 EQUIPMENT UNDER TEST................................ ................................................................ ................................................................ ................................................................ ............................................ ........................ ............ 5 55 5 3.1 Power Configuration..........................................................................................5 3.2 EUT Configuration............................................................................................5 3.3 Environmental conditions....................................................................................6 4.0 TEST CONDITIONS AND RESULTS................................ ................................................................ ................................................................ ................................................................ ................................. .. . 7 77 7 4.1 Enclosure Spurious Radiated Emissions...............................................................7 5.0 TEST EQUIPMENT................................ ................................................................ ................................................................ ................................................................ ....................................................... .............................................. .......................29 2929 29 EMC Report No: 100616121MIN-001 Page 3 of 29 1.0 DESCRIPTION OF THE SAMPLE (EUT) Model: SPT-S1-8519-22 Type of EUT: CELLP2_PCSP2_SRAU Frequency Range: 869-894MHz (CELL Band) 1930-1990MHz (PCS Band) Company: ADC Telecommunications Inc. - a TE Connectivity Company Customer: Sue Cyr Address: 541 E. Trimble Road San Jose, CA 95131 USA Phone: 408-952-2445 Fax: 408-952-2645 e-mail: [email protected] Test Standards: EN 55022:2006 +A1:2007, Class EN 55011:2007 +A2:2007, Group , Class 47 CFR, Part 24:2010, Enclosure Spurious Radiated Emissions 47 CFR, Part 22:2010, Enclosure Spurious Radiated Emissions ICES-003, Issue 4:2004 EN 55014-1:2006 EN 61326-1:2006 Class for Radiated and Conducted Emissions Basic Immunity Test Requirements Immunity Test Requirements for Industrial Locations EN 60601-1-2:2001 +A1:2006 EN 61000-6-3:2007 EN 61000-6-4:2007 EN 61000-3-2:2006 EN 61000-3-3:1995 +A1:2001 +A2:2006 EN 61000-6-1:2007 EN 61000-6-2:2005 EN 55024:1998 + A1:2001 + A2:2003 Date Sample Submitted: January 17, 2012 Test Work Started: January 19, 2012 Test Work Completed: January 20, 2012 Test Sample Conditions: Damaged Poor (Usable) Good Prototype Production Used EMC Report No: 100616121MIN-001 Page 4 of 29 2.0 TEST SUMMARY Referring to the performance criteria and the operating mode during the tests specified in this report, the equipment complies with the requirements according to the following standards. TEST STANDARD TEST RESULT Part 24 Enclosure Spurious Radiated Emissions Pass Part 22 Enclosure Spurious Radiated Emissions Pass 2.1 Statement of the Measurement Uncertainty Note: The measured result in this report is within the specification limits by more than the measurement uncertainty; the measured result indicates that the product tested complies with the specification limit. The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determined to be: ±4 dB at 10m and ±5.4 dB at 3m The expanded uncertainty (k = 2) for conducted emissions from 150 kHz to 30 MHz has been determined to be: ±2.…

Text truncated - open the document above for the full version.

M N 1 2 0 1 3 1 _ C E L L P 2 _ P C S P 2 _ S R A U Page 1 Test Report Summary FCC CFR 47, Part 22 Subpart H Cellular Radiotelephone Service FCC CFR 47, Part 24 Subpart E Broadband PCS Manufacturer: ADC Telecommunications Name of Equipment: Spectrum CELL Path 2/PCS Path 2 SRAU Model Number(s): SPT-S1-8519-22 Manufacturer’s Address: 541 E Trimble Road San Jose, CA 95131 USA Test Report Number: MN120131_ CELLP2_PCSP2_ SRAU Test Date(s): 19 and 20 January, 2012 (Intertek) 7 and 8 September, 2011 (ADC) 12 and 13 October, 9 November 2011 (ADC) According to testing performed at Intertek, the above-mentioned unit is in accordance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 22 and 24. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. All testing was done in accordance with the Federal Communications Commission’s CFR 47 Part 22 and 24. The EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 22 and 24. Date: 31 January, 2012 Location: Intertek Testing Services (INTERTEK) ADC Telecommunications 7250 Hudson Blvd., Suite 100 1187 Park Place Oakdale, MN 55128 Shakopee, MN 55379 Phone: (651) 730-1188 Phone: (952) 403-8340 Fax: (651) 730-1282 Fax: (952) 403-8858 Testing Conducted by (ADC): And Report Written by: Joshua J. Wittman Compliance Engineer M N 1 2 0 1 3 1 _ C E L L P 2 _ P C S P 2 _ S R A U Page 2 EMC Emission – T E S T R E P O R T Test Report File Number: MN120131_ CELLP2_PCSP2_ SRAU Date of Issue: 31 January, 2012 Model Number(s): SPT-S1-8519-22 Product Name: Spectrum CELL Path 2/PCS Path 2 SRAU Product Type: Repeater Applicant: ADC Telecommunications Manufacturer: ADC Telecommunications License Holder: ADC Telecommunications Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Result: ▪ Positive ▫ Negative Test Project Number: 100616121MIN-001 Reference(s) Total pages including Appendices: 89 M N 1 2 0 1 3 1 _ C E L L P 2 _ P C S P 2 _ S R A U Page 3 1.0 TABLE OF CONTENTS 1.0 Table of Contents .................................................................................................... 3 2.0 Revision Description ................................................................................................ 4 3.0 Documentation ....................................................................................................... 4 3.1 Test Regulations .................................................................................................. 4 3.2 Test Operation Mode ............................................................................................. 5 3.3 Configuration of the Device Under Test: .................................................................. 5 3.4 Product Options: .................................................................................................. 5 3.5 EUT Specifications and Requirements: .................................................................... 5 3.6 Cables: ............................................................................................................... 5 3.7 Power Requirements: ........................................................................................... 5 3.8 Typical Installation and/or Operating Environment: .................................................. 5 3.9 Other Special Requirements: ................................................................................. 5 3.10 EUT Software: ................................................................................................... 5 3.11 EUT System Components ................................................................................... 6 3.12 Support Equipment ............................................................................................ 6 3.13 Deviations from Standard: .................................................................................. 6 3.14 General Remarks: ............................................................................................. 6 3.15 Summary: ........................................................................................................ 6 4.0 Test Set-Up Drawings and Photos ............................................................................. 7 4.1 Test Set-up Photo, Radiated Emissions ................................................................... 7 4.2 Test Set-up Drawings ........................................................................................... 8 5.0 Test Results ......................................................................................................... 10 5.1.1 27.50 RF Power Limits ................................................................................... 10 5.1.2 27.54 Frequency Stability .............................................................................. 11 5.1.3 27.53 Emission Limitations ............................................................................ 12 6.0 Test Equipment .................................................................................................... 13 7.0 Appendix A .......................................................................................................... 14 7.1 Conducted Emission Limits Test ........................................................................... 15 7.2 Conducted Output Power Test .............................................................................. 36 7.3 Frequency Stability Test ...................................................................................... 38 7.4 Intermodulation Test .......................................................................................... 40 7.5 Occupied Bandwidth Modulation Test ....…
