NOO-S2793-112InterReach Spectrum Remote Access Unit

ADCP-77-168  Issue 3  May 2012 D-620731-0-20 Rev C InterReach Spectrum ™ Remote Access Unit Installation Guide - Preliminary Update - Issue 3 Main Remote Access Unit Secondary Remote Access Unit Copyright © 2012 TE Connectivity, Inc. All Rights Reserved. Information contained in this document is company private to TE Connectivity Ltd., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of TE. Trademark Information FlexWave, FlexWave Prism, InterReach Spectrum, Universal Radio Head, TE Connectivity, and TE connectivity (logo) are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. Disclaimer of Liability Contents herein are current as of the date of publication. TE reserves the right to change the contents without prior notice. Should the content of printed user documentation shipped with product differ from documentation provided on a product CD (inclusive of the associated Help modules), the printed user documentation supersedes the documentation on the product CD. In no event shall TE be liable for any damages resulting from loss of data, loss of use, or loss of profits, and TE further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Specific Disclaimer for High-Risk Activities This Product is not specifically designed, manufactured, tested or intended for use in high-risk activities including, without restricting the generality of the foregoing, on-line control of aircraft, air traffic, aircraft navigation or aircraft communications; or in the design, construction, operation or maintenance of any nuclear facility. TE (including its affiliates) and its suppliers specifically disclaim any express or implied warranty of fitness for such purposes or any other purposes. Screenshots in User Documentation Due to concurrent development of this documentation, artwork, and the InterReach Spectrum Element Management System (EMS), there may be some minor discrepancies between screenshots contained in this documentation and those actually displayed in the InterReach Spectrum EMS. These discrepancies will generally be few and minor and should not affect your understanding of InterReach Spectrum EMS. InterReach Spectrum Remote Access Unit Installation Guide - Preliminary Update for Issue 3Page 1 ADCP-77-168 • Issue 3 • May 2012©2012 TE Connectivity Ltd. TABLE OF CONTENTS Preface............................................................................................................................................................................. 2 Revision History ....................................................................................................................................................... 2 InterReach Spectrum User Documentation............................................................................................................... 2 Standards Certification ............................................................................................................................................. 3 Product Overview............................................................................................................................................................. 4 Main Remote Access Units ....................................................................................................................................... 5 MRAU Ports, Cable, and Connectors .................................................................................................................5 MRAU LEDs....................................................................................................................................................... 6 Secondary Remote Access Units .............................................................................................................................. 7 SRAU Ports, Cable, and Connectors .................................................................................................................. 7 SRAU LEDs........................................................................................................................................................ 8 RAU N Connectors....................................................................................................................................................9 Install the RAUs and Antennas....................................................................................................................................... 10 Mount the RAUs and Antennas ............................................................................................................................... 10 General Safety Precautions ..................................................................................................................................... 10 Connect the IFEU to the MRAU ............................................................................................................................... 11 Connect the MRAU to SRAUs ................................................................................................................................. 13 Configure the MRAUs and SRAUs .......................................................................................................................... 14 Appendix A: Specifications............................................................................................................................................. 15 Remote Access Unit Specifications......................................................................................................................... 15 Spectrum System Specifications ...............................................................................................…

Text truncated - open the document above for the full version.

FCC Confidential Authorization 7/20/12 F EDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: NOO-S2793-112 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, ADC T elecommunications Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description Turn up Procedure & Pars List (BOM) T he above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Joshua J. Wittman 1187 Park Place Shakopee, MN 55379 952-403-8322 [email protected]

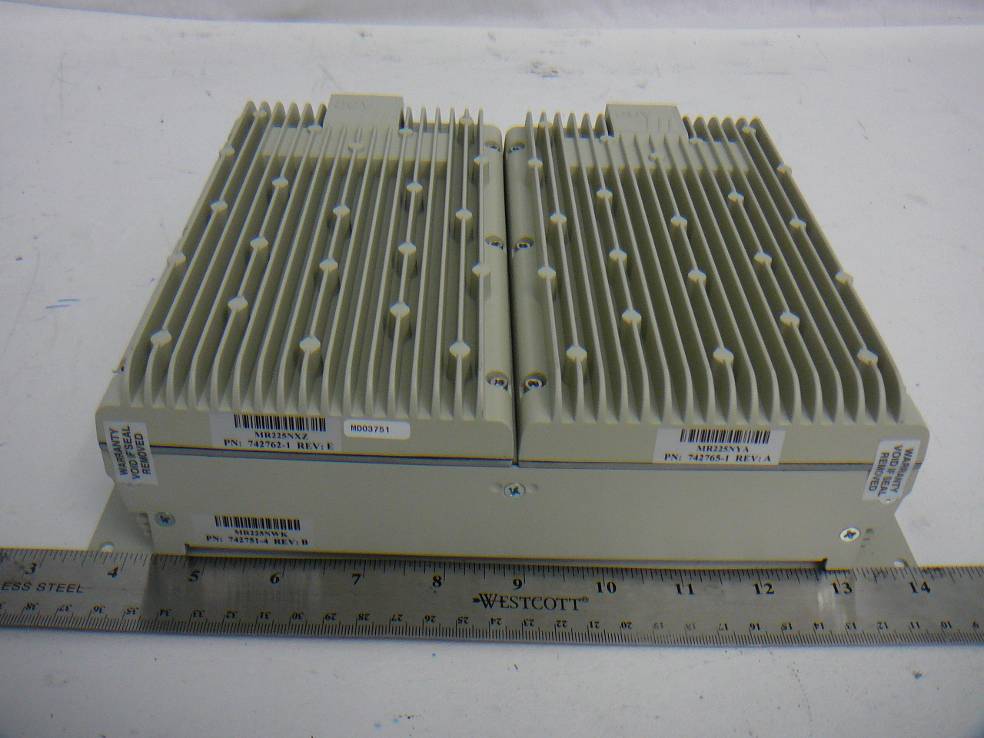

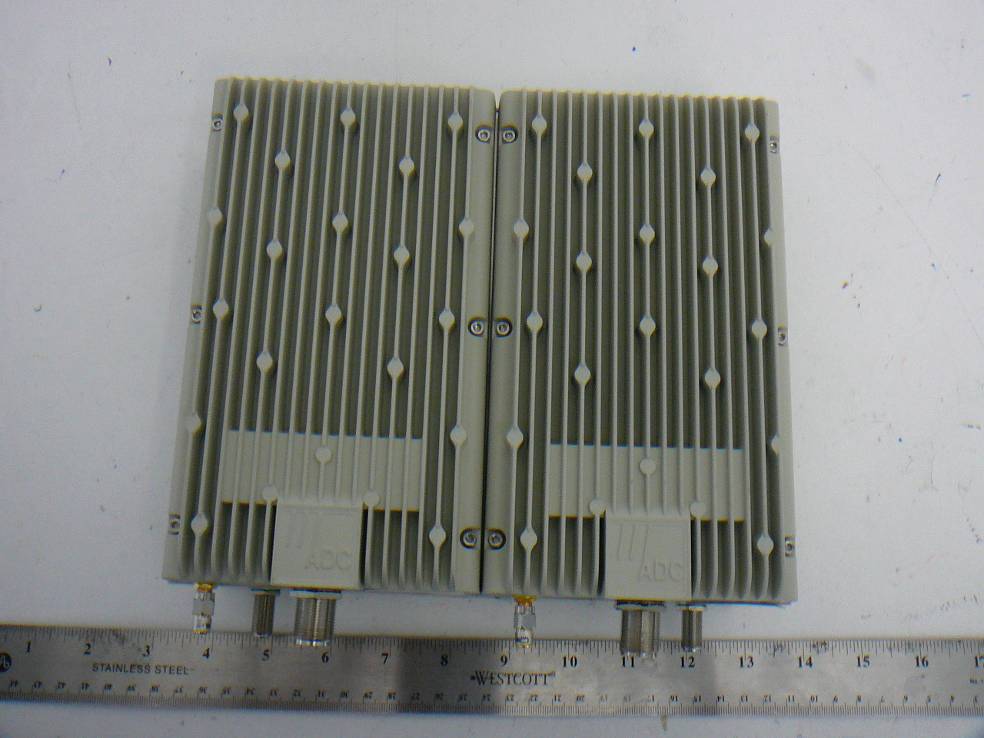

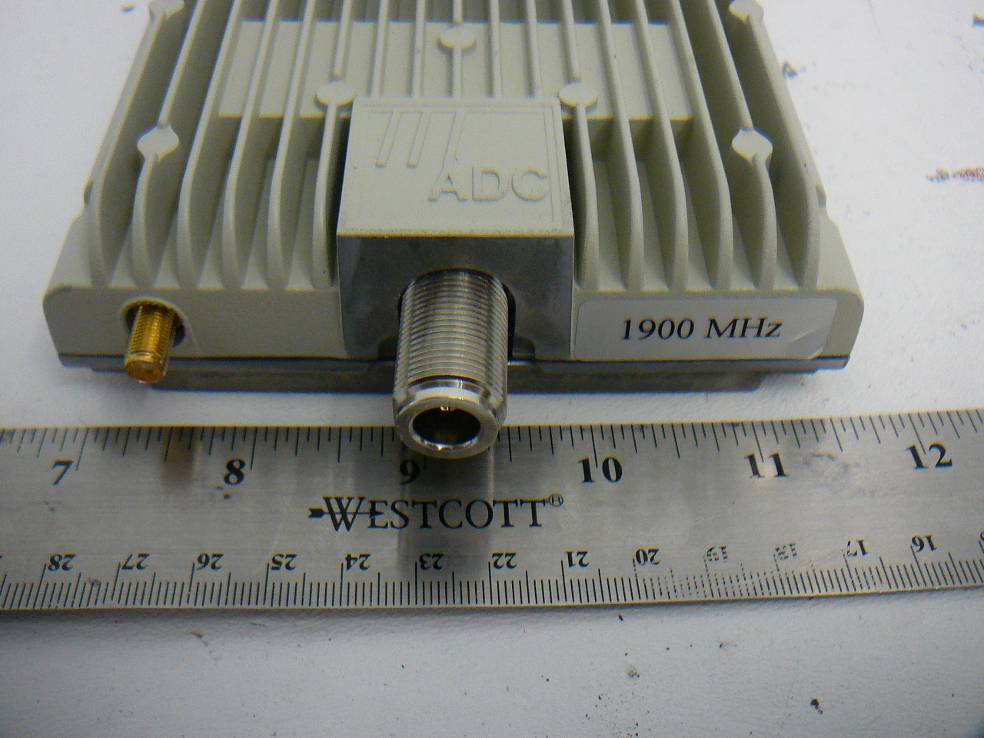

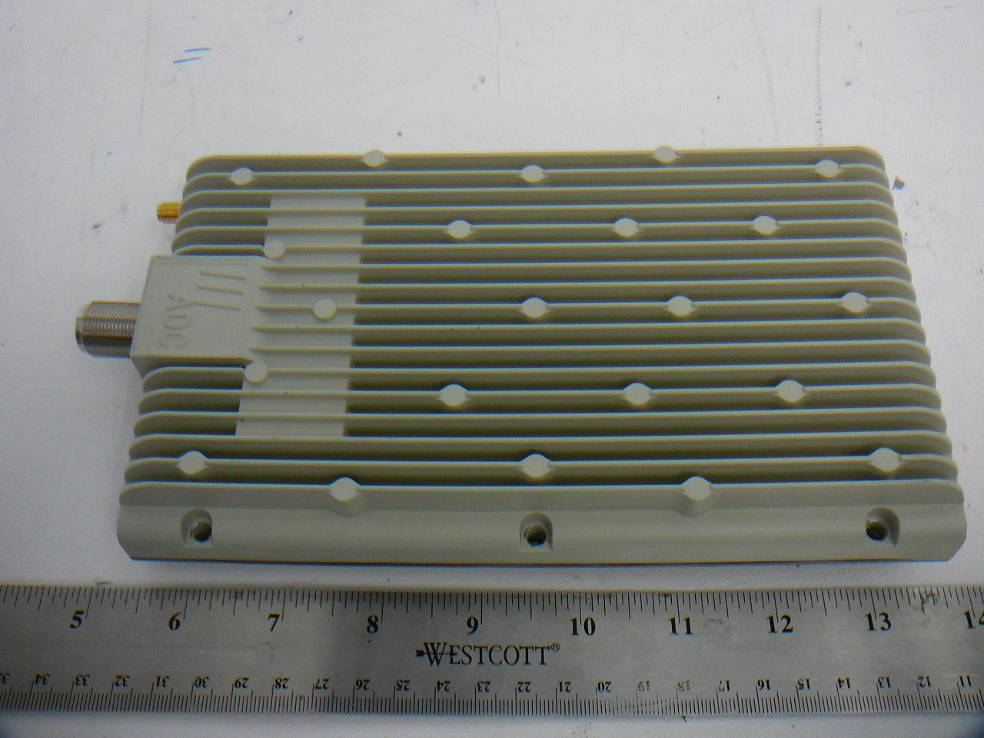

ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 80 of 91 FCC Part 24E/27 Test Report 13 Exhibit C – EUT Photographs 13.1 EUT - Top View 13.2 EUT - Bottom View ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 81 of 91 FCC Part 24E/27 Test Report 13.3 EUT - Front View 13.4 EUT - Rear View ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 82 of 91 FCC Part 24E/27 Test Report 13.5 EUT - Side View (1) 13.6 EUT - Side View (2) ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 83 of 91 FCC Part 24E/27 Test Report 13.7 EUT – 1900 PCS Band Module Top View 13.8 EUT – 1900 PCS Band Module Bottom View ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 84 of 91 FCC Part 24E/27 Test Report 13.9 EUT – 1900 PCS Band Module Front View 13.10 EUT – 1900 PCS Band Module Rear View ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 85 of 91 FCC Part 24E/27 Test Report 13.11 EUT – 1900 PCS Band Module Side View (1) 13.12 EUT – 1900 PCS Band Module Side View (2) ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 86 of 91 FCC Part 24E/27 Test Report 13.13 EUT – 2100 AWS Band Module Top View 13.14 EUT – 2100 AWS Band Module Bottom View ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 87 of 91 FCC Part 24E/27 Test Report 13.15 EUT – 2100 AWS Band Module Front View 13.16 EUT – 2100 AWS Band Module Rear View ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 88 of 91 FCC Part 24E/27 Test Report 13.17 EUT – 2100 AWS Band Module Side View (1) 13.18 EUT – 2100 AWS Band Module Side View (2)

ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 77 of 91 FCC Part 24E/27 Test Report 11 Exhibit A - FCC ID Labeling Requirements 11.1 FCC ID Label Requirements FCC §2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code. 11.2 FCC ID Label Contents 11.3 FCC ID Label Location on EUT

ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 89 of 91 FCC Part 24E/27 Test Report 13.19 EUT – 1900 PCS Band Module Main PCB Board Component View (1) 13.20 EUT – 1900 PCS Band Module Main PCB Board Component View (2) ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 90 of 91 FCC Part 24E/27 Test Report 13.21 EUT – 2100 AWS Band Component View (1) 13.22 EUT – 2100 AWS Band Component View (2) ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 91 of 91 FCC Part 24E/27 Test Report 13.23 EUT – Main PCB Assembly Component View 13.24 EUT – Main PCB Assembly Solder View --- END OF REPORT ---

ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 75 of 91 FCC Part 24E/27 Test Report 10 FCC §1.1307(b) (1) & §2.1091 – RF Exposure Information 10.1 Applicable Standard According to FCC §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 10.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 1900 MHz PCS Band Downlink: 1930-1995 MHz Maximum peak output power at antenna input terminal (dBm): 26.23 Maximum peak output power at antenna input terminal (mW): 419.76 Prediction distance (cm): 20 Prediction frequency (MHz): 1994.8 Antenna Gain, typical (dBi): 3.0 Maximum Antenna Gain (numeric): 2.0 Power density at predication frequency and distance (mW/cm 2 ): 0.167 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 76 of 91 FCC Part 24E/27 Test Report 2100 MHz AWS Band Downlink : 2110-2155 MHz Maximum peak output power at antenna input terminal (dBm): 18.79 Maximum peak output power at antenna input terminal (mW): 75.68 Prediction distance (cm): 20 Prediction frequency (MHz): 2112.4 Antenna Gain, typical (dBi): 3.0 Maximum Antenna Gain (numeric): 2.0 Power density at predication frequency and distance (mW/cm 2 ): 0.03 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Results The highest power density level at 20 cm is below the MPE uncontrolled exposure limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 24E & 27 TEST AND MEASUREMENT REPORT For ADC Telecommunications Inc. 1187 Park Place, Shakopee, MN 55379, USA FCC ID: NOO-S2793-112 Report Type: Original Report Product Type: Remote Access Unit for InterReach Fusion System Test Engineer: Wei Sun Report Number: R1207095-2427 Report Date: 2012-07-31 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 2 of 91 FCC Part 24E/27 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION ................................................................................................................................. 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 EUT TEST CONFIGURATION........................................................................................................................... 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 SPECIAL EQUIPMENT......................................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT............................................................................................................................. 7 2.6 EUT INTERNAL CONFIGURATION DETAILS........................................................................................................ 8 2.7 EXTERNAL I/O CABLING LIST AND DETAILS..................................................................................................... 8 3 SUMMARY OF TEST RESULTS........................................................................................................................ 9 4 FCC §2.1046, §24.232 & §27.50 – RF OUTPUT POWER................................................................................10 4.1 APPLICABLE STANDARD.................................................................................................................................. 10 4.2 TEST PROCEDURE AND SETUP BLOCK DIAGRAM............................................................................................. 10 4.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 10 4.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 11 4.5 TEST RESULTS................................................................................................................................................. 11 5 FCC §2.1049, §24.238 & §27.53 – OCCUPIED BANDWIDTH ....................................................................... 14 5.1 APPLICABLE STANDARD.................................................................................................................................. 14 5.2 TEST PROCEDURE AND SETUP BLOCK DIAGRAM............................................................................................. 14 5.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 14 5.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 15 5.5 TEST RESULTS................................................................................................................................................. 15 6 FCC §2.1051, §24.238 & §27.53 - SPURIOUS RADIATED EMISSIONS...................................................... 32 6.1 APPLICABLE STANDARD.................................................................................................................................. 32 6.2 TEST PROCEDURE............................................................................................................................................ 32 6.3 TEST EQUIPMENT LIST AND DETAILS..............................…

Text truncated - open the document above for the full version.

ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 78 of 91 FCC Part 24E/27 Test Report 12 Exhibit B - Test Setup Photographs 12.1 Radiated Emissions - Front View 12.2 Radiated Emissions - Rear View (Below 1 GHz) ADC Telecommunications Inc. FCC ID: NOO-S2793-112 Report Number: R1207095-2427 Page 79 of 91 FCC Part 24E/27 Test Report 12.3 Radiated Emissions - Rear View (Above 1 GHz)
