FCC Confidential Authorization 7/20/12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: NOO-S2795-012 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, ADC Telecommunications Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description • Tune up Procedure & Parts List (BOM) The above mate rials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Joshua J. Wittman 1187 Park Place Shakopee, MN 55379 952-403-8322 [email protected]

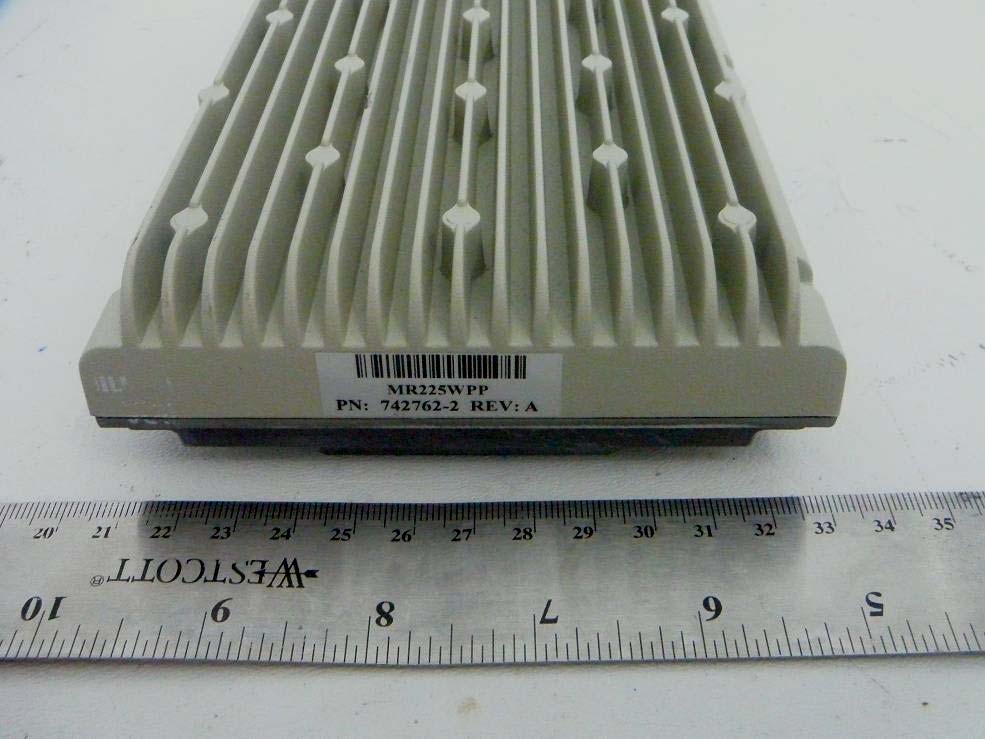

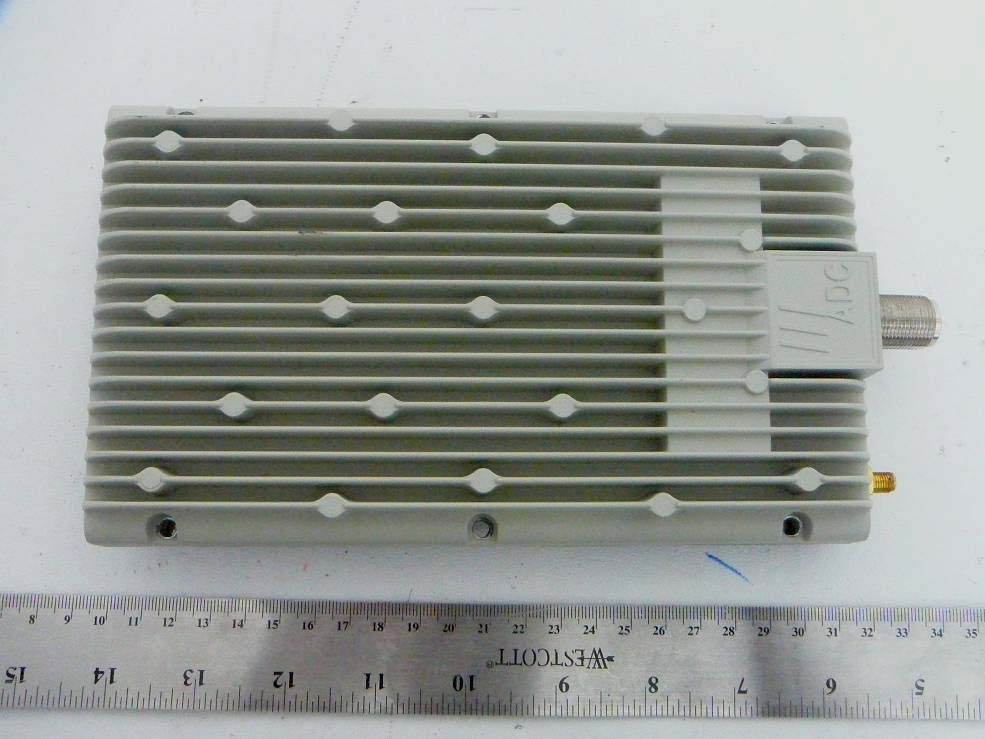

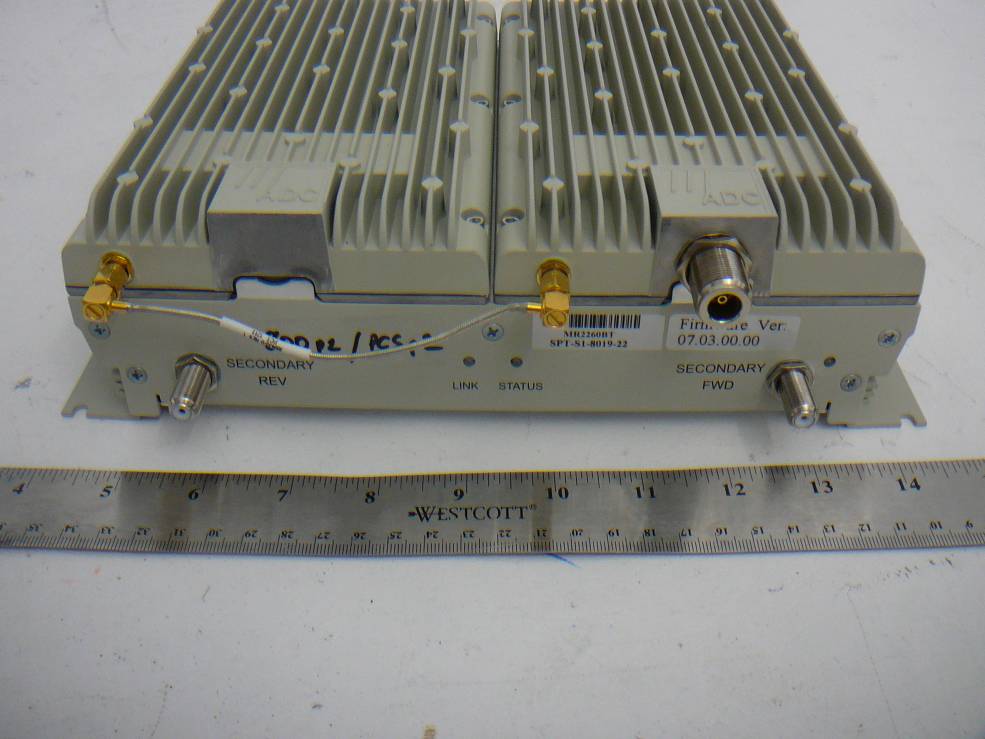

ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 49 of 60 FCC Part 24E Test Report 13 Exhibit C – EUT Photographs 13.1 EUT - Top View 13.2 EUT - Bottom View ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 50 of 60 FCC Part 24E Test Report 13.3 EUT - Front View 13.4 EUT - Rear View ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 51 of 60 FCC Part 24E Test Report 13.5 EUT - Side View (1) 13.6 EUT - Side View (2) ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 52 of 60 FCC Part 24E Test Report 13.7 EUT 1900 MHz PCS Band Module – Top View 13.8 EUT 1900 MHz PCS Band Module – Bottom View ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 53 of 60 FCC Part 24E Test Report 13.9 EUT 1900 MHz PCS Band Module – Front View 13.10 EUT 1900 MHz PCS Band Module – Rear View ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 54 of 60 FCC Part 24E Test Report 13.11 EUT 1900 MHz PCS Band Module – Side View (1) 13.12 EUT 1900 MHz PCS Band Module – Side View (2) ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 55 of 60 FCC Part 24E Test Report 13.13 EUT 800 MHz SMR Band Module – Top View 13.14 EUT 800 MHz SMR Band Module – Bottom View ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 56 of 60 FCC Part 24E Test Report 13.15 EUT 800 MHz SMR Band Module – Front View 13.16 EUT 800 MHz SMR Band Module – Rear View ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 57 of 60 FCC Part 24E Test Report 13.17 EUT 800 MHz SMR Band Module – Side View (1) 13.18 EUT 800 MHz SMR Band Module – Side View (2)

ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 46 of 60 FCC Part 24E Test Report 11 Exhibit A - FCC ID Labeling Requirements 11.1 FCC ID Label Requirements Per FCC Part 2.925(a), Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code (b) The grantee code assigned pursuant to paragraph (c) of this section is assigned permanently to applicants/grantees and is valid only for the party specified as the applicant/grantee in the code assignment(s). (c) A grantee code will have three characters consisting of Arabic numerals, capital letters, or combination thereof (d) The equipment product code assigned by the grantee shall consist of a series of Arabic numerals, capital letters or a combination thereof, and may include the dash or hyphen (-). The total of Arabic numerals, capital letters and dashes or hyphens shall not exceed 14 and shall be one which has not been previously used in conjunction with. 11.2 FCC ID Label Contents and Location

ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-90 Page 41 of 43 FCC Part 90 Test Report 13.19 EUT 800 MHz SMR Band Module – Main PCB Board Component View 13.20 EUT 800 MHz SMR Band Module – Main PCB Board Solder View ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-90 Page 42 of 43 FCC Part 90 Test Report 13.21 EUT 1900 MHz PCS Band Module – Main PCB Board Component View 13.22 EUT 1900 MHz PCS Band Module – Main PCB Board Solder View ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-90 Page 43 of 43 FCC Part 90 Test Report 13.23 EUT Main PCB Board– Component View 13.24 EUT Main PCB Board – Solder View --- END OF REPORT ---

ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 45 of 60 FCC Part 24E Test Report 10 FCC §1.1307(b)(1) & §2.1091 – RF Exposure Information 10.1 Applicable Standard According to FCC §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 10.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal (dBm): 26.62 Maximum peak output power at antenna input terminal (mW): 459.198 Prediction distance (cm): 20 Prediction frequency (MHz): 1994.8 Antenna Gain, typical (dBi): 3.0 Maximum Antenna Gain (numeric): 2.0 Power density at predication frequency and distance (mW/cm 2 ): 0.1822 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Results The device complies with the MPE requirements by providing a safe separation distance of at least 20 cm between the antenna with maximum 3 dBi gain, including any radiating structure, and any persons when normally operated.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 24E TEST AND MEASUREMENT REPORT For ADC Telecommunications Inc. 1187 Park Place, Shakopee, MN 55379, USA FCC ID: NOO-S2795-012 Report Type: Original Report Product Type: Remote Access Unit for InterReach Fusion System Test Engineer: Wei Sun Report Number: R1207096-24 Report Date: 2012-08-08 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 2 of 60 FCC Part 24E Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION ................................................................................................................................. 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION...............................................................................................................................5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 EUT TEST CONFIGURATION........................................................................................................................... 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.3 SPECIAL EQUIPMENT......................................................................................................................................... 7 2.4 LOCAL SUPPORT EQUIPMENT............................................................................................................................. 7 2.5 INTERNAL CONFIGURATION DETAILS................................................................................................................ 8 2.6 EXTERNAL I/O CABLING LIST AND DETAILS..................................................................................................... 8 3 SUMMARY OF TEST RESULTS........................................................................................................................ 9 4 FCC §2.1046 & §24.232 – RF OUTPUT POWER............................................................................................. 10 4.1 APPLICABLE STANDARD.................................................................................................................................. 10 4.2 TEST PROCEDURE AND SETUP BLOCK DIAGRAM............................................................................................. 10 4.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 10 4.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 11 4.5 TEST RESULTS................................................................................................................................................. 11 5 FCC §2.1049 & §24.238 – EMISSION BANDWIDTH .....................................................................................13 5.1 APPLICABLE STANDARD.................................................................................................................................. 13 5.2 TEST PROCEDURE AND SETUP BLOCK DIAGRAM............................................................................................. 13 5.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 13 5.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 14 5.5 TEST RESULTS................................................................................................................................................. 14 6 FCC §2.1053 & §24.238 - SPURIOUS RADIATED EMISSIONS................................................................... 23 6.1 APPLICABLE STANDARD.................................................................................................................................. 23 6.2 TEST PROCEDURE............................................................................................................................................ 23 6.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 23 6.4 TEST ENVIRONMENTAL CONDITIONS..............................…

Text truncated - open the document above for the full version.

ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 47 of 60 FCC Part 24E Test Report 12 Exhibit B - Test Setup Photographs 12.1 Radiated Emissions - Front View 12.2 Radiated Emissions - Rear View (Below 1 GHz) ADC Telecommunications Inc. FCC ID: NOO-S2795-012 Report Number: R1207096-24 Page 48 of 60 FCC Part 24E Test Report 12.3 Radiated Emissions - Rear View (Above 1 GHz)
