NOO-SP2784-0111900/2100 MHz RAU

ADC Spectrum 7.0 Installation Guide D-xxxxxx-x-xx Rev A ADCP-77-xxxx Issue 1 x 12/2009 ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 Copyright © 2009 ADC Telecommunications, Inc. All Rights Reserved. Information contained in this document is company private to ADC Telecommunications, Inc. and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of ADC. Trademark Information ADC is a registered trademark and FlexWave and Universal Radio Head are trademarks of ADC Telecommunications, Inc. No right, license, or interest to such trademarks is granted hereunder, and you agree that no such right, license, or interest shall be asserted by you with respect to such trademark. Other product names mentioned in this practice are used for identification purposes only and may be trademarks or registered trademarks of their respective companies. Disclaimer of Liability Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. Should the content of printed user documentation shipped with product differ from documentation provided on a product CD (inclusive of the associated Help modules), the printed user documentation supersedes the documentation on the product CD. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Specific Disclaimer for High-Risk Activities This Product is not specifically designed, manufactured, tested or intended for use in high-risk activities including, without restricting the generality of the foregoing, on-line control of aircraft, air traffic, aircraft navigation or aircraft communications; or in the design, construction, operation or maintenance of any nuclear facility. ADC (including its affiliates) and its suppliers specifically disclaim any express or implied warranty of fitness for such purposes or any other purposes. Screenshots in User Documentation Due to concurrent development of this documentation, artwork, and the FlexWave URH EMS product, there may be some minor discrepancies between screenshots contained in this documentation and those actually displayed in the FlexWave URH EMS. These discrepancies will generally be few and minor and should not affect your understanding of FlexWave URH EMS. TABLE OF CONTENTS Preface.................................................................................................................... 2 Revision History................................................................................................... 2 Document Cautions and Notes ............................................................................... 2 General Safety Precautions ................................................................................... 2 Standards Certification ......................................................................................... 3 Introduction ............................................................................................................. 4 Host Unit ............................................................................................................ 5 DART Remote Unit ............................................................................................... 6 IF Expansion Unit................................................................................................. 7 Main Remote Access Unit ...................................................................................... 8 Secondary Remote Access Unit .............................................................................. 9 Omni Antenna ................................................................................................... 10 Installation ............................................................................................................ 11 Cascading.............................................................................................................. 14 Specifications ......................................................................................................... 15 Contacting ADC ...................................................................................................... 17 Preface Page 2FlexWave Prism Remote Unit Installation Guide © 2009 ADC Telecommunications, IncADCP-77-072 • Issue 2 • 11/2009 PREFACE This manual provides basic installation instructions for a ADC ® Spectrum 7.0 system. Revision History Initial release. Document Cautions and Notes Two types of messages, identified below, appear in the text: CAUTION!Caution text indicates operations or steps that could cause personal injury, induce a safety problem in a managed device, destroy or corrupt information, or interrupt or stop services. NOTE:Note text contains information about special circumstances. General Safety Precautions CAUTION!Wet conditions increase the potential for receiving an electrical shock when installing or using electrically-powered equipment. To prevent electrical shock, never install or use electrical equipment in a wet location or during a lightning storm. CAUTION!This equipment uses a Class 1 Laser according to FDA/CDRH rules. Laser radiation can seriously damage the retina of the eye. Do not look into the ends of any optical fiber. Do not look directly into the optical transceiver of any digital unit or exposure to laser radiation may result. An optical power meter should be used to verify active fibers. A protective cap or hood MUST be immediately placed over any radiating transceiver or optical fiber connector to avoid the potential of dange…

Text truncated - open the document above for the full version.

BACL-NF0028-A DECLARATION OF SIMILARITY April 5, 2010 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089 Phone: 408-732-9162, Fax: 408-732-9164 http://www.baclcorp.com Dear Sir or Madam: We ADC Telecommunications hereby declare that product: Spectrum 850/1900 MRAU (1900MHz PCB) and Spectrum AWS/1900 MRAU (1900 MHz PCB) are electrically identical with the same electromagnetic emissions and electromagnetic compatibility characteristics as model: tested by BACL. A description of the differences between the tested model and those that are declared similar are as follows: The Spectrum 850/1900 MRAU and the Spectrum AWS/1900 MRAU use identical housings and 1900MHz band RF printed circuit boards. The 1900 MHz PCBs applied in both products will omit identical radiated and conducted emissions as previously tested. Please contact me should there be need for any additional clarification or information. Best Regards, Joshua J. Wittman, Compliance Engineer ADC Telecommunications P.O. Box 1101 Minneapolis, MN 55440-1101

FCC Confidential Authorization 2/26/10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: NOO- S2784-011 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, ADC Telecommunications hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Joshua J. Wittman 1187 Park Place Shakopee, MN 55379 952-403-8322 [email protected]

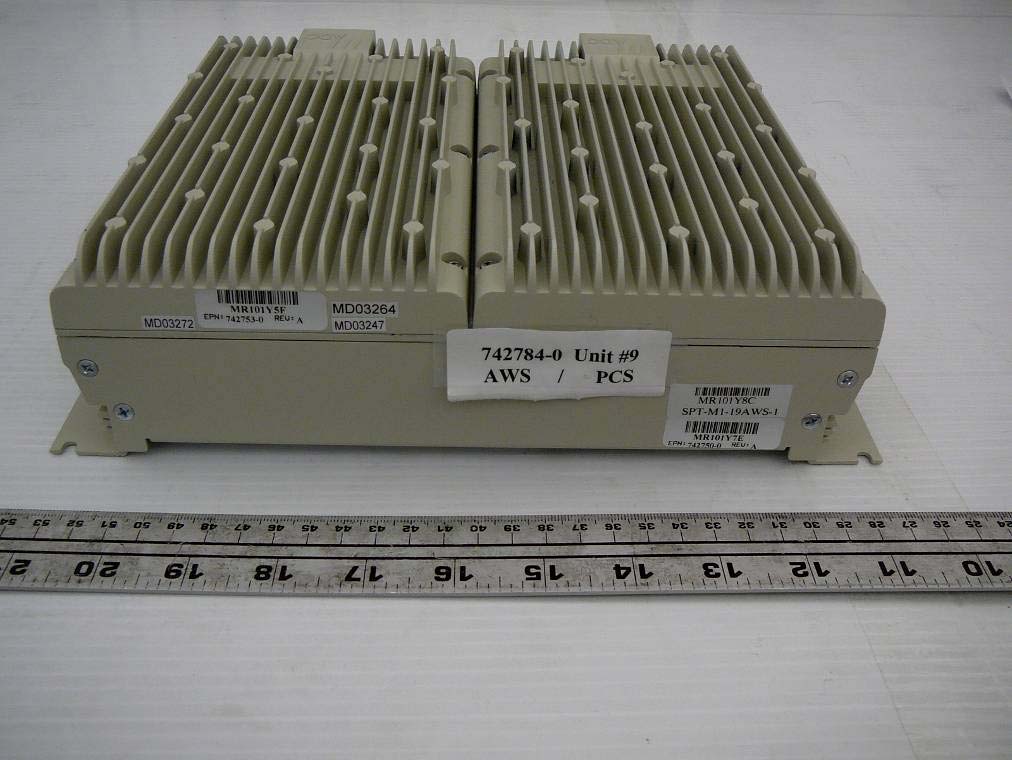

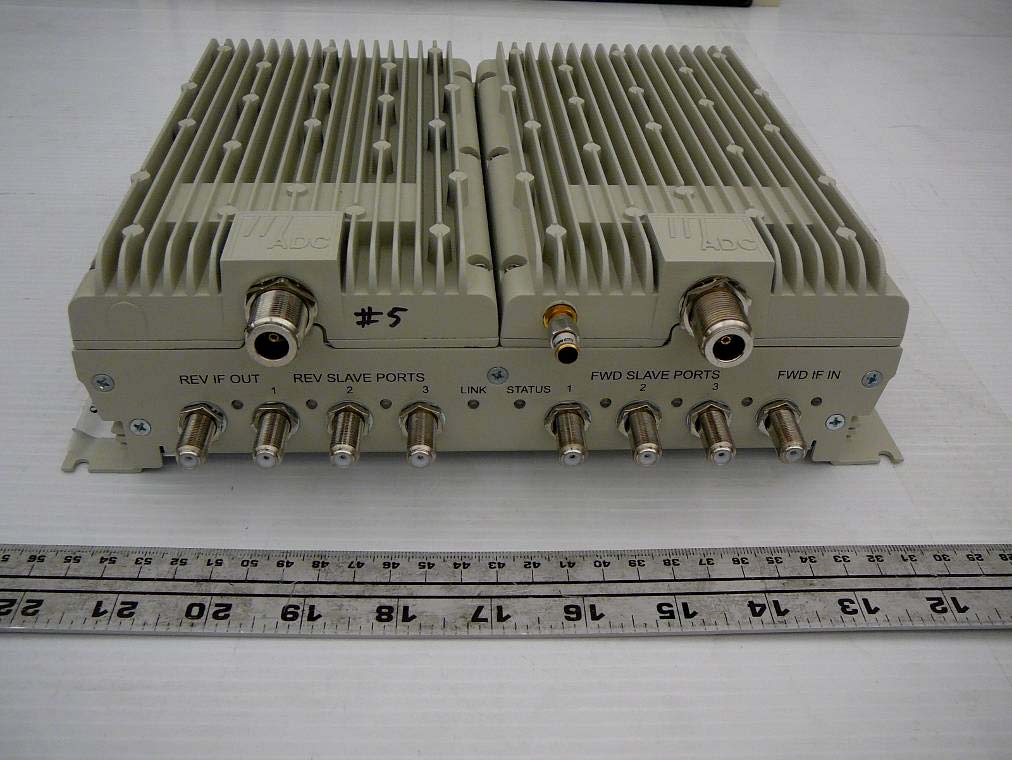

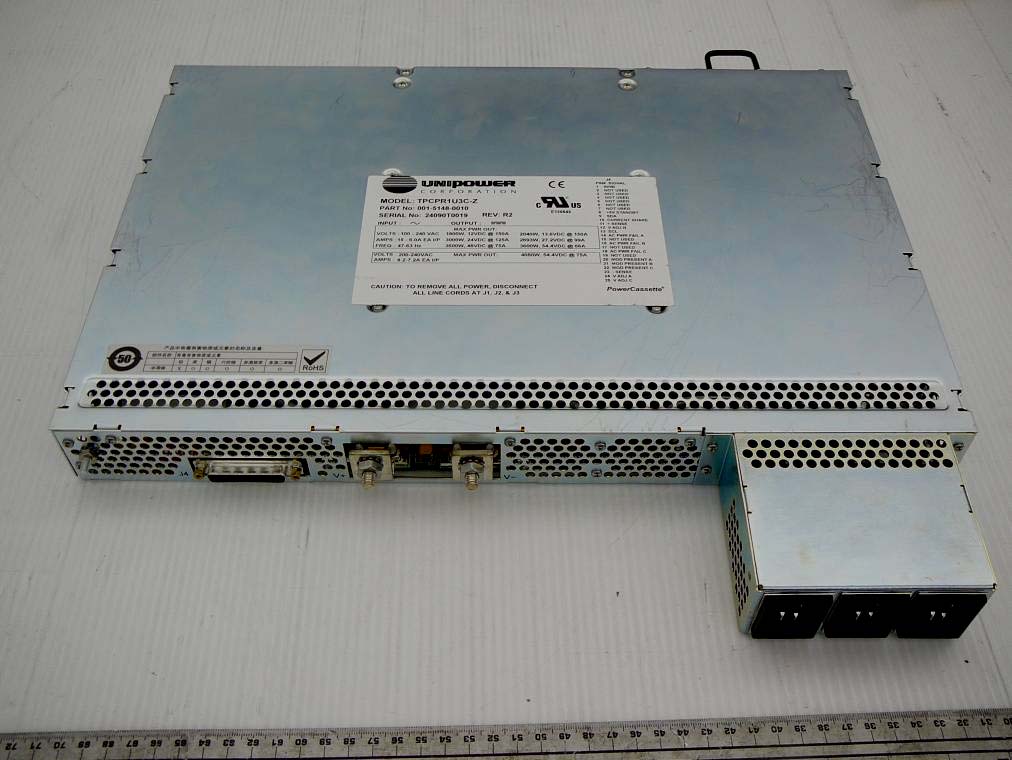

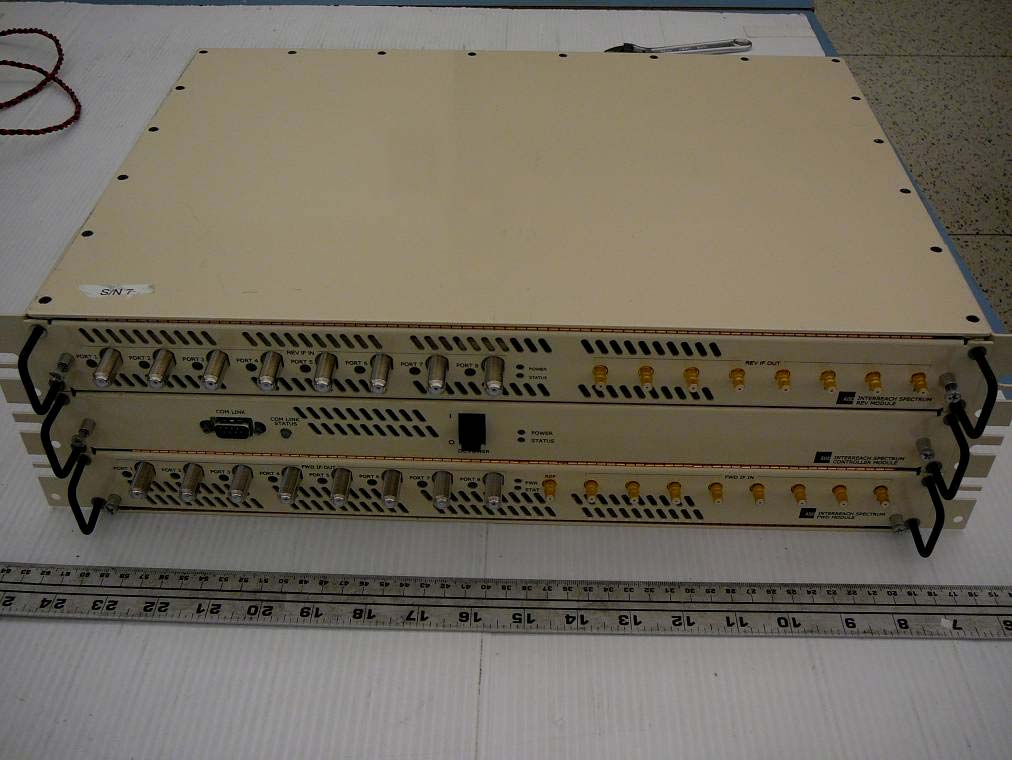

ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 41 of 52 FCC Part 24E & 27 Test Report 14 Exhibit C- EUT Photos 14.1 EUT Front View - MRAU 14.2 EUT Rear View – MRAU ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 42 of 52 FCC Part 24E & 27 Test Report 14.3 EUT Side View – MRAU 14.4 EUT Bottom View – MRAU ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 43 of 52 FCC Part 24E & 27 Test Report 14.5 EUT with Supporting Equipments View 14.6 Supporting Equipment Front View – URH Host ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 44 of 52 FCC Part 24E & 27 Test Report 14.7 Supporting Equipment Rear View – URH Host 14.8 Supporting Equipment Top View – DRU Host ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 45 of 52 FCC Part 24E & 27 Test Report 14.9 Supporting Equipment Rear View – DRU Host 14.10 Supporting Equipment Front View – IFEU ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 46 of 52 FCC Part 24E & 27 Test Report 14.11 Supporting Equipment Rear View – IFEU 14.12 Supporting Equipment Power Supplies Front View ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 47 of 52 FCC Part 24E & 27 Test Report 14.13 Supporting Equipment Power Supplies Rear View

ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 37 of 52 FCC Part 24E & 27 Test Report 12 EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT 12.1 FCC ID Label Requirement FCC §2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code 12.2 FCC ID Label Content 12.3 FCC Label Location on EUT FCC ID: XXX-XXXXXX Label here

ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 48 of 52 FCC Part 24E & 27 Test Report 14.14 EUT Case off view (With Shielding) Top View - MRAU 14.15 EUT PCB Assembly (Without Shielding) Top View – MRAU (Ant Ports) ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 49 of 52 FCC Part 24E & 27 Test Report 14.16 EUT PCB Assembly (With Shielding) Bottom View – MRAU (Ant Port) 14.17 EUT PCB Assembly (Without Shielding) Bottom View – MRAU (Ant Port) ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 50 of 52 FCC Part 24E & 27 Test Report 14.18 EUT PCB Assembly IF Board Top View – MRAU 14.19 EUT PCB Assembly IF Board Bottom View – MRAU ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 51 of 52 FCC Part 24E & 27 Test Report 14.20 EUT PCB Assembly IF Board (Without Shielding) Bottom View – MRAU

At installation, the system automatically configures its gain to compensate for coaxial cable loss between the IFEU and the RAUs. When the system is brought on-line, the pilots are used as reference signals for system to set its gain to the correct levels When an RAU is connected to any IFEU port, it will automatically be recognized and commanded into service. If an RAU is disconnected, the IFEU indicates disconnect with LED Red/Blank pattern on the corresponding port. The system will maintain RAU disconnects, even through a power cycle, and a user command will be required to clear the disconnect status. The purpose for this is to maintain the last valid RAU configuration (usually on commissioning) so that if any unit is accidentally disconnected (or powered off), that disconnect is indicated even if the Hub is power cycled The Pilot tone will be two tones (Low and High end of band) used to adjust the gain and slope to compensate for 75Ohm cable between the IFEU and the RAU. The Pilot tone will have an attenuator to set the pilot level to a constant fixed level over temperature. A calibration tone per band will be generated in the URH and sent to the RAU via the IFEU

ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 35 of 52 FCC Part 24E & 27 Test Report 11 FCC §1.1307(b)(1) & §2.1091 - RF EXPOSURE 11.1 Applicable Standard According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 11.3 Test Result PCS Band: Maximum peak output power at antenna input terminal (dBm): 14.98 Maximum peak output power at antenna input terminal (mW): 31.477 Prediction distance (cm): 20 Prediction frequency (MHz): 1960 Antenna Gain, typical (dBi): 8 Maximum Antenna Gain (numeric): 6.310 Power density at predication frequency and distance (mW/cm 2 ): 0.04322 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 36 of 52 FCC Part 24E & 27 Test Report AWS Band: Maximum peak output power at antenna input terminal (dBm): 14.98 Maximum peak output power at antenna input terminal (mW): 31.477 Prediction distance (cm): 20 Prediction frequency (MHz): 2112.4 Antenna Gain, typical (dBi): 8 Maximum Antenna Gain (numeric): 6.310 Power density at predication frequency and distance (mW/cm 2 ): 0.04322 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 24E & 27 TEST AND MEASUREMENT REPORT For ADC Telecommunications Inc. P.O. Box 1101, Minneapolis, MN 55440, USA FCC ID: NOO-S2784-011 Report Type: Original Report Product Type: In Building Wireless Network System Test Engineer: Dennis Huang Report Number: R1003018-2427 Report Date: 2010-04-09 Reviewed By: Boni Baniqued EMC/RF Supervisor Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 2 of 52 FCC Part 24E & 27 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 EUT PHOTO....................................................................................................................................................... 5 1.4 OBJECTIVE......................................................................................................................................................... 6 1.5 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 6 1.6 TEST METHODOLOGY........................................................................................................................................ 6 1.7 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.8 TEST FACILITY................................................................................................................................................... 7 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 8 2.1 JUSTIFICATION................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE................................................................................................................................8 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 8 2.4 SUPPORT EQUIPMENT LIST................................................................................................................................8 2.5 LOCAL SUPPORT EQUIPMENT AND SOFTWARE LIST AND DETAILS.................................................................... 8 2.6 INTERNAL CONFIGURATIONS OF EUT................................................................................................................ 8 2.7 INTERFACE PORTS AND CABLES........................................................................................................................ 9 3 SUMMARY OF TEST RESULTS...................................................................................................................... 10 4 FCC §2.1046, §24.232 & §27.50 – RF OUTPUT POWER................................................................................11 4.1 APPLICABLE STANDARD.................................................................................................................................. 11 4.2 TEST PROCEDURE............................................................................................................................................ 11 4.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 11 4.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 11 4.5 TEST SETUP BLOCK DIAGRAM......................................................................................................................... 12 4.6 TEST RESULTS................................................................................................................................................. 12 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 13 5.1 APPLICABLE STANDARD.................................................................................................................................. 13 5.2 TEST RESULT................................................................................................................................................... 13 6 FCC §2.1049, §24.238 & §27.53 - OCCUPIED BANDWIDTH........................................................................ 14 6.1 APPLICABLE STANDARD.................................................................................................................................. 14 6.2 TEST PROCEDURE............................................................................................................................................ 14 6.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................…

Text truncated - open the document above for the full version.

ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 38 of 52 FCC Part 24E & 27 Test Report 13 EXHIBIT B - TEST SETUP PHOTOGRAPHS 13.1 Radiated Emissions 30 MHz to 1 GHz - Front View 13.2 Radiated Emissions 30 MHz to 1GHz- Rear View ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 39 of 52 FCC Part 24E & 27 Test Report 13.3 Radiated Emissions above 1 GHz - Front View 13.4 Radiated Emissions above 1GHz- Rear View ADC Telecommunications Inc. FCC ID: NOO-S2784-011 Report Number: R1003018-2427 Page 40 of 52 FCC Part 24E & 27 Test Report 13.5 Conducted Measurement 13.6 Frequency Stability Measurement
