LGCell Wireless Networking System Version 4.0 TM ® Installation, Operation, and Reference Manual PN 8100-40 620004-0 Rev. B LGCell 4.0 Installation, Operation, and Reference ManualPN 8100-40 620004-0 Rev. B This manual is produced for use by LGC Wireless personnel, licensees, and customers. The information contained herein is the property of LGC Wireless. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of LGC Wireless. LGC Wireless reserves the right to make changes, without notice, to the specifications and materials contained herein, and shall not be responsible for any damages caused by reliance on the material as presented, including, but not limited to, typographical and listing errors. Your comments are welcome – they help us improve our products and documentation. Please address your comments to LGC Wireless, Inc. corporate headquarters in San Jose, California: Address2540 Junction Avenue San Jose, California 95134-1902 USA Attn: Marketing Dept. Phone1-408-952-2400 Fax1-408-952-2410 Help Hot Line 1-800-530-9960 (U.S. only) +1-408-952-2400 (International) +44(0) 1223 597812 (Europe) Web Addresshttp://www.lgcwireless.com [email protected] [email protected] Copyright © 2001 by LGC Wireless, Inc. Printed in USA. All rights reserved. Trademarks All trademarks identified by ™ or ® are trademarks or registered trademark of LGC Wireless, Inc. All other trademarks belong to their respective owners. PN 8100-40LGCell 4.0 Installation, Operation, and Reference Manual 620004-0 Rev. B Limited Warranty Seller warrants articles of its manufacture against defective materials or workmanship for a period of one year from the date of shipment to Purchaser, except as provided in any warranty applicable to Purchaser on or in the package containing the Goods (which warranty takes precedence over the following warranty). The liability of Seller under the foregoing warranty is limited, at Seller’s option, solely to repair or replacement with equivalent Goods, or an appropriate adjustment not to exceed the sales price to Purchaser, provided that (a) Seller is notified in writing by Purchaser, within the one year warranty period, promptly upon discovery of defects, with a detailed description of such defects, (b) Purchaser has obtained a Return Materials Authorization (RMA) from Seller, which RMA Seller agrees to provide Purchaser promptly upon request, (c) the defective Goods are returned to Seller, transportation and other applicable charges prepaid by the Purchaser, and (d) Seller’s examination of such Goods discloses to its reasonable satisfaction that defects were not caused by negligence, misuse, improper installation, improper maintenance, accident or unauthorized repair or alteration or any other cause outside the scope of Purchaser’s warranty made hereunder. Notwithstanding the foregoing, Seller shall have the option to repair any defective Goods at Purchaser’s facility. The original warranty period for any Goods that have been repaired or replaced by seller will not thereby be extended. In addition, all sales will be subject to standard terms and conditions on the sales contract. LGCell 4.0 Installation, Operation, and Reference ManualPN 8100-40 620004-0 Rev. B PN 8100-40LGCell 4.0 Installation, Operation, and Reference Manuali 620004-0 Rev. B Table of Contents SECTION 1General Information . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.2 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.3 Acronyms in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 1.4 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 1.5 Related Publications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 SECTION 2 LGCell 4.0 System Description . . . . . . . . . . . . . 2-1 2.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.2 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 2.2.1 Using LGCell to Increase Coverage and Capacity . . . . . . . . . 2-6 2.2.2 Using LGCell to Increase Coverage, Capacity, and Functionality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 2.2.3 Using LGCell to Simultaneously Support Multiple Bands/Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8 2.3 System Bandwidths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 2.3.1 Fixed Bandwidth Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 2.3.2 Variable Bandwidth Systems. . . . . . . . . . . . . . . . . . . . . . . . . 2-11 2.4 System Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 2.4.1 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . 2-13 2.4.2 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 2.4.3 Alarm LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14 SECTION 3LGCell Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1 LGCell Main Hub Front Panel. . . . . . . . . . . . . . . . . . . . . . . . 3-2 3.1.1 MMF Downlink/Uplink Ports. . . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.1.2 Main Hub LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 3.2 LGCell Main Hub Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . 3-5 3.2.1 Main Hub Rear Panel Connectors. . . . . . . . . . . . . . . . . . . . . . 3-6 3.3 LGCell Main Hub Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.4 LGCell Main Hub Specifications. . . . . . . . . . . . . . . . . . . . . . 3-9 iiLGCell 4.0 Installation, Operation, and Reference ManualPN 8100-40 620004-0 Rev. B SECTION 4LGCell Expansi…

Text truncated - open the document above for the full version.

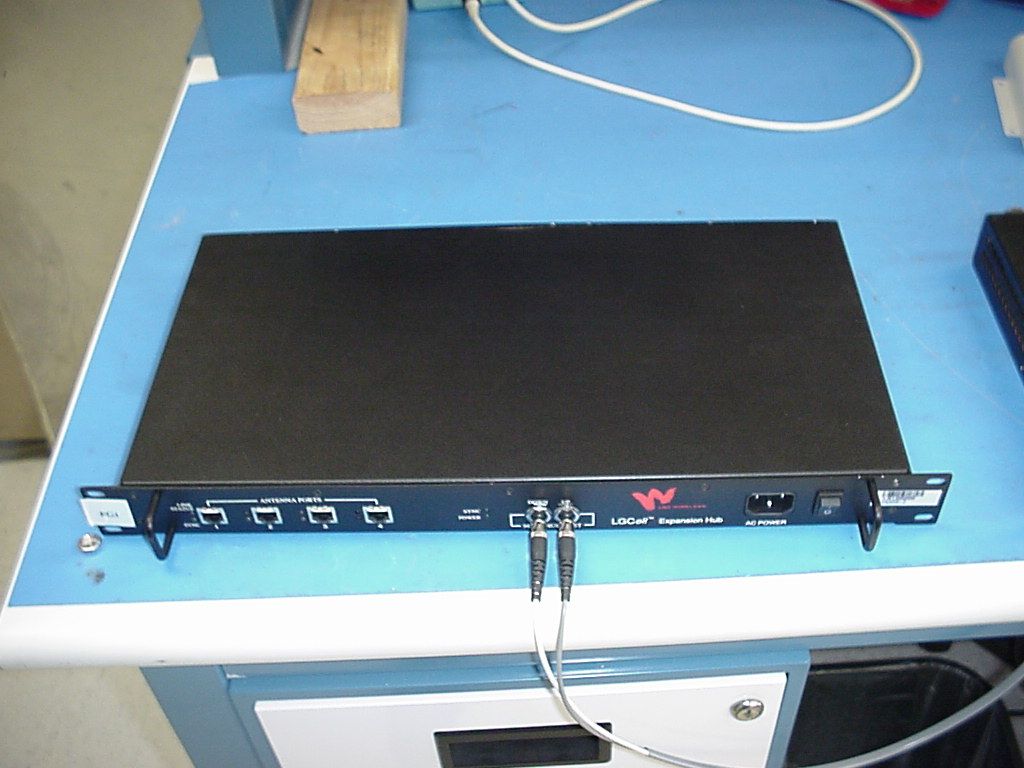

PN 8100-40LGCell 4.0 Installation, Operation, and Reference Manual9-1 620004-0 Rev. B SECTION 9Installing the LGCell This section contains the following: • Section 9.1 Inspecting Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2 • Section 9.2 Installing the Main Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3 • Section 9.2.5 Connecting Multiple LGCell Systems . . . . . . . . . . . . . . . . . . . 9-14 • Section 9.3 Installing the Expansion Hub . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-17 • Section 9.4 Installing the Remote Access Unit . . . . . . . . . . . . . . . . . . . . . . . 9-25 CAUTION:Although modeled after an Ethernet/LAN architecture, LGCell units are not intended to be connected to Ethernet data hubs, routers, or other similar data equipment. NOTE:Only LGC Wireless personnel and approved Certified Installation Service Provider (CISP) personnel are authorized to install LGCell systems. Frequency bands are licensed for use by wireless operators. Installing the LGCell 9-2LGCell 4.0 Installation, Operation, and Reference ManualPN 8100-40 620004-0 Rev. B 9.1Inspecting Shipment Follow this procedure before installing LGCell equipment: 1.Verify the number of packages received against the packing list. 2.Check all packages for external damage; report any external damage to the ship- ping carrier. If there is damage, a shipping carrier agent should be present before unpacking and inspecting the contents because damage caused during transit is the responsibility of the shipping agent. 3.Open and check each package against the packing slip. If any items are missing, contact LGC Wireless customer service. 4.Do not remove items from antistatic packing until you are ready to install them. If damage is discovered at the time of installation, contact the shipping agent. PN 8100-40Help Hot Line (U.S. only): 1-800-530-99609-3 620004-0 Rev. B Installing the Main Hub 9.2Installing the Main Hub 9.2.1Main Hub Installation Checklist
Installation RequirementConsideration Floor PlansInstallation location of equipment clearly marked Main HubSame frequency and protocol as Expansion Hub(s) AC power availablePower cord is 2 m (6.5 ft) long • 117V AC, 0.3 amp @ 60 Hz • 230V AC, 0.15 amp @ 50 Hz Rack space available4.4 cm (1.75 in.) high Clearance for air circulation7.6 cm (3 in.) front and rear Suitable operating environment0° to 45°C (32° to 113°F) 5% to 95% non-condensing humidity Donor Antenna-to-LGCell Configuration Donor AntennaInstalled, inspected; N-male to N-male coaxial cable to lightning arrestor/surge sup- pressor Lightning Arrestor or Surge Suppressor Installed between roof-top antenna and repeater; N-male to N-male coaxial cable RepeaterInstalled between lightning arrestor/surge suppressor and Main Hub; N-male to N-male coaxial cable Base Station-to-LGCell Configuration Microcellular Base StationVerify RF power (see tables in Section 7.1); N-male to N-male coaxial cable; installed, inspected Attenuation may be required to achieve the desired RF output per carrier at the RAU Cascading multiple Main Hubs Power combiner/dividerN-male to N-male coaxial cables; power combiner/divider to Main Hub and base station or repeater Cabling Coax (Simplex)Coax approved; N-type male unidirectional connectors; repeater or base station to Main Hub Coax (Duplex)Coax approved; N-type male, bidirectional connectors; repeater or base station to Main Hub MMF62.5μm/125μm; ST optical connectors, male; up to 1 km (3300 ft); Main Hub to Expansion Hubs Continued on next page Installing the LGCell 9-4LGCell 4.0 Installation, Operation, and Reference ManualPN 8100-40 620004-0 Rev. B 9.2.2Tools and Materials Required to Install Main Hub The tools and materials required to install the Main Hub are listed in the following table. Distances Main Hub is within 3–6m (10–20 ft) of connecting repeater If longer distance, determine the loss of the cable used for this connection and adjust the RF signal into the Main Hub accordingly. This can be done by readjusting the power from the base station, or by changing the attenuation value between the base station/repeater and the Main Hub. Main Hub is within 3–6m (10–20 ft) of connecting base station Main Hub is within 1 km (3300 ft) of Expansion Hub(s); 3 dB optical link budget Miscellaneous Cable managerRack space immediately above or below the Main Hub; 8.9 cm (3.5 in.) high
Description Philips screwdriver Mounting screws and spring nuts Power cord Fiber cleaning supplies (optical grade alcohol and lint-free wipes) Compressed air (optical grade)

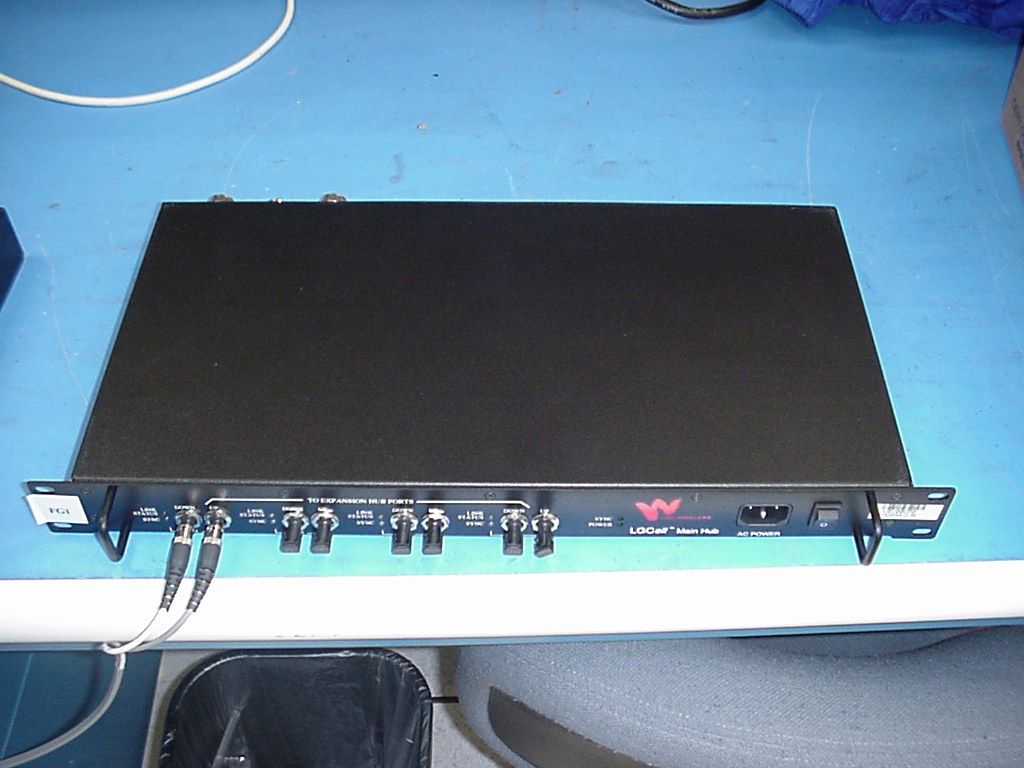

Installation RequirementConsideration PN 8100-40Help Hot Line (U.S. only): 1-800-530-99609-5 620004-0 Rev. B Installing the Main Hub 9.2.3Main Hub Installation Procedures Procedures in this section: • Installing the Main Hub in a Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5 • Connecting Power and Powering Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6 • Installing an Optional Cable Manager in a Rack . . . . . . . . . . . . . . . . . . . . . . . . 9-6 • Connecting the MMF cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7 • Check the Main Hub Functionality LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-8 • Check the Main Hub MMF Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-8 • Connecting a Main Hub to a Roof-top Antenna . . . . . . . . . . . . . . . . . . . . . . . . 9-9 Installing the Main Hub in a Rack The Main Hub (1U high) mounts in a standard 19 in. (48.3 cm) equipment rack. Allow front and rear clearance of 7.6 cm (3 in.) for air circulation. The Main Hub is shipped with #10-32 mounting screws. Another common rack thread is #12-24. Confirm that the mounting screws match the racks threads. 1.Insert spring nuts into rack where needed or use existing threaded holes. 2.Place the Main Hub into the rack from the front. 3.Align …

Text truncated - open the document above for the full version.

ATTESTATION STATEMENT FCC ID: NOO-DAS9M-2-W LGCell GSM Summary: All relevant tests according to FCC CFR Part 90 were performed. The equipment detailed above fulfills the general approval requirements identified above. For, and on behalf of, BABT Srini Chandrasekaran Lead EMC Engineer

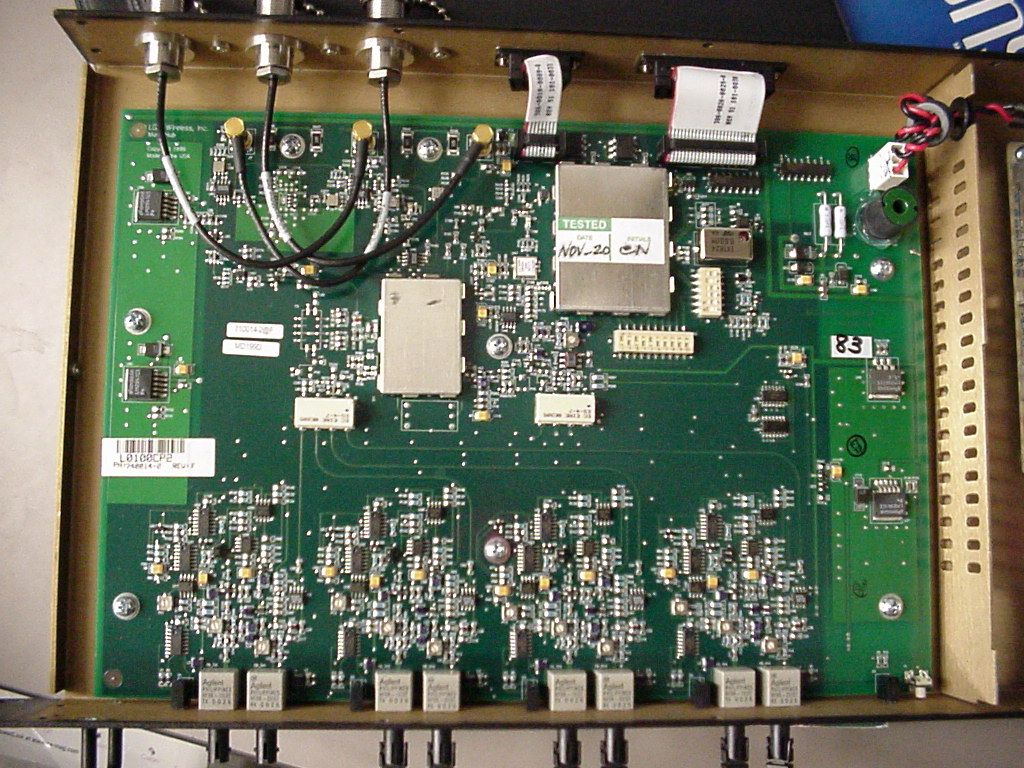

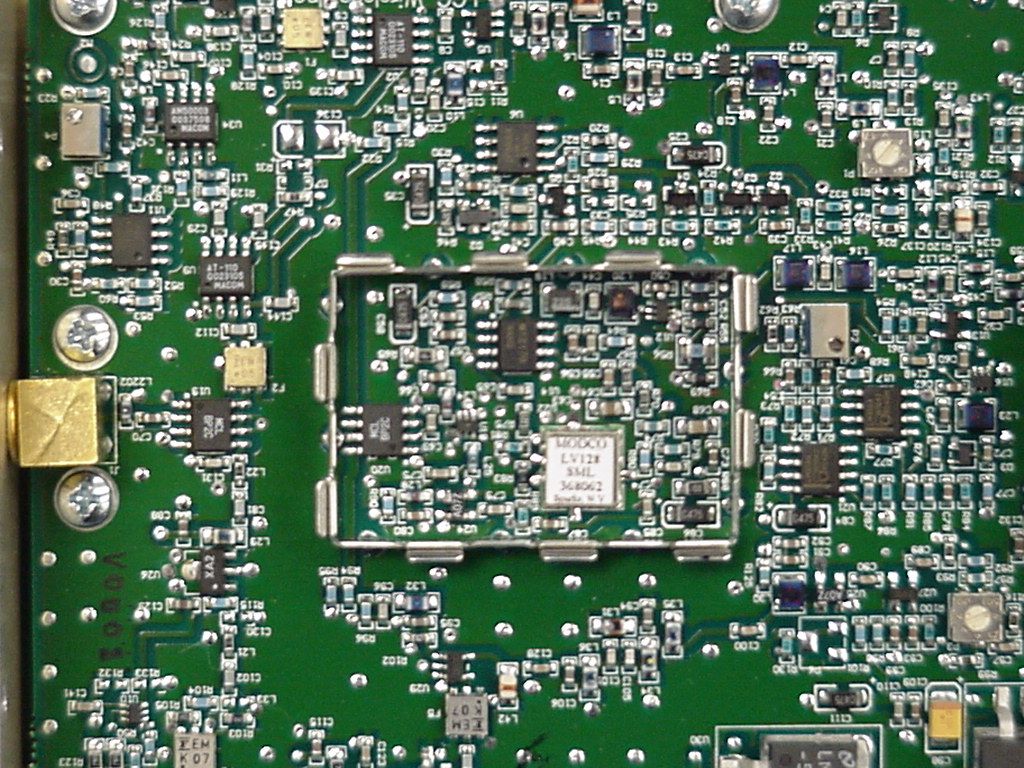

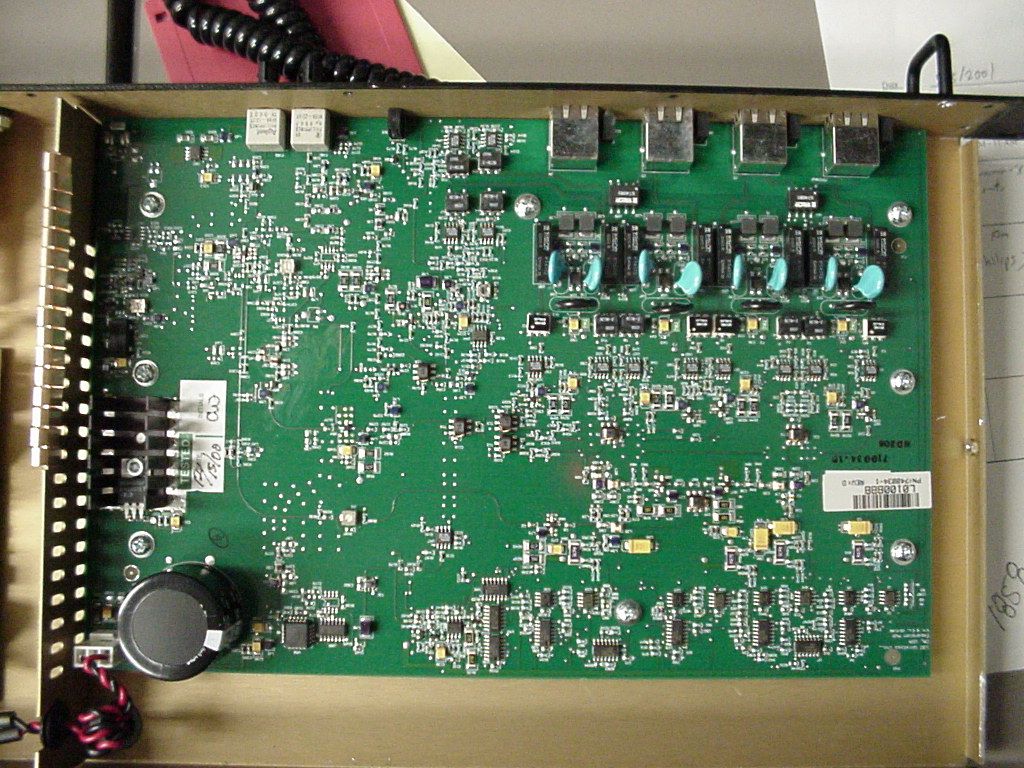

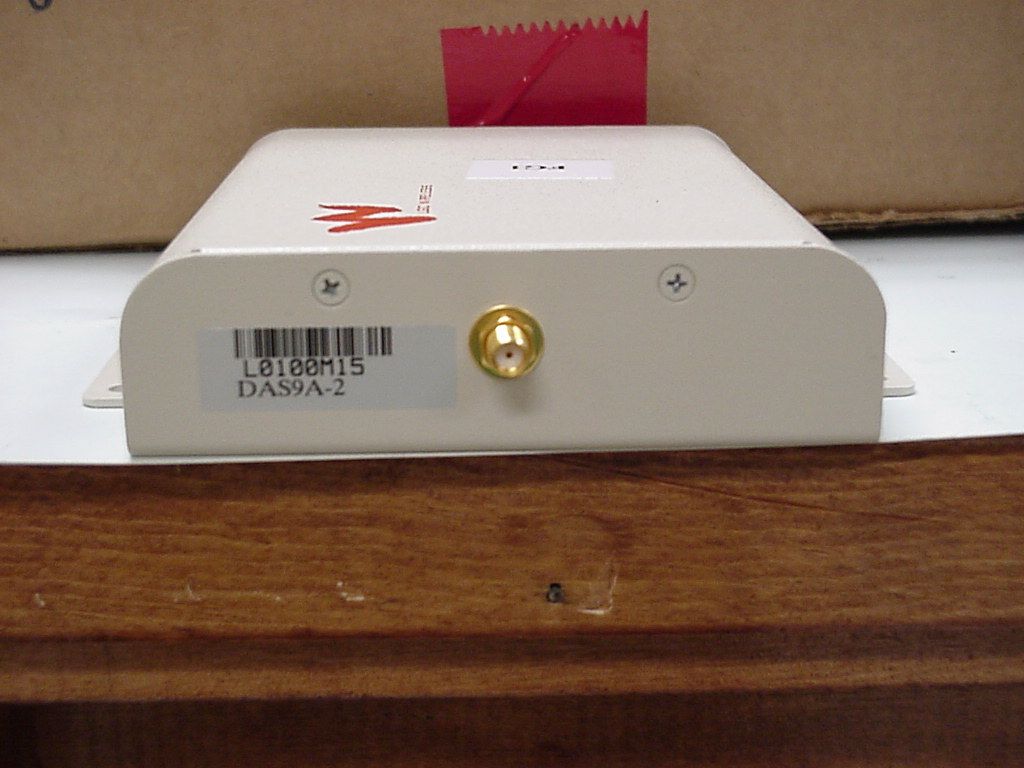

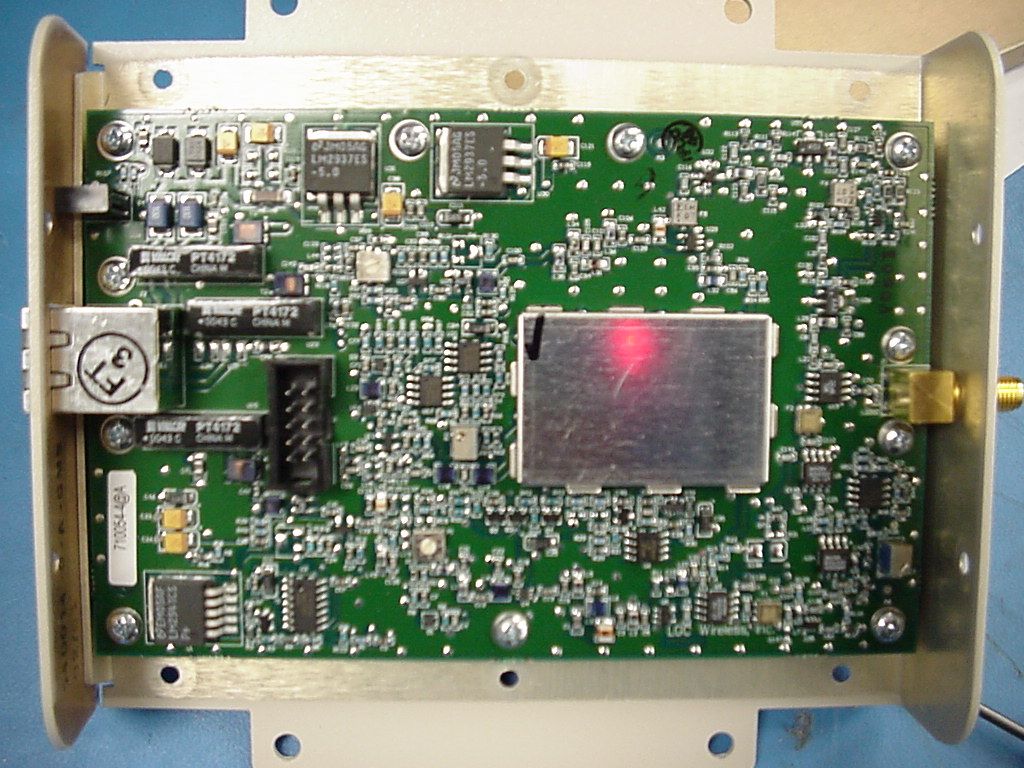

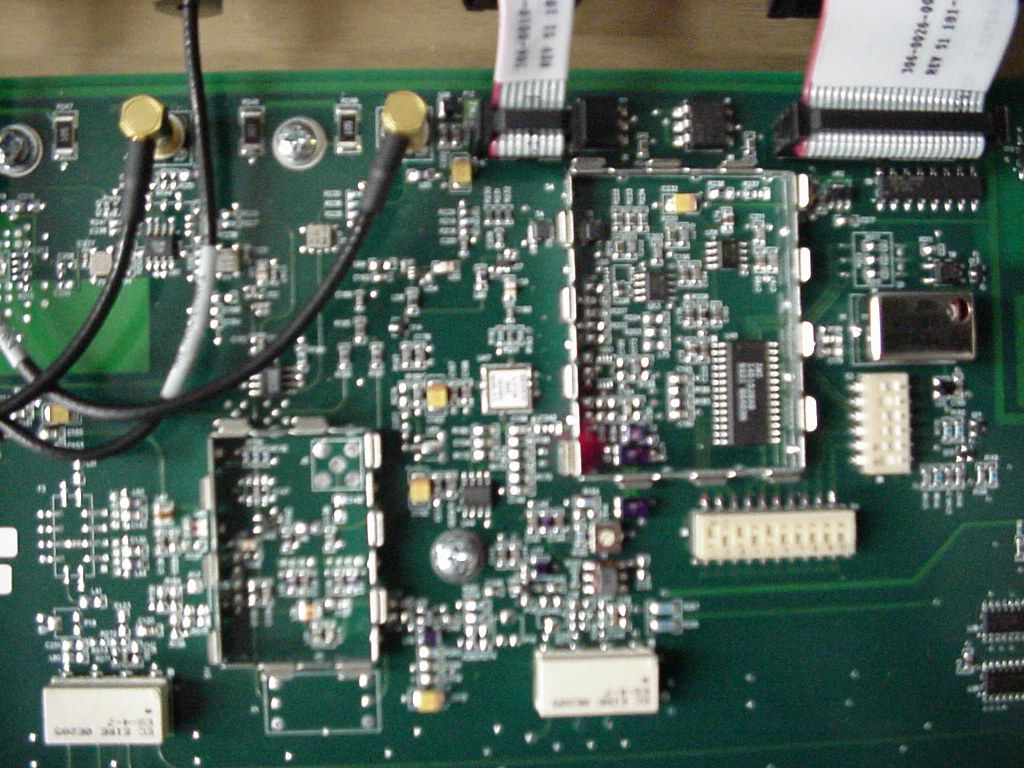

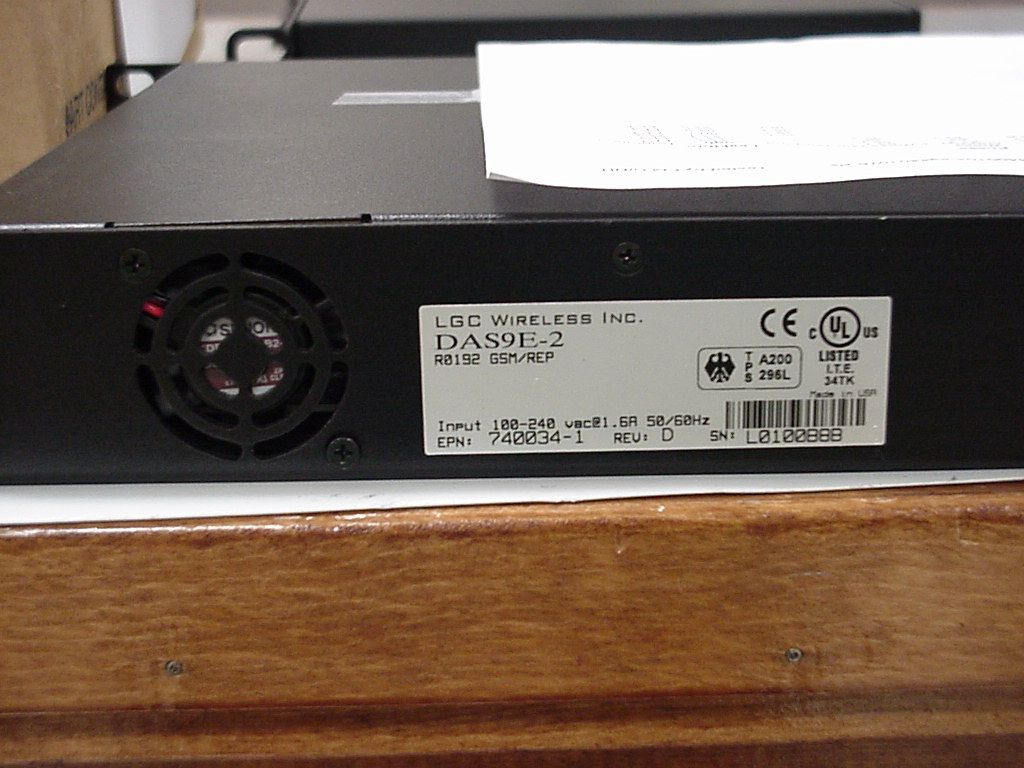

System Block Diagrams and Frequency Table 900 MHz system Frequency Table Downlink Uplink Band LO MHz Pilot MHz Clock MHz RF MHz IF MHz RF MHz IF MHz Full 815 50.94 3.18359 925-960 110-145 880-915 65-100 Fiber Main Hub Amplifier Amplifier Mixer Mixer Phase Locked Synthesizer IF Filter IF Filter RF IF IF Up-Link Down-Link Rx Tx CombinerSplitter Sync RF LO LO Combiner Splitter Duplexer Low Noise Amplifier Simplex 0 dB Duplex40 dB Power Amplifier Simplex 0 dB Switching Power Supply AC +12 Vdc Diplexer Diagnostic DB-9 LED LGC Wireless Confidential 815 MHz 815 MHz 925-960 MHz 110-145 MHz 880-915 MHz 65-100 MHz Expansion Hub Fiber Optic Rx Fiber Optic Tx Filter Filter Down-Link Up-Link Coupler Switching Power Supply AC +12 Vdc Amplifier Amplifier Diagnostic Circuit Diplexer Cable Equalization & Synchronization Circuit LED Pilot Amplifier Amplifier Clock Balun Twisted Pair . Twisted Pair . Balun Link Status Twisted Pair Balun Twisted Pair Up-Link Power Return Clock Down-Link Combiner LED Splitter Splitter Diagnostic (+) + 12 Vdc . . Diagnostic (-) LGC Wireless Confidential 50.94 MHz 3.18359 MHz Remote Antenna Unit Twisted Pair Balun Twisted Pair Balun Mixer Filter Phase Locked Synthesizer Diplexer Duplexer LO LO Power Amplifier Low Noise Amplifier clock Down-Link Up-Link Antenna Twisted Pair Twisted Pair Balun Diagnostic Circuit Gain Control Circuit Pilot Amplifier LED + 12 Vdc Sync Power Return Clock Amplifier Amplifier . clock Mixer Diplexer + 12Vdc . . Pilot + - Power Limiting Circuit Attenuator LGC Wireless Confidential 815 MHz815 MHz 3.18359 MHz 50.94 MHz 50.94 MHz 3.18359 MHz

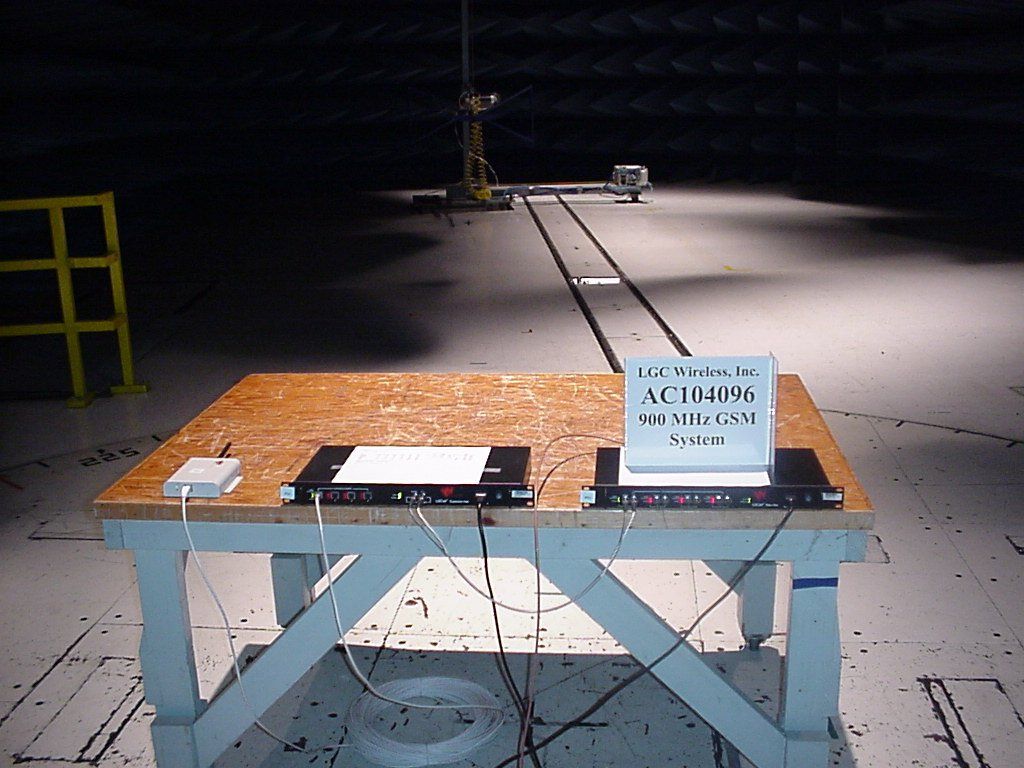

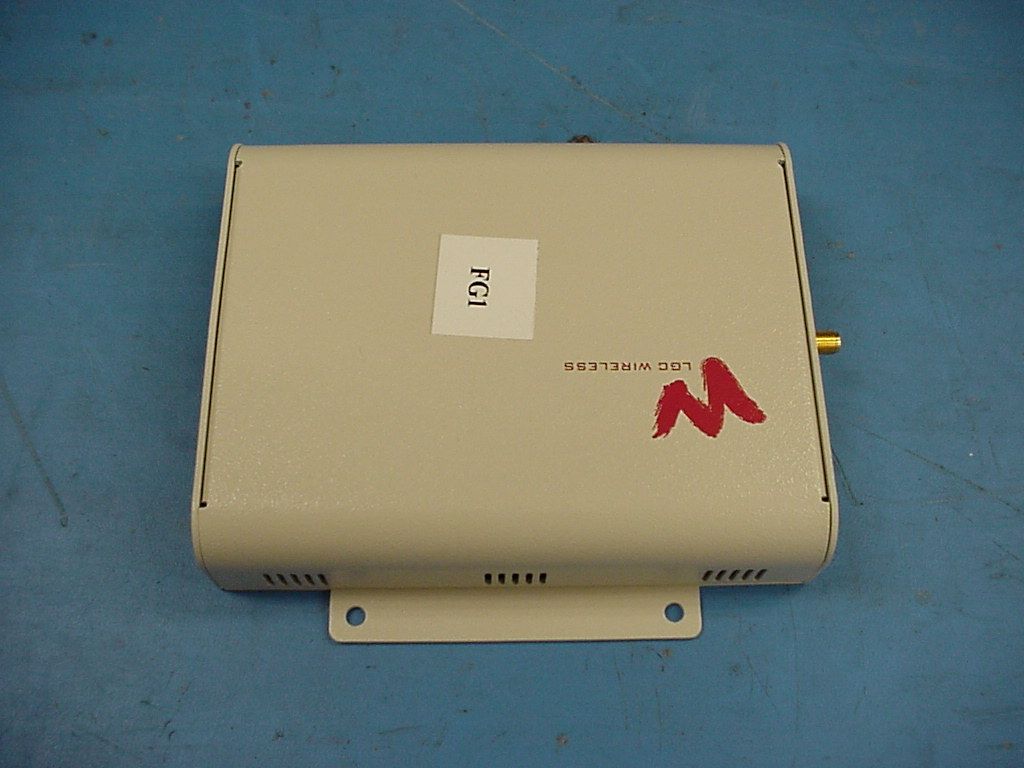

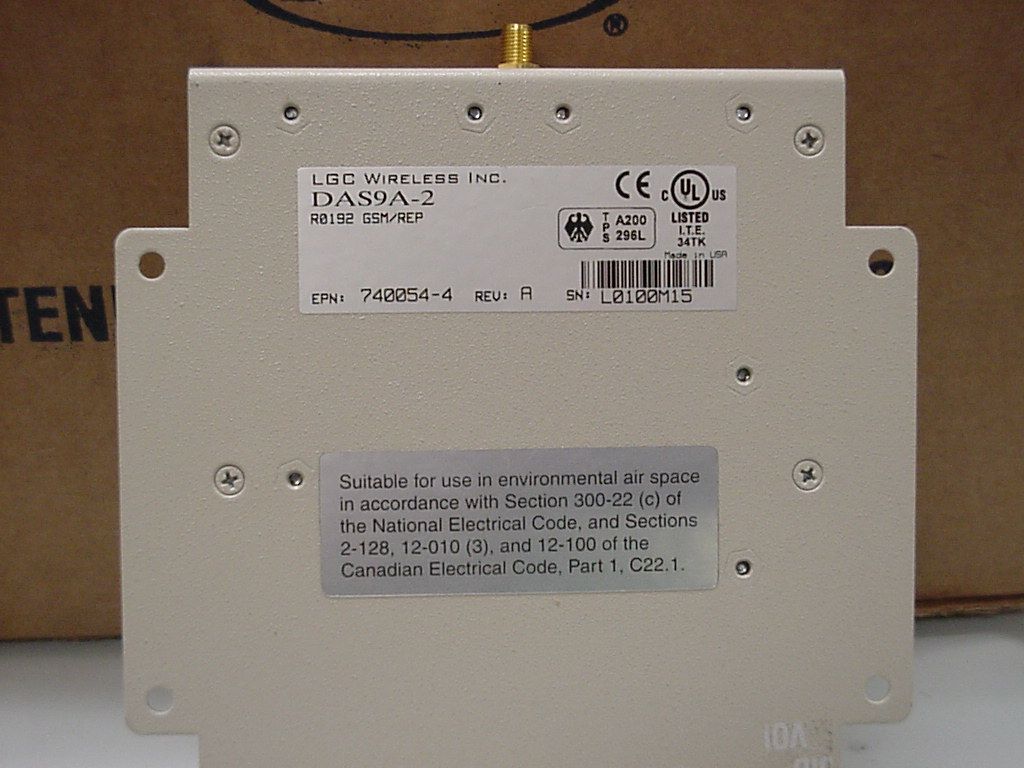

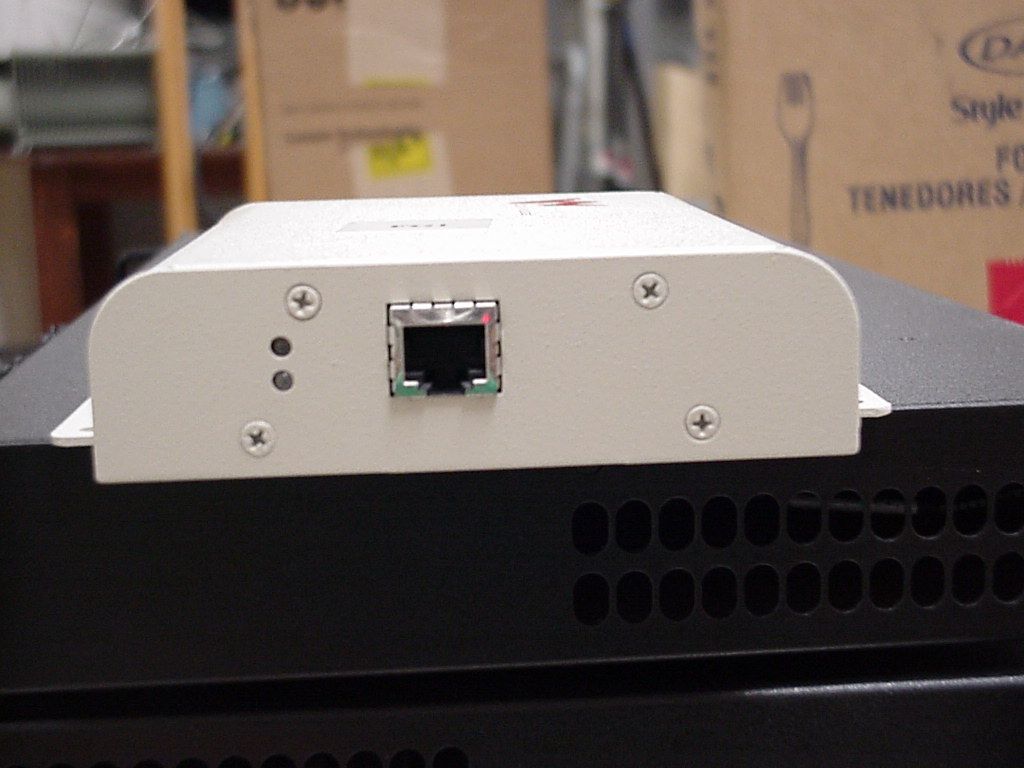

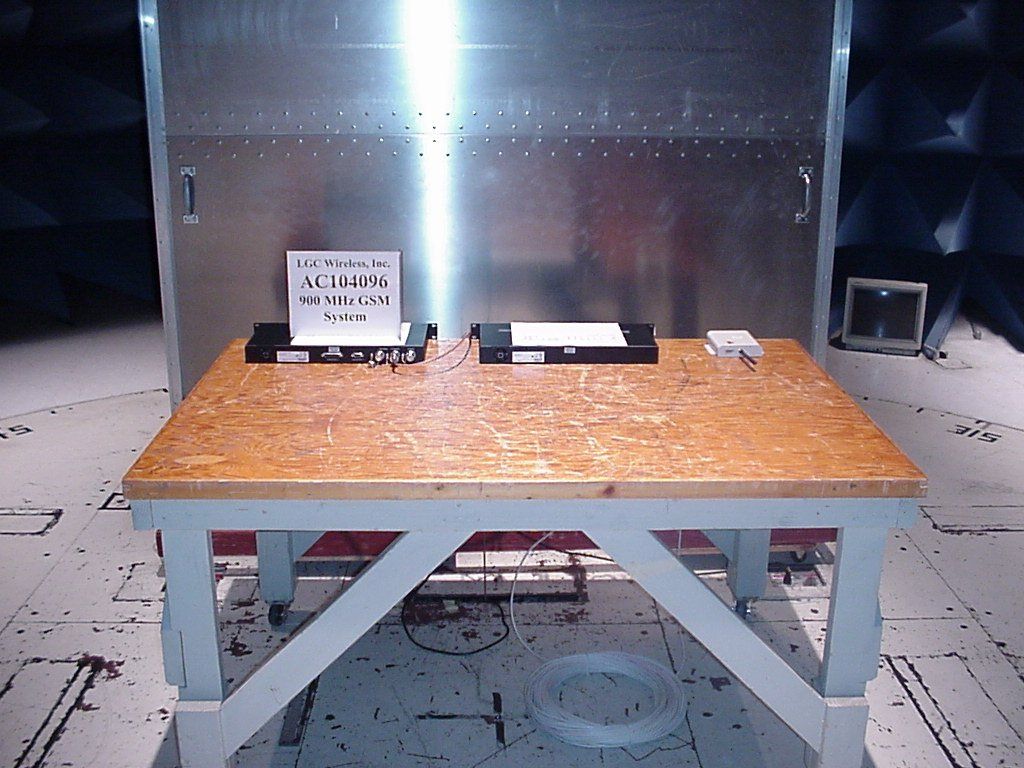

Report No. AC104096 (FCC ID: N00-DAS9M-2-W) MEASUREMENT AND TECHNICAL REPORT LGC Wireless, Inc. 2540 Junction Avenue San Jose, CA 95134 DATE: 19 June 2001 This Report Concerns: Original Grant: X Class II Change: Equipment Type: LGCell GSM Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X LCG Wireless Inc., agrees to notify the Commission by: Of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: *No: ( * ) FCC Part 2, Paragraphs, 2.1046, 2.1051, 2.1053, 2.1055 and Part 90. Report Prepared By: TUV Product Service 4855 Patrick Henry Drive Bldg. 6 Santa Clara, CA 95054 Report No. AC104096 (FCC ID: N00-DAS9M-2-W) Page 1 of 37 D I R E C T O R Y Page No. 1 GENERAL INFORMATION 2 1.1 Product Description 3 1.2 Related Submittal Grant 3 1.3 Tested System Details 3 1.4 Statement of Measurement Uncertainty 3 1.5 Test Facility 3 1.6 Part 2 Requirements 4 2 SYSTEM TEST CONFIGURATION 4 2.1 Justification 4 2.2 EUT Software Exercise 4 2.3 Special Accessories 4 2.4 Equipment Modifications 4 2.5 Configuration of Tested System 4 2.1046 RF Power Output 5 2.1049 Occupied Bandwith 6 2.1051 Spurious Emissions At The Antenna Terminals 19 2.1053 Field Strength of Spurious Radiation 20 2.1055 Frequency Stability 21 3 RADIATED EMISSION EQUIPMENT DATA Field Strength Calculation 22 4 CONDUCTED EMISSION EQUIPMENT DATA 26 Photos -Test Setups 34 5 Signature Page 37 Report No. AC104096 (FCC ID: N00-DAS9M-2-W) Page 2 of 37 1.GENERAL INFORMATION 1.1 Product Description EUT Description In Building Repeater EUT Name LGCell GSM Model No. DAS9M-2-W Serial No. - Not Serialized Products Options N/A Configurations To Be Tested: LGCell GSM comprising of main hub, expansion hub and remote antenna unit. Power Requirements Voltage: 120 VAC (If battery powered, make sure battery life is sufficient to complete testing.) No. Of Phases: N/A Current: Amps / Phase (Max): 5 A Current: Amps / Phase (Nominal): N/A Typical Installation and / or Operating Environment TELECOM EUT Power Cable n - Permanent or o - Removable Length (In Meters): 1.5 o - Shielded or n - Unshielded n Not Applicable EUT I/O Ports and Cables: CONNECTION: Signal Generator To Main Hub and RAU to Spectrum Analyzer: RF Cable. SHIELD: Yes CONNECTORS: Yes TERMINATION TYPE: SMA or N LENGTH: REMOVABLE: Yes CONNECTION: Expansion Hub to RAU: Cat5 Cable SHIELD: No CONNECTORS: Yes TERMINATION TYPE: RJ 45 LENGTH: 50 m max REMOVABLE: Yes CONNECTION: Main Hub to expansion Hub: Fiber SHIELD: No Report No. AC104096 (FCC ID: N00-DAS9M-2-W) Page 3 of 37 1. GENERAL INFORMATION (continued) 1.2 Related Submittal / Grant None 1.3 TESTED SYSTEM DETAILS The FCC IDs for all equipment, plus descriptions of all cables used in test system are: None. 1.4 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are accurate. The reader is cautioned that there is some measurement variability due to the tolerances of the test equipment that can contribute to a nominal product measurement uncertainty. Furthermore, component differences and manufacturing process variability of production units similar to that tested may result in additional product uncertainty. If necessary, refer to the test lab for the actual measurement uncertainty for specific tests. 1.5 TEST FACILITY All measurements and tests were performed by: TUV Product Service 4855 Patrick Henry Drive Building 6 Santa Clara, CA 95054 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd., Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. AC104096 (FCC ID: N00-DAS9M-2-W) Page 4 of 37 1.6 Part 2 Requirements Equipment Specifications Frequency Range In MHz Rated RF Power In Watts Frequency Tolerance %, Hz, ppm Emission Designator (see CFR §2.201 and § 2.202) Microprocessor Model Number 890- 915 935- 960 0.01 +/- 5ppm F8W , DXW, F1D, F9W 2. SYSTEM TEST CONFIGURATION 2.1 Justification The LGCell GSM was initially tested for FCC emission in the following configuration: See block Diagram. 2.2 EUT Exercise Software None 2.3 Special Accessories None. 2.4 Modifications None. 2.5 Configuration of tested System See Block Diagram. Report No. AC104096 (FCC ID: N00-DAS9M-2-W) Page 5 of 37 RF Power Output (2.1046) Uplink Channel Frequency (MHz) Peak Power Level (dBm) Low 890.000 -16.3 Mid 902.500 -14.7 High 915.000 -15.9 Downlink Channel Frequency (MHz) Peak Power Level (dBm) Low 935.000 2.6 Mid 947.500 5.1 High 960.000 4.0 Test Equipment Used: Model No. Description Manufacturer Serial No. Due Calib. Date n - 8566B Spectrum Analyzer Hewlett Packard 2816A18342 9/25/01 n - 8656B Signal Generator Hewlett Packard 2523A03399 4/9/02 n - HP8491B Attenuator Hewlett Packard 35958 N/A Report No. AC104096 (FCC ID: N00-DAS9M-2-W) Page 6 of 37 Occupied Bandwidth (2.1049) Minimum Requirement: Section 2.1049(i); transmitters designed for other types of modulation –when modulated by an appropriate signal of sufficient amplitude to be represented of the type of service in which used. A description of the input signal should be supplied. Test Procedure The EUT’s Occupied Bandwidth is compared to the input source plot (signal generator) and the output plot (EUT) and checked that the input signal bandwidth is not greater at the output of the EUT. Test Results Plots were produced for the output of the EUT and for the signal generator. See following pages. Test Equipment Used: Model No. Description Manufacturer Serial No. Due Calib. Date n - 8566B Spectrum Analyzer Hewlett Packard 2816A18342 9/25/01 n - 8656B Signal Generator Hewlett Packard 2523A03399 4/9/02 n - HP8491B Attenuator Hewlett Packard 35958 N/A Report No. AC104096 (FCC ID: N00-DAS9M-2-W) Page 7 of 37 935.000 MHZ / Downlink Report No. AC104096 (FCC ID: N00-DAS9M…
