BABT, The Telecommunications Division of TÜV America, Inc. 4855 Patrick Henry Drive, Bldg. 6Phone +1 408 748 3585 Santa Clara, CA 95054Fax+1 408 919 0585 United States of Americahttp://www.tuvglobal.com 2 nd October 2001 Dear Sir, Please remove the block diagrams for the following LGC Wireless products from the FCC web site. The FCC ID's and Confirmation Numbers follow; FCCID: NOOUNS-CELL-1 Confirmation Number: TC101871 FCCID: NOOUNS-PCS-1Confirmation Number: TC101855 Although block diagrams were not originally requested as confidential, LGC Wireless has subsequently identified these items as containing details that are proprietary to LGC Wireless. We therefore request that they be removed from the public area of the FCC website. I thank you in advance for your help. Regards, Harry Ward EMC & Radio Manager

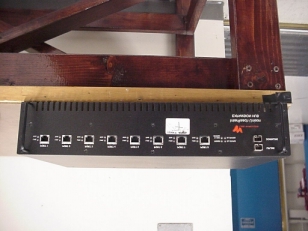

LGC InterReach Unison FRONT OF MAIN HUB BACK OF MAIN HUB LGC InterReach Unison FRO NT OF EXPANSION HUB BACK OF EXPANSIO N HUB LGC InterReach Unison FRONT OF RAU BACK OF RAU

Expansion Hub Labels Main Hub Labels

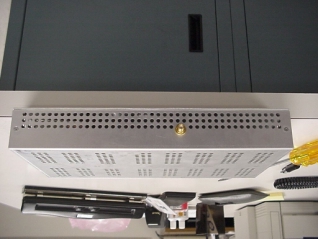

LGC InterReach Unison INSIDE MAIN HUB WITH SHEILDS INSIDE MAIN HUB WITHOUT SHEILDS LGC interReach Unison INSIDE RAU WITH SHEILDS I NSIDE RAU WITHO UT SHEIDS LGC interReach Unison INSIDE EXPANSIO N HUB

Report No. AC10507FP22-800 MEASUREMENT AND TECHNICAL REPORT LGC Wireless, Inc. 2540 Junction Avenue San Jose, CA 95134 DATE: 26 June 2001 This Report Concerns: Original Grant: X Class II Change: EEquipment Type: InterReach Unison Cell Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X LCG Wireless Inc., agrees to notify the Commission by: Of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: *No: ( * ) FCC Part 2, Paragraphs 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and Part 22. Report Prepared By: TUV / BABT Product Service 4855 Patrick Henry Drive Bldg. 6 Santa Clara, CA 95054 Report No. AC10507FP22- 800 Page 1 of 23 D I R E C T O R Y Page No. 1 GENERAL INFORMATION 2 1.1 Product Description 2 1.2 Related Submittal Grant 3 1.3 Tested System Details 3 1.4 Tested Methodology 3 1.5 Test Facility 3 1.6 Part 2 Requirements 4 2 SYSTEM TEST CONFIGURATION 4 2.1 Justification 4 2.2 EUT Software Exercise 4 2.3 Special Accessories 4 2.4 Equipment Modifications 4 2.5 Configuration of Tested System 4 2.1046 RF Power Output 5 2.1047 Modulation Characteristics 6 2.1049 Occupied Bandwith 6 2.1051 Spurious Emissions At The Antenna Terminals 11 2.1053 Field Strength of Spurious Radiations 13 2.1055 Frequency Stability 12 3 RADIATED EMISSION EQUIPMENT DATA Field Strength Calculation 13 4 CONDUCTED EMISSIONS 17 5 SIGNATURE PAGE 23 Report No. AC10507FP22-800 Page 2 of 23 1.GENERAL INFORMATION 1.1 Product Description EUT Description: The system is a distributed in-building antenna system that enables wireless uninterrupted communication. The Main Hub of the system receives an RF signal from either a roof top antenna or a base station. The Main Hub down converts this signal to an IF signal and passes the signal to the Expansion Hub via fiber. The Expansion Hub does some additional filtering and passes the signal via Cat5 cable on to the Remote Antenna Unit, the RAU. The RAU up converts the signal back to an RF signal and rebroadcasts it. The system extends the wireless coverage area by bringing wireless signals into hard to penetrate structures. EUT Name: InterReach Unison Cell Model No. UNS-CELL-1 Product Options: Serial No. N/A Configurations To Be Tested: InterReach Unison Cell Compromising: Main Hub, (UNS-MH1) Expansion Hub (UNS-EH-1), and Remote Antenna Unit (UNS-CELL-1) Power Requirements Voltage: 120 VAC (If battery powered, make sure battery life is sufficient to complete testing.) No. Of Phases: N/A Current: Amps / Phase (Max): 5 A Current: Amps / Phase (Nominal): N/A Typical Installation and / or Operating Environment TELECOM EUT Power Cable o - Permanent or n - Removable n - Shielded or o - Unshielded Length (In Meters): n Not Applicable EUT I/O PORTS AND CABLES: * FROM PIF FORM CONNECTION: Signal Generator To Main Hub and RAU to Spectrum Analyzer: RF Cable. SHIELD: Yes CONNECTORS: Yes TERMINATION TYPE: SMA or N LENGTH: REMOVABLE: Yes CONNECTION: Expansion Hub to RAU: Cat5 Cable SHIELD: No CONNECTORS: Yes TERMINATION TYPE: RJ 45 LENGTH: 50 m max REMOVABLE: Yes CONNECTION: Main Hub to expansion Hub: Fiber SHIELD: No Report No. AC10507FP22-800 Page 3 of 23 1. GENERAL INFORMATION (continued) 1.2 Related Submittal / Grant None 1.3 TESTED SYSTEM DETAILS The FCC IDs for all equipment, plus descriptions of all cables used in test system are: None. 1.4 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are accurate. The reader is cautioned that there is some measurement variability due to the tolerances of the test equipment that can contribute to a nominal product measurement uncertainty. Furthermore, component differences and manufacturing process variability of production units similar to that tested may result in additional product uncertainty. If necessary, refer to the test lab for the actual measurement uncertainty for specific tests. 1.5 TEST FACILITY All measurements and tests were performed by: TUV / BABT 4855 Patrick Henry Drive Building 6 Santa Clara, CA 95054 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd., Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. AC10507FP22-800 Page 4 of 23 1.6 Part 2 Requirements Equipment Specifications Frequency Range In MHz Rated RF Power In Watts Frequency Tolerance %, Hz, ppm Emission Designator (see CFR §2.201 and § 2.202) Microprocessor Model Number 824-849 869-894 .01 .01 10ppm 10ppm F8W, F9W, DXW, F1D 2. SYSTEM TEST CONFIGURATION 2.1 Justification The InterReach Unison Cell was tested in the configuration shown in the block diagram. 2.2 EUT Exercise Software None 2.3 Special Accessories None. 2.4 Modifications None. 2.5 Configuration of tested System See Block Diagram. Report No. AC10507FP22-800 Page 5 of 23 RF Power Output – 2.1046 Minimum Requirement: Section 22.913(a); Maximum ERP. The effective radiated power (ERP) of Base Transmitters and Cellular Repeaters must not exceed 500 Watts. The ERP of Mobile Transmitters and Auxiliary Test Transmitters must not exceed 7 Watts. Test Result: Maximum measured 9.7dBm or 9.4mW. Test Equipment Used: Model No. Description Manufacturer Serial No. Due Calib. Date n - 8566B Spectrum Analyzer Hewlett Packard 2816A18342 9/25/01 n - 8656B Signal Generator Rohde & Schwartz 23533 5/25/02 n - HP8491B Attenuator Hewlett Packard 35958 N/A Report No. AC10507FP22-800 Page 6 of 23 Section 2.1047: Modulation Characteristics: Not Applicable. The equipment is a repeater. Occupied Bandwidth – 2.1049 Minimum Requirement: Section 2.1049(i): Transmitters designed for other types of modulation when modulated by an appropriate signal of sufficient amplitude to be representative of the type of service in which used. A description of the input signal should be sup…
