NOOUNS-EGSM-2

ADC Telecommunications Inc.

900MHz EGSM In-Building Distributed Antenna System

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Feb 02, 2003
Application Purpose: Original Equipment
Date of Application: Feb 02, 2003
Equipment Note: 900MHz EGSM In-Building Distributed Antenna System
Frequency Range: 925.00000000 - 960.00000000
Company: ADC Telecommunications Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

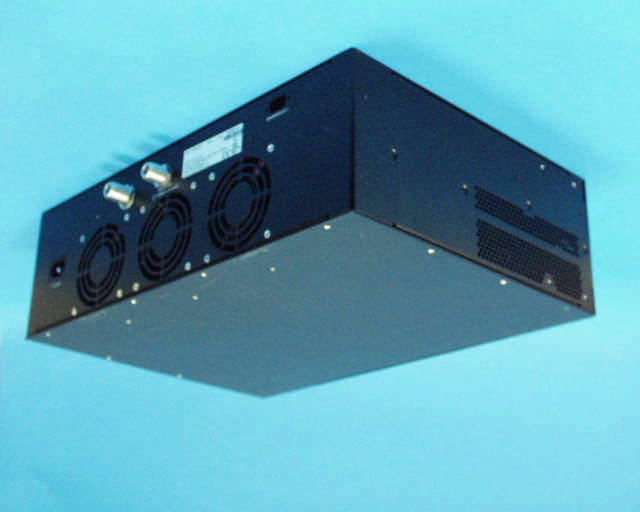

External Photos

ID Label/Location Info

Internal Photos

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	9	925 MHz - 960 MHz	41.68 mW	21K0F1D	1.5 ppm

Confidentiality

Long Term

Grant Notes

Output is specified at the antenna teminals on the Remote Access Unit (RAU). Uplink:896-901MHz, output power:0.0001W. Downlink:935-940MHz, output power:0.04168W. The gain is controlled by the Accel Hub. One Accel Hub can connect max. of 8 RAUs. The antenna(s) used for this transmitter are to be fixed-mounted on indoor permanent structures providing a separation distance of at least 20 cm from all persons during normal operation. The maximum radiated output power at each antenna must satisfy the MPE Categorical Exclusion Requirements of ?.1091. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of ?.1307(b)(3).
