NOOUNS-IDEN-1InterReach Unison IDEN

PN 8700-10 620003-0 Rev. A Installation, Operation, and Reference Manual InterReach Unison TM ® InterReach Unison User Guide and Reference ManualPN 8700-10 620003-0 Rev. A This manual is produced for use by LGC Wireless personnel, licensees, and customers. The information contained herein is the property of LGC Wireless. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of LGC Wireless. LGC Wireless reserves the right to make changes, without notice, to the specifications and materials contained herein, and shall not be responsible for any damages caused by reliance on the material as presented, including, but not limited to, typographical and listing errors. Your comments are welcome – they help us improve our products and documentation. Please address your comments to LGC Wireless, Inc. corporate headquarters in San Jose, California: Address2540 Junction Avenue San Jose, California 95134-1902 USA Attn: Marketing Dept. Phone1-408-952-2400 Fax1-408-952-2410 Help Hot Line 1-800-530-9960 (U.S. only) +1-408-952-2400 (International) +44(0) 1223 597812 (Europe) Web Addresshttp://www.lgcwireless.com [email protected] [email protected] Copyright © 2001 by LGC Wireless, Inc. Printed in USA. All rights reserved. Trademarks All trademarks identified by ™ or ® are trademarks or registered trademark of LGC Wireless, Inc. All other trademarks belong to their respective owners. PN 8700-10InterReach Unison User Guide and Reference Manual 620003-0 Rev. A Limited Warranty Seller warrants articles of its manufacture against defective materials or workmanship for a period of one year from the date of shipment to Purchaser, except as provided in any warranty applicable to Purchaser on or in the package containing the Goods (which warranty takes precedence over the following warranty). The liability of Seller under the foregoing warranty is limited, at Seller’s option, solely to repair or replacement with equivalent Goods, or an appropriate adjustment not to exceed the sales price to Purchaser, provided that (a) Seller is notified in writing by Purchaser, within the one year warranty period, promptly upon discovery of defects, with a detailed description of such defects, (b) Purchaser has obtained a Return Materials Authorization (RMA) from Seller, which RMA Seller agrees to provide Purchaser promptly upon request, (c) the defective Goods are returned to Seller, transportation and other applicable charges prepaid by the Purchaser, and (d) Seller’s examination of such Goods discloses to its reasonable satisfaction that defects were not caused by negligence, misuse, improper installation, improper maintenance, accident or unauthorized repair or alteration or any other cause outside the scope of Purchaser’s warranty made hereunder. Notwithstanding the foregoing, Seller shall have the option to repair any defective Goods at Purchaser’s facility. The original warranty period for any Goods that have been repaired or replaced by seller will not thereby be extended. In addition, all sales will be subject to standard terms and conditions on the sales contract. InterReach Unison User Guide and Reference ManualPN 8700-10 620003-0 Rev. A PN8700-10InterReach Unison User Guide and Reference Manuali 620003-0 Rev. A PRELIMINARY Table of Contents SECTION 1General Information . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.2 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.3 Acronyms in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 1.4 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 1.5 Related Publications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 SECTION 2 InterReach™ Unison System Description . . . . 2-1 2.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2.2 System Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.3 System OA&M Capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 2.3.1 OA&M Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 2.3.2 Configuring, Maintaining, and Monitoring Unison Locally. . 2-5 2.3.3 Monitoring and Maintaining Unison Remotely . . . . . . . . . . . 2-7 2.3.4 Using Alarm Contact Closures . . . . . . . . . . . . . . . . . . . . . . . . 2-8 2.4 System Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 2.5 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 2.6 System Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 2.6.1 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 2.6.2 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . 2-12 2.6.3 Operating Frequencies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 2.6.4 RF End-to-End Performance. . . . . . . . . . . . . . . . . . . . . . . . . 2-13 SECTION 3Unison Main Hub . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1 Main Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.1.1 Optical Fiber Uplink/Downlink Ports. . . . . . . . . . . . . . . . . . . 3-4 3.1.2 Communications RS-232 Serial Connector . . . . . . . . . . . . . . 3-4 3.1.3 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 3.2 Main Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.2.1 Main Hub Rear Panel Connectors. . . . . . . . . . . . . . . . . . . . . . 3-9 3.2.1.1 N-type Female Connectors . . . . . . . . . . . . . . . . . . . . . . 3-9 3.2.1.2 9-pin D-sub Connector . . . . . . . . . . . . . . . . . . . . . . . . . 3-9 3.3 Faults and Warnings . .…

Text truncated - open the document above for the full version.

PN 8700-10InterReach Unison User Guide and Reference Manual7-1 620003-0 Rev. A PRELIMINARY SECTION 7 Installing and Using the AdminManager Software The AdminManager software is used to install, configure, and maintain the Unison system from a PC or laptop that you connect directly to a Main Hub’s front panel serial port. You can use the AdminManager to remotely view system status by connecting a PC or laptop to the Unison system via a dialup modem. Figure 7-1PC Connected to Main Hub Installing and Using the AdminManager SoftwarePRELIMINARY 7-2InterReach Unison User Guide and Reference Manual PN 8700-10 620003-0 Rev. A 7.1Installing the AdminManager Software 7.1.1PC/Laptop Requirements • Operating System: • Windows 2000 Professional (recommended) • Windows 98 SE with IE 5.0 • 1 Communication Port (COM1–COM4) • 133 MHz or higher Pentium-compatible CPU • 64 MB memory (Windows 2000) or 32 MB (Windows 98 SE) • At least 150 MB free disk space • VGA or higher resolution • Standard 9600 Modem •CD-ROM drive • DB-9 female-to-DB-9 female NULL modem cable PN 8700-10Help Hot Line (U.S. only): 1-800-530-99607-3 620003-0 Rev. A PRELIMINARYPC/Laptop Requirements Installing AdminManager Install the AdminManager software on a PC/laptop that meets the requirements as described in Section 7.1.1. 1.Turn on the PC/laptop and insert the AdminManager CD into the PC/laptop’s CD drive. setup.exe should automatically start. If it does not, double-click “setup.exe” on the CD-ROM. The following pop-up window is displayed while InstallShield checks the PC’s system. Installing and Using the AdminManager SoftwarePRELIMINARY 7-4InterReach Unison User Guide and Reference Manual PN 8700-10 620003-0 Rev. A The Welcome to InstallShield Wizard window is displayed. 2.Click the NEXT button to begin the AdminManager installation. PN 8700-10Help Hot Line (U.S. only): 1-800-530-99607-5 620003-0 Rev. A PRELIMINARYPC/Laptop Requirements The License Agreement window is displayed. If you select the “I do not accept” radio button, the InstallShield Wizard stops and the windows close. Installing and Using the AdminManager SoftwarePRELIMINARY 7-6InterReach Unison User Guide and Reference Manual PN 8700-10 620003-0 Rev. A 3.Read the agreement and select the “I accept” radio button, and then click the NEXT button. The Customer Information window is displayed. PN 8700-10Help Hot Line (U.S. only): 1-800-530-99607-7 620003-0 Rev. A PRELIMINARYPC/Laptop Requirements 4.Enter a User Name and Organization in the text boxes, and then click the NEXT button. The Destination Folder window is displayed Installing and Using the AdminManager SoftwarePRELIMINARY 7-8InterReach Unison User Guide and Reference Manual PN 8700-10 620003-0 Rev. A 5.Click the NEXT button to accept the default destination. The Ready to Install the Program window is displayed. NOTE:To change information that is displayed in the Ready to Install the Program window, click the BACK button and make changes in previous windows. PN 8700-10Help Hot Line (U.S. only): 1-800-530-99607-9 620003-0 Rev. A PRELIMINARYPC/Laptop Requirements 6.Click the INSTALL button if the information that is displayed in the Ready to Install the Program window is correct. The Installing AdminManager window is displayed. PDF files are used for Help. If the InstallShield Wizard detects that the PC does not have software for viewing PDF files, the following pop-up is displayed. • Click CONTINUE to install Acrobat Reader from the CD onto your PC. • Click QUIT to skip the installation of Acrobat Reader. Installing and Using the AdminManager SoftwarePRELIMINARY 7-10InterReach Unison User Guide and Reference Manual PN 8700-10 620003-0 Rev. A When the installation is finished, the InstallShield Wizard Completed window is displayed. 7.Click the FINISH button to end the InstallShield Wizard session and close the win- dow. An AdminManager shortcut is added to your PC’s Start menu and an icon is added to your desktop. PN 8700-10Help Hot Line (U.S. only): 1-800-530-99607-11 620003-0 Rev. A PRELIMINARYPC/Laptop Requirements Starting AdminManager 1.Using the NULL modem cable, connect the PC/laptop to the Main Hub’s front panel RS-232 connector. 2.Turn on the power to the Main Hub, if it is not already on. 3.Double-click the AdminManager icon to start the software. Alternately, you can click the Start button that is on the PC’s taskbar, click Pro- grams, click AdminManager, and then click the AdminManager application. The following window is displayed when AdminManager starts. Figure 7-2AdminManager Start Window You can display the AdminManager User Guide at any time while the software is running by pressing the F1 key. Installing and Using the AdminManager SoftwarePRELIMINARY 7-12InterReach Unison User Guide and Reference Manual PN 8700-10 620003-0 Rev. A AdminManager Operation Modes You can choose one of four operation modes from the AdminManager Start window. • Section 7.2 Installation Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13 Select this option when you are installing a system or a Main Hub for the first time. Also, when you are replacing a Main Hub select this option to set the frequency band. • Section 7.3 Configuration & Maintenance Panel . . . . . . . . . . . . . . . . . . . 7-25 • Section 7.3.2 Options when Connected Locally . . . . . . . . . . . . . . . . . . 7-29 Select this option when you want to perform specific tasks, such as perform the system test and set system parameters, or check the status of an operating sys- tem. All options are available when you are connected locally. • Section 7.3.3 Read-Only Options when Connected Remotely . . . . . . . 7-34 The Configuration Panel is displayed in a read-only state. When you are con- nected remotely there are a limited number of options available. The options let you check the status of the system and determine if a site visit is required. (This is the only operation mode you can choose when you are connected remotely.) • Sect…

Text truncated - open the document above for the full version.

ATTESTATION STATEMENT FCC ID: NOOUNS-IDEN-1 InterReach Unison IDEN Summary: All relevant tests according to FCC CFR Part 90 were performed. The equipment detailed above fulfills the general approval requirements identified above. For, and on behalf of, BABT Srini Chandrasekaran Lead EMC Engineer

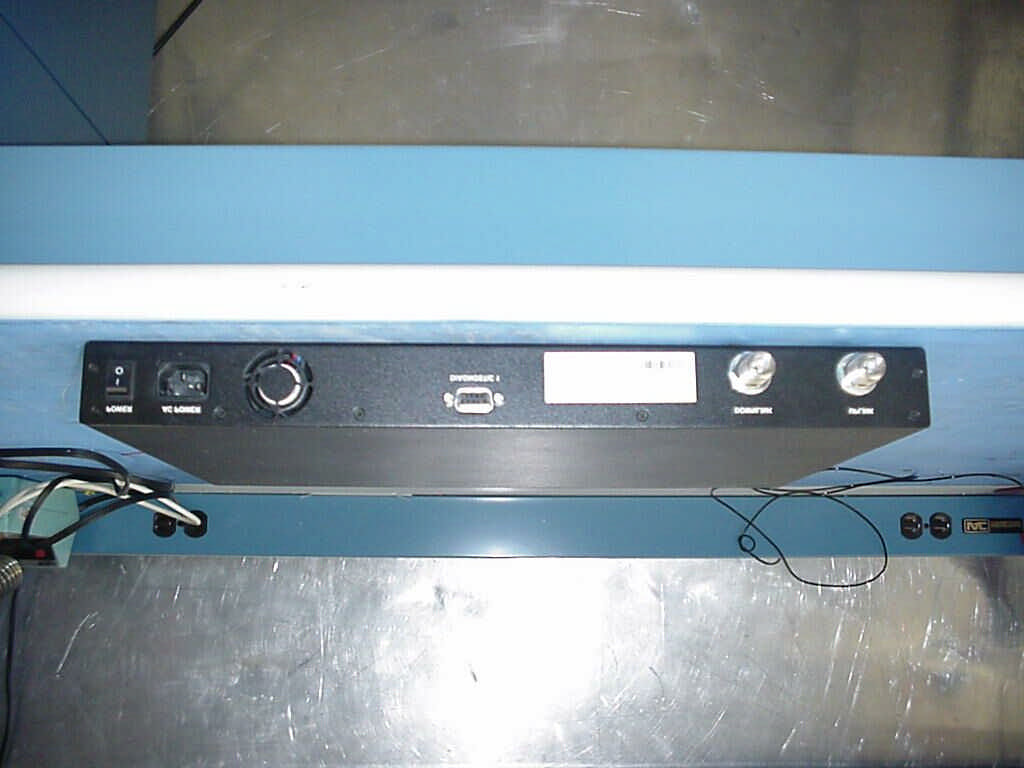

InterReach Unison IDEN External Photos BACK OF EXPANSION HUB InterReach Unison IDEN External Photos BACK OF MAIN HUB InterReach Unison IDEN External Photos FRONT OF EXPANSION HUB InterReach Unison IDEN External Photos FRONT OF MAIN HUB InterReach Unison IDEN External Photos FRONT OF RAU InterReach Unison IDEN External Photos PORT SIDE OF RAU InterReach Unison IDEN External Photos TOP OF RAU

Main Hub Labels Expansion Hub Labels

InterReach Unison IDEN Internal Photos INSIDE MAIN HUB (WITH SHIELDS) InterReach Unison IDEN Internal Photos INSIDE MAIN HUB (WITHOUT SHIELDS) InterReach Unison IDEN Internal Photos INSIDE OF EXPANSION HUB InterReach Unison IDEN Internal Photos INSIDE RAU (WITH SHIELDS) InterReach Unison IDEN Internal Photos INSIDE RAU (WITHOUT SHIELDS)

Brief Technical Description In the downlink path, from the Main Hub to the RAU, an RF signal is received via cable by the Main Hub. The Main Hub down-converts this signal to an IF signal and passes it via fiber to the Expansion Hub. The Expansion Hub does some additional filtering and passes the IF signal to the RAU via Cat 5 twisted pair cable. The RAU up-converts the signal back to RF and retransmits the original signal. In the uplink path, from the RAU to the Main Hub, the RAU receives an RF wireless signal and downconverts it to an IF signal. The IF signal is passed to the Expansion Hub via the same Cat 5 twisted pair cable used in the downlink path. The Expansion Hub does some additional filtering and passes the IF signal to the Main Hub via fiber. The Main Hub up-converts the signal back to an RF signal and passes it via cable to a base station, roof top antenna, etc.

Report No. AC106182FP90-800 (FCC ID: NOOUNS-IDEN-1) TÜV PRODUCT SERVICE INC 4855 Patrick Henry Drive/ Building # 6 Santa Clara CA 95054 USA Tel: 408 748 3585 Fax: 408 919 0585 MEASUREMENT AND TECHNICAL REPORT LGC Wireless, Inc. 2540 Junction Avenue San Jose, CA 95134 Date: 11 September, 2001 This Report Concerns: LGC Wireless, Inc. Original Grant: X Class II Change: Equipment Type: InterReach Unison IDEN Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X LCG Wireless Inc., agrees to notify the Commission by: Of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: *No: ( * ) FCC Part 2, Paragraphs, 2.1046, 2.1051, 2.1053, 2.1055 and Part 90. Report Prepared By: TÜV Product Service 4855 Patrick Henry Drive Bldg. 6 Santa Clara, CA 95054 Report No. AC106182FP90-800 (FCC ID: NOOUNS-IDEN-1) Page 1 of 28 D I R E C T O R Y Page No. 1 GENERAL INFORMATION 2 1.1 Product Description 3 1.2 Related Submittal Grant 3 1.3 Tested System Details 3 1.4 Statement of Measurement Uncertainty 3 1.5 Test Facility 3 1.6 Part 2 Requirements 4 2 SYSTEM TEST CONFIGURATION 4 2.1 Justification 4 2.2 EUT Software Exercise 4 2.3 Special Accessories 4 2.4 Equipment Modifications 4 2.5 Configuration of Tested System 4 2.1046 RF Power Output 5 2.1047 Modulation Characteristics 6 2.1049 Occupied Bandwidth 6 2.1051 Spurious Emissions At The Antenna Terminals 9 2.1053 Field Strength of Spurious Radiations 14 2.1055 Frequency Stability 15 3 RADIATED EMISSION EQUIPMENT DATA Field Strength Calculation 16 4 CONDUCTED EMISSION EQUIPMENT DATA 21 5 SIGNATURE PAGE 28 Report No. AC106182FP90-800 (FCC ID: NOOUNS-IDEN-1) Page 2 of 28 1 . GENERAL INFORMATION 1.1 Product Description EUT Description: The system is a distributed in-building antenna system that enables wireless uninterrupted communication. The Main Hub of the system receives an RF signal from either a roof top antenna or a base station. The Main Hub down converts this signal to an IF signal and passes the signal to the Expansion Hub via fiber. The Expansion Hub does some additional filtering and passes the signal via Cat5 cable on to the Remote Antenna Unit, the RAU. The RAU up converts the signal back to an RF signal and rebroadcasts it. The system extends the wireless coverage area by bringing wireless signals into hard to penetrate structures. EUT Name: InterReach Unison Model No. IDEN Product Options: N/A Serial No. Not Serialized Configurations To Be Tested: InterReach Unison IDEN compromising of Main Hub, Expansion, and Remote Antenna Unit. Power Requirements Voltage: 120 VAC (If battery powered, make sure battery life is sufficient to complete testing.) No. Of Phases: N/A Current: Amps / Phase (Max): 5 A Current: Amps / Phase (Nominal): N/A Typical Installation and / or Operating Environment TELECOM EUT Power Cable „ „„ „ - Permanent or † †† † - Removable † †† † - Shielded or „ - Unshielded Length (In Meters): 1.5 „ „„ „ - Not Applicable EUT Power Cable CONNECTION:Signal Generator To Main Hub and RAU to Spectrum Analyzer: RF SHIELD:Yes CONNECTORS:Yes TERMINATION TYPE:SMA or N LENGTH: REMOVABLE:Yes CONNECTION:Expansion Hub to RAU: Cat5 Cable SHIELD:No CONNECTORS:Yes TERMINATION TYPE:RJ 45 LENGTH:50 m max REMOVABLE:Yes CONNECTION:Main Hub to expansion Hub: Fiber SHIELD:No Report No. AC106182FP90-800 (FCC ID: NOOUNS-IDEN-1) Page 3 of 28 1. GENERAL INFORMATION (continued) 1.2 RELATED SUBMITTAL / GRANT None 1.3 TESTED SYSTEM DETAILS The FCC IDs for all equipment, plus descriptions of all cables used in test system are: None. 1.4 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are accurate. The reader is cautioned that there is some measurement variability due to the tolerances of the test equipment that can contribute to a nominal product measurement uncertainty. Furthermore, component differences and manufacturing process variability of production units similar to that tested may result in additional product uncertainty. If necessary, refer to the test lab for the actual measurement uncertainty for specific tests. 1.5 TEST FACILITY All measurements and tests were performed by: TÜV Product Service 4855 Patrick Henry Drive Building 6 Santa Clara, CA 95054 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd., Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. AC106182FP90-800 (FCC ID: NOOUNS-IDEN-1) Page 4 of 28 1.6 PART 2 REQUIREMENTS Equipment Specifications Frequency Range In MHz Rated RF Power In Watts Frequency Tolerance %, Hz, ppm Emission Designator (see CFR §2.201 and § 2.202) Microprocessor Model Number 806-824 851-869 0.01 +/- 5ppm F9W, D9W 2. SYSTEM TEST CONFIGURATION 2.1 JUSTIFICATION The InterReach Unison IDEN was tested in the configuration shown in the block diagram. 2.2 EUT EXERCISE SOFTWARE None 2.3 SPECIAL ACCESSORIES None. 2.4 MODIFICATIONS None. 2.5 CONFIGURATION OF TESTED SYSTEM See Block Diagram. Report No. AC106182FP90-800 (FCC ID: NOOUNS-IDEN-1) Page 5 of 28 RF Power Output – 2.1046 Uplink Channel Frequency (MHz) Peak Power Level (dBm) Low 806.000 -15.9 Mid 815.000 -14.7 High 824.000 -14.2 Downlink Channel Frequency (MHz) Peak Power Level (dBm) Low 851.000 7.5 Mid 860.000 8.4 High 869.000 7.4 Test Equipment used: Model No. Description Manufacturer Serial No. Due Calib. Date „ - 8566B Spectrum Analyzer Hewlett Packard 2816A18342 9/25/02 „ - 8656B Signal Generator Hewlett Packard 2523A03399 4/9/02 „ - HP8491B Attenuator Hewlett Packard 35958 N/A Remarks: All Cable losses taken into account in above results. Report No. AC106182FP90-800 (FCC ID: NOOUNS-IDEN-1) Page 6 of 28 Modulation Characterisitics (2.1047) This test is not applicable. The EUT is an Amplifier Type Repeater. Occupied Ban…

Text truncated - open the document above for the full version.

InterReach Unison IDEN TEST SETUPS (Photographs) InterReach Unison IDEN Photograph of Test Setup: Radiated Emissions 30 MHz - 1000 MHz UPLINK InterReach Unison IDEN Photograph of Test Setup: Radiated Emissions 30 MHz - 1000 MHz DOWNLINK InterReach Unison IDEN Photograph of Test Setup: Radiated Emissions 1 GHz - 10 GHz UPLINK InterReach Unison IDEN Photograph of Test Setup: Conducted Emissions 10/150/450 kHz - 30 MHz
