NOOUNS-PCS-1InterReach Unison PCS

PN 8700-10 620003-0 Installation, Operation, and Reference Manual InterReach Unison TM PN 8700-10 620003-0 Installation, Operation, and Reference Manual InterReach Unison TM InterReach Unison User Guide and Reference ManualPN 8700-10 620003-0 This manual is produced for use by LGC Wireless personnel, licensees, and customers. The information contained herein is the property of LGC Wireless. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of LGC Wireless. LGC Wireless reserves the right to make changes, without notice, to the specifications and materials contained herein, and shall not be responsible for any damages caused by reliance on the material as presented, including, but not limited to, typographical and listing errors. Your comments are welcome – they help us improve our products and documentation. Please address your comments to LGC Wireless, Inc. corporate headquarters in San Jose, California: Address2540 Junction Avenue San Jose, California 95134-1902 USA Attn: Marketing Dept. Phone1-408-952-2400 Fax1-408-952-2410 Help Hot Line 1-800-530-9960 (U.S. only) +1-408-952-2400 (International) +44(0) 1223 597812 (Europe) Web Addresshttp://www.lgcwireless.com [email protected] [email protected] Copyright © 2001 by LGC Wireless, Inc. Printed in USA. All rights reserved. Trademarks All trademarks identified by ™ or ® are trademarks or registered trademark of LGC Wireless, Inc. All other trademarks belong to their respective owners. PN 8700-10InterReach Unison User Guide and Reference Manual 620003-0 Limited Warranty Seller warrants articles of its manufacture against defective materials or workmanship for a period of one year from the date of shipment to Purchaser, except as provided in any warranty applicable to Purchaser on or in the package containing the Goods (which warranty takes precedence over the following warranty). The liability of Seller under the foregoing warranty is limited, at Seller’s option, solely to repair or replacement with equivalent Goods, or an appropriate adjustment not to exceed the sales price to Purchaser, provided that (a) Seller is notified in writing by Purchaser, within the one year warranty period, promptly upon discovery of defects, with a detailed description of such defects, (b) Purchaser has obtained a Return Materials Authorization (RMA) from Seller, which RMA Seller agrees to provide Purchaser promptly upon request, (c) the defective Goods are returned to Seller, transportation and other applicable charges prepaid by the Purchaser, and (d) Seller’s examination of such Goods discloses to its reasonable satisfaction that defects were not caused by negligence, misuse, improper installation, improper maintenance, accident or unauthorized repair or alteration or any other cause outside the scope of Purchaser’s warranty made hereunder. Notwithstanding the foregoing, Seller shall have the option to repair any defective Goods at Purchaser’s facility. The original warranty period for any Goods that have been repaired or replaced by seller will not thereby be extended. In addition, all sales will be subject to standard terms and conditions on the sales contract. InterReach Unison User Guide and Reference ManualPN 8700-10 620003-0 PN8700-10InterReach Unison User Guide and Reference Manuali 620003-0 PRELIMINARY Table of Contents SECTION 1General Information . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1 Purpose and Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 1.2 Conventions in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.3 Acronyms in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 1.4 Standards Conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 1.5 Related Publications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 SECTION 2 InterReach™ Unison System Description . . . . 2-1 2.1 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2.2 System Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.3 System Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 2.4 System OA&M Capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 2.4.1 Configuring, Maintaining, and Monitoring Unison Locally. . 2-6 2.4.2 Monitoring and Maintaining Unison Remotely . . . . . . . . . . . 2-7 2.4.3 Using Alarm Contact Closures . . . . . . . . . . . . . . . . . . . . . . . . 2-8 2.5 System Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 2.6 System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 2.7 System Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 2.7.1 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 2.7.2 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . 2-12 2.7.3 Operating Frequencies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 2.7.4 RF End-to-End Performance. . . . . . . . . . . . . . . . . . . . . . . . . 2-13 SECTION 3Unison Main Hub . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1 Main Hub Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.1.1 Optical Fiber Uplink/Downlink Ports. . . . . . . . . . . . . . . . . . . 3-4 3.1.2 Communications RS-232 Serial Connector . . . . . . . . . . . . . . 3-4 3.1.3 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 3.2 Main Hub Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.2.1 Main Hub Rear Panel Connectors. . . . . . . . . . . . . . . . . . . . . . 3-9 3.2.1.1 N-type Female Connectors . . . . . . . . . . . . . . . . . . . . . . 3-9 PRELIMINARY iiInterReach Unison User Guide and Reference Manu…

Text truncated - open the document above for the full version.

BABT, The Telecommunications Division of TÜV America, Inc. 4855 Patrick Henry Drive, Bldg. 6Phone +1 408 748 3585 Santa Clara, CA 95054Fax+1 408 919 0585 United States of Americahttp://www.tuvglobal.com 2 nd October 2001 Dear Sir, Please remove the block diagrams for the following LGC Wireless products from the FCC web site. The FCC ID's and Confirmation Numbers follow; FCCID: NOOUNS-CELL-1 Confirmation Number: TC101871 FCCID: NOOUNS-PCS-1Confirmation Number: TC101855 Although block diagrams were not originally requested as confidential, LGC Wireless has subsequently identified these items as containing details that are proprietary to LGC Wireless. We therefore request that they be removed from the public area of the FCC website. I thank you in advance for your help. Regards, Harry Ward EMC & Radio Manager

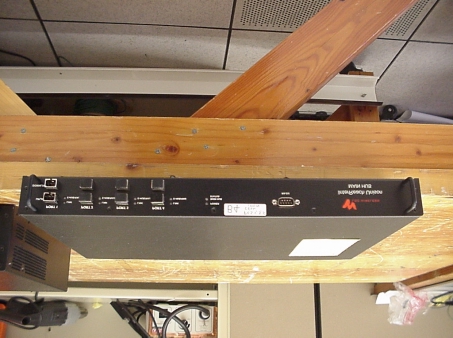

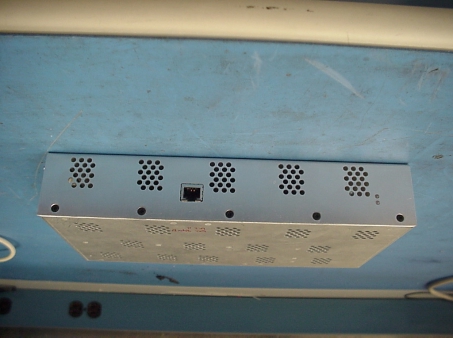

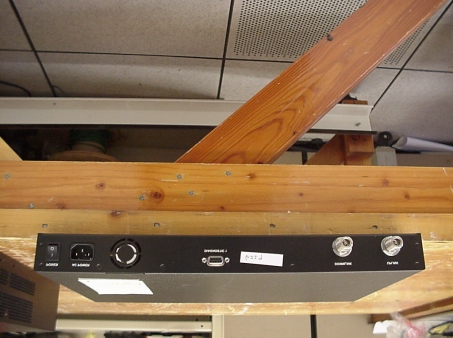

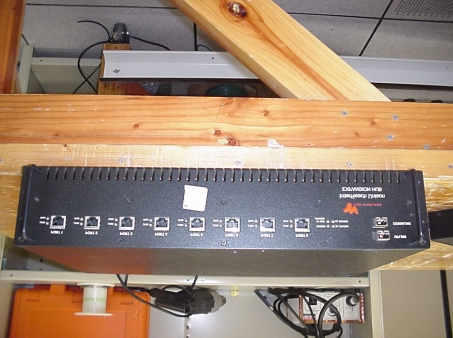

REAR OF MAIN HUB REAR OF EXPANSION HUB FRONT OF EXPANSION HUB FRONT OF MAIN HUB REAR OF RAU FRONT OF RAU

Expansion Hub Labels Main Hub Labels

INSIDE OF EXPANSION HUB INS IDE OF MAIN HUB (WITHOUT SHIELDS) INS IDE OF MAIN HUB (WITH SHIELDS) RAU INTERNAL ( WITHOUT SHIELDS) RAU INTERNAL ( WITH SHIELDS)

Report No. AC105140P24-1900 MEASUREMENT AND TECHNICAL REPORT LGC Wireless, Inc. 2540 Junction Avenue San Jose, CA 95134 DATE: 26 June 2001 This Report Concerns: Original Grant: X Class II Change: EEquipment Type: InterReach Unison PCS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X LCG Wireless Inc., agrees to notify the Commission by: Of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: *No: ( * ) FCC Part 2, Paragraphs 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and Part 24. Report Prepared By: TUV / BABT Product Service 4855 Patrick Henry Drive Bldg. 6 Santa Clara, CA 95054 Report No. AC105140FP24-1900 Page 1 of 20 D I R E C T O R Y Page No. 1 GENERAL INFORMATION 2 1.1 Product Description 3 1.2 Related Submittal Grant 3 1.3 Tested System Details 3 1.4 Tested Methodology 3 1.5 Test Facility 3 1.6 Part 2 Requirements 4 2 SYSTEM TEST CONFIGURATION 4 2.1 Justification 4 2.2 EUT Software Exercise 4 2.3 Special Accessories 4 2.4 Equipment Modifications 4 2.5 Configuration of Tested System 4 2.1046 RF Power Output 5 2.1047 Modulation Characteristics 6 2.1049 Occupied Bandwith 6 2.1051 Spurious Emissions At The Antenna Terminals 11 2.1053 Field Strength of Spurious Radiations 12 2.1055 Frequency Stability 13 3 RADIATED EMISSION EQUIPMENT DATA Field Strength Calculation 14 4 Signature Page 20 Report No. AC105140FP24-1900 Page 2 of 20 1.GENERAL INFORMATION 1.1 Product Description EUT Description: The system is a distributed in-building antenna system that enables wireless uninterrupted communication. The Main Hub of the system receives an RF signal from either a roof top antenna or a base station. The Main Hub down converts this signal to an IF signal and passes the signal to the Expansion Hub via fiber. The Expansion Hub does some additional filtering and passes the signal via Cat5 cable on to the Remote Antenna Unit, the RAU. The RAU up converts the signal back to an RF signal and rebroadcasts it. The system extends the wireless coverage area by bringing wireless signals into hard to penetrate structures. EUT Name: InterReach Unison PCS Model No. UNS-PCS-1 Product Options: Serial No. N/A Configurations To Be Tested: InterReach Unison Cell Compromising: Main Hub, (UNS-MH1) Expansion Hub (UNS-EH-1), and Remote Antenna Unit (UNS-PCS-1) Power Requirements Voltage: 120 VAC (If battery powered, make sure battery life is sufficient to complete testing.) No. Of Phases: N/A Current: Amps / Phase (Max): 5 A Current: Amps / Phase (Nominal): N/A Typical Installation and / or Operating Environment TELECOM EUT Power Cable o - Permanent or n - Removable n - Shielded or o - Unshielded Length (In Meters): n Not Applicable EUT I/O PORTS AND CABLES: * FROM PIF FORM CONNECTION: Signal Generator To Main Hub and RAU to Spectrum Analyzer: RF Cable. SHIELD: Yes CONNECTORS: Yes TERMINATION TYPE: SMA or N LENGTH: REMOVABLE: Yes CONNECTION: Expansion Hub to RAU: Cat5 Cable SHIELD: No CONNECTORS: Yes TERMINATION TYPE: RJ 45 LENGTH: 50 m max REMOVABLE: Yes CONNECTION: Main Hub to expansion Hub: Fiber Report No. AC105140FP24-1900 Page 3 of 20 1. GENERAL INFORMATION (continued) 1.2 Related Submittal / Grant None 1.3 TESTED SYSTEM DETAILS The FCC IDs for all equipment, plus descriptions of all cables used in test system are: None. 1.4 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are accurate. The reader is cautioned that there is some measurement variability due to the tolerances of the test equipment that can contribute to a nominal product measurement uncertainty. Furthermore, component differences and manufacturing process variability of production units similar to that tested may result in additional product uncertainty. If necessary, refer to the test lab for the actual measurement uncertainty for specific tests. 1.5 TEST FACILITY All measurements and tests were performed by: BABT 4855 Patrick Henry Drive Building 6 Santa Clara, CA 95054 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd., Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. AC105140FP24-1900 Page 4 of 20 1.6 Part 2 Requirements Equipment Specifications Frequency Range In MHz Rated RF Power In Watts Frequency Tolerance %, Hz, ppm Emission Designator (see CFR §2.201 and § 2.202) Microprocessor Model Number 1850 - 1990 0.01 10 ppm GXW, NXW, F9W, F1D, DXW 2. SYSTEM TEST CONFIGURATION 2.1 Justification The Intereach Unison PCS was tested in the configuration shown in the block diagram. 2.2 EUT Exercise Software None 2.3 Special Accessories None. 2.4 Modifications None. 2.5 Configuration of tested System See Block Diagram. Report No. AC105140FP24-1900 Page 5 of 20 RF Power Output – 2.1046 Minimum Requirement: Section 24.232 ; Maximum ERP. In no case may the Peak Output Power exceed 100 Watts. Test Result: Maximum measured 11.7dBm or 14.8mW. Model No. Description Manufacturer Serial No. Due Calib. Date n - 8566B Spectrum Analyzer Hewlett Packard 2816A18342 9/25/01 n - 8656B Signal Generator Hewlett Packard 2523A03399 4/9/02 n - HP8491B Attenuator Hewlett Packard 35958 N/A Report No. AC105140FP24-1900 Page 6 of 20 Section 2.1047: Modulation Characteristics: Not Applicable. The equipment is a repeater. Occupied Bandwidth – 2.1049 Minimum Requirement: Section 2.1049(i): Transmitters designed for other types of modulation when modulated by an appropriate signal of sufficient amplitude to be representative of the type of service in which used. A description of the input signal should be supplied. Test Results: Plots were taken for the equipment output and for the signal generator input to the equipment. These are shown on the following pages. The test signal used is TDMA. Test Equipment…

Text truncated - open the document above for the full version.

CONDUCTED EMISSIONS RADIATED EMISSIONS 1 – 19 GHz RADIATED EMISSIONS 30 – 1000 MHz
