LGC Wireless – An ADC Company 2540 Junction Avenue San Jose, CA 95134-1905 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR InterReach Unison UNS-PS70-1 and FCC ID No. NOOUNS-PS70-1 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.457 and 0.459. We have requested that the list the items below, required to be submitted with this application be withheld from public review. ALL schematics accompanying this submission: Block Diagrams, Internal Frequencies Document, and Operation Document The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, 12-12-07 Tom Macall Sr. Mechanical Engineer

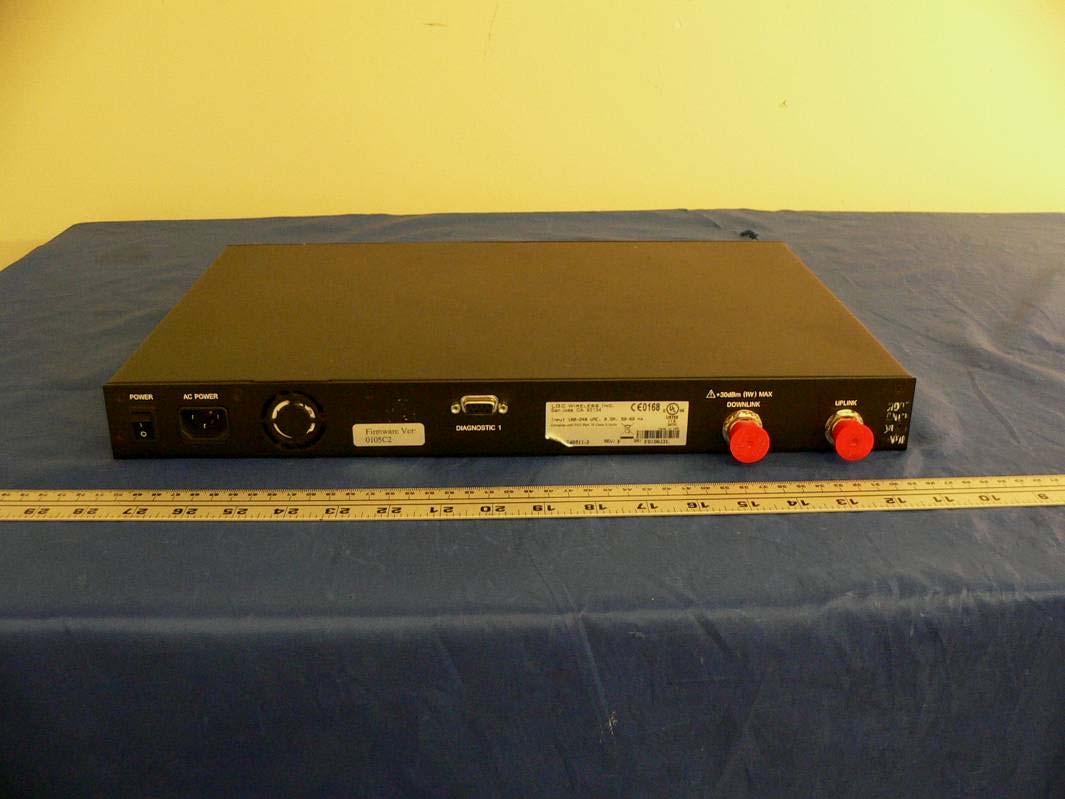

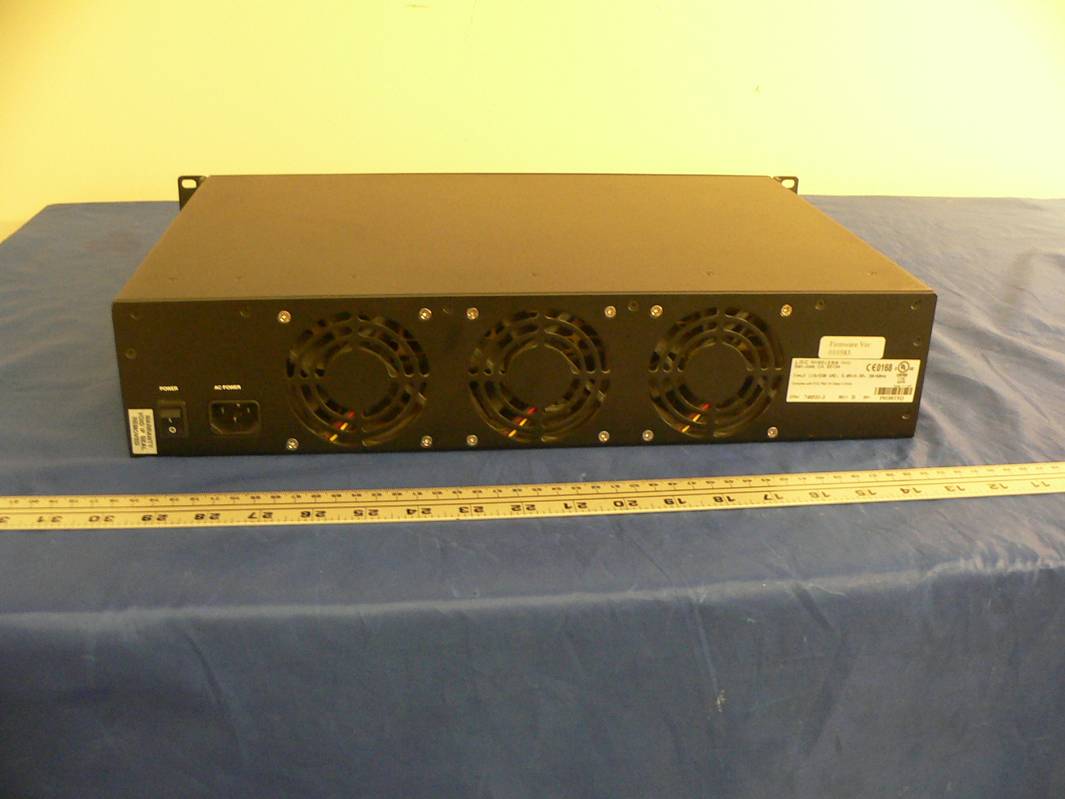

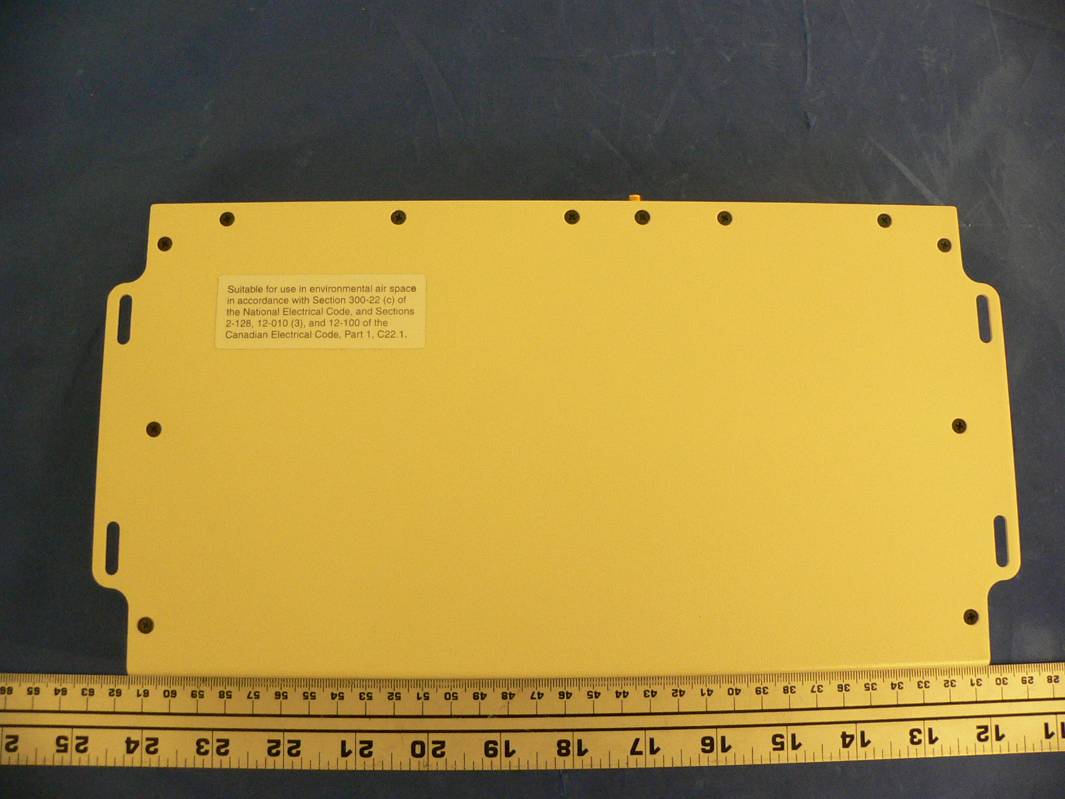

LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 96 of 101 FCC Part 27, 90 and IC RSS-119 Test Report 15 EXHIBIT C - EUT PHOTOGRAPHS 15.1 EUT–Front View 15.2 EUT–Rear View LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 97 of 101 FCC Part 27, 90 and IC RSS-119 Test Report 15.3 EUT – Top View 15.4 EUT – Bottom View LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 98 of 101 FCC Part 27, 90 and IC RSS-119 Test Report 15.5 Main Hub- Front View 15.6 Main Hub- Rear View LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 99 of 101 FCC Part 27, 90 and IC RSS-119 Test Report 15.7 Expansion Hub- Front View 15.8 Expansion Hub- Rear View

LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 90 of 101 FCC Part 27, 90 and IC RSS-119 Test Report 13 EXHIBIT A – FCC and IC ID LABELING AND WARNING STATEMENT 13.1 FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code 13.2 FCC ID Labeling Requirements as per FCC § 15.19 (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID:XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. IC: XXXXXX-YYYYYYYY Where: • "XXXXXX-YYYYYYYY" is the certification number • "XXXXXX" is the Certificate Holder Number (CHN), made of at most 6 alphanumeric characters (A-Z, 0- 9), assigned by Industry Canada; and • "YYYYYYYY" is the Unique Product Number (UPN), made of at most 8 alphanumeric characters (A-Z, 0- 9) assigned by the applicant. • Note 1: The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. • Note 2: Note 1 shall be conspicuously placed in the equipment user manual. • Note 3: Permitted alphanumeric characters used in the CHN and UPN are limited to capital letters (A-Z) and digits (0-9). Other characters, such as "#", "/" or "-", shall not be used. LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 91 of 101 FCC Part 27, 90 and IC RSS-119 Test Report 13.3 Specifications: As per RSS GEN 5.2 Equipment Labeling: Equipment subject to certification under the applicable RSS, shall be permanently labeled on each item, or as an inseparable combination. The label must contain the following information for full compliance: (a) the certification number, prefixed by the term “IC:”; (b) the manufacturer's name, trade name or brand name; and (c) a model name or number. Equipment for which a certificate has been issued is not considered certified if it is not properly labeled. The information on the Canadian label can be combined with the manufacturer’s other labeling requirements. If the device size is too small to put a label, the label can be included in the user’s manual, upon agreement with Industry Canada. 13.4 Suggested Label Location on EUT Bottom View of EUT / Suggested FCC ID Location

LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 100 of 101 FCC Part 27, 90 and IC RSS-119 Test Report 15.9 EUT –Radio Board with shield- Top view 1 15.10 EUT –Radio Board without shield- Top view 2 LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 101 of 101 FCC Part 27, 90 and IC RSS-119 Test Report 15.11 EUT –Radio Board without shield- Bottom view ***** END REPORT *****

LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 15 of 101 FCC Part 27, 90 and IC RSS-119 Test Report 6 §2.1091 & RSS- GEN 5.5 and RSS-102 – RF EXPOSURE 6.1 Applicability According to §1.1307(b)(1) and §1.1307(b)(2), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 6.2 MPE Prediction C4FM (763-775MHz Downlink, 793-805MHz Uplink) MPE Limit Calculation:@ 763-775MHz; highest conducted power=17.72dBm EUT maximum EIRP per users manual=2500mW (34.0dBm), therefore the maximum antenna gain in this band= 7.72dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal (dBm): 17.72 Maximum peak output power at antenna input terminal (mW): 59.16 Prediction distance (cm): 20 Prediction frequency (MHz): 769.50 Maximum Antenna Gain, typical (dBi): 7.72 Maximum Antenna Gain (numeric): 5.92 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.0697 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.513 LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 16 of 101 FCC Part 27, 90 and IC RSS-119 Test Report CQPSK Band (763-775MHz Downlink, 793-805MHz Uplink) MPE Limit Calculation:@ 763MHz - 775MHz; highest conducted power=17.78dBm EUT maximum EIRP per users manual=2500mW (34.0dBm), therefore the maximum antenna gain in this band= 8.39dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna WCDMA Band (763-775MHz Downlink, 793-805MHz Uplink) MPE Limit Calculation:@ 763MHz-775MHz; highest conducted power=15.93dBm EUT maximum EIRP per users manual=2500mW (34.0dBm), therefore the maximum antenna gain in this band= 8.39dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal (dBm): 17.78 Maximum peak output power at antenna input terminal (mW): 59.98 Prediction distance (cm): 20 Prediction frequency (MHz): 769.5 Maximum Antenna Gain, typical (dBi): 8.39 Maximum Antenna Gain (numeric): 6.902 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.4997 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.513 Maximum peak output power at antenna input terminal (dBm): 15.93 Maximum peak output power at antenna input terminal (mW): 39.17 Prediction distance (cm): 20 Prediction frequency (MHz): 769.5 Maximum Antenna Gain, typical (dBi): 8.39 Maximum Antenna Gain (numeric): 6.902 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.4997 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.513 LGC Wireless, Inc. – An ADC Company FCC ID: NOOUNS-PS70-1, IC: 3077-UNSPS701 Report No.: R0711271 Page 17 of 101 FCC Part 27, 90 and IC RSS-119 Test Report CDMA2000 Band (763-775MHz Downlink, 793-805MHz Uplink) MPE Limit Calculation:@ 763MHz-775MHz; highest conducted power=16.49dBm EUT maximum EIRP per users manual=2500mW (34.0dBm), therefore the maximum antenna gain in this band= 8.39dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna IDEN Band (763-775MHz Downlink, 793-805MHz Uplink) MPE Limit Calculation:@ 763MHz-775MHz; highest conducted power=17.72dBm EUT maximum EIRP per users manual=2500mW (34.0dBm), therefore the maximum antenna gain in this band= 8.39dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Note: Please refer to the Users manual. Maximum peak output power at antenna input terminal (dBm): 16.49 Maximum peak output power at antenna input terminal (mW): 44.57 Prediction distance (cm): 20 Prediction frequency (MHz): 769.5 Maximum Antenna Gain, typical (dBi): 8.39 Maximum Antenna Gain (numeric): 6.902 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.4997 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 0.513 Maximum peak output power at antenna input terminal (dBm): 17.72 Maximum peak output power at antenna input terminal (mW): 59.16 Prediction distance (cm): 20 Prediction frequency (MHz): 769.5 Maximum Antenna Gain, typical (dBi): 8.39 Maximum Antenna Gain (numeric): 6.902 Power density of prediction frequency at 20.0 cm (mW/cm 2 …
