NPQFGD6280GSM850/PCS1900 Dual Band WLL Terminal

VERY KOOL Dual Band GSM Fixed Wireless Phone REV.1 WELCOME Congratulations on your purchase of an VERY COOL product! 1. SAFETY INFORMATION SAFETY INFORMATION FOR FIXED PHONES IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. EXPOSURE TO RADIO FREQUENCY (RF) ENERGY Your phone contains a transmitter and a receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. OPERATIONAL PRECAUTIONS To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards; always adhere to the following procedures. EXTERNAL ANTENNA CARE Use only the supplied BRIGHSTAR approved antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the antenna when the phone is IN USE. Holding the antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. PHONE OPERATION 1 When placing or receiving a phone call, hold your phone as you would a wireline telephone. To maintain compliance with RF energy exposure guidelines, ensure the phone and its antenna is at least 1 inch (2.5 centimeters) from your body when transmitting. DATA OPERATION When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. APPROVED ACCESSORIES Use of accessories not approved by BRIGHTSTAR, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. RF ENERGY INTERFERENCE / COMPATIBILITIES Note: Nearly every electronic device is susceptible to RF energy interference from external sources if in adequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. MEDICAL DEVICE Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: • Always keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. • Not carry the phone in the breast pocket • Use the ear opposite the pacemaker to minimize the potential for interference. • Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such 2 interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. BATTERIES Batteries can cause property damage and / or bodily injury such as burns if a conductive material such as jewelry, keys, or beaded chains touches exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse or other container with metal objects. Use only original batteries and chargers. Your battery or phone may contain symbols, defined as follows. Symbol Definition Important safety information will follow Your battery or phone should not be disposed of in a fire Your battery or phone may require recycling in accordance with local laws. Contact your local regulatory authorities for more information. Your battery or phone should not be thrown in the trash Seizures / Blackouts Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. 3 If you experienced seizures or blackouts, or if you have a family history of such occurrences, please consult with your doctor. 2. PREPARING YOUR PHONE FOR USE 2.1. Installing the coiled cord. • Connect the coiled cord to both the handset and the base. 2.2. Plugging the AC/DC adaptor z Connect the adaptor to the AC Wall outlet. (Picture added) 2.3 Back up Battery • Remove the battery door • Insert the rechargeable battery pack into the battery compartment. • Place the battery door (Picture added) Note: Battery pack is a backup for emergency case of power failure. Do not operate the phone without the AC/DC Adaptor connected. Be sure to carefully match the positive and negative terminals as shown in the battery. Caution: • SIM card for this Fixed Wireless Phone is prohibited to use in other GSM mobile phones. Once SIM pin number is entered, SIM pin is automatically changed so initial PIN is no longer valid. Therefore, it is highly recommended NOT to take out the SIM card once it is installed in this product. • DO NOT bend or scratch your SIM card, and avoid exposing it to static electricity, water, or dirt. 4 3. FEATURE HIGHLIGHTS z Dial tone generation z Desktop Form factor z Auto Dialing z Voice mail z Short Message Service z Long Message Service up to 450 characters z Emergency call z Call logs z Call restriction z Caller ID z Clock with alarm z Calculator z Graphic bigger display z Blue back light for LCD and keypad z Multi ring tone z Speakerphone z Multi language (English, Spanish, Portuguese) z 200 phone book memory (100 phone book in the phone, 100 in SIM card) z Rechargeable battery z TNC antenna connecto…

Text truncated - open the document above for the full version.

4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea September 19, 2006 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: NPQFGD6280. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Telian Corporation. Sincerely, W.H WHANG/Senior Engineer

4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea September 19, 2006 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 In re: Telian Corporation. FCC ID: NPQFGD6280 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Telian Corporation. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Part Location and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Telian Corporation. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Telian Corporation. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, W.H WHANG/Senior Engineer

4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea September 19, 2006 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 In re: Telian Corporation. FCC ID: NPQFGD6280 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Telian Corporation. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos except the external photos in the SAR report Internal photos, and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Telian Corporation. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Telian Corporation. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, W.H WHANG/Senior Engineer

TCB Application Form 731 Rev 01 Mar 02 Item 1. Applicant’s complete, legal business name: Telian Corporation. Applicant’s FCC Registration Number (FRN): 0008163867 Item 2. Applicant’s mailing address: fill in fields, as appropriate Line 1: 4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong, Kyunggi-Do Line 2: P.O. Box: City: Gwangmyung-Si State: Country (if foreign address): KOREA Zip/Postal Code: 423-060 Item 3. FCC ID consisting of: Grantee Code: NPQ Equipment Product Code (14 characters maximum): FGD6280include “dashes” (-) where appropriate Item 4. Person to receive grant: this is the APPLICANT’S contact person, NOT the Test Lab’s First Name: Wonhwa Mail Stop: Last Name: Hwang Telephone: +82-2-890-0243 Title: SENIOR ENGINEER Fax No.: +82-2-890-0332 E-mail: [email protected] Item 5. Test Firm Contact (if different from applicant): fill in fields, as appropriate Firm Name: Digital EMC Co., Ltd Telephone: +82-31-321-2664 Ext: Fax: No.: +82-31-321-1664 First Name:HARVEY Middle Initial: Last Name:SUNG Address Line 1:683-3, Yubang-Dong P.O. Box: Address Line 2: City:Yongin-Si State:Kyunggi-Do Country (if foreign address):KOREA Zip/Postal Code:449-080 E-mail:[email protected] Item 6a. Name of Test Firm and Contact Person on file with the FCC: DIGITAL EMC CO., LTD. Item 6b. FCC Registered Test Site Number. Required for Part 15 and 18 applications. 101842 Item 7. Non-Technical Contact if Different: Firm Name: Digital EMC Co.,Ltd. Telephone: +82-31-321-2664 Ext.: Fax No.: +82-31-321-1664 First Name:Harvey Middle Initial: Last Name:Sung Address Line 1:683-3, Yubang-Dong P.O. Box: Address Line 2: City:Yongin-Si State:Kyunggi-Do Country (if foreign address):KOREA Zip/Postal Code:449-080 E-mail:[email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR 0.459 of the Commission Rules? Yes No Item 9. *Is this application for modular approval? Yes No If yes, please submit a cover letter addressing the modular approval requirements of DA 00-1407. Item 10. *Is this application for software defined radio authorization? Yes No Item 11. Equipment Class: 3-digits required TNB Description of Product as it is marketed: GSM850 / PCS1900 Dual Band Terminal Equipment Item 12. *Application is for: Original Equipment Change in identification of presently authorized equipment: Original FCC ID Grant Date (MM/DD/YYYY) Class II permissive change or modification of presently authorized equipment Class III permissive change to software defined radio Note: this may only be filed for applications pertaining to Software Defined Radio Item 13. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered “Yes” complete section 12 (c). Yes No Yes No (c) The related application: has been granted under the FCC ID listed to the right is in the process of being filed under the FCC ID listed to the right is pending with the FCC under the FCC ID listed to the right FCC ID * Equipment will be operated under FCC Rule Part(s): 22H Item 14. EQUIPMENT SPECIFICATIONS: Where applicable Frequency range in MHz Rated RF power output IN WATTS Frequency tolerance %, Hz, ppm Emission Designator (See 47 CFR 2.201 and 2.202) Microprocessor model number 824.2 848.8 1.862 2.5 ppm 245KGXW 1850.2 1909.8 1.208 2.5 ppm 241KGXW Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND/OR IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312 (a) (1)), AND/OR FORFEITURE (U.S. TITLE 47, SECTION 503). Item 15. (This Section intentionally left blank) Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application, is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above Section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. *Signature of Authorized Applicant:Harvey Sung Title of Authorized Signature:Technical Director Complete items below if an agent signs the application Firm Name: DIGITAL EMC Co.,Ltd. Telephone: +82-31-321-2664 Ext.: Fax No.: +82-31-321-1664 First Name:Harvey Middle Initial: Last Name:Sung Address Line 1:683-3, Yubang-Dong P.O. Box: Address Line 2: City: Yongin-Si State: Kyunggi- Do Country (if foreign address): KOREA Zip/Postal Code: 449-080 NOTE: An asterisk ‘*’ preceding a field indicates it must be completed.

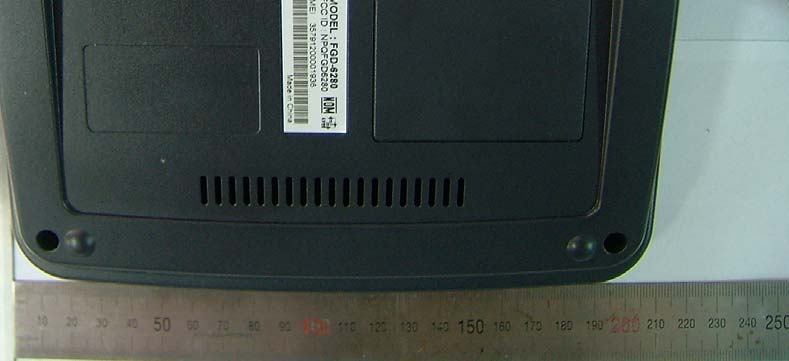

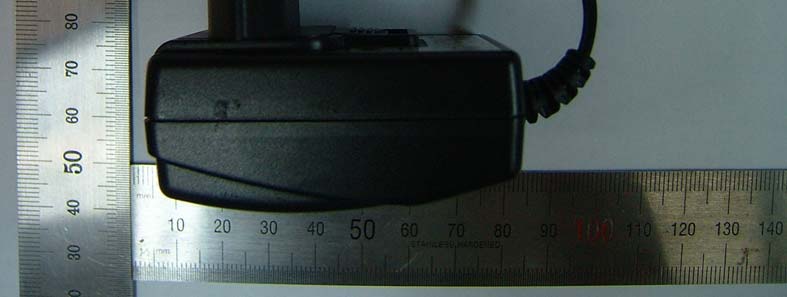

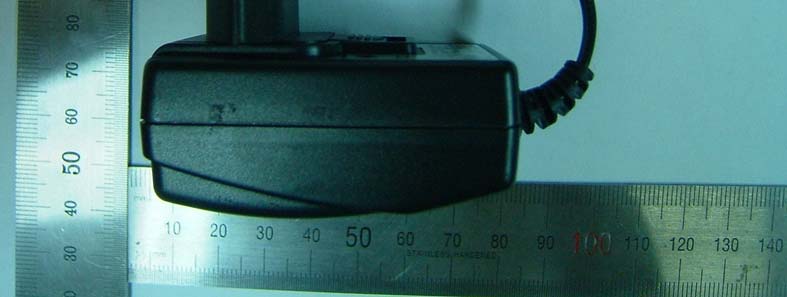

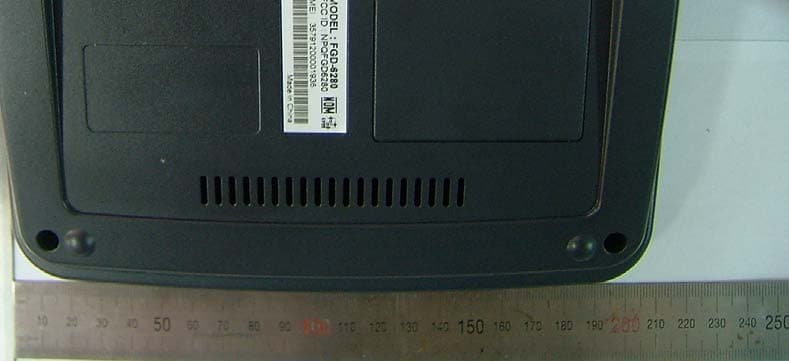

External Photograph FCC ID : R2NSGP-1036 External Photograph FCC ID : R2NSGP-1036 External Photograph FCC ID : R2NSGP-1036 External Photograph FCC ID : R2NSGP-1036 External Photograph FCC ID : R2NSGP-1036

FCC ID : NPQFGD6280 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a Conspicuous location on the device and be readily visible to the time of purchase. Copyright © 2005, DIGITAL EMC Co., Ltd. FCC ID : NPQFGD6280

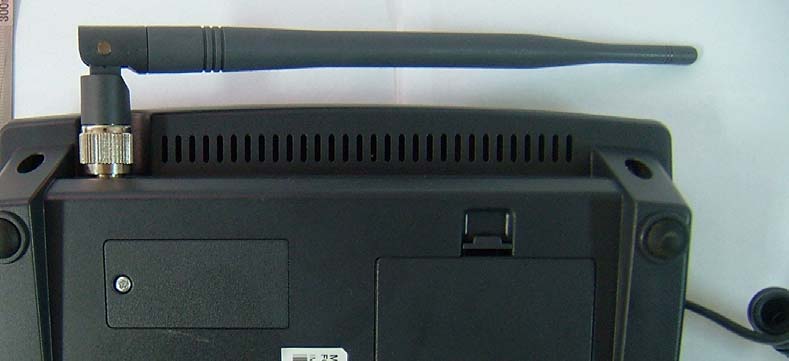

Internal Photograph FCC ID : NPQFGD6280 Internal Photograph FCC ID : NPQFGD6280 Internal Photograph FCC ID : NPQFGD6280 Internal Photograph FCC ID : NPQFGD6280 Internal Photograph FCC ID : NPQFGD6280 -Backup Battery - Internal Photograph FCC ID : NPQFGD6280 -Antenna -

DEMC#DR50110609F Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 3 SAR VALIDATION PLOTS DEMC#DR50110609F Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 3 DEMC#DR50110609F Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 3 of 3

DEMC#DR50110609F Copyright ○ c 2006, DIGITAL EMC Co., Ltd. SAR TEST PLOTS DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL; TA Model No:3A-061WP05 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.971 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.128, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.021 dB Peak SAR (extrapolated) = 0.764 W/kg SAR(1 g) = 0.571 mW/g; SAR(10 g) = 0.404 mW/g 0 dB = 0.602mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL;TA Model No:3A-061WP05 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.983 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.190, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.059 dB Peak SAR (extrapolated) = 0.735 W/kg SAR(1 g) = 0.555 mW/g; SAR(10 g) = 0.393 mW/g 0 dB = 0.594mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL;TA Model No:3A-061WP05 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.996 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.251, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.005 dB Peak SAR (extrapolated) = 0.581 W/kg SAR(1 g) = 0.443 mW/g; SAR(10 g) = 0.315 mW/g 0 dB = 0.473mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL; TA Model No:SYS1298-1506-W2 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.971 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.128, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.101 dB Peak SAR (extrapolated) = 0.766 W/kg SAR(1 g) = 0.582 mW/g; SAR(10 g) = 0.413 mW/g 0 dB = 0.620mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL;TA Model No:SYS1298-1506-W2 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.983 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.190, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.038 dB Peak SAR (extrapolated) = 0.726 W/kg SAR(1 g) = 0.547 mW/g; SAR(10 g) = 0.387 mW/g 0 dB = 0.587mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL;TA Model No:SYS1298-1506-W2 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.996 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.251, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.055 dB Peak SAR (extrapolated) = 0.574 W/kg SAR(1 g) = 0.434 mW/g; SAR(10 g) = 0.308 mW/g 0 dB = 0.464mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL; TA Model No:SYS1298-1506-W2 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 824.2 MHz; σ = 0.971 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.128, Ant Fixed, Charger Mode With GPRS Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube …

Text truncated - open the document above for the full version.

DEMC#DR50110609F Copyright ○ c 2006, DIGITAL EMC Co., Ltd. SAR TEST PLOTS DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL; TA Model No:3A-061WP05 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.971 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.128, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.021 dB Peak SAR (extrapolated) = 0.764 W/kg SAR(1 g) = 0.571 mW/g; SAR(10 g) = 0.404 mW/g 0 dB = 0.602mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL;TA Model No:3A-061WP05 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.983 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.190, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.059 dB Peak SAR (extrapolated) = 0.735 W/kg SAR(1 g) = 0.555 mW/g; SAR(10 g) = 0.393 mW/g 0 dB = 0.594mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL;TA Model No:3A-061WP05 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.996 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.251, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.005 dB Peak SAR (extrapolated) = 0.581 W/kg SAR(1 g) = 0.443 mW/g; SAR(10 g) = 0.315 mW/g 0 dB = 0.473mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL; TA Model No:SYS1298-1506-W2 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.971 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.128, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.101 dB Peak SAR (extrapolated) = 0.766 W/kg SAR(1 g) = 0.582 mW/g; SAR(10 g) = 0.413 mW/g 0 dB = 0.620mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL;TA Model No:SYS1298-1506-W2 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.983 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.190, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.038 dB Peak SAR (extrapolated) = 0.726 W/kg SAR(1 g) = 0.547 mW/g; SAR(10 g) = 0.387 mW/g 0 dB = 0.587mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL;TA Model No:SYS1298-1506-W2 Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.996 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.251, Ant Fixed, Charger Mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.055 dB Peak SAR (extrapolated) = 0.574 W/kg SAR(1 g) = 0.434 mW/g; SAR(10 g) = 0.308 mW/g 0 dB = 0.464mW/g DIGITAL EMC CO., LTD DUT: FGD-6280; Type: WLL; TA Model No:SYS1298-1506-W2 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 824.2 MHz; σ = 0.971 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1702; ConvF(6.21, 6.21, 6.21); Calibrated: 2006-03-23; Electronics: DAE3 Sn519 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2006-08-30; Ambient Temp: 22.0; Tissue Temp: 22.5 2.5cm from Body, GSM Ch.128, Ant Fixed, Charger Mode With GPRS Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube …

Text truncated - open the document above for the full version.

DEMC#DR50110609F Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 3 SAR VALIDATION PLOTS DEMC#DR50110609F Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 3 DEMC#DR50110609F Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 3 of 3

Copyright ○ c 2006, DIGITAL EMC Co., Ltd. PROBE CALIBRATION

Copyright ○ c 2006, DIGITAL EMC Co., Ltd. DIPOLE CALIBRATION Copyright ○ c 2006, DIGITAL EMC Co., Ltd. 1. 835 Dipole Calibration Copyright ○ c 2006, DIGITAL EMC Co., Ltd. 2. 1900 Dipole Calibration

DEMC#DR50110609F Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 24 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com SAR TEST REPORT Dates of Tests: August. 30~September. 4, 2006 Test Report S/N:DR50110609F Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) EUT Type: GSM850 / PCS1900 Dual Band Terminal Equipment Model Name FGD-6280 Add Name FGD-6290, K6280, K6290 Brand Name Very KooL Test Device Serial No.: Identical prototype TX Frequency Range: 824.20 ~848.80 MHz (GSM850) 1850.20 ~ 1909.80 MHz (PCS1900) RX Frequency Range: 869.2 ~893.8 MHz (GSM850) 1930.2 ~ 1989.8 MHz (PCS1900) Max. RF Output Power: 1.862 W ERP GSM850 1.208 W EIRP PCS1900 Max. SAR Measurement: 1.060 mW/g GSM850 Body SAR 0.442 mW/g PCS1900 Body SAR Application Type: Certification Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C[July 2001] Data of issue: September 21, 2006 Tested by : Reviewed by : Sun-Kyu Ryu (Engineer) Harvey Sung (Chief Engineering Director) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibili…
