(Back cover) All other product or service names are the property of their respective owners. The information contained in this user’s guides is believed to be correct at the time of printing. We reserve the right to change or modify any information or specifications without notice. The contents of this user’s guides are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this guide. © Copyright 2005, BRIGHTSTAR Corp., All rights reserved. 1 Startel 1950g (FGD8800) 2005. 09.28 REV.00 2 WELCOME Congratulations on your purchase of a Startel 1950g product! Product registration is an important step toward enjoying your new product. Registering helps us facilitate warranty service, and permit us to contact you should your product require an update or other service. Registration is not required for warranty coverage. Please retain your original dated sales receipt for your records. For warranty service of your Startel product you will need to provide a copy of your dated sales receipt to confirm warranty status. Please read important safety instructions on page 2 before use. Read and understand all instructions before use. Please retain this guide for future reference. 3 Hereby, BRIGHTSTAR Corp., declares that this unit is in compliance with the relevant provisions of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC. Hereby, BRIGHTSTAR Corp. declares that this unit is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This product carries the CE-Mark in accordance with the related European Directives. 4 CONTENTS 1. SAFETY INFORMATION................................................................................................. 9 2. PREPARE YOUR PHONE FOR USE ............................................................................. 15 2.1. Install the coiled cord. ........................................................................................... 15 2.2. Plug the AC / DC adaptor ...................................................................................... 15 2.3 Back up Battery ...................................................................................................... 16 3. FEATURE HIGHLIGHTS ............................................................................................... 17 4. ABOUT THE PHONE...................................................................................................... 18 4.1 Name.......................................................................................................................18 4.2 Key functions.......................................................................................................... 18 4.2.1 Menu / Selection / Name key...................................................... 18 4.2.2 Send key ............................................................................................. 19 4.2.3 End key............................................................................................. 19 4.2.4 ~,................................................................................ 19 4.2.5 Scroll keys ............................................................................................ 19 4.2.6 Using the selection keys .............................................................................. 19 4.2.7 Using the scroll keys ................................................................................... 19 4.2.8 Speaker button..................................................................................... 20 4.3 About display indicators and icons ......................................................................... 20 4.3.1 Start screen .................................................................................................. 20 4.3.2 Scroll bar ..................................................................................................... 20 4.4 Indicators and icons ................................................................................................ 20 5. BASIC OPERATIONS ..................................................................................................... 22 5.1 Switch the phone ON and OFF .............................................................................. 22 5.2 Make a call ............................................................................................................. 22 5.3 Answer a call .......................................................................................................... 22 5 5.4 Speaker mode ......................................................................................................... 23 5.5 Adjust the Volume................................................................................................... 23 5.5.1 Adjust the ring volume ................................................................................ 23 5.5.2 Adjust earpiece volume ............................................................................... 24 5.6 Redial the last-dialed number ................................................................................. 24 5.7Caller ID ................................................................................................................ 24 5.8 SMS and Voice Mail ............................................................................................... 24 6. USE PHONE MENUS ..................................................................................................... 26 6.1 Navigate menus .................................................................................................... 26 6.1.1 Scroll through menus................................................................................... 26 6.1.2 Use a short…
Text truncated - open the document above for the full version.
4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea Oct 24, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Telian Corporation. FCC ID : NPQFGD8800 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Telian Corporation. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Turn up procedure and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Telian Corporation. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Telian Corporation. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, W.H WHANG/Senior Engineer
4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea Oct 28, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Telian Corporation. FCC ID: NPQFGD8800 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Telian Corporation requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos, and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Telian Corporation considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Telian Corporation feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, W.H WHANG/Senior Engineer

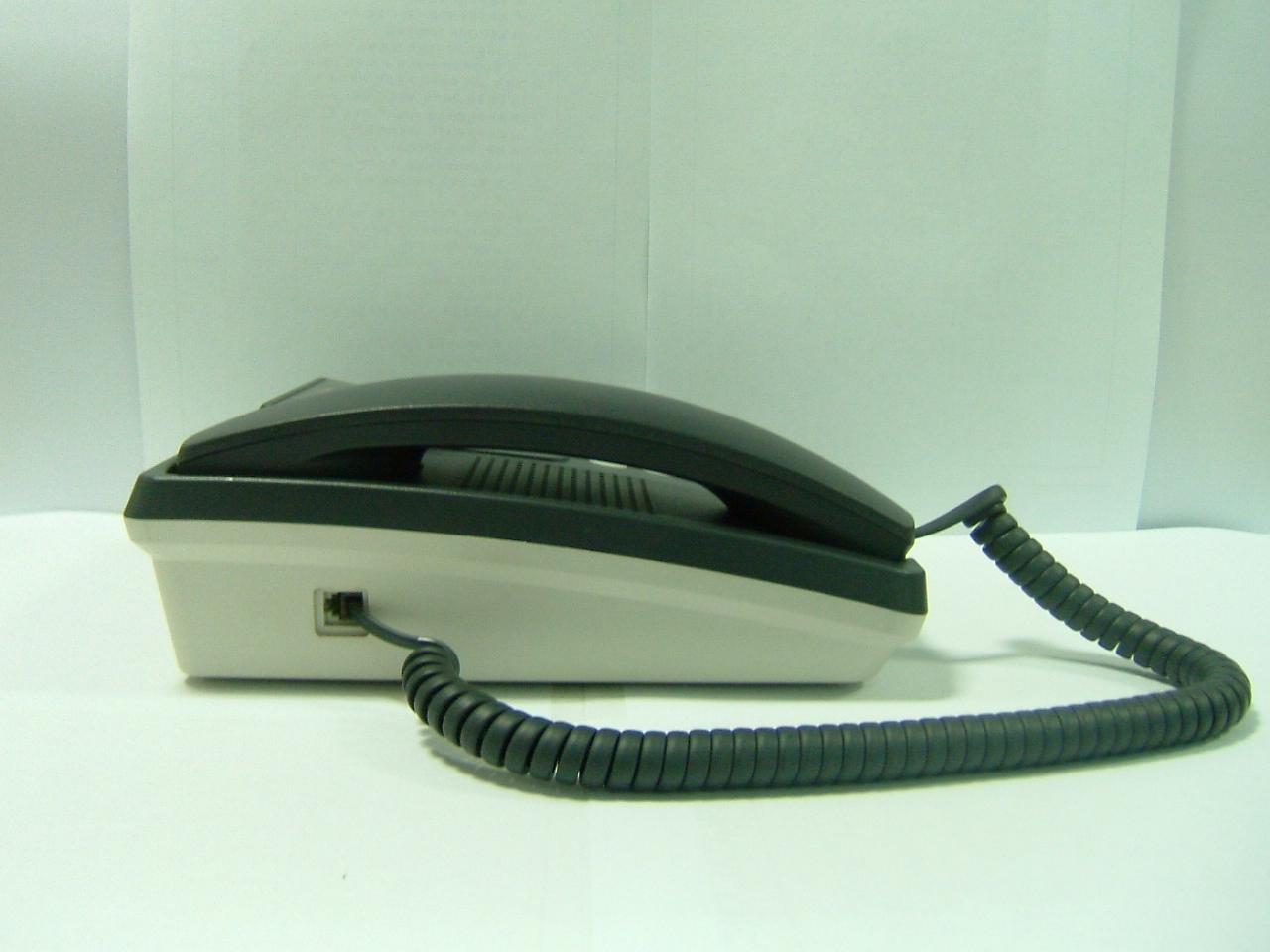

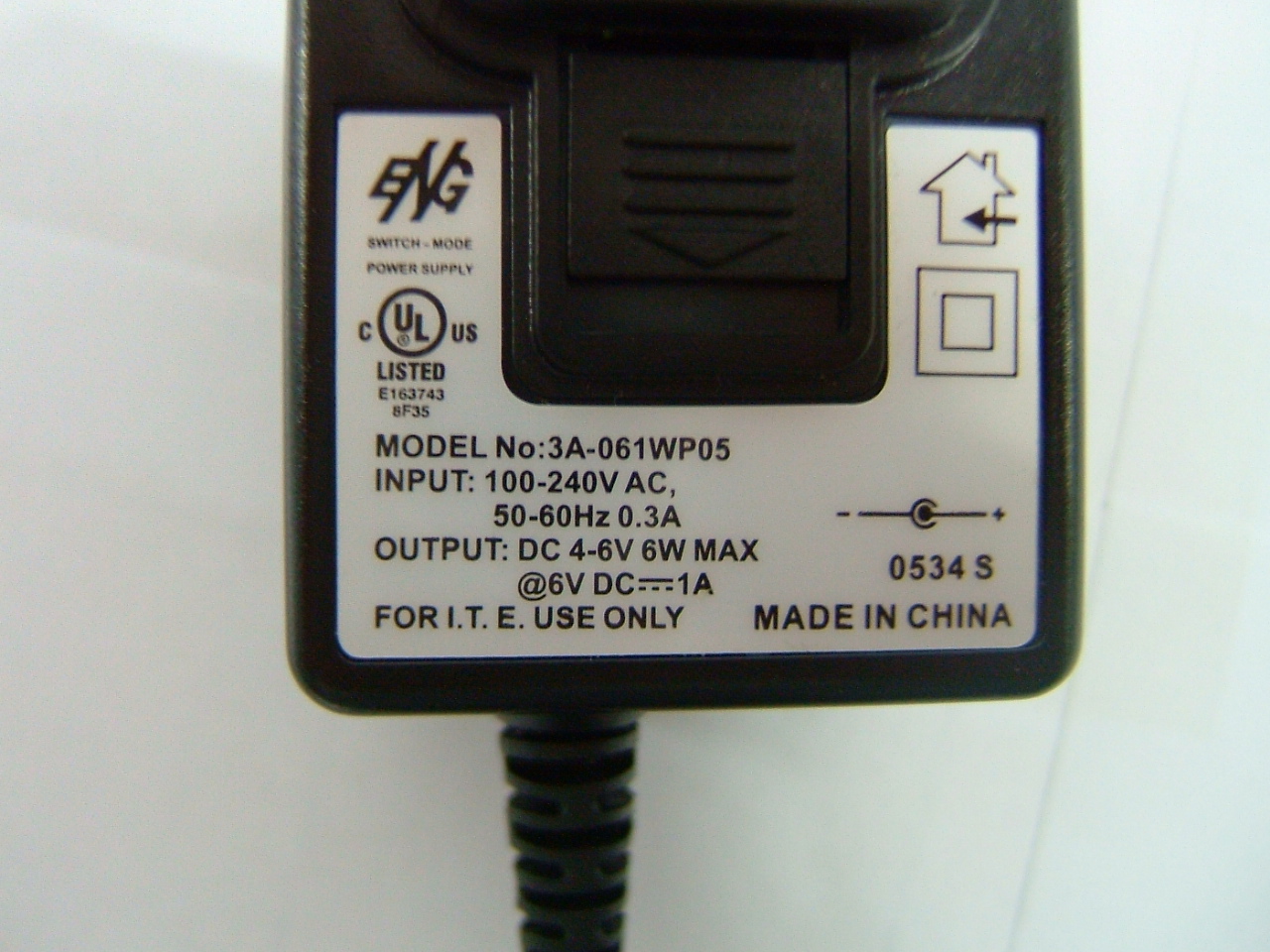

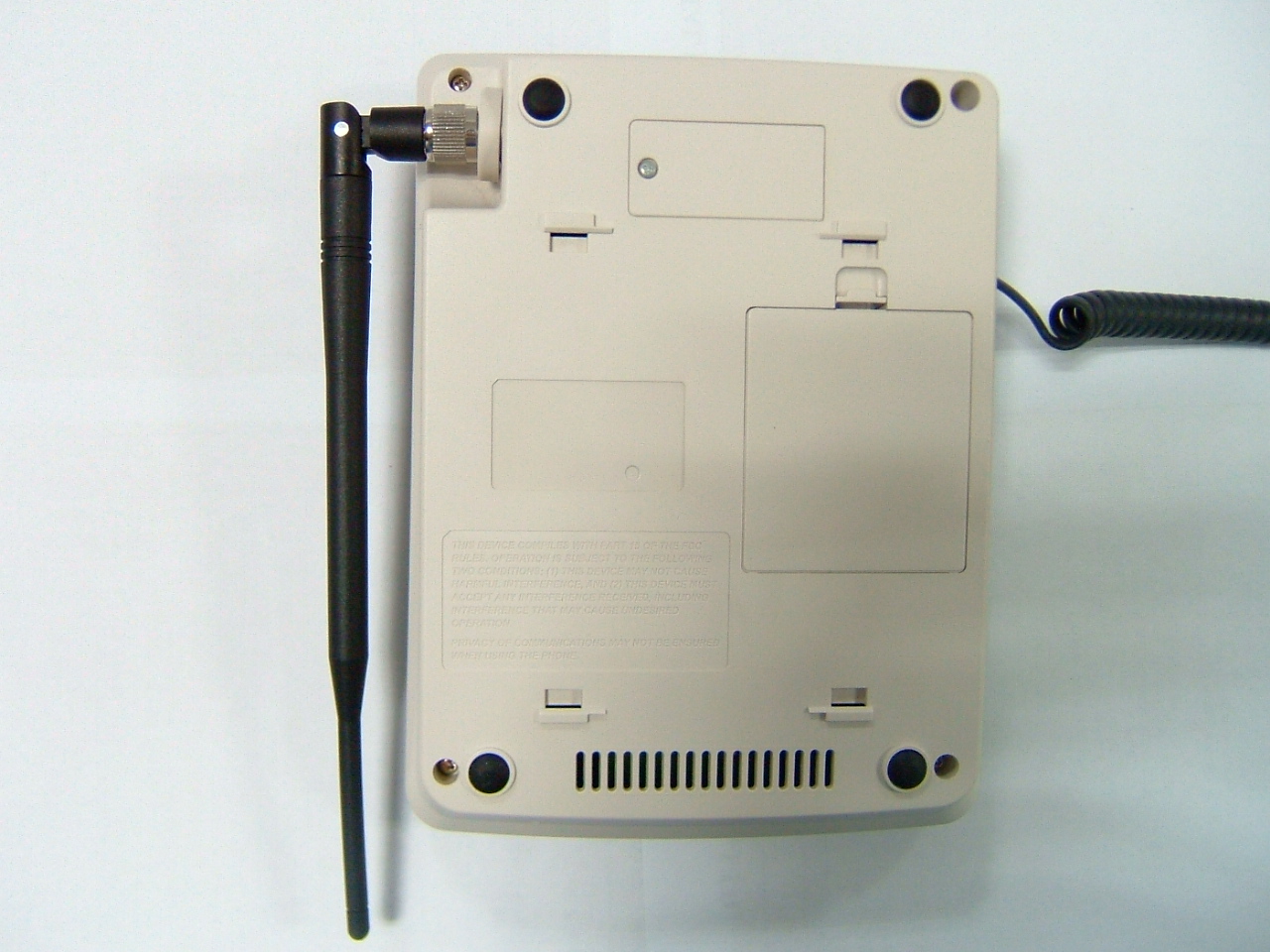

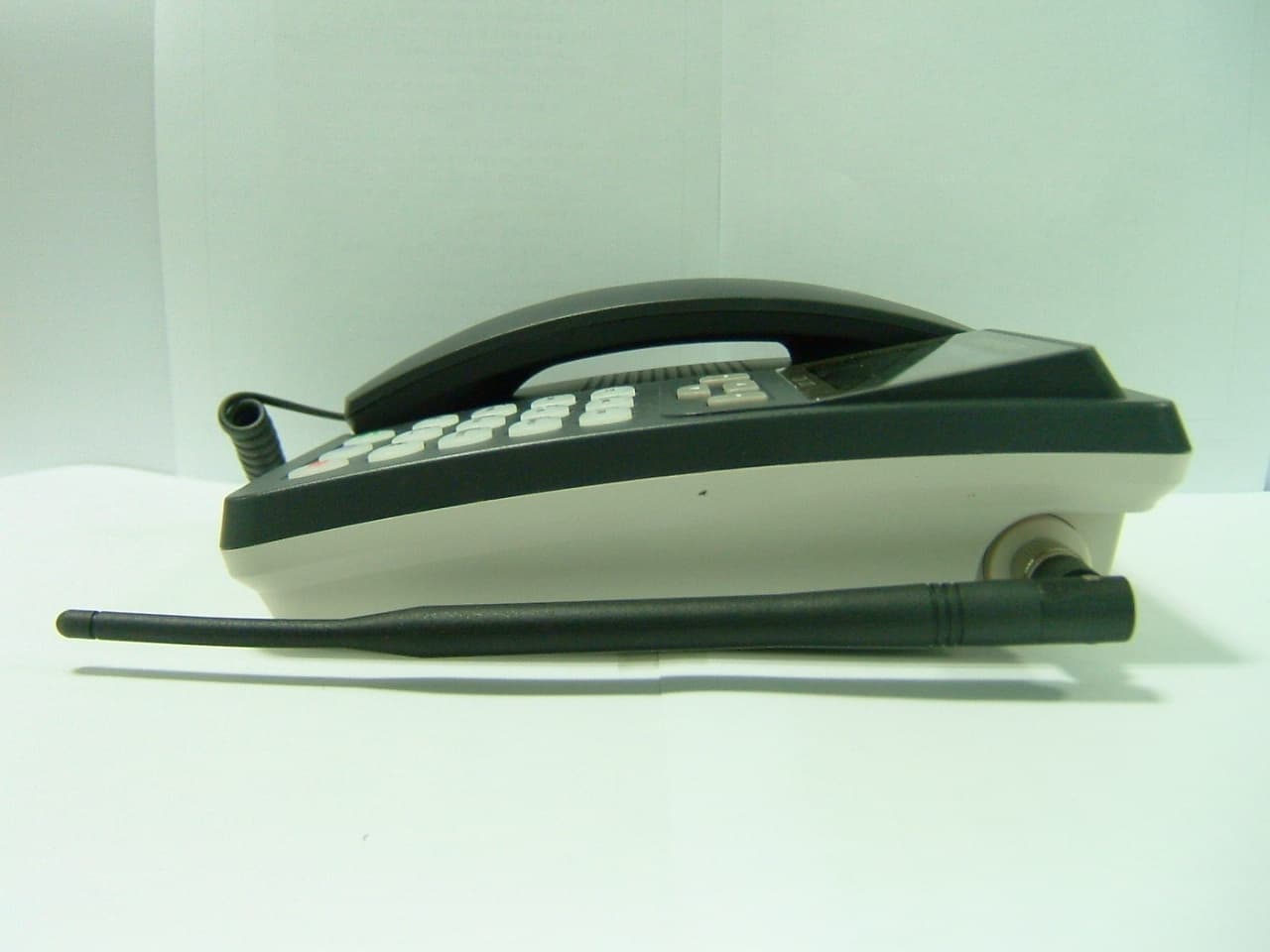

FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. EXTERNAL PHOTOGRAPHS FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 1 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 2 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 3 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 5 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 6
FCC ID : NPQFGD8800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase FCC ID : NPQFGD8800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd.
FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. INTERNAL PHOTOGRAPHS FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 1 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 2 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 3 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 4 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 5 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 6 FCC ID: NPQFGD8800 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 7
Copyright ○ c 2005, DIGITAL EMC Co., Ltd. PROBE CALIBRATION
FCC ID:NPQFGD8800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. SAR VALIDATION PLOTS DIGITAL EMC CO., LTD DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:464 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.875 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.51, 6.51, 6.51); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-10-11; Ambient Temp: 23.0; Tissue Temp: 22.0 Dipole Validation Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.027 dB Peak SAR (extrapolated) = 3.66 W/kg SAR(1 g) = 2.42 mW/g; SAR(10 g) = 1.58 mW/g 0 dB = 2.61mW/g DIGITAL EMC CO., LTD DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d029 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(5.27, 5.27, 5.27); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-10-12; Ambient Temp: 23.0; Tissue Temp: 21.3 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.080 dB Peak SAR (extrapolated) = 17.8 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.48 mW/g 0 dB = 11.5mW/g
FCC ID:NPQFGD8800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. SAR TEST PLOTS DIGITAL EMC CO., LTD DUT: CRX-1000; Type: WLL Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.979 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.39, 6.39, 6.39); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-10-11; Ambient Temp: 23.0; Tissue Temp: 22.0 2.5cm from Body, GSM Ch.128, Ant Fixed, Charger mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.155 dB Peak SAR (extrapolated) = 0.539 W/kg SAR(1 g) = 0.410 mW/g; SAR(10 g) = 0.291 mW/g 0 dB = 0.435mW/g DIGITAL EMC CO., LTD DUT: CRX-1000; Type: WLL Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.992 mho/m; ε r = 53.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.39, 6.39, 6.39); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-10-11; Ambient Temp: 23.0; Tissue Temp: 22.0 2.5cm from Body, GSM Ch.190, Ant Fixed, Charger mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.037 dB Peak SAR (extrapolated) = 0.588 W/kg SAR(1 g) = 0.440 mW/g; SAR(10 g) = 0.313 mW/g 0 dB = 0.469mW/g DIGITAL EMC CO., LTD DUT: CRX-1000; Type: WLL Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 1 mho/m; ε r = 53; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.39, 6.39, 6.39); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-10-11; Ambient Temp: 23.0; Tissue Temp: 22.0 2.5cm from Body, GSM Ch.251, Ant Fixed, Charger mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.124 dB Peak SAR (extrapolated) = 0.424 W/kg SAR(1 g) = 0.319 mW/g; SAR(10 g) = 0.228 mW/g 0 dB = 0.340mW/g DIGITAL EMC CO., LTD DUT: CRX-1000; Type: WLL Communication System: PCS1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.53 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(4.81, 4.81, 4.81); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-10-12; Ambient Temp: 23.0; Tissue Temp: 21.3 2.5cm from Body, PCS Ch.512, Ant Fixed, Charger mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.118 dB Peak SAR (extrapolated) = 0.237 W/kg SAR(1 g) = 0.153 mW/g; SAR(10 g) = 0.099 mW/g 0 dB = 0.165mW/g DIGITAL EMC CO., LTD DUT: CRX-1000; Type: WLL Communication System: PCS1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.56 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(4.81, 4.81, 4.81); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-10-12; Ambient Temp: 23.0; Tissue Temp: 21.3 2.5cm from Body, PCS Ch.661, Ant Fixed, Charger mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.302 dB Peak SAR (extrapolated) = 0.237 W/kg SAR(1 g) = 0.174 mW/g; SAR(10 g) = 0.112 mW/g 0 dB = 0.189mW/g DIGITAL EMC CO., LTD DUT: CRX-1000; Type: WLL Communication System: PCS1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1909.8 MHz; σ = 1.59 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(4.81, 4.81, 4.81); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-10-12; Ambient Temp: 23.0; Tissue Temp: 21.3 2.5cm from Body, PCS Ch.810, Ant Fixed, Charger mode Area Scan (51x151x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.127 dB Peak SAR (extrapolated) = 0.197 W/kg SAR(1 g) = 0.148 mW/g; SAR(10 g) = 0.096 mW/g 0 dB = 0.167mW/g
DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 1 of 49 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Dates of Tests: October 10 ~ 19, 2005 Test Report S/N:DR50110510L Test Site : DIGITAL EMC CO., LTD. FCC ID. APPLICANT Classification: Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §22(H), §24(E), §2 EUT Type: GSM850/PCS1900 Dual Band Terminal Equipment Model name: FGD8800 ADD Model name: CRX2000, STARTEL1950g Serial number: Identical prototype TX Frequency Range: 824.2 ~ 848.8 MHz (GSM850) / 1850.2 ~ 1909.8 MHz (PCS1900) RX Frequency Range: 869.2 ~ 893.8 MHz (GSM850) / 1930.2 ~ 1989.8 MHz (PCS1900) Max. RF Output Power: 2.466 W ERP GSM850 1.067 W EIRP PCS1900 Max. SAR Measurement: 0.440W/kg GSM850 Body SAR 0.174W/kg PCS1900 Body SAR Date of Issue: October 24, 2005 NPQFGD8800 Telian Corporation DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 2 of 49 TABLE OF CONTENTS ATTACHMENT: CONFIDENTIALITY LETTERS ATTACHMENT: AUTHOLIZATION LETTER ATTACHMENT: RF TEST REPORT 1 SCOPE 3 2 INTRODUCTION 4 3 TEST REPORT 5 3.1 SUMMARY OF TEST 5 3.2 POWER OUTPUT 6 3.3 OCUPIED BANDWIDTH 12 3.4 OCCUPIED BANDWIDTH EMISSION LIMIT 17 3.5 SPURIOUS EMISSION AT ANT. TERMINAL 23 3.6 FIELD STRENGTH OF SPURIOUS RADIATION 33 3.7 FREQUENCY STABILITY 40 3.8 RECEIVER RADIATED EMISSIONS 45 4 TEST EQUIPMENT 46 5 EMISSION DESIGNATOR 48 6 CONCLUSION 49 ATTACHMENT: PART LOCATION ATTACHMENT: FCC ID LABEL & LOCATION ATTACHMENT: TEST SETUP PHOTOGRAPHS ATTACHMENT: EXTERNAL PHOTOGRAPHS ATTACHMENT: INTERNAL PHOTOGRAPHS ATTACHMENT: BLOCK DIAGRAM(S) ATTACHMENT: SCHEMATIC DIAGRAM(S) ATTACHMENT: OPERATIONAL DESCRIPTION ATTACHMENT: PARTS LIST ATTACHMENT: USER’S MANUAL ATTACHMENT: SAR TEST REPORT ATTACHMENT: SAR VALIDATION PLOTS ATTACHMENT: SAR TEST PLOTS ATTACHMENT: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT: PROBE CALIBRATION ATTACHMENT: DIPOLE CALIBRATION DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 3 of 49 MEASUREMENT REPORT 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: NPQFGD8800 The mass product 824.2 ~ 848.8 MHz (GSM850) / 1850.2 ~ 1909.8 MHz (PCS1900) 869.2 ~ 893.8 MHz (GSM850) / 1930.2 ~ 1989.8 MHz (PCS1900) 2.466W ERP GSM850 1.067W EIRP PCS1900 TNB GSM850/PCS1900 Dual Band Terminal Equipment GMSK ± 0.00025 % (2.5ppm) §22(H), §24(E), §2 October 10 ~ 19, 2005 DIGITAL EMC DR50110510L Applicant: Telian Corporation Address: 5 th FL. Namjeun Bldg, 53-3 Haan-Dong, Kwangmyung-Si, Kyunggi-Do, Korea Attention: Wayne Hwang (Senior Manager) DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 4 of 49 2. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer October 24, 2005 Won-Jung LEE Data Name Signature Report Reviewed By: manager October 24, 2005 Harvey Sung Data Name Signature Ordering party: Company name : Telian Corporation Address : 5th FL, Namjeun Bldg , 53-3 , Haan-Dong, Zipcode : 423-060 City/town : Kwangmyung-Si City, Kyonggi do Country : KOREA Date of order : September 5, 2005 DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 5 of 49 3. Test Report 3.1 Summary of test FCC Part Section(s) Parameter Status (note 1) 22.913(a) / 24.232(b) Power Output C 2.1049(h)(i) Occupied Bandwidth C 24.238(b) Emission Bandwidth C 2.1051 / 24.238 Emission Limits Transmitter C 2. 1053 (a) Field Strength of Spurious Radiation C 2.1053 Receiver Radiated Emissions C 2.1055 Frequency Stability C 2.1057 Conducted Spurious Emissions C Note 1: C= Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts §22(H), §24(E), §2; ANSI C-63.4-2003 DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 6 of 49 3.2 Power Output FCC ID : NPQFGD8800 Specification : 47 CFR 2.1046 (a) Tested Frequency : 824.2MHz, 836.6MHz and 848.8MHz for GSM850 1850.2MHz, 1880.0MHz and 1909.8MHz for PCS1900 Measurement Procedure: - During the process of testing, the EUT was controlled via Radio Communication tester to ensure max. Power transmission and proper modulation. - Power output was measured at the RF output terminals when the transmitter is adjusted in accordance with Communication tester (or the tune-up procedure). Measurement Data: GSM850 TEST CONDITIONS Power Step: 5 Channel Frequency (MHz) (dBm) 128 824.2 31.11 190 836.6 31.32 251 848.8 31.96 PCS1900 TEST CONDITIONS Power Step: 0 Channel Frequency (MHz) (dBm) 512 1850.2 29.32 661 1880.0 29.82 810 1909.8 28.60 DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 7 of 49 POWER OUT. GSM850 Ch.128 POWER OUT. GSM850 Ch.190 DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 8 of 49 POWER OUT. GSM850 Ch.251 DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 9 of 49 POWER OUT. PCS1900 Ch.512 POWER OUT. PCS1900 Ch.661 DEMC#DR50110510L Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 10 of 49 POWER OUT. PCS1900 Ch.810 DEMC#DR50110510L Copyright ○ c 2005, DIGITAL …
