NPQFGD8900Dual-Band GSM Handset

FGD-8900 & AVVIO9000 2005. 08.05 1 CONTENTS 1. SAFETY INFORMATION-----------------------------------------------------------------------6 2. PREPARING YOUR PHONE FOR USE -----------------------------------------------------8 2.1 Install the battery -----------------------------------------------------------------------8 2.2 Charge the battery ----------------------------------------------------------------------8 2.2.1 Base 2.2.2 Handset 3. FEATURE HIGHLIGHTS ----------------------------------------------------------------------9 4. ABOUT THE PHONE -------------------------------------------------------------------------10 4.1 Name and function ------------------------------------------------------------------------10 4.2 Key functions -------------------------------------------------------------------------------11 4.2.1 Selection keys / Mute key (RSK) ----------------------------------11 4.2.2 Send key ----------------------------------------------------------------------11 4.2.3 End key ----------------------------------------------------------------------11 4.2.4 ~ , , , Number keys -------------------11 4.2.5 Scroll keys --------------------------------------------------------11 4.2.6 Using the selection keys ----------------------------------------------------------12 4.2.7 Using the scroll keys --------------------------------------------------------------12 4.2.8 Paging button----------------------------------------------------------------------- 4.3 About display indicators and icons ------------------------------------------------------12 4.3.1 Start Screen --------------------------------------------------------------------------12 2 4.3.2 Scroll Bar ----------------------------------------------------------------------------12 4.4 Indicators and icons ------------------------------------------------------------------------12 5. BASIC OPERATIONS --------------------------------------------------------------------------14 5.1 Switch the phone ON or OFF------------------------------------------------------- 5.2. Make a call ----------------------------------------------------------------------------------14 5.3 Answer a call -------------------------------------------------------------------------------14 5.4 Adjust the earpiece volume ---------------------------------------------------------------15 5.5 Redial the last-dialed number ------------------------------------------------------------15 5.6 Use Caller ID -------------------------------------------------------------------------------15 5.7 Out of Range display and tone --------------------------------------------------- 5.8 Paging-------------------------------------------------------------------------- 5.9 Handset and Base ID settings--------------------------------------------- 5.10 SMS and Voice mail--------------------------------------------------- 5. USE PHONE MENUS --------------------------------------------------------------------------17 5.1 Navigate menus ----------------------------------------------------------------------------17 5.1.1 Scroll through menus -------------------------------------------------------------17 5.1.2 Use a shortcut----------------------------------------------------------------------17 5.1.3 Exit menu levels ------------------------------------------------------------------17 5.2 List of Menus ------------------------------------------------------------------------------17 7. ENTER LETTERS AND NUMBERS --------------------------------------------------------22 7.1 Enter Letters --------------------------------------------------------------------------------22 7.1.1 Edit name ---------------------------------------------------------------------------22 7.1.2 Change case of letters and numbers ---------------------------------------------23 8. USE THE PHONE BOOK ----------------------------------------------------------------------24 8.1 About the phone book ----------------------------------------------------------------------24 8.2 Search an Entry by name ------------------------------------------------------------------24 8.3 Search an Entry by alpha numeric------------------------------------------------------24 8.4 Add a new phone book entry -----------------------------------------------------------25 8.5 Delete all phone book Entries -----------------------------------------------------------25 3 8.6 Copy all phone book entries ------------------------------------------------------------26 8.7 Edit and Erase Owner number -----------------------------------------------------------26 8.8 Check Memory status --------------------------------------------------------------------- 9. SEND AND RECEIVE TEXT MESSAGES -----------------------------------------------30 10.1 About Message --------------------------------------------------------------------30 10.2 Write and Send a message ------------------------------------------------------------31 10.3 Send option for a message--------------------------------------------------------------32 10.4 User template ---------------------------------------------------------------------- 10.5 Delivery report --------------------------------------------------------------------- 10.6 Receive a test message------------------------------------------------------------ Read text message 10.4 Use Voicemail ---------------------------------------------------------------------------32 10.4.1 Receive a Voicemail Message -----------------------------------------------32 10.4.2 Listen to a Voicemail Message ----------------------------------------------32 10.5 Use Outbox ------------------------------------------------------------------------------33 10.6 Use Drafts -------------------------------------------------------------------------------33 10.7 Cleanup Messages ----------------------------------------------------------------------34 10.8 Monitor Memory Meter ---------------------------------------------------------------34 10.9 Set Up the Message -------…

Text truncated - open the document above for the full version.

4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea Sep 12, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: NPQFGD8900. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Telian Corporation. Sincerely, W.H WHANG/Senior Engineer

4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea Sep 30, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Telian Corporation. FCC ID : NPQFGD8900 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Telian Corporation. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Turn up procedure and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Telian Corporation. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Telian Corporation. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, W.H WHANG/Senior Engineer

4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea Sep 12, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Telian Corporation. FCC ID: NPQFGD8900 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, Telian Corporation requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Telian Corporation considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Telian Corporation feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, W.H WHANG/Senior Engineer

TCB Application Form 731 Rev 01 Mar 02 Item 1. Applicant’s complete, legal business name: Telian Corporation Applicant’s FCC Registration Number (FRN): 0008163867 Item 2. Applicant’s mailing address: fill in fields, as appropriate Line 1: 4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong, Kyunggi-Do Line 2: P.O. Box: City: Gwangmyung-Si State: Country (if foreign address): KOREA Zip/Postal Code: 423-060 Item 3. FCC ID consisting of: Grantee Code: NPQ Equipment Product Code (14 characters maximum): FGD8900 include “dashes” (-) where appropriate Item 4. Person to receive grant: this is the APPLICANT’S contact person, NOT the Test Lab’s First Name:Wonhwa Mail Stop: Last Name: Hwang Telephone: +82-2-890-0243 Title: SENIOR ENGINEER Fax No.: +82-2-890-0332 E-mail: [email protected] Item 5. Test Firm Contact (if different from applicant): fill in fields, as appropriate Firm Name: Digital EMC Co., Ltd Telephone: +82-31-321-2664 Ext: Fax: No.: +82-31-321-1664 First Name:HARVEY Middle Initial: Last Name:SUNG Address Line 1:683-3, Yubang-Dong P.O. Box: Address Line 2: City:Yongin-Si State:Kyunggi-Do Country (if foreign address):KOREA Zip/Postal Code:449-080 E-mail:[email protected] Item 6a. Name of Test Firm and Contact Person on file with the FCC: DIGITAL EMC CO., LTD. Item 6b. FCC Registered Test Site Number. Required for Part 15 and 18 applications. 101842 Item 7. Non-Technical Contact if Different: Firm Name: Digital EMC Co.,Ltd. Telephone: +82-31-321-2664 Ext.: Fax No.: +82-31-321-1664 First Name:Harvey Middle Initial: Last Name:Sung Address Line 1:683-3, Yubang-Dong P.O. Box: Address Line 2: City:Yongin-Si State:Kyunggi-Do Country (if foreign address):KOREA Zip/Postal Code:449-080 E-mail:[email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR 0.459 of the Commission Rules? Yes No Item 9. *Is this application for modular approval? Yes No If yes, please submit a cover letter addressing the modular approval requirements of DA 00-1407. Item 10. *Is this application for software defined radio authorization? Yes No Item 11. Equipment Class: 3-digits required PCE Description of Product as it is marketed: DUAL-BAND GSM PHONE Item 12. *Application is for: Original Equipment Change in identification of presently authorized equipment: Original FCC ID Grant Date (MM/DD/YYYY) Class II permissive change or modification of presently authorized equipment Class III permissive change to software defined radio Note: this may only be filed for applications pertaining to Software Defined Radio Item 13. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered “Yes” complete section 12 (c). Yes No Yes No (c) The related application: has been granted under the FCC ID listed to the right is in the process of being filed under the FCC ID listed to the right is pending with the FCC under the FCC ID listed to the right FCC ID * Equipment will be operated under FCC Rule Part(s): 22H, 24E Item 14. EQUIPMENT SPECIFICATIONS: Where applicable Frequency range in MHz Rated RF power output IN WATTS Frequency tolerance %, Hz, ppm Emission Designator (See 47 CFR 2.201 and 2.202) Microprocessor model number 824.2 848.8 1.268 2.5 ppm 253KGXW 1850.2 1909.8 1.069 2.5 ppm 255KGXW Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND/OR IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312 (a) (1)), AND/OR FORFEITURE (U.S. TITLE 47, SECTION 503). Item 15. (This Section intentionally left blank) Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application, is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above Section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. *Signature of Authorized Applicant:Harvey Sung Title of Authorized Signature:Technical Director Complete items below if an agent signs the application Firm Name: DIGITAL EMC Co.,Ltd. Telephone: +82-31-321-2664 Ext.: Fax No.: +82-31-321-1664 First Name:Harvey Middle Initial: Last Name:Sung Address Line 1:683-3, Yubang-Dong P.O. Box: Address Line 2: City: Yongin-Si State: Kyunggi- Do Country (if foreign address): KOREA Zip/Postal Code: 449-080 NOTE: An asterisk ‘*’ preceding a field indicates it must be completed.

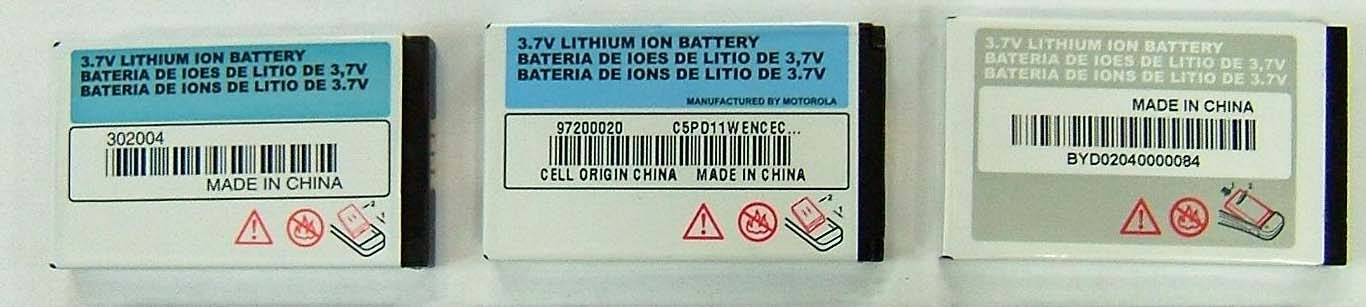

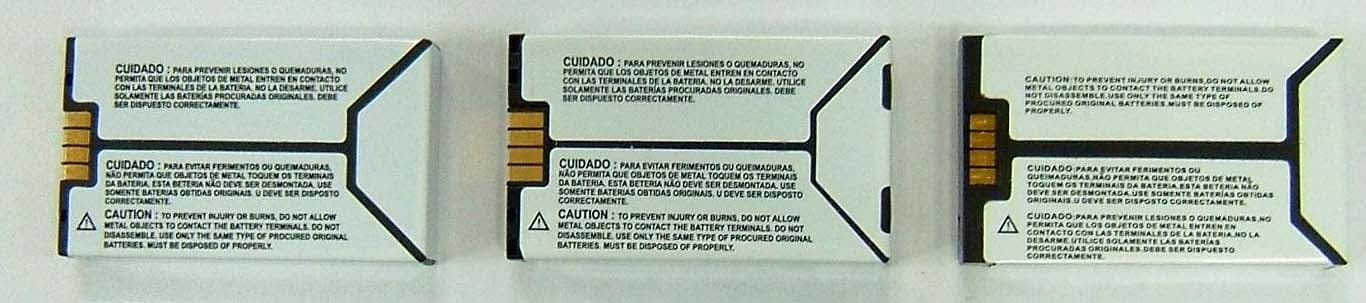

FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. ATTACHMENT G: EXTERNAL PHOTOGRAPHS FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 1 FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 2 FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 4 FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 5 FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 6

FCC ID: NPQFGD8900 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. ATTACHMENT E: FCC ID LABEL & LOCATION FCC ID: NPQFGD8900 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Note: 1. The label generally is located underneath a back door of the phone. 2. Because The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual. (SEE NEXT PAGE) Telian Corporation DRAW & DESIGN TOLERANCE - ( ) + 0.80.50.3 B 0.10 0.20 MODEL NAME 0.350.25 C DET.CHE 0.5 APPROVAL 0.71.5 DWG. NO PART NAME UNIT M/M DATE 63-2504-16 0.07 1-4 0.05 A 16-63 0.1 250-1000 0.20.3 ANGLE REV.SCALE 1 / 1 01 2005.09.01 FGD - 8900 Label Location I.W.Nam S.B.Lim 2005.09.01 1 New Drawing S.B.Lim 2 DATECODEMEMOSIGN Carton No.aAAV FCC ID : NPQFGD8900 MODEL : FGD-8900 Made in Thailand SN : XXXXXXXX 075D ESN(DEC) : XXXXXXXXXXXXXXX Carton No.aAAVV

FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. ATTACHMENT H: INTERNAL PHOTOGRAPHS FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 1 FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 2 FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 3 FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 4 FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 5(900MHz Receiver) FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 6(900MHz Receiver) FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. View 7

FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. ATTACHMENT S: DIPOLE CALIBRATION Copyright ○ c 2005, DIGITAL EMC Co., Ltd. 1. 835 Dipole Calibration Copyright ○ c 2005, DIGITAL EMC Co., Ltd. 2. 1900 Dipole Calibration

FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. ATTACHMENT D: PART LOCATION

FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. ATTACHMENT R: PROBE CALIBRATION

FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. ATTACHMENT O: SAR VALIDATION PLOTS DIGITAL EMC CO., LTD DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:464 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.891 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.51, 6.51, 6.51); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-08-05; Ambient Temp: 22.0; Tissue Temp: 21.7 Dipole Validation Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.047 dB Peak SAR (extrapolated) = 3.43 W/kg SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.53 mW/g 0 dB = 2.55mW/g DIGITAL EMC CO., LTD DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d029 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(5.27, 5.27, 5.27); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-08-04; Ambient Temp: 22.0; Tissue Temp: 21.5 Dipole Validation Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.044 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.28 mW/g 0 dB = 11.4mW/g

DEMC#DR50110508I Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 1 of 49 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Dates of Tests: August 3 ~ 11, 2005 Test Report S/N:DR50110508I Test Site : DIGITAL EMC CO., LTD. FCC ID. APPLICANT Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §22(H), §24(E), §2 EUT Type: GSM850/PCS1900 Dual Band Terminal Equipment Model name: FGD-8900 ADD Model name: Avvio 9000 Serial number: Identical prototype TX Frequency Range: 824.2 ~ 848.8 MHz (GSM850) / 1850.2 ~ 1909.8 MHz (PCS1900) RX Frequency Range: 869.2 ~ 893.8 MHz (GSM850) / 1930.2 ~ 1989.8 MHz (PCS1900) Max. RF Output Power: 1.268 W ERP GSM850 1.069 W EIRP PCS1900 Max. SAR Measurement: 0.551W/kg GSM850 Head SAR / 0.348W/kg GSM850 Body SAR 1.000W/kg PCS1900 Head SAR / 0.847W/kg PCS1900 Body SAR Date of Issue: August 22, 2005 NPQFGD8900 Telian Corporation DEMC#DR50110508I Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 2 of 49 TABLE OF CONTENTS ATTACHMENT A: CONFIDENTIALITY LETTER ATTACHMENT B: AUTHOLIZATION LETTER ATTACHMENT C: TEST REPORT 1 SCOPE 3 2 INTRODUCTION 4 3 TEST REPORT 5 3.1 SUMMARY OF TEST 5 3.2 POWER OUTPUT 6 3.3 OCUPIED BANDWIDTH 12 3.4 OCCUPIED BANDWIDTH EMISSION LIMIT 17 3.5 SPURIOUS EMISSION AT ANT. TERMINAL 23 3.6 FIELD STRENGTH OF SPURIOUS RADIATION 33 3.7 FREQUENCY STABILITY 40 3.8 RECEIVER RADIATED EMISSIONS 45 4 TEST EQUIPMENT 46 5 EMISSION DESIGNATOR 48 6 CONCLUSION 49 ATTACHMENT D: PART LOCATION ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I : BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L: PARTS LIST ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR TEST REPORT ATTACHMENT O: SAR VALIDATION PLOTS ATTACHMENT P: SAR TEST PLOTS ATTACHMENT Q: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT R: PROBE CALIBRATION ATTACHMENT S: DIPOLE CALIBRATION DEMC#DR50110508I Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 3 of 49 MEASUREMENT REPORT 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: NPQFGD8900 The mass product 824.2 ~ 848.8 MHz (GSM850) / 1850.2 ~ 1909.8 MHz (PCS1900) 869.2 ~ 893.8 MHz (GSM850) / 1930.2 ~ 1989.8 MHz (PCS1900) 1.268W ERP GSM850 1.069W EIRP PCS1900 Licensed Portable Transmitter Held to Ear (PCE) GSM850/PCS1900 Dual Band Terminal Equipment GMSK ± 0.00025 % (2.5ppm) §22(H), §24(E), §2 August 3 ~ 11, 2005 DIGITAL EMC DR50110508I Applicant: Telian Corporation Address: 5 th FL. Namjeun Bldg, 53-3 Haan-Dong, Kwangmyung-Si, Kyunggi-Do, Korea Attention: Wayne Hwang (Senior Manager) DEMC#DR50110508I Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 4 of 49 2. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer August 22, 2005 Won-Jung LEE Data Name Signature Report Reviewed By: manager August 16, 2005 Harvey Sung Data Name Signature Ordering party: Company name : Telian Corporation Address : 5th FL, Namjeun Bldg , 53-3 , Haan-Dong, Zipcode : 423-060 City/town : Kwangmyung-Si City, Kyonggi do Country : KOREA Date of order : July 27, 2005 DEMC#DR50110508I Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 5 of 49 3. Test Report 3.1 Summary of test FCC Part Section(s) Parameter Status (note 1) 22.913(a) / 24.232(b) Power Output C 2.1049(h)(i) Occupied Bandwidth C 24.238(b) Emission Bandwidth C 2.1051 / 24.238 Emission Limits Transmitter C 2.1053 (a) Field Strength of Spurious Radiation C 2.1053 Receiver Radiated Emissions C 2.1055 Frequency Stability C 2.1057 Conducted Spurious Emissions C Note 1: C= Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts §22(H), §24(E), §2; ANSI C-63.4-2003 DEMC#DR50110508I Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 6 of 49 3.2 Power Output FCC ID : NPQFGD8900 Specification : 47 CFR 2.1046 (a) Tested Frequency : 824.2MHz, 836.6MHz and 848.8MHz for GSM850 1850.2MHz, 1880.0MHz and 1909.8MHz for PCS1900 Measurement Procedure: - During the process of testing, the EUT was controlled via Radio Communication tester to ensure max. Power transmission and proper modulation. - Power output was measured at the RF output terminals when the transmitter is adjusted in accordance with Communication tester (or the tune-up procedure). Measurement Data: GSM850 TEST CONDITIONS Power Step: 5 Channel Frequency (MHz) (dBm) 128 824.2 30.71 190 836.6 31.40 251 848.8 30.64 PCS1900 TEST CONDITIONS Power Step: 0 Channel Frequency (MHz) (dBm) 512 1850.2 30.31 661 1880.0 30.10 810 1909.8 29.42 DEMC#DR50110508I Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 7 of 49 POWER OUT. GSM850 Ch.128 POWER OUT. GSM850 Ch.190 DEMC#DR50110508I Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 8 of 49 POWER OUT. GSM850 Ch.251 DEMC#DR50110508I Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 9 of 49 POWER OUT. PCS1900 Ch.512 POWER OUT. PCS1900 Ch.661 DEMC#DR50110508I Copyright ○ c …

Text truncated - open the document above for the full version.

FCC ID: NPQFGD8900 Copyright Ⓒ 2005, DIGITAL EMC Co., Ltd. ATTACHMENT P: SAR TEST PLOTS DIGITAL EMC CO., LTD DUT: FGD-8900; Type: Bar Type Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.99 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.39, 6.39, 6.39); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-08-05; Ambient Temp: 22.0; Tissue Temp: 21.7 8mm from Body, GSM850 Ch.128, Ant Fixed, Standard Battery Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.335 W/kg SAR(1 g) = 0.275 mW/g; SAR(10 g) = 0.204 mW/g 0 dB = 0.292mW/g DIGITAL EMC CO., LTD DUT: FGD-8900; Type: Bar Type Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 1 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.39, 6.39, 6.39); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-08-05; Ambient Temp: 22.0; Tissue Temp: 21.7 8mm from Body, GSM850 Ch.190, Ant Fixed, Standard Battery Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.069 dB Peak SAR (extrapolated) = 0.456 W/kg SAR(1 g) = 0.348 mW/g; SAR(10 g) = 0.251 mW/g 0 dB = 0.368mW/g DIGITAL EMC CO., LTD DUT: FGD-8900; Type: Bar Type Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 1.01 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.39, 6.39, 6.39); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Test Date: 2005-08-05; Ambient Temp: 22.0; Tissue Temp: 21.7 8mm from Body, GSM850 Ch.251, Ant Fixed, Standard Battery Area Scan (51x111x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.019 dB Peak SAR (extrapolated) = 0.428 W/kg SAR(1 g) = 0.325 mW/g; SAR(10 g) = 0.236 mW/g 0 dB = 0.345mW/g DIGITAL EMC CO., LTD DUT: FGD-8900; Type: BAR type Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.881 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.51, 6.51, 6.51); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Date: 2005-08-05; Ambient Temp: 22.0; Tissue Temp:21.7 Left Touch, GSM850 Ch.128, Ant Fixed, Standard Battery Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.100 dB Peak SAR (extrapolated) = 0.653 W/kg SAR(1 g) = 0.500 mW/g; SAR(10 g) = 0.356 mW/g 0 dB = 0.526mW/g DIGITAL EMC CO., LTD DUT: FGD-8900; Type: BAR type Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.893 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.51, 6.51, 6.51); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Date: 2005-08-05; Ambient Temp: 22.0; Tissue Temp:21.7 Left Touch, GSM850 Ch.190, Ant Fixed, Standard Battery Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.081 dB Peak SAR (extrapolated) = 0.699 W/kg SAR(1 g) = 0.535 mW/g; SAR(10 g) = 0.380 mW/g 0 dB = 0.570mW/g DIGITAL EMC CO., LTD DUT: FGD-8900; Type: BAR type Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.901 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.51, 6.51, 6.51); Calibrated: 2005-03-24; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEM…
