FCC NOTICE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Owner's Manual - MP-2000 Portable Music Player B e S u r e t o C h e c k w w w . a u d i o v o x . c o m f o r F R E E S o f t w a r e U p g r a d e s ! ENABLED Warning Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. ! NOTE: You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate such equipment. ! NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to insure compliance. TABLE O F C O NTENTS INTROD UCTION TO MP3 AND THE MP-2000 MPDJ KIT CONTENTS BEFORE USING THE MP-2000 MP-2000 CONTROL BUTTONS MP-2000 LCD DISPLAY OPTION AL MULTIMED IA C ARD (MMC) CONNECTING THE MP-2000 TO YOUR PC SO FT WARE INS TALLATIO N O BTA IN IN G AND MA NAG I NG M P3 F IL E S REAL JUKEBOX S OFTWARE THE DOWNLOADER P ROGRAM HOW TO USE THE MP-2000 TROUBLESHOOTING CAUTION IN USING AND STORING THE MP-2000 MP-2000 TECHNICAL SPECIFICATIONS 1 2 3 4 5 6 7 8 9 10 17 19 36 37 38 WHAT IS M P3? THE MP-2000 1 Warning It is illegal to encode MP3 files for trade or sale, unless you have the expressed and explicit permission of the Copyright holder(s). MP3, short for MPEG-1, AUDIO LAYER 3 (an t is an efficient way to store music or other audio content on your com pu audio subset of an industry standard referred to as the Moving Picture Experts Group), digital audio compression algorithm that achieves a compression factor of about 12:1 while preserving sound quality. MP3 is an open form at for making large music files smaller without radically degrading their audio quality. It is widely recognized as the most popular format for storing music on the World Wide Web and other components of the Internet. is a In addition, i ter. MP3 files can be anywhere from 1/4 to 1/20 the size of a commercial CD audio file, while retaining a high sound quality. These files have the extension of *.mp3 and can be downloaded from the Internet. They can also be converted for personal use from your library of favorite CD's. The MP-2000 player stores your favorite M P3 files in its flash memory so that they can be played anywhere you please, even on-the-go. The MP-2000's solid-state design makes it impervious to the skipping and jitter experienced with portable CD players. Since the MP-2000 is extremely light-weight and about the size of a pager, it is perfect for use during jogging, walking, hiking, and just about any activity you lik e to do . MPDJ KIT CONTENTS MANUAL MP-2000 PLAYER OWNER'S MANUALPARALLEL PORT PC CONNECTING CABLE EARPHONES BA TT ERIE S ( 2 x A AA ) LEATHER CASE INSTALLATION CDHAND STRAP 2 D I G I T A L S T E R E O C Y B E R M U S I C Take a moment to examine the components provided with your MP DJ kit. BEFORE USING MP-2000 3 System R equire m e n ts M P3 Internet Site s You can obtain M P3 files an d the latest informatio n on MP3 tech nology from a growing number of Interne t sites. The following are some sites you might want to explore: http://www.audio vo x.com http://realguide.real.com http://www.altavista.com http://www.emusic.com http://www.m p3now.com http://www.goodno ise.com http://www.listen.com http://www.mp3site.com http://mp3.lycos.com http://www.mp3.com Microsoft Windows 95 or 98 16M B RAM or greater (64MB recommended) 30M B available HD space (more if MP3 file storage is desired) 1 External Parallel Port 10X or faster CDROM Drive (32X recommended) Installed sound card and speakers Installed Mouse Internet access for the download of MP3 files and CD Database support (Recommended modem speed is 56K) Windows 90M Hz Intel Pentium or faster compatible processor 4 MP-2000 CONTROL BUTTONS MODE VOLUME L EVEL A DJUSTMEN T(+) EAR PHONE JACK VOLUME L EVEL A DJUSTMEN T(-) HOLD PC CONNECTION SOCKET PROGRA M SEL ECTI ON FORWARD PROGRA M SEL ECTI ON REVE RSE POWE R ON/ PLAY/PAUS E STOP/ POWE R OFF BATTE RY CASE EJECT MULTIMED IA CARD SL OT M P-2000 LCD DISPLAY 5 HOLD 128kb 256kb VOL 1 AL L M P3 HOLD 12 8k b 256kb VOL 1 A L L M P3 Displays the track nu mbe r In d ica te s re pe at fu nc tio n is a ctiv at e d Indicates volum e level Indicates that an MP3 file is playin g or is paused 1 2 3 4 5 6 Indicates that the HOLD switch ha s been set to the on position . Prevents accidental or unintende d op eration o f any button. Indicates the bit rate at which th e MP3 file was created. The h igher number e quals higher quality audio outpu t. The bit rate is m easu red in Kilobits-per-second (Kbps). Indicates current b attery statu s. Three bars indicates a fully charged battery. This icon is always on while the unit is opera ting. 7 6 OPTIONAL FLASH MEM ORY MULTIMEDIA CARD [MM C…

Text truncated - open the document above for the full version.

Model : MP-2000 Test Report No. : 00JAC004.FCC  2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 18 of 27 A1-1 External Photo of EUT(Top) A1-2 External Photo of EUT(Bottom)

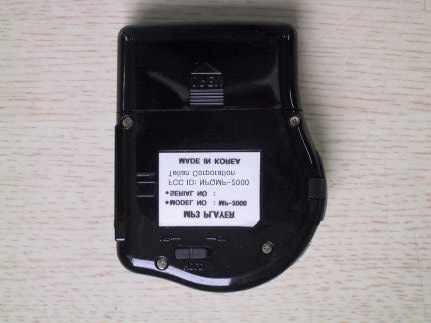

1. ID Label Drawing Model No : MP-2000 Serial No : xxxxxxx FCC ID: NPQMP-2000 Telian Corporation Made in Korea 2. ID Label Location Label Location : Bottom side of EUT (See the below photo of bottom)

Model : MP-2000 Test Report No. : 00JAC004.FCC  2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 19 of 27 A1-3 Internal Photo of EUT Model : MP-2000 Test Report No. : 00JAC004.FCC  2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 20 of 27 A1-4 Internal Photo of EUT(PCB #1) Model : MP-2000 Test Report No. : 00JAC004.FCC  2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 21 of 27 A1-5 Internal Photo of EUT(PCB #2)

Model : MP-2000 Test Report No. : 00JAC004.FCC 2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 1 of 27 JungAng EMC Co., Ltd. 109-2, Yepyung-ri, Kumsa-myun, Youju-kun, Kyungki-do, KOREA TEL: 82 2 571 8217 FAX:82 31 764 0126 Date of Test: June 13, 2000 Test Report No: 00JAC004.FCC Test Site: JungAng EMC Co., Ltd., Korea(31040/SIT 1300F2) Trade Name : AUDIOVOX Manufacturer: Telian Corporation Address : 4 th Fl, Namjeun B/D, 53-3, Haan-dong, Kwangmyung-Si, Kyungki-Do, Korea Contact Person: Seung-Hee Park Tel No. : 82-2-521-3040 Fax No. : 82-2-521-3057 Product: MP3 Player Model : MP-2000 Fcc Rule Part(s) : FCC Part 15 Subpart B Classification: Class B The device bearing the trade name and model specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C.63.4-1992. I attest to the accuracy of data and all measurement reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. TaeHyun Nam President-JungAng EMC Co., Ltd. http://www.jaemc.co.kr TABLE OF CONTENTS PAGE Model : MP-2000 Test Report No. : 00JAC004.FCC 2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 2 of 27 1. Description of device 3 1.1 General 3 1.2 EUT Description 3 2. Test facility 4 3. Summary of results 4 3.1 Electromagnetic Emission 4 3.2 Modifications to the EUT 4 4. Tested system details 5 4.1 Peripherals and Others 5 4.2 Type of Cables Used 5 4.3 System layout on EUT and peripherals 6 5. Test result 7 5.1 RFI Voltage Measurement 7 5.2 RFI Field Strength Measurement 11 5.3 Minimum Margin 13 5.4 Sample Calculations 13 6. Test Equipments 14 7. Measurement Photos15 7.1 Setup with RFI Voltage Emission Level 15 7.2 Setup with RFI Field Strength Emission Level 16 Appendix 1 Photos of EUT17 Appendix 2 ID Label and Location22 Appendix 3 System Block Diagram24 Appendix 4 User’s Manual26 1. DESCRIPTION OF DEVICE Model : MP-2000 Test Report No. : 00JAC004.FCC 2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 3 of 27 1.1 General Responsible Party Telian Corporation Contact Person Tel No. : 82-2-521-3040 Fax No. : 82-2-521-3057 Manufacturer Telian Corporation 4 th Fl, Namjeun B/D, 53-3, Haan-dong, KwangMyung-Si, Kyungki-Do, Korea •Trade name AUDIOVOX •Model name MP-2000 •EUT Type MP3 Player •Classification FCC Part 15 Subpart B Class B •Clock Speed Main Clock : 14.725 MHz, 20MHz •Rule Part(s) FCC Part 15 & Part 2 •Test Procedure(s) ANSI C63.4(1992) • Date of Tests June 13, 2000 •Place of Tests JungAng EMC Co., Ltd. 1.2 EUT Description The EUT is the device which is playing Audio Sound Track with formatted to MP3 standard mode. MP3 file means MPEG 1 layer 3, a standard compression method providing an excellent quality audio. MP3 makes users possible to enjoy the high quality sound of the downloaded MP3 music files from the Internet or the other audio content with the 1/12 size of commercial CD audio files. ! !! ! Note. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the laboratory. The results in this report is only applied to the sample(s) tested. ! !! ! Note. Please refer to the duties and responsibilities of the Responsible Party attached. Model : MP-2000 Test Report No. : 00JAC004.FCC 2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 4 of 27 2. TEST FACILITY The open field test site and conducted measurement facility used for this measurement, is located following address. This site was fully described in a report dated Nov. 24, 1998, that was submitted to the FCC. Our site and facility had been accepted in a letter dated Nov. 24, 1998(31040/SIT) : JungAng EMC Co., Ltd. Address : 109-2, Yepyung-ri, Kumsa-myun, Youju-kun, Kyungki-do, Korea The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 on October 19, 1992. 3. SUMMARY OF RESULTS 3.1 Electromagnetic Emission RFI Voltage Measurement............................... PASS RFI Field Strength Measurement........................ PASS Although the measured emissions indicate that the EUT complies with the required limits, some measurements are close to these limits. When the uncertainty of measurement is considered, there is some possibility that the EUT may not be compliant. 3.2 Modifications to the EUT : None Model : MP-2000 Test Report No. : 00JAC004.FCC 2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 5 of 27 4. TESTED SYSTEM DETAILS 4.1 Peripherals and Others : DescriptionModel NameSerial No.ManufacturerFCC ID ComputerDESKPRO7836BVD20016CompaqDoC MonitorVX700M902080938GatewayBGBTFV8705K KeyboardRT235BTWB13BC90L39GUCompaqAQ6-22K15 Mouse #1M-S34F13490N5BGFCompaqDZL211029 Mouse #2Pro Mouse II96002117NEOTECFSUGMZC7 4.2 Type of Cables Used: Device fromDevice toType of CableLengthType of shield ComputerMonitorSignal cable1.0shielded ComputerKeyboardSignal cable2.0shielded ComputerMouse #1Signal cable1.5shielded ComputerMouse #2Signal cable1.5shielded ComputerMP3 PlayerSignal cable1.2shielded ComputerMain PowerPower cable1.5Non-shielded MonitorMain PowerPower cable1.5Non-shielded Model : MP-2000 Test Report No. : 00JAC004.FCC 2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 6 of 27 4.3 System layout on EUT and peripherals EUT Figure 4-1 System layout Monitor Computer MP3 Player KeyboardMouseMouse Model : MP-2000 Test Report No. : 00JAC004.FCC 2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 7 of 27 5. TEST RESULT 5.1 RFI Voltage Measurement 5.1.1 Measurement Instrumentation Used (model/serial no./manufacturer/last calibration/next calibration) Signal Analyzer............(PMM9000/3100J70602/PMM/08 Oct. 1999/Oct. 2000) L.I.S.N........................(L3-25/1110K70403/PMM/30 Sep. 1999/Oct. 200…

Text truncated - open the document above for the full version.

Model : MP-2000 Test Report No. : 00JAC004.FCC  2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 15 of 27 7. MEASUREMENT PHOTOS 7.1 Setup with the Maximized RFI Voltage Emission Level Model : MP-2000 Test Report No. : 00JAC004.FCC  2000 JungAng EMC Co., Ltd. FCC ID : NPQMP-2000 Page 16 of 27 7.2 Setup with the Maximized RFI Field Strength Emission Level
