- 1 - D D U U A A L L - - M M O O D D E E T T D D M M A A P P H H O O N N E E MODEL : MTD-7500 PRELIMINARY 031008– Rev. 00c - 2 - C o n t e n t s 1. SAFETY INFORMATION ·············································································· 8 2. PREPARING YOUR PHONE FOR USE ······················································· 12 2.1 Install the battery ---------------------------------------------------------------------------- 12 2.2 Remove the battery ------------------------------------------------------------------------- 12 2.3 Charge the battery--------------------------------------------------------------------------- 12 3. HIGHLIGHTS OF FEATURES ······································································ 13 4. ABOUT THE PHONE ···················································································· 14 4.1 Name and function -------------------------------------------------------------------------- 14 4.2 Key functions --------------------------------------------------------------------------------- 15 4.2.1 Selection keys ...........................................................................................................15 4.2.2 Send Key...................................................................................................................... .15 4.2.3 End Key....................................................................................................................... ..15 4.2.4 ~ Number keys................................................................15 4.2.5 Volume keys ................................................................................................................15 4.2.6 Using the selection keys ......................................................................................................1 6 4.2.7 Using the scroll keys .......................................................................................................... ..16 4.3 About display indicators and icons---------------------------------------------------- 16 4.3.1 Start screen................................................................................................................... ........16 4.3.2 Scroll bar ..................................................................................................................... ..........16 4.4 Indicators and icons ------------------------------------------------------------------------ 17 5. BASIC OPERATIONS ·················································································· 19 - 3 - 5.1 Switch the phone ON or OFF ------------------------------------------------------------ 19 5.2 Make a call ------------------------------------------------------------------------------------- 19 5.3 Answering a call------------------------------------------------------------------------------ 19 5.4 Adjusting the earpiece volume ---------------------------------------------------------- 19 5.5 Redial the last-dialed number ----------------------------------------------------------- 20 5.6 Use Caller ID----------------------------------------------------------------------------------- 20 6. USE PHONE MENUS ··················································································· 21 6.1 Navigate menus ------------------------------------------------------------------------------ 21 6.1.1 Scroll through menus........................................................................................................... 21 6.1.2 Use a shortcut................................................................................................................. ......21 6.1.3 Exit menu levels............................................................................................................... .....21 6.2 List of shortcuts------------------------------------------------------------------------------ 22 7. ENTER LETTERS AND NUMBERS ····························································· 25 7.1 Enter letters------------------------------------------------------------------------------------ 25 7.1.1 Edit name ...................................................................................................................... ........25 7.1.2 Change from capital (uppercase) letters.............................................................................26 7.1.3 Use punctuation and special characters ............................................................................26 7.2 Enter number---------------------------------------------------------------------------------- 26 7.2.1 List of special characters..................................................................................................... 27 8. USE THE PHONE BOOK ············································································· 28 8.1 About the phone book --------------------------------------------------------------------- 28 8.2 Use phone book menus ------------------------------------------------------------------- 28 8.3 Add names and numbers ----------------------------------------------------------------- 28 8.4 Change a stored telephone number --------------------------------------------------- 29 8.5 Recall and dial stored numbers --------------------------------------------------------- 30 8.6 Erase stored names and numbers ----------------------------------------------------- 30 8.7 Erase the entire phone book ------------------------------------------------------------- 30 9. WORK WITH THE CALL LOG ····································································· 32 9.1 Call the call log ------------------------------------------------------------------------------- 32 9.1.1 Check missed calls ............................................................................................................. ..32 - 4 - 9.1.2 Check received calls ........................................................................................................... .33 9.1.3 Check previousl…

Text truncated - open the document above for the full version.

Namjeun B/D 4F 53-3 Haan-Dong, Kwangmyung-Si Kyunggi-Do Korea ¢œ +82 2 890 0233, (Fax) +82 2 890 0331 Federal Communications Commission Date : Sep. 02. 2003 Model : MTD-7500 FCC ID : NPQMTD7500 Subject : Statement of Compliance with Electrical Serial Number(ESN) Regulation The Electrical Serial Number (ESN) is encrypted and stored in a non-volatile memory location. A non encrypted version of ESN is stored in a separate location in the memory. Upon power up the software decrypts the encrypted ESN, using a key known only to Telian, and compares it to the non-encrypted version of ESN If they do not match, the board sets ESN to all zeros and powers the board down. The ESN is set only by Telian factory and cannot otherwise be altered, transferred or removed. Any attempts to manipulate the ESN will render the phone inoperative. ------------------------------------------------------ Pedro Park Overseas Marketing Team Manager

Namjeun B/D 4F 53-3 Haan-Dong Kwangmyung-Si Kyunggi-Do Korea ¢œ +82 2 890 0233, (Fax) +82 2 890 0331 Federal Communications Commission Date : Sep. 02. 2003 Model : MTD-7500 FCC ID : NPQMTD7500 Subject : 911 Call Processing Procedure (911 Only Calling Mode) Mobile Phone [Model : MTD7500] incorporates a special procedure for processing “ 9-1-1” calls. Such procedure must recognize when a “9-1-1” call is made and at such time must override any programming in the mobile unit that determines the handling of a non –911 call. [ Operation Procedure ] 1. Programming Emergency No into the Mobile. # NAMPROGRAM # ‡ Emergency No Menu Selection ‡ Save 2. Activate the Emergency Key 9. Menu 4 ‡ 1 ‡ 1 ‡ (Setting ‡ Call Setting ‡ Emergency Key 9) ‡ Press ON 3. When it needs to dial the Emergency No. Press 9 and SEND Key

Namjeun B/D 4F 53-3 Haan-Dong Kwangmyung-Si Kyunggi-Do Korea ¢œ +82 2 890 0233, (Fax) +82 2 890 0331 Federal Communication Commission Equipment Approval Services PO Box 358315 Pittsburgh, PA 15251-5315 Date : Sep. 02. 2003 Model : MTD-7500 FCC ID : NPQMTD7500 Subject : Affidavit for Cellular Mobile Telephon Gentlemen : I hereby certify that the transceiver FCC ID : NPQMTD7500 manufactured by Calcomp Thailand & China Factory complies with all Requirements of OST Bulletin 53 as Referenced in Section 22.933 of the FCC Rules and all technical test data enclosed with this application are true and correct. Your Faithfully ---------------------------------------------- Overseas Marketing Manager Pedro Park

Namjeun B/D 4F 53-3 Haan-Dong, Kwangmyung-Si Kyunggi-Do Korea ¢œ +82 2 890 0233, (Fax) +82 2 890 0331 Federal Communications Commission Date : Sep. 02. 2003 Model : MTD-7500 FCC ID : NPQMTD7500 Subject : Telian, Cellular Handset Model MTD7500 Request for withholding from public disclosure proprietary information submitted Pursuant to an application for certification of Cellular Handset Model MTD7500. Sir / Madam Telian Corporation requests that certain materials submitted with this application for certification of the Cellular Handset MTD7500 be withheld from public disclose. l Circuit Diagram : Confidential l Operation Description : Confidential l Turn up Procedure : Confidential l Part List : Confidential The item marked “Confidential” as above contain detail Cellular Handset Model MTD7500, submitted to the FCC for review with this application. The information contains proprietary information (Trade secrets) regarding the circuit operation and capabilities (specific value of components, circuit design details and development ) which are the result of our extensive investment in research and development. Without the disclosed a workable competitive product. Therefore, we believe that disclosure of these company guarded materials would compromise our leading position in this market. We therefore formally request that materials marked “Confidential” be kept strictly confidential and not made available for inspection by any other part, except on a need to know basis for the sole purpose of the certification process. Sincerely yours, ------------------------------------------ Pedro Park Overseas Marketing Team Manager

The Belt clip for normal usage The Belt clip of MTD-7500 that is applicable on the outside market is designed as front side should be faced to outward due to the position of Antenna and headset jack. They designed the phone cannot clip on reverse position. If users clip on reverse position, they cannot use headset as well as the belt clip cannot fit on Antenna position. So, the phone is placed on right position all the times. We added on the user’s manual as follows; “The front side (Mirror side) of the phone should be faced to outward” When front side is faced to outward, the antenna should be as close as the body then this made us think the worst case in contrast of your thought.

From: David Chernomordik ES-Mpk Sent: Friday, October 10, 2003 7:09 PM To: Roland Gubisch ES-Box Cc: Danielle Fontaine ES-Box; Bryan Taylor ES-Lex Subject: RE: TCB Review of Telian FCC ID: NPQMTD7500 Roland Regarding the NPQMTD7500: EMC REPORT - Section 12.3 frequency vs voltage table: the "difference" column appears to reflect differences of 136, 149 and 155 Hz. Please confirm. If so, no correction is necessary. Page 48 of the test report has bee corrected; see attached revised report (part 1) SAR REPORT 1) Body-worn configuration was tested closed, with keypad away from phantom. If it is likely that handset could be reversed in holster, please justify why tested configuration is worst case. The justification was sent to you earlier. 2) Uncertainty budget for power drift is 5% (0.21 dB). Measurements indicate actual power drifts as large as 0.33 and 0.61 dB. Please comment. Uncertainty budget has been corrected (see pages: 8 and 9). The new value is 28%. The revised SAR report (part 1) is attached.. 3) Reported head SAR of 1.53 W/kg is scaled value. Should reported body-worn SAR value of 0.6 W/kg be scaled by the same factor? SAR for body was scaled; see pages 24, 25 and 5. Thanks David -----Original Message----- From: Roland Gubisch ES-Box Sent: Tuesday, October 07, 2003 2:14 PM To: David Chernomordik ES-Mpk Cc: Danielle Fontaine ES-Box; Bryan Taylor ES-Lex Subject: TCB Review of Telian FCC ID: NPQMTD7500; additional comment David: This additional comment refers to both NPQMTD7500 and NPQFTD8500: - The user manual (last page) contains a statement of SAR values which do not agree with the measurement report. This statement should either be corrected so that the SAR values are consistent, or they can be deleted from the user manual completely. There is no FCC requirement to list SAR values in the user manual; only if they are listed, they should be correct. Regards, Roland -----Original Message----- From: Roland Gubisch ES-Box Sent: Friday, October 03, 2003 2:14 PM To: David Chernomordik ES-Mpk Cc: Danielle Fontaine ES-Box; Bryan Taylor ES-Lex Subject: TCB Review of Telian FCC ID: NPQMTD7500 David: Review of this application for an FCC Part 22 handset is complete, and the following points are noted: ADMINISTRATIVE none. EMC REPORT - Section 12.3 frequency vs voltage table: the "difference" column appears to reflect differences of 136, 149 and 155 Hz. Please confirm. If so, no correction is necessary. SAR REPORT 1) Body-worn configuration was tested closed, with keypad away from phantom. If it is likely that handset could be reversed in holster, please justify why tested configuration is worst case. 2) Uncertainty budget for power drift is 5% (0.21 dB). Measurements indicate actual power drifts as large as 0.33 and 0.61 dB. Please comment. 3) Reported head SAR of 1.53 W/kg is scaled value. Should reported body-worn SAR value of 0.6 W/kg be scaled by the same factor? Draft Grant notes are provided for your review. Certification can be completed pending resolution of the points noted above. Thank you, Roland Gubisch << File: Grant notes.doc >>

Intertek 1365 Adams Court Menlo Park, CA 94025 Martin Perrine FCC January 5, 2004 Subject: Request for additional information for FCC ID:NPQMTD7500 Applicant: Telian Corporation Correspondence Reference Number: 10240 731 Confirmation Number: TC430997 Date of Original Email: 11/18/2003 Dear Mr. Perrine: It is our understanding that the requested information in Correspondence Reference Number: 10240 is not required and has been superceded from your email below. The sample is currently in transit from Korea and should arrive at the FCC shortly. Regards, David Chernomordik Intertek -----Original Message----- From: Martin Perrine [mailto:[email protected]] Sent: Wednesday, December 31, 2003 11:58 AM To: David Chernomordik ES-Mpk Cc: Roland Gubisch ES-Box; Ollie Moyrong ES-Mpk Subject: RE: Sample request from FCC for FCC ID: NPQMTD7500 Please send the sample directly to the FCC. Please confirm that all components and information necessary to test the sample are included. Items such as RF cable, and call setup instructions or factory codes are helpful. Best Regards Martin Perrine -----Original Message----- From: David Chernomordik ES-Mpk Sent: Monday, December 22, 2003 4:14 PM To: '[email protected]' Cc: Roland Gubisch ES-Box; Ollie Moyrong ES-Mpk Subject: Sample request from FCC for FCC ID: NPQMTD7500 Dear Mr. Perrine, This letter is in regards to the certification of Telian Corporation's product, FCC ID: NPQMTD7500. On November 18, 2003 the FCC has requested a sample of the product. We apologize for not being able to forward the test sample within the 30 days as requested. Telian is located in Korea and there have been delays in obtaining a sample with the necessary support equipment required for testing. We would like to ask for an extension to respond to the sample request. We plan to have the sample sent to the FCC for arrival no later than January 16, 2004. There is also a pending info request, Correspondence Reference Number: 10240. We have not been able to retest as requested due to the availability of the sample. When the sample arrives from Korea, would the FCC prefer us to immediately forward the sample to the FCC or perform the retest prior to sending the sample. We ask that you consider our request for an extension. Resolving this matter is our top priority. Thank you. Regards, David Chernomordik Intertek

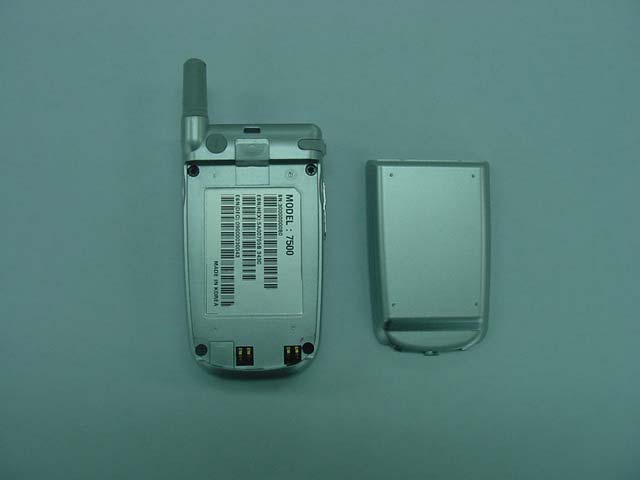

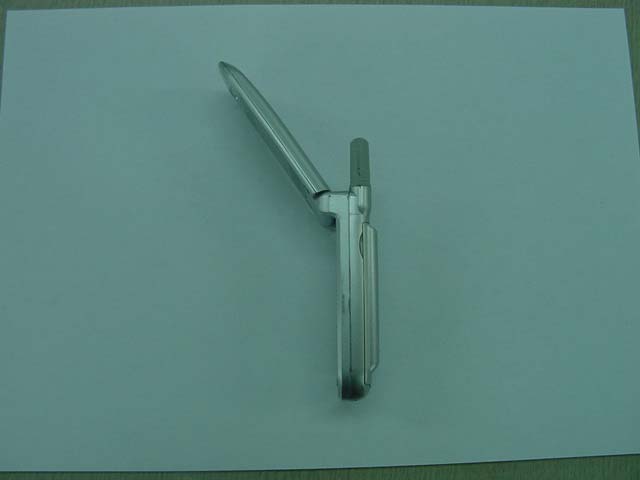

FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500

FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500 FCC ID: NPQMTD7500

GALTRONICS (TJ) LTD. Spec No: CH29-2419-10 ANTENNA SPECIFICATION Revision: S-1 Page 1 of 10 GALTRONICS (TIANJIN) CO. LTD PRODUCT SPECIFICATION TELIAN MTD 7500 STUBBY ANTENNA C20122046-2419 GALTRONICS (TJ) LTD. Spec No: CH29-2419-10 ANTENNA SPECIFICATION Revision: S-1 Page 3 of 10 PRODUCT SPECIFICATION FOR FIXED HELIX ANTENNA FOR GALTRONICS PROJECT MTD 7500 PART NUMBER: C20122046-2419 2000 © COPYRIGHT GALTRONICS (TJ) LTD. This document is issued by Galtronics (TJ) Ltd. (hereinafter called Galtronics) in confidence, and is not to be reproduced in whole or in part without the prior written permission of Galtronics. The information contained herein is the property of Galtronics GALTRONICS (TJ) LTD. Spec No: CH29-2419-10 ANTENNA SPECIFICATION Revision: S-1 Page 4 of 10 and is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of Galtronics. CONTENTS 1.0 PURPOSE AND SCOPE 2.0 ABBREVIATIONS AND DEFINITIONS 3.0 DESCRIPTION & PART NUMBER 3.1 Description 3.2 Part Number 4.0 ELECTRICAL SPECIFICATIONS 4.1 Frequency Band 4.2 Impedance 4.3 Matching Requirements 4.4 Input VSWR 4.4.1 Maximum Value of VSWR in Frequency Band 4.4.2 Test Method (Engineering) 4.4.3 Test Method (Production) 4.5 Gain 4.5.1 Minimum Gain Values in Maximum Direction 4.5.2 Maximum Lobe Tilt 4.5.3 Test Method 4.6 Polarization 5.0 MECHANICAL SPECIFICATIONS 5.1 Mechanical Configuration 5.2 Connector Type 5.3 Antenna Materials 5.4 Tensile Strength 5.5 Drop tests 5.6 Bend Test 5.7 Torque Test 6.0 ENVIRONMENTAL SPECIFICATIONS 6.1 Temperature 6.2 Temperature Shock Test 6.3 Salt Spray Test 6.4 Humidity Test 7.0 PACKAGING LIST OF FIGURES FIGURE 1: Matching Circuit FIGURE 2: Tensile Test FIGURE 3: Torque Test GALTRONICS (TJ) LTD. Spec No: CH29-2419-10 ANTENNA SPECIFICATION Revision: S-1 Page 5 of 10 FIGURE 4: Temperature Cycling Test 1.0 PURPOSE AND SCOPE The purpose of this document is to establish a preliminary specification for the antenna product that Galtronics has developed for customer usage for hand portable cellular telephone units (henceforth called handset). Any requested changes by Customer shall be presented to Galtronics in written form with sufficient time to evaluate the cost impact and to react as necessary. The development of the product in Galtronics is conducted according to the Design, Development and Product Introduction Procedure. 2.0 ABBREVIATIONS AND DEFINITIONS Ω Ohm º Degree C Celsius (degrees Centigrade) Cm Centimeter g Grams GHz Gigahertz Hz Hertz Kg Kilograms MHz Megahertz m Meter mm Millimeter N Newton PCB Printed Circuit Board RH Relative Humidity W Watt 3.0 DESCRIPTIONS AND PART NUMBER 3.1 DESCRIPTION This antenna is a fixed helical type antenna. 3.2 PART NUMBER Galtronics Part Number Frequency BandCustomer Part Number Color C20122046-2419 TDMA/AMPS N/A Cool Grey GALTRONICS (TJ) LTD. Spec No: CH29-2419-10 ANTENNA SPECIFICATION Revision: S-1 Page 6 of 10 4.0 ELECTRICAL SPECIFICATIONS 4.1 FREQUENCY BAND TDMA/AMPS Tx Rx 824-849 MHz 869-894 MHz 4.2 IMPEDANCE Input impedance: 50Ω 4.3 MATCHING REQUIREMENTS. In order to assure the best performance of the antenna, the matching shall be evaluated in free space with the antenna vertically positioned. Galtronics shall give design support to the Customer to obtain the optimum matching circuit for the antenna system. The antenna shall comply with the Electrical Specification requirements, as set out below, while mounted on the customer-supplied handset containing the PCB with the matching circuit. The handset with PCB are to be supplied by the customer and should be representative of the production parts. Any modifications in the handset or PCB can affect the performance of the antenna and should be discussed with Galtronics to determine the affect of such changes on antenna performance and delivery requirements. 4.4 INPUT VSWR 4.4.1Maximum values of VSWR in frequency Band ( Flip open ) TDMA/AMPS Tx Rx 3.5 1.7 4.4.2 Test Method (Engineering) The antenna is tested while mounted on the handset with the matching circuit (Ref Fig 1). The handset is positioned in free space. (Free space means the handset is held in a non-conductive device and away from any conductive objects). FIGURE 1. MATCHING CIRCUIT* GALTRONICS (TJ) LTD. Spec No: CH29-2419-10 ANTENNA SPECIFICATION Revision: S-1 Page 7 of 10 z Preliminary proposal, might change depending on final phone 4.4.3 Test Method (Production) In mass production it is not practical to use the handset supplied by customer. Galtronics will design a production-testing fixture for use on processes requiring electrical testing. The results of the test fixture will be correlated to the results obtained on the customer handset. 4.5 GAIN 4.5.1 Minimum Values. (For Reference) Peak is minimum value is evaluation cuts and Average is minimum value in azimuth plane. TDMA/AMPS Tx Rx Peak 0 dBi ** 1.0 dBi** Average -2.0dBi ** -0.5 dBi** **Depending on final gain test result 4 .5.2 Maximum Lobe Tilt +/- 45° 4.5.3 Free Space Test Method The antenna is tested while mounted on the handset with the matching circuit (Ref Fig 1) in free space in an anechoic chamber. Radiation patterns are measured on at least 4 different frequencies: 824MHz, 849MHz, 869 MHz, 894 MHz The specified values shall be found within + 45 degrees from the horizontal plane. The antenna is measured for 2 elevation cuts at two different azimuth positions (φ = 0, φ= 90). 4.6 POLARIZATION –Vertical in free space 5.0 MECHANICAL SPECIFICATIONS 5.1 MECHANICAL CONFIGURATION The appearance of the antenna is attached drawing CH0-2419-09, Rev S-2 5.2 CONNECTOR TYPE The connector type is an M4*0.7 threaded stud. 5.3 ANTENNA MATERIALS ITEM ComponentMaterial Finish 1 OvermoldSantoprene +PP+(Color Resin) Cool Grey 2 Coil Copper Rolled Carbon Steel 3 Stud Free Cutting Brass Nickel plated GALTRONICS (TJ) LTD. Spec No: CH29-2419-10 ANTENNA SPECIFICATION Revision: S-1 Page 8 of 10 5.4 TENSILE STRENGTH The antenn…

Text truncated - open the document above for the full version.

731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 27 of 57 FCC Part 2 & RSS-102 SAR Evaluation SAR Plots for AMPS Mode 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 28 of 57 FCC Part 2 & RSS-102 SAR Evaluation 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 29 of 57 FCC Part 2 & RSS-102 SAR Evaluation 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 30 of 57 FCC Part 2 & RSS-102 SAR Evaluation 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 31 of 57 FCC Part 2 & RSS-102 SAR Evaluation 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 32 of 57 FCC Part 2 & RSS-102 SAR Evaluation

731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 33 of 57 FCC Part 2 & RSS-102 SAR Evaluation SAR Plots for TDMA Mode 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 34 of 57 FCC Part 2 & RSS-102 SAR Evaluation 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 35 of 57 FCC Part 2 & RSS-102 SAR Evaluation 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 36 of 57 FCC Part 2 & RSS-102 SAR Evaluation 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 37 of 57 FCC Part 2 & RSS-102 SAR Evaluation

APPENDIX A – PHANTOM CERTIFICATE APPENDIX B – 900 MHZ DIPOLE CALIBRATION CERTIFICATE

This report may be reproduced only with the written permission of ITS/TestMark Laboratories and if reproduced must be reproduced in its entirety. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. The results contained in this report were derived from measurements performed on the identified test samples. Any implied performance of other samples based on this report is dependent on the representative adequacy of the samples tested. SPECIFIC ABSORPTION RATE (SAR) TEST REPORT Telian Corporation 2505 Bath Road Elgin, IL 60123 Product: MTD 7500 Cellphone Tested to the SAR Criteria in FCC OET Bulletin 65, Supplement C (Edition 01-01) Date: March 4, 2004 Project: 3047584 Prepared by:_______________________________Date:____3/12/2004 _______ Bryan C. Taylor, Team Leader - Engineering Reviewer by:__ ____________________________Date:___3/12/2004_________ David Chernomordik, EMC Technical Manager Intertek Testing Services NA, Inc. 731 Enterprise Drive, Lexington, KY 40510 Telephone: 859-226-1000 Fax: 859-226-1040 Web: www.etlsemko.com 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 2 of 41 FCC Part 2 & RSS-102 SAR Evaluation TABLE OF CONTENTS 1.0 Document History.....................................................................................................................3 2.0 References.................................................................................................................................3 3.0 Introduction..............................................................................................................................4 Modifications required for compliance........................................................................................4 4.0 Test Site Description.................................................................................................................5 Measurement Equipment.............................................................................................................6 Measurement Uncertainty............................................................................................................7 Measurement Tractability............................................................................................................8 5.0 Job Description..........................................................................................................................9 Test Sample Description............................................................................................................10 Test Sample Photographs..........................................................................................................11 6.0 System Verification.................................................................................................................13 Dipole System Validation..........................................................................................................13 Tissue Simulating Liquid Description and Validation................................................................13 7.0 Evaluation Procedures............................................................................................................15 Test Positions:...........................................................................................................................15 Reference Power Measurement:................................................................................................15 Coarse Scan:.............................................................................................................................15 Zoom Scan:...............................................................................................................................15 Data Extrapolation:...................................................................................................................15 Reference Power Measurement:................................................................................................16 RF Ambient Activity:................................................................................................................16 8.0 Configuration / Test Photographs..........................................................................................16 9.0 Criteria....................................................................................................................................20 10.0 Engineering Judgments...........................................................................................................20 11.0 Tabular Test Results...............................................................................................................21 Conducted Power Measurements...............................................................................................21 Phone Mode Tabular Test Results.............................................................................................22 12.0 Graphical Test Results............................................................................................................24 731 Enterprise Drive, Lexington KY 40510 Telian Corporation, Model No: MTD 7500 Cellphone FCC ID: NPQMTD7500 File: 3047584 Page 3 of 41 FCC Part 2 & RSS-102 SAR Evaluation 1.0 Document History Revision/ Job Number Writer Initials Date Change 1.0 /3047584 BCT 3/12/2…
