NPQRFM1000Charger Base with 900MHz Transmitter

- 1 - D D U U A A L L - - M M O O D D E E T T D D M M A A P P H H O O N N E E MODEL : FTD-8900 - 2 - PRELIMINARY 041008 – Rev. 00ac - 3 - C o n t e n t s 1. SAFETY INFORMATION............................................................................... 9 2. PREPARING YOUR PHONE FOR USE ...................................................... 14 2.1 Install the battery .................................................................................................. 14 2.2 Remove the battery .............................................................................................. 14 2.3 Charge the battery ................................................................................................ 14 3. HIGHLIGHTS OF FEATURES..................................................................... 16 4. ABOUT THE PHONE................................................................................... 17 4.1 Name and function ............................................................................................... 17 4.2 Key functions ........................................................................................................ 19 4.2.1 Selection keys / Mute key (RSK).......................................................................... 19 4.2.2 Send Key........................................................................................................................ 19 4.2.3 End Key.......................................................................................................................... 19 4.2.4 ~ Number keys ................................................................................. 19 4.2.5 Scroll keys...................................................................................................... 19 4.2.6 Using the selection keys .......................................................................................................... 19 4.2.7 Using the scroll keys ................................................................................................................ 20 4.3 About display indicators and icons.................................................................... 20 4.3.1 Start screen ............................................................................................................................... 20 4.3.2 Scroll bar ................................................................................................................................... 20 4.4 Indicators and icons............................................................................................. 20 5. BASIC OPERATIONS ................................................................................. 23 - 4 - 5.1 Switch the phone ON or OFF ............................................................................... 23 5.2 Make a call............................................................................................................. 23 5.3 Answering a call ................................................................................................... 23 5.4 Adjusting the earpiece volume ............................................................................ 24 5.5 Redial the last-dialed number .............................................................................. 24 5.6 Use Caller ID.......................................................................................................... 24 6. USE PHONE MENUS .................................................................................. 26 6.1 Navigate menus .................................................................................................... 26 6.1.1 Scroll through menus............................................................................................................... 26 6.1.2 Use a shortcut ........................................................................................................................... 26 6.1.3 Exit menu levels........................................................................................................................ 26 6.2 List of Menu........................................................................................................... 27 7. ENTER LETTERS AND NUMBERS............................................................ 30 7.1 Enter letters........................................................................................................... 30 7.1.1 Edit name ................................................................................................................................... 30 7.1.2 Change from capital (uppercase) letters and number .......................................................... 31 7.1.3 Use punctuation and special characters................................................................................ 31 7.2 Enter number ........................................................................................................ 31 7.2.1 List of special characters......................................................................................................... 32 8. USE THE PHONE BOOK ............................................................................ 33 8.1 About the phone book.......................................................................................... 33 8.2 Use phone book menus ....................................................................................... 33 8.3 Add names and numbers ..................................................................................... 33 8.4 Change a stored telephone number.................................................................... 34 8.5 Recall and dial stored numbers........................................................................... 34 8.6 Erase stored names and numbers ...................................................................... 35 8.7 Erase the entire phone book...........................................................................…

Text truncated - open the document above for the full version.

Telian Corporation Nov 04, 2004 FCC ID : NPQRFM1000 Federal Communications Commission Authorization and Evaluation Division Laboratory Division 7435 Oakland Miles Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: NPQRFM1000 including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Telian Corporation. Sincerely yours. Peter Jang R&D Hardware Engineer

Telian Corporation Nov 04, 2004 FCC ID : NPQRFM1000 Federal Communications Commission Authorization and Evaluation Division Laboratory Division 7435 Oakland Miles Road Columbia, MD 21046 Subject : Telian, 900MHz Transmitter FCC ID: NPQRFM1000 Request for withholding from public disclosure proprietary information submitted Pursuant to an application for certification of a 900MHz Transmitter FCC ID: NPQRFM1000 FCC ID : NPQRFM1000 Sir / Madam Telian Corporation requests that certain materials submitted with this application for certification of the 900MHz Transmitter FCC ID: NPQRFM1000 be withheld from public disclosure. z Block diagrams : Confidential z Circuit Diagrams : Confidential z Parts List: Confidential z Operation Description : Confidential The item marked “ Confidential ” as above contain detailed 900MHz Transmitter FCC ID: NPQRFM1000, submitted to the FCC for review with this application. The information contains proprietary information (Trade secrets) regarding the Circuit design detail and system architecture) which are the result of our extensive investment in research and development. Without the disclosed a workable competitive product. Therefore, we believe that disclosure of these company guarded materials would compromise our leading position in this market. WE therefore formally request that materials marked “ Confidential ” be kept strictly confidential and not made available for inspection by any other party, except on a need to know basis for sole purpose of the certification process. Sincerely yours. Kent Kim R&D Hardware Engineer

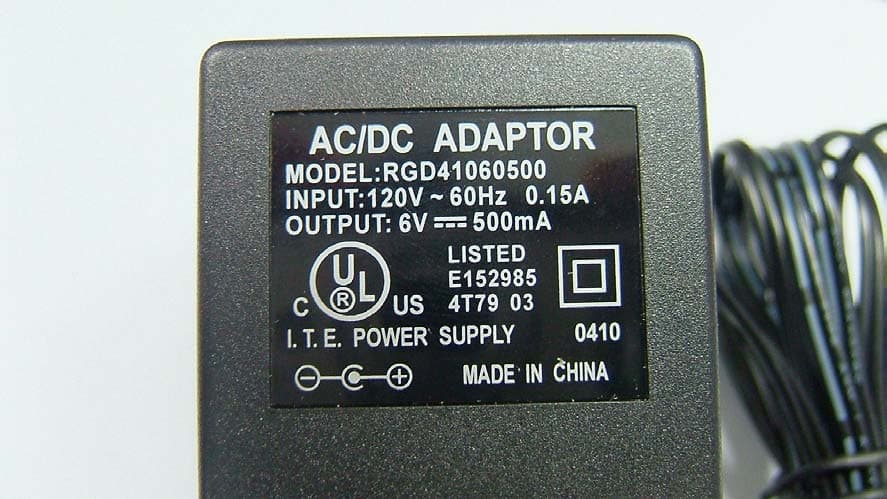

External Photo

Model : FTD - 8900 FCC ID : NPQRFM1000 Made in China ESN Decimal Barcode ESN Hexadecimal Barcode Serial Number Barcode 2004. 11. 09 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: NPQRFM1000 1. TX Top side 2. TX Bottom side FCC ID: NPQRFM1000 3. TX Ass’y condition

DEMC#DR50110411O FCC ID: NPQRFM1000 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 19 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE Telian Corporation 4th Fl, Nam Jeun B/D 53-3 Haan-Dong, Kwang Myung- Si, Kyung Gi-Do, KOREA 423-606 Dates of Tests: Nov. 24 ~ 25, 2004 Test Report S/N:DR50110411O Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : Part 15 Low Power Communication Device Transmitter Device name : 900MHz Transmitter Manufacturer : Telian Corporation FCC ID : NPQRFM1000 Model name : FTD-8900 Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15.249; ANSI C-63.4-2001 Frequency Range : 920.528 ~ 927.594MHz Max. Output power : -13dBm Data of issue : November 26, 2004 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NPQRFM1000 Telian Corporation DEMC#DR50110411O FCC ID: NPQRFM1000 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 19 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TRANSMITTER REQUIREMENTS --------------------------------------------------------------- 3.2.1 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.2.2 RADIATED EMISSION -------------------------------------------------------------------------- 3.2.3 BAND - EDGE (at 20 dB blow) ---------------------------------------------------------------- ANNEX TEST EQUIPMENT USED FOR TESTS ---------------------------------------------------- 3 4 5 5 6 6 13 15 17 DEMC#DR50110411O FCC ID: NPQRFM1000 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 3 of 19 1. General information’s This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer November 26, 2004 Won –Jong LEE Data Name Signature Report Reviewed By: manager November 26, 2004 Dong –Min JUNG Data Name Signature Ordering party: Company name : TELIAN CORPORATION Address : 4 th Fl, Nam Jeun B/D 53-3 Haan-Dong, Kwang Myung-Si Zip code : 423-606 City/town : Kyung Gi-Do Country : KOREA Date of order : November 04, 2004 DEMC#DR50110411O FCC ID: NPQRFM1000 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 4 of 19 2. Information’s about test item NPQRFM1000 2.1 Equipment information Equipment model name FTD-8900 Type of equipment 900MHz Transmitter Frequency band 920.528 ~ 927.594MHz TX Type of Modulation FSK Channel Spacing 307.2 kHz Output Impedance 50 ohms Type of antenna Helical Antenna DC input : 5.0Vdc ± 5% 1A Operating Voltage Regulator Voltage : 3.0V AC/DC Adaptor Input: 120VAC, 60Hz, 0.15A Output: 6Vdc, 500mA 2.2 Tested frequency Frequency TX Low frequency 920.528 MHz High frequency 927.594 MHz 2.3 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : 120 VAC, 60Hz 2.4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer 1. AC/DC Adaptor RGD41060500 N/A Telian Corp. 2. AC/DC Adaptor 3A- 41WU05A N/A ENG TDMA Phone FTD-8900 N/A Telian Corp. 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> none DEMC#DR50110411O FCC ID: NPQRFM1000 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 5 of 19 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) I. Transmit mode(Tx) 15.249 (a) Field Strength Limits Refer to the FCC 15.249(a) Radiated C 15.215 (c) BAND - EDGE (at 20 dB blow) 902 < f < 928 MHz Radiated C 15.205 / 15.209 General Field Strength Limits (Restricted Bands and Radiated Emission Limits) < FCC 15.209 limits Radiated C 15.207 AC Conducted Emissions < FCC 15.207 limits Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts 15.249; ANSI C-63.4-2001 DEMC#DR50110411O FCC ID: NPQRFM1000 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 6 of 19 3.2 Transmitter requirements 3.2.1 AC Conducted Emissions Procedure: The conducted emissions are measured in the shielded room with a spectrum analyzer in peak hold. While the measurement, EUT had its hopping function disabled at the middle channels in line with Section 15.31(m). Emissions closest to the limit are measured in the quasi-peak mode (QP) with the tuned receiver using a bandwidth of 9 kHz. The emissions are maximized further by cable manipulation and Exerciser operation. The highest emissions relative to the limit are listed. Measurement Data: Complies - No other emissions were detected at a level greater than 10dB below limit. - Refer to the next page. Minimum Standard: FCC Part 15.207(a)/EN 55022 Conducted Limit (dBuV) Frequency Range (MHz) Quasi-Peak Average 0.15 ~ 0.5 66 to 56 * 56 to 46 * 0.5 ~ 5 56 46 5 ~ 30 60 50 * Decreases with the logarithm of the frequency Measurement Setup 3m Coax GPIB Figure 2: Measurement setup for AC Conduc…

Text truncated - open the document above for the full version.

FCC ID : NPQRFM1000 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. FCC ID : NPQRFM1000 Copyright ○ c 2004, DIGITAL EMC Co., Ltd.
