NPQRFM2000LPhone Base with 900MHz Transmitter

FCS-8900 & RFM2000L 1 CONTENTS 1. SAFETY INFORMATION----------------------------------------------------------------------- 2. PREPARE YOUR PHONE FOR USE -------------------------------------------------------- 2.1 Install the battery ---------------------------------------------------------------------------- 2.2 Charge the battery --------------------------------------------------------------------------- 2.2.1 Base 2.2.2 Handy 3. FEATURE HIGHLIGHTS ---------------------------------------------------------------------- 4. ABOUT THE PHONE --------------------------------------------------------------------------- 4.1 Name and function --------------------------------------------------------------------------- 4.2 Key functions ---------------------------------------------------------------------------------- 4.3 Display indicators ----------------------------------------------------------------------------- 4.3.1 Idle screen ---------------------------------------------------------------------------- 4.3.2 Scroll Bar ----------------------------------------------------------------------------- 4.4 Icons -------------------------------------------------------------------------------------------- 5. BASIC OPERATIONS ---------------------------------------------------------------------------- 5.1 Power ON and OFF---------------------------------------------------------------------------- 5.2. Make a call -------------------------------------------------------------------------------------- 5.3 Answer a call ----------------------------------------------------------------------------------- 5.4 Adjust the volume ----------------------------------------------------------------------------- 5.5 Redial the recent call number ---------------------------------------------------------------- 5.6 Caller ID ---------------------------------------------------------------------------------------- 5.7 Out of Range display and warning tone --------------------------------------------------- 5.8 Paging------------------------------------------------------------------------------------------- 5.9 Handy and Base ID settings------------------------------------------------------------------ 2 5.10 SMS and Voice mail-------------------------------------------------------------------------- 6. USE PHONE MENUS --------------------------------------------------------------------------- 6.1 Navigate menus ----------------------------------------------------------------------------- 6.1.1 Scroll through menus -------------------------------------------------------------- 6.1.2 Use a shortcut------------------------------------------------------------------------ 6.1.3 Exit menu levels -------------------------------------------------------------------- 6.2 List of Menus --------------------------------------------------------------------------------- 7. ENTER LETTERS AND NUMBERS ----------------------------------------------------------- 7.1 Enter Letters ----------------------------------------------------------------------------------- 7.1.1 Edit name ----------------------------------------------------------------------------- 7.1.2 Change case of letters and numbers ----------------------------------------------- 8. USE THE PHONE BOOK ------------------------------------------------------------------------- 8.1 About the phone book ------------------------------------------------------------------------- 8.2 Add a new phone book Entry ---------------------------------------------------------------- 8.3 Edit Entry---------------------------------------------------------------------------------------- 8.4 Search Entry ------------------------------------------------------------------------------------ 8.5 Search Name ----------------------------------------------------------------------------------- 8.6 Erase --------------------------------------------------------------------------------------------- 8.7 My Phone # ------------------------------------------------------------------------------------- 9. USE CALL LOGS ---------------------------------------------------------------------------------- 9.1 Check Missed / Received / Dialed Calls--------------------------------------------------- 9.2 Erase Logs ------------------------------------------------------------------------------------- 9.3 Call Duration----------------------------------------------------------------------------------- 10. USE SMS (SHORT MESSAGE SERVICE) -------------------------------------------------- 10.1 Send a Text Message ----------------------------------------------------------------------- 10.2 View Inbox / Outbox------------------------------------------------------------------------ 10.3 Erase a message ----------------------------------------------------------------------------- 10.4 Message Settings ---------------------------------------------------------------------------- 3 10.5 Use Voice mail ------------------------------------------------------------------------------ 11. SET SOUND --------------------------------------------------------------------------------------- 11.1 Set Ring Type ------------------------------------------------------------------------------- 11.2 Set Ring Tone ------------------------------------------------------------------------------- 11.3 Set Ring Volume ---------------------------------------------------------------------------- 11.4 Set Key Tone -------------------------------------------------------------------------------- 11.5 Set Sound Setting---------------------------------------------------------------------------- 11.6 Set Alarm------------------------------------------------------------------------------------- 12. USE SETTINGS ------------------------------------------------------------------------------------ 12.1 Set Auto Redial ----------------------------------------------------------------------------- 12.2 Set Lift Answer ------------------------------------------------------…

Text truncated - open the document above for the full version.

4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea December 30, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: NPQRFM2000L. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Telian Corporation. Sincerely, W.H WHANG/Senior Engineer

4th ~ 7th Fl. Namjeun Bldg. 53-3 Haan-Dong Gwangmyung-Si, Kyunggido-Do, 423-060, Korea December 30, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Telian Corporation. FCC ID : NPQRFM2000L Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Telian Corporation. hereby requests confidentiality of the Block diagram, Schematics, Parts list and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Telian Corporation. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Telian Corporation. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, W.H WHANG/Senior Engineer

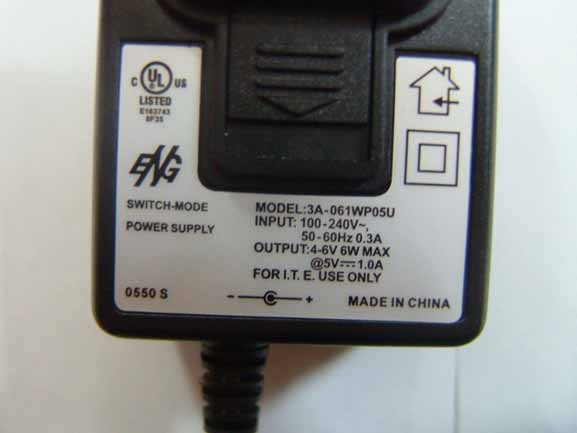

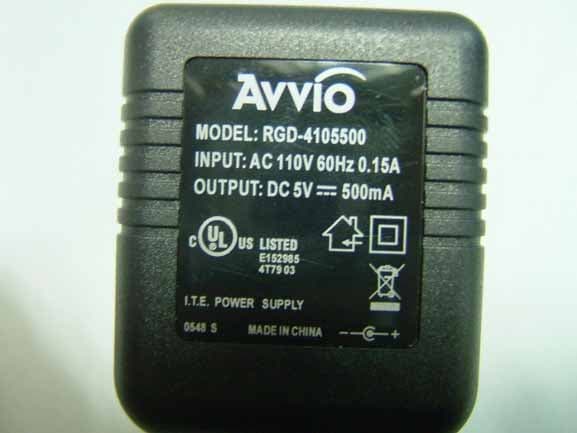

FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 1 G G FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 2 G FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 3 G G FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 4 (Adaptor: 3A-061WP05U) G G FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. GGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGView 5 (Adaptor: RGD-4105500) GG

FCC ID: NPQRFM2000L Copyright ○ c 2006, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE)

FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 1 G G FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 2 G FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 3 G GG FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 4 G GG FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. GGGGGGGGGGGGGGGGGView 5 (Backup Battery) GG GG

DEMC#DR501100601B FCC ID: NPQRFM2000L Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 17 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE Telian Corporation 5 th FL. Namjeun bldg, 53-3 Haan-Dong, Kwangmyung-Si, Kyunggi-Do, Korea, 423-060 Dates of Tests: January 2 ~ 5, 2006 Test Report S/N: DR50110601B Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : Part 15 Low Power Communication Device Transmitter Device name : 900MHz Transmitter Manufacturer : Telian Corporation FCC ID : NPQRFM2000L Model name : RFM2000L Add Model name : FCS-8900 / FGD-8900 / Avvio 8000 / Avvio 9000 Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part2 and Part15 SubpartC(15.249) Frequency Range : 918 ~ 921MHz Data of issue : January 10, 2006 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NPQRFM2000L Telian Corporation DEMC#DR501100601B FCC ID: NPQRFM2000L Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 17 TABLE OF CONTENTS 1. GENERAL INFORMATION ---------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM --------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TRANSMITTER REQUIREMENTS --------------------------------------------------------------- 3.2.1 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.2.2 RADIATED EMISSION -------------------------------------------------------------------------- ANNEX TEST EQUIPMENT USED FOR TESTS ---------------------------------------------------- 3 4 5 5 6 6 13 15 DEMC#DR501100601B FCC ID: NPQRFM2000L Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 3 of 17 1. General information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer January 10, 2006 Won-Jung LEE Data Name Signature Report Reviewed By: manager January 10, 2006 Harvey Sung Data Name Signature Ordering party: Company name : TELIAN CORPORATION Address : 5 th FL. Namjeun bldg, 53-3 Haan-Dong, Kwangmyung-Si Zip code : 423-060 City/town : Kyunggi-Do Country : KOREA Date of order : December 27, 2005 DEMC#DR501100601B FCC ID: NPQRFM2000L Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 4 of 17 2. Information about test item NPQRFM2000L 2.1 Equipment information Equipment model name RFM2000L Add Equipment model name FCS-8900 / FGD-8900 / Avvio 8000 / Avvio 9000 Type of equipment 900MHz Transmitter Frequency band 918 ~ 921MHz TX Type of Modulation FSK Channel Spacing 200 kHz Type of antenna Line Antenna AC/DC Adaptor Output: 5Vdc, 500mA 2.2 Tested frequency Frequency TX Low frequency 918 MHz High frequency 921 MHz 2.3 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : 120 VAC, 60Hz 220 VAC, 50Hz (Adaptor: POD-41050500) 2.4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer 1. AC/DC Adaptor RGD-4105500 N/A Ron Ger Electric 4. AC/DC Adaptor 3A-031WU05 N/A ENG GSM Phone FCS-8900 N/A Telian Corp. 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> none DEMC#DR501100601B FCC ID: NPQRFM2000L Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 5 of 17 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) I. Transmit mode(Tx) 15.249 Field Strength Limits(Fundamental) Refer to the FCC 15.249(a) Radiated C 15.209 Radiated emission limits (Spurious and harmonics) < FCC 15.209 limits Radiated C 15.207 AC Conducted Emissions < FCC 15.207 limits Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts 15.249; ANSI C-63.4-2003 DEMC#DR501100601B FCC ID: NPQRFM2000L Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 6 of 17 3.2 Transmitter requirements 3.2.1 AC Conducted Emissions Procedure: The conducted emissions are measured in the shielded room with a spectrum analyzer in peak hold. While the measurement, EUT had its hopping function disabled at the middle channels in line with Section 15.31(m). Emissions closest to the limit are measured in the quasi-peak mode (QP) with the tuned receiver using a bandwidth of 9 kHz. The emissions are maximized further by cable manipulation and Exerciser operation. The highest emissions relative to the limit are listed. Measurement Data: Complies - No other emissions were detected at a level greater than 10dB below limit. - Refer to the next page. Minimum Standard: FCC Part 15.207(a)/EN 55022 Conducted Limit (dBuV) Frequency Range (MHz) Quasi-Peak Average 0.15 ~ 0.5 66 to 56 * 56 to 46 * 0.5 ~ 5 56 46 5 ~ 30 60 50 * Decreases with the logarithm of the frequency Measurement Setup 3m Coax GPIB Figure 2: Measurement setup for AC Conducted Emission LISN Receiver Spectrum Analyzer Control PC DEMC#DR501100601B FCC ID: NPQRFM2000L Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 7 of 17 NPQRFM2000 / Adaptor : RGD-4105500 / Line D…

Text truncated - open the document above for the full version.

FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 1 (Adaptor: RGD-4105500) G G FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. GGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGView 2 (Adaptor: 3A-061WP05U) FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 3 (Adaptor: RGD-4105500) GG G FCC ID: NPQRFM2000L Copyright հ 2006, DIGITAL EMC Co., Ltd. View 4 (Adaptor: 3A-031WU05) G
