NUOPCUH411Four Port USB Hub

List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:PCUH411 FCC ID:NUOPCUH411 LABEL Size: 46 X 25 mm LABEL Position:

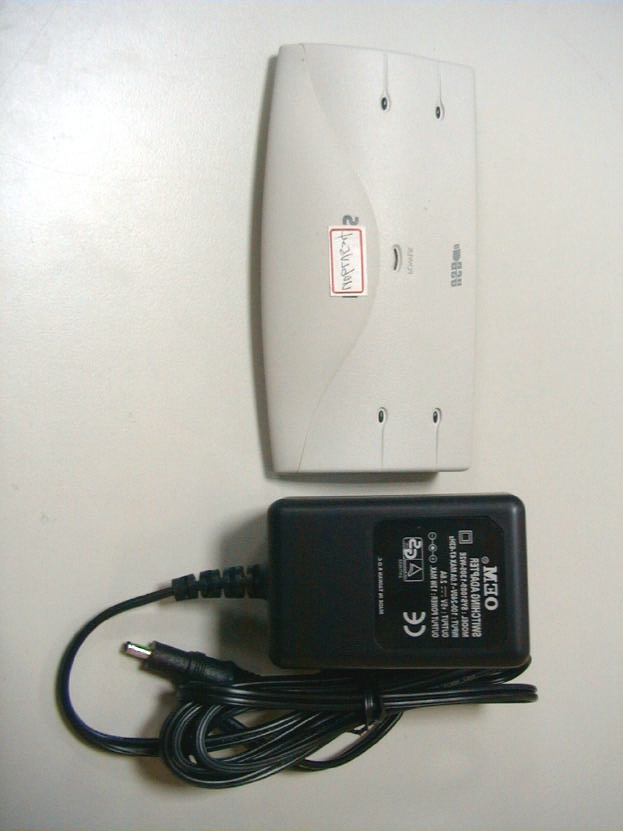

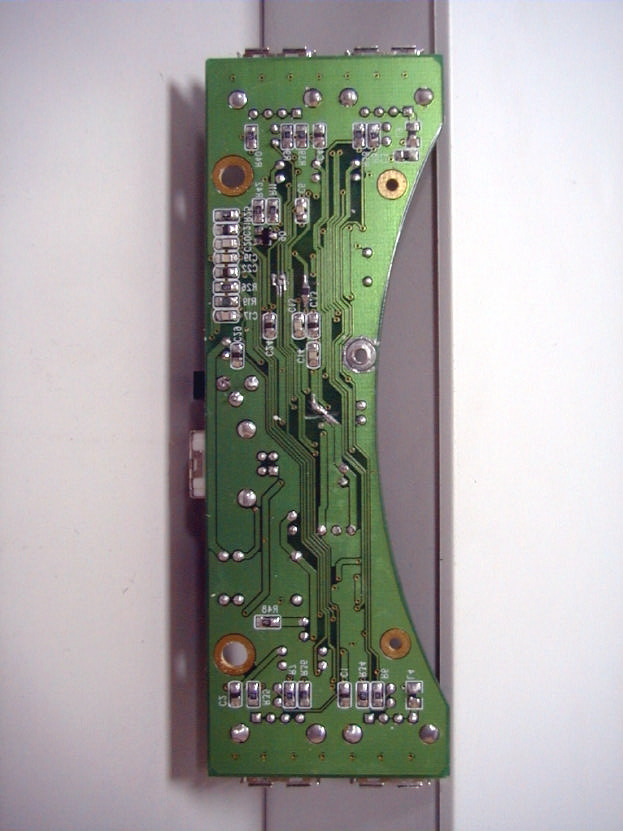

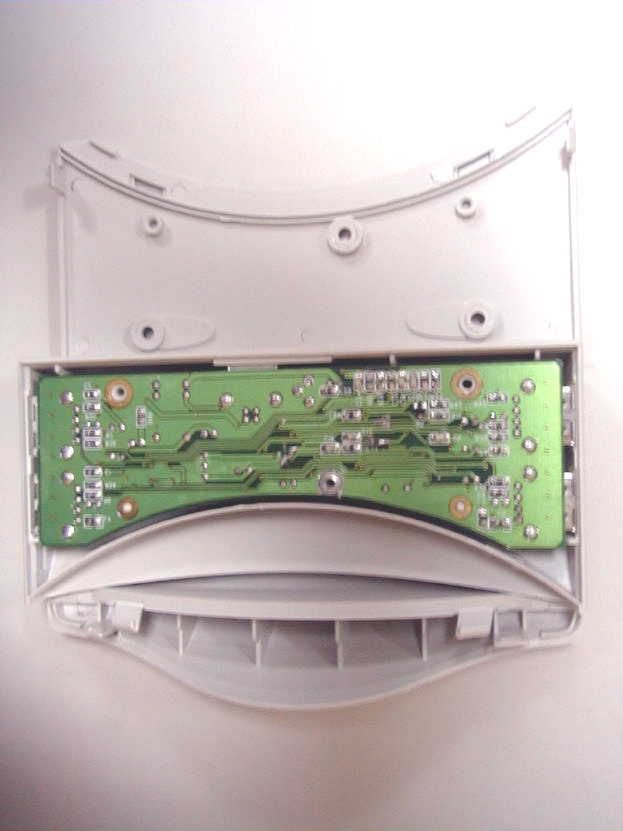

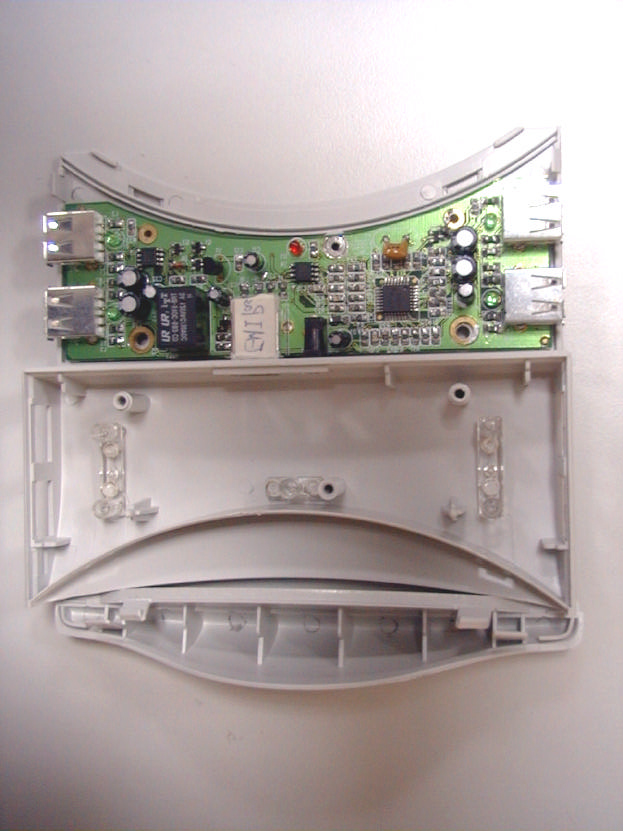

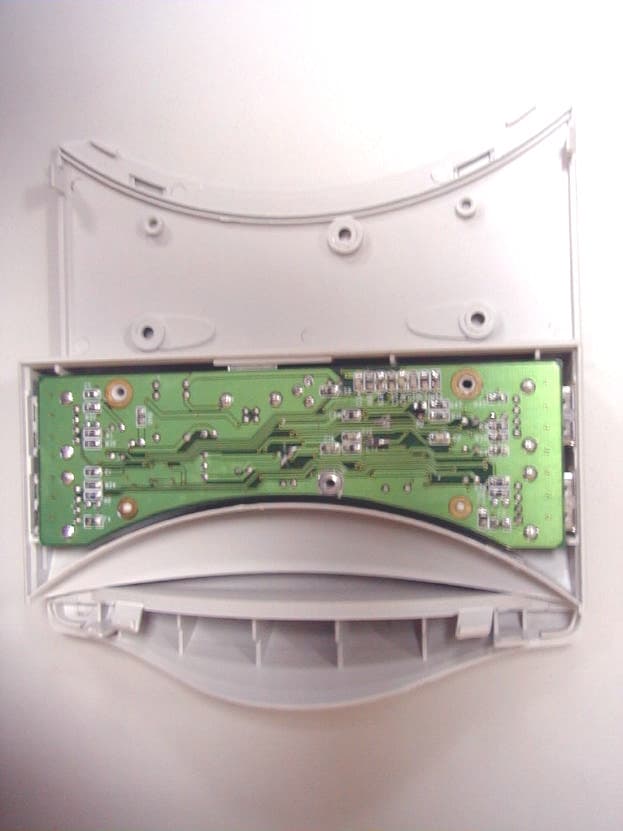

EXHIBIT F Photographs of EUT

Test Report ---------------------------------------------------------------------------------- 2/16 Report No.: U0615531, Four Port USB Hub, FCC Class B Test date: 09/01/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Contents Chapter 1Introduction Description of EUT........................................................................................................................3 Configuration of Test Setup............................................................................................................4 List of Support Equipment..............................................................................................................6 Chapter 2Conducted Emission Test Test Condition and Setup...............................................................................................................8 Conducted Test Placement.............................................................................................................9 Chapter 3Radiated Emission Test Test Condition and Setup..............................................................................................................10 Radiated Test Placement...............................................................................................................11 Appendix A : Conducted test result.....................................................................................................................12 Appendix B : Radiated test result........................................................................................................................14 Appendix C : Modify List...................................................................................................................................16 Test Report ---------------------------------------------------------------------------------- 3/16 Report No.: U0615531, Four Port USB Hub, FCC Class B Test date: 09/01/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 1Introduction Description of EUT: The EUT is a Universal Serial Bus HUB, which is a USB cable concentrator and a bridge between PC USB host controller and USB devices. It has following features: 1. Connect up to 127 USB devices simultaneously. 2. Hot plug-n-play of USB devices. 3. Transmission bandwidth from 1.5 Mbps to 2.0 Mbps. 4. 1 USB upstream port with 4 USB downstream ports. 5. Self-powered or Bus-powered operation. 6. Over-current protection. 7. Fulfils USB –IF specification Reversion 1.1 8. Stand-alone or clips on 1999/2000 Philips CRT monitor base(s). Connections of EUT: (1) The power jack of the EUT is connected with the AC power source via a power adapter. (2) Connect the upstream port of EUT to USB # 1port of PC via A-to-B cable. (3) Plug one USB mouse into downstream #1port of EUT. (4) The other downstream ports are plugged in three USB cables terminal with 100Ω. Test method: Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. During testing, the EUT was operated at “transmitting” and “receiving” mode simultaneously. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report ---------------------------------------------------------------------------------- 4/16 Report No.: U0615531, Four Port USB Hub, FCC Class B Test date: 09/01/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Configuration of test setup Connections: PC: *Serial A port --- a external modem with 76 cm shielded RS-232 cable *Serial B port --- a shielded RS232 cable with 76cm long, no ferrite bead *Printer port --- a Printer with 1.2m length data cable *Keyboard port --- a Keyboard with 1m length data cable *Mouse port --- a Mouse with 0.7m long of data cable *USB A port --- EUT *USB B port --- a USB joystick with 1.5m long, shielded, no ferrite bead data cable *Monitor port --- a monitor with 1m length data cable (Each port on PC is connected with suitable device) USB Joystick USB Mouse Keyboard Monitor Modem Printer PC Power USB Cable x 3 RS232 Cable EUT Mouse Test Report ---------------------------------------------------------------------------------- 5/16 Report No.: U0615531, Four Port USB Hub, FCC Class B Test date: 09/01/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 EUT: *Upstream port ---via a 1.2m long, shielded, no ferrite bead, USB cable to the USB A port of PC *Downstream ports --- mouse: with 1.9m long, shielded, no ferrite bead, data cable --- The others: connected 3 USB cables which 1.2m long, shielded, no ferrite bead *Power port --- via a 1.9m long, non-shielded, no ferrite bead, power cable to the AC power source. Test Report ---------------------------------------------------------------------------------- 6/16 Report No.: U0615531, Four Port USB Hub, FCC Class B Test date: 09/01/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 List of support equipment Conducted (Radiated) test: PC : HP Brio 85xx 6/350 Model No.:D6928A Serial No. :SG91801443 FCC ID:N/A, Doc Approved Power type:AC 110~120 / 220~240 VAC, Switching Power cord :non-Shielded, 1.7m long, Plastic, no ferrite core Monitor :HP Model No.:D2821 Serial No. : TW 73512262 (TW 73147163) FCC ID:A3KMO64 Power type:AC 110~120 / 220~240 VAC, Switching Power cord:Non-Shielded, 3m long, no ferrite core Data cable :Shielded, 1.8m long, with ferrite core Keyboard:Digital Model No.:KB-5923 Serial No. : 9S74904837 (9S74904665) FCC ID:E8HKB-5923 Power type:By PC Data cable :Shielded, 1.8m long, with ferrite core Printer:HP Model No.:C2642A Serial No. : SG69A196GV FCC ID:B94C2642X Power type:220VAC, 50Hz Power cord:Non-shielded, 2m long, no ferrite c…
