NUOUT-106Bluetooth GPS Receiver

Helen Zhao Subject: FW: RE: UNIXTAR TECHNOLOGY, FCC ID: NUOUT-106, Assessment NO.: AN06T6090, Notice#1 8/31/2006 From: amanda.wu [mailto:[email protected]]On Behalf Of application Sent: Thursday, August 31, 2006 3:41 AM To: Helen Zhao Subject: Re:RE: UNIXTAR TECHNOLOGY, FCC ID: NUOUT-106, Assessment NO.: AN06T6090, Notice#1 Dear Helen: Please see my reply, thank you. Best Regards, Amanda -----Original Message----- Sent: Tuesday, August 29, 2006 5:16 PM Subject: UNIXTAR TECHNOLOGY, FCC ID: NUOUT-106, Assessment NO.: AN06T6090, Notice#1 Question #1: This device is considered as portable device in normal operation. But MPE calculation is included in the test report. Also user manual includes 20 cm separation distance restriction. Please update the documents. Ans: The userman had been revised. Question #2: Based upon most current FCC15.247(a)(1)(iii), "Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels." But the test report indicates 75 channels. Please revise the test report. Ans: The test report had been revised. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

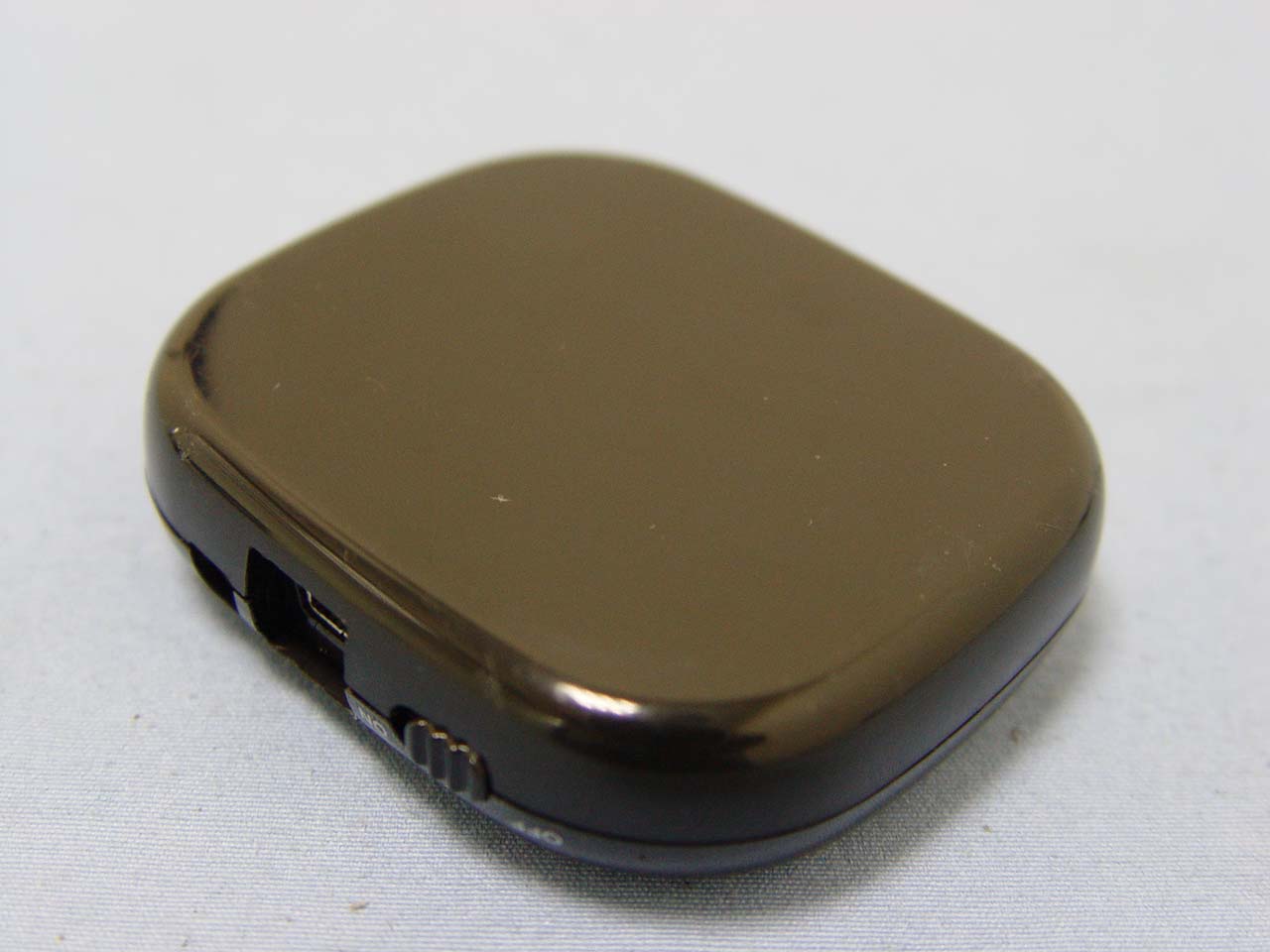

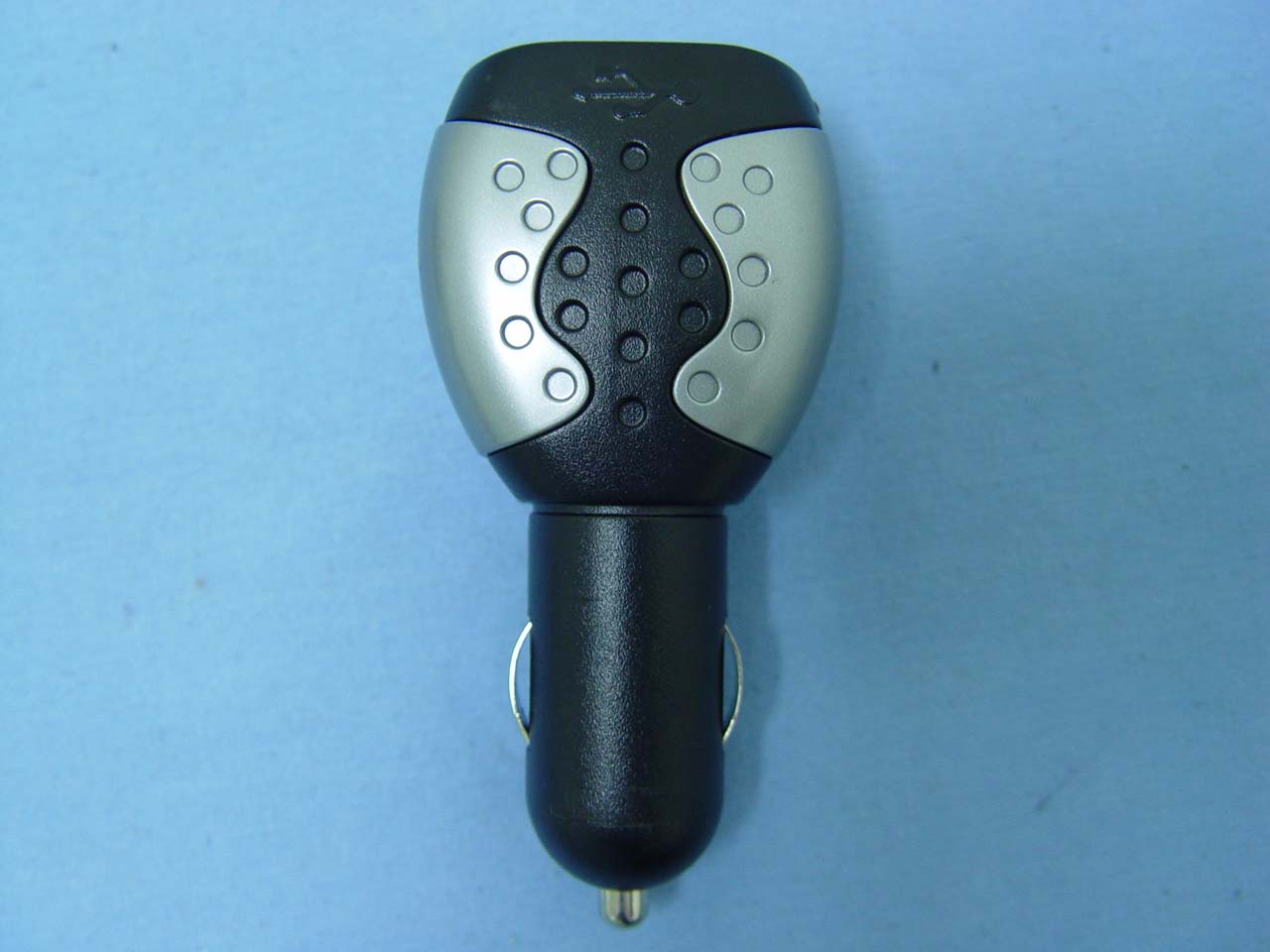

Compliance Certification Services Inc. Report No: 60529202 Date of Issue: July 24, 2006 Page 1 Total Page: 7 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60529202 Date of Issue: July 24, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 60529202 Date of Issue: July 24, 2006 Page 3 Rev. 00

Compliance Certification Services Inc. Report No: 60529202 Date of Issue: July 24, 2006 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60529202 Date of Issue: July 24, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No: 60529202 Date of Issue: July 24, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Report No: 60529202 Date of Issue: July 24, 2006 Page 7 Rev.00

Compliance Certification Services Inc. Report No.: 60529202-RP1 FCC ID: NUOUT-106 Date of Issue: July 24, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 48 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth GPS Receiver Model: UT-106 Trade Name: N/A Issued to UNIXTAR TECHNOLOGY 3F, NO.3, LANE 538, CHUNG CHENG RD., HSIN TIEN, TAIPEI, TAIWAN, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60529202-RP1 FCC ID: NUOUT-106 Date of Issue: July 24, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED......................................................................................8 5. FACILITIES AND ACCREDITATIONS ...........................................................................................9 5.1 FACILITIES ......................................................................................................................................9 5.2 EQUIPMENT.....................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................11 6.1 SETUP CONFIGURATION OF EUT....................................................................................................11 6.2 SUPPORT EQUIPMENT ............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 PEAK POWER.................................................................................................................................12 7.2 A VERAGE POWER.........................................................................................................................13 7.3 BAND EDGES MEASUREMENT .............................................................................................14 7.4 PEAK POWER SPECTRAL DENSITY.................................................................................................19 7.5 FREQUENCY SEPARATION....................................................................................................22 7.6 NUMBER OF HOPPING FREQUENCY ...................................................................................24 7.7 TIME OF OCCUPANCY (DWELL TIME)................................................................................26 7.8 SPURIO US EMISSIONS .............................................................................................................33 7.9 POWERLINE CONDUCTED EMISSIONS............................................................................................43 APPENDIX I PHOTOGRAPHS OF TEST SETUP ................................................................................46 Compliance Certification Services Inc. Report No.: 60529202-RP1 FCC ID: NUOUT-106 Date of Issue: July 24, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: UNIXTAR TECHNOLOGY 3F, NO.3, LANE 538, CHUNG CHENG RD., HSIN TIEN, TAIPEI, TAIWAN, R.O.C. Equipment Under Test: Bluetooth GPS Receiver Trade Name: N/A Model: UT-106 Date of Test: July 10 ~ 20, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Gavin Lim Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 60529202-RP1 FCC ID: NUOUT-106 Date of Issue: July 24, 2006 Page 4 Rev…
