NUOUSB0861PCI TO USB CARD

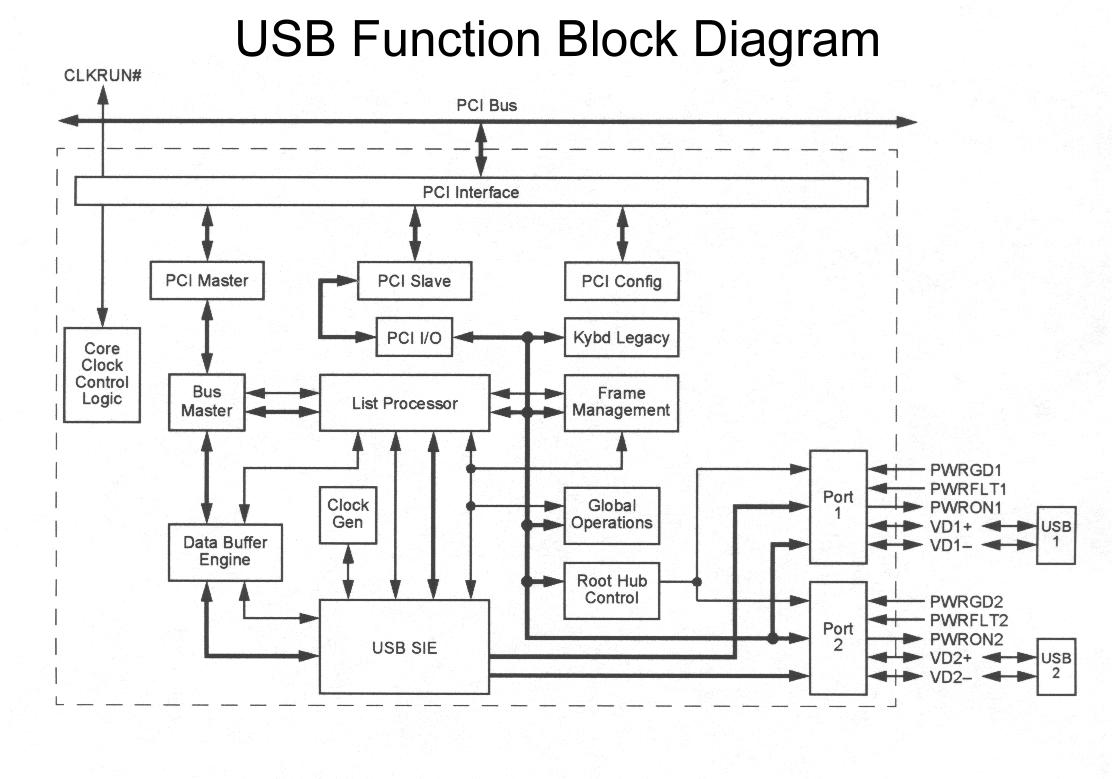

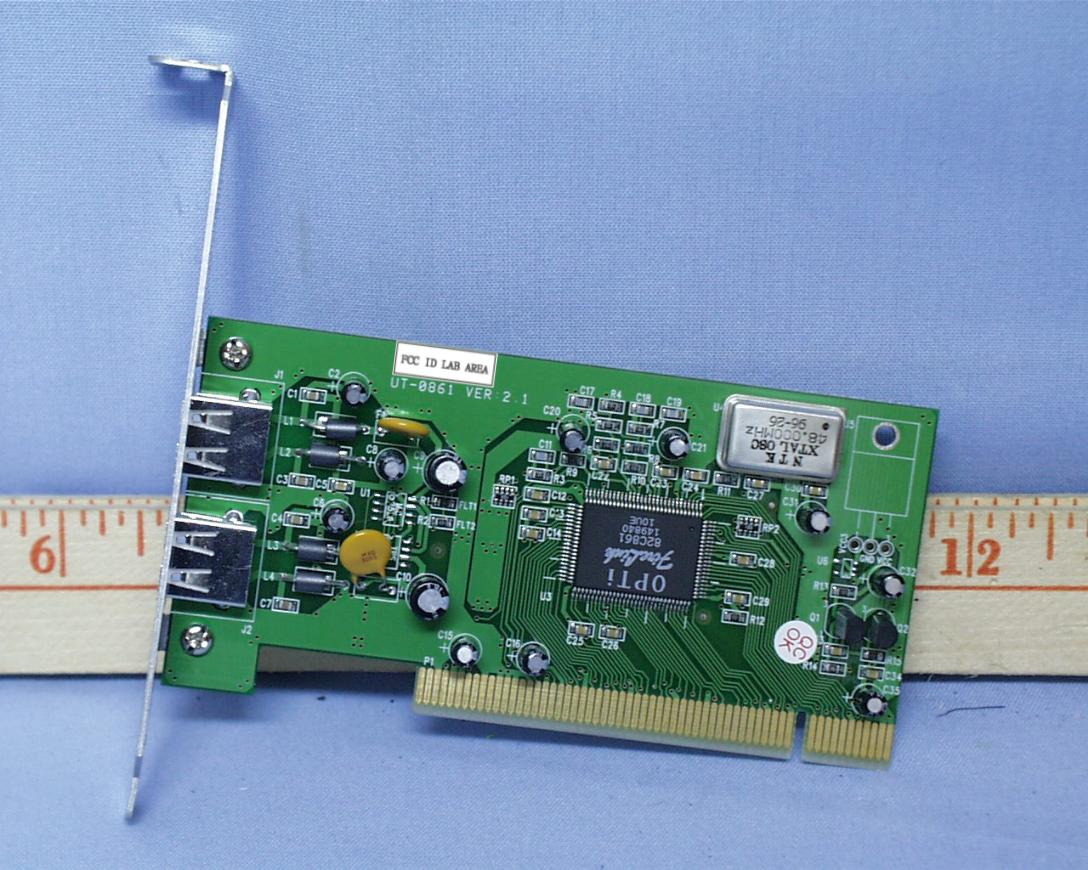

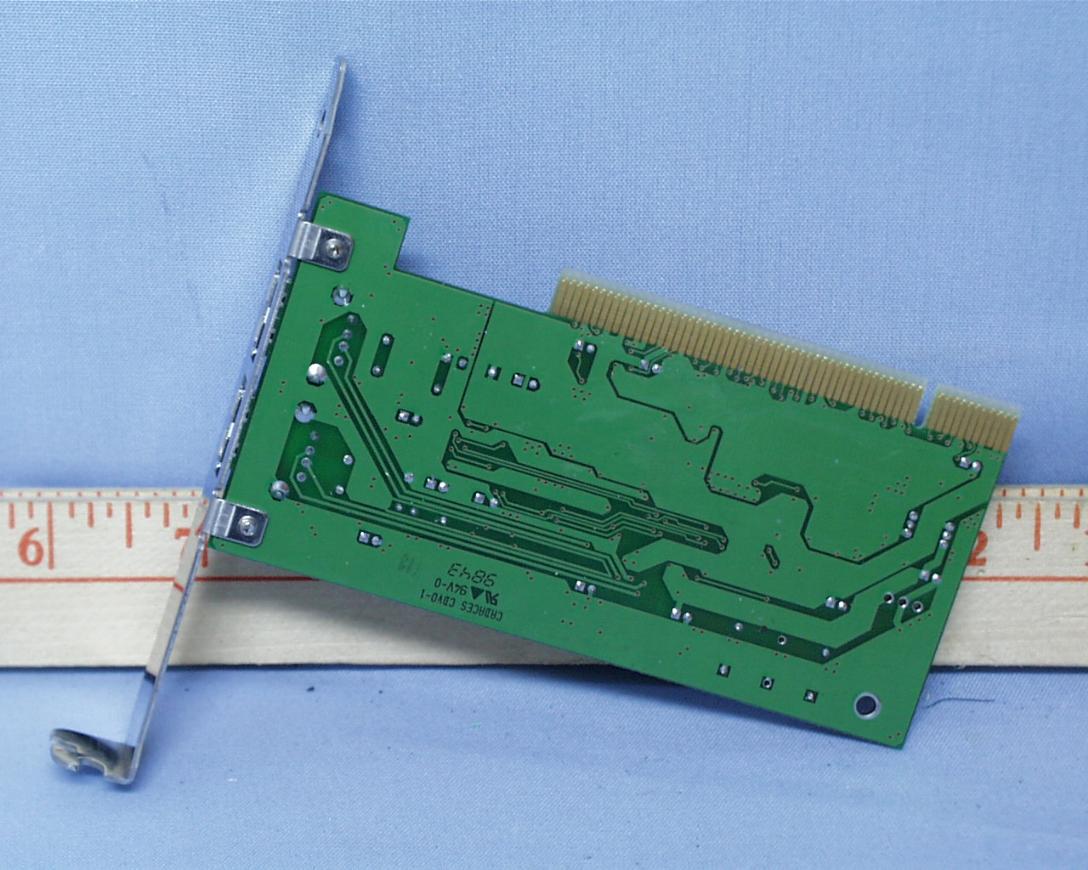

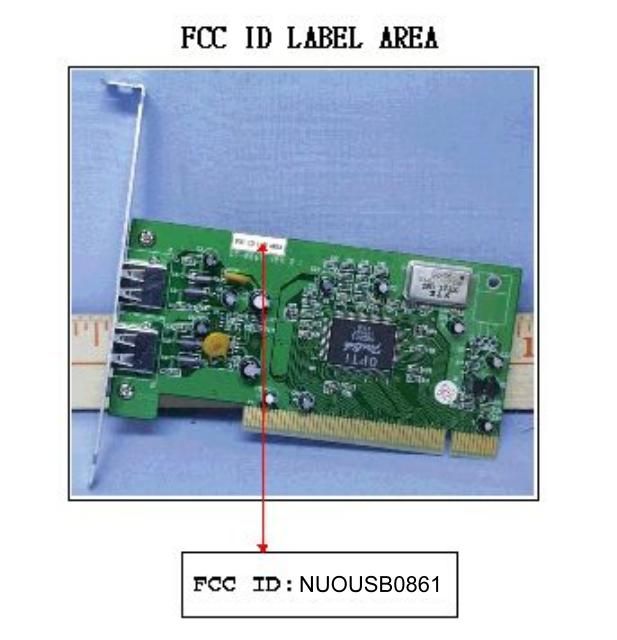

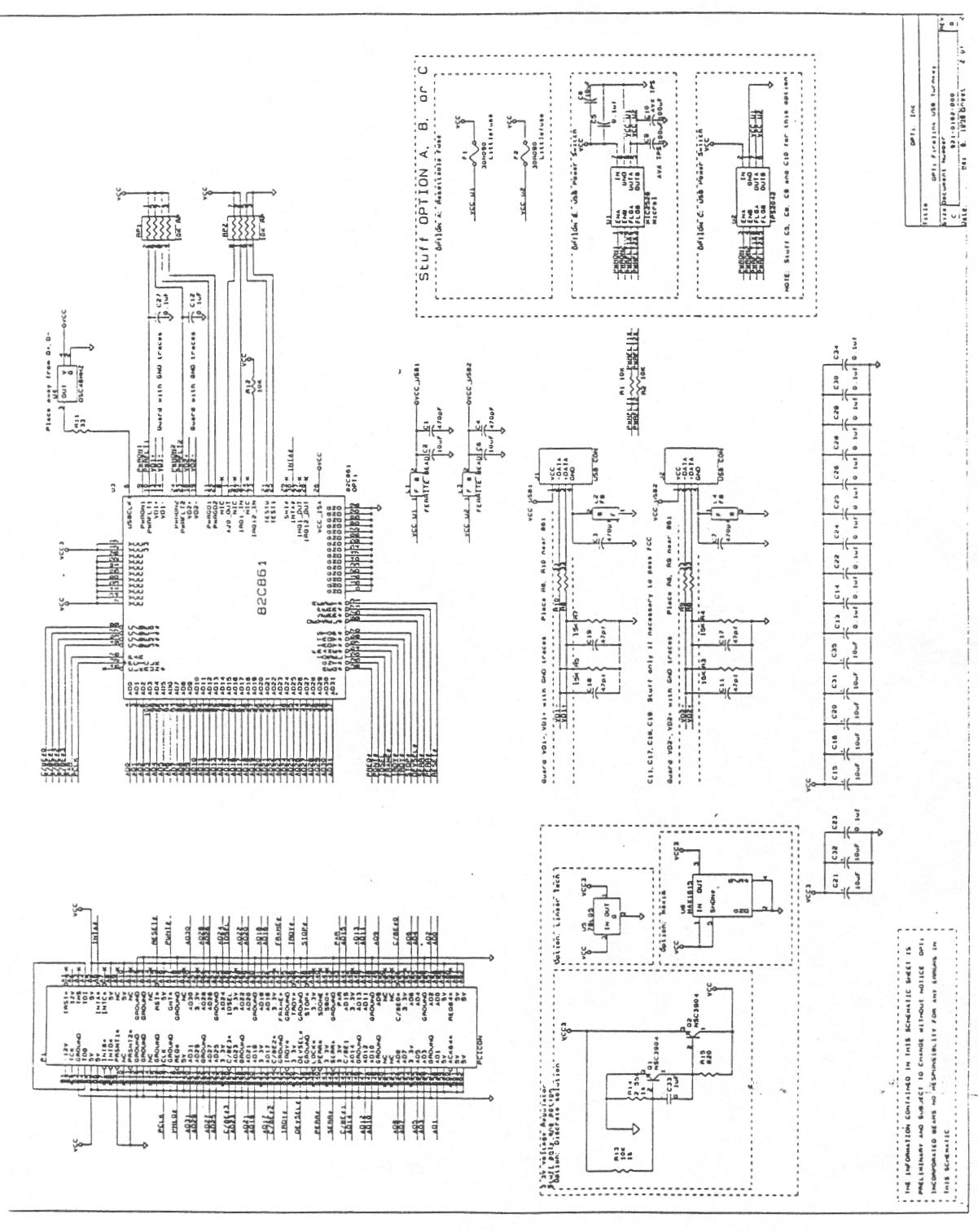

Page 1-2 PCI TO USB CARD USER’S GUIDE Introduction: This USB Card is a high-performance PCI-to-USB add-in controller card. The Controller is 100% compliant with the latest USB ( Universal Serial Bus ) and PCI Specification. The card is designed to comply with the OHCI ( Open Host Controller Interface) specification, which is an open standard that governs USB host Controllers. As a result, the card will be compatible with all USB peripherals with proper device driver support. Features: a. Compliant with OHCI (Open Host Controller Interface) 1.0 , USB specification Rev1.0 b. Compliant with PCI Local Bus 2.1 specification c. USB device bandwidth of up to 12Mbps d. Supports up to 127 devices e. Provides two fully compliant ports at 1.5Mbps/12Mbps f. Full support of realtime dynamic insertion and removal of devices g. Supports PCI-based 486, Pentium or Pentium II motherboards h. Supports all USB devices: keyboard, mouse, monitor, scanner, printer, telephone, joystick, gamepad etc. up to 127 devices. System Requirements: IBM PC compatible PCI specification support MS Windows 95 ® OSR 2.1 or support MS Windows 98 ® or higher Hardware Installation: Step 1: Turn the power off on your computer and disconnect the power cable Step 2: Open the computer case Step 3: Select an open PCI slot. Remove the cover plate for that slot. Step 4: Push the card into the slot Step 5: Attach the card’s bracket to the back of the computer with the screw to fix Step 6: Close the computer case Step 7: Connect the power cable and turn the power on. Software Installation for Windows 98: Follow these steps to install the driver. See below: Once Windows 95 or 98 starts up, it will automatically sense the card and open the Add New Hardware Wizard dialogue box. Follow the steps below to install the driver. Step 1:Step 2: Page 2-2 Click “Next” to continueClick “Next” to continue Step 3 :Step 4 : Select “Specify a Location”, path “A:\” for your disk drive. Click “Next” to continue Click “Next” to continue Step 5 :Step 6 : Click “Next” to continueInstall completed. Click “Finish” to complete installation Step 7 :

FCC CFR47 PART 15 DIGITAL DEVICE TEST REPORT FOR PCI TO USB CARD MODEL: UT-0861 FCC ID: NUOUSB0861 REPORT NUMBER: 98E7811 ISSUE DATE: DECEMBER 08, 1998 Prepared for UNIXTAR TECHNOLOGY, INC. 3F, NO. 3, LANE 538, CHUNG CHENG RD. HSIN TIEN, TAIPEI, TAIWAN, R. O. C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. No. 199, CHUNG SHENG ROAD HSIN TIEN CITY, TAIPEI, TAIWAN R.O.C. TEL: (02) 2217-0894 FAX: (02) 2217-1254 LAB CODE: 200064-0 REPORT NO:98E7811 DATE:DECEMBER 08, 1998 EUT:PCI TO USB CARD FCC ID:NUOUSB0861 0 OF 14 COMPLIANCE ENGINEERING SERVICES, INC. DOCUMENT NO:CCSTP4002B NO.199, CHUNG SHENG ROAD, HSIN TIEN, TAIPEI, TAIWAN R.O.C. TEL:(02)2217-0894/FAX:2217-1254 This report shall not be reproduced except in full, without the written approval of CES . TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE..............................................1 2.PRODUCT DESCRIPTION.....................................................2 3.TESTED SYSTEM DETAILS...................................................2 4.TEST FACILITY...........................................................3 5.ACCREDITATION AND LISTING...............................................3 6.MEASUREMENT INSTRUMENTATION.............................................3 7.MEASURING INSTRUMENT CALIBRATION........................................3 8.UNITS OF MEASUREMENT....................................................4 9.ANTENNAS................................................................4 10.CLASSIFICATION OF DIGITAL DEVICE........................................4 11.RADIATED EMISSION LIMITS................................................5 12.CONDUCTED EMISSION LIMITS...............................................6 13.CONDUCTED EMISSION TEST PROCEDURE.......................................6 14.RADIATED EMISSION TEST PROCEDURE........................................6 15.AMBIENT CONDITIONS......................................................7 16.SYSTEM TEST CONFIGURATION...............................................7 17.EQUIPMENT MODIFICATIONS.................................................7 18.EUT SETUP PHOTOS........................................................8 19.TEST EQUIPMENT LIST....................................................10 20. CORRECTION FACTOR......................................................11 21.TEST RESULT SUMMARY....................................................12 APPENDICES ..................................................................14 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .CONDUCTED EMISSION PLOT .RADIATED EMISSION DATA .EUT PHOTOGRAPHS REPORT NO:98E7811 DATE:DECEMBER 08, 1998 EUT:PCI TO USB CARD FCC ID:NUOUSB0861 1 OF 14 COMPLIANCE ENGINEERING SERVICES, INC. DOCUMENT NO:CCSTP4002B NO.199, CHUNG SHENG ROAD, HSIN TIEN, TAIPEI, TAIWAN R.O.C. TEL:(02)2217-0894/FAX:2217-1254 This report shall not be reproduced except in full, without the written approval of CES . 1.VERIFICATION OF COMPLIANCE COMPANY NAME:UNIXTAR TECHNOLOGY, INC. 3F, NO. 3, LANE 538, CHUNG CHENG RD. HSIN TIEN, TAIPEI, TAIWAN, R. O. C. CONTACT PERSON:BOBSON CHENG / ENGINEERING MANAGER TELEPHONE NO:(02) 2218-2100 MODEL NO/NAME:UT-0861 SERIAL NO:N/A DATE TESTED:NOVEMBER 27, 1998 TYPE OF EQUIPMENT:INFORMATION TECHNOLOGY EQUIPMENT (ITE) MEASUREMENT DISTANCE: ( ) 3 METER (°—) 10 METER TECHNICAL LIMIT: CLASS B FCC RULES:PART 15 MEASUREMENT PROCEDURE ANSI C63.4:92 / EN55022 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATION MADE ON EUT YES NO DEVIATIONS FROM MEASUREMENT PROCEDURE YES (refer to section 21 for comments) NO RADIATED EMISSION TEST RESULT -2.0 dB @ 132.93 MHz/HORIZONTAL CONDUCTED EMISSION TEST RESULT -14.54 dB @ 17.849 MHz/L2 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved ByAcknowledged By MIKE C.I. KUO / VICE PRESIDENTBOBSON CHENG / ENGINEERING MANAGER COMPLIANCE ENGINEERING SERVICESUNIXTAR TECHNOLOGY, INC. LAB CODE: 200064-0 REPORT NO:98E7811 DATE:DECEMBER 08, 1998 EUT:PCI TO USB CARD FCC ID:NUOUSB0861 2 OF 14 COMPLIANCE ENGINEERING SERVICES, INC. DOCUMENT NO:CCSTP4002B NO.199, CHUNG SHENG ROAD, HSIN TIEN, TAIPEI, TAIWAN R.O.C. TEL:(02)2217-0894/FAX:2217-1254 This report shall not be reproduced except in full, without the written approval of CES . 2.PRODUCT DESCRIPTION LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) Y1 = 48MHz CHIPSET BRAND AND PART NO.OPTI, 82C861 NUMBER OF PCB LAYERS2 LAYERS BOARD REVISION NO.VER 2.1 POWER REQUIREMENTSDC 5V NO. OF EXTERNAL I/O CONNECTORS2 3.TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: Host Computer Device TypeManufacturerModel NumberSerial NumberFCC ID HOST COMPUTERHPVectra VL5/166 series 5DT HS-09DOC HARD DRIVEWESTERN DIGITAL WDAC21600-71FHD-09N/A FLOPPY DRIVEHPDF354H031AFD-09N/A VGA CARDBUILT-INN/AN/AN/A I/O CARDBUILT-INN/AN/AN/A USB CARD(EUT)UNIXTARUT-0861N/ANUOUSB0861 External Peripheral Devices Device TypeManufacturerModel NumberSerial No.FCC ID / DoC MONITORVIVA1568N/ADOC KEYBOARDAcer6511-TWKB-10JVPKBS-WIN KEYBOARD°—2 (USB) CHERRYMY3000 USB 4AKB-14, 16DOC MOUSEAcerM-S34ME-04DZL211029 PRINTERMATSUSHITA KX-P1080i PRN-01ACJ5Z6KX-P1080I MODEMDISCOVERY2496CFMD-04I972496AF REPORT NO:98E7811 DATE:DECEMBER 08, 1998 EUT:PCI TO USB CARD FCC ID:NUOUSB0861 3 OF 14 COMPLIANCE ENGINEERING SERVICES, INC. DOCUMENT NO:CCSTP4002B NO.199, CHUNG SHENG ROAD, HSIN TIEN, TAIPEI, TAIWAN R.O.C. TEL:(02)2217-0894/FAX:2217-1254 This report shall not be reproduced except in full, without the written approval of CES . 4.TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at …
