NVJAR16B

FCC ID NVJAR16B

Certification of Agency Agreement For ARO Ltd. FCC ID: NVJAR16B Electronic Filing Confirmation Number EA 92707 Correspondence Reference Number: 5683

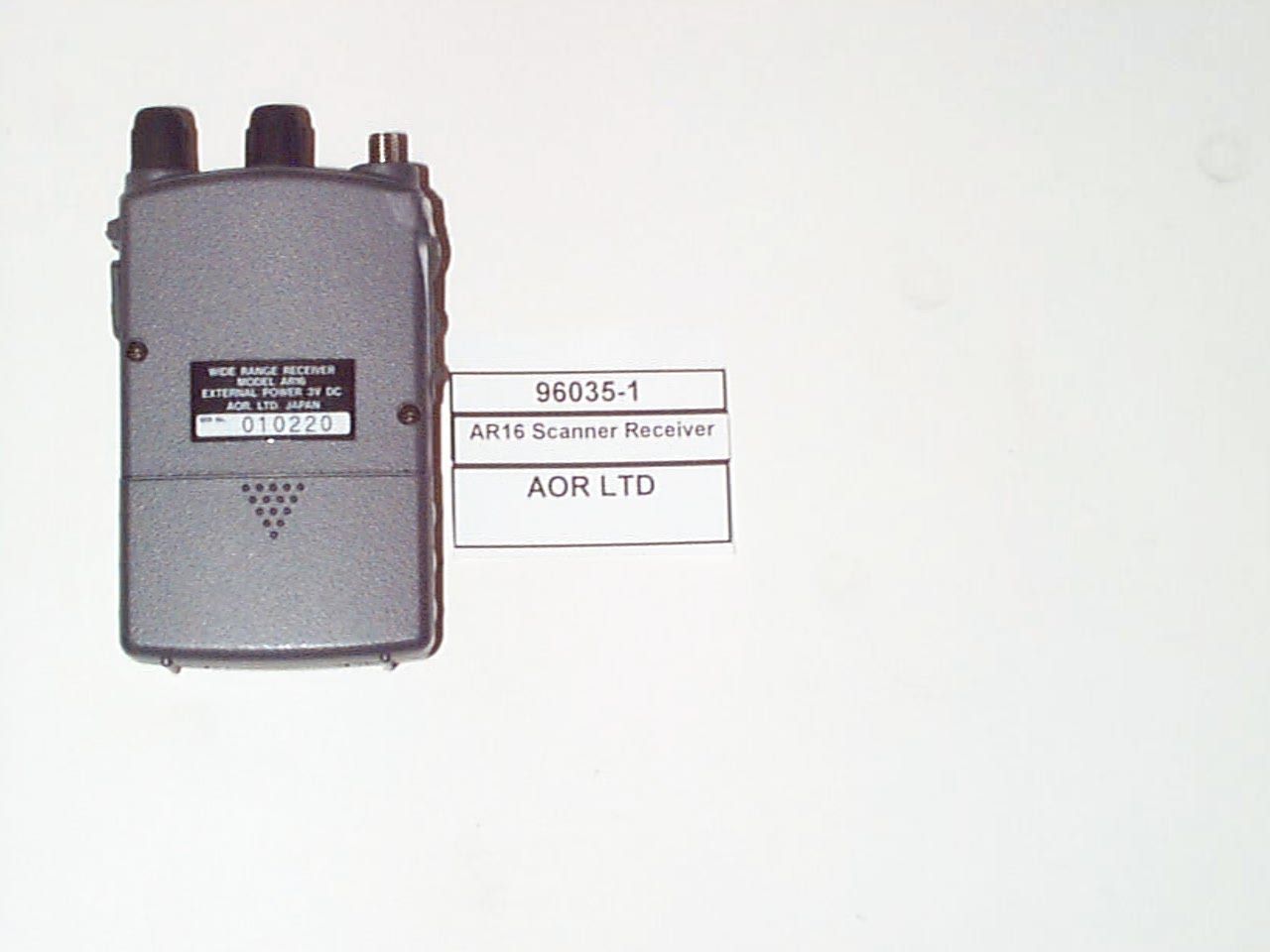

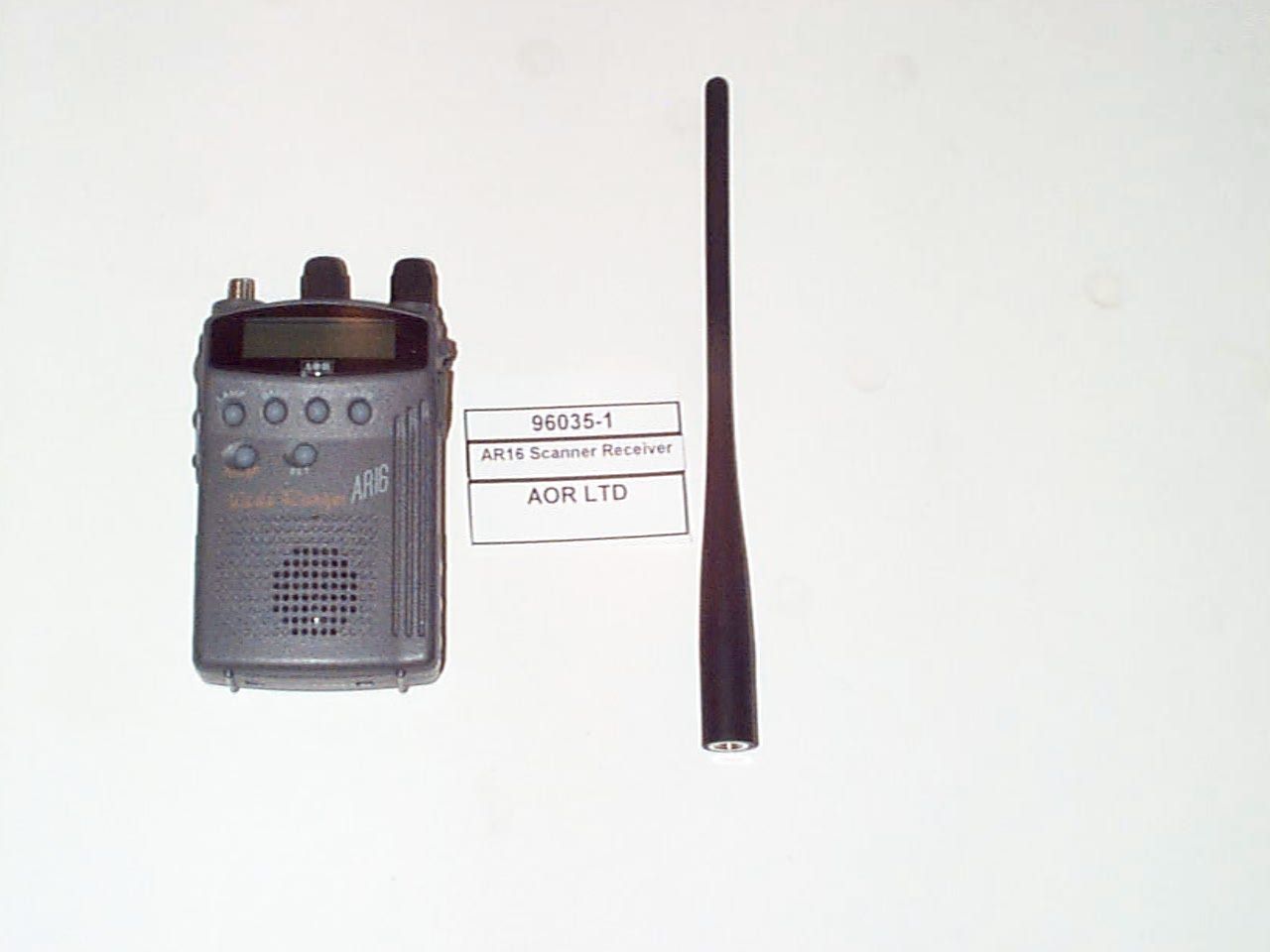

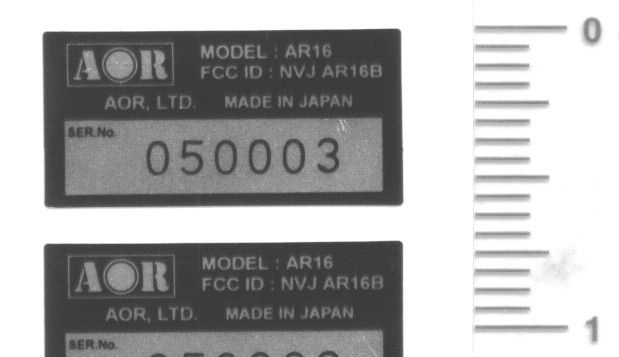

FCC ID : NVJAR16B FCC ID : NVJAR16B FCC ID : NVJAR16B

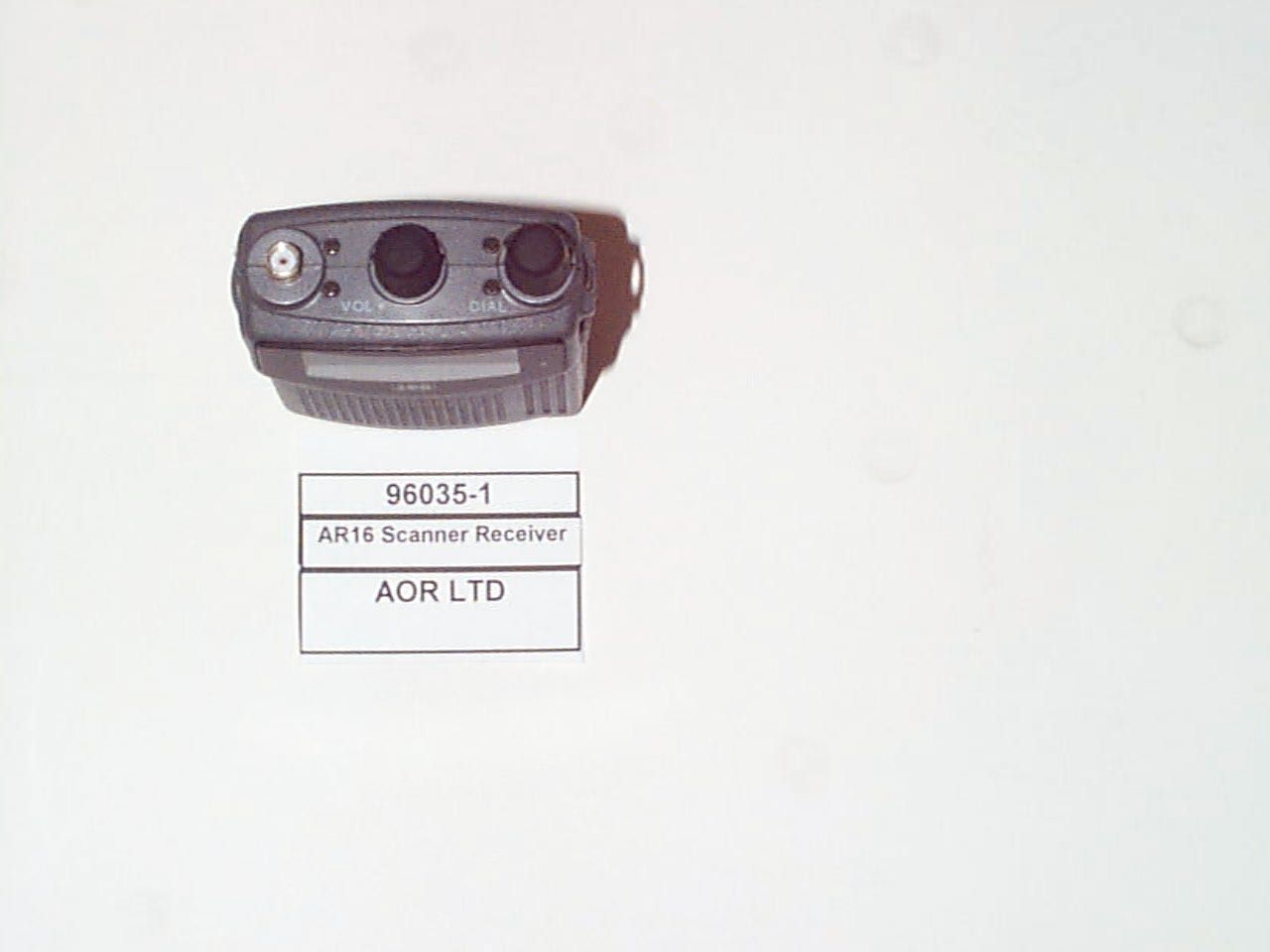

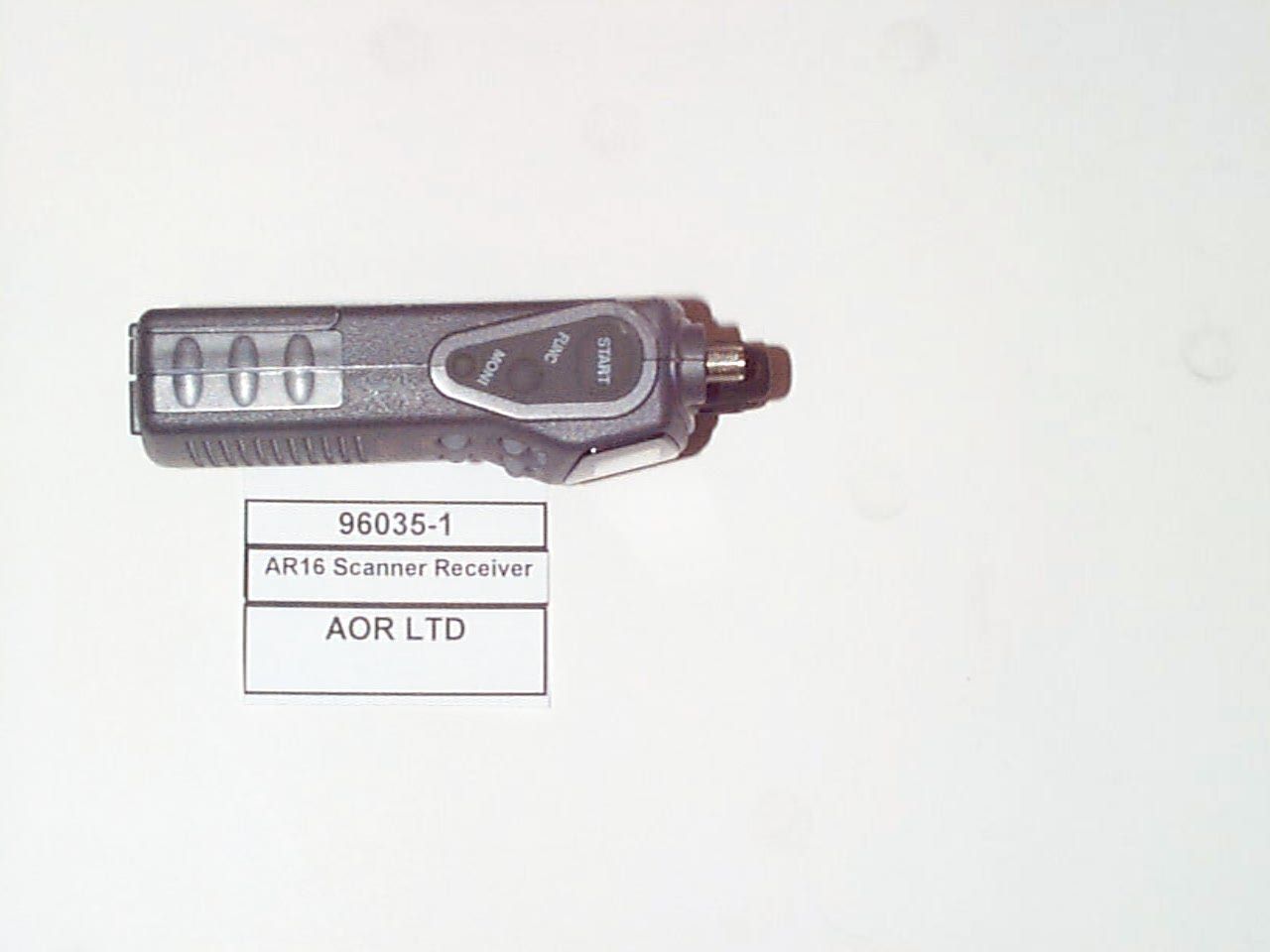

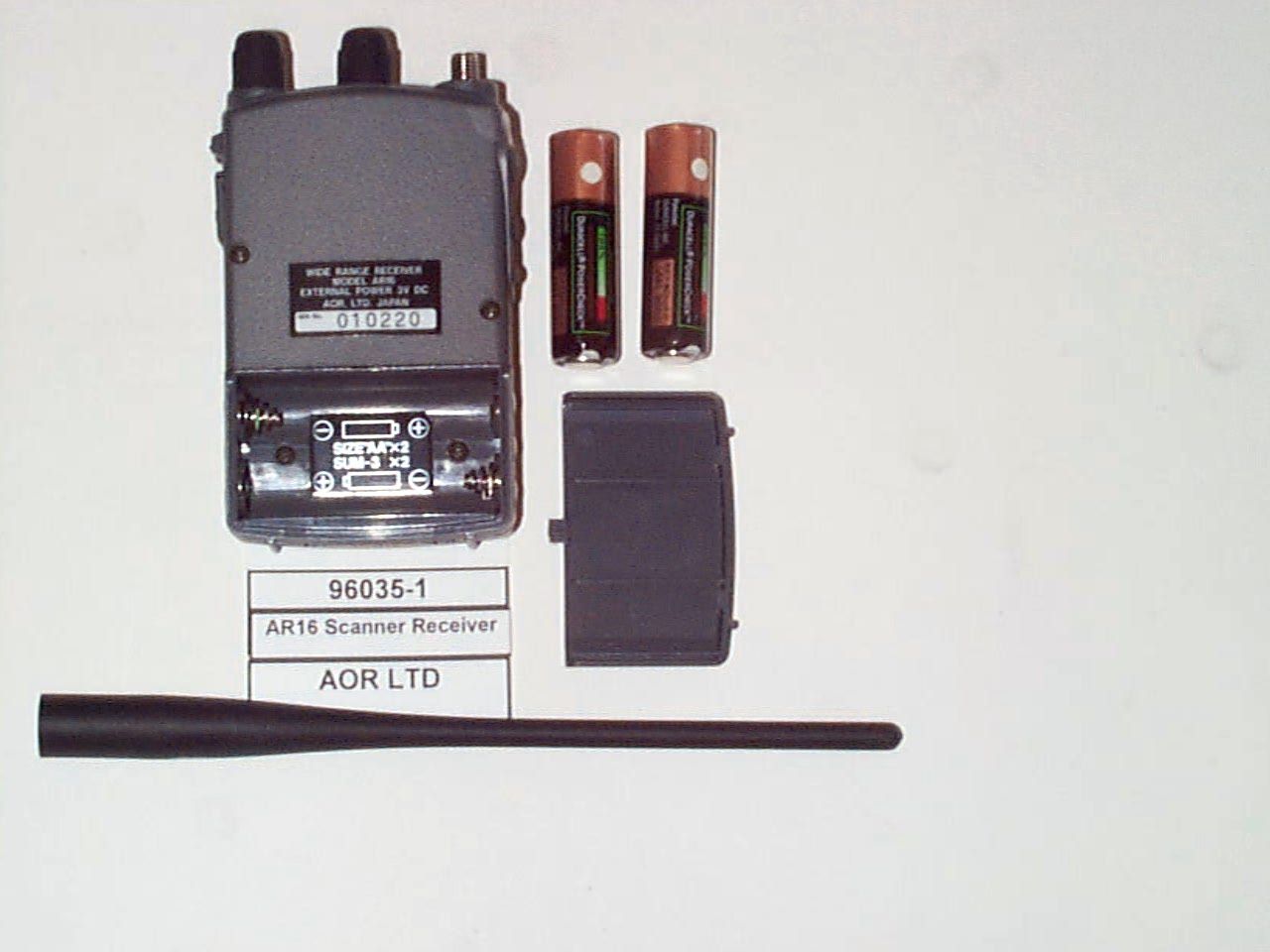

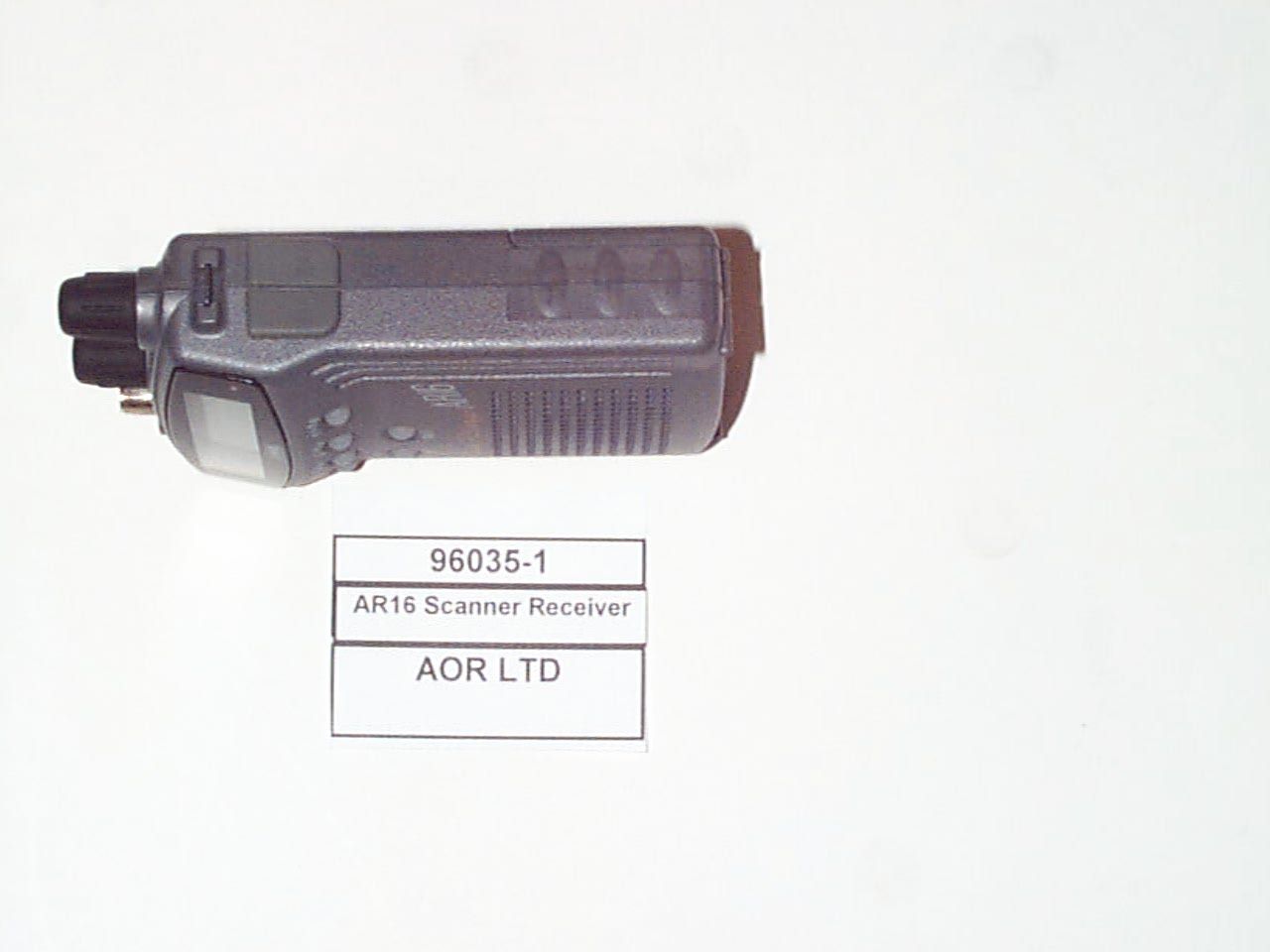

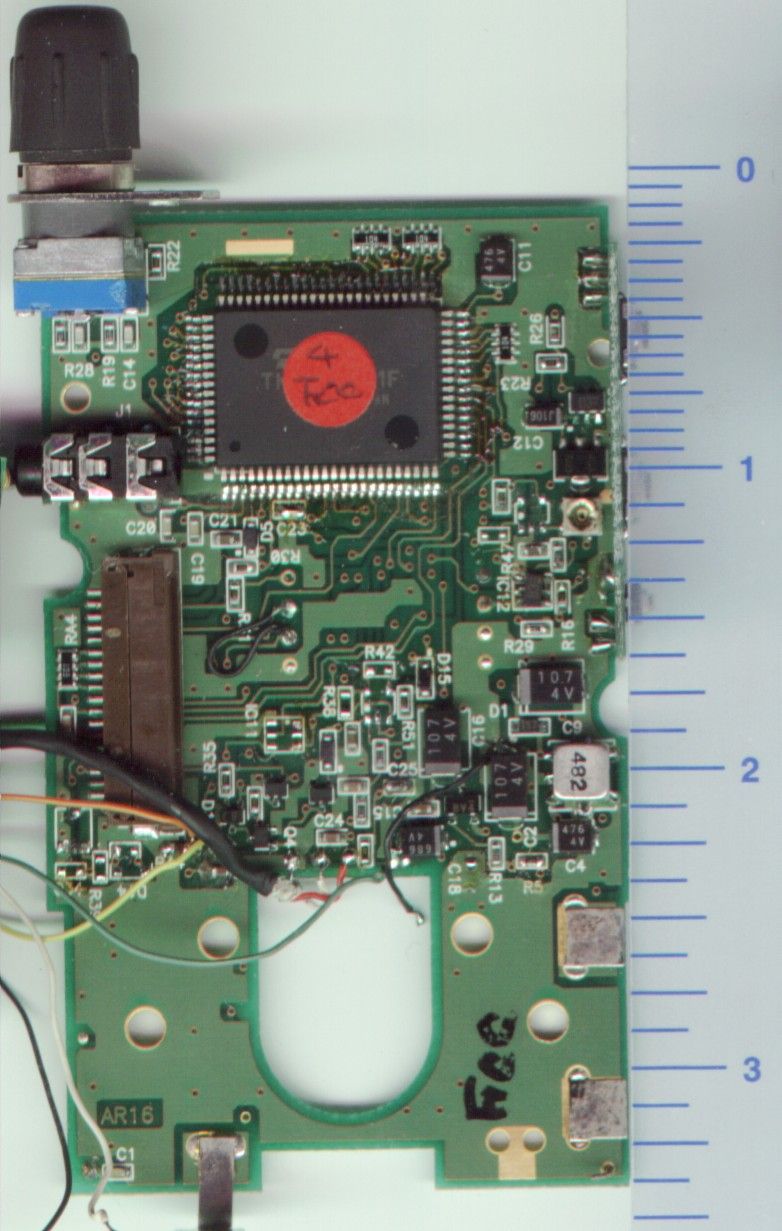

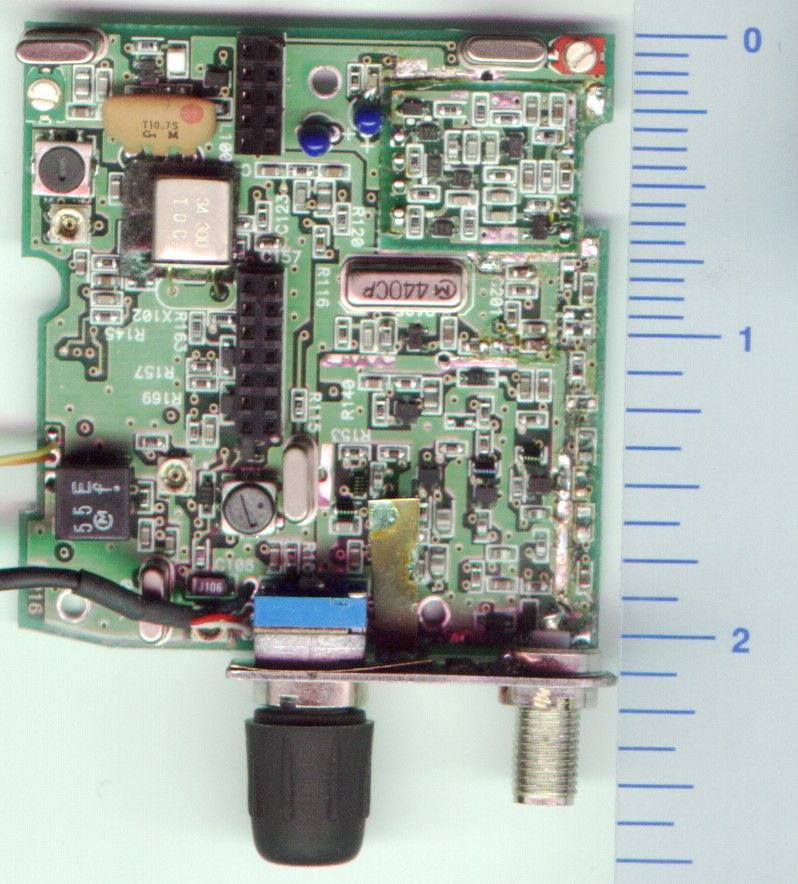

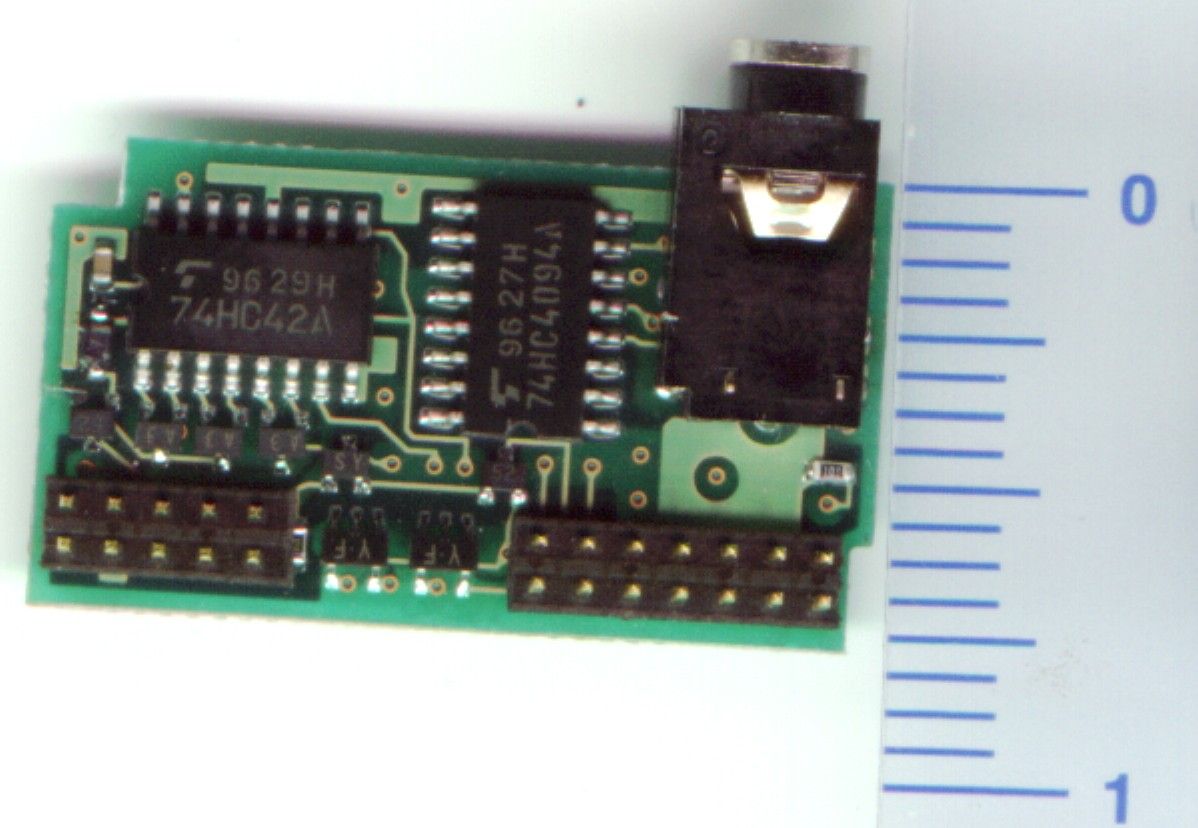

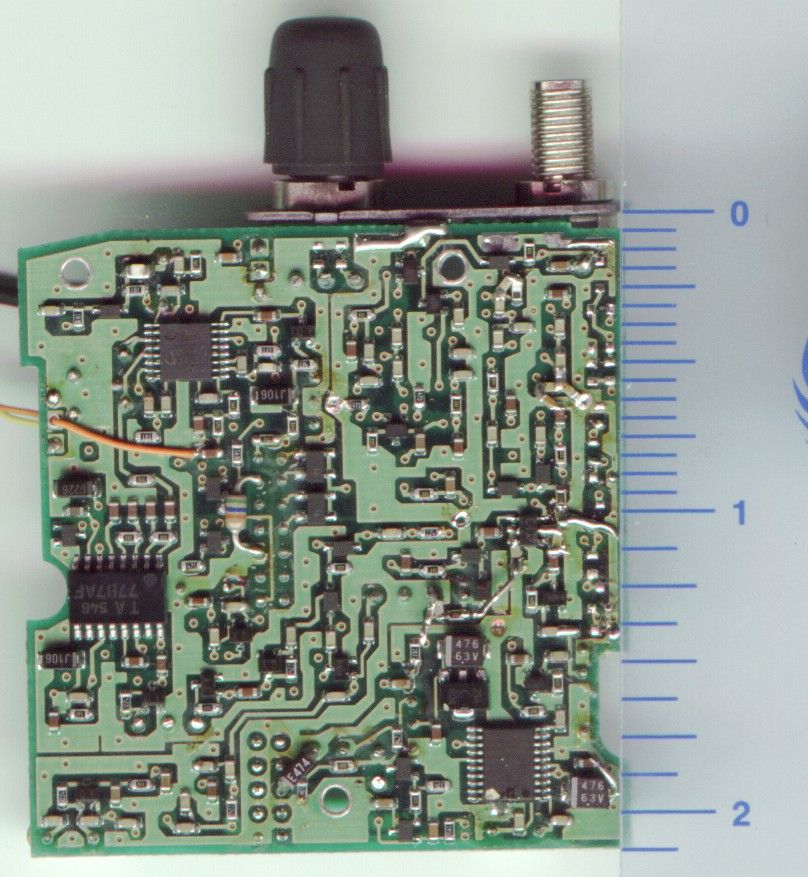

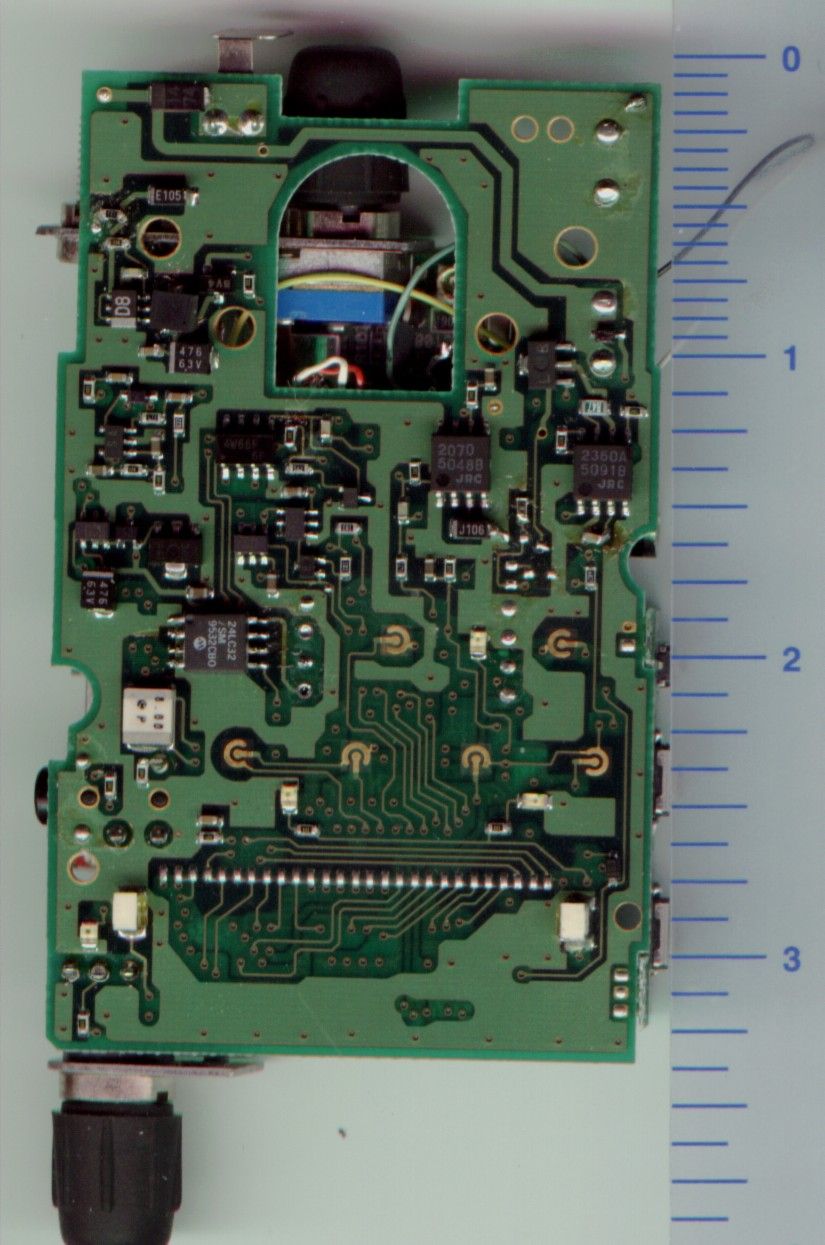

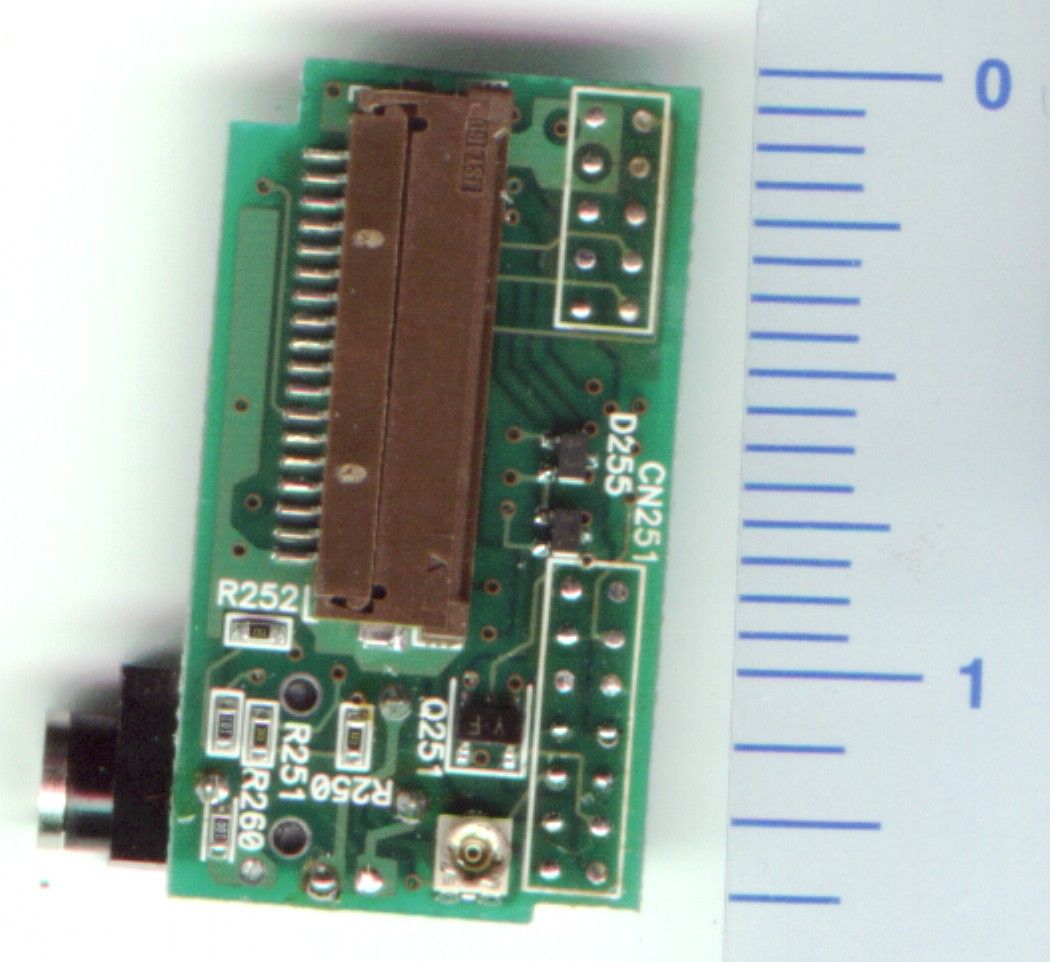

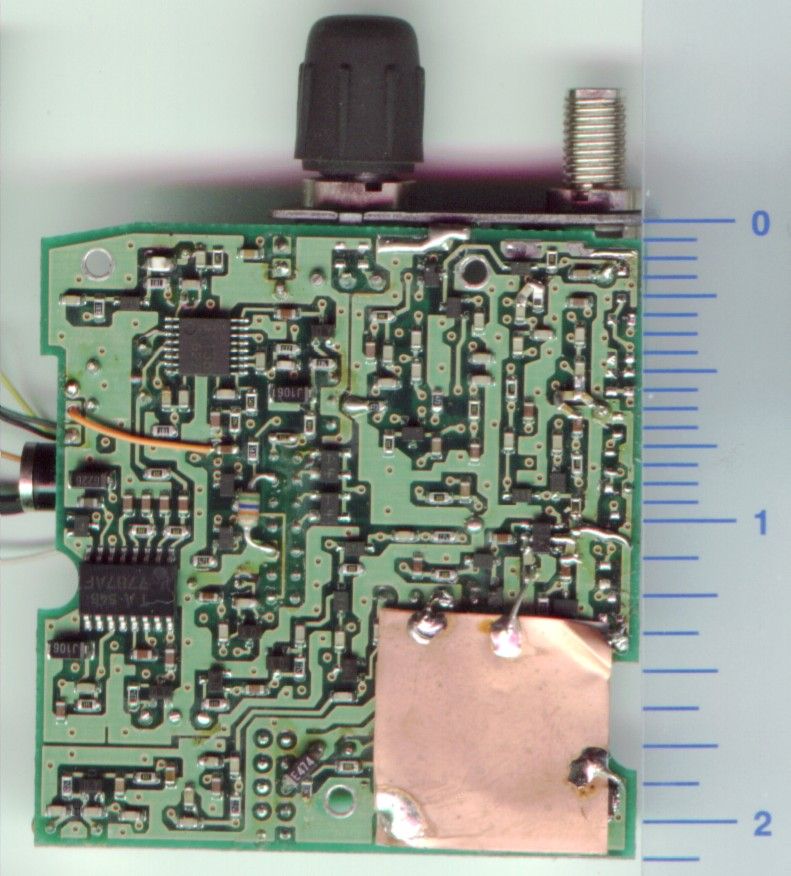

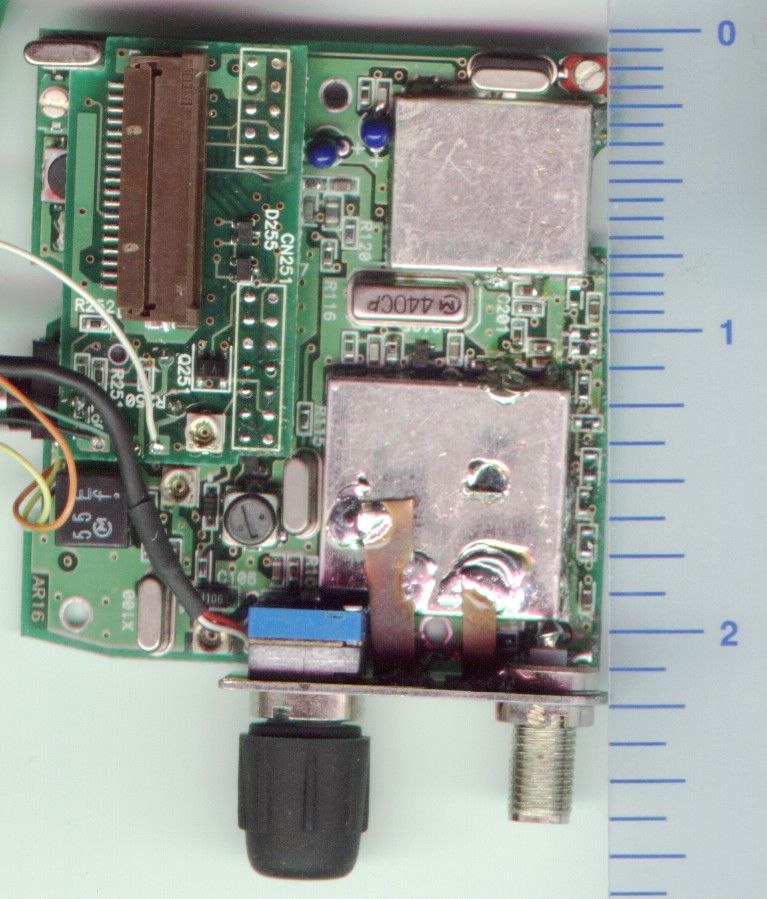

CPU RF

FCC ID: NVJ AR16B DATE: 11-23-98 REPORT #96035-1 1 DNB ENGINEERING, INC. per FCC Part 15 Subpart B EUT: AR16 SCANNER RECEIVER PREPARED FOR APPLICANT: AOR Ltd. 2375 W. 230th Pl. Torrance, CA 90501 REPORT #96035-1 Prepared By: DNB ENGINEERING, INC. 1100 East Chalk Creek Rd. Coalville, Utah 84017 Tel: 1(435) 336-4433 APPLICATION FOR CERTIFICATION OF A CLASS B DIGITAL DEVICE FCC ID: NVJ AR16B DATE: 11-23-98 REPORT #96035-1 2 TRANSMITTAL SUMMARY Unit tested:AR16 SCANNER RECEIVER Specifications: ANSI C63.4 (1992) CFR 47 FCC part 15 Subpart B Purpose of Report:This report was prepared to document the status of the AR16 SCANNER RECEIVER with requirements of the regulations listed above. Test SummaryThe EUT’s compliance status according to the tests performed is as follows. REQUIREMENTSSTATUS CFR 47 Part 15 30-1000 MHz Radiated EmissionsCOMPLIANT Class B The report shall not be reproduced, except in full, without the written approval of DNB ENGINEERING, INC. Results contained in this report relate only to the item tested. FCC ID: NVJ AR16B DATE: 11-23-98 REPORT #96035-1 3 CERTIFICATION OF TEST DATA - per 2.911(d) This report, containing emissions test data and evaluations, has been prepared by an independent electromagnetic compatibility laboratory, DNB ENGINEERING, in accordance with the applicable specifications and instructions required per the Introduction. DNB Engineering has been evaluated and approved to do these tests as proof of compliance. The data evaluation and equipment configuration presented herein are a true and accurate representation of the measurements of the test emissions characteristics as of the dates and at the times of the test under the conditions herein specified. Equipment Tested:AR16 SCANNER RECEIVER FCC ID:NVJ AR16B Dates of Test:11-23-98 Test Performed: ____________________________________________ Norm HansenDate Test Technician Test Report Reviewed: ____________________________________________ Rick LinfordDate Facility Manager Regulatory Engineer FCC ID: NVJ AR16B DATE: 11-23-98 REPORT #96035-1 4 TABLE OF CONTENTS 1.INTRODUCTION..............................................................................................................................................5 1.1ADMINISTRATIVE DATA PER 2.1033(A) AND 2.911(C)........................................................................................5 1.1.1REQUEST FOR CERTIFICATION Per 2.1033(b)1:............................................................................5 1.2RELATED SUBMITTALS/GRANTS..........................................................................................................................5 1.3PURPOSE OF TESTS............................................................................................................................................5 2.TEST DESCRIPTION........................................................................................................................................6 2.1SYSTEM CONFIGURATION TABLE........................................................................................................................6 2.2EQUIPMENT DESCRIPTION.................................................................................................................................6 2.3CIRCUIT DESCRIPTION - PER 2.1033(B)4...........................................................................................................6 2.3.1Mode of Operation..................................................................................................................................6 2.3.2Modifications to EUT..............................................................................................................................6 2.4PHOTOGRAPH OF EUT - PER 2.1033(B)(7)........................................................................................................7 3.EMISSIONS FCC PART 15.............................................................................................................................8 3.1RADIATED EMISSIONS TEST SETUP AND PROCEDURE - PER 2.1033(B)(6) PER 2.947(A)..................................8 3.1.1Spurious Radiation Test Site Per 2.1033(b)6........................................................................................8 3.1.2Example Of Typical Calculation Per 2.1033(b)6................................................................................10 3.1.3Diagram of Test Setup - per 2.1033(b)5...............................................................................................11 3.1.4Radiated Emissions Compliance Data - table #1.................................................................................12 3.1.5Photograph of Radiated Test Setup - per 2.1033(b)(7)........................................................................13 4.LABELING REQUIREMENTS - PER 2.1033(B)(7)....................................................................................14 4.1ADDITIONAL LABEL REQUIRED........................................................................................................................14 5.BLOCK DIAGRAM & SCHEMATIC DIAGRAMS....................................................................................17 6.OWNERS MANUAL.......................................................................................................................................18 7.APPENDIX SECTION...................................................................................................................................19 7.1APPENDIX A: TEST DATA.........................................................................................................................20 7.2APPENDIX B: UNCERTAINTY TOLERANCE...........................................................................................21 7.3APPENDIX C: TEST SITE CERTIFICATION, CHALK CREEK EMI SITE - PER 2.948(A)........................23 7.4APPENDIX D: EMC INSTRUMENTATION...................................................................…

Text truncated - open the document above for the full version.

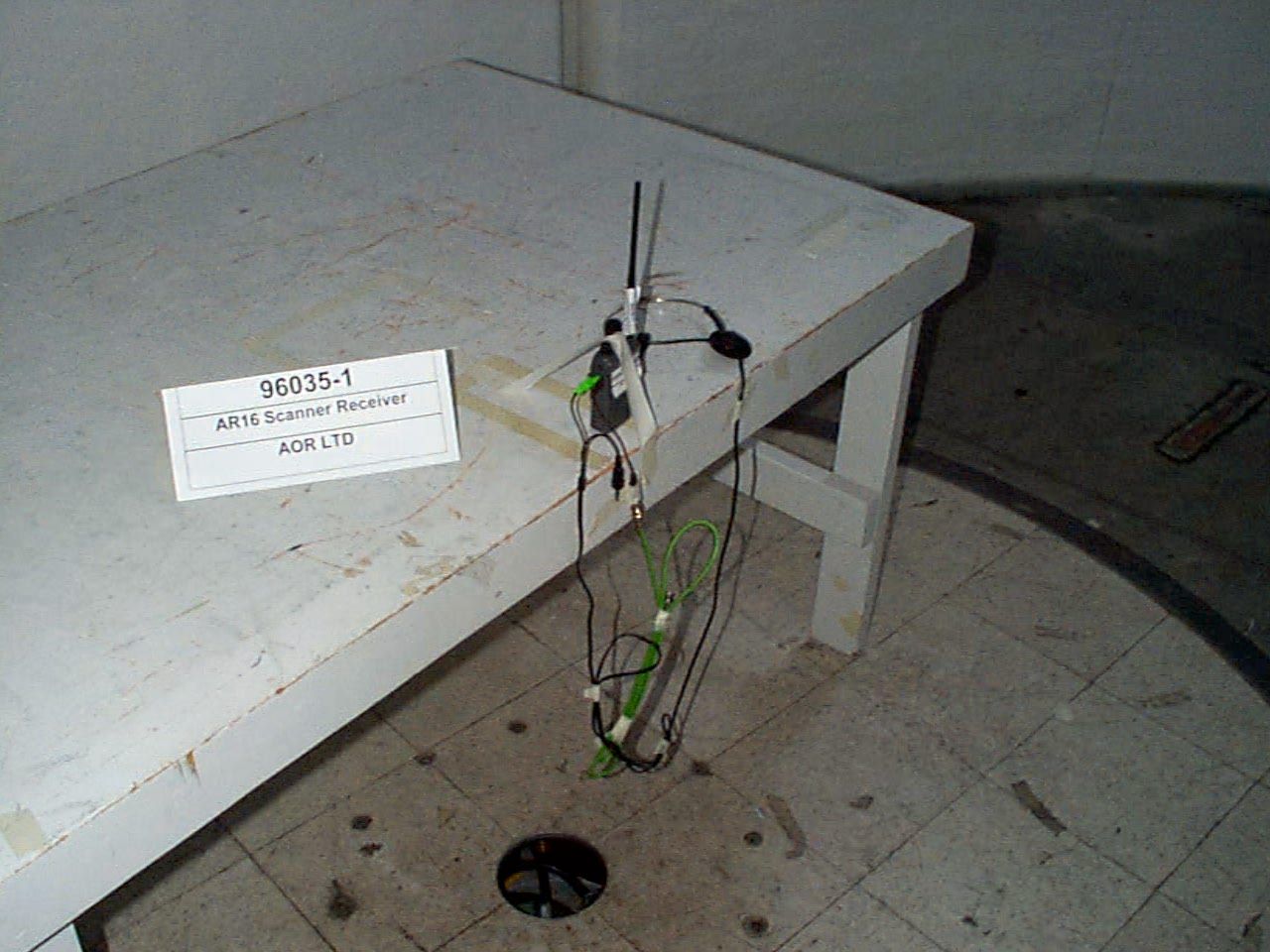

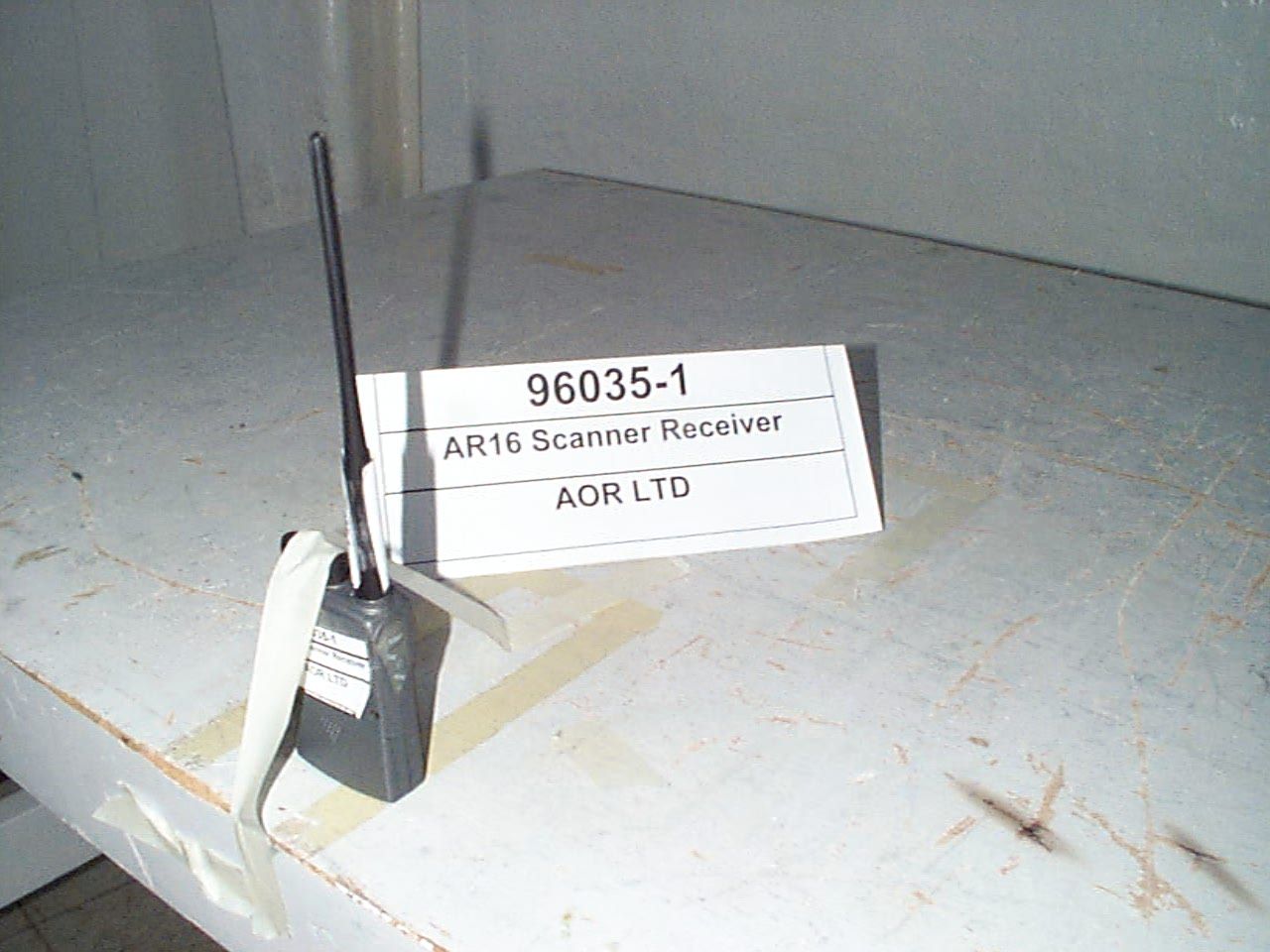

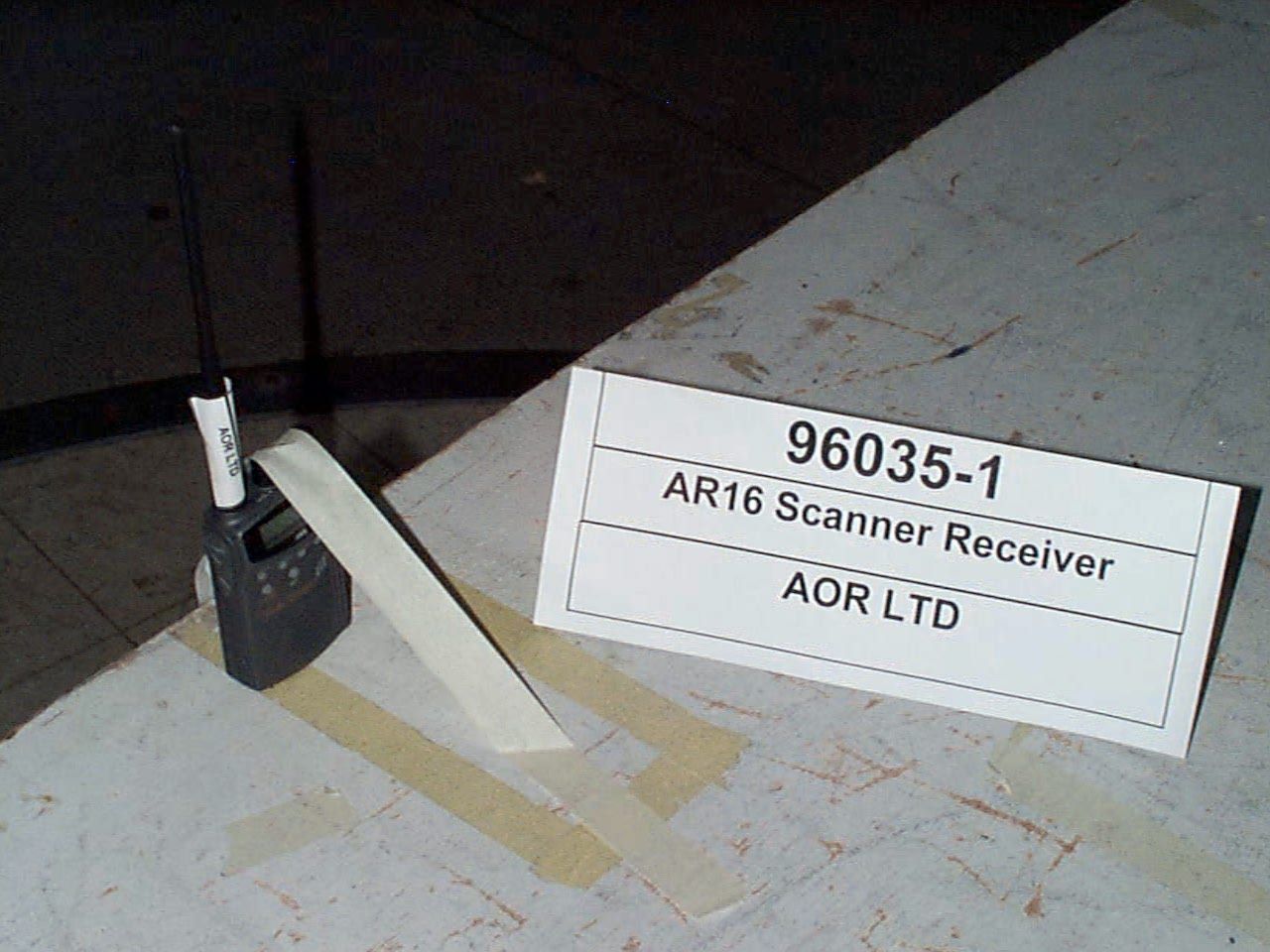

Aor ltd ar16-bDNB Engineering, Inc.Page 1 RADIATED EMISSIONS Location #1 FCC Part 15 Class B Client:AOR LTDFile #96035-1 Rep. : Taka Nakaya Date :22-Feb-99Engr.:Rick \YanceySystem:AR16B 3 Meter Meas AmpCableAntennaTotalFCC Type FreqMeas'dFactorsFactorsFactorsFactorsTotalLimitDeltaAzimuthHeightHor/HP/ Ave (MHz)(dBuV)(dB)(dB)(dB)(dBuV/m)(dBuV/m)(dBuV/m)(dB)(degree)(m)VertR&SPeakComments 1485.90051.726.33.325.12.253.954.0-0.101.00VertHPAve tuned to 450 Run 2 1531.00050.526.43.325.42.352.854.0-1.23471.00Hor/HPAve tuned to950 Run2 1410.00048.525.63.224.92.551.054.0-3.03481.00Hor/HPAvetuned to 30 Run 2 1019.74045.222.02.723.44.149.354.0-4.72651.00VertHPAVE tuned 950 Run 2 1410.00040.925.63.224.92.543.454.0-10.62191.00VertHPAve tuned to 30 Run 2 1019.74037.922.02.723.44.142.054.0-12.03041.00Hor/HPAVE tuned to 950 Run 2 1531.00039.226.43.325.42.341.554.0-12.53531.00VertHPAve tuned to950 Run2 1485.90038.726.33.325.12.240.954.0-13.1391.00VertHPAvetuned to 450 Run 2 1100 E. Chalk Creek Road. Coalville Utah, 84017 Data not valid for report unless signed by DNB personnel _____________________________ Phone (801) 336-4433 Fax (801) 336-4436
