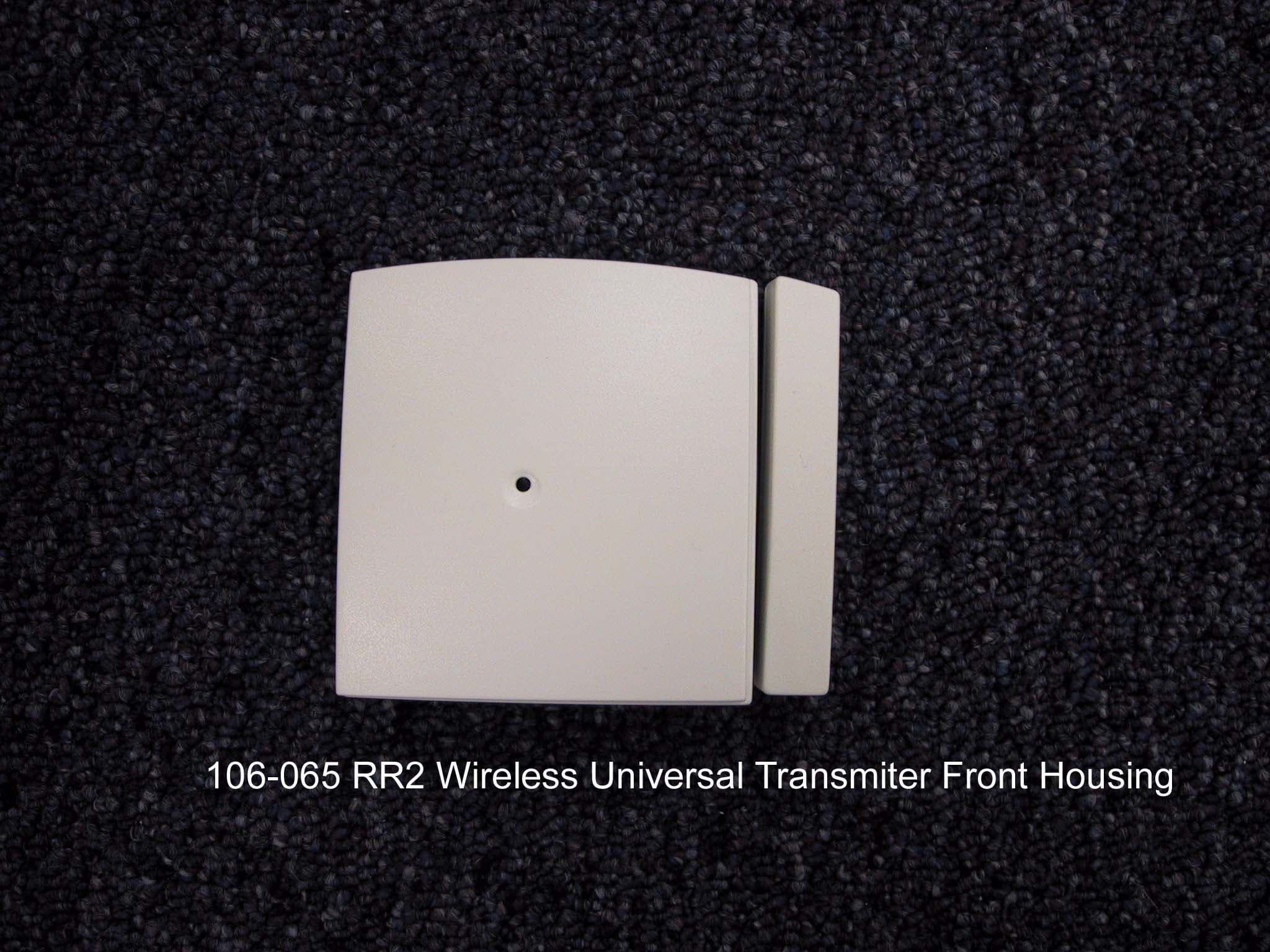

O2K-106065RR2 Wireless Universal Transmitter

Revision 1 Wireless Security System Owner's Manual  FCC STATEMENT: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause Interference to radio and television reception. It has been type tested. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • If using an indoor antenna, have a quality outdoor antenna installed. • Reorient the receiving antenna until interference is induced or eliminated. • Move the receiver away from the security control. • Move the antenna leads away from any wire runs to the security control • Have the device or controller plugged into a different outlet so that it and the receiver are on different branch circuits. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user or installer may find a booklet titled "Interference Handbook" prepared by the Federal Communications Commission helpful: This booklet is available from the U.S. Government Printing Office, Washington, DC 20402. The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or Users Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. “Australia’s largest designer and manufacturer of high quality security products” www.ness.com.au WARNING Installation and maintenance shall be performed by qualified service personnel only. CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions on the battery. HEAD OFFICE & MANUFACTURING Ness Security Products Pty Ltd ABN 28 069 984 372 4 / 167 Prospect Hwy Seven Hills NSW 2147 Australia Ph +61 2 8825 9222 Fax +61 2 9838 8508 [email protected] DISTRIBUTED IN USA BY: The Systems Depot 3266 US Hwy 70 West Connelly Springs, NC 28612 Ph: 877 254 2172 Fax: 828 397 4212 GUARDPOST Wireless Alarm System with GSM Communicator FCC ID: O2K-106058 Contains GSM/GPRS Modem Transmitter Module FCC ID: MIVGSM0108 Wireless Mini Door & Window Switch Transmitter (RR1) FCC ID: O2K-106064 Wireless Universal Transmitter w/ext input & Vib analyser (RR2) FCC ID: O2K-106065 Wireless 4 Button Keyfob Transmitter (RK4) FCC ID: O2K-106068 Wireless 3 Button Keyfob Transmitter (RK3) FCC ID: O2K-MK304 Wireless 1 Button Bracelet / Neckless Panic Transmitter (RK1) FCC ID: O2K-106050 Wireless Emergency Button Transmitter (RPB) FCC ID: O2K-106054 Wireless Door Bell Button Transmitter (RDB) FCC ID: O2K-106056 Wireless PIR with Pet Immunity (R15PET) FCC ID: O2K-106051 Wireless PIR - Non Pet Immune (R15) FCC ID: O2K-SPIR304 Swivel Mounting Bracket for Wireless PIR FCC ID: N/A  Guardpost Main Unit onboard siren / Speaker Siren and spoken voice prompts. Scrolling LeD Display Indicator LeD One flash every 5 seconds indicates normal Operation. Control Buttons LefT bUTTONRIGhT bUTTON adjust Main Volume - Press x 1 Main Volume 1 – 4 adjust Bell Type - Press x 2 Bell Type 1 – 3 adjust Bell Volume - Press x 3 Bell Volume 1 – 4 – OFF Rechargeable Main Battery (Internal). onboard Motion Sensor (PIR) emergency over-ride keyswitch GSM Communicator (Internal). Congratulations on selecting GUaRDPOST to protect your family and home. Your GUaRDPOST with its "speak easy" technology is a revolutionary radio based state-of-the-art alarm system which has been built to the highest standards of industrial design and manufacturing. The many sophisticated and innovative design features of the GUaRDPOST make the system highly secure as well as being easy to use. This Owner's Manual will help you identify the various parts of your GUaRDPOST system and give you an overview of Operation and functions.  Operation button Press once. Arm StAy (IF enaBLeD) button Press twice. StAy2 (IF enaBLeD) button Press three times. DiSArm (OR TO ReSeT aLaRMS) In these example house plans armed areas are shown shaed , Disarmed areas shown unshaded. System is fully armed System is partially armed System is partially armed System is disarmed button Press once.  button Press & hold for 4 seconds. PAnic AlArm Operation Central Monitoring Station alarm cleAring DiSPlAyS button Press once. To clear any display, press the Disarm button. To recall the display press Disarm again, (unless the display has been reset by arming and disarming.) emergency Over-riDe Key Only to be used if your remote radio Keys are lost. Insert key and turn counter-clockwise to disable the Guardpost. (Store these keys in safe, hidden place). GUaRDPOST POWeR OFF Turn the key counter clockwise. GUaRDPOST POWeR On Turn the key clockwise. GSM Communicator  Main Unit Battery Connect the charger for 24 hours. The red Indicator LeD will be on while charging. LOW MAIN bATTeRy (battery Powered Systems) If your Guardpost does not run off mains power, the main battery will provide 3-4 month's Operation before it must be recharged. When the "Low Main Battry" message is displayed you must charge the main battery. Plug the charger into a 110V mains outlet and plug the charging connector into the Guardpost for 24 hours. GSM Cellular Communicator GSM Communicator (Internal). …

Text truncated - open the document above for the full version.

ABN 28 069 984 372 REQUEST FOR CONFIDENTIALITY Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: 02K-106065 Request for Confidentiality Dear Sirs: With regard to the referenced application, Ness Security Products Pty. Ltd., is requesting confidentiality of certain sections of the accompanying documents. The documents for which Ness Security Products is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, David Steele Engineering Director U.S. Distribution SYDNEY – Head Office BRISBANE MELBOURNE PERTH 4/167 Prospect Highway 3/471 Lytton Road 24 Terracotta Drive Unit 1, 567 Newcastle Street Seven Hills NSW 2147 Australia Morningside QLD 4170 Australia Blackburn VIC 3130 Perth WA 6000 Telephone 02 8825 9222 Telephone 07 3399 4910 Telephone 03 9875 6400 Telephone 08 9328 2511 Fax 02 9674 2520 Fax 07 3217 9711 Fax 03 9875 6422 Fax 08 9227 7073 [email protected] [email protected] [email protected] [email protected] ABN 28 069 984 372 SYDNEY – Head Office BRISBANE MELBOURNE PERTH 4/167 Prospect Highway 3/471 Lytton Road 24 Terracotta Drive Unit 1, 567 Newcastle Street Seven Hills NSW 2147 Australia Morningside QLD 4170 Australia Blackburn VIC 3130 Perth WA 6000 Telephone 02 8825 9222 Telephone 07 3399 4910 Telephone 03 9875 6400 Telephone 08 9328 2511 Fax 02 9674 2520 Fax 07 3217 9711 Fax 03 9875 6422 Fax 08 9227 7073 [email protected] [email protected] [email protected] [email protected]

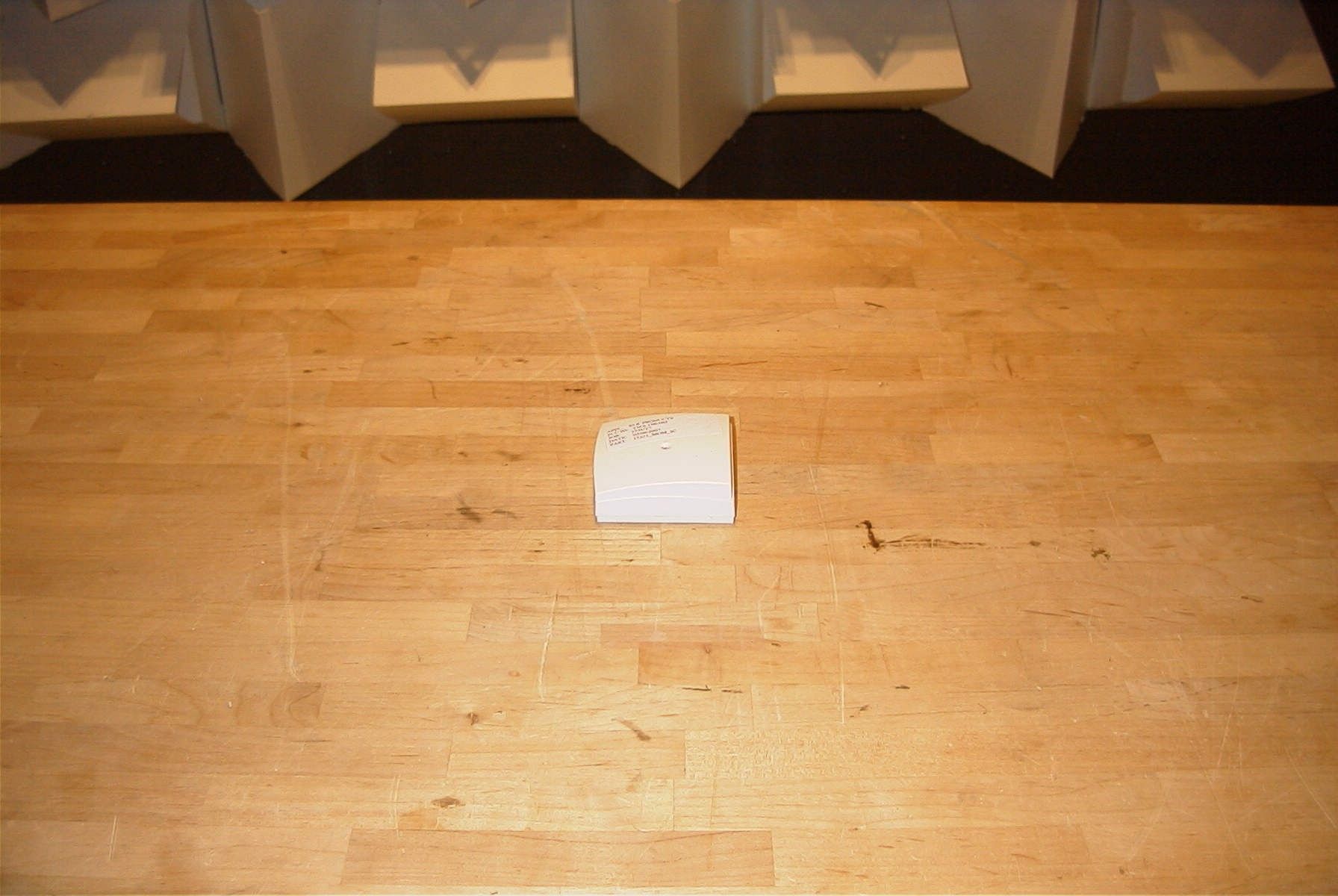

FCC TEST REPORT PART 15.231 APPLICANT NESS SECURITY PRODUCTS PTY. LTD. ADDRESS 4/167 PROSPECT HWY. SEVEN HILLS NSW 2147 AUSTRALIA FCC ID O2K-106065 MODEL NUMBER 106-065 PRODUCT DESCRIPTION RR2 WIRELESS UNIVERSAL TRANSMITTER DATE SAMPLE RECEIVED 2/6/2007 DATE TESTED 2/13/07 TESTED BY Joe Scoglio APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 355UT7TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: NESS SECURITY PRODUCTS PTY LTD FCC ID: O2K-106065 REPORT: W:\N\NESS_O2K\355UT7\355UT7TestReport.doc Page 2 of 13 TABLE OF CONTENTS GENERAL INFORMATION......................................................... 3 COMPLIANCE WITH PART 15.231(a)........................................... 4 EMC EQUIPMENT LIST.......................................................... 5 TEST PROCEDURE............................................................ 6 RADIATION INTERFERENCE................................................... 7 CALCULATION OF DUTY CYCLE................................................ 9 OCCUPIED BANDWIDTH....................................................... 12 APPLICANT: NESS SECURITY PRODUCTS PTY LTD FCC ID: O2K-106065 REPORT: W:\N\NESS_O2K\355UT7\355UT7TestReport.doc Page 3 of 13 GENERAL INFORMATION EUT Specification The test results relate only to the items tested. FCC ID O2K-106065 Model Number 106-065 Product Description RR2 WIRELESS UNIVERSAL TRANSMITTER Operating Frequency 303.8 Primary Power 9v D.C. EUT Power Secondary Power N/A Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Test standards FCC Part 15, Subparts C ANSI C63.4 – 2003 Modification to the DUT None Test exercise The EUT was set in continuous transmit mode of operation. Test Facility Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669. APPLICANT: NESS SECURITY PRODUCTS PTY LTD FCC ID: 02K-106065 REPORT: W:\N\NESS_O2K\355UT7\355UT7TestReport.doc Page 4 of 13 COMPLIANCE WITH PART 15.231(a) Part 15.231(a): • Continuous operation: Yes No • Control signal only: Yes No • Data transmission with a control signal Yes No N/A Description of control signal: _______________(notes: indicate whether such info is included in supporting exhibit such as operation description page xx) Part 15.231(a)(1): • Manually operated device: Yes No • Does it meet the 5s deactivation requirement after the switch is being released: Yes No Description: _______________(notes: a plot showing the pulse train does not necessarily constitute an objective evidence of compliance with the deactivation requirement. A plot should be accompanied by an explanation and/or statement of compliance, if not otherwise clearly stated in supporting documentation e.g. operation description page xx) Part 15.231(a)(2): • Automatically operated device: Yes No • Does it meet the 5s deactivation requirement after being activated: Yes No Description: _______________(notes: a plot showing the pulse train does not necessarily constitute an objective evidence of compliance with the deactivation requirement. A plot should be accompanied by an explanation and/or statement of compliance, if not otherwise clearly stated in supporting documentation e.g. operation description page xx) Part 15.231(a)(3): • Periodic transmission at regular predetermined intervals: Yes No N/A Description: ________________ • Polling or supervision transmissions, including data, to check system integrity check requires a total transmission time not exceeding 2s per hour: Yes No N/A Part 15.231(a)(4): Operation involving fire, security, or safety of life, when activated to signal an alarm, may operate during the pendency of the alarm condition. Does the transmitter meet the condition? Yes No N/A APPLICANT: NESS SECURITY PRODUCTS PTY LTD FCC ID: 02K-106065 REPORT: W:\N\NESS_O2K\355UT7\355UT7TestReport.doc Page 5 of 13 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/30/06 10/30/08 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 10/30/06 10/30/08 Analyzer Silver Tower Quasi- Peak Adapter HP 85650A 3303A01844 CAL 10/30/06 10/30/08 Analyzer Open- Frame Tower Preamplifier HP 8449B 3008A01075 CAL 8/8/05 8/8/07 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Log- Periodic Electro-Metrics LPA-25 1122 CAL 12/1/06 12/1/08 APPLICANT: NESS SECURITY PRODUCTS PTY LTD FCC ID: 02K-106065 REPORT: W:\N\NESS_O2K\355UT7\355UT7TestReport.doc Page 6 of 13 TEST PROCEDURE RADIATION INTERFERENCE: The test procedure used was ANSI C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 88.3ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correctio…

Text truncated - open the document above for the full version.
