O2OBTP2M100Motorola Bluetooth Phone Module

Compatible with Timeport™ 270c Digital Wireless Phones ™ Bluetooth Specification 1.0B Compliant Welcome Welcome to Motorola’s “connected” world of Bluetooth™ personal area wireless networking. The Motorola Bluetooth Phone Module makes wireless connection simple and quick. With the Bluetooth Phone Module, you can quickly and securely transmit data or audio between your Motorola Timeport™ 270c wireless phone and other Bluetooth devices such as headsets or notebook computers. (Other Bluetooth devices must be purchased separately.) The Bluetooth technology makes all connections quickly and without any cables . All Motorola wireless products are designed and manufactured to meet Motorola’s rigorous specifications and world-class quality standards. During development, our testing team took the Motorola Bluetooth Phone Module through rigorous durability tests including temperature, humidity, shock, dust, vibration, and drop tests—and it worked perfectly. We are confident that you will find your Bluetooth Phone Module to be a convenient and secure way to exchange data and audio. Thank you for choosing a Motorola Bluetooth product! 2 Personal Communications Sector 600 North U.S. Highway 45 Libertyville, Illinois 60048 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. The BLUETOOTH trademarks are owned by their proprietor and used by Motorola, Inc., under license. TrueSync is a trademark of Starfish, Inc., a wholly owned subsidiary of Motorola, Inc. All other product or service names are the property of their respective owners. © 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A. Manual number:9888933L01-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 What Is Bluetooth Wireless Technology? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 How Can I Use My Bluetooth Phone Module? . . . . . . . . . . . . . . . . . . . . . . . . . 7 The Basic Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Attaching the Module to Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Attaching the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Verifying Module Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Introducing Devices to Each Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Introducing Your Phone to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Introducing a Headset to Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Linking with a PC or Data Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Responding to Link Requests from Data Devices . . . . . . . . . . . . . . . . . . . . . . . 19 Linking with a Bluetooth Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Responding to Link Requests from a Bluetooth Headset . . . . . . . . . . . . . . . . . 21 Re-establishing a Headset Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Managing Multiple Handsfree Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 If You Lose Your Bluetooth Connection During a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Using the Headset Bluetooth Control Button . . . . . . . . . . . . . . . . . . . . . . . . . 25 4 Ending a Bluetooth Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Ending a Connection with a Bluetooth Headset . . . . . . . . . . . . . . . . . . . . . . . 26 Ending a Connection with a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Customization Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Naming Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Turning Voice Dial On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Maintaining Your Device List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Reviewing Your Device List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 5 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. This device complies with part 15 of the FCC rules and with RSS-210 / RSS- 139 of the Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). Canada Compliance (Industry Canada) To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment that is installed outdoors is subject to licensing. In French:Pour empêche…

Text truncated - open the document above for the full version.

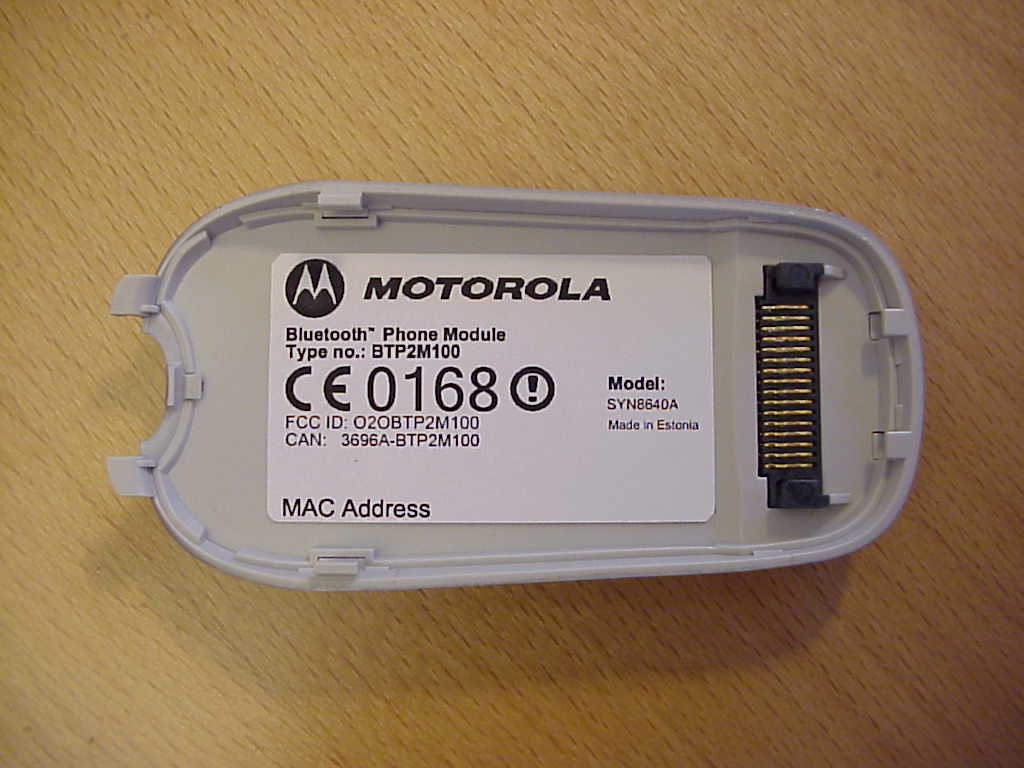

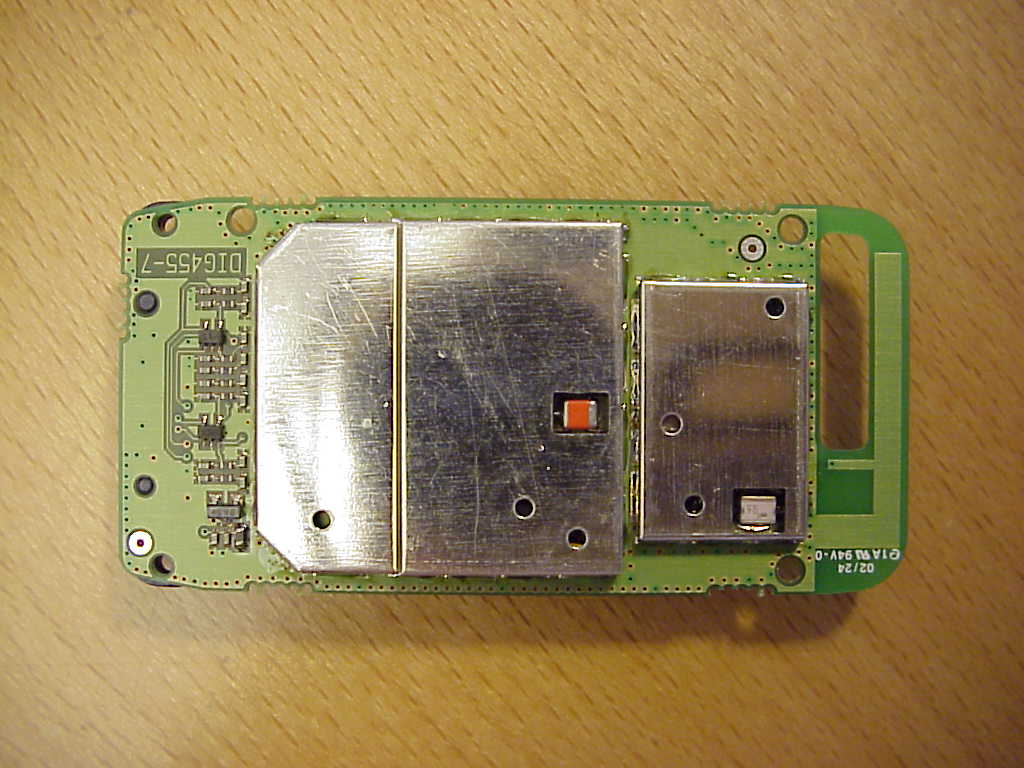

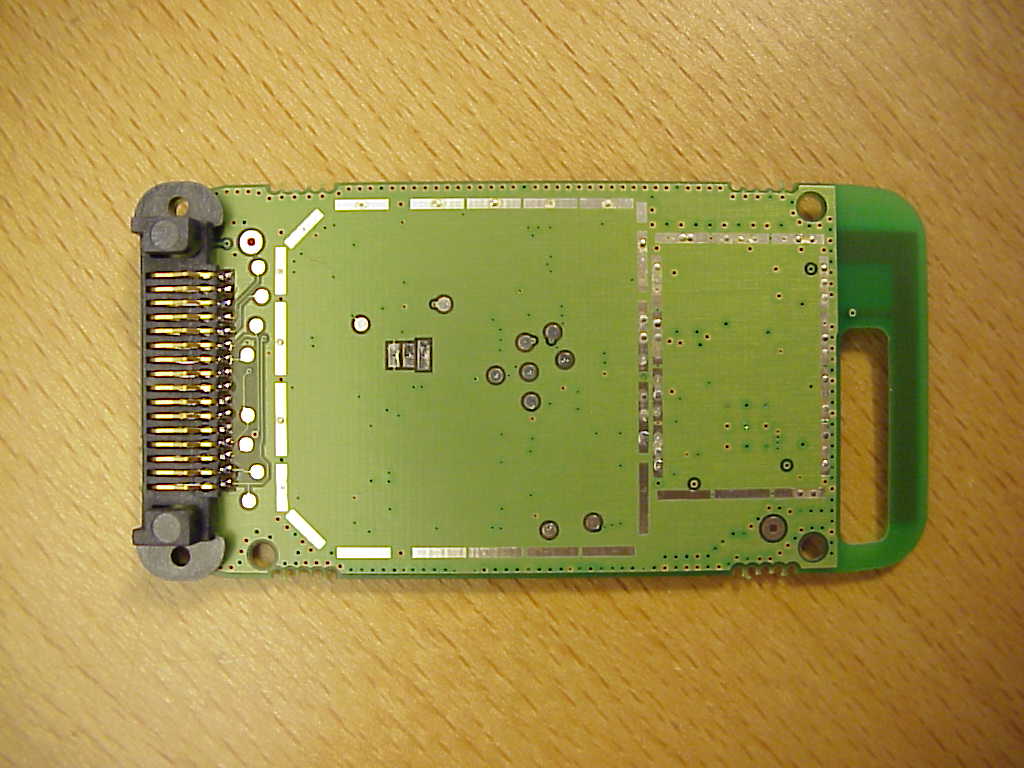

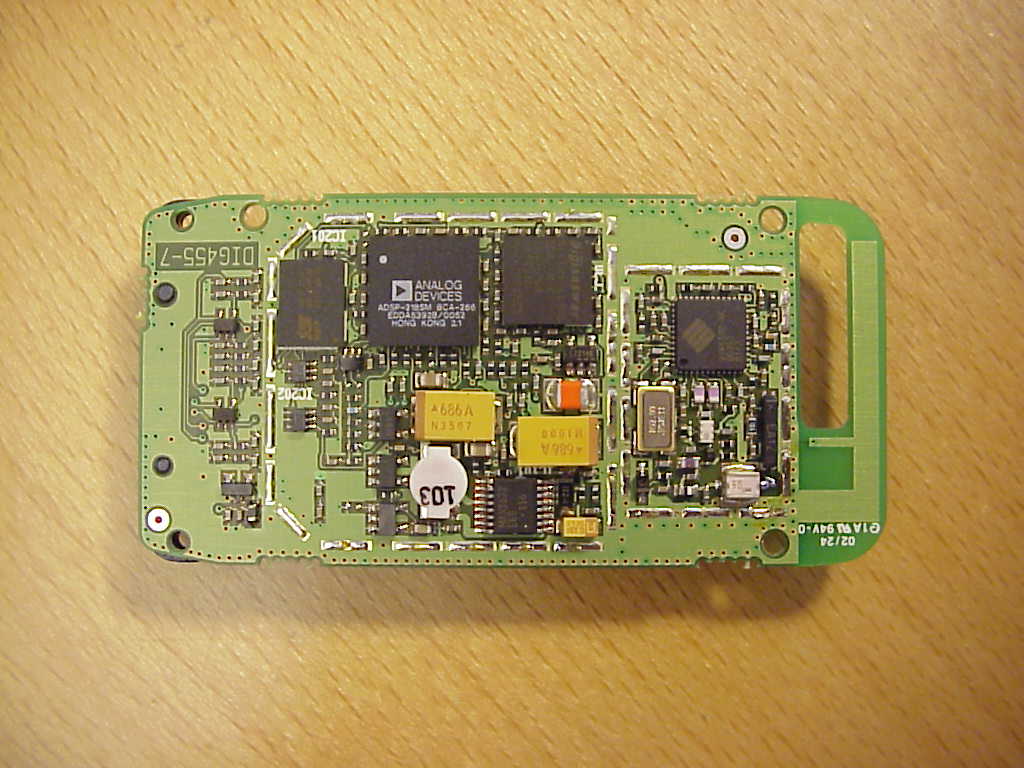

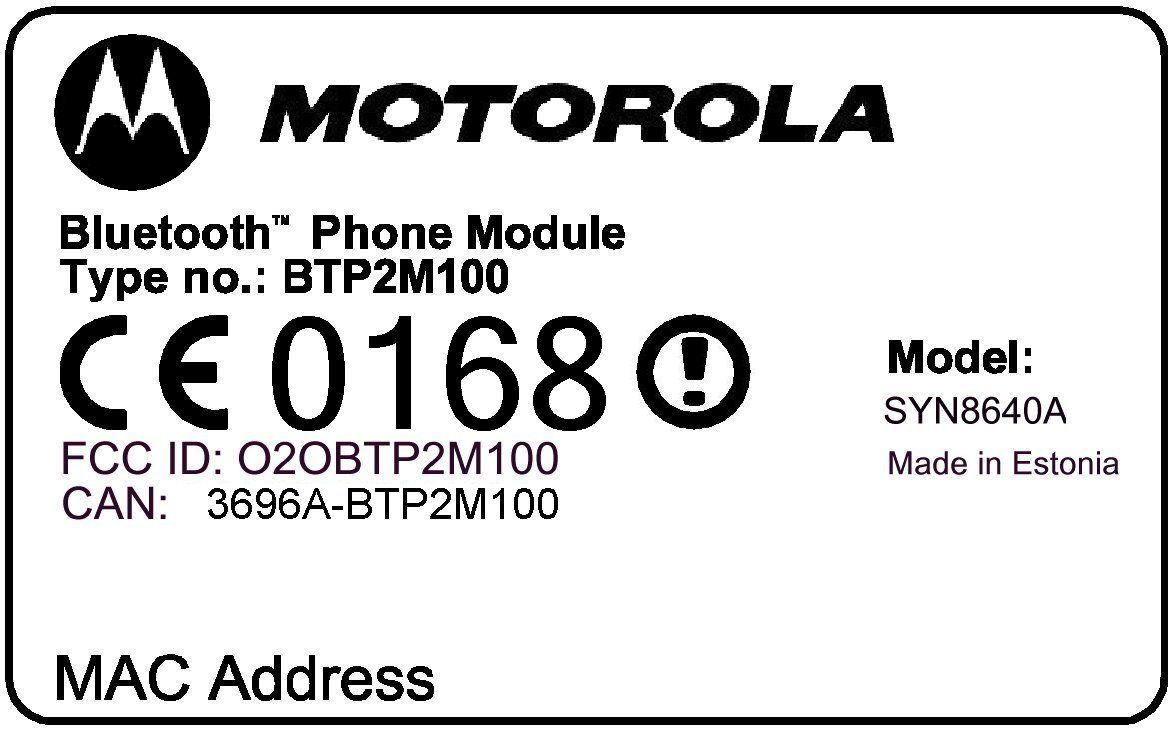

3. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Voltage level: Equipment under Test: BTP2M100 Bluetooth transceiver Motorola Bluetooth™ Phone Module II DC 3,6 V Ports 3.1 General EUT Description General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is devided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. All frequencies are equally used. The average time of occupancy is 0.3797 s within a 30 second period. The symbol rate on the channel is 1 Ms/s. The EUT provides the following ports: AC port temporary antenna connector Enclosure The main components of EUT are listed and described in Chapter 3.2 Page 8 of 63 Testreport Reference: 4_Digi_0602_ERF_FCCa

EMC Measurement/Technical Report 4_Digi_0602_ERF_FCCa on 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Motorola Bluetooth™ Phone Module II BTP2M100 Registergericht - registered in: Ratingen, HRB 3264 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Wolfgang Dahm Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: TTI-P-G 178/99TTI-P-G 178/99 Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Measurement Results Conducted Emissions Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 6 6 6 6 6 8 8 9 9 9 10 11 11 13 16 19 31 34 37 39 Spurious RF Radiated Emissions 21 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 7 7 7 Dwell Time Power Density Channel Separation Processing Gain 25 27 29 30 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 8. Annex Measurement plots25 Pages Page 2 of 63Testreport Reference: 4_Digi_0602_ERF_FCCa 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The equipment under test fulfilled the requirements of the applied FCC rules. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 63 Testreport Reference: 4_Digi_0602_ERF_FCCa 0.2 Measurement Summary § 15.207FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Conducted Emissions (AC Power Line)Conducted Emissions (AC Power Line) OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 2AC portpassed § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied BandwidthOccupied Bandwidth OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 1temporary antenna connectorpassed setup 1op-mode 2temporary antenna connectorpassed setup 1op-mode 3temporary antenna connectorpassed setup 1op-mode 4temporary antenna connectorpassed setup 1op-mode 5temporary antenna connectorpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power OutputPeak Power Output OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 1temporary antenna connectorpassed setup 1op-mode 2temporary antenna connectorpassed setup 1op-mode 3temporary antenna connectorpassed setup 1op-mode 4temporary antenna connectorpassed setup 1op-mode 5temporary antenna connectorpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted EmissionsSpurious RF Conducted Emissions OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 1temporary antenna connectorpassed setup 1op-mode 2temporary antenna connectorpassed setup 1op-mode 3temporary antenna connectorpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated EmissionsSpurious Radiated Emissions OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 2op-mode 1enclosurepassed setup 2op-mode 2enclosurepassed setup 2op-mode 3enclosurepassed § 15.247 (g)FCC Part 15, Subpart C Page 4 of 63 Testreport Reference: 4_Digi_0602_ERF_FCCa FCC §15.3110-1-1998 The measurement was performed according to Dwell TimeDwell Time OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 4temporary antenna connectorpassed setup 1op-mode 5temporary antenna connectorpassed § 15.247 (g)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Power DensityPower Density OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 4temporary antenna connectorpassed setup 1op-mode 5temporary antenna connectorpassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Channel SeparationChannel Separation OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result setup 1op-mode 6temporary antenna connectorpassed § 15.247 (f)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Processing GainProcessing Gain OP-ModeOP-ModeSetupSetupPortPortFinal ResultFinal Result see annexsee annextemporary antenna connectorpassed Responsible for Accreditation Scope: Responsible for Test Report: Page 5 of 63Testreport Reference: 4_Digi_0602_ERF_FCCa 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker This facility has been fully described in a report submitted to …

Text truncated - open the document above for the full version.

Note : This annex is only valid in combination with the above mentioned test report. The following results relate only to the devices specified in that report. This annex shall not be reproduced in parts without the written approval of the testing laboratory. Annex to Test Report 4_DIGI_0602_ERF_FCCa Processing gain Measurement for Motorola Bluetooth™ Phone Module II BTP2M100 Test Laboratory: 7 layers AG Borsigstrasse. 11 D-40880 Ratingen Germany Annex to test report 4_DIGI_0602_ERF_FCCa Page 2 of 5 pages Introduction This report describes the results of the processing gain measurement for the Motorola Bluetooth Phone Module II using the FCC CW jamming margin method. Requirement Hybrid systems that employ a combination of both direct sequence and frequency hopping modulation techniques shall achieve a processing gain of at least 17 dB from the combined techniques. Modification of measurement method Despreading is accomplished by correlating the received bit stream with the bit pattern of the access code. Then with the value of the correlator output will be decided if the access code is valid or not. That means if the access code is not valid a “bit error” occurs for the Bluetooth device. For this reason in CW jamming margin method the ratio of invalid access codes (IACR) is used instead of the BER. Another reason to use this criteria is the fact, that the Bluetooth technology uses the access code to find the correct sampling point. That means if the access code cannot be found, all other bits in the transmission cannot be sampled successfully. System loss In the formula to calculate the processing gain the term system loss appears. In Bluetooth there are two major causes for the system loss: 1. The non optimal sampling time. The CW jamming method assumes that the optimal sampling time as determined before, in fact, as described above, will be determined via the access code. 2. Loss due to attenuation in the RF part. Although these two points produce a system loss which will be much greater than 2 dB, we took that value for the calculation, because this is the maximum which will be accepted by the FCC. Annex to test report 4_DIGI_0602_ERF_FCCa Page 3 of 5 pages Measurement Set-up To measure the IACR the following test set-up was used: 7 24 10 5 3 RF In/Out Step Attenuator High Pass Signal Generator RF Switch Fixed Attenuator 1 6 dB Coupler 6 dB CouplerSignaling device 6 8 912 13 Device under test Spectrum Analyser Noise Source PowerAmplifier Fixed Attenuator (approx. 30 dB) 3 Fixed Attenuator 11 RF block diagram Note: For detailed information about the equipment please see test equipment list For the measurement of the invalid access codes a special test program was used. It was installed on the laptop and controlled the Motorola Bluetooth Development Kit. In the result the number of invalid access codes for a packet of 255 transmissions is given. For this test 200 packets (51000 bursts) were measured. For the selected IACR of 0.1% it means that 51 access codes are not valid. The level of the wanted signal was set for all single measurements to -48.3 dBm. Measurement Results S/N Measurement The measurement for S/N was performed by adding noise to the wanted signal. The noise level was adjusted until the IACR reached 0.1%. With this measurement configuration the S/N ratio was 18.7 dB. Annex to test report 4_DIGI_0602_ERF_FCCa Page 4 of 5 pages Jammer-Signal Measurement The jammer signal was stepped in 50 kHz steps over the receiving channel. For every step the jammer level was adjusted until the IACR was 0.1 %. The ratio between wanted signal power and the jammer power at the RF input of the device is the required Jammer to Signal ratio (JSR). With this measurement configuration the Jammer-signal measurement results are as follows: Disregarding the marked data points (-300, -250, 350, 400 kHz) the worst data point is at -400 kHz (Jammer-signal -61,0 dBm) with a Jammer / wanted Signal value of –12.7 dB. Processing gain calculation With these values the processing gain for the DSS part of the system is calculated to: Mj = JSR = -12.7 dB S/N = 18.7 dB Gp = S/N + Mj + Lsys = 18.7 – 12.7 + 2.0 = 8.0 dB The processing gain for FHSS part is calculated as: 10 * log 32 = 15 dB (32 hopping channels in hybrid mode) This means for the total processing gain of the hybrid system: 15 dB + 8.0 dB = 23.0 dB This is above the minimum value of 17 dB stated in FCC rules. The device passes the requirement of this clause. Jammer Offset/kHz Jammer-Signal (dBm) -500-59,9 -450-60,8 -400-61,0 -350-60,8 -300-61,3 -250-61,5 -200-60,5 -150-59,0 -100-57,9 -50-53,8 0-53,6 50-54,2 100-56,0 150-58,2 200-59,1 250-60,1 300-60,6 350-61,1 400-61,0 450-59,4 500-59,2 -65,0 -60,0 -55,0 -50,0 -45,0 -40,0 -500-400-300-200-1000100200300400500 Jammer Offset /kHz dB Jammer-Signal (dBm) Annex to test report 4_DIGI_0602_ERF_FCCa Page 5 of 5 pages Test equipment noSingle DevicesTypeSerial NoManufacturer 2Motorola Bluetooth Development KitBTP2M100-Digianswer 3Attenuator, 3 dBModel 4T-3D9355Weinschel 4Broadband Resist. Power Divider N1506A / 93459LM390Weinschel 5Broadband Resist. Power Divider SMA1515 / 93459LN673Weinschel 6Broadband Amplifier 45MHz-27GHzJS4-00102600-42-619368Miteq 7High Pass Filter5HC2700/12750-1.5-KK9942012Trilithic 8Noise EmitterCNE III99/016York 9RF Step AttenuatorRSP833695/001Rohde & Schwarz 10Signal GeneratorSMIQ 03B832492/061Rohde & Schwarz 11Attenuator, 30 dB--Weinschel 12Manual Switch--7 layers 13EMI AnalyzerESI 26830482/004Rohde & Schwarz

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7layers.com Annex Additional declaration part according FCC 15.247 for Bluetooth TM Devices Version: 2002-06-01 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 2 of 5 pages 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organised in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from its BD address which is unique for each Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 3 of 5 pages 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR- operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviour: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviour for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 4 of 5 pages 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = …

Text truncated - open the document above for the full version.

Picture3Setup for radiated tests: Picture4Setup for conducted emission test on the AC mains: Page 35 of 63Testreport Reference: 4_Digi_0602_ERF_FCCa Picture5Setup for conducted emission test on the AC mains (rear view) EUT connected to the Motorola mobile phone. : Page 36 of 63Testreport Reference: 4_Digi_0602_ERF_FCCa
