O2SNURIT3010RPoint of Sale Device

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: O2SNURIT3010R Exhibit 9 User’s Manual 082-32-001 NURIT /3010  User Manual1 NURIT 3010 POS/EDC TERMINAL USER MANUAL NURIT 3010 POS/EDC TERMINAL USER MANUAL NOTICEThe information contained in this publication is for informational purposes only and subject to change without notice. It does not represent a commitment on the part of Lipman USA Inc. or Lipman Electronic Engineering Ltd. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated to any language in any form by any means without the prior written permission of Lipman. Copyright © 1999 by Lipman Electronic Engineering Ltd. All rights reserved. TRADEMARKSTrademarks and trade names contained in this manual belong to their respective companies. LIPMAN USA INC.January 1999 50 Gordon DriveOriginal Syosset, NY 11791Publication No. 082-32-001 Tel: (1) 516-484-9898 Fax: (1) 516-484-9057 E-mail: [email protected] 082-32-001 WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance statement This equipment has been tested to be found to comply with the limits for class A digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Class A limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your dealer or an experienced technician for help. FCC requirements The Federal Communications Commission (FCC) has established rules permitting this device to be directly connected to the telephone network. Standardized jacks are used for these connections. This equipment should not be used on party or coin lines. If this devise is malfunctioning, it may be causing harm to the telephone network; this devise should be disconnected until the source of the problem can be determined and until repair has been made. If this is not done, the telephone company may temporarily disconnect service. The telephone company may make changes in its technical operations and procedures; if such changes affect the compatibility or use of this devise, the telephone company is required to give adequate notice of the changes. You will be advised to file a complaint with the FCC. If the telephone company requests information on what equipment is connected to their lines, inform them of: One. The telephone number this unit is connected to Two. The ringer equivalence number: 0.3B Three. The USOC jack required: RJ-11C Four. The FCC Registration number: 3D7ISR-25066-DT-E The Ringer Equivalence Number (REN) is used to determine how many devices can be connected to your telephone line. In most areas, the sum of the RENs of all devices on any one line should not exceed five (5). If too many devices are attached, they may not ring properly. FCC Part 15 Requirements Notice • This device must not be installed on coin-operated telephone lines or party lines. • This device (equipment) complies with the requirements in Part 15 of FCC Rules of a Class B computing device. Operation of this device (equipment) is subject to the following two conditions: o This device (equipment) may not cause harmful interference, and o This device (equipment) must accept any interference received, including interference that may cause undesired operation. • If this device (equipment) is used in a residential area, it may cause unacceptable interference to radio and TV reception requiring the operator to take whatever steps necessary to correct the interference. • Repair work on this device (equipment) must by done by Lipman USA, Inc, or an authorized repair station. 082-32-001 LIPMAN USA - NURIT /3010 Limited Warranty Lipman USA Inc. will repair this product with new or rebuilt parts, free of charge, in the U.S.A. for one (1) year from the date of original purchase in the event of a defect in materials or workmanship. Carry-in or mail-in service in the continental U.S.A. can be obtained during the warranty period from our N.Y. Service Center or call 1-800-4-LIPMAN toll free. In New York State call (516) 484-9898. This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of original purchase will be required in order to exercise your rights under this warranty. This warranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover damage which occurs in shipment; failures which are caused by products not supplied by Lipman USA; or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration or modification; service by anyone other than the Lipman USA Service Center or accredited service centers, or damage that is attributable to acts of God. Limits and Exclusions There are no express warranties except as listed above. LIPMAN USA SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUE…

Text truncated - open the document above for the full version.

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: O2SNURIT3010R Exhibit 10 Attestation Statements FCC Part 15, Subpart B Certificate of Conformity FCC Part 2 & 22 Statement of Compliance December 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: O2SNURIT3010R PRODUCT: Point of Sale device MODEL: Nurit 3010 RIM MANUFACTURER: Lipman USA, Inc. We certify that the pertinent tests have been performed on the above described equipment and that this equipment conforms FCC Parts 2 and 22. See Exhibit 2, Engineering Reports, of this application.

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: O2SNURIT3010R Table of Contents List of Exhibits Submitted E E X X H H I I B B I I T T 1 1 : : C C O O V V E E R R L L E E T T T T E E R R S S a)Application overview b)Equipment: Point of Sales Device(Using an approved radio modem FCC ID:L6AR902M-2-0) c)Authorization Letter /Agent Designated (Jay Sarkar) d)Request for confidentiality e)Letter from Research In Motion. authorizing to use FCC approved (FCC ID: L6AR902M-2-0) radio modem in Lipman USA, Inc. Point of Sale Device Nurit 3010 RIM Exhibit 2:Engineering Reports (Test Reports) a)ERP (2.1046) b)Radiated Spurious Emissions (2.1053) c)Bandwidth (2.1049) Bandwidth Limitations (2.1047) d)Spurious Emissions, Antenna Terminal (2.1051) e)Frequency Stability (2.1055) Exhibit 3: Operational/Technical Description Exhibit 4: ID Label/Location Exhibit 5:External Photographs of the Equipment Internal Photographs of the equipment Exhibit 6:Block Diagram (Confidential) Exhibit 7: Schematic Diagram (Confidential) Exhibit 8:Parts List (Confidential), Tune–up Procedure Exhibit 9:User’s Manual Exhibit 10:a) Attestation Statement: FCC Part 15 Declaration of Conformance (DoC) certificate b)Attestation Statement: the equipment complies with Part 90 Exhibit 11:RF Exposure Information: SAR Report (Includes Test Set-up Photographs)

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: O2SNURIT3010R Exhibit 1 a)Application overview b)Equipment: Point of Sales Device(Using an approved radio modem FCC ID:L6AR902M-2-0) c)Authorization Letter /Agent Designated (Jay Sarkar) d)Request for confidentiality e)Letter from Research In Motion. authorizing to use FCC approved (FCC ID L6AR902M-2-0) radio modem in Lipman USA, Inc. Point of Sale Device Nurit 3010 RIM December 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 EQUIPMENT PRODUCT: Point of Sale Device MODEL: Nurit 3010 RIM MANUFACTURER: Lipman USA, Inc. FCC ID: O2SNURIT3010R PRODUCT: Pont of Sale Device MODEL: Nurit 3010 (fixed Larsen Antenna) with a Research In Motion R902M-2-0 radio Transmitter (FCC ID: L6AR902M-2-0) EUT TYPE: Licensed Non-Broadcast Station Transmitter (TNB) TX Frequency: 896-902 MHz MEASURED ERP:2.344 W

Consulting * Research * Training * Certification Testing Since 1981 51 Spectrum Waytel: (613) 820-2730 Nepean, Ontariovisit our Web Pages: www.aprel.comfax: (613) 820-4161 Canada K2R 1E6email: [email protected] May 7, 2001 Mr. Andy Leimer Federal Communications Commission Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Re:Question from the FCC FCC ID:O2SNURIT3010R Correspondence Reference Number:19073 731 Confirmation NumberEA100123 Date of Original E-Mail:May 4, 2001 Dear Mr. Leimer: Pursuant to your e-mail to Mr. John Carpino, Lipman USA, Inc., I am forwarding to you our responses to item 1. The relevant portions of the FCC’s e-mail follow with our response inserted in the appropriate place: -----Original Message----- From: OET [mailto:[email protected]] Sent:Friday, May 04, 2001 9:01 AM To:[email protected] Subject:Spurious RE Measurements To:John Carpino, Lipman USA, Inc. From:Andy Leimer [email protected] FCC Application Processing Branch Re:FCC ID O2SNURIT3010R Applicant:Lipman USA, Inc Correspondence Reference Number:19073 731 Confirmation Number:EA100123 1)It appears that the spurious RE measurements were not done using the substitution method. Repeat the measurements using the substitution method using a procedure similar to that described in the ERP measurement portion of the Test Report. The substitution method measurements are described in the document TIA/EIA - 603 Section 2.2.12. Response: The NURIT 3010 was re-tested for spurious RE measurement using the substitution method using a procedure similar to that used in the ERP measurement and described in Consulting * Research * Training * Certification Testing Since 1981 51 Spectrum Waytel: (613) 820-2730 Nepean, Ontariovisit our Web Pages: www.aprel.comfax: (613) 820-4161 Canada K2R 1E6email: [email protected] the ERP measurement portion of the Test Report. A set of three reference dipoles, a horn antenna and a signal generator to duplicate the signal were used. Signals radiated from the NURIT 3010 on the fundamental frequency as well as second and third harmonic were evaluated by comparing to the signals transmitted from the reference dipoles. The antenna used for the first three harmonics were a set of three dipoles, l = 17.9 cm (first harmonic/fundamental), l = 9.0 cm (second harmonic), and l = 6.0 cm (third harmonic). For testing the higher frequencies, fourth and fifth harmonics, a horn antenna (gain) was used as replacement source of radiation thus substituting the NURIT 3010. The duplicated reading was then referenced to the dipole. Finally, the duplicated readings were converted to dBμV/m. The data after the re-test is presented in the following two tables: Test Data using Substitution Method Vertical polarization fERP V E V @3mLimitMargin MHzdBMdBμV/mdBμV/mdB 1798.00-29.268.278.310.1 2697.00-27.270.178.38.2 3596.00-42.355.178.323.2 4495.00Noise FloorNoise Floor78.331.4 Horizontal polarization fERP V E V @3mLimitMargin MHzdBMdBμV/mdBμV/mdB 1798.00-61.435.978.342.4 2697.00Noise FloorNoise Floor78.338.5 3596.00Noise FloorNoise Floor78.332.2 4495.00Noise FloorNoise Floor78.331.7 I trust that the above will answer your inquiry. If not, please feel free to contact me. Regards, Jayanta (Jay) K.Sarkar Director Technical Director, Standards and Certification

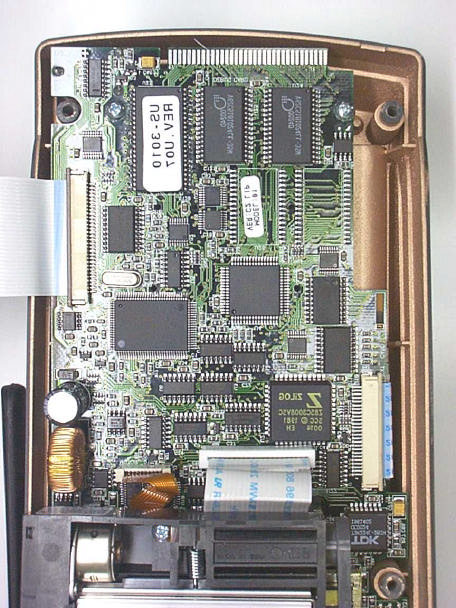

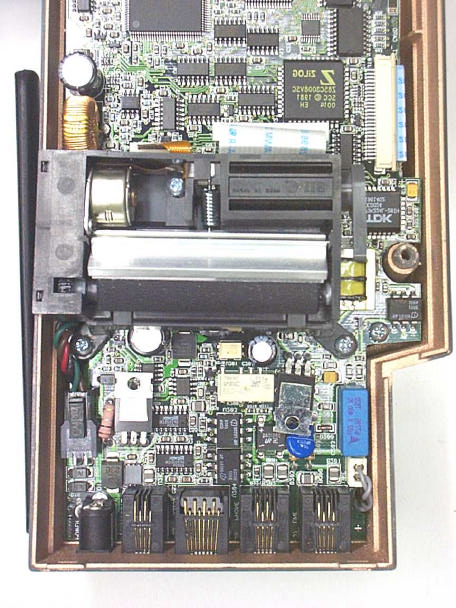

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: O2SNURIT3010R Exhibit 5 Photographs of the Equipment External Photos Internal Photos

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: O2SNURIT3010R Exhibit 4 FCC ID Label/Location NOTICE This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Lip Lipman USA, Incorporated P/N: 3010-US-02-GRY-A04 MODEL: NURIT 3010 RIM FCC ID: O2SNURIT3010R MOBITEX ESN: 031/02/107719 Assembled in Israel

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: O2SNURIT3010R Exhibit 11 RF Exposure Information Sar Report Page 2 of 16 Project #: LPMB-Nurit 3010 POS-3621 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected] © APREL 2000 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. FCC ID:02SNURIT3010R Applicant:Lipman USA Inc. Equipment:Wireless POS EDC Terminal Model:Nurit 3010 with a RIM Mobitex R902M-2-0 modem Standard:FCC 96 –326, Guidelines for Evaluating the Environmental Effects of Radio- Frequency Radiation ENGINEERING SUMMARY This report contains the results of the engineering evaluation performed on a Lipman Nurit 3010 EDC point of sale terminal which incorporates a RIM Mobitex R902M-2-0 modem. The measurements were carried out in accordance with FCC 96-326. The wireless desktop device was evaluated for its maximum power level (ERP 2.344W). The duty factor of the radio modem is intrinsically restricted to 25% (See Appendix E). The wireless desktop device was tested at low, middle and high channels for the left, right, and keyboard up sides, with the antenna at 0, 90, and 180 degree positions. The maximum 10g SAR (0.50 W/kg) was found to coincide with the peak performance RF output power of channel 0880 (high, 901 MHz) for the left side of the device, with the antenna at the 90 degree position (The hot spot is located on the antenna). At a separation distance of 0 cm from the antenna of the device, the maximum 1g SAR is 0.83 W/kg. Test data and graphs are presented in this report. Based on the test results and on how the device will be marketed and used, it is certified that the product meets the requirements as set forth in the above specifications, for an uncontrolled RF exposure environment. (The results presented in this report relate only to the sample tested.) Page 3 of 16 Project #: LPMB-Nurit 3010 POS-3621 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected] © APREL 2000 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. TABLE OF CONTENTS 1.Introduction....................................................................................................................4 2.Applicable Documents...................................................................................................4 3.Device Under Investigation...........................................................................................4 4.Test Equipment..............................................................................................................5 5.Test Methodology..........................................................................................................5 6.Test Results....................................................................................................................6 6.1.Transmitter Characteristics............................................................................................6 6.2.SAR Measurements........................................................................................................7 7.User’s Hand Exposure...................................................................................................8 8.Bystander Exposure......................................................................................................9 9.conclusions...................................................................................................................10 APPENDIX A. Measurement Setup, Tissue Properties and SAR Graphs.............................11 APPENDIX B. Uncertainty Budget........................................................................................13 APPENDIX C. Validation Scan on a Flat Phantom................................................................14 APPENDIX D. Probe Calibration...........................................................................................15 APPENDIX E. Duty Factor Limiting Algorithm for the OEM Radio Module R902M-2-O.16 TABLES AND FIGURES Table 1. Sampled Radiated RF Power......................................................................................6 Table 2. SAR Measurements.....................................................................................................8 Figure 1. Setup.........................................................................................................................11 Table 3. Dielectric Properties of the Simulated muscle Tissue at 899 MHz..........................11 Figure 2. Contour Plot of the Area Scan 2.5mm Above Phantom Surface..............................12 Figure 3. Surface Plot of the Area Scan 2.5mm Above Phantom Surface...............................12 Table 4. Uncertainty Budget...................................................................................................13 Figure 4. Contour Plot of the Reference Area Scan 2.5mm Above Phantom..........................14 Figure 5. Surface Plot of the Reference Area Scan 2.5mm Above Phantom...........................14 Page 4 of 16 Project #: LPMB-Nurit 3010 POS-3621 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected] © APREL 2000 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. 1. INTRODUCTION Tests were conducted to determine the Specific Absorption Rate (SAR) for a sample of a Lipman Nurit 3010 EDC point of sale terminal which incorporates a RIM Mobitex R902M-2-0 modem. These tests were conducted at APREL Laboratories’ facility located at 51 Spectrum Way, Nepean, Ontario, Canada. A view of the SAR measurement setup can be seen in Appendix A Figure 1. This report describes the results obtained. 2. APPLICABLE DOCUMENTS The following documents are applicable to the wor…

Text truncated - open the document above for the full version.

Spectrum Sciences Institute RF Dosimetry Research Board Attention: all comments, suggestions, and inquiries should be addressed to Dr. Jack J. Wojcik or Dr. Paul G. Cardinal 51 Spectrum Way, Nepean, Ontario, K2R 1E6, Canada. tel.:(613)820-2730, fax:(613)820-4161 e-mail: [email protected] Phantom Design Requirements SSI/DRB-TP-D01-031 PART of SAR Measurements Requirements SSI/DRB-TP-D01-030 DRAFT Prepared jointly with: Near Field Measurements Laboratory March 1998 - NOTICE - This draft was prepared to assist the Dosimetry Research Board of SPECTRUM SCIENCES INSTITUTE and specifically the Working Group on SAR Measurements. It is submitted as a basis for discussion only, and is not binding on APREL Inc. Subsequent study may lead to revisions of the document, both in numerical values and/or form, and after continuing study and analysis, APREL Inc. specifically reserves the right to add to, or amend the content of this contribution. SSI/DRB-TP-D01-031 Page 2 of 15 Comments and inquiries should be addressed to:Ref: Project U404-7-0016 -1997 RF Dosimetry Research Board (DRB) Spectrum Sciences Institute 51 Spectrum Way, Nepean, Ontario, Canada K2R 1E6 Tel. (613) 820-6471 Fax (613) 820-4161 e-mail: [email protected] Spectrum Sciences Institute RF Dosimetry Research Board TABLE OF CONTENTS 1.0Introduction3 1.1Purpose And Scope Of The Standard3 1.2Test Facilities3 1.3Test Personnel3 1.4Standard Environmental Conditions3 2.0Background4 3.0References5 4.0Definitions6 5.0Phantoms6 5.1Universal Head-Arm (Unihead) Phantom6 5.1.1Head Simulator6 5.1.2Arm And Hand Simulator10 5.1.3Materials10 5.2Flat Phantom13 5.3Insulated Flat Phantom13 6.0Sar Laboratory Setup13 7.0Test configurations using the Uni-Head15 SSI/DRB-TP-D01-031 Page 3 of 15 Comments and inquiries should be addressed to:Ref: Project U404-7-0016 -1997 RF Dosimetry Research Board (DRB) Spectrum Sciences Institute 51 Spectrum Way, Nepean, Ontario, Canada K2R 1E6 Tel. (613) 820-6471 Fax (613) 820-4161 e-mail: [email protected] Spectrum Sciences Institute RF Dosimetry Research Board 1.0INTRODUCTION 1.1Purpose and Scope of the Standard The purpose of this document is to standardize the phantom(s) required for Specific Absorption Rate (SAR) testing associated with SAR measuring systems. This document defines the parts and dimensions of the phantom, in accordance with industry standards and practices. This Standard defines: - the methodology and procedures used to define a reproducible representation of the human head, hand and arm - the dimensions on the canonical shapes used, and the materials required - the hardware required and the proper setup This Standard is part of a Certification Program Methodology as described in a separate document entitled "SSI/DBR TP-D01-030, Specific Absorption Rate (SAR) Standard For Portable Telecommunications Devices, March 1998". SSI/DBR TP-D01-031 contains specific criteria that must be met for SAR certification. 1.2Test Facilities All calibration work as described in this Standard shall be performed at an ISO/IEC Guide 25 accredited laboratory. 1.3Test Personnel Personnel performing the calibration will be experienced in relevant measurements (e.g. physical properties or RF characteristics) and supervised by a person proficient in SAR measurements. 1.4Standard Environmental Conditions All measurements and calibration should be performed under normal laboratory conditions for physical properties and electrical characteristics as stipulated by ISO/IEC Guide 25. The nominal temperature for physical property measurements and for electrical characterization are 20°C and 23°C, respectively. SSI/DRB-TP-D01-031 Page 4 of 15 Comments and inquiries should be addressed to:Ref: Project U404-7-0016 -1997 RF Dosimetry Research Board (DRB) Spectrum Sciences Institute 51 Spectrum Way, Nepean, Ontario, Canada K2R 1E6 Tel. (613) 820-6471 Fax (613) 820-4161 e-mail: [email protected] Spectrum Sciences Institute RF Dosimetry Research Board 2.0BACKGROUND Portable communication devices used by consumers typically operate over the range of several watts to a milliwatt, or less, using either analog or digital modulation techniques. Most portable telephones have antennas that radiate within a few centimeters of the user's head. The field strength and field distribution near the antenna are highly dependent on the location, orientation and electromagnetic characteristics of adjacent objects. The head and hand are normally in the reactive near-field region of the antenna where the electromagnetic field is non-propagating. The energy absorbed in the head and hand is mainly due to electric fields induced by the magnetic fields generated by currents flowing through the feedpoint, along the antenna and body of the portable device. The RF energy is scattered and attenuated as it propagates through the tissues of the head, and maximum energy absorption is expected in the more absorptive high water-content tissues near the surface of the head or hand. To account for near-field effects portable devices are evaluated with realistic head models called a phantom. A phantom is a device that simulates the size, contours, and electrical characteristics of human tissue at normal body temperature. It is composed of a manikin (solid shell) and a tissue-equivalent synthetic material solution (see SSI/DRB-TP-D01-033). The solid manikin shell is made of a dielectric material, which is transparent to RF energy (i.e. has very low RF absorption), and is as thin as possible while maintaining the strength necessary to hold the mass of simulated tissue. Current phantoms in use are: - Universal Head-arm (UniHead) Phantom for ear independent evaluation of the RF exposure in the head of users by telephone-type devices, as well as RF exposure in the head of users of hand held radios positioned in front of the face, and in the hand of users of hand held portable devices - Flat Phantom for evaluating the RF exposure of other part…

Text truncated - open the document above for the full version.

October 2000 APREL Project No.: Consulting * Research * Training * Certification Testing Since 1981 FCC ID: O2SNURIT3010R Exhibit 2 Engineering Report a)ERP (2.1046) Assessment of Compliance for Measurement of Effective radiated Power (ERP) in Accordance with the FCC Rules & Regulations Part 2.1046 Point of Sale Device Nurit 3010 with a Research In Motion R902-M-2-0 radio transmitter and Fixed Larsen Antenna Lipman USA, Inc. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] December 2000 LPMB-NURIT3010-POS-3647 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories  December, 2000 Page 2 APREL Project No LPMB-NURIT3010 POS – 3647 This report shall not be reproduced, except in full, without the express written approval of APREL Inc. Consulting * Research * Training * Certification Testing Since 1981 FCC ID:O2SNURIT3010R Applicant:Lipman USA, Inc. Equipment:Point of Sale Device Model:Nurit 3010 (fixed Larsen antenna)with a Research in Motion R902-M-2-0 Mobitex radio transmitter Standard:FCC Rules and Regulations Part 2.1046 90 ENGINEERING SUMMARY This report contains the results of the effective radiated power (ERP) measurement performed on a LIPMAN Point of Sale Device operating with a built-in Research in Motion R902M-2-0 MOBITEX radio transmitter. The measurements were carried out in accordance with the FCC Rules and Regulations Part 2.1046. The product was evaluated for ERP when it was set at the maximum power level. The unit uses a fixed Larsen antenna. Nurit 3010 was tested for ERP at high, middle, and low frequencies with the maximum ERP obtained at channel No.: 720 with the frequency being 899.00 MHz. The test data is presented in this report under the section: Test Results. The measured ERP is 2.344 W. (The results presented in this report relate only to the sample tested.)  December, 2000 Page 3 APREL Project No LPMB-NURIT3010 POS – 3647 This report shall not be reproduced, except in full, without the express written approval of APREL Inc. Consulting * Research * Training * Certification Testing Since 1981 Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary RF Power Output as Radiated Ref. Paragraph 2.1046 and 9081 Passed  December, 2000 Page 4 APREL Project No LPMB-NURIT3010 POS – 3647 This report shall not be reproduced, except in full, without the express written approval of APREL Inc. Consulting * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the effective radiated power (ERP) measurement conducted on a Lipman USA Point of Sale Device model Nurit 3010 operating with a built-in Research in Motion R902M-2-0 MOBITEX radio transmitter. Nurit 3010 uses a fixed Larsen antenna. Test Facility The tests were performed for Lipman USA, Inc. by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4-1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is: 90416 APREL is accredited by Standard Council of Canada, under PALCAN program (ISO Guide 25). APREL is also accredited by Industry Canada (formerly DOC) and recognised by the Federal Communications Commissions (FCC). Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1046 and the appropriate limits (90). Test Equipment The test equipment used during the evaluation is listed in Appendix A with calibration due dates. Environmental Conditions Measurements were conducted in open area test site. - Temperature:15 °C ± 2 - Relative Humidity:30 - 50 % - Air Pressure:101 kPa ± 3  December, 2000 Page 5 APREL Project No LPMB-NURIT3010 POS – 3647 This report shall not be reproduced, except in full, without the express written approval of APREL Inc. Consulting * Research * Training * Certification Testing Since 1981 FCC SUBMISSION INFORMATION FCC ID:O2SNURIT3010R Equipment:Point of Sale Device Model:Nurit 3010 (fixed Larsen antenna) with a Research in Motion R902M-2-0 MOBITEX radio transmitter For:Certification Applicant:Lipman USA, Inc. 50 Gordon Drive Syosset, NY 11791 U.S.A. Manufacturer: Lipman USA, Inc. 50 Gordon Drive Syosset, NY 11791 U.S.A. Evaluated by:APREL Laboratories 51 Spectrum Way Nepean, Ontario Canada K2R 1E6  December, 2000 Page 6 APREL Project No LPMB-NURIT3010 POS – 3647 This report shall not be reproduced, except in full, without the express written approval of APREL Inc. Consulting * Research…
