O3JF2NRM6832C1Wireless Point of Sale Terminal

JUNE 2000 APREL Project No:MISB-FREEDOM II NOVATEL CDPD-3421 Exhibit 9 MIST Freedom II-C Wireless Point of Sale Device FCC ID: O3JF2NRM6832C1 User’s Manual 1 MIST Freedom II-C (CDPD) User Manual 2 MIST Freedom II-C Copyright © 1999 MIST Inc. All Rights Reserved. MIST Part Number: DOC9-5.5 Manual Revision:1.1 Date of the document:November 1999 3 FCC compliance statement (USA) This device complies with the requirements in Part 15 of the FCC Rules for a Class B digital device. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation WARNING: Changes or modification to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by on or more of the following measures: *Reorient or relocate the receiving antenna. *Increase the separation between the equipment and receiver. *Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help. 4 WARNING: To comply with FCC RF exposure requirements, this unit must be operated with a minimum separation distance of 33mm(1-3/8 inches) between its antenna and a person's body. The user's hand should not be placed directly next to the antenna or at locations on the unit where the antenna is connected, to ensure compliance with FCC RF exposure limits. Industry Canada Certification This device complies with Industry Canada RSS119. IC Class B compliance This device complies with the Class B limits for radio noise emissions as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of Industry Canada 5 Important safety information Remember to follow any special regulations governing the use of the MIST FREEDOM II-C and always switch it off in areas where radio devices are forbidden, or when it may cause interference or danger. Any safety laws and regulations pertaining to the use of cell phones and two-way radios will likely apply to your use of the POS. We encourage you to follow such laws and regulations at all times. In particular, please observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, where blasting operations are in progress or in any other area in which restrictions on radio transmissions are imposed. The MIST FREEDOM II-C is not an FAA-approved electronic device for use on aircraft. Switch off the POS when in an aircraft. The effect of the use of the POS in an aircraft is unknown. Such use may affect aircraft instrumentation, communication and performance, may disrupt the network, and may be illegal. Operation of any radio transmitting equipment, including the POS, may interfere with the functionality of inadequately protected medical devices, including pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Additionally, the effect of the radio signals from the POS on other electronic systems, including those in your car (such as electronic fuel-injection systems, electronic anti-skid braking systems, and electronic cruise-control systems) is unknown and malfunction of these systems may result. Avoid using the POS in any environment requiring your full attention, such as when driving a vehicle. Do not use any accessory that is not manufactured or supplied by MIST or an authorized MIST accessories supplier. Use of any accessory that is not supplied or approved for use by MIST is not 6 permitted. Use only those battery types specified in this User’s Guide. The use of any other may disable the POS and may be dangerous. Failure to observe all these instructions will void the Limited Warranty, and may lead to suspension or denial of services to the offender, or legal action, or both. 7 Table of Contents Introduction .......................................................... 8 At a Glance ............................................................ 9 Know your POS Device ......................................... 11 Unpack your POS device package ............................ 12 Maintenance and Safety Information ......................... 13 Power Information ..................................................15 Connecting to the Serial Port ...................................18 Operating the Integrated Printer.................................19 Accessories ..........................................................21 8 Introduction Thank you for purchasing MIST FREEDOM II-C. We are confident that the MIST FREEDOM II-C you purchased will meet your exacting world-class quality standards. MIST FREEDOM II- C is a small, hand-held, wireless electronic transaction terminal that communicates with a remote host computer via the wireless network. MIST FREEDOM II allows several modem options for communicating to different network systems, such as CDPD, Mobitex, and DataTAC modem. MIST’s goal is to design and build POS (Point of Sales) devices with complete customer satisfaction in mind. To help ensure trouble free operation of your device, …

Text truncated - open the document above for the full version.

MIST Freedom II-C (CDPD) User Manual 2 MIST Freedom II-C Copyright © 1999 MIST Inc. All Rights Reserved. MIST Part Number: DOC9-5.5 Manual Revision:1.1 Date of the document:November 1999 3 FCC compliance statement (USA) This device complies with the requirements in Part 15 of the FCC Rules for a Class B digital device. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation WARNING: Changes or modification to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by on or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. 4 WARNING: To comply with FCC RF exposure requirements, this unit must be operated with a minimum separation distance of 33mm(1-3/8 inches) between its antenna and a person's body. The user's hand should not be placed directly next to the antenna or at locations on the unit where the antenna is connected, to ensure compliance with FCC RF exposure limits. Industry Canada Certification This device complies with Industry Canada RSS119. IC Class B compliance This device complies with the Class B limits for radio noise emissions as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of Industry Canada 5 Important safety information Remember to follow any special regulations governing the use of the MIST FREEDOM II-C and always switch it off in areas where radio devices are forbidden, or when it may cause interference or danger. Any safety laws and regulations pertaining to the use of cell phones and two-way radios will likely apply to your use of the POS. We encourage you to follow such laws and regulations at all times. In particular, please observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, where blasting operations are in progress or in any other area in which restrictions on radio transmissions are imposed. The MIST FREEDOM II-C is not an FAA-approved electronic device for use on aircraft. Switch off the POS when in an aircraft. The effect of the use of the POS in an aircraft is unknown. Such use may affect aircraft instrumentation, communication and performance, may disrupt the network, and may be illegal. Operation of any radio transmitting equipment, including the POS, may interfere with the functionality of inadequately protected medical devices, including pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Additionally, the effect of the radio signals from the POS on other electronic systems, including those in your car (such as electronic fuel-injection systems, electronic anti-skid braking systems, and electronic cruise-control systems) is unknown and malfunction of these systems may result. Avoid using the POS in any environment requiring your full attention, such as when driving a vehicle. Do not use any accessory that is not manufactured or supplied by MIST or an authorized MIST accessories supplier. Use of any 6 accessory that is not supplied or approved for use by MIST is not permitted. Use only those battery types specified in this User’s Guide. The use of any other may disable the POS and may be dangerous. Failure to observe all these instructions will void the Limited Warranty, and may lead to suspension or denial of services to the offender, or legal action, or both. 7 Table of Contents Introduction .....................................................................8 At a Glance .....................................................................9 Know your POS Device ..................................................11 Unpack your POS device package .................................12 Maintenance and Safety Information ..............................13 Power Information ...........................................................15 Connecting to the Serial Port ..........................................18 Operating the Integrated Printer ......................................19 Accessories .....................................................................21 8 Introduction Thank you for purchasing MIST FREEDOM II-C. We are confident that the MIST FREEDOM II-C you purchased will meet your exacting world-class quality standards. MIST FREEDOM II- C is a small, hand-held, wireless electronic transaction terminal that communicates with a remote host computer via the wireless network. MIST FREEDOM II allows several modem options for communicating to different network systems, such as CDPD, Mobitex, and DataTAC modem. MIST's goal is to design and build POS (Point of Sales) devices with complete customer satisfaction in mind. To help ensure trouble free operation of your device, please spend a few minutes to read this manual carefully and follow its recommendations…

Text truncated - open the document above for the full version.

JUNE 2000 APREL Project No.: MISB-FREEDOM II NOVATEL CDPD-3421 Exhibit 1 MIST Freedom II-C Wireless Point of Sale Device FCC ID: O3JF2NRM6832C1 Authorization letter Letter requesting Confidentiality Letter from Novatel authorizing to use Expedite (NRM) Modem in the product

JUNE 2000 APREL Project No.:MISB-FREEDOM II NOVATEL CDPD-3421 Consulting * Research * Training * Certification Testing Since 1981 Exhibit 11 MIST Freedom II-C FCC ID: O3JF2NRM6832C1 FCC Part 15, Subpart B, Class B Declaration of Conformity Certificate (DoC)

June 2000 APREL Project No.: MISB-FREEDOM-II-NOVATEL CDPD-3421 Consulting * Research * Training * Certification Testing Since 1981 Table of Contents Wireless Point of Sale Terminal Freedom II-C with a Novatel Expedite (NRM-6832) Modem FCC ID: O3JF2NRM6832C1 MIST Inc. C C O O V V E E R R L L E E T T T T E E R R Exhibit 1: Authorization Letter and, Request for confidentiality Letter from Novatel authorizing to use CDPD Modem in the Product Exhibit 2:Engineering Report (Includes Test Set-up Photographs) Exhibit 3: Technical Descriptions and Tune-up Procedure Exhibit 4: FCC ID Label Exhibit 5:Photographs of the Equipment Internal and External Exhibit 6: Block Diagram (Confidential) Exhibit 7: Schematic Diagram (Confidential) Exhibit 8:Parts List (Confidential) Exhibit 9:User’s Manual Exhibit 10:SAR Report (Includes Test Set-up Photographs) Exhibit 11: FCC Part 15, subpart B, DoC letter

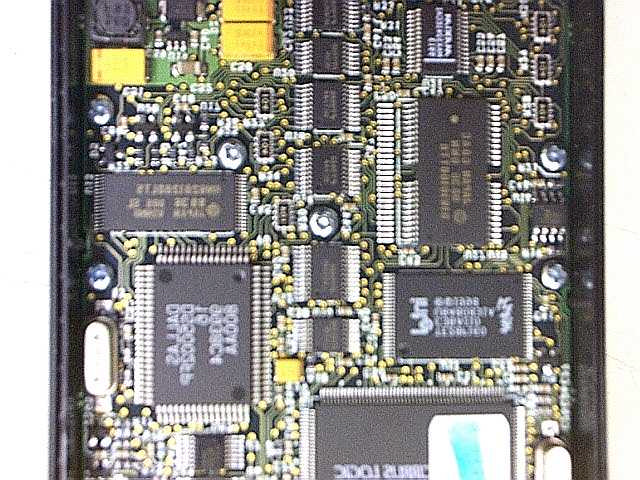

JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Exhibit 5 MIST Freedom IIC Wireless Point of Sale Device FCC ID: O3JF2NRM6832C1 Photographs of the Equipment Internal External JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Mist Inc. Freedom II-C JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Mist Inc. Freedom II-C interior JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Top of rear of keyboard JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Mid section of rear of keyboard JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Bottom Third of rear of keyboard JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Top third of transmitter board JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Novatel CDPD JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Bottom third of Transmitter board Connector JUNE 2000 APREL Project No.MISB-FREEDOM-NOVATEL-CDPD-3421: FCC ID: O3JF2NRM6832C1 Battery and compartment

JUNE 2000 APREL Project No.: MISB-FREEDOM II NOVATEL-CDPD-3421 Exhibit 4 MIST Freedom IIC Wireless Point of Sale Device F F C C C C I I D D : : O O 3 3 J J F F 2 2 N N R R M M 6 6 8 8 3 3 2 2 C C 1 1 LABEL

JUNE 2000 APREL Project No.:MISB-FREEDOM II NOVATEL CDPD-3421 Exhibit 10 MIST Freedom II-C Wireless Point of Sale Device FCC ID: O3JF2NRM6832C1 SAR Report (With Test Set-up Photographs) Certification Report on Specific Absorption Rate (SAR) Experimental Analysis MIST Inc. Freedom II-C Test Date: 13 April, 2000 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] This report shall not be reproduced, except in full, without the express written permission of APREL Laboratories MISB-Freedom II CDPD-3418 Page 2 of 24Project #: MISB-Freedom II CDPD-3418 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6Fax (613) 820 4161 e-mail: [email protected] © APREL 2000 This report shall not be reproduced, except in full,without the express written approval of APREL Laboratories. FCC ID:O3JF2NRM6832-C-1 Applicant:MIST Inc. Equipment:Wireless Point of Sale Terminal Model:MIST Freedom II-C using a Novatel NRM-6832 Expedite Wireless IP Modem (CDPD Network) Standard:FCC 96 –326, Guidelines for Evaluating the Environmental Effects of Radio- Frequency Radiation ENGINEERING SUMMARY This report contains the results of the engineering evaluation performed on a MIST Freedom II-C Point of Sale Terminal operating with a built in Novatel NRM-6832 Expedite wireless IP modem (CDPD Network). The measurements were carried out in accordance with FCC 96-326. The Point of Sale Terminal was evaluated at its maximum nominal power level, 600mW (28 dBm). The MIST Freedom II-C was tested at high, middle, and low frequencies on the keyboard, battery, and both sides of the device, with the antenna extended and retracted. The maximum SAR was found to coincide with the peak performance RF output power of channel 991 (low, 824 MHz) for front side up position with the antenna extended. Test data and graphs are presented in this report. Based on the test results and on how the device will be used, it is certified that the product meets the requirements as set forth in the above specifications, for an uncontrolled RF exposure environment for extremities (hand). The manual for this unit will require a warning to keep the base of the antenna at least 33 mm away from any part of the body other than the extremities of either users or bystanders. The results presented in this report relate only to the sample tested. Page 3 of 24Project #: MISB-Freedom II CDPD-3418 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6Fax (613) 820 4161 e-mail: [email protected] © APREL 2000 This report shall not be reproduced, except in full,without the express written approval of APREL Laboratories. TABLE OF CONTENTS 1.Introduction........................................................................................................................4 2.Applicable Documents.......................................................................................................4 3.Equipment Under Test.......................................................................................................4 4.Test Equipment..................................................................................................................5 5.Test Methodology..............................................................................................................5 6.Test Results........................................................................................................................6 6.1.Transmitter Characteristics........................................................................................6 6.2.SAR Measurements....................................................................................................7 7.Bystander............................................................................................................................9 8.Conclusions......................................................................................................................11 Appendix A..............................................................................................................................12 Appendix B..............................................................................................................................19 Appendix C..............................................................................................................................20 Appendix D..............................................................................................................................21 Appendix E...............................................................................................................................24 Page 4 of 24Project #: MISB-Freedom II CDPD-3418 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6Fax (613) 820 4161 e-mail: [email protected] © APREL 2000 This report shall not be reproduced, except in full,without the express written approval of APREL Laboratories. 1. INTRODUCTION Tests were conducted to determine the Specific Absorption Rate (SAR) of a sample of a MIST Freedom II-C Point of Sale Terminal, which incorporates a Novatel NRM- 6832 Expedite Wireless IP radio modem. These tests were conducted at APREL Laboratories’ facility located at 51 Spectrum Way, Nepean, Ontario, Canada. A view of the SAR measurement setup can be seen in Appendix A Figure 1. This report describes the results obtained. 2. APPLICABLE DOCUMENTS The following documents are applicable to the work performed: 1) FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio- Frequency Radiation 2) ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 3) ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. 4) OET Bulletin 65 (Edition 97-01) Supplement C (Edition 97-01), “Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fie…

Text truncated - open the document above for the full version.

* Consulting * Research * Training * Certification Testing Since 1981 51 Spectrum Waytel: (613) 820-2730 Nepean, Ontariovisit our Web Pages: www.aprel.comfax: (613) 820-4161 Canada K2R 1E6email: [email protected] 25 September, 2000 Mr. Frank Coperich FCC Application Processing Branch Re:Questions from the FCC FCC ID:O3JF2NRM6832C1 Correspondence Reference Number:15626 731 Confirmation NumberEA98231 Date of Original E-Mail:08/15/2000 Dear Mr. Coperich: Pursuant to your e-mail to our Jay Sarkar, I am forwarding to you our responses. The relevant portions of the FCC’s e-mail follow with our responses inserted in the appropriate place: > Sent:Tuesday, August 15, 2000 3:13 PM > To:Jayanta (Jay) Sarkar, [email protected] APREL Laboratories > From:Frank Coperich, [email protected] > FCC Application Processing Branch > Re:FCC ID O3JF2NRM6832C1 > Applicant:MIST Inc. > Correspondence Reference Number:15626 > 731 Confirmation Number:EA98231 > Date of Original E-Mail:08/15/2000 > > 1. The users manual describes "Belt-Clip and Belt-Knob" accessories. Please clarify the > operating configurations and if a minimum separation distance of 3.3 cm can be provided by > such accessories for body-worn use, as tested for SAR compliance. MIST Inc. has decided not to offer the "Belt-Clip and Belt-Knob" accessories to customers. Consequently, the User Manual has been updated by removing these accessories from page 21. > 2. SAR report indicates a maximum output of 600 mW but EMC results reported maximum > conducted output as 398 mW; please clarify. The mentioned 600 mW was not measured during the SAR measurements since this product does not have an externally accessible RF feedpoint. Our understanding is that the design specification for * Consulting * Research * Training * Certification Testing Since 1981 51 Spectrum Waytel: (613) 820-2730 Nepean, Ontariovisit our Web Pages: www.aprel.comfax: (613) 820-4161 Canada K2R 1E6email: [email protected] the maximum power was 28dBm +2dB/-4dB – where 28dBm corresponds to 600mW. That is why we call it the “maximum nominal power level”. The 398mW conducted power reported in other parts of the submission was measured prior to the ERP measurement and was obtained by partially disassembling the device and attaching the adapter cable shown in the following figure directly to the modem’s RF output. It was not feasible to perform this measurement before and after each SAR scan so relative radiated power measurements were performed instead. We no longer carry out this conducted power measurement on devices which do not have an easily accessible RF feedpoint. Figure 1 MMCX to SMA adapter cable for modem I trust that the above will answer your inquiries to those. If not, feel free to contact me. Regards, Paul G. Cardinal, Ph.D. Director, Laboratory Operations

May 2000 APREL Project No: MISB-FREEDOM II NOVATEL CDPD-4421 Exhibit 2/A MIST Freedom II-C Wireless Point of Sale Device FCC ID: O3JF2NRM6832C1 ERP Measurement Report (With Test Setup Photographs) Assessment of Compliance for Measurement of Effective Radiated Power (ERP) in accordance with the FCC Rules & Regulations Part 2.1046 MIST Freedom II-C Wireless Point of Sale Terminal MIST Inc. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] JUNE 2000 MISB-FREEDOM II NOVATEL CDPD-3421  June 2000 Page 2 APREL Project No.: MISB - FREEDOM II NOVATEL CDPD - 3421 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:O3JF2NRM6832C1 Applicant:Mist Inc. Equipment:Wireless Point of Sale Terminal Model:MIST Freedom II-C Standard:FCC Rules and Regulations Part 2.1046 ENGINEERING SUMMARY This report contains the results of the effective radiated power (ERP) measurement performed on a MIST Freedom II-C Wireless Point of Sale Terminal operating with a built-in Novatel Expedite (NRM-6832) modem. The measurements were carried out in accordance with the FCC Rules and Regulations Part 2.1046. The product was evaluated for ERP when it was set at the maximum power level. The CDPD version of the Wireless Point of Sale Terminal (MIST Freedom II-C) was tested for ERP at high, middle, and low frequencies with the maximum ERP obtained at channel (No. 383) with the frequency being 836.49 MHz and ERP: .347 W. The test data is presented in this report under the section: Test Results, Table 1. Additionally, measurement data for RF output when measured using conducted method is also given in Table 1.  June 2000 Page 3 APREL Project No.: MISB - FREEDOM II NOVATEL CDPD - 3421 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary RF Power Output as Radiated Ref. Paragraph 2.104681Passed  June 2000 Page 4 APREL Project No.: MISB - FREEDOM II NOVATEL CDPD - 3421 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the effective radiated power (ERP) measurement conducted on a Wireless Point of Sale Terminal, model MIST Freedom II-C operating with a built-in Novatel Expedite (NRM-6832) modem. Test Facility The tests were performed for MIST Inc. by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4-1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is 90416 APREL is accredited by Standard Council of Canada, under PALCAN program (ISO Guide 25). APREL is also accredited by Industry Canada (formerly DOC) and recognised by the Federal Communications Commissions (FCC). Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1046 and the appropriate limits. Test Equipment The test equipment used during the evaluation is listed in Appendix A with calibration due dates. Environmental Conditions Measurements were conducted in open area test site. - Temperature: 18 °C ± 2 - Relative Humidity:30 - 50 %  June 2000 Page 5 APREL Project No.: MISB - FREEDOM II NOVATEL CDPD - 3421 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 - Air Pressure:101 kPa ± 3 FCC SUBMISSION INFORMATION FCC ID:O3JF2NRM6832C1 Equipment: Wireless Point of Sale Terminal Model:MIST Freedom II-C For:Certification Applicant:MIST Inc. 703 Evans Avenue, Suite 500 Toronto, Ontario, M9C 5E9 Canada Tel: (416) 621-1911, Fax: (416) 621-8875 Manufacturer: MIST Inc. 1101 46e Avenue Lachine, Montreal, H8T 3C5 Canada Tel: (514) 639-6511, Fax: (514) 639-8875 Evaluated by:APREL Laboratories 51 Spectrum Way Nepean, Ontario Canada K2R 1E6  June 2000 Page 6 APREL Project No.: MISB - FREEDOM II NOVATEL CDPD - 3421 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 MANUFACTURER’S DATA Equipment Type:Wireless Point of Sale Terminal Model:MIST Freedom II-C Reference:FCC Rules and Regulations Parts 2 and Part 22(H) Manufacturer:MIST Inc. Power Source:7.2 VDC Battery Development Stage of Unit:Production GENERAL SPECIFICATIONS 1.Frequency Range:824 to 849 MHz (Transmitter) 2. Rated Transmitted Output Power:0.347 W 3. Frequency Tolerance:± 2.5 PPM 4.Type of Modulation:GMSK,F1D 5.Emission Designators (See 47 CFR § 2.201 and §2.202):12K8F1D 6. Antenna Impedance:50 Ohms  June 2000 Page 7 APREL Project No.: MISB - FREEDOM II NOVATEL CDPD - 3421 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 MIST Inc. TEST RESULTS FOR Effective Radiated Power (ERP) Of Wireless Point of Sale Terminal MIST Freedom II-C with a Novatel Expedite (NRM-6832) Modem  June 2000 Page 8 APREL Project No.: MISB - FREEDOM II NOVATEL CDPD - 3421 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certi…

Text truncated - open the document above for the full version.

May 2000 APREL Project No.: MISB-FREEDOM II NOVATEL CDPD -3421 Exhibit 2/B MIST Freedom II-C Wireless Point of Sale Device FCC ID: O3JF2NRM6832C1 Spurious Measurement Report (With Test Setup Photographs) Assessment of Compliance for Measurement of Field Strength of Spurious Radiation in Accordance with the FCC Rules & Regulations Part 2.1053 MIS…
