O3JNBS5030WIRELESS POS TERMINAL BASE

NBS5xxx User Manual NBS Payment Solutions 2/55 User Manual Contents MANUFACTURER’S DECLARATION OF CONFORMITY................................................ 5 1 EQUIPMENT.................................................................................................. 6 1.1 GENERAL HARDWARE DESCRIPTION..................................................................... 7 1.1.1 NBS5500, CDMA terminal, main characteristics .................................................... 7 1.1.2 NBS5600, GPRS terminal, main characteristics .................................................... 8 1.1.3 NBS5700, BLUETOOTH terminal, main characteristics ........................................ 9 1.1.4 Other common features ........................................................................................ 10 1.2 DETAILED HARDWARE CHARACTERISTICS ........................................................ 12 1.2.1 Processors - the power of Telium ® technology..................................................... 12 1.2.2 Data security ......................................................................................................... 13 1.2.2.1 Equipment design........................................................................................... 13 1.2.2.2 Software design.............................................................................................. 13 1.2.2.3 Use design ..................................................................................................... 14 1.2.2.4 Standards ....................................................................................................... 14 1.2.3 The isolation mechanism by electronic locking system........................................ 15 1.2.4 Memory capacity................................................................................................... 16 1.2.5 Data storage time.................................................................................................. 16 1.2.6 Multimedia Card (MMC) or Secure Digital card (SD Card) .................................. 16 1.2.7 Smart card readers ............................................................................................... 17 1.2.8 Magnetic stripe card reader .................................................................................. 19 1.2.9 Keypad - Navigation pad ...................................................................................... 20 1.2.10 Display screen .................................................................................................... 21 1.2.11 Printer..................................................................................................................22 1.2.12 Modem ................................................................................................................ 23 1.2.13 Power supply unit................................................................................................ 24 1.2.14 External ports available on the base .................................................................. 25 1.2.14.1 NBS5010B (Charging base only - no external ports)................................... 25 1.2.14.2 NBS5020B (Com port and dial-up modem) ................................................. 25 1.2.14.3 NBS5030B (Bluetooth base - Ethernet) ....................................................... 26 1.2.14.4 NBS5040B (Bluetooth base – Dial-up) ........................................................ 27 1.2.15 External ports available on the terminal .......................................................... 28 1.2.16 Buzzer ............................................................................................................. 28 1.3 PERIPHERALS ........................................................................................................... 29 NBS Payment Solutions 3/55 User Manual 2 SOFTWARE................................................................................................. 30 2.1 SOFTWARE ARCHITECTURE................................................................................... 31 2.2 SOFTWARE SECURITY MANAGEMENT ................................................................. 33 2.3 OPERATING SYSTEM (OS)....................................................................................... 34 2.3.1 Bootstrap............................................................................................................... 34 2.3.2 Operating system (OS) characteristics ................................................................. 35 2.4 TELIUM ® MANAGER .................................................................................................. 36 2.4.1 Terminal initialization ............................................................................................ 36 2.4.1.1 Operating requirements ................................................................................. 36 2.4.1.2 Initializing common parameters ..................................................................... 36 2.4.2 Terminal maintenance .......................................................................................... 37 2.4.2.1 Properties ....................................................................................................... 37 2.4.2.2 Loading........................................................................................................... 37 2.4.2.3 Diagnostics ..................................................................................................... 37 2.5 SOFTWARE LOADING .............................................................................................. 38 2.5.1 Local loading and downloading ............................................................................ 38 2.5.2 Tools: LLT and TMS ............................................................................................. 38 2.5.3 Loading and managing memory allocation in the terminal ................................... 39 2.5.4 …

Text truncated - open the document above for the full version.

October 31, 2007 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Authority to Act as an Agent to FCC Applicant: NBS Payment Solutions – the division of NBS Technologies Inc. Product: NBS5030B Model: NBS5030B001 FCC ID: O3JNBS5030 Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application to F.C.C. for authorization of equipment under F.C.C. Rules. I also certify that the information provided, properly described the device or system for which authorization is required. Regards, Dragoslav Jovanovic Manager, Engineering NBS Payment Solutions

October 25, 2007 TIMCO ENGINEERING INC. P.O. Box 370 849 N.W. State Road 45 Newberry, Florida USA 32669 Subject: FCC Certification Authorization Application under Part 15, Subpart C, Section 15.247 – Frequency Hopping (Bluetooth) Operating in the Frequency Band 2402-2480 MHz. Product: Wireless POS Terminal Base Model No.: NBS5030B001 FCC ID: O3JNBS5030 Dear Sir/Madam As appointed agent for NBS Payment Solutions, we would like to submit this application for FCC Certification of the above product. Please review all required documents uploaded to TIMCO Upload Web Site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs Ultratech’s Accreditations: 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] UltraTech Group of Labs Ultratech’s Accreditations: 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

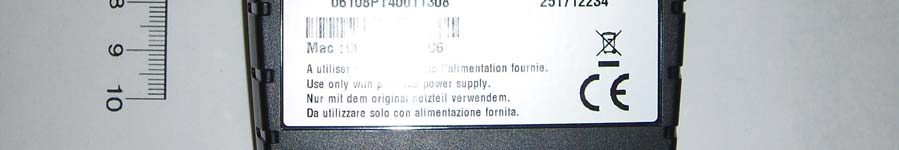

Confidential Page 2 Appendix A NBS5000 Product Family NBS5030B (Charger/Modem/IR/BLUETOOTH/LAN) Label NBS P/N: 0603-0XXX-000-00A-00-720 Communications: Modem = BLUETOOTH; IR = Infra-Red, LAN COMMUNICATIONS Scale: 1:1 Notes: Legend: Y=letter; X=decimal digit; Z=letter or decimal digit Printing - Black on a white background Material: Polyester, with permanent adhesive IC: 2279B-NBS5030 US: O3JNBS5030 NBS S/N: THXXXXXX - NBS serial number XXXXXX=6 digits MAC ADDRESS: Assigned by Sagem 05034PT20000001 - Sagem serial number 251234567 – Sagem product reference number MFD - ManuFacturing Date XX/XXXX=week/year lllllllllllllllllllllllllll NBS S/N: TH000001 NBS5030B Base Model: NBS5030B001 70mm ±0.5mm 50mm ±0.5mm lllllllllllllllllllllllllll 05034PT20000001 4 Radiuses 1mm ± 0.5mm MFD: 08/2007 Made in/Fait au: France Use provided power supply only: 5VDC 1A IC:2279B-NBS5030 FCC ID:O3JNBS5030 llllllllllllllllllllll 251234567 Fonts: NBS5030B Base ... = Tahoma 7 Model: ... = Tahoma 8 bold IC: ... = Tahoma 6 US: ... = Tahoma 6 NBS S/N: = Tahoma 8, Barcode = 14 MAC: = Tahoma 8, Barcode = 14 251234567 = Tahoma 7, Barcode = 13 05034PT2... = Tahoma 7, Barcode = 13 MFD... = Tahoma 7 Made in... = Tahoma 7 Use provided power... = Tahoma 6 lllllllllllllllllllllllllll MAC: 00:60:4C:DE:30:AF Confidential Page 3 NBS5000 Product Family NBS5030B (Charger/Modem/IR/BLUETOOTH/LAN) FCC Label NBS P/N: 0603-0XXX-000-00A-00-720 Scale: 1:1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 49mm ±0.5mm 15mm ±0.5mm 4 Radiuses 1mm ± 0.5mm Font: Tahoma 4 Confidential Page 4 Base label with FCC and IC ID FCC Statement

FCC Part 15.247 Frequency Hopping (Bluetooth) Page 34 Wireless POS Terminal Base FCC ID: O3JNBS5030 ULTRATECH GROUP OF LABS File #: MIS-068F15C247_B 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 25, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050 Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.9 RF Exposure Requirement [§ 15.247 (i), 1.1310 & 2.1091] 5.9.1. Limits ƒ § 15.247(i): Systems operating under provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See 1.1307(b)(1). ƒ § 1.1310:- The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). 5.9.2. Method of Measurements Refer to Sections 1.1310, 2.1091 and Public Notice DA 00-705 (March 30, 2000) Spread spectrum transmitters operating under section 15.247 are categorically from routine environmental evaluation to demonstrating RF exposure compliance with respect to MPE and/or SAR limits. These devices are not exempted from compliance (As indicated in Section 15.247(b)(4), these transmitters are required to operate in a manner that ensures that exposure to public users and nearby persons) does not exceed the Commission’s RF exposure guidelines (see Section 1.1307 and 2.1093). Unless a device operates at substantially low power levels, with a low gain antenna(s), supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirements (see Section 2.1091), the following information is typically needed: (1) Calculation that estimates the minimum separation distance (20 cm or more) between an antenna and persons required to satisfy power density limits defined for free space. (2) Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement FCC Part 15.247 Frequency Hopping (Bluetooth) Page 35 Wireless POS Terminal Base FCC ID: O3JNBS5030 ULTRATECH GROUP OF LABS File #: MIS-068F15C247_B 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 25, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050 Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) (3) Any caution statements and/or warning labels that are necessary in order to comply with the exposure limits (4) Any other RF exposure related issues that may affect MPE compliance Calculation Method of RF Safety Distance : 22 44r EIRP r GP S ⋅⋅ = ⋅⋅ ⋅ = ππ Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm For portable transmitters (see Section 2.1093), or devices designed to operate next to a person’s body, compliance is determined with respect to the SAR limit (define in the body tissues) for near-field exposure conditions. If the maximum average output power, operating condition configurations and exposure conditions are comparable to those of existing cellular and PCS phones, SAR evaluation may be required in order to determine if such a device complies with SAR limit. When SAR evaluation data is not available, and the additional supporting information cannot assure compliance, the Commission may request that an SAR evaluation be performed, as provided for in Section 1.1307(d) 5.9.3. Test Arrangement Refer to Section 2.6 of this test report for test setup. 5.9.4. Test Equipment List Test Instruments Manufacturer Model No. Serial No. Frequency Range Spectrum Analyzer/ EMI Receiver Rohde & Schwarz FSEK30 100077 20 Hz – 40 GHz Amplifier Hewlett Packard 8449B 3008A00769 1 GHz – 26.5 GHz Horn Antenna EMCO 3155 9701-5061 1 GHz – 18 GHz Biconilog Antenna EMCO 3143 1029 20 MHz – 2 GHz FCC Part 15.247 Frequency Hopping (Bluetooth) Page 36 Wireless POS Terminal Base FCC ID: O3JNBS5030 ULTRATECH GROUP OF LABS File #: MIS-068F15C247_B 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 25, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050 Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.9.5. Test Data Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: *2.45 cm Manufacturer’ instruction for separation distance between antenna and persons required: 20 cm. Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement Antenna installation and device operating instructions shall be provided to installers to maintain and ensure compliance with RF exposure requirements. Caution statements and/or warning labels that are necessary in order to comply with the exposure limits Refer to User’s Manual for RF Exposure Information. Any other RF exposure related issues that may affect MPE compliance None. *The minimum separation distance between the antenna and bodies of users are calculated using the following formula: RF EXPOSURE DISTANCE LIMITS S EIRP S GP r ⋅⋅ = ⋅⋅ ⋅ = ππ44 (S Limit ) = 1.0 mW/cm 2 (Maximum EIRP Measured) =18.79 dBm ≈ 10 1.879 = 75.68 mW (Mi…

Text truncated - open the document above for the full version.

ENGINEERING TEST REPORT Wireless POS Terminal Base Model No.: NBS5030B001 FCC ID: O3JNBS5030 Applicant: NBS Payment Solutions 703 Evans Ave., Suite 400 Toronto, Ontario Canada, M9C 5E9 In Accordance With FEDERAL COMMUNICATIONS COMMISSION (FCC) PART 15, SUBPART C, SECTION 15.247 Frequency Hopping (Bluetooth) Operating in the Frequency Band 2402-2480 MHz UltraTech's File No.: MIS-068F15C247_B This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: October 25, 2007 Report Prepared by: JaeWook Choi Issued Date: October 25, 2007 Tested by: Hung Trinh, RFI Technologist Test Dates: September 30, 2007 & October 17, 2007 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R FCC Part 15.247 - Frequency Hopping (Bluetooth) Wireless POS Terminal Base FCC ID: O3JNBS5030 ULTRATECH GROUP OF LABS File #: MIS-068F15C247_B 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 25, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1 INTRODUCTION ................................................................................................................................. 1 1.1 SCOPE ........................................................................................................................................................ 1 1.2 RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 1 1.3 NORMATIVE REFERENCES .....................................................................................................................1 EXHIBIT 2 PERFORMANCE ASSESSMENT ....................................................................................................... 2 2.1 CLIENT INFORMATION ............................................................................................................................. 2 2.2 EQUIPMENT UNDER TEST (EUT) INFORMATION .................................................................................. 2 2.3 EUT’S TECHNICAL SPECIFICATIONS...................................................................................................... 3 2.4 LIST OF EUT’S PORTS .............................................................................................................................. 3 2.5 ANCILLARY EQUIPMENT .......................................................................................................................... 3 2.6 TEST SETUP BLOCK DIAGRAM................................................................................................................ 4 EXHIBIT 3 EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS................................. 5 3.1 OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS .................................................... 5 EXHIBIT 4 SUMMARY OF TEST RESULTS ........................................................................................................6 4.1 LOCATION OF TESTS................................................................................................................................ 6 4.2 APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS....................................................... 6 4.3 MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ............................... 6 EXHIBIT 5 MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS................................. 7 5.1 TEST PROCEDURES ................................................................................................................................. 7 5.2 MEASUREMENT UNCERTAINTIES .......................................................................................................... 7 5.3 MEASUREMENT EQUIPMENT USED ....................................................................................................... 7 5.4 COMPLIANCE WITH FCC PART 15 – GENERAL TECHNICAL REQUIREMENTS .................................. 7 5.5 CHANNEL SEPARATION & 20 DB BANDWIDTH [§15.247(A)(1)].............................................................. 8 5.6 NUMBER OF HOPPING CHANNEL & AVERAGE TIME OF OCCUPANCY [§15.247(A)(1)(III)]............... 13 5.7 PEAK OUTPUT POWER [§§ 15.247(B)(1)]............................................................................................... 21 5.8 RADIATED SPURIOUS EMISSIONS @ 3 METERS [§ 15.209 & § 15.247(D)] ......................................... 22 5.9 RF EXPOSURE REQUIREMENT [§ 15.247 (I), 1.1310 & 2.1091]..................................................................... 33 EXHIBIT 6 MEASUREMENT UNCERTAINTY .................................................................................................... 36 6.1 LINE CONDUCTED EMISSION MEASUREMENT UNCERTAINTY ........................................................ 36 6.2 RADIATED EMISSION MEASUREMENT UNCERTAINTY ...................................................................... 37 FCC Part 15.247 - Frequency Hopping (Bluetooth) Page 1 Wireless POS Terminal Base FCC ID: O3JNBS5030 ULTRATECH GROUP OF LABS File #: MIS-068F15C247_B 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 October 25, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report …

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS NBS Payment Solution Wireless POS Base, Model NBS5030B FCC ID: O3JNBS5030 IC: 2279B-NBS5030 A1 - 1 Radiated Emissions at 3 m Distance ANNEX 1 - TEST SETUP PHOTOS NBS Payment Solution Wireless POS Base, Model NBS5030B FCC ID: O3JNBS5030 IC: 2279B-NBS5030 A1 - 2 Radiated Emissions at 3 m Distance ANNEX 1 - TEST SETUP PHOTOS NBS Payment Solution Wireless POS Base, Model NBS5030B FCC ID: O3JNBS5030 IC: 2279B-NBS5030 A1 - 3 Radiated Emissions at 3 m Distance ANNEX 1 - TEST SETUP PHOTOS NBS Payment Solution Wireless POS Base, Model NBS5030B FCC ID: O3JNBS5030 IC: 2279B-NBS5030 A1 - 4 Radiated Emissions at 3 m Distance ANNEX 1 - TEST SETUP PHOTOS NBS Payment Solution Wireless POS Base, Model NBS5030B FCC ID: O3JNBS5030 IC: 2279B-NBS5030 A1 - 5 Radiated Emissions at 3 m Distance ANNEX 1 - TEST SETUP PHOTOS NBS Payment Solution Wireless POS Base, Model NBS5030B FCC ID: O3JNBS5030 IC: 2279B-NBS5030 A1 - 6 Radiated Emissions at 3 m Distance ANNEX 1 - TEST SETUP PHOTOS NBS Payment Solution Wireless POS Base, Model NBS5030B FCC ID: O3JNBS5030 IC: 2279B-NBS5030 A1 - 7 Conducted Emissions ANNEX 1 - TEST SETUP PHOTOS NBS Payment Solution Wireless POS Base, Model NBS5030B FCC ID: O3JNBS5030 IC: 2279B-NBS5030 A1 - 8 Conducted Emissions
