O4X5-BTE00433INFANT PROTECTION BRACELET

Elpas BTE Baby Tag P/N: BTE00433 User Guide www.elpas.com Page 1 of 4 V2/Nov 2013 Introduction This User Guide provides basic instructions for the successful deployment of the BTE Baby Tag. CAUTION! Reasonable effort was made to ensure that the specifications and other information in this guide are accurate and complete at the time of its publication. Nonetheless, all information contained in this document is subject to change at any time without prior notice. Modifications made to this equipment without the prior written consent of Elpas Solutions Ltd. will void all warranties including the pertinent regulatory certifications and as such revoke your authority to operate this product. Furthermore If this equipment is modified, appropriate inspection and testing must be conducted to ensure continued safe use of the device. Elpas will provide upon request circuit diagrams. Component part lists, descriptions, calibration instructions or other information to assist service personnel to repair parts. Product Description The Elpas BTE Baby Tag is a small, baby friendly Active RFID Tag that provides wireless abduction and mother-baby mismatch deterrence from the time of birth until discharge. The Tag employs a disposable, size-adjustable, tamper-resistant band made from hypo-allergenic materials to guard against unapproved attempts to detach the device from the protected baby. The Tag transmits real-time indoor positioning data so that medical personnel can always know the whereabouts, movement and status of the protected infant. For added security, the BTE Baby Tag also supports instantaneous near-exit location alerting to help guard against unauthorized departmental transfers and to assist in enforcing staff and family escort policies between hospital departments. Tamper Transmissions Transmission Rate: 3 RF transmissions (each transmission @ 2ms in duration), 250ms-400ms apart Event Transmission Rates in LF Zones Moving Tag LF Response Time: Onboard LF receiver activates every 250 milliseconds to check if the tag is in a LF zone. Transmission Rate: 3 RF transmissions (each transmission @ 2ms in duration), 250m-400ms apart. Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Motionless Tag LF Response Time: Onboard LF receiver polls every 60 seconds to check if the tag is in a LF zone. Transmission Rate when in LF: 3 RF transmissions (each transmission @ 2ms in duration), 250m-400ms apart. Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Important Usage & Safety Considerations It is important that you read, understand, and follow the instructions in this user guide. Should you have any questions, please contact your local Elpas support representative before proceeding. Training: It is the responsibility of the System Installer to ensure that all appropriate staff members are suitably trained in the usage & care of the BTE Baby Tag. Supervisory Alerts: should be configured in the Host RTLS Application to notify staff members that the BTE Baby Tag.is:  In a Low Battery Condition  Not properly transmitting location and status data. Additionally all Supervisory Alerts should be triggered periodically to ensure system integrity. (Refer to your Eiris Configuration Guides for additional details.) Preliminary_V2 Elpas BTE Baby Tag – User Guide www.elpas.com Page 2 of 4 V2/Nov 2013 Tag Attachment 1. Insert the band into one of the tag slits and pull until approximately 1cm or 0.5inches of conductive material has been pulled through. 2. Pull back on the band so that the contact pins make a secure contact with the conducting sheath. 3. Using safety scissors cut the band so that the edge of the band is level with the face of the tag and trim the corners. 4. Insert second end into second leaving sufficient band length to slide the bracelet over the infant’s heal. 5. Slide bracelet over foot and onto ankle with tag facing outwards with the cut band end towards the heal 6. Pull the exposed end until secure however be careful not to over-tighten the band. Confirm that the tag is snug enough to prevent removal over the baby’s heal, yet loose enough to allow circulation. 7. Using safety scissors cut the band so that the edge of the band is level with the face of the tag and trim the corners Band Tightening Should the infant lose weight during his/her stay, the bracelet band may be shortened by pulling on one of the exposed ends. After the band is tightened, the excess band may be cut and corners trimmed. Tag Removal 1. Use safety scissors to cut bracelet band. 2. Pull remaining band sections through slits from the top of the tag. Note See Eiris system user guide for tag discharge procedure. Preliminary_V2 Elpas BTE Baby Tag – User Guide www.elpas.com Page 3 of 4 V2/Nov 2013 Cleaning & Disinfection Procedures Use an appropriate antibacterial disinfectant such as Dispatch ® Hospital Cleaner Disinfectant with Bleach from Caltech Industries (http://www.caltechind.com ) to clean the Baby Tag. Since ‘Cleaning Procedures’ may vary according to facility guidelines, thus the procedures given below are for illustrative purposes only: Option 1 – Using Dispatch Disinfectant Spray 1. Lightly wet a disposable towel with Dispatch spray 2. Do not saturate the towel 3. Wipe the outer surfaces of the sensor 4. Next wipe the sensor with a dry disposable towel 5. Allow the sensor to air dry 6. Return the clean sensor to inventory or usage 7. Dispose of used towels per facility policies Option 2 – Using Dispatch Disinfectant Towels 1. Open a new Dispatch pre-moistened towel 2. Wipe the outer surfaces of the sensor 3. Next wipe the sensor with a dry disposable towel 4. Allow the sensor to air dry 5. Return the clean sensor to inventory or usage 6. Dispose of used towels per facility policies Product Specifications Item Description RTLS Technologies RF (433MHz) LF (125KHz) RF U nder LF 2 seconds; after 10 minutes returns to 10 seconds when in motion or 60 seconds when stationary LF S am…

Text truncated - open the document above for the full version.

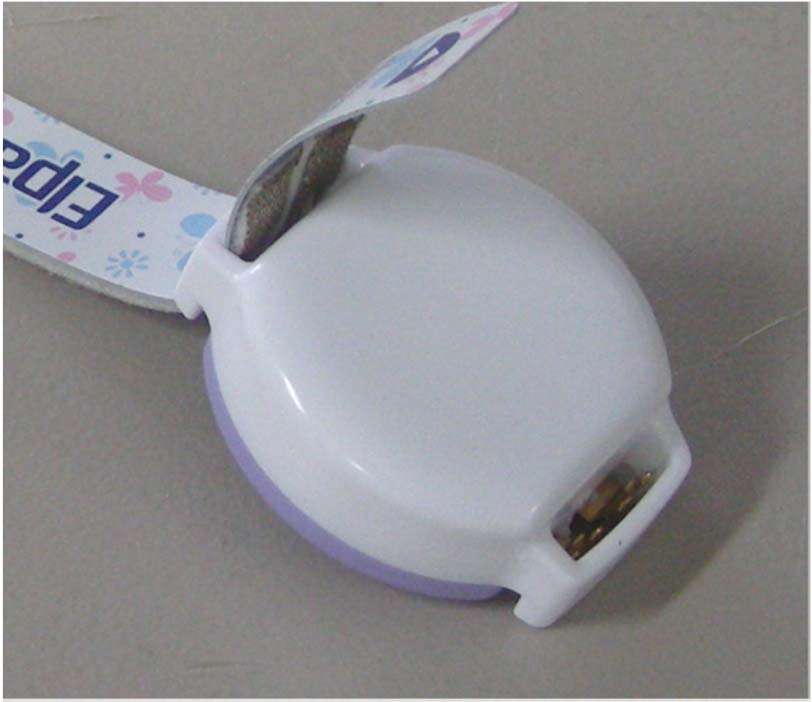

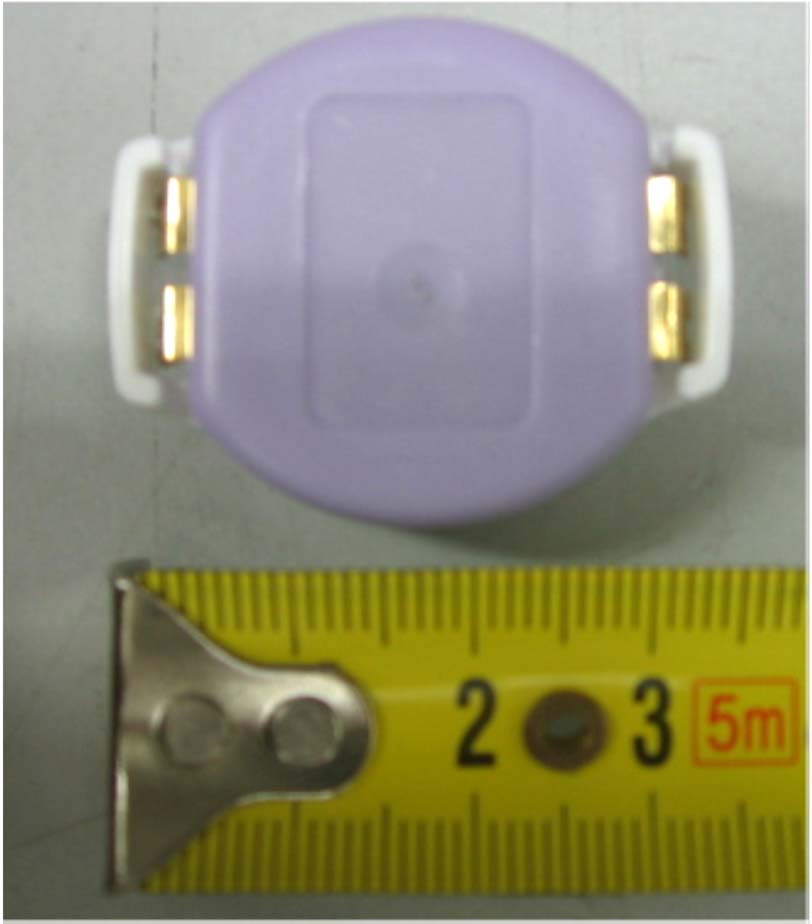

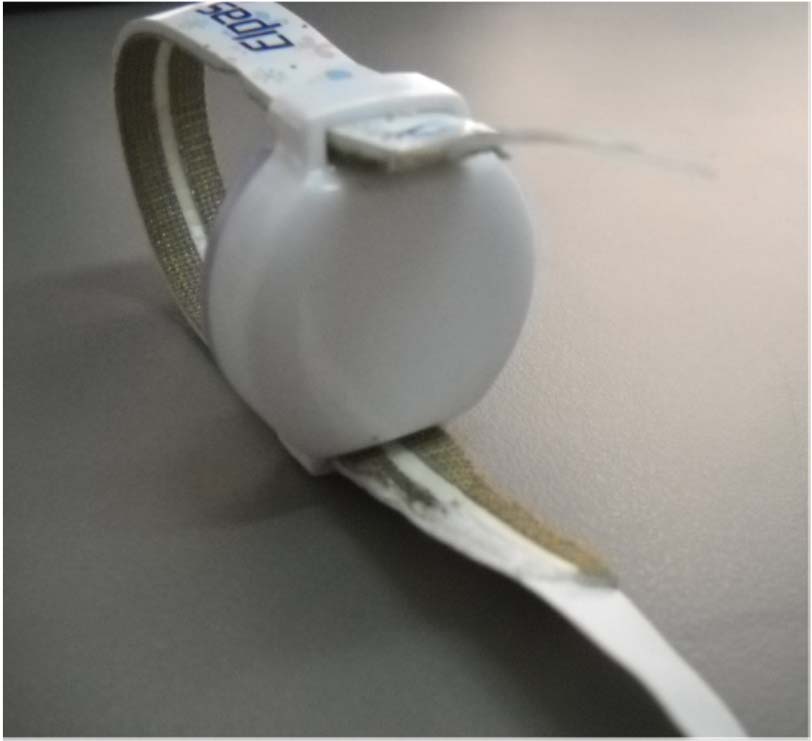

Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 2 of 5 Photograph No.1 Infant Protection Bracelet general view Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 3 of 5 Photograph No.2 Infant Protection Bracelet side view Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 4 of 5 Photograph No.3 Infant Protection Bracelet front view Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 5 of 5 Photograph No.4 Infant Protection Bracelet bottom view

Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 1 of 1 Label Label location Label with FCC ID:O4X5-BTE00433 and IC:1467G-5BTE00433 is located at the rear side of the Infant Protection Bracelet. The statement according to FCC part 15 §15.19(a)(3) is placed in User’s Manual, page 4 (Application exhibit BTE_UserMan). FCC ID:O4X5-BTE00433 IC:1467G- 5BTE00433

Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 1 of 6 INTERNAL PHOTOGRAPHS This document contains 5 photographs Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 2 of 6 Photograph No.1 Infant Protection Bracelet internal view Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 3 of 6 Photograph No.2 Infant Protection Bracelet internal view from second side with antenna removed Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 4 of 6 Photograph No.3 Infant Protection Bracelet PCB front view Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 5 of 6 Photograph No.4 Infant Protection Bracelet PCB second side view Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 6 of 6 Photograph No.5 Infant Protection Bracelet antenna view

21.5 4.4 A A 24.2 8.8 R2 21.7 B SECTION A-A SCALE 2 : 1 5 0.6 0.5 0.1 REF DETAIL B SCALE 4 : 1 ±0.2 Notes: This drawing is additional to a 3D CAD file.1. ?????? H-BTE06002 Tolerances, unless otherwise specified Finish S. Texture Material Length Approved Checked Designed Angle Damianov S Name Drawing Number Scale 5:1 Signature 01.04.13 Date Title H-BTE06002 r- Antenna 010413A B FileName Size A4 Rev. Antenna ZONE DESIGNED REVDESCRIPTION DATE Penkov T Dimitrov L All dimensions are in mm. SHEET 1 OF 1 01.04.13 01.04.13 CAM350 V 9.5.1 : Thu Apr 18 13:44:19 2013 - (Untitl ed) : 091_13_MASTER.g CAM350 V 9.5.1 : Thu Apr 18 13:44:19 2013 - (Untitl ed) : 091_13_cs.gbr CAM350 V 9.5.1 : Thu Apr 18 13:44:19 2013 - (Untitl ed) : 091_13_ps.gbr CAM350 V 9.5.1 : Thu Apr 18 13:44:19 2013 - (Untitl ed) : 091_13_clcs.gbr

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 53 Report ID: ELPRAD_FCC.25003_rev1.docx Date of Issue: 9-Jan-14 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 Part 15 subpart C, section 15.231(e) and RSS-210 issue 8 Annex 1 FOR: Elpas Solutions Ltd. Infant Protection Bracelet Model: BTE Part number: 5-BTE00433-1 FCC ID:O4X5-BTE00433 IC:1467G-5BTE00433 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: ELPRAD_FCC.25003_rev1.docx Date of Issue: 9-Jan-14 Page 2 of 53 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Changes made in EUT .................................................................................................................................................. 5 6.4 EUT test positions ......................................................................................................................................................... 6 6.5 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests according to 47CFR part 15 subpart C and RSS-210 issue 8 Annex 1 requirements ...................... 8 7.1 Periodic operation requirements ................................................................................................................................... 8 7.2 Field strength of emissions .......................................................................................................................................... 11 7.3 Field strength of emissions .......................................................................................................................................... 26 7.4 Occupied bandwidth test ............................................................................................................................................. 39 7.5 Antenna requirements ................................................................................................................................................. 43 8 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 44 9 APPENDIX B Measurement uncertainties ................................................................................................................... 45 10 APPENDIX C Test laboratory description ................................................................................................................... 46 11 APPENDIX D Specification references ....................................................................................................................... 46 12 APPENDIX E Test equipment correction factors ......................................................................................................... 47 13 APPENDIX F Abbreviations and acronyms ................................................................................................................. 53 Report ID: ELPRAD_FCC.25003_rev1.docx Date of Issue: 9-Jan-14 Page 3 of 53 1 Applicant information Client name: Elpas Solutions Ltd Address: 23 Habarzel street, Tel Aviv 69710, Israel Telephone: +972 3768 1421 Fax: +972 3768 1415 E-mail: [email protected] Contact name: Mr. Meir Erenkrantz 2 Equipment under test attributes Product name: Infant Protection Bracelet Product type: Transceiver operating at 433 MHz Model(s): BTE Part number: 5-BTE00433-1 Serial number: Prototype Hardware version: Ver. F Software release: 01 Receipt date 10-Nov-13 3 Manufacturer information Manufacturer name: Elpas Solutions Ltd. Address: 23 Habarzel street, Tel Aviv 69710, Israel Telephone: +972 3768 1421 Fax: +972 3768 1415 E-Mail: [email protected] Contact name: Mr. Meir Erenkrantz 4 Test details Project ID: 25003 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 10-Nov-13 Test completed: 8-Dec-13 Test specification(s): FCC 47CFR part 15, subpart C, §15.231(e); RSS-210 issue 8 Annex 1, RSS-Gen issue 3 Report ID: ELPRAD_FCC.25003_rev1.docx Date of Issue: 9-Jan-14 Page 4 of 53 5 Tests summary Test Status Transmitter characteris…

Text truncated - open the document above for the full version.

Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 1 of 6 SETUP PHOTOGRAPHS This document contains 5 photographs Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 2 of 6 Photograph No.1 Setup for spurious emission field strength measurements in the anechoic chamber below 30 MHz Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 3 of 6 Photograph No.2 Setup for carrier field strength, spurious emission field strength measurements in the anechoic chamber in 30 – 1000 MHz range Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 4 of 6 Photograph No.3 Setup for spurious emission field strength measurements in the anechoic chamber above 1000 MHz Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 5 of 6 Photograph No.4 Setup for spurious emission field strength measurements in the anechoic chamber, EUT close view Elpas Solutions Ltd. FCC ID: O4X5-BTE00433 IC:1467G-5BTE00433 Page 6 of 6 Photograph No.5 Setup for OBW measurements
