O4X5-WTG411210Quad Technology Wrist Tag

Elpas3 Personal Safety Bracelet 5-WTG41100-0, 5-WTG41120-0 (Mother Tag), 5-WTG41102-0 (Security Band) Installation Guide www.elpas.com Page 1 of 4 V1/July 2015 Introduction The Elpas3 Personal Safety Bracelet is an attractive bracelet that provides around-the-clock monitoring of medical patients and assisted living care residents who require added safety. The bracelet bundles tri-tech (in Mother Bracelet – quad-tech, includes LF transmission) Real-Time Location System (RTLS) technologies to deliver precise real-time positioning data so that a host RTLS safety application or an integrated physical security platform can track the whereabouts of the individual anywhere within the facility. Note: IR is optional. If irrelevant, users can deactivate IR functionality to conserve battery. Elpas3 Personal safety Bracelet includes RF reception as well as transmission to allow two-way communication with Eiris. Eiris can acknowledge when it receives an RF message. The bracelet features a large duress call button designed especially for senior citizens. Pressing the button causes the tag to transmit positioning data that identifies the person requiring assistance and the precise building location of the involving medical or safety incident for speedier and more effective response efforts. Note: It is optional to replace the button cover of the tag with a standard plastic cover. The Mother version also pairs with an Elpas Infant Protection Charm. With the press of the bracelet button, the infant charm flashes a color, indicating the two are paired. When a user presses the button again, the bracelet transmits an LF signal that tests if it matches with the Infant Protection Charm. Once the pairing is made, only the wearer of the Mother Bracelet can exit designated areas with the baby who wears the Infant Protection Charm with which it is paired. The bracelet enables immediate near-exit location awareness for administering patient/staff escort procedures and for preventing unauthorized transfers into or out of protected building areas. Product Specifications RT L S T echno lo g ies RF Reception and Transmission (433MHz); IR Reception (125KHz) ; LF Reception (125KHz) ; LF Transmission (in Mother Bracelet) RF ( Mo t io n/St at io na r y) Supervision messages every 10 seconds / 60 seconds IR ( Mo t io n/ St at io nar y) Supervision messages every 10 seconds / 60 seconds Sup e r vised E vent s LF Entr y/E xi t: Button Pr ess/Rel ease, Moti on/Stati onar y, Low Batter y RF Und er L F Entry into LF: 3 transmissions (each @ 2ms in duration), 0.5secs apart; every 2 seconds. After 10 minutes under LF: Returns to 10 seconds while in motion Po wer So u rce (recommended) 3.0V/560mAH lithium battery, CR 2450 Bat t ery L if e 12-36 months depending upon usage L ED Ind icat o r Low Battery (flashes every ten sec when below 2.6 Volts), Button Press (flashes three times), LF Field (flashes three times) T ag & L F ID Co d es Factory-Programmed Ho using IP65, Nylon Plastic Weig ht 41.1 grams (1.45 ounces) Dime nsio ns ( H x W x D) 46.9 x 41.0 x16.8mm (1.84 x 1.61 x 0.65 inches) Op erat ing E n vi ro n ment Temp: -30°C to 70° C (-22°F to 158°F) Humidity: 100% non-condensing Ma nag ement So f t ware Eiris Reg ulat o r y CE, FCC, IC compliant and certified War rant y 1 year limited warranty Product offerings and specifications are subject to change without notice. Not all products include all features. Accessories Part Number Description 5-BT E00433-1 Elpas Infant Protection Charm 5-PB063011 Disposable Secure Hospital ID Band (set of 50) 5-WT A90007 Canvas Wristband with Lock Pin (set of 5) 5-500130 Lock Pin Removal Magnet 5-WT D09012 Security Band (set of 5). To insert, remove band adapters 5-WT D09009 Band Lock Ke y ( set of 5) 5-WT D09017 W TD No Button Cover ( set of 5 wi th 20 scr ews) Elpas Personal Safety Bracelet – User Guide www.elpas.com Page 2 of 4 V1/July 2015 Initial Activation The bracelet is shipped from the factory in Sleep Mode to conserve battery power during shipping. To activate the bracelet from sleep mode: Button Press Orient the tag front-cover side up. Next press & hold down the call button for at least 5 seconds. If the wake-up process is successful the LED Indicator on the front of the bracelet will illuminate for 3 seconds. Tag Cover Replacement Place the bracelet back cover side up. Then Unscrew the 4 screws, flip the badge back side down, and remove the front cover. If the PCB is removed from the back cover in the process, replace it. Make sure both pins inserted inserted in their respective hole from the bottom of the PCB. Close the front cover so that the screw holes are aligned. Tighten the 4 screws snugly into place. Do not over-tighten as this may strip the case threads. Attaching the Hospital Band Adapters Place the bracelet back cover side up. Then Unscrew the 4 screws and remove the back cover. Position the bracelet front cover side down. Next insert the two hospital band adapters into the grooved slots which are located on either side of the front cover. Close the back cover such that the screw holes are correctly aligned. Tighten the 4 screws snugly into place. Do not over-tighten as this may strip the case threads Battery Replacement Change the bracelet’s status in the host RTLS application to ‘Inactive’. Place the bracelet back cover side up. Then Unscrew the 4 screws and remove the back cover. Slide the battery out from under the battery holder. Dispose of used battery in accordance with local regulations. Replace the battery ensuring that the positive (+) side of the battery faces up. Close the back cover such that the screw holes are correctly aligned. Tighten the 4 screws snugly into place. Do not over-tighten as this may strip the case threads. Change the bracelet’s status in the host RTLS application back to ‘Active’. Disabling IR By default, IR functionality is on. 1. Press button B1 (the large one) for five seconds. The LED Flashes five times.  A single flash means IR is now o…

Text truncated - open the document above for the full version.

July 15, 2015 Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Application for certification of the Quad Technology Wrist Tag, FCC ID:O4X5-WTG411210 Dear Gentlemen, Please find attached our application for certification of the Quad Technology Wrist Tag, FCC ID:O4X5-WTG411210, prepared in accordance with FCC Rules, parts 2 and 15, section 15.231(a). The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC, Registration Numbers 90623, 90624. The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: +972 4626 8440, fax:+972 4628 8277, e-mail: [email protected]. Please send an invoice to Hermon Labs. We hope this application satisfies your requirements. Sincerely yours, Arick Elshtein, International Compliance Manager Elpas Solutions Ltd.

RF_160, Issue 03 Declaration of Authorization We Name: Elpas Solutions Ltd. Address: 23 Habarzel street, Tel Aviv 69710 Country: Israel Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description:  Quad Technology Wrist Tag Type designation:  5-WTG41121-0, 5-WTG41120-0, 5-WTG40121-0, 5-WTG40120-0 Trademark:  Elpas on our behalf. Date: June 17, 2015 City: Tel Aviv Name: Arick Elshtein (2) Function: International Compliance Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Elpas Solutions Ltd. Address : 23 Habarzel street City: Tel Aviv 69710 Country: Israel To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: O4X5-WTG411210 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: June 17, 2015 Name and signature of applicant: Arick Elshtein Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

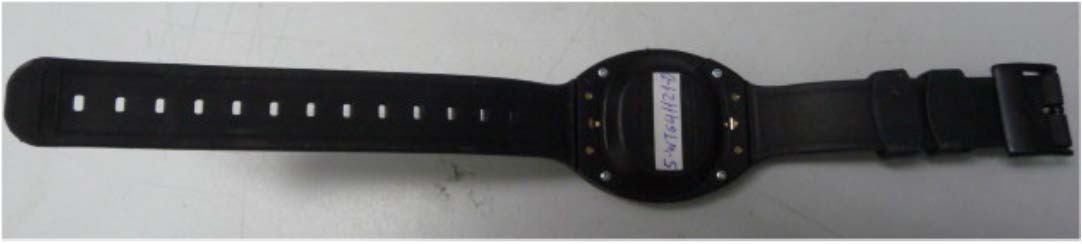

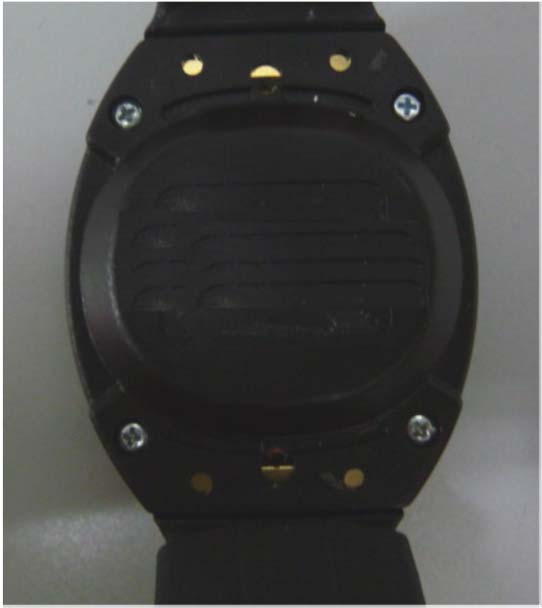

Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 2 of 5 Photograph No.1 Quad Technology Wrist Tag general front view Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 3 of 5 Photograph No.2 Quad Technology Wrist Tag general rear side view Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 4 of 5 Photograph No.3 Wrist Tag front view Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 5 of 5 Photograph No.4 Wrist Tag rear side view

Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 1 of 2 Label Model: 5-WTG41121-0 Model: 5-WTG41120-0 Model: 5-WTG40120-0 Model: 5-WTG40121-0 Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 2 of 2 Label location Label with FCC ID:O4X5-WTG411210 and IC:1467G-5WTG411210 is located at the rear side panel of the Wrist tag. The statement according to FCC part 15 §15.19(a)(3) is placed in User’s Guide, page 4 (Application exhibit User_manual_26766). FCC ID:O4X5-WTG411210 IC:1467G- 5WTG411210

Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 1 of 5 INTERNAL PHOTOGRAPHS This document contains 4 photographs Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 2 of 5 Photograph No.1 Quad Technology Wrist Tag internal view Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 3 of 5 Photograph No.2 Tag PCB front view Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 4 of 5 Photograph No.3 Tag PCB front view with shield removed Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 5 of 5 Photograph No.4 Tag PCB second side view

Tyco Security Products 23 Habarzel Street Tel-Aviv 69710, Israel Tele: +972 3 768 1400 Fax: +972 3 768 1415 www.tycosecurityproducts.com Page 1 of 1 Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Operational description The Elpas Personal Safety Bracelet is an attractive bracelet that provides around-the-clock monitoring of medical patients and assisted living care residents who require added safety. The EUT is a Quad Technology Wrist Tag that comprises Tx/Rx 433.42 MHz with GFSK modulation, Tx/Rx 125 kHz radio modules, ASK modulated. Upon receiving a 125 kHz signal or pressing on the button, it transmits a digital ID message at 433.42 MHz. The device has four models which have the same housing/enclosure, PCB, RF part (GFSK modulated transceiver 433.42 MHz), LF transmitter (125 kHz) and LF receiver (125 kHz), and they vary in the following: the EUT model 5-WTG41121-0 is provided with a standard band and an IR receiver; the EUT model 5-WTG41120-0 is provided without band (plastic slits) and with an IR receiver; the EUT model 5-WTG40121-0 is provided with a standard band and without an IR receiver; the EUT model 5-WTG40120-0 is provided without band and without an IR receiver. The EUT is powered from 3V internal battery.

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 28 Report ID: ELPRAD_FCC.26766_15.209.docx Date of Issue: 11-Aug-15 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47CFR part 15 subpart C § 15.209 and RSS-210 issue 8 section 2.5.1 FOR: Elpas Solutions Ltd Quad Technology Wrist Tag Models: 5-WTG41121-0 5-WTG41120-0 5-WTG40121-0 5-WTG40120-0 FCC ID:O4X5-WTG411210 IC:1467G-5 WTG411210 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: ELPRAD_FCC.26766_15.209.docx Date of Issue: 11-Aug-15 Page 2 of 28 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Changes made in EUT .................................................................................................................................................. 5 6.4 EUT test positions ......................................................................................................................................................... 6 7 Transmitter tests according to 47CFR part 15 subpart C and RSS-210 requirements ................................................. 7 7.1 Field strength of emissions ............................................................................................................................................ 7 7.2 Antenna requirements ................................................................................................................................................. 15 7.3 Occupied bandwidth test ............................................................................................................................................. 16 8 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 19 9 APPENDIX B Measurement uncertainties ................................................................................................................... 20 10 APPENDIX C Test laboratory description ................................................................................................................... 21 11 APPENDIX D Specification references ....................................................................................................................... 21 12 APPENDIX E Test equipment correction factors ......................................................................................................... 22 13 APPENDIX F Abbreviations and acronyms ................................................................................................................. 27 14 APPENDIX G Manufacturer’s declaration of similarity ................................................................................................ 28 Report ID: ELPRAD_FCC.26766_15.209.docx Date of Issue: 11-Aug-15 Page 3 of 28 1 Applicant information Client name: Elpas Solutions Ltd. Address: 23 Habarzel street, Tel Aviv 69710, Israel Telephone: +972 3768 1400 Fax: +972 3768 1415 E-mail: [email protected] Contact name: Mr. Arick Elshtein 2 Equipment under test attributes Product name: Quad Technology Wrist Tag Product type: Transceiver operating at 433.42 MHz and 125 kHz Model(s): 5-WTG41121-0 Serial number: 5-WTG41121-0 Hardware version: JS-702980 (SW1), JS-702981 (SW2) Receipt date 09-Mar-15 3 Manufacturer information Manufacturer name: Elpas Solutions Ltd. Address: 23 Habarzel street, Tel Aviv 69710, Israel Telephone: +972 3768 1400 Fax: +972 3768 1415 E-Mail: [email protected] Contact name: Mr. Arick Elshtein 4 Test details Project ID: 26766 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 09-Mar-15 Test completed: 13-May-15 Test specification(s): FCC 47CFR part 15, subpart C, §15.209; RSS-210 issue 8 section 2.5.1 Report ID: ELPRAD_FCC.26766_15.209.docx Date of Issue: 11-Aug-15 Page 4 of 28 5 Tests summary Test Status Transmitter characteristics FCC section 15.209, RSS-210 section 2.5.1, Field strength of emissions Pass FCC section 15.203, RSS-Gen section 7.1.2, Antenna requirement Pass RSS-Gen, Section 6.6, Occupied bandwidth Tested Testing was completed against all relevant requirements of the test standard. The results obtained indicate that the product under test c…

Text truncated - open the document above for the full version.

Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 1 of 5 SETUP PHOTOGRAPHS This document contains 4 photographs Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 2 of 5 Photograph No.1 Setup for carrier, spurious emission field strength, OBW measurements in the anechoic chamber in 30 – 1000 MHz range Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 3 of 5 Photograph No.2 Setup for spurious emission field strength measurements in the anechoic chamber above 1000 MHz range Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 4 of 5 Photograph No.3 Setup for spurious emission field strength measurements in the anechoic chamber, EUT close view Elpas Solutions Ltd. FCC ID:O4X5-WTG411210 IC:1467G-5WTG411210 Page 5 of 5 Photograph No.4 Setup for occupied bandwidth measurements
