O4X5-MDA00433MAN-DOWN EMERGENCY CALL TRANSMITTER

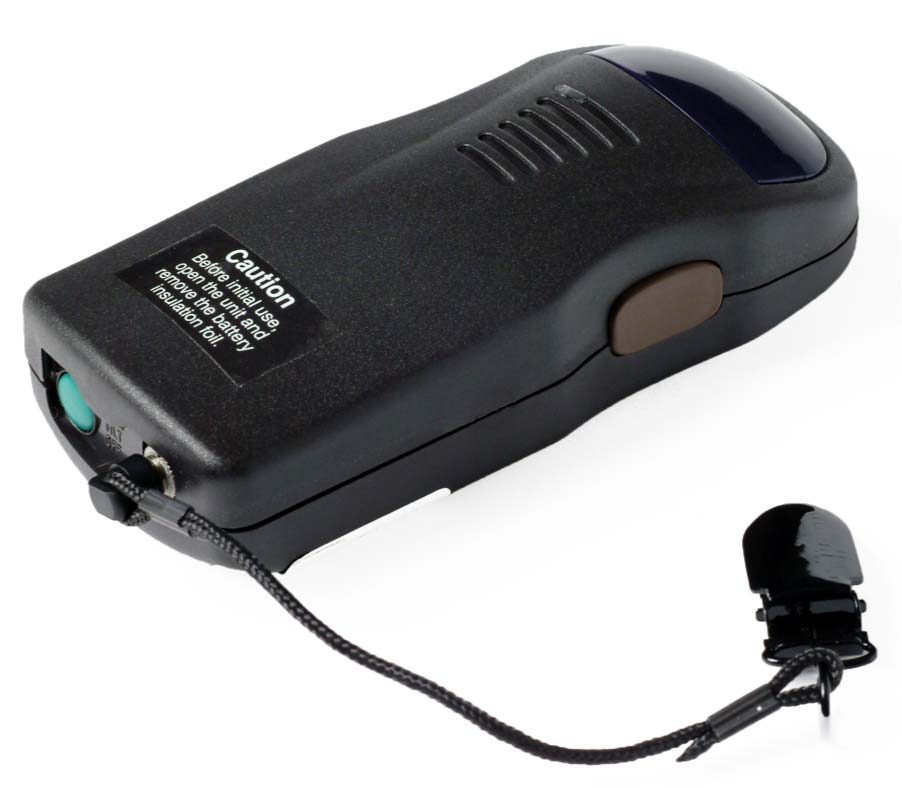

Elpas Man-Down Emergency Call Transmitter For P/Ns: 5-MDA00433 and 5-MDA00433-1 User Guide www.elpas.com Page 1 of 5 V3/Jan 2013 Introduction The Elpas Man-Down Emergency Call Transmitter is a holster worn Active RFID Tag that delivers wireless monitoring and tracking of lone workers, correctional guards and security personal that may be subject to attack or injury in high-risk workplace environments. The transmitter continuously transmits real-time location based security data which is received and relayed over the Elpas infrastructure to a host RTLS application or to an integrated 3rd party security platform for triggering appropriate response protocols. The transmitter includes two emergency call buttons for manual wireless duress alerting when the user perceives a personal threat. Additional features such as an onboard tilt switch and pull cord enable automatic alerting when the protected staff member is knocked down or if the unit is grabbed from the protected worker by force. When combined with the on board low frequency receiver the transmitter delivers precise positioning data that identifies the individual in trouble and the location of the evolving security incident. Man-Down Emergency Call Transmitter It is important that you understand, and follow the instructions in this document. Should you have any questions, please contact your local support representative before proceeding with the installation, operation or maintenance of these products. Alert Types The Man-Down Emergency Call Transmitter will transmit alert messages should the following events occur: Manual Duress Call Pressing the left and the right emergency call push buttons simultaneously will trigger the transmitter to emit a manual duress alert. Man-Down A built-in tilt sensor will cause the unit to transmit an automated Man-Down Alert when the unit is tilted by more than 60 degrees should the user be knocked down or falls to the ground. (See page 2 for further details.) Pull Cord Detachment The pull cord is attached to the user’s clothes and is connected to the transmitter by a detachable plastic pin. Grabbing the transmitter from the user by force will cause the plastic pin to detach from the device triggering an automated Duress Alert. Alert Test Pressing either the left or right emergency call push-button, individually will trigger the transmitter to emit a Test Alert for confirming that the unit is functioning properly. Initial Activation The Man-Down Transmitter is shipped from the factory, with the internal battery contact (+) covered by an isolation foil to conserve battery power during shipping. To make the unit operational, perform the following actions: Remove the back cover using a Philips screw driver. Open the front cover by pressing on the TEMP TILT OFF inscription located on the top edge of the transmitter. Pull out the isolation foil that is inserted between the battery and the battery holder (+) pole. Change the DIP switches positions that control the transmitter’s Feedback Beep Sounds as required. (See page 2 for further details). Close the cover, with your fingers, until its snaps shut and secure the back cover with its screw. Elpas Man-Down Emergency Call Transmitter – User Guide www.elpas.com Page 2 of 5 V3/Jan 2013 Configuring Feedback Beep Sounds DIP Switches 1 and 2 are used to configure under what conditions the Man-Down Transmitter will emit audible beep tones. Both DIP Switches are shipped from the factory set to be ON (default). DIP Switch 1 Controls whether or not the transmitter will beep upon entering a LF field. ON (Default): Transmitter is configured to beep OFF: Transmitter is configured to remain silent Dip Switch 2 Controls whether or not the transmitter will beep upon emitting an alert. ON (Default): Transmitter is configured to beep OFF: Transmitter is configured to remain silent Tilt Sensor Activation The Man-Down Transmitter is shipped from the factory, with its Tilt Sensor Slide-Switch turned to the OFF position in order to prevent the transmitter from emitting false Man-Down Alerts when the transmitter is not in actual usage. To activate the transmitter’s Tilt Sensor Slide-Switch from OFF to its ON position. Tilt Sensor Pre-Alert When the Man-Down Transmitter is tilted by more than 60 0 from its normal (vertical) position a pre-alert state will exist for 15 seconds before the unit transmits a Man-Down Alert. This time period enables the user to return the transmitter to its original vertical upright position or press the Temporary Tilt-Off push-button (located top edge of the transmitter) to prevent an unintentional false alert to be transmitted. During this period the transmitter emits an audible beep and the LED indicator flashes once every 2 seconds. If the Man-Down Transmitter is laid down, while its Tilt Sensor Slide-Switch is in the OFF position, when the device is returned to normal (vertical) position the device will emit 3 beeps to remind the user to reactivate the Tilt Sensor. If the Man-Down Transmitter is laid down, while its Tilt Sensor Slide-Switch is in the ON position, when the device is returned to normal (vertical) position the device will emit 2 beeps indicating that fall detection is enabled. Temp Tilt-Off Push-Button The Temp Tilt-Off Button (located on the top edge of the transmitter) is used to temporarily disable the unit’s Man-Down Alert functionality for 10 seconds. When removing the transmitter, press Temp Tilt-Off Push-Button prior to putting down the unit. When the unit is returned to a vertical position, fall detection will be enabled and the device will emit 2 beeps. Battery Replacement Change the transmitters’ status in the host RTLS application to Inactive. Next, remove the back cover of the transmitter (see Page 1 - Initial Activation for details) Remove the existing battery .Dispose of used battery in accordance with local regulations. Then install a new Battery verifying that the battery poles (+) and (-) are located as marked on the b…

Text truncated - open the document above for the full version.

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:O4X5-MDA00433. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block diagram 5-MDA_BlkDia_rev1 Schematic diagram 5-MDA_Schem Operational description 5-MDA_OpDes_Transceiver The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Meir Erenkrantz International Compliance Manager

Rev 11/20/07 To: Timco Engineering, Inc. To Whom It May Concern We the undersigned, hereby authorize Mr. Michael Nikishin of Hermon Laboratories to act on behalf of Elpas Solutions Ltd. in all manners relating to application for certification of FCC ID:O4X5-MDA00433 and IC:1467G-5MDA00433. Any and all acts carried out by Hermon Laboratories, on our behalf shall have the same legal authority as acts of our own. This authorization is valid until further written notice from Elpas Solutions Ltd. Sincerely, Meir Erenkrantz International Compliance Manager

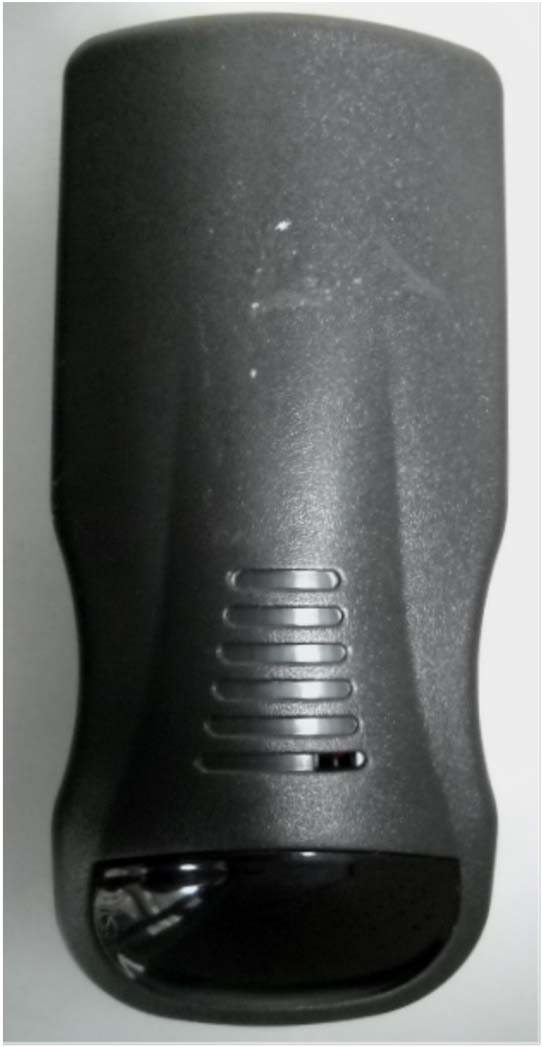

Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 2 of 5 Photograph No.1 Man-down tag general view Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 3 of 5 Photograph No.2 Man-down tag general side view Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 4 of 5 Photograph No.3 Man-down tag front view Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 5 of 5 Photograph No.4 Man-down tag rear side view

Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 1 of 2 Label Model: 5-MDA00433 Model: 5- MDA00433-1 Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 2 of 2 Label location Label with FCC ID:O4X5-MDA00433 and IC:1467G-5MDA00433 is located at the rear side panel of the Man-down tag. The statement according to FCC part 15 §15.19(a)(3) is placed in User’s Manual, page 5 (Application exhibit 5-MDA_UserMan). FCC ID:O4X5-MDA00433 IC:1467G- 5MDA00433

Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 1 of 7 INTERNAL PHOTOGRAPHS This document contains 6 photographs Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 2 of 7 Photograph No.1 Man-down tag internal view Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 3 of 7 Photograph No.2 Man-down tag main PCB with RF card front view Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 4 of 7 Photograph No.3 Man-down tag main PCB with RF card rear side view Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 5 of 7 Photograph No.4 Man-down tag RF card with antenna close view Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 6 of 7 Photograph No.5 Man-down tag RF card front view Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 7 of 7 Photograph No.6 Man-down tag RF card rear side view

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 44 Report ID: ELPRAD_FCC.22951.docx Date of Issue: 5-Feb-13 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 Part 15 subpart C, section 15.231 (e) and subpart B RSS-210 issue 8 Annex 1, ICES-003 Issue 5:2012 FOR: Elpas Solutions Ltd. Man-Down Tag Model: 5-MDA00433 FCC ID:O4X5-MDA00433 IC:1467G-5MDA00433 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: ELPRAD_FCC.22951.docx Date of Issue: 5-Feb-13 Page 2 of 44 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Changes made in EUT .................................................................................................................................................. 5 6.4 Transmitter characteristics ............................................................................................................................................ 6 7 Transmitter tests according to 47CFR part 15 subpart C and RSS-210 issue 8 Annex 1 requirements ....................... 7 7.1 Periodic operation requirements ................................................................................................................................... 7 7.2 Field strength of emissions .......................................................................................................................................... 11 7.3 Occupied bandwidth test ............................................................................................................................................. 22 7.4 Antenna requirements ................................................................................................................................................. 25 8 Unintentional emissions .............................................................................................................................................. 26 8.1 Radiated emission measurements .............................................................................................................................. 26 9 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 31 10 APPENDIX B Measurement uncertainties ................................................................................................................... 32 11 APPENDIX C Test laboratory description ................................................................................................................... 33 12 APPENDIX D Specification references ....................................................................................................................... 33 13 APPENDIX E Test equipment correction factors ......................................................................................................... 34 14 APPENDIX F Abbreviations and acronyms ................................................................................................................. 44 Report ID: ELPRAD_FCC.22951.docx Date of Issue: 5-Feb-13 Page 3 of 44 1 Applicant information Client name: Elpas Solutions Ltd. Address: 23 Habarzel street, Tel Aviv 69710, Israel Telephone: +972 3768 1421 Fax: +972 3768 1415 E-mail: [email protected] Contact name: Mr. Meir Erenkrantz 2 Equipment under test attributes Product name: Man-Down Tag Product type: Transceiver operating at 433 MHz Model(s): 5-MDA00433 Serial number: Prototype Hardware version: 04 Software release: 1.08 Receipt date 2/28/2012 3 Manufacturer information Manufacturer name: Elpas Solutions Ltd. Address: 23 Habarzel street, Tel Aviv 69710, Israel Telephone: +972 3768 1421 Fax: +972 3768 1415 E-Mail: [email protected] Contact name: Mr. Meir Erenkrantz 4 Test details Project ID: 22951 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 2/28/2012 Test completed: 1/29/2013 Test specification(s): FCC 47CFR part 15, subpart C, §15.231(e) subpart B; RSS-210 issue 8 Annex 1, RSS-Gen issue 3, ICES-003 issue 5:2012 Report ID: ELPRAD_FCC.22951.docx Date of Issue: 5-Feb-13 Page 4 of 44 5 Tests summary Test Status Transmitter characteristics FCC Part 15, Section 231(e) …

Text truncated - open the document above for the full version.

Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 1 of 5 SETUP PHOTOGRAPHS This document contains 4 photographs Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 2 of 5 Photograph No.1 Setup for spurious emission field strength measurements in the anechoic chamber below 30 MHz Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 3 of 5 Photograph No.2 Setup for carrier field strength, OBW, spurious emission field strength measurements in the anechoic chamber in 30 – 1000 MHz range Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 4 of 5 Photograph No.3 Setup for spurious emission field strength measurements at the OATS above 1000 MHz Elpas Solutions Ltd. FCC ID: O4X5-MDA00433 IC:1467G-5MDA00433 Page 5 of 5 Photograph No.4 Setup for OBW measurements
