Elpas Temperature Sensors P/Ns: 5-STE00433-1 and 5-STC00433-1 User Guide www.elpas.com Page 1 of 4 V5/June 2013 Introduction Elpas Temperature Sensors are supervised Active RFID Tags that provide wireless remote monitoring of environmental sensitive assets or environments that require strict temperature range compliance. The sensors report location based temperature monitoring data which is received and relayed over the Elpas infrastructure to a host RTLS application or an integrated 3rd party platform for regulatory compliance, temperature-range alerting or trend analysis. Sensors are available with an internal thermistor for ambient temperature monitoring or with an external probe for applications requiring higher precision. Both sensors feature wireless call-button functionality to report preconfigured maintenance messages plus remote device supervision to ensure field reliability. Elpas Temperature Sensors are water/dust resistant, cleanable with alcohol based disinfectants and are powered by one field-replaceable lithium battery. It is important that you understand, and follow the instructions in this document. Should you have any questions, please contact your local ELPAS support representative before proceeding with the installation, operation or maintenance of these products. Internal Thermistor Configuration External Probe Configuration Product Specifications Internal Thermistor (P/N: 5-STE00433-1) * External Probe (P/N: 5-STC00433-1) Signaling Technology RF (433MHz) RF (433MHz) Transmission Supervision transmission duration - 4ms Supervision transmission period - 127sec Supervision transmission duration - 4ms Supervision transmission period - 127sec Sensor R ange -10°C to 70°C (14°F to 158°F) -40°C to 80°C (-40°F to 176°F) Sensor Accur acy +/- 2.0°C (-10°C to 70°C) +/- 0.5°C (0°C to 70°C) +/- 1.0°C (-40°C to 0°C) & (70°C to 80°C) Sensor R esolution +/- 0.1°C +/- 0.1°C Sensor C able Length N/A 2.5m (8.0 FT) Super vised E vents Button Pr ess/Lo w Batter y 6 RF transmissions (each transmission 4ms in duration), total burst duration - 927.5ms 6 RF transmissions (each transmission 4ms in duration), total burst duration - 927.5ms Power S ource 3V/270mAh lithium battery, Type CR 2430 3V/600mAh lithium battery, Type CR 2450 Aver age B atter y Life Three years Three years Status Indicators Red LED: Button Press, Low Battery Green LED: Activation from sleep-mode Red LED: Button Press, Low Battery Green LED: Activation from sleep-mode Badge ID Unique, factory-programmed ID Unique, factory-programmed ID Constr uction PA Plastic (Nylon) PA Plastic (Nylon) IP R ating Sensor: IP64 Sensor: IP64. External Probe: IP67 Dimensions ( H x W x D) 34 x 40 x 15 mm (1.3 x 1.6 x 0.6 inches) 34 x 40 x 15mm (1.3 x 1.6 x 0.6 inches) Weight 20 grams (0.75 ounces) 20 grams (0.75 ounces) Rem ote M anagement Eiris Software V4.7.2 (or higher) Eiris Software V4.7.2 (or higher) Standar ds IC, FCC & CE compliant IC, FCC & CE compliant Warranty 1 year limited warranty (excluding battery) 1 year limited warranty (excluding battery) *Note: P/N: 5-STC00433-1 includes external probe - temperature sensor, one glycol bottle, one tag mounting clip and one probe mounting clip. Product offerings and specifications are subject to change without notice. Not all products include all features Compatible Accessories Part Number Description 5-BC012430 3V/270mAh Lithium Battery, CR2430 (25pcs) 5-P B A90003 3V/600mAh Lithium Battery, CR2450 (25pcs) 5-E TC 09001 Mounting Clip (5 units) 5-S TC 90001 Glycol Bottle and Mounting Kit Supported Button Press Events Temperature Sensors support Button Press events (designated B1) to report maintenance messages.  Button Press: 3 messages are transmitted (each @ 4ms in duration), 463.75ms apart. B1=1  Button Release: 3 messages are transmitted (each @ 4ms in duration), 463.75ms apart. B1=0  Steady State (no button press/button release) B1=0 Elpas Temperature Sensors – User Guide www.elpas.com Page 2 of 4 V5/June 2013 Initial Activation Temperature sensors come from the factory in Sleep Mode to conserve battery power during shipping. To Activate the sensor from sleep mode, remove the Activation Label. Then press the sensor’s call button for at least 7 seconds. If the activation process is successful the sensor’s LED indicator will glow green for about 3 seconds. The sensor is now ready to for enrollment in the host RTLS application. Battery Replacement Change the sensor’s status in the host RTLS application to ‘Inactive’. Place the sensor back cover side up. Unscrew the 4 screws to remove the back cover Slide the battery out from under the battery holder. Dispose of used battery in accordance with local regulations. Before inserting a new battery into place, position the battery Isolator such that its holes align with the battery contact pins. Replace the battery ensuring that the positive (+) side of the battery faces up. Close the back cover such that the screw holes are correctly aligned. Tighten the 4 screws snugly into place. Do not over- tighten as this may strip the case threads. Change the sensor’s status in the host RTLS application back to ‘Active’. Glycol Bottle Usage Tips When inserting the probe into the bottle, push the probe fully through the screw cap so that a leak-proof seal is formed and then ensure that the cap is properly screwed onto the bottle. When removing the probe from the bottle, first unscrew the cap and only then PUSH the probe out from the cap. Caution DO NOT pull the probe from the cap as this may cause damage to the probe or to the interface cable. Installation & Usage Considerations 1. Temperature sensors are not compatible with Elpas1 Lon Readers. 2. The transmission range of the temperature sensor may vary when mounted in different types of refrigeration units; therefore a facility site survey to examine specific sensor mounting environments is required. 3. Always use an Elpas Mounting Clip (P/N: 5-ETC09001) to mount the temperature sensor so that it can ea…

Text truncated - open the document above for the full version.

Rev 11/20/07 To: Timco Engineering, Inc. To Whom It May Concern We the undersigned, hereby authorize Mr. Michael Nikishin of Hermon Laboratories to act on behalf of Elpas Solutions Ltd. in all manners relating to application for certification of FCC ID:O4X5-STC00433, IC:1467G-5STC00433. Any and all acts carried out by Hermon Laboratories, on our behalf shall have the same legal authority as acts of our own. This authorization is valid until further written notice from Elpas Solutions Ltd. Sincerely, Meir Erenkrantz International Compliance Manager

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:O4X5-STC00433. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block diagram 5-STC_BlkDia Schematic diagram 5-STC_Schem Operational description 5-STC_OpDes The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Meir Erenkrantz International Compliance Manager

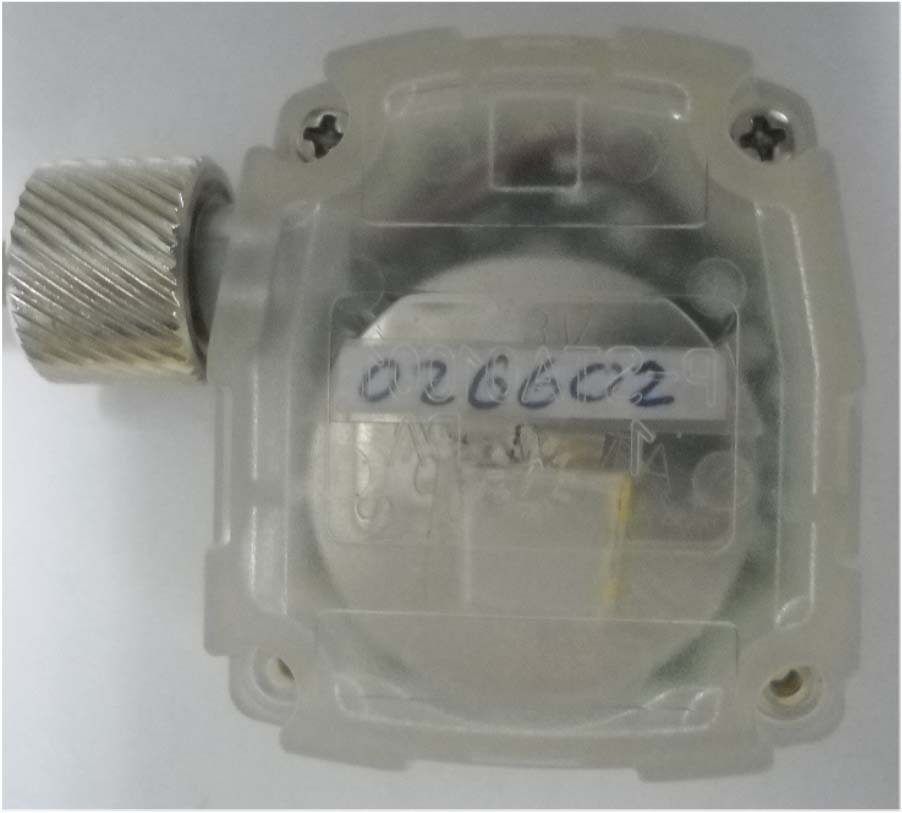

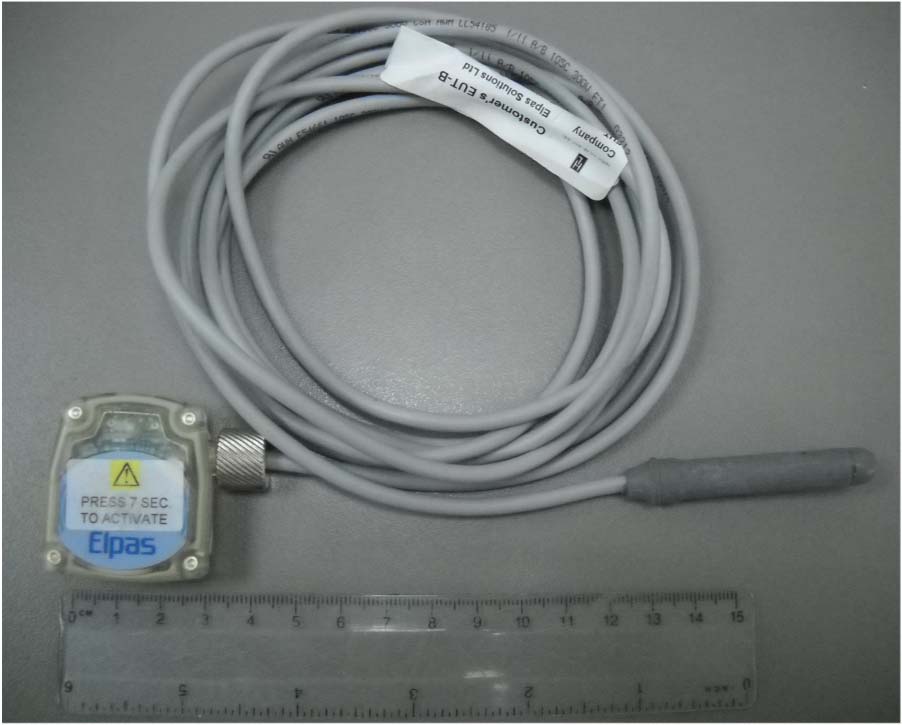

Elpas Solutions Ltd. FCC ID:O4X5-STC00433 IC:1467G-5STC00433 Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Elpas Solutions Ltd. FCC ID:O4X5-STC00433 IC:1467G-5STC00433 Page 2 of 4 Photograph No.1 Temperature sensor with external probe front view Elpas Solutions Ltd. FCC ID:O4X5-STC00433 IC:1467G-5STC00433 Page 3 of 4 Photograph No.2 Temperature sensor top view Elpas Solutions Ltd. FCC ID:O4X5-STC00433 IC:1467G-5STC00433 Page 4 of 4 Photograph No.3 Temperature sensor rear side view
