O4X5-WTD41101-0QUAD TECHNOLOGY WRIST TAG

Elpas Personal Safety Bracelet P/Ns: 5-WTD40100-0, 5-WTD40101-0, 5-WTD41100-0 and 5-WTD41101-0 User Guide www.elpas.com Page 1 of 3 V2/Sept 2012 Introduction The Personal Safety Bracelet is a wrist worn Active RFID Tag that provides around- the-clock monitoring of medical patients and assisted living care residents who require added safety. The bracelet bundles triple-tech Real-Time Location System (RTLS) technologies to deliver precise real-time positioning data so that a host RTLS safety application or an integrated physical security platform can track the whereabouts of the individual anywhere within the facility. The bracelet features a large duress call button designed especially for senior citizens. Pressing the button causes the tag to transmit positioning data that identifies the person requiring assistance and the precise building location of the involving medical or safety incident for speedier and more effective response efforts. The bracelet also enables immediate near-exit location awareness for administering patient/staff escort procedures and for preventing unauthorized transfers into or out of protected building areas. It is important that you understand, and follow the instructions in this document. Should you have any questions, please contact your Elpas support representative before proceeding with the installation, operation or maintenance of these products. Product Specifications Transmission Rates in LF Zones Moving Bracelet LF Response Time: Onboard LF receiver polls every 0.6 sec to check if the bracelet is in a LF zone. Transmission Rate: Bursts of 6 IR/RF supervision transmissions (each transmission about 2ms in duration), 400ms apart. If the bracelet stays in a LF zone, then repeated at 2 seconds intervals. Transmitted Message Type: IR/RF Data Message includes ID code of LF Exciter. Motion bit, M=1. Motionless Bracelet LF Response Time: Onboard LF receiver polls every 15 seconds to check if the badge is in a LF zone. Transmission Rate: 6 IR/RF supervision transmissions (each transmission about 2ms in duration), 0.4 seconds apart: If the bracelet stays in a LF zone, then repeated at 15 second intervals. Transmitted Message Type: IR/RF Data Message includes ID code of LF Exciter. Motion bit, M=0 Sig nali ng T echno lo g ies RF (433MHz) IR (800nm) LF (125KHz) RF ( Mo t io n/St at io na r y) Supervision messages every 10 seconds / 60 seconds IR ( Mo t io n/ St at io nar y) Supervision messages every 10 seconds / 60 seconds RF Und er L F 6 IR/RF transmissions (each @ 2ms in duration), 0.5secs apart; every 2 secs after 10 mins returns to 10 secs when in motion Sup e r vised E vent s Button Pr ess/ Rel ease Moti on/Stati onar y Low Batter y 3 RF/IR transmissions (each @2ms in duration), 400ms apart Po wer So u rce 3.0V/560mAH lithium battery, CR 2450 Bat t ery L if e 12-36 months depending upon usage L ED Ind icat o r Low Battery, Button Press, LF Field Bad g e ID Factory-Programmed ID Ho using IP65, Nylon Plastic Weig ht 35 grams (1.23 ounces) Dime nsio ns ( H x W x D) 46.9 x 41.0 x18.9mm (1.84 x 1.61 x 0.74 inches) Op erat ing E n vi ro n ment Temp: 0°C to 50° (0°F to 122°F) Humidity: 100% non-condensing Ma nag ement So f t ware Eiris 4.6 (or higher)/Eiris Configurator 4.8 (or higher) ELC Programmer V2.0 St and ard s IC, FCC & CE compliant Warranty 1 year limited warranty (excluding battery) Product offerings and specifications are subject to change without notice. Not all products include all features. Compatible Accessories Part Number Description 5-PB A90003 3.0V/560mAH lithium battery, CR 2450 (20 pcs) 5-WT D09001 Standard Wristband (set of 5) 5-WT D09003 Hospital Band Adapters (set of 5) *5-PB063011 Disposable Clincher Wristband (set of 50) *5-WT A90007 Reusable Medical Grade Wristband with Lock Pin (5 pcs) 5-500130 Lock Pin Removal Magnet *Requires Hospital Band Adapters for use with Bracelet P/Ns 5-WTD40000-0 & 5-WTD41000-0. Elpas High-Risk Security Bracelet – User Guide www.elpas.com Page 2 of 3 V2/Sept 2012 Initial Activation The bracelet is shipped from the factory in Sleep Mode to conserve battery power during shipping. To activate the bracelet from sleep mode both of the following described methods can be used: Button Press Orient the tag front-cover side up. Next press & hold down the call button for at least 5 seconds. Tamper Band Method Touch the two ends of the tamper wrist band together. Pin Shorting Place the bracelet back cover side up. Using the tips of a metal tweezers, touch the two metal contacts simultaneously If the wake-up process is successful the LED Indicator on the front of the bracelet will illuminate for 3 seconds. Battery Replacement Change the bracelet’s status in the host RTLS application to ‘Inactive’. Place the bracelet back cover side up. Then Unscrew the 4 screws and remove the back cover. Slide the battery out from under the battery holder. Dispose of used battery in accordance with local regulations. Replace the battery ensuring that the positive (+) side of the battery faces up. Close the back cover such that the screw holes are correctly aligned. Tighten the 4 screws snugly into place. Do not over-tighten as this may strip the case threads. Change the bracelet’s status in the host RTLS application back to ‘Active’. Attaching the Hospital Band Adapters Place the bracelet back cover side up. Then Unscrew the 4 screws and remove the back cover. Position the bracelet front cover side down. Next insert the two hospital band adapters into the grooved slots which are located on either side of the front cover. Close the back cover such that the screw holes are correctly aligned. Tighten the 4 screws snugly into place. Do not over-tighten as this may strip the case threads Cleaning & Disinfection Procedures Use an appropriate antibacterial disinfectant such as Dispatch ® Hospital Cleaner Disinfectant with Bleach from Caltech Industries, Inc (http://www.caltechind.com) to clean the High-Risk Security Bracelet. Since ‘Cleaning Procedu…

Text truncated - open the document above for the full version.

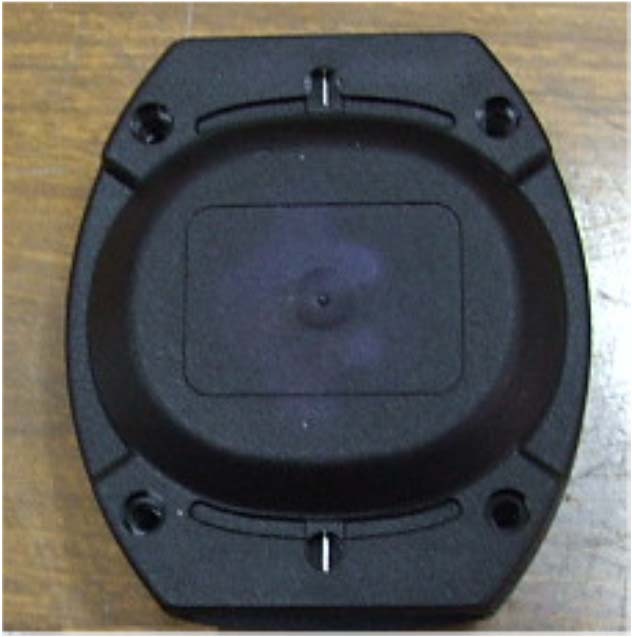

Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 2 of 4 Photograph No.1 Quad Technology Wrist Tag front view Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 3 of 4 Photograph No.2 Quad Technology Wrist Tag rear side view Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 4 of 4 Photograph No.3 Quad Technology Wrist Tag side view

Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 1 of 9 INTERNAL PHOTOGRAPHS This document contains 8 photographs Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 2 of 9 Photograph No.1 Quad Technology Wrist Tag internal view Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 3 of 9 Photograph No.2 Wrist tag internal view, second side Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 4 of 9 Photograph No.3 Wrist tag internal view with PCB removed Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 5 of 9 Photograph No.4 Wrist tag PCB front view Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 6 of 9 Photograph No.5 Wrist tag PCB side view Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 7 of 9 Photograph No.6 Wrist tag PCB front view without battery compartment Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 8 of 9 Photograph No.7 Wrist tag PCB front view Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 9 of 9 Photograph No.8 Wrist tag PCB second side view 125 kHz coil antenna 433.92 Tx antenna

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 28 Report ID: ELPRAD_FCC.23051_15.209_rev1.docx Date of Issue: 10-Feb-13 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47CFR part 15 subpart C § 15.209 and RSS-210 issue 8 section 2.5.1 FOR: Elpas Solutions Ltd. Quad Technology Wrist Tag (WTD) Models: 5-WTD41101-0 5-WTD40000-0 5-WTD40002-0 5-WTD40100-0 5-WTD40101-0 5-WTD41000-0 5-WTD41002-0 5-WTD41100-0 FCC ID:O4X5-WTD41101-0 IC:1467G-5WTD411010 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: ELPRAD_FCC.23051_15.209_rev1.docx Date of Issue: 10-Feb-13 Page 2 of 28 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Changes made in EUT .................................................................................................................................................. 5 6.4 EUT test positions ......................................................................................................................................................... 6 7 Transmitter tests according to 47CFR part 15 subpart C and RSS-210 requirements ................................................. 7 7.1 Field strength of emissions ............................................................................................................................................ 7 7.2 Antenna requirements ................................................................................................................................................. 13 7.3 Occupied bandwidth test ............................................................................................................................................. 14 8 Unintentional emissions .............................................................................................................................................. 16 8.1 Radiated emission measurements .............................................................................................................................. 16 9 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 20 10 APPENDIX B Measurement uncertainties ................................................................................................................... 21 11 APPENDIX C Test laboratory description ................................................................................................................... 22 12 APPENDIX D Specification references ....................................................................................................................... 22 13 APPENDIX E Test equipment correction factors ......................................................................................................... 23 14 APPENDIX F Abbreviations and acronyms ................................................................................................................. 28 Report ID: ELPRAD_FCC.23051_15.209_rev1.docx Date of Issue: 10-Feb-13 Page 3 of 28 1 Applicant information Client name: Elpas Solutions Ltd. Address: 23 Habarzel street, Tel Aviv 69710, Israel Telephone: +972 3768 1421 Fax: +972 3768 1415 E-mail: [email protected] Contact name: Mr. Meir Erenkrantz 2 Equipment under test attributes Product name: Quad Technology Wrist Tag Product type: Transceiver operating at 125 kHz Model(s): 5-WTD41101-0 Serial number: Prototype Hardware version: 04 Software release: 1.36 Receipt date 2/26/2012 3 Manufacturer information Manufacturer name: Elpas Solutions Ltd. Address: 23 Habarzel street, Tel Aviv 69710, Israel Telephone: +972 3768 1421 Fax: +972 3768 1415 E-Mail: [email protected] Contact name: Mr. Meir Erenkrantz 4 Test details Project ID: 23051 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 2/26/2012 Test completed: <CompletedDateTime> Test specification(s): FCC 47CFR part 15, subpart C, §15.209; RSS-210 issue 8 section 2.5.1, RSS-Gen issue 3 Table 6 Report ID: ELPRAD_FCC.23051_15.209_rev1.docx Date of Issue: 10-Feb-13 Page 4 of 28 5 Tests summary Test Status Transmitter characteristics FCC section 15.209, RSS-Gen section 7.2.5, Field st…

Text truncated - open the document above for the full version.

Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 1 of 7 SETUP PHOTOGRAPHS This document contains 6 photographs Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 2 of 7 Photograph No.1 Setup for spurious emission field strength measurements in the anechoic chamber below 30 MHz Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 3 of 7 Photograph No.2 Setup for carrier field strength, OBW, spurious emission field strength measurements in the anechoic chamber in 30 – 1000 MHz range Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 4 of 7 Photograph No.3 Setup for spurious emission field strength measurements in the anechoic chamber above 1000 MHz range Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 5 of 7 Photograph No.4 Setup for spurious emission field strength measurements in the anechoic chamber, EUT close view Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 6 of 7 Photograph No.5 Setup for carrier field strength, spurious emission field strength measurements at the OATS in 30 – 1000 MHz range Elpas Solutions Ltd. FCC ID: O4X5-WTD41101-0 IC:1467G-5WTD411010 Page 7 of 7 Photograph No.6 Setup for OBW measurements
