User’s manual Product: JM1 Model: JM1L2 For OEM integration only – device cannot be sold to general public. Therefore we will not supply the User’s manual, the installation manual is the official for OEM. FCC ID: O8CJM1L2 IC: 10551A-JM1L2 We will ask OEM to include the following Notices required by FCC/ IC on the product and in the User’s manual. 7. FCC/IC Notice This device complies with Part 15 of FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 8. FCC/IC Caution Changes or modifications not expressly approved by the party responsible for compliance, Zeemote Technology Inc., could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. 9. End Product Labeling When this module is integrated into an end product, the end product must display an exterior label with FCC ID/IC and the FCC/IC notice as in “7 FCC/IC Notice”. The format of FCC ID/IC is defined as a single line and OEM can choose either of the followings. FCC:  Contains Transmitter Module FCC ID: O8CJM1L2  Contains FCC ID: O8CJM1L2 IC:  Contains Transmitter Module IC: 10551A-JM1L2  Contains IC: 10551A-JM1L2 10. End Product User Manuals The end product’s user manual should include the following statements depending on type of the product. Mobile Device: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles) Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositive rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). Portable Device: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meetsthe FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifique (DAS). The device types are defined as follows. Mobile Device Products operated within 20 cm from person’s body. Portable Device Products operated in the distance more than 20 cm from person’s body.

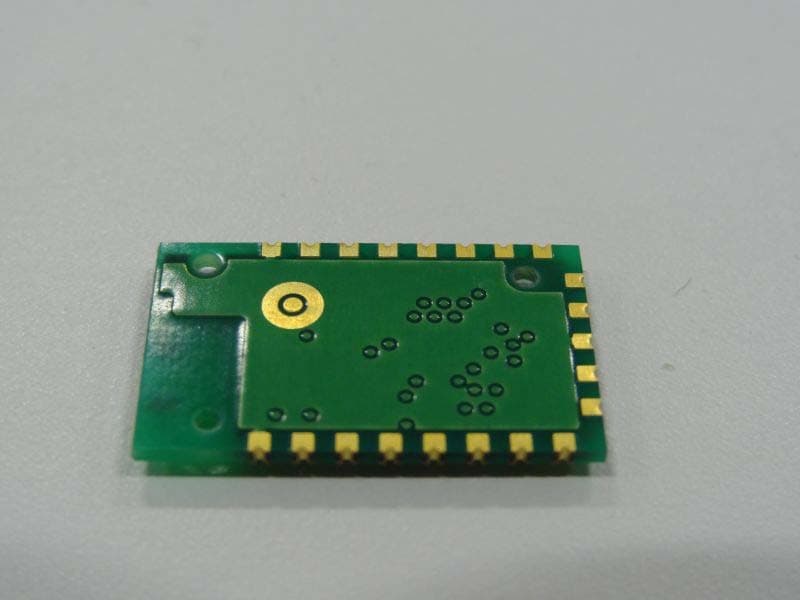

External Photo Model: JM1L2 Top Bottom

Label Location JM1L2 PCBA 22 x 13mm Shielding case 15 x 12 x 1.8mm Label on Shielding case 14 x 10mm Note: Since the device is very small, the statement of FCC 15.19(a) is written in product manual.

Internal Photo Model: JM1L2 Top without Sheild

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 February 1, 2013 UL Japan, Inc. FCC ID: O8CJM1L2 To whom it may concern, We, UL Japan, Inc., hereby declare that JM1, model: JM1L2 (FCC ID: O8CJM1L2) of GAIA Holdings Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093 and FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Thank you for your attention to this matter. Sincerely, Akira Sato Engineer of WiSE Japan, UL Verification Service UL Japan, Inc.

Test report No. : 4786002755S-A Page : 1 of 35 Issued date : February 1, 2013 FCC ID : O8CJM1L2 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 4786002755S-A Applicant : GAIA Holdings Corporation Type of Equipment : JM1 Model No. : JM1L2 FCC ID : O8CJM1L2 Test regulation : FCC Part15 Subpart C: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: January 21, 2013 Tested by: Akira Sato Engineer of WiSE Japan, UL Verification Service Approved by : Go Ishiwata Manager of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 4786002755S-A Page : 2 of 35 Issued date : February 1, 2013 FCC ID : O8CJM1L2 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 4786002755S-A Revision Test report No. Date Page revised Contents - (Original) 4786002755S-A February 1, 2013 - - Test report No. : 4786002755S-A Page : 3 of 35 Issued date : February 1, 2013 FCC ID : O8CJM1L2 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: Conducted emission ............................................................................................ 9 SECTION 6: Radiated emission ............................................................................................. 10 SECTION 7: Out of band emissions (Antenna port conducted) ......................................... 12 SECTION 8: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 12 SECTION 9: Maximum peak output power .......................................................................... 12 SECTION 10: Peak power density ......................................................................................... 12 Contents of APPENDIXES ....................................................................................................... 13 APPENDIX 1: Data of Radio tests .......................................................................................... 14 APPENDIX 2: Test instruments ............................................................................................. 32 APPENDIX 3: Photographs of test setup ............................................................................... 33 Test report No. : 4786002755S-A Page : 4 of 35 Issued date : February 1, 2013 FCC ID : O8CJM1L2 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : GAIA Holdings Corporation Address : Shinjuku Eastside Square 13F 27-30, Shinjuku 6-chome, Shinjuku-ku, Tokyo, 160-0022 Japan Telephone Number : +81-50-3786-1702 Facsimile Number : +81-50-3730-5857 Contact Person : Isamu Shimosako SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : JM1 Model Number : JM1L2 Serial Number : Refer to 4.2 in this report. Rating : DC3.3V Country of Mass-production : Japan, China, Taiwan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : January 17, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: JM1L2 (referred to as the EUT in this report) is JM1. Clock frequency(ies) in the system : 16MHz, 32.768kHz <Radio part> Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth : 79MHz Channel spacing : 2MHz Type of modulation : DSSS Antenna type : Chip Antenna gain : 0.5dBi Antenna connector type : None ITU code : F1D Operation temperature range : -20 to +75 deg.C FCC 15.31 (e) / 212 The RF transmitter has its own regulator. The RF transmitter is constantly provided voltage (DC1.35V) through the regulator regardless of input voltage. Therefore, the equipment complies with the requirement. FCC 15.203 / 212 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement. Test report No. : 4786002755S-A Page : 5 of 35 Issued date : February 1, 2013 FCC ID : O8CJM1L2 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, final revised on December 27, 2012 and effective January 28, 2013 Title : FCC 47CFR Part15 Radio Frequency Devi…

Text truncated - open the document above for the full version.

Test report No. : 4786002755S-A Page : 33 of 35 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Test report No. : 4786002755S-A Page : 34 of 35 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 4786002755S-A Page : 35 of 35 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT
