O8CJM1L2XJM1

User’s manual Product: JM1 Model: JM1L2X For OEM integration only – device cannot be sold to general public. Therefore we will not supply the User’s manual, the installation manual is the official for OEM. FCC ID: O8CJM1L2X IC: 10551A-JM1L2X We will ask OEM to include the following Notices required by FCC/IC on the product and in the User’s m anual. アプリックスIPホールディングス株式会社 http://www.aplix-ip.com/ 8 End Product Labeling When this module is integrated into an end product, the end product must display an exterior label with FCC ID/IC and the FCC/IC notice as in “9 FCC/IC Notice”. The format of FCC ID/IC is defined as a single line and OEM can choose either of the followings. FCC:  Contains Transmitter Module FCC ID: O8CJM1L2X  Contains FCC ID: O8CJM1L2X IC:  Contains Transmitter Module IC: 10551A-JM1L2X  Contains IC: 10551A-JM1L2X アプリックスIPホールディングス株式会社 http://www.aplix-ip.com/ 9 End Product User Manuals The end product’s user manual should include the following notice, cautions according to the place of destination to be marketed and/or imported. 9.1 FCC/IC Notice This device complies with Part 15 of FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 9.2 FCC Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. アプリックスIPホールディングス株式会社 http://www.aplix-ip.com/ 9.3 IC Caution This radio transmitter IC Number: 10551A-JM1L2X (Model: JM1L2X) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna type Peak gain Impedance Chip 0.5dBi 50 Ohm Pattern 0.5dBi 50 Ohm 9.4 Radio Frequency Exposure Guidelines The end product’s user manual should include the following statements depending on type of the product. (Note) The statement below is an example for the product which is used in uncontrolled environment. アプリックスIPホールディングス株式会社 http://www.aplix-ip.com/ Mobile Device: English: French: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps. アプリックスIPホールディングス株式会社 http://www.aplix-ip.com/ Portable Device: English: French: The device types are defined as follows. Mobile Device Products operated in the distance more than 20 cm from person’s body. Portable Device Products operated within 20 cm from person’s body. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifique (DAS). For more details regarding the requirement for the ENDPRODUCT, please refer the latest version of the document below:  FCC: Code of Federal Regulations, Title 47, Part 15. RADIO FREQUENCY DEVICES.  IC: Radio Standards Specification. General Requirements and Information for the Certification of Radio communication Equipment

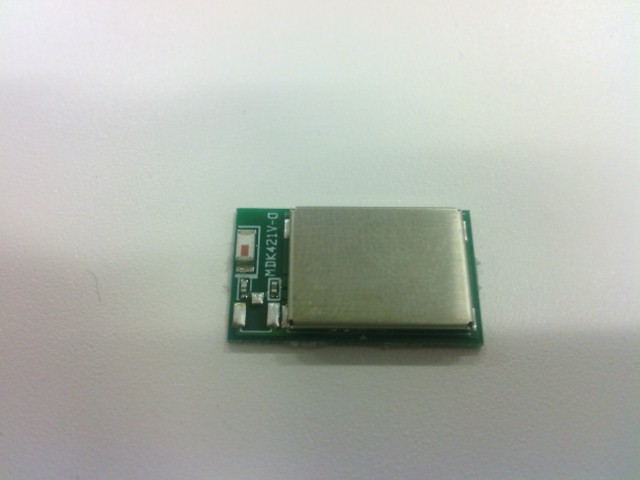

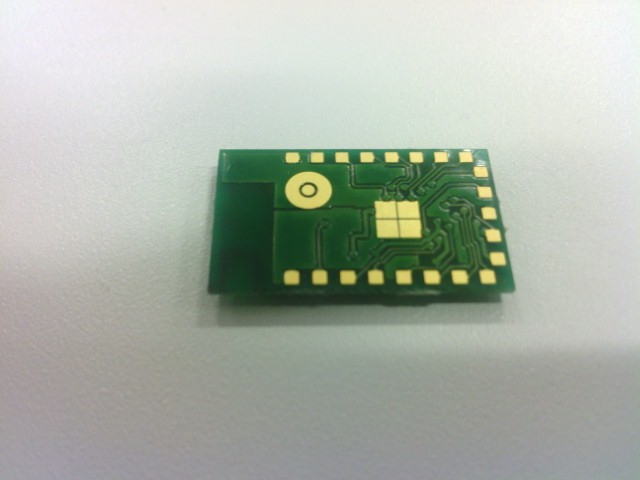

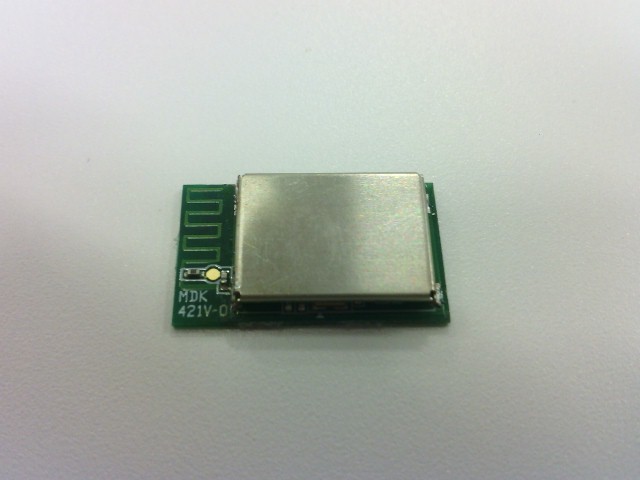

[Model: JM1L2X] External Photo（Pattern Antenna） Front Rear [Model: JM1L2X] External Photo（Chip Antenna） Front Rear

Label & Location [Model: JM1L2X] This label drawing image will be directory printed on the shielding case with laser marker. Label Location

[Model: JM1L2X] Internal Photo（Pattern Antenna） Internal Photo（Chip Antenna）

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 December 6, 2013 UL Japan, Inc. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN FCC ID: O8CJM1L2X To whom it may concern, We, UL Japan, Inc., hereby declare that JM1, model : JM1L2X (FCC ID: O8CJM1L2X) of Aplix IP Holdings Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093. KDB 447498D01(v05r01) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(measured maximum equivalent isotropic radiated power(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and < 7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum equivalent isotropic radiated power was 1.89 mW So for this device: 1.89 mW [measured maximum equivalent isotropic radiated power] / 5 mm [minimum separation distance] * ( √ 2.48) = 0.6 * caliculation: measured maximum equivalent isotropic radiated power = 10 ^ ( ( maximum peak output power [dBm] + antenna gain [dBi] ) / 10) = 10 ^ ( ( 2.26 [dBm] + 0.5 [dBi] ) / 10) *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Tatsuya Arai En gineer of Shonan EMC Lab. WiSE Ja pan UL Verification Service UL Japan, Inc.

Test report No. : 10071930S-A Page : 1 of 41 Issued date : December 6, 2013 Revised date : December 18, 2013 FCC ID : O8CJM1L2X UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10071930S-A Applicant : Aplix IP Holdings Corporation Type of Equipment : JM1 Model No. : JM1L2X FCC ID : O8CJM1L2X Test regulation : FCC Part15 Subpart C: 2013 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: November 24 to December 4, 2013 Tested by: Tatsuya Arai Engineer of WiSE Japan, UL Verification Service Approved by : Go Ishiwata Manager of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10071930S-A Page : 2 of 41 Issued date : December 6, 2013 Revised date : December 18, 2013 FCC ID : O8CJM1L2X UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10071930S-A Revision Test report No. Date Page revised Contents - (Original) 10071930S-A December 6, 2013 - - 1 10071930S-A December 13, 2013 4, 8, 22-35, 37 P4,8: Addition of antenna description P22-27: Correction of typo P28-35, 37: Addition of test environment 2 10071930S-A December 18, 2013 22-27 P22-27: Correction of typo Test report No. : 10071930S-A Page : 3 of 41 Issued date : December 6, 2013 FCC ID : O8CJM1L2X UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Conducted emission ........................................................................................ 9 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) ........................................... 10 SECTION 7: Maximum peak output power ...................................................................... 10 SECTION 8: Out of band emissions (Antenna port conducted) ....................................... 10 SECTION 9: Peak power density........................................................................................ 10 SECTION 10: Radiated emission........................................................................................ 11 Contents of APPENDIXES ................................................................................................... 13 APPENDIX 1: Data of Radio tests ...................................................................................... 14 APPENDIX 2: Test instruments ......................................................................................... 38 APPENDIX 3: Photographs of test setup ........................................................................... 39 Test report No. : 10071930S-A Page : 4 of 41 Issued date : December 6, 2013 Revised date : December 13, 2013 FCC ID : O8CJM1L2X UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Aplix IP Holdings Corporation Address : Shinjuku Eastside Square 13F 27-30, Shinjuku 6-chome, Shinjuku-ku, Tokyo, 160-0022 Japan Telephone Number : +81-50-3786-1702 Facsimile Number : +81-80-8462-0681 Contact Person : Isamu Shimosako SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : JM1 Model Number : JM1L2X Serial Number : Refer to 4.2 in this report. Rating : DC3.3V Country of Mass-production : Japan, Taiwan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : November 19, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: JM1L2X (referred to as the EUT in this report) is JM1 (Input Device). Clock frequency(ies) in the system : 16MHz, 32.768kHz <Radio part> Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth : 1MHz Channel spacing : 2MHz Type of modulation : DSSS Antenna type : Chip *1)/PCB Trace (Pattern) Antenna gain : 0.5dBi Antenna connector type : U.FL ITU code : F1D Operation temperature range : -20 to +75 deg.C *1) There are 3-type of chip antenna. Model No. Antenna gain (Peak) 2450AT18A100 0.5dBi 2450AT18B100 0.5dBi AT3216-B2R7HAA 0.5dBi FCC 15.31 (e) / 212 The RF transmitter has its own regulator. The RF transmitter is constantly provided voltage (DC1.35V) through the regulator regardless of input voltage. Therefore, the equipment complies with the requirement. FCC 15.203 / 212 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement. Test report No. : 10071930S-A Pag…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front view Side view Test Report No 10071930S-A 39 of 41 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test Report No 10071930S-A 40 of 41 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position Chip antenna Pattern antenna X-axis X-axis Y-axis Y-axis Z-axis Z-axis END OF REPORT Test Report No 10071930S-A 41 of 41
