O9C-AP2750Wireless Access Point

Quick Start Guide AP2750 Managed Access Point 3CRWX275075A The 3Com AP2750 Managed Access Point provides IEEE 802.11a or 802.11b/g wireless access to the network. The access point is designed for use with a 3Com Wireless LAN Switch, and requires hardware installation only. All configuration for the access point takes place on the 3Com Wireless LAN Switch. You must have a wireless switch device to operate the access point. Two WLAN switch devices can be connected to the access point: • 3Com WX4400 • 3Com WX1200 Power can be supplied via Power Over Ethernet (PoE) or by an external power supply. Four 3Com PoE devices supply power to the access point: • 3Com PoE Injector • 3Com 4400PWR PoE Switch • 3Com Multi-port PoE power supply • 3Com WX1200 About This Guide This Quick Start Guide describes the basic installation of the access point. It covers the following topics: •3Com AP2750 Managed Access Point Features •Observing Safety Precautions •Step 1: Unpacking the Access Point •Step 2: Preparing for Installation •Step 3: Attaching the Antennas •Step 4: Mounting the Access Point •Step 5: Connecting the Access Point to a Switch •Step 6: Checking the LED Indicators •Troubleshooting 3Com AP2750 Managed Access Point Features FeatureDescription Power PortThe access point can be powered either via Power Over Ethernet (PoE), or by an external power supply (not included) that is plugged into the Power Port. Serial PortThe serial port is not supported. Ethernet PortThe Ethernet port provides a 10/100BASE-TX Ethernet connection to a 3Com Wireless LAN switch. The connection can be direct to a 3Com switch or indirect through an intermediate Layer 2 or Layer 3 network. Use a standard Category 5 cable with straight-through signaling and standard RJ-45 connectors to connect the access point to the switch on the network. LEDsThe LEDs indicate power and activity. See “Checking the LED Indicators” on page 7 for details. Antenna ConnectorsTwo SMA-female antenna connectors allow you to connect antennas that operate in 2.4 GHz and 5.3 GHz bands. Reset ButtonThe reset button is accessible from the back of the access point as well as through the mounting bracket. Push the reset button to restore the access point to its factory default settings. Mounting BracketThe mounting bracket comes attached to the access point. This mounting bracket allows the access point to be mounted to a wall or ceiling. Power Port Serial Port Ethernet Port Mounting Bracket LEDs Antenna Connectors Reset Button Observing Safety Precautions This equipment must be installed in compliance with local and national building codes, regulatory restrictions, and FCC rules. For the safety of people and equipment, only professional network personnel should install the access point. 1Unpacking the Access Point Make sure that you have the following items, which are included with the access point: • Two external 2.4 GHz and 5.3 GHz dual-band antennas • Mounting bracket (attached to the access point) • Wall-mounting hardware: •Locking bar (used for securing a wall- or ceiling-mounted installation) •Two sheet metal screws •Two thread screws •Two wall anchors • Four adhesive rubber feet (used for a flat-surface installation). 2Preparing for Installation It is advisable to connect the power (if using an external power supply) and check the Ethernet cables and LEDs before installing the access point in a hard-to-reach location. Additionally, observe the following items before mounting or connecting the access point: WARNING: To comply with FCC radio frequency (RF) exposure limits, a minimum body-to- antenna distance of 20 cm (8 in.) must be maintained when the access point is operational. WARNING: To avoid possible injury or damage to equipment, you must use power supply equipment that is safety certified according to UL, CSA, IEC, or other applicable national or international safety requirements for the country of use. All references to power supply in this document refer to equipment meeting these requirements. Installation ItemDescription Switch port3Com recommends that you install and configure the 3Com Wireless LAN switch before installing the access point. Set the port type on the switch to an AP2750 access point. CablingMake sure that standard Category 5 cable with straight-through signaling is installed at the site before you install the access point. Make sure that the cable is highly flexible and that there is no extra covering on the RJ-45 connector that could prevent the cable from being routed through the mounting bracket. Power RequirementsPower can be supplied via an 802.3af Power Over Ethernet (PoE)-compliant device or by an external power supply with a minimum 5v @ 2.0 amp. If using an external power supply, make sure the power outlet is accessible. The power supply plug is the only means of disconnecting the access point from power. MAC AddressRecord the access point MAC address in a safe place before the access point is installed in a hard-to-reach location. The MAC address is printed on the back of the access point. Additional MAC address labels are shipped with the access point. 3Attaching the Antennas Carefully unpack the standard detachable antennas. Screw the antennas on to the antenna connectors on the access point and hand-tighten them. After network startup, you may need to adjust the antennas to fine-tune coverage in your area. For best results, adjust the antennas so that they are perpendicular with the floor and ceiling. 4Mounting the Access Point The access point can be mounted on the following types of surfaces: • Wall, ceiling, or electrical box (NEMA enclosure) •Tabletop . Wall, Ceiling, or Electrical Box Mounting To mount the access point to a wall, ceiling, or electrical box: 1Remove the access point from the mounting bracket. 2Screw the mounting bracket to a wall, ceiling, or electrical box (NEMA enclosure): •If mounting to a solid surface wall or ceiling, use the two sheet metal screws. •If mounting to drywall, use the two …

Text truncated - open the document above for the full version.

3Com Corporation 350 Campus Drive, Marlborough, MA 01752 Tel: +1 508-323-5000 Fax: +1 508-323-1111 Colin Smith Regulatory Affairs & Approvals E-mail: [email protected] November 10, 2004 Federal Communications Commission Authorization and Evaluation Division FCC ID: O9C-AP2750 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application, as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Yours sincerely, Colin Smith Regulatory Affairs & Approvals Tel: +1 408 326 5274 Fax: +1 408 326 5854 Email: [email protected]

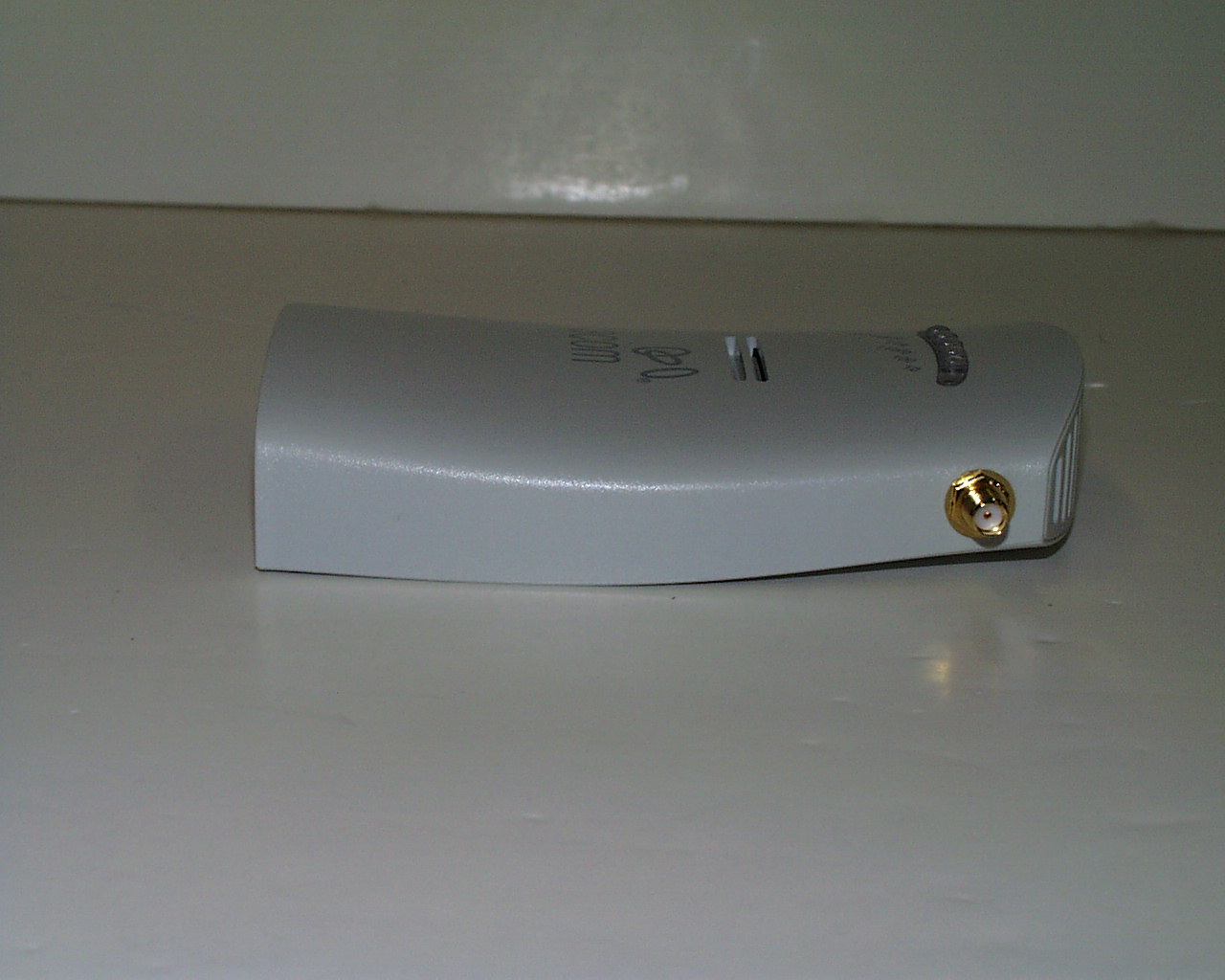

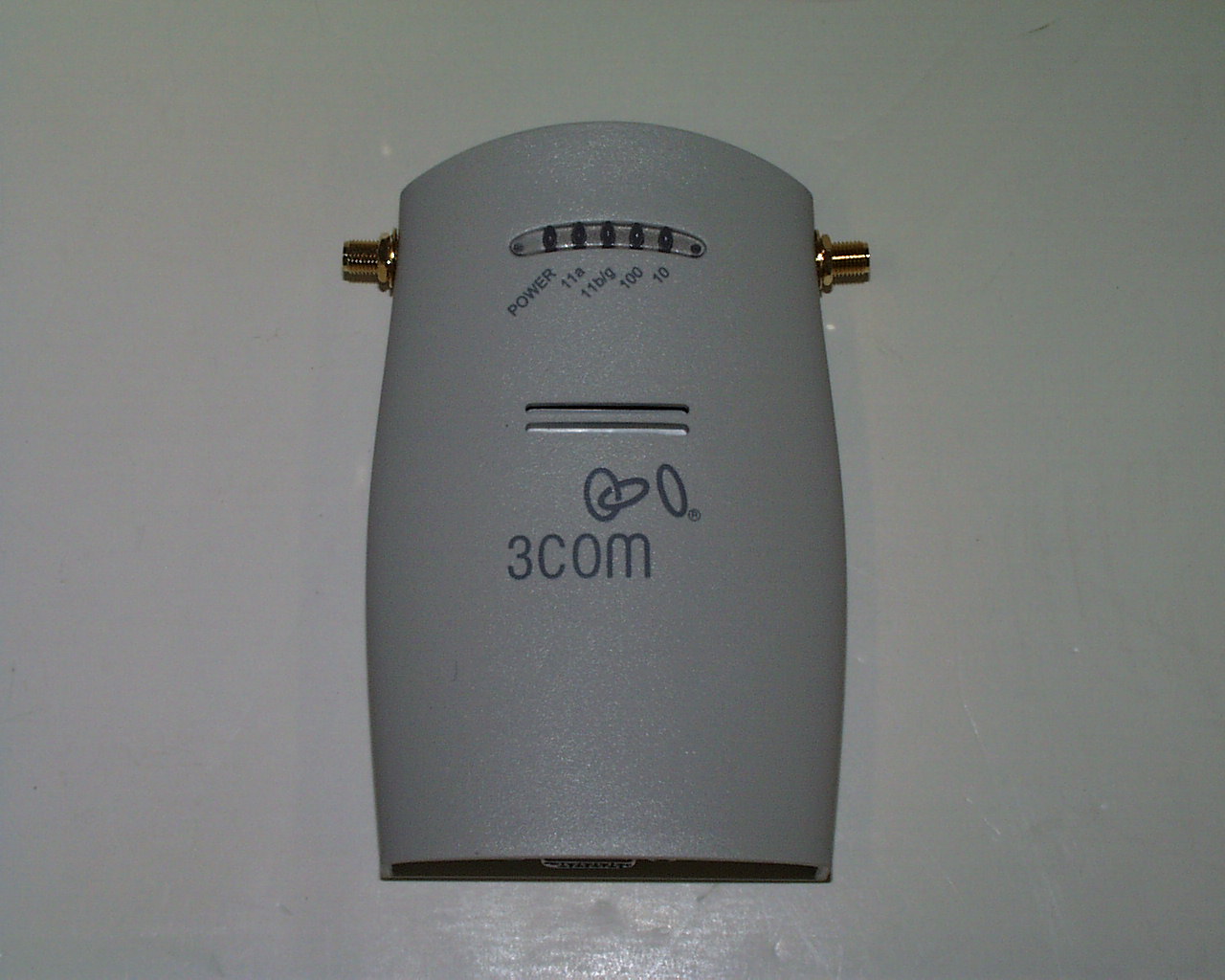

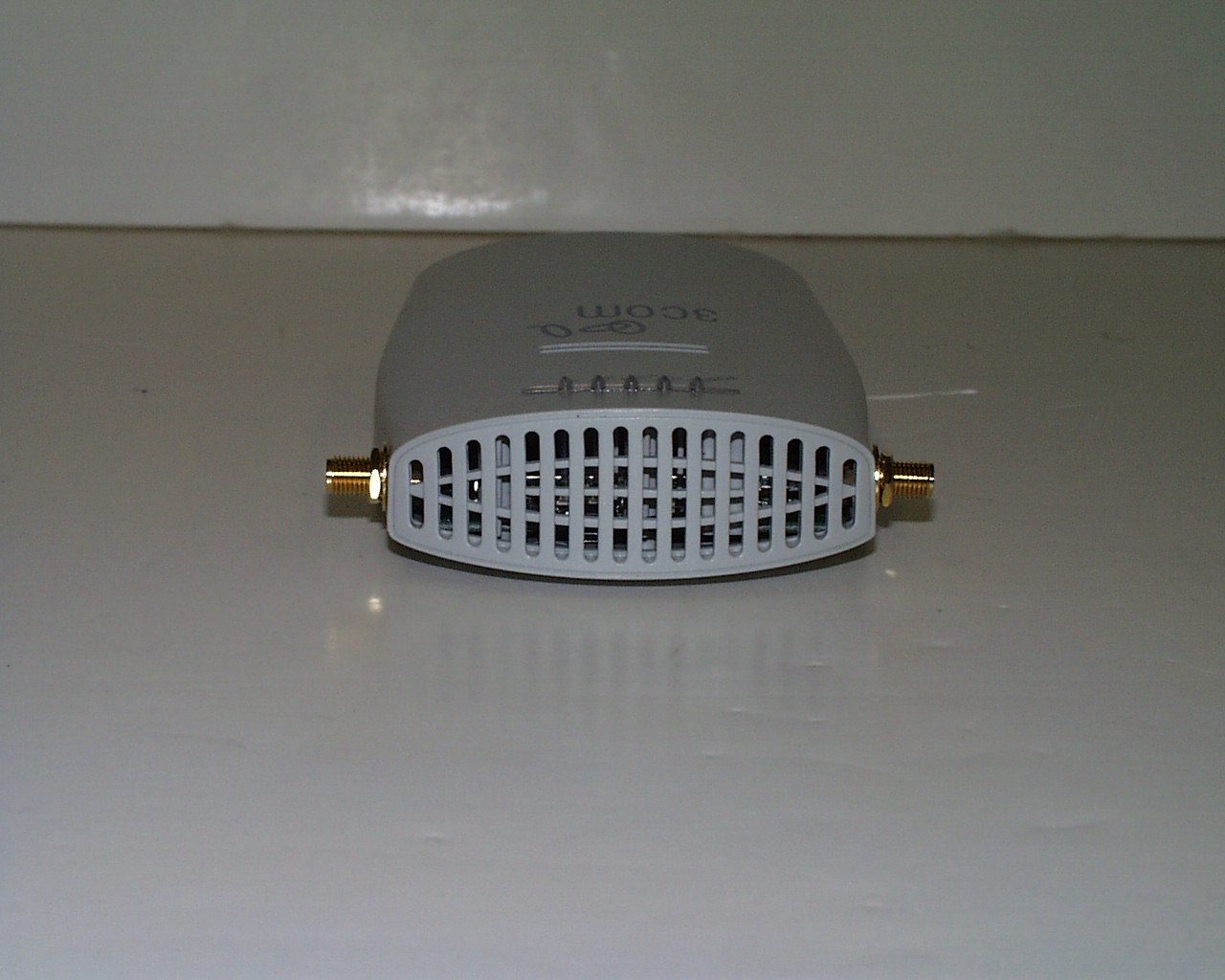

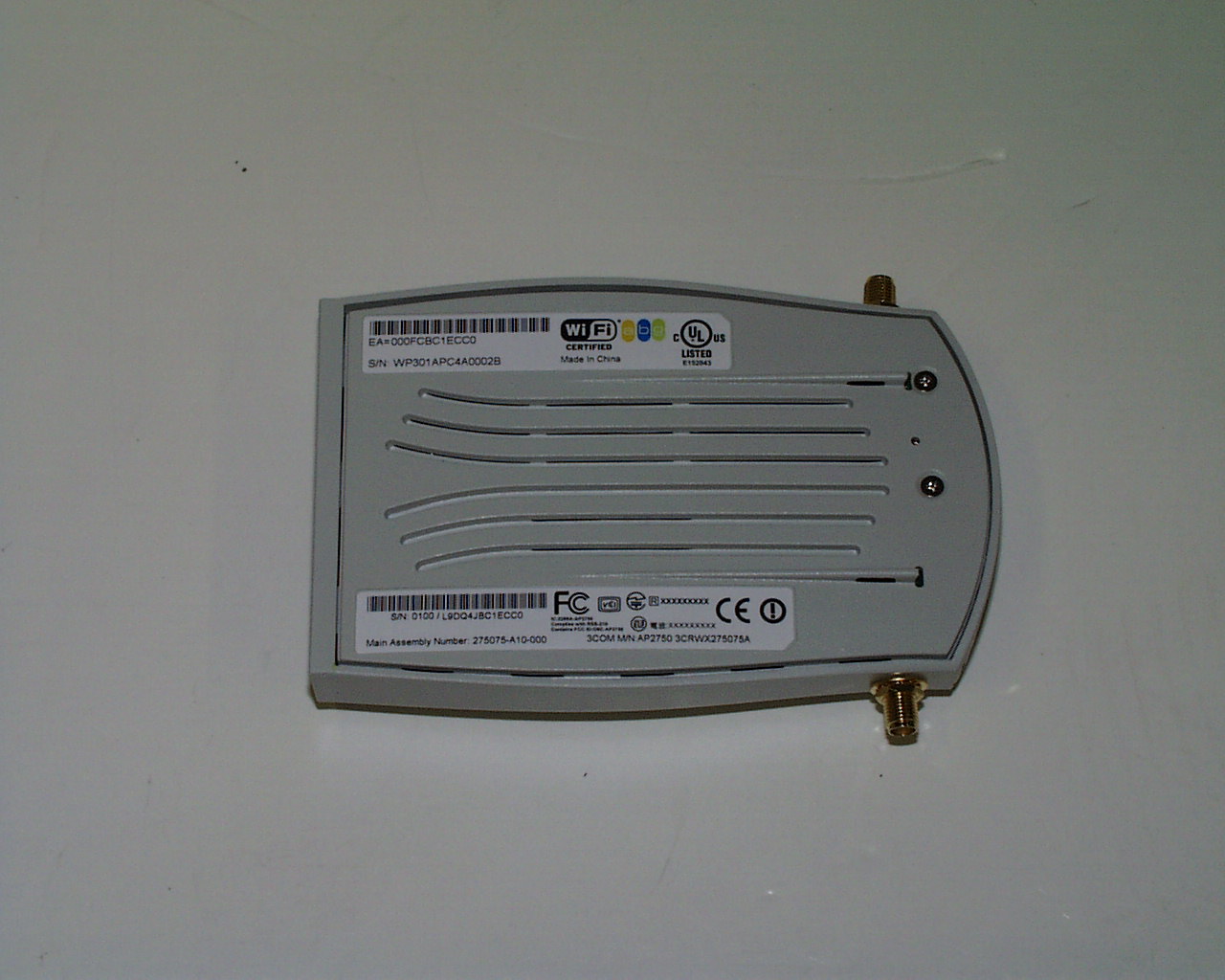

External Photos Bottom View Front View General View Rear View Side 1 Side 2 Top View External General External Rear

¥úÄ_¬ì§ÞªÑ¥÷¦³--¤½¥q LITE-ON TECHNOLOGY CORP. APPROVED A4 CHECKED LIMITS UNLESS OTHERWISE NOTED X. +- .X +- .XX +- .XXX +- DESIGNED UNIT MM MODEL No. PART NAME PART No. SCALE MON SHEET 1(1) ¡C X.+- ¡C .X+- ¡C .XX+- ¡C .XXX+- NOTE: Lilian 2004.10.15 WP-301AP (3CRWX275075A) 3com Serial number LABEL M113002800 () () (85g) () ():BLACK ():80X12 ():+-0.3mm :3COM :R124028100 ():80P :NO - "3COM Excel " Issue Version Number Revision Number Issue Version Number (01) & Revision Number (00) 0100" Reflects on MAC Address , 3COM OUI and Prefix ID 80+-0.3mm 12+-0.3mm 1R 2mm 2 m m Main Assembly Number: 67507-510-000 3COM M/N:WL-560 3CRWE675075 S/N: 0100 / L7CQWWBXXXXXX : L7CQWWBXXXXXX 3COM S/N MAC Main Assembly Number: 67507-510-000 3COM M/N:WL-560 3CRWE675075 80+-0.3mm 12+-0.3mm S/N: 0100 / L7CQWWBXXXXXX 1R 2mm 2 m m 3COM S/N MAC 80+-0.3mm 12+-0.3mm 1R 2mm 2 m m 12+-0.3mm 80+-0.3mm 1R 2mm 2 m m Main Assembly Number: 275075-A10-000 3COM M/N:AP2750 3CRWX275075A S/N: 0100 / L9DQWWBXXXXXX : L9DQWWBXXXXXX 3COM S/N MAC FCC ID:O9C-AP2750 IC:2299A-AP2750 :XXXXXXXXX XXXXXXXXX Usage restrictions apply. See documentation 12+-0.3mm 80+-0.3mm 1R 2mm 2 m m FCC ID:O9C-AP2750 IC:2299A-AP2750 :XXXXXXXXX XXXXXXXXX Usage restrictions apply. See documentation 80+-0.3mm 1R 2mm 2 m m Main Assembly Number: 275075-A10-000 3COM M/N:AP2750 3CRWX275075A S/N: 0100 / L9DQWWBXXXXXX : L9DQWWBXXXXXX 3COM S/N MAC 12+-0.3mm

3Com AP2750 Label Location FCC ID: O9C-AP2750 IC: 2299A-AP2750

Internal Photos

3Com Corporation 350 Campus Drive, Marlborough, MA 01752-3064 Tel: 1-508-323-5000 Fax: 1-508-323-1111 RF EXPOSURE EVALUATION Maximum Permissive Exposure OET Bulletin 65 (Edition 97-01) 3COM MODEL NO.: AP2750 FCC ID: O9C-AP2750 Extracts from 15.247 and 15.407 test reports: Sporton Lab report FR493039, dated Nov 04, 2004 Page 1 of 12 FCC ID: O9C-AP2750 Issued on Nov. 03, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 60 of 66 TEL : 886-2-2696-2468 Issued Date : Nov. 03, 2004 FAX : 886-2-2696-2255 5.8. RF Exposure 5.8.1. Limit For Maximum Permissible Exposure (MPE) This product can be classified as mobile device, so the 20cm separation distance warning is required. In this section, the power density at 20cm location is calculated to examine if it is lower than the limit. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time |E|²,|H|² or S ( minutes ) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 F = frequency in MHz *Plane-wave equivalent power density 5.8.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (mW/cm²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (mW) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. FCC ID: O9C-AP2750 Issued on Nov. 03, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 61 of 66 TEL : 886-2-2696-2468 Issued Date : Nov. 03, 2004 FAX : 886-2-2696-2255 5.8.3. Calculated Result and Limit ‚ Modulation Type: CCK ‚ Temperature: 23°C ‚ Relative Humidity: 48% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Ted Chiu Mode 1 Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 2.50 1.78 20.70 117.49 0.0416 1 06 2.50 1.78 20.30 107.15 0.0380 1 11 2.50 1.78 20.70 117.49 0.0416 1 Mode 2 Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 4.00 2.51 20.70 117.49 0.0587 1 06 4.00 2.51 20.30 107.15 0.0535 1 11 4.00 2.51 20.70 117.49 0.0587 1 Mode 3 Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 3.00 2.00 20.70 117.49 0.0468 1 06 3.00 2.00 20.30 107.15 0.0427 1 11 3.00 2.00 20.70 117.49 0.0468 1 FCC ID: O9C-AP2750 Issued on Nov. 03, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 62 of 66 TEL : 886-2-2696-2468 Issued Date : Nov. 03, 2004 FAX : 886-2-2696-2255 Mode 4 Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 6.00 3.98 20.70 117.49 0.0931 1 06 6.00 3.98 20.30 107.15 0.0849 1 11 6.00 3.98 20.70 117.49 0.0931 1 FCC ID: O9C-AP2750 Issued on Nov. 03, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 63 of 66 TEL : 886-2-2696-2468 Issued Date : Nov. 03, 2004 FAX : 886-2-2696-2255 ‚ Modulation Type: OFDM ‚ Temperature: 23°C ‚ Relative Humidity: 48% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Ted Chiu Mode 1 Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 2.50 1.78 22.10 162.18 0.0575 1 06 2.50 1.78 21.90 154.88 0.0549 1 11 2.50 1.78 21.90 154.88 0.0549 1 Mode 2 Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 4.00 2.51 22.10 162.18 0.0810 1 06 4.00 2.51 21.90 154.88 0.0774 1 11 4.00 2.51 21.90 154.88 0.0774 1 Mode 3 Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 3.00 2.00 22.10 162.18 0.0646 1 06 3.00 2.00 21.90 154.88 0.0617 1 11 3.00 2.00 21.90 154.88 0.0617 1 FCC ID: O9C-AP2750 Issued on Nov. 03, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 64 of 66 TEL : 886-2-2696-2468 Issued Date : Nov. 03, 2004 FAX : 886-2-2696-2255 Mode 4 Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 6.00 3.98 22.10 162.18 0.1285 1 06 6.00 3.98 21.90 154.88 0.1227 1 11 6.00 3.98 21.90 154.88 0.1227 1 FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 146 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 5.10. RF Exposure 5.10.1. Limit For Maximum Permissible Exposure (MPE) This product can be classified as mobile device, so the 20cm separation distance warning is required. In this section, the power density at 20cm location is calculated to examine if it is lower than the limit. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm) Averaging Time |E|,|H| or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 /…

Text truncated - open the document above for the full version.

Charge Confirm Approval Specification Sheet Object External Monopole Antenna / / / Enterprise 3Com REV. IR Page 1 of 3 Model name KWBE-2454RD_ Date Sep 2, 2004 System W-LAN DUAL Written by Albert Kim Electrical Specification Frequency Range 2.4 ~ 2.483 (GHz) 5.15 ~ 5.875 (GHz) Band Width 83.5 (MHz) 725 (MHz) V.S.W.R ( Max ) 2.0 : 1 2.0 : 1 Gain ( Max ) 2.5 ± 0.5 dBi 2.5 ± 0.5 dBi Input Impedance 50 (Ω) Polarization Linear Mechanical Specification Antenna Size 65 × 11 × 4 mm Weight 5 (g) Radiator Material Copper Operation Temperature -30 ~ 90 ( ̊C) Operation Humidity 10 ~ 90 (%) Option Others KRD01-00A05-01IR KOSAN I & T Co., Ltd. Fig 1. Typical RETURN LOSS performance 2.4/5.8GHz Fig 2. Typical VSWR performance 2.4/5.8GHz Fig 3. Typical Impedance performance 2.4/5.8GHz Fig 4. RADIATION PATTERN ELEVATION PATTERN, 2.4GHz AZIMUTH PATTERN, 2.4GHz ELEVATION PATTERN, 5.8GHz AZIMUTH PATTERN, 5.8GHz 3D PATTERN @ 2440MHz 3D PATTERN @ 5515MHz Peak Gain table

ORDER (800) 323-9122 FAX (630) 372-8077 MAXRAD Product Group Z1996 – Dualband Base Station Omnidirectional Antenna The Z1996 is designed to cover frequencies from 2.4 to 2.484GHz and 5.1 to 5.85GHz. This antenna features a U.V. stable, plastic radome that is ideal for outdoor applications. General Specifications: Omnidirectional Base Station Antenna Radome Material: White UV stable plastic Impedance: 50 Ohms (nominal) Polarization: Vertical Linear Mounting Method: Pipe Mount Termination: N Female Electrical Specifications: Frequency Range Nominal Gain H-plane Beamwidth E-plane Beamwidth Connector VSWR Max. Input Power 2.4 – 2.484GHz 6 dBi 360° (omni) 22° N Female < 2.0:1 25 Watts 5.15 – 5.85GHz 8 dBi 360° (omni) 15º < 2.0:1 Mechanical Specifications: Wind Survival Equivalent Flat Plate Area Lateral Thrust @ Rated Wind Bending Moment @ Rated Wind Height Weight 125 mph 0.12 ft² 10.6 lbs 12.8 ft-lbs 26” 0.50 lbs Z1996 Elevation Plane Radiation Patterns 2.4GHz 5GHz

ORDER (800) 323-9122 FAX (630) 372-8077 MAXRAD Product Group Z1999 – Dualband Ceiling Omnidirectional Antenna The Z1999 is designed to cover frequencies from 2.4 to 2.484GHz and from 4.94GHz to 5.85GHz, obtaining maximum gain with an attractive, low-profile package. General Specifications: Omnidirectional Antenna Radome Material: UL94-VO Plastic Impedance: 50 Ohms (nominal) Polarization: Horizontal Linear Mounting Method: Single hole stud mount. Side cable exit option for solid ceiling mount. Termination: N-Female Electrical Specifications: Frequency Range Nominal Gain H-plane Beamwidth Connector VSWR Max. Input Power 2.4 - 2.484GHz 3 dBi 360° (omni) N female < 2.0:1 25 Watts 4.94 - 5.85GHz 4 dBi 360º (omni) < 2.0:1 Mechanical Specifications: Temperature Range Cable Dimensiuons Weight -40ºC - +80ºC RG58A/U UL910 Rated 4.5”Wx0.5”D 8 oz. Z1999 Elevation Plane Radiation Patterns 2.4GHz 5GHz

ORDER (800) 323-9122 FAX (630) 372-8077 MAXRAD Product Group Z2000 – Dualband Bidirectional Hallway Antenna The Z2000 is designed to cover frequencies from 2.4 to 2.484GHz and from 4.94GHz to 5.85GHz, obtaining maximum gain with an attractive, low-profile package. General Specifications: Bidirectional Hallway Antenna Radome Material: UL94-VO Plastic Impedance: 50 Ohms (nominal) Polarization: Vertical Linear Mounting Method: Ceiling tile rail, bracket clip Termination: N Female Electrical Specifications: Frequency Range Nominal Gain H-plane Beamwidth E-plane Beamwidth Connector VSWR Max. Input Power 2.4 - 2.484GHz 4 dBi 70° 70° N female < 2.0:1 25 Watts 4.94 - 5.85GHz 6 dBi 55º 55º < 2.0:1 Mechanical Specifications: Temperature Range Cable Height Weight -40ºC - +70ºC RG58A/U Type UL Rated 3”Wx2.5”Hx0.45”D 2.6 oz. Z2000 2.4GHz Radiation Patterns Elevation Pattern Azimuth Pattern Z1998 5GHz Radiation Patterns Elevation Pattern Azimuth Pattern

FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Mobile PRODUCT NAME : 3Com Managed Access Point AP2750 FCC ID. : O9C-AP2750 FILING TYPE : Certification BRAND NAME : 3Com MODEL NAME : AP2750 APPLICANT : 3Com Corporation 5500 Great America Pkwy Santa Clara, CA. 95052 USA MANUFACTURER : DONGGUAN G-COM COMPUTER CO., LTD. 1st Row Yin Shan Rd., Yin Hwu Industrial Area, Qingxi Town, Dong Guan City, Guang Dong, China ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: Only the test result of 802.11a part is shown in this test report. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA, NVLAP or any agency of U.S. government. The test equipment used to perform the test are calibrated and traceable to NML/ROC or NIST/USA. Dr. Alan Lane Vice General Manager Sporton International Inc. Lab Code: 200079-0 FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date: Nov. 04, 2004 FAX : 886-2-2696-2255: Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE.......................................................................................................................iii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant ......................................................................................................................................................................................... 1 1.2. Manufacturer ................................................................................................................................................................................... 1 1.3. Basic Description of Equipment under Test .................................................................................................................................... 1 1.4. Features of Equipment under Test .................................................................................................................................................. 1 1.5. Antenna Description........................................................................................................................................................................ 2 1.6. Table for Carrier Frequencies ......................................................................................................................................................... 2 1.7. Table for Maximum Conducted Output Power ................................................................................................................................ 3 2. Test Configuration of the Equipment under Test.........................................................................................4 2.1. Connection Diagram of Test System............................................................................................................................................... 4 2.2. The Test Mode Description ............................................................................................................................................................. 5 2.3. Description of Test Supporting Units ............................................................................................................................................... 5 3. General Information of Test............................................................................................................................6 3.1. Test Facility ..................................................................................................................................................................................... 6 3.2. Test Conditions ............................................................................................................................................................................... 6 3.3. Standards for Methods of Measurement ......................................................................................................................................... 6 3.4. DoC Statement................................................................................................................................................................................ 6 3.5. Frequency Range Investigated ....................................................................................................................................................... 6 3.6. Test Distance................................................................................................................................................................................... 6 3.7. Test Software .................................................................................................................................................................................. 6 4. List of Measurements......................................................................................................................................7 4.1. Summary of the Test Results .......................................................................................................................................................... 7 5. Test Result .......................................................................................................................................................8 5.1. Test of 26dB Spectrum Bandwidth ............…

Text truncated - open the document above for the full version.

FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 81 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 5.8.4. Test Results for CH 01/ 5180 MHz ( for emission below 1GHz) ‚ Normal Mode ‚ Temperature: 26°C ‚ Relative Humidity: 64% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Ted Chiu Mode 1 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 82 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 Mode 2 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 83 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 Mode 3 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 84 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 Mode 4 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 85 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 5.8.5. Test Results for CH 01 / 5180 MHz ( for emission above 1GHz) ‚ Normal Mode ‚ Temperature: 26°C ‚ Relative Humidity: 64% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Ted Chiu Mode 1 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 86 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 Mode 2 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 87 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 Mode 3 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 88 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 Mode 4 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 89 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 5.8.6. Test Results for CH 02/ 5200 MHz ( for emission above 1GHz) ‚ Normal Mode ‚ Temperature: 26°C ‚ Relative Humidity: 64% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Ted Chiu Mode 1 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 90 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 Mode 2 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 91 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 Mode 3 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 92 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 Mode 4 (A) Polarization: Horizontal (B) Polarization: Vertical Note: Emission level (dBuV/m) = 20 log Emission level (uV/m) Corrected Reading: Probe Factor + Cable Loss + Read Level - Preamp Factor = Level FCC ID: O9C-AP2750 Issued on Nov. 04, 2004 Report No.: FR493039 SPORTON International Inc. Page No. : 93 of 153 TEL : 886-2-2696-2468 Issued Date : Nov. 04, 2004 FAX : 886-2-2696-2255 5.8.7. Test Results for CH 04 / 5240 …
