Hewlett Packard Company Date: Oct 08, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: O9C-BJNGAFB0038 ATTESTATION FCC ID: O9C-BJNGAFB0038 Product: HPE MSR954-W 1GbE+SFP LTE (AM) Rtr Model: BJNGA-FB0038 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Name: Taylor, James J Position: Manager Hewlett Packard Company

Hewlett Packard Company Declaration of Authorization We Name: Hewlett Packard Company Address: 153 Taylor Street Littleton Massachusetts, United States 01460-1407 Declare that: Name Representative of agent: Robin Wu Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: HPE MSR954-W 1GbE+SFP LTE (AM) Rtr Type designation: BJNGA-FB0038 Trademark: Hewlett Packard Enterprise on our behalf. Date: Oct 08, 2015 Name: Taylor, James J Signature:

Hewlett Packard Company Date: Oct 08, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: O9C-BJNGAFB0038 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------------- Name: Taylor, James J Hewlett Packard Company

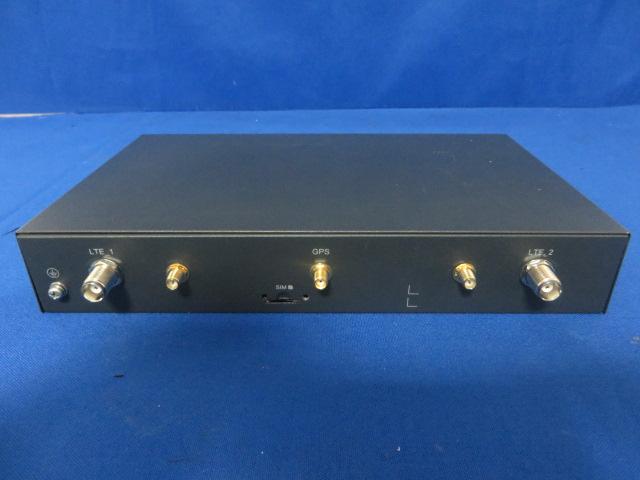

1 of 4 External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo

Label Location Regulatory Model: BJNGA-BB0038 Product No.: JH298A Contains FCC ID: N7NMC7355 IC: 2299L-BJNGABB0038 FCC ID: O9C-BJNGABB0038 1 2 3 4 5 6 7 8 A B C D E F 1 2 3 4 5 6 7 8 A B C D E F A3 RELEASE LEVEL: FILE NAME: REV ECO No DESCRIPTION + - 0.1 + - 0.01 + - 0.05 + - 0.2 铭牌 HPB70415020510 0 Wu fangqing Ni hanqiong Mao zhigao JH299A C0 M0 Y0 K100 50# 70 20 2-R1 ,加强背胶 MADE IN CHINA 二维码内容为:A09801A0SE1 POWER RATING:100-240VAC,50/60Hz,0.45A Max 0 2015.07.21 2015.07.21 2015.07.21 Hewlett-Packard Enterprise Company 1 2 3 4 5 6 7 8 A B C D E F 1 2 3 4 5 6 7 8 A B C D E F A3 RELEASE LEVEL: FILE NAME: REV ECO No DESCRIPTION + - 0.1 + - 0.01 + - 0.05 + - 0.2 铭牌 HPB70415060204 Wu fangqing Ni hanqiong Mao zhigao JH299A 2015/07/31 2015/07/31 2015/07/31 0 首版发布 0 C0 M0 Y0 K100 50# ,加强背胶 028 二维码内容为:9801A0SE2A0 MSIP-CMM-HPe- BJNGABB0039 Agência Nacional de Telecomunicações 1802-15-8996 (01)07893552100983

1 of 5 Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1504RSU00604 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 10-28-2015 Web: www.mrt-cert.com FCC ID: O9C-BJNGABB0038 Page Number: 1 of 7 IC: 2299L-BJNGABB0038 RF Exposure Evaluation Declaration FCC ID: O9C-BJNGABB0038 IC: 2299L-BJNGABB0038 APPLICANT: Hewlett Packard Company Application Type: Certification Product: HPE MSR954-W 1GbE+SFP LTE (AM) Rtr Model No.: BJNGA-BB0038 Brand Name: Hewlett Packard Enterprise FCC Rule Part(s): FCC CFR 47 §2.1091 IC Specification(s): RSS-102 Issue 5 FCC Classification: Digital Transmission System (DTS) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1504RSU00604 FCC ID: O9C-BJNGABB0038 Page Number: 2 of 7 IC: 2299L-BJNGABB0038 Revision History Report No. Version Description Issue Date 1504RSU00604 Rev. 01 Initial report 10-08-2015 1504RSU00604 Rev. 02 Update the MC7354 module antenna list 10-28-2015 Report No.: 1504RSU00604 FCC ID: O9C-BJNGABB0038 Page Number: 3 of 7 IC: 2299L-BJNGABB0038 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Antenna Description Antenna Type Frequency Band (MHz) Manufacturer Max Peak Gain (dBi) Dipole Antenna 2400~2500 DONGGUAN SENLING INDUSTRIAL CO., LTD 3.00 Dipole Antenna 750 PCTEL, Inc 1.26 850 1.22 1710 1.24 1880 0.88 1990 1.09 2170 1.43 Product Name HPE MSR954-W 1GbE+SFP LTE (AM) Rtr Model No. BJNGA-BB0038 Power Type AC 120V/60Hz Frequency Range 802.11b/g/n-HT20: 2412 ~ 2462 MHz 802.11n-HT40: 2422 ~ 2452 MHz Type of Modulation 802.11b: DSSS 802.11g/n: OFDM Maximum Average Output Power 802.11b: 20.24dBm 802.11g: 20.56dBm 802.11n-HT20: 20.37dBm 802.11n-HT40: 18.24dBm MC7354 Module Specification FCC ID N7NMC7355 IC 2417C-MC7355 Supported Bands GPRS/EDGE 850/1900 WCDMA Band II/V CDMA2000 BC0/BC1/BC10 LTE Band 2/4/5/13/17/25 Report No.: 1504RSU00604 FCC ID: O9C-BJNGABB0038 Page Number: 4 of 7 IC: 2299L-BJNGABB0038 2. RF Exposure Evaluation 2.1. Limits FCC Rules: According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 IC Rules: IC has adopted the RF field strength limits established in Health Canada’s RF exposure guideline. The limits are shown in Table 4 below per RSS-102. RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Report No.: 1504RSU00604 FCC ID: O9C-BJNGABB0038 Page Number: 5 of 7 IC: 2299L-BJNGABB0038 Formula as follows: f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1504RSU00604 FCC ID: O9C-BJNGABB0038 Page Number: 6 of 7 IC: 2299L-BJNGABB0038 2.2. Test Result of RF Exposure Evaluation Product HPE MSR954-W 1GbE+SFP LTE (AM) Rtr Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.0dBi for Wi-Fi band and 2.0dBi for LTE band in logarithm scale. For 2.4GHz Band: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at r = 20 cm (mW/cm 2 ) FCC Limit (mW/cm 2 ) IC Limit (mW/cm 2 ) 802.11b 2412 ~ 2462 20.24 0.0419 1 0.537 802.11g 2412 ~ 2462 20.56 0.0452 1 0.537 802.11n-HT20 2412 ~ 2462 20.37 0.0432 1 0.537 802.11n-HT40 2422 ~ 2452 18.24 0.0265 1 0.537 For 2G/3G/LTE Band: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (dBm) Duty Cycle Factor (dB) Power Density at r = 20 cm (mW/cm 2 ) FCC Limit (mW/cm 2 ) IC Limit (mW/cm 2 ) GSM 850 824 ~ 849 32.71 -6 0.1235 0.549 0.258 PCS 1900 1850 ~ 1910 30.43 -6 0.0676 1 0.448 WCDMA Band II 1850 ~ 1910 23.11 0 0.0499 1 0.448 WCDMA Band V 824 ~ 849 23.37 0 0.0572 0.549 0.258 CDMA2000 BC0 824 ~ 849 24.40 0 0.0726 0.549 0.258 CDMA2000 BC1 1850 ~ 1910 24.40 0 0.0671 1 0.448 CDMA2000 BC10 817 ~ 824 24.40 0 0.0726 0.545 0.256 LTE Band 2 1850 ~ 1910 23.45 0 0.0539 1 0.448 LTE Band 4 1710 ~ 1755 23.54 0 0.0598 1 0.424 LTE Band 5 824 ~ 849 23.57 0 0.0599 0.549 0.258 LTE Band 13 777 ~ 787 23.39 0 0.0580 0.518 0.247 LTE Band 17 704 ~ 716 23.34 0 0.0574 0.469 0.231 LTE Band 25 1850 ~ 1915 23.41 0 0.0534 1 0.448 Report No.: 1504RSU00604 FCC ID: O9C-BJNGABB0038 Page Number: 7 of 7 IC: 2299L-BJNGABB0038 CONCULISON: Both of the WLAN and 2G/3G/4G can transmit simultaneously. Therefore, the Max Power Density at r (20 cm) = 0.1235mW/cm 2 + 0.0452mW/cm 2 = 0.1687mW/cm 2 < 0.231mW/cm 2. So the EUT complies with the FCC and IC requirement. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1504RSU00601 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 10-08-2015 Web: www.mrt-cert.com FCC ID: O9C-BJNGABB0038 Page Number: 1 of 119 IC: 2299L-BJNGABB0038 FCC ID: O9C-BJNGABB0038 IC: 2299L-BJNGABB0038 APPLICANT: Hewlett Packard Company Application Type: Certification Product: HPE MSR954-W 1GbE+SFP LTE (AM) Rtr Model No.: BJNGA-BB0038 Trademark: Hewlett Packard Enterprise FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-247 Issue 1 Test Procedure(s): ANSI C63.10-2013, KDB 558074 D01v03r03, KDB 662911 D01v02r01 Test Date: April 08 ~ 15, 2015 MEASUREMENT REPORT FCC PART 15.247 / IC RSS-247 WLAN 802.11b/g/n Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 558074 D01v03r03. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1504RSU00601 FCC ID: O9C-BJNGABB0038 Page Number: 2 of 119 IC: 2299L-BJNGABB0038 Revision History Report No. Version Description Issue Date 1504RSU00601 Rev. 01 Initial report 10-08-2015 Report No.: 1504RSU00601 FCC ID: O9C-BJNGABB0038 Page Number: 3 of 119 IC: 2299L-BJNGABB0038 CONTENTS Description Page §2.1033 General Information .......................................................................................................... 5 1. INTRODUCTION ...................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ...................................................................................................... 7 2.1. Equipment Description ................................................................................................. 7 2.2. Product Specification Subjective to this Standard ......................................................... 7 2.3. Operation Frequency / Channel List ............................................................................. 7 2.4. Description of Available Antennas ................................................................................ 8 2.5. Description of Antenna RF Port .................................................................................... 9 2.6. Test Mode .................................................................................................................... 9 2.7. Test Software ............................................................................................................... 9 2.8. Device Capabilities ..................................................................................................... 10 2.9. Test Configuration ....................................................................................................... 11 2.10. EMI Suppression Device(s)/Modifications .................................................................... 11 2.11. Labeling Requirements ................................................................................................ 11 3. DESCRIPTION of TEST ......................................................................................................... 12 3.1. Evaluation Procedure ................................................................................................. 12 3.2. AC Line Conducted Emissions ................................................................................... 12 3.3. Radiated Emissions .................................................................................................... 13 4. ANTENNA REQUIREMENTS................................................................................................. 14 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 15 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ....................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 6dB Bandwidth Measurement ..................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Test Procedure used ............................................................................................... 18 7.2.3. Test Setting ............................................................................................................. 18 7.2.4. Test Setup .............................................................................................................. 18 7.2.5. Test Result .............................................................................................................. 19 7.3. Output Power Measurement ....................................................................................... 28 Report No.: 1504RSU00601 FCC ID: O9C-BJNGABB0038 Page Number: 4 of 119 IC: 2299L-BJNGABB0038 7.3.1. Test Limit ................................................................................................................ 28 7.3.2. Test Procedure Used ..............................................................…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 1504RSU00602 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 10-28-2015 Web: www.mrt-cert.com FCC ID: O9C-BJNGABB0038 Page Number: 1 of 40 IC: 2299L-BJNGABB0038 FCC ID: O9C-BJNGAFB0038 IC: 2299L-BJNGABB0038 APPLICANT: Hewlett Packard Company Application Type: Certification Product: HPE MSR954-W 1GbE+SFP LTE (AM) Rtr Model No.: BJNGA-BB0038 Brand Name: Hewlett Packard Enterprise FCC Rule Part(s): Part 15.247, Part2, FCC Part22, FCC Part24, FCC Part 27, FCC Part 90S IC Specification(s): RSS-247 Issue 1, RSS-130 Issue 1, RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 2 Test Date: April 08 ~ 25, 2015 Co-location Report Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947, ANSI/TIA-603-D-2010 and ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1504RSU00602 FCC ID: O9C-BJNGABB0038 Page Number: 2 of 40 IC: 2299L-BJNGABB0038 Revision History Report No. Version Description Issue Date 1504RSU00602 Rev. 01 Initial report 10-08-2015 1504RSU00602 Rev. 02 Update the MC7354 module antenna list 10-28-2015 Report No.: 1504RSU00602 FCC ID: O9C-BJNGABB0038 Page Number: 3 of 40 IC: 2299L-BJNGABB0038 §2.1033 General Information Applicant: Hewlett Packard Company Applicant Address: 153 Taylor Street Littleton Massachusetts, United States 01460-1407 Manufacturer: Hewlett Packard Company Manufacturer Address: 153 Taylor Street Littleton Massachusetts, United States 01460-1407 Test Site: MRT Technology (Suzhou) Co., Ltd Test Site Address: D8 Building, Youxin Industrial Park, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China MRT FCC Registration No.: 809388 MRT IC Registration No.: 11384A Model No.: BJNGA-BB0038 FCC ID: O9C-BJNGABB0038 IC: 2299L-BJNGABB0038 Test Device Serial No.: N/A Production Pre-Production Engineering FCC Classification: Digital Transmission System (DTS) Test Facility / Accreditations Measurements were performed at MRT Laboratory located in Tian’edang Rd., Suzhou, China.  MRT facility is a FCC registered (MRT Reg. No. 809388) test facility with the site description report on file and has met all the requirements specified in Section 2.948 of the FCC Rules.  MRT facility is an IC registered (MRT Reg. No. 11384A-1) test laboratory with the site description on file at Industry Canada.  MRT facility is a VCCI registered (R-4179, G-814, C-4664, T-2206) test laboratory with the site description on file at VCCI Council.  MRT Lab is accredited to ISO 17025 by the American Association for Laboratory Accreditation (A2LA) under the American Association for Laboratory Accreditation Program (A2LA Cert. No. 3628.01) in EMC, Telecommunications and Radio testing for FCC, Industry Canada, EU and TELEC Rules. Report No.: 1504RSU00602 FCC ID: O9C-BJNGABB0038 Page Number: 4 of 40 IC: 2299L-BJNGABB0038 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Industry Canada Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taihu Lake. These measurement tests were conducted at the MRT Technology (Suzhou) Co., Ltd. Facility located at D8 Building, Youxin Industrial Park, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4-2009 on September 30, 2013. Report No.: 1504RSU00602 FCC ID: O9C-BJNGABB0038 Page Number: 5 of 40 IC: 2299L-BJNGABB0038 2. PRODUCT INFORMATION 2.1. Equipment Description Product Name HPE MSR954-W 1GbE+SFP LTE (AM) Rtr Model No. BJNGA-BB0038 Brand Name Hewlett Packard Enterprise Antenna Type External Wi-Fi Specification Frequency Range 802.11b/g/n-HT20: 2412 ~ 2462 MHz 802.11n-HT40: 2422 ~ 2452 MHz Maximum Output Power 802.11b: 23.00dBm 802.11g: 28.99dBm 802.11n-HT20: 28.96dBm 802.11n-HT40: 28.09dBm Type of Modulation 802.11b: DSSS 802.11g/n: OFDM Antenna Type External Antenna Gain 3.0dBi MC7354 Module Specification FCC ID N7NMC7355 IC 2417C-MC7355 Supported Bands GPRS/EDGE 850/1900 WCDMA Band II/V CDMA2000 BC0/BC1/BC10 LTE Band 2/4/5/13/17/25 2G T X Frequency Range GSM 850: 824 ~ 849 MHz DCS 1900: 1850 ~ 1910 MHz R X Frequency Range GSM 850: 869 ~ 894 MHz DCS 1900: 1930 ~ 1990 MHz Type of Modulation GPRS: GMSK, EDGE: 8PSK Release Version R99 Report No.: 1504RSU00602 FCC ID: O9C-BJNGABB0038 Page Number: 6 of 40 IC: 2299L-BJNGABB0038 3G - WCDMA T X Frequency Range WCDMA Band II: 1850 ~ 1910 MHz WCDMA Band V: 824 ~ 849 MHz R X Frequency Range WCDMA Band II: 1930 ~ 1990 MHz WCDMA Band V: 869 ~ 894 MHz Type of Modulation QPSK Release Version Rel-7 3G – CDMA2000 T X Frequency Range CDMA2000 BC0: 824~849MHz CDMA2000 BC1: 1850~1910MHz CDMA2000 BC10: 817~824MHz R X Frequency Range CDMA2000 BC0: 869~894MHz CDMA2000 BC1: 1930~1990MHz CDMA2000 BC10: 862~869MHz Type of Modulation QPSK Release Version Rel-A 4G - LTE T X Frequency Range LTE Band 2: 1850 ~ 1910 MHz LTE Band 4: 1710 ~ 1755 MHz LTE Band 5: 824 ~ 849 MHz LTE Band 13: 777 ~ 787 MHz LTE Band 17: 704 ~ 716 MHz LTE Band 25: 1850 ~ 1915 MHz R X Frequency Range LTE Band 2: 1930 ~ 1990 MHz LTE Band 4: 2110 ~ 2155MHz LTE Band 5: 869 ~ 894 MHz LTE Band 13: 746 ~ 756 MHz LTE Band 17: 734 ~ 746 MHz LTE Band 25: 1930 ~ 1995 MHz Type of modulation QPSK, 16QAM Release Versio…

Text truncated - open the document above for the full version.

1 of 5 FCC 15B Test Setup Photo Test Mode: Mode 1: Communication Description: Front View of Conducted Emission Test Mode: Mode 1: Communication Description: Front View of Conducted Emission Test Mode: Mode 1: Communication Description: Radiated disturbance Test Setup for 30MHz ~ 1GHz Test Mode: Mode 1: Communication Description: Radiated disturbance Test Setup for 1GHz ~ 18GHz FCC Part15C Test Setup Photo Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 40GHz
