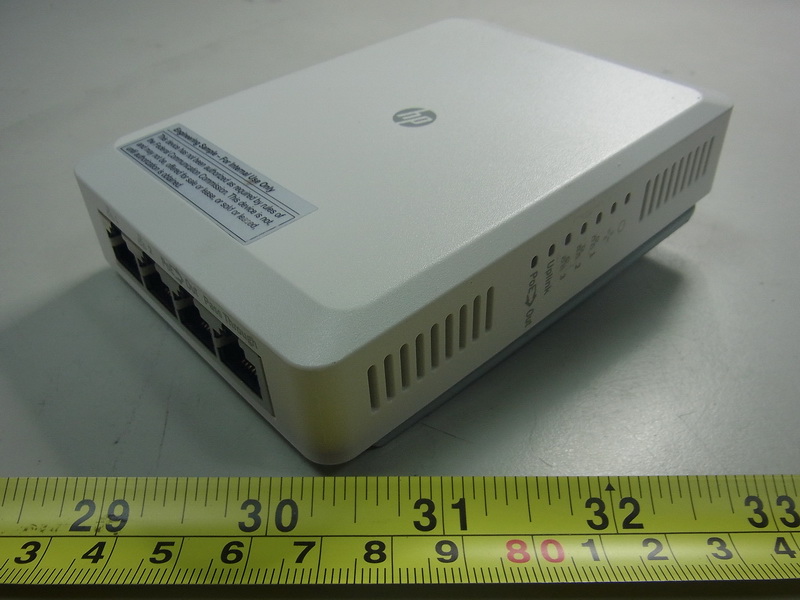

O9C-BJNGAFB0003Unified Wired-WLAN Walljack

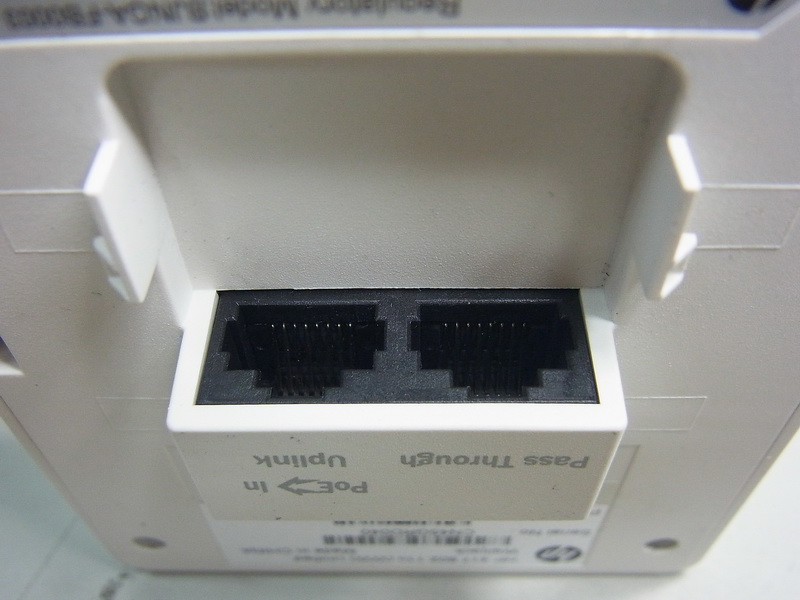

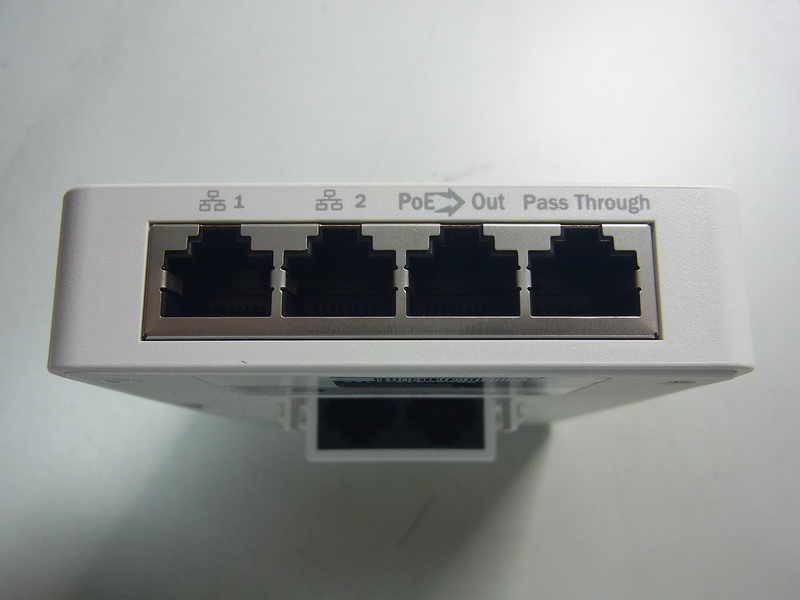

The HP 417 is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11b/g/n product. The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. 1 HP 417 Single Radio 802.11n Unified Wired WLAN Walljack quick start guide This quick start guide shows you how to install and get started using the HP 417 Single Radio 802.11n Unified Wired WLAN Walljack (RMN BJNGA-FB0003) JG971A (AM), JG972A (WW), JG973A (20 pack AM), JG974A (20 pack WW), hereafter referred to a s t h e H P 417. Hardware overview Back view 1: Pass Through port 2: Uplink port Front view Bottom views 3: Ethernet LAN ports 1 and 2 4: PoE Out Ethernet LAN port 3 5: Pass Through port 12 3 4 5 1 2 2 Package contents The HP 417, mounting bracket, screws, MAC address label, and documentation. Ports • Three Ethernet ports: Auto-sensing 100Base-T Ethernet ports with RJ-45 connectors. One port provides IEEE 802.3af Power over Ethernet (PoE) to supply power to one device. • One Gigabit Ethernet uplink port: Auto-sensing 1000Base-T Ethernet port with RJ-45 connector. • One pair of pass-throuh ports: Work with Cat5 cabling as well as an analog telephone cable. Radio and antennas The HP 417 supports IEEE 802.11b/g/n. It has two internal antennas (3.3 dBi) supporting 2x2 MIMO with two spatial streams at a rate of up to 300 Mbps. Reset button The reset button is accessible through a hole on the side panel of the HP 417. To reset the HP 417, insert a paper clip into the reset button hole, and press and quickly release the button. To reset the HP 417 to factory defaults, press and hold the button more than 5 seconds until the status LEDs (Power, Radio, and Uplink) flash, then release. Status LEDs 3 Power Uplink Radio LAN(1 to 3) PoE Description Off Off Off Off Off The AP has no power. Steady orange Off Off Off Off The AP is starting up. Flashing green once per second Off Off Off Off The AP is lookin g for an IP address or building the list of VLANS on which to perform discovery. The power, uplink, and radio LEDs are flashing green in sequence. Off Off The AP has obtained an IP address and is attempting to discover a controller. Steady green The uplink and radio LEDs are flashing green alternately. Off Off The AP has found a controller and is attempting to establish a tunnel with it. The power and uplink LEDs are alternately flashing green (slowly). Off Off Off The AP is performin g Ethernet negotiation, and is waiting for the Ethernet link to come up. Steady green Off Any Any Any The uplink interface is not connected or there is no network activity. Steady green Flashing green Any Any Any The uplink interface is transmitting or receiving data. Steady green Any Off Any Any The radio interface is disabled or there is no network activity. Steady green Any Flashing green Any Any The radio interface is transmitting or receiving data. Steady green Any Any Off Any The LAN interface is disabled or there is no network activity. Steady green Any Any Flashing green Any The LAN interface is transmitting or receiving data. Steady green Any Any Any Off No PoE device is connected. Steady green Any Any Any Steady green A PoE device is connected. 4 Powering the HP 417 The HP 417 can be powered by a PoE-enabled switch that provides 10/100 Mbps or 10/100/1000 Mbps Ethernet ports. The HP 417 supports an 802.3af PoE PSE connection to one device on LAN port 3. This feature is dependent on the power source of the HP 417, as follows: • Supports 802.3af class 1/2/3 PoE Out when the 803.3at (PoE+) power supply mode is used. • Supports 802.3af class 1/2 PoE Out when the standard 803.3af power supply mode is used. Important information to read before installing Professional installation is required. For indoor installation only. Before installing or using the AP, consult with a professional installer trained in RF installation and knowledgeable in local regulations including building and wiring codes, safety, channel, power, and license requirements for the intended country. The end user is responsible for ensuring that installation and use comply with local safety and radio regulations. To avoid possible bodily injury or equipment damage, read the following safety recommendations before you install an HP 417. The recommendations do not cover every possible hazardous condition. • Install with six inches or more of clearance around the walljack. • Keep the chassis clean and dust-free. • Make sure the ground is dry and flat and anti-slip measures are in place. • Do not place the AP in a moist area and avoid liquid surrounding the AP. • Keep the chassis and installation tools away from walkways. Installation 1. Place the mounting bracket, with the UP arrow pointing up, on the electrical outlet box, and then use two of the supplied mounting screws to secure the bracket to the box. The two long mounting screws are for a US electrical box. The two short mounting screws are for an EU electrical outlet box. 5 Figure 1 Securing the mounting bracket to an electrical outlet box (EU) 6 Figure 2 Securing the mounting bracket to an electrical outlet box (US) 7 2. Connect the network cable from the box to the RJ-45 Uplink port on the back of the HP 417. If required, also connect the cable providing support for pass-through devices to the Pass Through port on the back of the HP 417. Figure 3 Connecting the network cable 8 3. Align the installation hole in the rear of the AP with the standout on the mounting bracket. Figure 4 Aligning the installation hole 9 4. Push the HP 417 onto the mounting bracket, and then slide it down until it is fully engaged. Then secure the AP to the bracket by using the Phillips-head screw or the security-head security Torx-10 screw. Do not let go of the HP 417 until you confirm that it is securely in place. Figure 5 Securing the AP 1 2 10 Provided access services After the installation is complete, connect equipment to the HP 417 as follows: Technical support For worldwide technical support information, see the HP support website at www.hp.com/networkin…

Text truncated - open the document above for the full version.

i Contents Safety Information/Sicherheits informationen/安全信息/安全情報/안전 정보/Informations relatives à la sécurité/ Informazioni di sicurezza/ Información de seguridad/Informações de segurança/ Қауіпсіздік туралы ақпарат/ Информация о безопасности/ Інформація з технічної безпеки ·································································· 1 Overview/Überblick/概述/概要/개요/Présentation/Panoramica/Descripción general/Visão geral/Шолу/Обзор/Огляд ········································································································································································ 1 Conventions Used Symbole/ Erläuterung der Symbole/应用惯例/本書で使用されている規約 /사용되는규칙/ Conventions utilisées/Convenzioni utilizzate/ Convenciones empleadas/Convenções utilizadas/Келісімдер бойынша қолданылатын белгі /Используемые символы/Используемые символы ································································································································································································ 4 Important Safety Information/Wichtige Sicherheitshinweise/重要安全信息/重要な安全情報/중요한 안전 정보/Informations importantes relatives à la sécurité/Informazioni di sicurezza importanti/ Información importante de seguridad/Informações de segurança importantes/ Қауіпсіздік туралы маңызды ақпарат/Важные сведения о безопасности/Важлива інформація з технічної безпеки································ 6 Electricity Safety/Elektrische Sicherheit/用电安全/電気面の安全/전기 안전/Sécurité électrique/Sicurezza elettrica/ Seguridad eléctrica/Segurança elétrica/Электр қауіпсіздігі/ Электробезопасность/Техніка електробезпеки ··························································································································································································· 9 Hazardous Voltage/Gefährliche Spannungen /危险电压/危険電圧/위험 전압/ Tension dangereuse/ Tensione pericolosa/ Tensión peligrosa/ Tensión peligrosa / Қауіпті кернеу/Опасное напряжение/Небезпечна напруга ··········································································································································· 9 Regulatory Compliance Information················································································································································ 11 Regulatory compliance standards ······················································································································································· 11 European Directives compliance ·························································································································································· 12 Wireless CE Marking ······································································································································································· 12 EU Country Restriction in 2.4GHz band ·································································································································· 13 USA regulatory compliance ···································································································································································· 14 FCC Part 15 ························································································································································································· 14 FDA ········································································································································································································· 15 Canada regulatory compliance ····························································································································································· 15 ICES-003 ······························································································································································································· 15 RF Compliance ··················································································································································································· 15 Japan regulatory compliance································································································································································· 16 VCCI ······································································································································································································· 16 MII ··········································································································································································································· 16 EN55022, AS/NZS CISPR 22, CISPR22 compliance ······················································································································· 16 Brazil RF Compliance ················································································································································································· 16 Russia / CIS Regulatory Compliance/ Ресейдің/ТМД елдерінің нормаларына сəйкестік/Соответствие нормам России и СНГ/Нормативні вимоги для Росії/СНД ································································································· 17 Korea RF Compliance ················································································································································································ 17 Taiwan regulatory statement ································································································································································· 17 Appendix A Regulatory compliance notices ·····················································…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: Hewlett Packard Company Address: 153 Taylor Street Littleton Massachusetts, United States 01460‐1407 Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s), including the signing of the related documents such as 731 forms: Product description: Unified Wired-WLAN Walljack Type designation: BJNGA-FB0003, JG971A Trademark: HP on our behalf. Date: 2014-6-23 City: Littleton Name: Jim Taylor Function: Manager, Hardware Support Engineering Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Unified Wired-WLAN Walljack Model Name BJNGA-FB0003;JG971A Brand Name HP Applicant Hewlett Packard Company Address 153 Taylor Street Littleton Massachusetts, United States 01460-1407 Standard(s) FCC Part 15, Subpart B: 2013 CISPR 22: 2008 ANSI C63.4-2009 Report(s) NEI-FCCE-1-1406049 The test data, data evaluation, and equipment configuration contained in our test report(s) above was (were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331

RV-0000000 Project No.: 1406049 Page 2 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1406049 Page 3 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1406049 Page 4 of 12 Neutron Engineering Inc.

50911*A3 产品名牌 WP338 H3C JG971A Ivy 龔君 2014-07-01 (客戶): H3C (材質): FASSON 72826 (上光方式): NO (尺寸): 49*23 mm (公差): +-0.3mm (): BLACK 1:1 3:1 Hewlett Packard Company MADE IN CHINA 输入 / Input:48V 0.4A(PoE) FCC ID: O9C-BJNGAFB0003 Regulatory Model:BJNGA-FB0003 JG971A IC: 2299L- BJNGAFB0003 Complies with RSS-210 C=2.7mm 23mm 49mm E152043 1592-14-2419 (01)07893552100884 Hewlett Packard Company MADE IN CHINA 输入 / Input:48V 0.4A(PoE) FCC ID: O9C-BJNGAFB0003 Regulatory Model:BJNGA-FB0003 JG971A IC: 2299L- BJNGAFB0003 Complies with RSS-210 C=2.7mm 23mm 49mm E152043 1592-14-2419 (01)07893552100884 Label location

RV-0000000 Project No.: 1406049 Page 5 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1406049 Page 6 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1406049 Page 7 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1406049 Page 8 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1406049 Page 9 of 12 Neutron Engineering Inc. RV-0000000 Project No.: 1406049 Page 10 of 12 Neutron Engineering Inc. PIFA Antenna RV-0000000 Project No.: 1406049 Page 11 of 1 2 Neutron Engineering Inc. RV-0000000 Project No.: 1406049 Page 12 of 12 Neutron Engineering Inc.

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: O9C-BJNGAFB0003 Project No. : 1406049 Equipment : Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003;JG971A Applicant : Hewlett Packard Company Address : 153 Taylor Street Littleton Massachusetts, United States 01460-1407 According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) A HONGLIN TECHNOLOGY CO., LTD WP338 PIFA ANTENNA-1 PIFA Antenna N/A 4.20 B HONGLIN TECHNOLOGY CO., LTD WP338 PIFA ANTENNA-2 PIFA Antenna N/A 2.10 Neutron Engineering Inc. TEST RESULTS EUT: Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003; JG971A Temperature: 25 °C Relative Humidity: 55 % Pressure: DC 48V Test Mode : IEEE 802.11b/2412 MHz, 2437 MHz, 2462 MHz_ANT A Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.20 2.6303 22.11 162.5549 0.08510408 1 Complies 4.20 2.6303 21.97 157.3983 0.08240439 1 Complies 4.20 2.6303 21.86 153.4617 0.08034343 1 Complies EUT: Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003; JG971A Temperature: 25 °C Relative Humidity: 55 % Pressure: DC 48V Test Mode : IEEE 802.11g/2412 MHz, 2437 MHz, 2462 MHz_ANT A Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.20 2.6303 24.37 273.5269 0.14320242 1 Complies 4.20 2.6303 24.83 304.0885 0.15920268 1 Complies 4.20 2.6303 24.04 253.5129 0.13272428 1 Complies Neutron Engineering Inc. EUT: Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003; JG971A Temperature: 25 °C Relative Humidity: 55 % Pressure: DC 48V Test Mode : IEEE 802.11n (20 MHz)/2412 MHz, 2437 MHz, 2462 MHz_ANT A Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.20 2.6303 23.86 243.2204 0.12733576 1 Complies 4.20 2.6303 24.08 255.8586 0.13395236 1 Complies 4.20 2.6303 23.97 249.4595 0.13060216 1 Complies EUT: Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003; JG971A Temperature: 25 °C Relative Humidity: 55 % Pressure: DC 48V Test Mode : IEEE 802.11n (20 MHz)/ 2412 MHz, 2437 MHz, 2462 MHz_ANT B Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.10 1.6218 23.71 234.9633 0.07584909 1 Complies 2.10 1.6218 24.47 279.8981 0.09035462 1 Complies 2.10 1.6218 23.98 250.0345 0.08071428 1 Complies Neutron Engineering Inc. EUT: Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003; JG971A Temperature: 25 °C Relative Humidity: 55 % Pressure: DC 48V Test Mode : IEEE 802.11n (40 MHz)/2422 MHz, 2437 MHz, 2452 MHz_ANT A Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.20 2.6303 22.79 190.1078 0.09952917 1 Complies 4.20 2.6303 23.97 249.4595 0.13060216 1 Complies 4.20 2.6303 22.48 177.0109 0.09267239 1 Complies EUT: Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003; JG971A Temperature: 25 °C Relative Humidity: 55 % Pressure: DC 48V Test Mode : IEEE 802.11n (40 MHz)/2422 MHz, 2437 MHz, 2452 MHz_ANT B Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.10 1.6218 22.85 192.7525 0.06222292 1 Complies 2.10 1.6218 24.31 269.7739 0.08708641 1 Complies 2.10 1.6218 23.49 223.3572 0.07210251 1 Complies Neutron Engineering Inc. EUT: Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003; JG971A Temperature: 25 °C Relative Humidity: 55 % Pressure: DC 48V Test Mode : IEEE 802.11n (20 MHz)/2412 MHz, 2437 MHz, 2462 MHz_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.20 2.6303 26.80 478.6301 0.25058229 1 Complies 4.20 2.6303 27.29 535.7967 0.28051131 1 Complies 4.20 2.6303 26.99 500.0345 0.26178838 1 Complies EUT: Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003; JG971A Temperature: 25 °C Relative Humidity: 55 % Pressure: DC 48V Test Mode : IEEE 802.11n (40 MHz)/2422 MHz, 2437 MHz, 2452 MHz_Total Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 4.20 2.6303 25.83 382.8247 0.20042430 1 Complies 4.20 2.6303 27.15 518.8000 0.27161289 1 Complies 4.20 2.6303 26.02 399.9447 0.20938732 1 Complies Note: The calculated distance is 20cm

RV-0000000 Report No.: NEI-FCCP-1-1406049 Page 1 of 148 Neutron Engineering Inc. Radio Test Report FCC ID: O9C-BJNGAFB0003 This report concerns (check one) : Original Grant Class II Change Issued Date : Jun. 17, 2014 Project No. : 1406049 Equipment : Unified Wired-WLAN Walljack Model Name : BJNGA-FB0003;JG971A Applicant : Hewlett Packard Company Address : 153 Taylor Street Littleton Massachusetts, United States 01460-1407 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jun. 06, 2014 Date of Test: Jun. 06, 2014 ~ Jun. 16, 2014 Testing Engineer : (Josh Lin) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 RV-0000000 Report No.: NEI-FCCP-1-1406049 Page 2 of 148 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. RV-0000000 Report No.: NEI-FCCP-1-1406049 Page 3 of 148 Neutron Engineering Inc. Table of Contents REPORT ISSUED HISTORY 5 1 CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 ANTENNA CONDUCTED SPURIOUS EMISSION 15 4.1 LIMIT 15 4.2 MEASUREMENT INSTRUMENTS LIST 15 4.3 TEST PROCEDURES 15 4.4 TEST SETUP LAYOUT 15 4.5 DEVIATION FROM TEST STANDARD 15 4.6 EUT OPERATING CONDITIONS 15 4.7 TEST RESULTS 16 5 6 DB BANDWIDTH 40 5.1 LIMIT 40 5.2 MEASUREMENT INSTRUMENTS LIST 40 5.3 TEST PROCEDURES 40 5.4 TEST SETUP LAYOUT 40 5.5 DEVIATION FROM TEST STANDARD 40 5.6 EUT OPERATING CONDITIONS 40 5.7 TEST RESULTS 41 6 MAXIMUM PEAK CONDUCTED OUTPUT POWER 53 6.1 LIMIT 53 6.2 MEASUREMENT INSTRUMENTS LIST 53 6.3 TEST PROCEDURES 53 6.4 TEST SETUP LAYOUT 53 6.5 DEVIATION FROM TEST STANDARD 53 6.6 EUT OPERATING CONDITIONS 53 6.7 TEST RESULTS 54 7 RADIATED SPURIOUS EMISSION (9 KHZ TO 1 GHZ) 58 7.1 LIMIT 58 7.2 MEASUREMENT INSTRUMENTS LIST 59 RV-0000000 Report No.: NEI-FCCP-1-1406049 Page 4 of 148 Neutron Engineering Inc. Table of Contents 7.3 MEASURING INSTRUMENTS SETTING 59 7.4 TEST PROCEDURES 60 7.5 DEVIATION FROM TEST STANDARD 60 7.6 TEST SETUP LAYOUT 60 7.7 EUT OPERATING CONDITIONS 61 7.8 TEST RESULTS 62 8 RADIATED SPURIOUS EMISSION (ABOVE 1 GHZ) 64 8.1 LIMIT 64 8.2 MEASUREMENT INSTRUMENTS LIST 65 8.3 MEASURING INSTRUMENTS SETTING 65 8.4 TEST PROCEDURES 66 8.5 DEVIATION FROM TEST STANDARD 66 8.6 TEST SETUP LAYOUT 66 8.7 EUT OPERATING CONDITIONS 67 8.8 TEST RESULTS 68 8.9 TEST RESULTS (RESTRICTED BANDS) 116 9 POWER SPECTRAL DENSITY 132 9.1 LIMIT 132 9.2 MEASUREMENT INSTRUMENTS LIST 132 9.3 TEST PROCEDURES 132 9.4 TEST SETUP LAYOUT 132 9.5 DEVIATION FROM TEST STANDARD 132 9.6 EUT OPERATING CONDITIONS 132 9.7 TEST RESULTS 133 10 EUT TEST PHOTO 147 RV-0000000 Report No.: NEI-FCCP-1-1406049 Page 5 of 148 Neutron Engineering Inc. REPORT ISSUED HISTORY Issue No. Description Issued Date NEI-FCCP-1-1406049 Original Issue. Jun. 17, 2014 RV-0000000 Report No.: NEI-FCCP-1-1406049 Page 6 of 148 Neutron Engineering Inc. 1 CERTIFICATION Equipment : Unified Wired-WLAN Walljack Brand Name : HP Model Name : BJNGA-FB0003;JG971A Applicant : Hewlett Packard Company Date of Test : Jun. 06, 2014 ~ Jun. 16, 2014 Standard(s) : FCC Part 15, Subpart C: 2013 ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1406049) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). RV-0000000 Report No.: NEI-FCCP-1-1406049 Page 7 of 148 Neutron Engineering Inc. 2. SUMMARY OF TEST RESULTS Standard Clause Test Item Result 15.207 Conducted Emission N/A NOTE (2) 15.247 (c) Antenna conducted Spurious Emission PASS 15.247 (a)(2) 6 dB Bandwidth PASS 15.247 (b) Maximum Peak Conducted Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d)(e) Power Spectral Density PASS 15.205 Restricted Bands PASS 15.203 Antenna Requirement PASS NOTE: (1) N/A: denotes test is not applicable in this Test Report (2) No AC connection. RV-0000000 Report No.: NEI-FCCP-1-1406049 Page 8 of 148 Neutron Engineerin…

Text truncated - open the document above for the full version.

RV-0000000 Report No.: NEI-FCCP-1-1406049 Page 147 of 147 Neutron Engineering Inc. 10 EUT TEST PHOTO Radiated spurious emission test photos
