O9C-SL3040802.11a/b/g PCMCIA CardBus PC Card

Wireless LAN PC Card 3CRPAG175 User Guide http://www.3com.com/ Published June 2003 User guide version 1.0.0 3Com Corporation ■ 5500 Great American Parkway ■ Santa Clara, California ■ 95052-8145 Copyright © 2003 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation. 3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the partof 3Com Corporation to provide notification of such revision or change. 3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. 3Com is a registered trademark and the 3Com logo is a trademark of 3Com Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other company and product names may be trademarks of the respective companies with which they are associated. Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries. If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document or in the hard copy documentation. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you. UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as "Commercial Computer Software" as defined in DFARS 252.227-7014 (June 1995) or as a "commercial item" as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com's standard commercial license for the software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this user guide. Contents 1Installing Your Wireless LAN PC Card and Wireless LAN Manager 1 Installation CD1 Windows XP, 2000, Me, and 98 SE1 Inserting Your Wireless LAN PC Card2 Antennas2 Using Wireless LAN Manager2 Getting Connected with 3Com Wireless LAN Manager3 Creating New Connections4 2Troubleshooting7 Confirming Device Installation7 Diagnosing Problems7 Wireless LAN Adapter LED Indicators8 Removing Your Wireless LAN PC Card8 Updating the Wireless LAN PC Card Driver8 Windows XP and 20009 Windows Me and 98 SE 9 ATechnical Support11 Online Technical Services 11 World Wide Web Site11 3Com Knowledgebase Web Services11 3Com FTP Site11 Support from Your Network Supplier12 Support from 3Com12 Returning Products for Repair12 Regulatory Compliance Information13 FCC Part 15 Notice (Applicable to use within the USA)13 Unintentional Radiator13 Manufacturer’s Declaration of Conformity 14 Industry Canada Notice (Applicable for use within Canada)14 Avis de conformité à la réglementation d’Industrie Canada14 Industry Canada (IC) Emissions Compliance Statement14 Avis de conformité a la réglementation d'Industrie Canada14 Safety Notice14 European Community CE Notice15 Contents 1 1 Installing Your Wireless LAN PC Card and Wireless LAN Manager Installation CD The Installation CD contains: ■"Setup programs and drivers for Windows XP, 2000, Millennium Edition (Windows Me), 98 Second Edition (SE) and Embedded XP ■3Com Wireless LAN Manager ■"README.TXT file with updated information about your Wireless LAN PC Card ■This Wireless LAN PC Card User Guide ■Adobe Acrobat Reader Windows XP, 2000, Me, and 98 SE If you are accessing this guide as part of your LAN PC Card installation, skip to step 3 below. 1With the computer on and Windows running, insert the Installation CD into the CD- ROM drive. The auto-start feature starts the installation. If nothing happens within five seconds, click Start > Run and type d:\setup.exe (where d: is your CD-ROM drive). 2From the 3Com Wireless Installer main menu, select Install Wireless Product. 3Wait for the installation program will prompt you to insert the PC Card into the slot (see the illustrations in the next section, "Inserting Your Wireless LAN PC Card"). 4Your machine will run through the hardware installation and automatically launch the Wireless LAN Manager software installation. Respond to the prompts as they appear. 5During the installation process, you may receive prompts for the Windows installation CD. Insert the CD for your Windows operating system and indicate the correct path. Your computer goes through a brief installation process during which it displays several windows indicating what is currently installing. 6Restart the computer whenever you are prompted. 7When your computer restarts you will be prompted to select country you will using the 3CRPAG175 Wireless LAN PC Card. It is very important that you select the correct country so product is properly configured for that country. 8Your installation is now complete. 1Installing Your Wireless LAN PC Card and Wireless LAN Manager 2 Inserting Your Wireless LAN PC Card Antennas The antenna on the 3CRPAG175 Wireless LAN PC Card is an XJACK antenna. Extend or retract the antenna like a ball-point pen-press it to extend and use it, press it again to retract or disable it. Using Wireless LAN M…

Text truncated - open the document above for the full version.

Wireless LAN PC Card 3CRPAG175 Quick Start Guide http://www.3com.com/ Published June 2003 Quick start guide version 1.0.0 3Com Corporation ■ 5500 Great America Parkway ■ Santa Clara, California ■ 95052-8145 Copyright © 2003 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation. 3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the partof 3Com Corporation to provide notification of such revision or change. 3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. 3Com is a registered trademark and the 3Com logo is a trademark of 3Com Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other company and product names may be trademarks of the respective companies with which they are associated. Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries. If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document or in the hard copy documentation. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you. UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as "Commercial Computer Software" as defined in DFARS 252.227-7014 (June 1995) or as a "commercial item" as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com's standard commercial license for the software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this user guide. Contents 1Installing Your Wireless LAN PC Card and Wireless LAN Manager 1 Installation CD1 Windows XP, 2000, Me, and 98 SE Installation1 Inserting Your Wireless LAN PC Card2 Antennas 2 Using Wireless LAN Manager3 Getting Connected with 3Com Wireless LAN Manager3 Creating New Connections 4 2Troubleshooting7 Confirming Device Installation7 Diagnosing Problems7 Wireless LAN Adapter LED Indicators 8 Removing Your Wireless LAN PC Card8 Updating the Wireless LAN PC Card Driver 8 Windows XP and 20008 Windows Me and 98 SE9 ATechnical Support11 Online Technical Services 11 World Wide Web Site11 3Com Knowledgebase Web Services11 3Com FTP Site11 Support from Your Network Supplier12 Support from 3Com12 Returning Products for Repair12 Regulatory Compliance Information13 FCC Part 15 Notice (Applicable to use within the USA)13 Unintentional Radiator 13 Manufacturer’s Declaration of Conformity14 Industry Canada Notice (Applicable for use within Canada)14 Avis de conformité à la réglementation d’Industrie Canada14 Industry Canada (IC) Emissions Compliance Statement 14 Avis de conformité à la réglementation d’Industrie Canada14 Safety Notice14 European Community CE Notice15 Contents 1 1 Installing Your Wireless LAN PC Card and Wireless LAN Manager Installation CD The Installation CD contains: ■Setup programs and drivers for Windows XP, 2000, Millennium Edition (Windows Me), 98 Second Edition (SE) ■3Com Wireless LAN Manager ■README.TXT file with updated information about your Wireless LAN PC Card ■This Wireless LAN PC Card User Guide ■Adobe Acrobat Reader Windows XP, 2000, Me, and 98 SE Installation If you are accessing this guide as part of your LAN PC Card installation, skip to step 2 below. 1With the computer on and Windows running, insert the Installation CD into the CD-ROM drive. The auto-start feature starts the installation. If nothing happens within five seconds, click Start > Run and type d:\setup.exe (where d: is your CD-ROM drive). 2From the 3Com Wireless Installer main menu, select Install Wireless Product. 3Wait for the installation program will prompt you to insert the PC Card into the slot (see the illustrations in the next section, "Inserting Your Wireless LAN PC Card"). 4Your machine will run through the hardware installation and automatically launch the Wireless LAN Manager software installation. Respond to the prompts as they appear. 5During the installation process, you may receive prompts for the Windows installation CD. Insert the CD for your Windows operating system and indicate the correct path. Your computer goes through a brief installation process during which it displays several windows indicating what is currently installing. 6Restart the computer whenever you are prompted to do so. 7When Wireless LAN Manager starts, you will be prompted to select the country where you will be using the 3CRPAG175 Wireless LAN PC Card. It is very important that you select the correct country so the product is properly configured for that country. 8Your installation is now complete. NOTE: To simplify installation, please insert CD and run setup before inserting PC Card. 1Installing Your Wireless LAN PC Card and Wireless LAN Manager 2 Inserting Your Wireless LAN PC Card Antennas The antenna on the 3CRPAG175 Wireless LAN PC Card is an XJACK antenna.…

Text truncated - open the document above for the full version.

3Com Corporation June 24, 2003 3930 W. Parkway Blvd. West Valley City, UT 84120 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality In reference to the application under FCC ID: O9C-SL3040, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block diagram Theory of operations The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Greg Hansen Regulatory Engineer

Dear Diane, The users manual has been revised and following language has been added to the manual. Please review it at your earliest convenience. Thanks. Re: FCC ID O9C-SL3040 Applicant: 3Com Corporation Correspondence Reference Number: 25672 731 Confirmation Number: EA362193 Please provide an updated user manual with the host clearly defined that RF exposure evaluation applies too. In this case "substantially similar" laptop use only was evaluation. Product is not authorized for use in PDAs or other portable host devices. <Response> Following warning language has been added to p13 of users manual “This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. The FCC requires this product to be used only indoors to reduce the potential for harmful interference to co-channel Mobile Satellite systems. This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in "substantially similar" laptop computers with side mounted PCMCIA slots. This device cannot be used with handheld PDAs (personal digital assistants) or other portable host devices. This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter.” Best regards, Steve Cheng EMC Engineering Manager Compliance Certification Services 561F Monterey road, Morgan Hill, CA 95037-9001 Tel: (408) 463-0885, Fax: (408) 463-0888 [email protected]

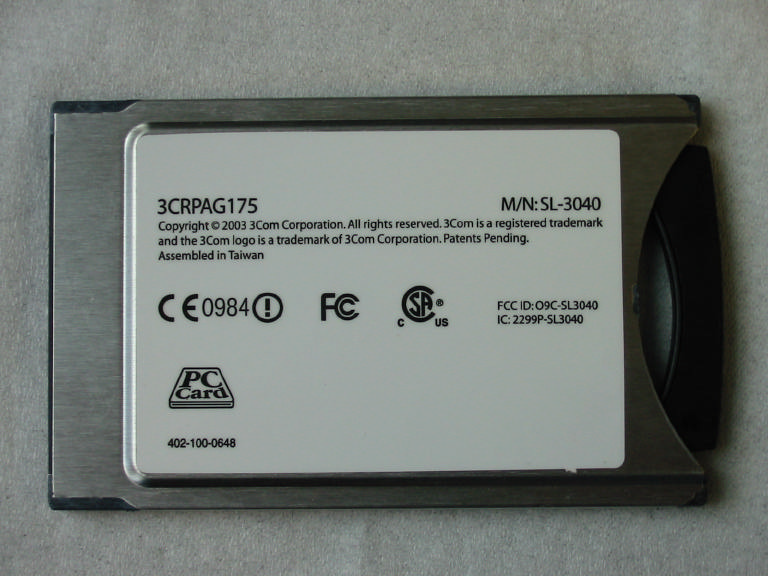

IC: 2299P-SL3040 100XXXXX M/N: SL-3040 3CRPAG175 Copyright © 2003 3Com Corporation. All rights reserved. 3Com is a registered trademark and the 3Com logo is a trademark of 3Com Corporation. Patents Pending. Assembled in the U.S.A. 3Com M/N: SL-3040 EXHIBIT 1 LABEL/PLACEMENT FCC ID: O9C-SL3040 1A31FCD Label location: On the back of the EUT

3Com Confidential SL-3040 Antenna Performance Data Page 1 of 9 3Com Corporation SL-3040 Antenna Performance Data 2.4 GHz Performance Cross section radiation diagram. SL-3040 (yellow) Remark: subtract 50 dB for depicted values. 2.4 GHz performance inside Sony VAIO laptop 3Com Confidential SL-3040 Antenna Performance Data Page 2 of 9 3D plots back view under 45 degrees angle 3Com Confidential SL-3040 Antenna Performance Data Page 3 of 9 side view 3Com Confidential SL-3040 Antenna Performance Data Page 4 of 9 top view Integrated value: -7.9 3Com Confidential SL-3040 Antenna Performance Data Page 5 of 9 5GHz Performance Cross section radiation diagram. SL-3040 (Green) Remark: subtract 50 dB for depicted values. 5 GHz performance inside Sony VAIO laptop 3Com Confidential SL-3040 Antenna Performance Data Page 6 of 9 3D Plots back view under 45 degrees angle 3Com Confidential SL-3040 Antenna Performance Data Page 7 of 9 side view 3Com Confidential SL-3040 Antenna Performance Data Page 8 of 9 front view 3Com Confidential SL-3040 Antenna Performance Data Page 9 of 9 back view Integrated value: -2.5

SAR COMPLIANCE TESTING OF 3COM 802.11 a/b/g CARDBUS CARD MODEL SL-3040 (FCC ID# O9C-SL3040) WITH THREE HOST COMPUTERS Host Computers: 1. Toshiba Tecra 750 DVD s/n: 38638812-3 2. Hewlett Packard (HP) Pavillion s/n: TW00311692 3. Dell Inspiron 4000 s/n: C7TKD01 July 9, 2003 Prepared for: 3Com Corporation 3930 West Parkway Blvd. West Valley City, UT 84120-6300 Attention: Mr. Greg Hansen, Regulatory Engineer Prepared by: Om P. Gandhi Professor of Electrical and Computer Engineering University of Utah 50 S Central Campus Dr., Rm. 3280 Salt Lake City, UT 84112-9206 TABLE OF CONTENTS ii I. Introduction ..................................................................................................................... 1 II. The SAR Measurement System ...................................................................................... 2 The Flat Phantom ............................................................................................................ 2 III. Calibration of the E-Field Probe ..................................................................................... 3 Calibration in the 5.2-5.8 GHz Range ............................................................................ 3 Calibration for the 802.11 b/g Midband 2.45 GHz ......................................................... 4 IV. SAR System Verification ................................................................................................ 5 System Validation for the 802.11 b/g Midband 2.45 GHz ............................................. 5 System Validation for the 802.11a Band 5.2 to 5.8 GHz ............................................... 6 V. Tissue Simulant Fluid for the Frequency Band 5.2 to 5.8 GHz ...................................... 7 The Tissue-Simulant Fluid for the 802.11a Band 5.2 to 5.8 GHz .................................. 7 VI. The Measured SAR Distributions ................................................................................... 9 VII. Comparison of the Data with FCC 96-326 Guidelines ................................................... 11 REFERENCES ........................................................................................................................ 12 TABLES .................................................................................................................................. 14 FIGURES ................................................................................................................................. 21 APPENDIX A .......................................................................................................................... 40 APPENDIX B .......................................................................................................................... 42 APPENDIX C .......................................................................................................................... 46 APPENDIX D .......................................................................................................................... 62 APPENDIX E .......................................................................................................................... 64 APPENDIX F ........................................................................................................................... 196 1 SAR COMPLIANCE TESTING OF 3COM 802.11 a/b/g CARDBUS CARD MODEL SL-3040 (FCC ID# O9C-SL3040) WITH THREE HOST COMPUTERS Host Computers: 1. Toshiba Tecra 750 DVD s/n: 38638812-3 2. Hewlett Packard (HP) Pavillion s/n: TW00311692 3. Dell Inspiron 4000 s/n: C7TKD01 I. Introduction We have used the measurement procedures outlined in FCC Supplement C (Edition 97- 01) to OET Bulletin 65 [1] and an updated version of the same [2] for evaluating compliance of the 3Com 802.11 a/b/g Cardbus Card Model SL-3040 with three host computers. Photographs of the 3Com Cardbus Card inserted in the three host computers are given in Figs. 1a, b, c, respectively. The salient features of the 802.11 a/b/g antennas are as follows: 802.11a 5.15 to 5.35, 5.725 to 5.805 GHz (base and turbo modes) 802.11b 2.412 to 2.462 GHz (base mode) 802.11g 2.412 to 2.462 GHz (base and turbo modes) For SAR measurements, two configurations of each of the wireless PCs relative to the planar phantom have been used. These are as follows: a. Configuration 1 is for the wireless PC placed on a user's lap. For this configuration, a planar phantom model with inside dimensions 12" x 16.5" (30.5 x 41.9 cm) and a base thickness of 2.0 ± 0.2 mm (recommended in [2]) was used for SAR measurements and the bottom side of each of the laptop computer was pressed against it (see Fig. 2). b. Configuration 2 -- Edge-on position. This configuration corresponds to a bystander close to the outer edge of the Cardbus Card. For this configuration, the PC is placed at 90° with the edge of the 3Com Model SL-3040 Cardbus Card pressed against the bottom of the planar phantom. A photograph for this edge-on position for SAR testing is given in Fig. 3. Similarly, pressed additional host PCs i.e. HP Pavillion and Dell Inspiron 4000 are also used for SAR measurements. 2 II. The SAR Measurement System The University of Utah SAR Measurement System has been described in peer-reviewed literature [3]. A photograph of the SAR Measurement System is given in Fig. 4. This SAR Measurement System uses a computer-controlled 3-D stepper motor system (Arrick Robotics MD-2A). A triaxial Narda Model 8021 E-field probe is used to determine the internal electric fields. The positioning repeatability of the stepper motor system moving the E-field probe is within ±0.1 mm. Outputs from the three channels of the E-field probe are dc voltages, the sum of which is proportional to the square of the internal electric fields ( ) 2 i E from which the SAR can be obtained from the equation SAR = ( ) 2 i Eσρ, where σ and ρ are the conductivity and mass density of the tissue-simulant materials, respectively [4]. The dc voltages for the…

Text truncated - open the document above for the full version.

40 APPENDIX A SAR System Validation for the 802.11 b/g Bands The measured SAR distribution for the peak 1-g SAR region using a reference dipole at 2450 MHz. For July 1, 2003 Fig. A.1. Coarse scans of the measured SAR distribution for the reference dipole used for system validation at 2.45 GHz. Also shown is the outline of the reference dipole overlaid on the SAR contours. Radiated power = 1 W. 41 1-g SAR = 52.150 W/kg a. At depth of 1 mm 72.414 81.546 85.194 82.881 75.448 74.762 83.950 87.658 85.543 77.915 76.010 85.205 88.968 86.788 79.073 76.064 85.476 88.690 86.349 78.557 74.869 83.481 86.911 84.453 76.160 b. At depth of 3 mm 57.420 64.040 66.586 64.851 59.361 59.251 65.979 68.596 67.045 61.302 60.270 66.938 69.600 67.921 62.183 60.241 67.139 69.492 67.725 61.929 59.294 65.684 68.113 66.335 60.080 c. At depth of 5 mm 44.655 49.212 50.858 49.601 45.720 46.050 50.747 52.478 51.386 47.224 46.876 51.474 53.236 51.980 47.872 46.792 51.615 53.252 51.961 47.822 46.055 50.589 52.209 50.980 46.428 d. At depth of 7 mm 34.119 37.061 38.009 37.134 34.526 35.156 38.254 39.304 38.566 35.682 35.827 38.811 39.875 38.964 36.141 35.718 38.902 39.970 39.056 36.235 35.151 38.197 39.199 38.387 35.203 e. At depth of 9 mm 25.813 27.587 28.040 27.448 25.778 26.572 28.501 29.075 28.585 26.674 27.124 28.951 29.519 28.872 26.988 27.017 29.001 29.645 29.011 27.168 26.582 28.508 29.082 28.557 26.407 42 APPENDIX B SAR System Validation for the 802.11a Band The measured SAR distribution for the peak 1-g SAR region using WR 187 rectangular waveguide irradiation system. For July 1, 2003 – The SAR plot at 5.25 GHz Fig. B.1. Coarse scans of the measured SAR distribution for the WR187 rectangular waveguide irradiation system for system verification at 5.25 GHz. Also shown is the outline of the rectangular waveguide overlaid on the SAR contours. Radiated power = 100 mW. 43 1-g SAR = 3.612 W/kg a. At depth of 1 mm 8.978 9.511 9.821 9.760 9.378 9.630 9.920 10.313 10.263 9.827 9.940 10.492 10.467 10.510 10.138 9.776 10.178 10.439 10.536 10.118 9.637 9.883 10.119 10.116 9.808 b. At depth of 3 mm 4.110 4.327 4.445 4.448 4.328 4.386 4.560 4.700 4.684 4.541 4.525 4.761 4.792 4.806 4.675 4.484 4.658 4.786 4.807 4.646 4.393 4.541 4.640 4.642 4.507 c. At depth of 5 mm 1.793 1.870 1.907 1.935 1.895 1.894 1.985 2.037 2.028 1.995 1.947 2.048 2.080 2.088 2.044 1.945 2.019 2.083 2.076 2.023 1.898 1.973 2.026 2.032 1.971 d. At depth of 7 mm 0.870 0.900 0.909 0.939 0.907 0.905 0.947 0.976 0.970 0.958 0.922 0.979 0.994 0.999 0.977 0.924 0.962 0.995 0.984 0.965 0.910 0.940 0.979 0.985 0.955 e. At depth of 9 mm 0.537 0.556 0.553 0.577 0.544 0.550 0.574 0.586 0.591 0.572 0.558 0.601 0.601 0.599 0.585 0.558 0.583 0.597 0.590 0.580 0.561 0.574 0.599 0.600 0.589 44 For July 1, 2003 – The SAR plot at 5.8 GHz Fig. B.2. Coarse scans of the measured SAR distribution for the WR187 rectangular waveguide irradiation system for system verification at 5.8 GHz. Also shown is the outline of the rectangular waveguide overlaid on the SAR contours. Radiated power = 100 mW. 45 1-g SAR = 3.825 W/kg a. At depth of 1 mm 10.317 10.828 10.724 10.702 10.216 11.002 11.307 11.416 11.320 10.588 11.240 11.569 11.570 11.497 10.742 11.313 11.592 11.419 11.332 10.948 10.915 11.068 11.285 10.970 10.621 b. At depth of 3 mm 4.520 4.681 4.671 4.647 4.493 4.765 4.915 4.969 4.875 4.635 4.859 5.015 5.045 4.966 4.740 4.882 5.006 5.006 4.918 4.750 4.714 4.808 4.869 4.763 4.597 c. At depth of 5 mm 1.831 1.852 1.870 1.855 1.817 1.890 1.951 1.984 1.918 1.871 1.918 1.980 2.003 1.963 1.916 1.926 1.976 2.005 1.946 1.887 1.860 1.916 1.924 1.897 1.829 d. At depth of 7 mm 0.827 0.815 0.831 0.821 0.804 0.829 0.851 0.869 0.835 0.833 0.835 0.854 0.860 0.855 0.838 0.845 0.858 0.868 0.841 0.826 0.810 0.842 0.842 0.837 0.812 e. At depth of 9 mm 0.519 0.510 0.519 0.508 0.488 0.509 0.524 0.522 0.511 0.508 0.513 0.519 0.514 0.514 0.503 0.530 0.514 0.516 0.506 0.507 0.498 0.514 0.515 0.518 0.507 46 APPENDIX C AN OPEN-ENDED WAVEGUIDE SYSTEM FOR SAR SYSTEM VALIDATION AND/OR PROBE CALIBRATION FOR FREQUENCIES ABOVE 3 GHz Qingxiang Li, Student Member, IEEE Om P. Gandhi, Life Fellow, IEEE, and Gang Kang, Senior Member, IEEE Department of Electrical and Computer Engineering University of Utah Salt Lake City, Utah 84112, U.S.A. Abstract Compliance with safety guidelines prescribed in terms of maximum electromagnetic power absorption (specific absorption rate or SAR) for any 1- or 10-g of tissue is required for all newly-introduced personal wireless devices such as Wi-Fi PCs. The prescribed SAR measuring system is a planar phantom with a relatively thin base of thickness 2.0 mm filled with a lossy fluid to simulate dielectric properties of the tissues. A well-characterized, broadband irradiator is required for SAR system validation and/or submerged E-field probe calibration for the new 802.11a frequencies in the 5-6 GHz band. We describe an open-ended waveguide system that may be used for this purpose. Using a fourth-order polynomial least-square fit to the experimental data gives SAR variations close to the bottom surface of the phantom that are in excellent agreement with those obtained using the FDTD numerical method. The experimentally-determined peak 1-g SARs are within 1 to 2 percent of those obtained using the FDTD both at 5.25 and 5.8 GHz. Index Terms – Broadband, electromagnetic exposure system, probe calibration, safety assessment, comparison with numerical calculations Submitted to IEEE Transactions on Microwave Theory and Techniques, June 10, 2003. 47 AN OPEN-ENDED WAVEGUIDE SYSTEM FOR SAR SYSTEM VALIDATION AND/OR PROBE CALIBRATION FOR FREQUENCIES ABOVE 3 GHz Qingxiang Li, Student Member, IEEE Om P. Gandhi, Life Fellow, IEEE, and Gang Kang, Senior Member, IEEE I. Introduction Compliance with the safety guidelines such as those proposed by IEEE [1] ICNIRP [2], etc. is required by regulatory agencies in the United States and elsewhere for all newly- introduced personal wireless devices such as Wi-F…

Text truncated - open the document above for the full version.

64 APPENDIX E Coarse Scans for the Highest SAR Regions for the 3Com Cardbus Card Model SL-3040 Inserted in Three Host Computers Given here are the coarse scans of the measurements for the highest SAR regions for the 3Com Cardbus Card Model SL-3040 inserted in three host computers; namely, Toshiba Tecra 750 DVD, HP Pavillion, and Dell Inspiron 4000, respectively. Fig. E-1. Coarse scan for the highest SAR region for the 3Com Model SL-3040 Cardbus Card inserted in Toshiba Tecra 750 DVD host computer. 802.11a band, frequency = 5.24 GHz, base mode. 65 Table E-1. Above-lap position (Configuration 1). Base mode at 5.24 GHz. The SARs measured for the 3Com Model SL-3040 Cardbus Card inserted into Toshiba Tecra 750 DVD host computer. 1-g SAR = 0.150 W/kg a. At depth of 1 mm 0.287 0.264 0.431 0.208 0.477 0.206 0.196 0.072 0.333 0.425 0.129 0.155 0.505 0.592 0.179 0.196 0.168 0.114 0.218 0.289 0.073 0.074 0.208 0.365 0.432 b. At depth of 3 mm 0.167 0.144 0.237 0.188 0.237 0.148 0.131 0.119 0.180 0.211 0.103 0.170 0.226 0.249 0.152 0.136 0.128 0.217 0.162 0.179 0.108 0.102 0.135 0.188 0.180 c. At depth of 5 mm 0.108 0.100 0.178 0.173 0.143 0.115 0.102 0.110 0.113 0.115 0.090 0.143 0.111 0.142 0.133 0.110 0.114 0.211 0.125 0.135 0.099 0.094 0.102 0.110 0.089 d. At depth of 7 mm 0.084 0.089 0.171 0.155 0.119 0.097 0.092 0.085 0.092 0.081 0.084 0.107 0.078 0.129 0.120 0.101 0.115 0.172 0.100 0.115 0.077 0.074 0.088 0.082 0.071 e. At depth of 9 mm 0.076 0.085 0.167 0.131 0.112 0.089 0.087 0.066 0.087 0.073 0.081 0.083 0.072 0.124 0.112 0.096 0.122 0.146 0.079 0.097 0.061 0.058 0.079 0.072 0.071 66 Fig. E-2. Coarse scan for the highest SAR region for the 3Com Model SL-3040 Cardbus Card inserted in Toshiba Tecra 750 DVD host computer. 802.11a band, frequency = 5.32 GHz, base mode. 67 Table E-2. Above-lap position (Configuration 1). Base mode at 5.32 GHz. The SARs measured for the 3Com Model SL-3040 Cardbus Card inserted into Toshiba Tecra 750 DVD host computer. 1-g SAR = 0.157 W/kg a. At depth of 1 mm 0.026 0.055 0.422 0.404 0.261 0.318 0.322 0.422 0.338 …
