H3C WA3600 Series Indoor Access Points Installation Guide Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Document version: APW100-20110926 Copyright © 2011, Hangzhou H3C Technologies Co., Ltd. and its licensors All rights reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou H3C Technologies Co., Ltd. Trademarks H3C, , Aolynk, , H 3 Care, , TOP G, , IRF, NetPilot, Neocean, NeoVTL, SecPro, SecPoint, SecEngine, SecPath, Comware, Secware, Storware, NQA, VVG, V 2 G, V n G, PSPT, XGbus, N-Bus, TiGem, InnoVision and HUASAN are trademarks of Hangzhou H3C Technologies Co., Ltd. All other trademarks that may be mentioned in this manual are the property of their respective owners Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. Environmental protection This product has been designed to comply with the environmental protection requirements. The storage, use, and disposal of this product must meet the applicable national laws and regulations. Preface The H3C WA3600 Series Indoor Access Points Installation Guide describes the hardware specifications, preparations before installation, installation procedure, cabling and grounding, and login procedure for the new generation WA3600 802.11n indoor APs. This preface includes: • Audience • Conventions • Obtaining documentation • Technical support • Documentation feedback Audience This documentation is intended for: • Network planners • Field technical support and servicing engineers • Network administrators working with the WA3600 Series Indoor Access Points Conventions This section describes the conventions used in this documentation set. GUI conventions Convention Description Boldface Window names, button names, field names, and menu items are in Boldface. For example, the New User window appears; click OK. > Multi-level menus are separated by angle brackets. For example, File > Create > Folder. Symbols Convention Description WARNING An alert that calls attention to important information that if not understood or followed can result in personal injury. CAUTION An alert that calls attention to important information that if not understood or followed can result in data loss, data corruption, or damage to hardware or software. IMPORTANT An alert that calls attention to essential information. NOTE An alert that contains additional or supplementary information. Obtaining documentation You can access the most up-to-date H3C product documentation on the World Wide Web at http://www.h3c.com . Click the links on the top navigation bar to obtain different categories of product documentation: [Technical Support & Documents > Technical Documents] – Provides hardware installation, software upgrading, and software feature configuration and maintenance documentation. [Products & Solutions] – Provides information about products and technologies, as well as solutions. [Technical Support & Documents > Software Download] – Provides the documentation released with the software version. Technical support [email protected] http://www.h3c.com Documentation feedback You can e-mail your comments about product documentation to [email protected]. We appreciate your comments. i Contents Product overview ·························································································································································· 1 Preparing for installation ············································································································································· 3 Safety recommendations ·················································································································································· 3 Examining the installation site ········································································································································· 3 Temperature and humidity requirements ················································································································ 3 Accessories provided with the AP ··································································································································· 3 User-supplied installation tools and equipment ·············································································································· 4 Installing the AP ···························································································································································· 5 Check before installation ·················································································································································· 5 Determining the installation position ······························································································································· 6 Installing the AP ································································································································································· 6 Mounting the AP on a wall (I) ································································································································· 6 Mounting the AP on a wall or ceiling (II) ··············································································································· 9 Mounting the AP to a T-rail··································································································································· 10 Securing the AP ···································································································································…

Text truncated - open the document above for the full version.

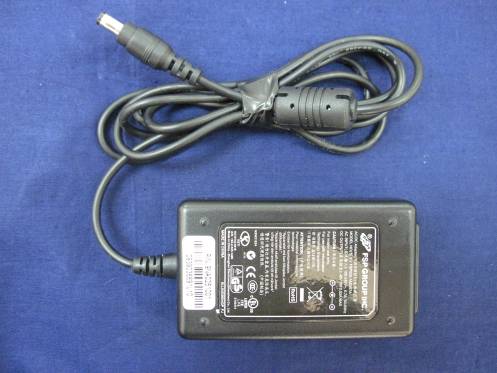

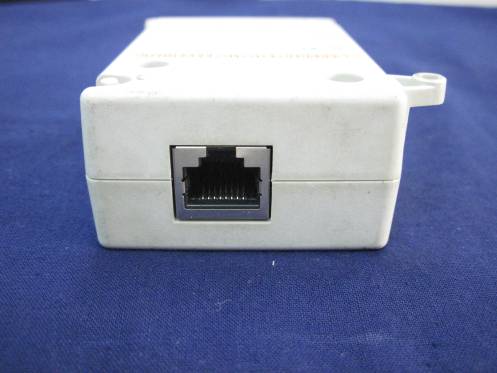

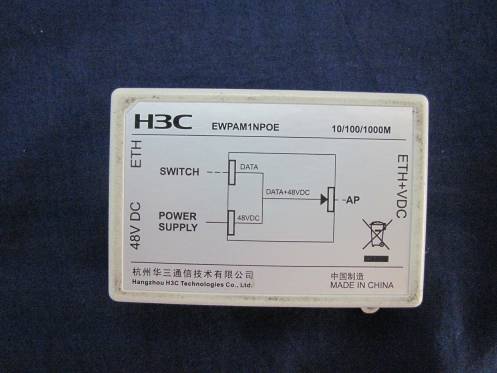

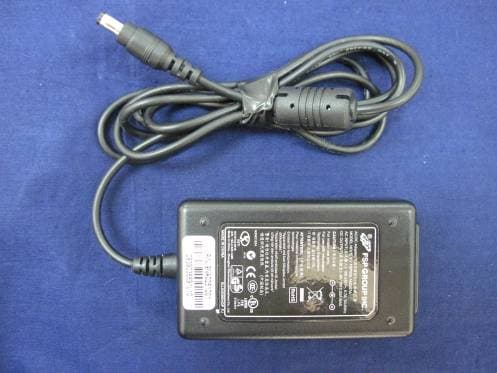

1. EUT Photograph (1) EUT Photo (2) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 2 of 6 (3) EUT Photo (4) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 3 of 6 (5) EUT Photo (6) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 4 of 6 (7) EUT Photo (8) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 5 of 6 (9) EUT Photo (10) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 6 of 6 (11) EUT Photo (12) EUT Photo

(1) EUT Photo (2) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 2 of 6 (3) EUT Photo (4) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 3 of 6 (5) EUT Photo (6) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 4 of 6 (7) EUT Photo (8) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 5 of 6 (9) EUT Photo (10) EUT Photo Report No：11BS005R-RF-US-P05V01 Page: 6 of 6 (11) EUT Photo

RF Exposure Evaluation Declaration Product Name : Wireless LAN access Point Model No. : H3C WA3610i-GN FCC ID : O9C-WA3610i IC : 2299L-WA3610i Applicant : Hewlett Packard Corporation Address : 153 Taylor street, Litterton Massachusetts United States Date of Receipt : 01/11/2011 Issued Date : 20/12/2011 Report No. : 11BS005R-RF-US Report Version : V1.2 This report was based on Quietek report No: 11BS004R The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 11BS005R-RF-US Page: 2 of 5 Test Report Certification Issued Date : 20/12/2011 Report No. : 11BS005R-RF-US Product Name : Wireless LAN access Point Applicant : Hewlett Packard Corporation Address : 153 Taylor street, Litterton Massachusetts United States Manufacturer : Hewlett Packard Corporation Address : 153 Taylor street, Litterton Massachusetts United States Model No. : H3C WA3610i-GN FCC ID : O9C-WA3610i IC : 2299L-WA3610i EUT Voltage : 48Vdc, 0.27A (or POE input) Brand Name : H3C Applicable Standard : FCC OET 65 RSS-102: Issue 4, March, 2010 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Engineering Manager: Marlin Chen) Report No： 11BS005R-RF-US Page: 3 of 5 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 11BS005R-RF-US Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No： 11BS005R-RF-US Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : Wireless LAN access Point Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 6dBi o for 2.4GHz. Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11b/g/n 2412~2462 313.3286 0.248159 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

Report No：11BS005R-RF-US-P05V01 Page: 261 of 458 Profile: 11BS004R Page No.: 190 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:33 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2462MHz by 802.11n20 Chain 1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2467.86484.76553.561N/AN/A 31.204AV 2 2483.50048.15216.943-5.84854.000 31.209AV Report No：11BS005R-RF-US-P05V01 Page: 262 of 458 Profile: 11BS004R Page No.: 191 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:34 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11n20 Chain 2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00066.16834.983-7.83274.000 31.185PK 2 * 2404.752108.37777.196N/AN/A 31.181PK Report No：11BS005R-RF-US-P05V01 Page: 263 of 458 Profile: 11BS004R Page No.: 192 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:35 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11n20 Chain 2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00050.48319.298-3.51754.000 31.185AV 2 * 2404.02494.18263.001N/AN/A 31.181AV Report No：11BS005R-RF-US-P05V01 Page: 264 of 458 Profile: 11BS004R Page No.: 193 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:36 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11n20 Chain 2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00061.34230.157-12.65874.000 31.185PK 2 * 2404.47298.13166.950N/AN/A 31.181PK Report No：11BS005R-RF-US-P05V01 Page: 265 of 458 Profile: 11BS004R Page No.: 194 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:38 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11n20 Chain 2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00048.20617.021-5.79454.000 31.185AV 2 * 2404.19285.74854.567N/AN/A 31.181AV Report No：11BS005R-RF-US-P05V01 Page: 266 of 458 Profile: 11BS004R Page No.: 195 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:39 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2462MHz by 802.11n20 Chain 2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2469.064111.00279.798N/AN/A 31.204PK 2 2483.50067.78236.573-6.21874.000 31.209PK 3 2486.58471.18639.975-2.81474.000 31.211PK Report No：11BS005R-RF-US-P05V01 Page: 267 of 458 Profile: 11BS004R Page No.: 196 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:41 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2462MHz by 802.11n20 Chain 2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2469.13696.51465.310N/AN/A 31.204AV 2 2483.50050.01318.804-3.98754.000 31.209AV Report No：11BS005R-RF-US-P05V01 Page: 268 of 458 Profile: 11BS004R Page No.: 197 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:41 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2462MHz by 802.11n20 Chain 2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2469.304100.82169.617N/AN/A 31.205PK 2 2483.50061.75030.541-12.25074.000 31.209PK Report No：11BS005R-RF-US-P05V01 Page: 269 of 458 Profile: 11BS004R Page No.: 198 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:43 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2462MHz by 802.11n20 Chain 2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2469.52088.24057.036N/AN/A 31.205AV 2 2483.50048.42217.213-5.57854.000 31.209AV Report No：11BS005R-RF-US-P05V01 Page: 270 of 458 Profile: 11BS004R Page No.: 199 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:44 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11n20 Chain 0+1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2319.80064.16332.915-9.83774.000 31.248PK 2 2390.00066.74535.560-7.25574.000 31.185PK 3 * 2418.136110.56079.377N/AN/A 31.183PK Report No：11BS005R-RF-US-P05V01 Page: 271 of 458 Profile: 11BS004R Page No.: 200 Engineer: Jame Site: AC5 Time: 2011/12/06 - 14:46 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 2412MHz by 802.11n20 Chain 0+1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2320.19249.39318.145-4.60754.000 31.248AV 2 2390.00051.34820.163-2.65254.000 31.185AV 3 * 2419.70497.20866.025N/AN/A 31.18…

Text truncated - open the document above for the full version.

Report No：11BS005R-RF-US-P05V01 Page: 184 of 458 Profile: 11BS004R Page No.: 115 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:13 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2422MHz by 802.11n40 Chain 0+1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00064.21833.033-9.78274.000 31.185PK 2 * 2428.66894.39963.21320.39974.000 31.186PK Report No：11BS005R-RF-US-P05V01 Page: 185 of 458 Profile: 11BS004R Page No.: 116 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:14 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4:Transmit at channel 2422MHz by 802.11n40 Chain 0+1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00048.46217.277-5.53854.000 31.185AV 2 * 2417.71279.38548.20325.38554.000 31.182AV Report No：11BS005R-RF-US-P05V01 Page: 186 of 458 Profile: 11BS004R Page No.: 385 Engineer: Jame Site: AC5 Time: 2011/12/16 - 14:24 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2452MHz by 802.11n40 Chain 0+1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2467.708107.75076.54633.75074.000 31.204PK 2 2483.50072.25841.049-1.74274.000 31.209PK 3 2483.50072.25841.049-1.74274.000 31.209PK Report No：11BS005R-RF-US-P05V01 Page: 187 of 458 Profile: 11BS004R Page No.: 118 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:17 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2452MHz by 802.11n40 Chain 0+1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2464.90091.31260.10837.31254.000 31.203AV 2 2483.50051.21020.001-2.79054.000 31.209AV Report No：11BS005R-RF-US-P05V01 Page: 188 of 458 Profile: 11BS004R Page No.: 119 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:22 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2452MHz by 802.11n40 Chain 0+1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2434.55898.75167.56524.75174.000 31.185PK 2 2483.50064.22833.019-9.77274.000 31.209PK Report No：11BS005R-RF-US-P05V01 Page: 189 of 458 Profile: 11BS004R Page No.: 120 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:24 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2452MHz by 802.11n40 Chain 0+1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2434.40282.26951.08328.26954.000 31.185AV 2 2483.50048.61517.406-5.38554.000 31.209AV Report No：11BS005R-RF-US-P05V01 Page: 190 of 458 Profile: 11BS004R Page No.: 121 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:24 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2422MHz by 802.11n40 Chain 0+1+2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00063.30632.121-10.69474.000 31.185PK 2 * 2437.77698.00066.81524.00074.000 31.185PK Report No：11BS005R-RF-US-P05V01 Page: 191 of 458 Profile: 11BS004R Page No.: 122 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:27 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2422MHz by 802.11n40 Chain 0+1+2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00048.07716.892-5.92354.000 31.185AV 2 * 2404.77681.44250.26127.44254.000 31.181AV Report No：11BS005R-RF-US-P05V01 Page: 192 of 458 Profile: 11BS004R Page No.: 123 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:29 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2422MHz by 802.11n40 Chain 0+1+2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00063.16131.976-10.83974.000 31.185PK 2 * 2437.77697.88266.69723.88274.000 31.185PK Report No：11BS005R-RF-US-P05V01 Page: 193 of 458 Profile: 11BS004R Page No.: 124 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:29 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2422MHz by 802.11n40 Chain 0+1+2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 2390.00048.16016.975-5.84054.000 31.185AV 2 * 2434.47682.91651.73028.91654.000 31.185AV Report No：11BS005R-RF-US-P05V01 Page: 194 of 458 Profile: 11BS004R Page No.: 125 Engineer: Jame Site: AC5 Time: 2011/11/16 - 20:31 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode4: Transmit at channel 2452MHz by 802.11n40 Chain 0+1+2 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2437.483108.10876.92334.10874.000 31.185PK 2 2483.50072.29341.084-1.70774.000 …

Text truncated - open the document above for the full version.

1. Test Setup Photograph Test Mode: Transmitting Description: Front View of Conducted Emission Test Setup Test Mode: Transmitting Description: Back View of Conducted Emission Test Setup Test Mode : Transmitting Description : Radiated Emission Test Setup for Below 1GHz Test Mode : Transmitting Description : Radiated Emission Test Setup for 1~18GHz Test Mode : Transmitting Description : Radiated Emission Test Setup for Above 18GHz
