H3C WA3600 Series Indoor Access Points Installation Guide Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Document version: APW100-20110926 Copyright © 2011, Hangzhou H3C Technologies Co., Ltd. and its licensors All rights reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou H3C Technologies Co., Ltd. Trademarks H3C, , Aolynk, , H 3 Care, , TOP G, , IRF, NetPilot, Neocean, NeoVTL, SecPro, SecPoint, SecEngine, SecPath, Comware, Secware, Storware, NQA, VVG, V 2 G, V n G, PSPT, XGbus, N-Bus, TiGem, InnoVision and HUASAN are trademarks of Hangzhou H3C Technologies Co., Ltd. All other trademarks that may be mentioned in this manual are the property of their respective owners Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. Environmental protection This product has been designed to comply with the environmental protection requirements. The storage, use, and disposal of this product must meet the applicable national laws and regulations. Preface The H3C WA3600 Series Indoor Access Points Installation Guide describes the hardware specifications, preparations before installation, installation procedure, cabling and grounding, and login procedure for the new generation WA3600 802.11n indoor APs. This preface includes: • Audience • Conventions • Obtaining documentation • Technical support • Documentation feedback Audience This documentation is intended for: • Network planners • Field technical support and servicing engineers • Network administrators working with the WA3600 Series Indoor Access Points Conventions This section describes the conventions used in this documentation set. GUI conventions Convention Description Boldface Window names, button names, field names, and menu items are in Boldface. For example, the New User window appears; click OK. > Multi-level menus are separated by angle brackets. For example, File > Create > Folder. Symbols Convention Description WARNING An alert that calls attention to important information that if not understood or followed can result in personal injury. CAUTION An alert that calls attention to important information that if not understood or followed can result in data loss, data corruption, or damage to hardware or software. IMPORTANT An alert that calls attention to essential information. NOTE An alert that contains additional or supplementary information. Obtaining documentation You can access the most up-to-date H3C product documentation on the World Wide Web at http://www.h3c.com . Click the links on the top navigation bar to obtain different categories of product documentation: [Technical Support & Documents > Technical Documents] – Provides hardware installation, software upgrading, and software feature configuration and maintenance documentation. [Products & Solutions] – Provides information about products and technologies, as well as solutions. [Technical Support & Documents > Software Download] – Provides the documentation released with the software version. Technical support [email protected] http://www.h3c.com Documentation feedback You can e-mail your comments about product documentation to [email protected]. We appreciate your comments. i Contents Product overview ·························································································································································· 1 Preparing for installation ············································································································································· 3 Safety recommendations ·················································································································································· 3 Examining the installation site ········································································································································· 3 Temperature and humidity requirements ················································································································ 3 Accessories provided with the AP ··································································································································· 3 User-supplied installation tools and equipment ·············································································································· 4 Installing the AP ···························································································································································· 5 Check before installation ·················································································································································· 5 Determining the installation position ······························································································································· 6 Installing the AP ································································································································································· 6 Mounting the AP on a wall (I) ································································································································· 6 Mounting the AP on a wall or ceiling (II) ··············································································································· 9 Mounting the AP to a T-rail··································································································································· 10 Securing the AP ···································································································································…

Text truncated - open the document above for the full version.

FCC ID:O9C-WA3620I

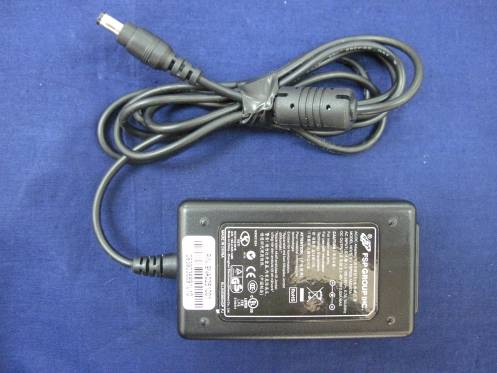

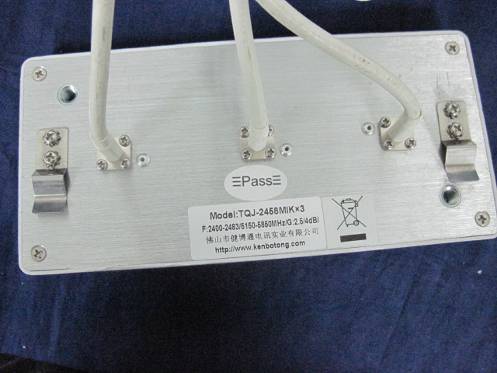

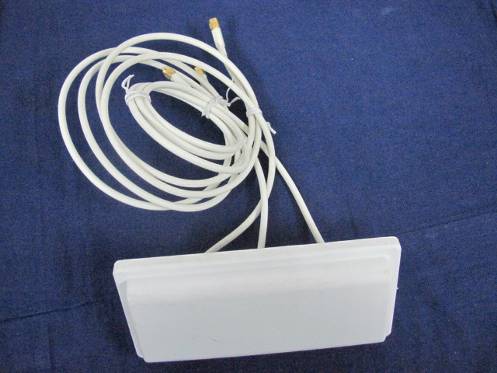

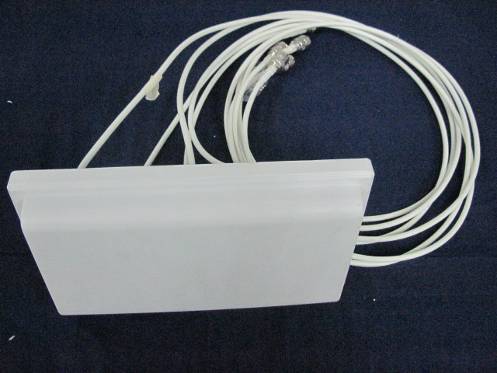

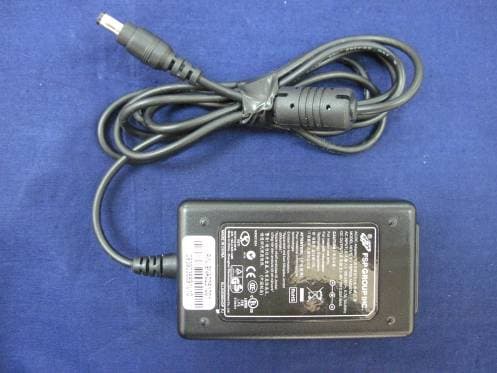

1. EUT Photograph (1) EUT Photo(WA3628i) (2) EUT Photo(WA3628i) Report No： 11BS004R-RF-US-P09V01 Page: 2 of 12 (3) EUT Photo(WA3628i) (4) EUT Photo(WA3628i) Report No： 11BS004R-RF-US-P09V01 Page: 3 of 12 (5) EUT Photo(WA3628i) (6) EUT Photo(WA3628i) Report No： 11BS004R-RF-US-P09V01 Page: 4 of 12 (7) EUT Photo(WA3628i) (8) EUT Photo(WA3620i) Report No： 11BS004R-RF-US-P09V01 Page: 5 of 12 (9) EUT Photo(WA3620i) (10) EUT Photo(WA3620i) Report No： 11BS004R-RF-US-P09V01 Page: 6 of 12 (11) EUT Photo(WA3620i) (12) EUT Photo(WA3620i) Report No： 11BS004R-RF-US-P09V01 Page: 7 of 12 (13) EUT Photo(WA3620i) (14) EUT Photo Report No： 11BS004R-RF-US-P09V01 Page: 8 of 12 (15) EUT Photo (16) EUT Photo Report No： 11BS004R-RF-US-P09V01 Page: 9 of 12 (17) EUT Photo (18) EUT Photo Report No： 11BS004R-RF-US-P09V01 Page: 10 of 12 (19) EUT Photo (20) EUT Photo Report No： 11BS004R-RF-US-P09V01 Page: 11 of 12 (21) EUT Photo (22) EUT Photo Report No： 11BS004R-RF-US-P09V01 Page: 12 of 12 (23) EUT Photo (24) EUT Photo

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo

RF Exposure Evaluation Declaration Product Name : Wireless LAN access Point Model No. : H3C WA3620i-AGN; H3C WA3628i-AGN FCC ID : O9C-WA 3620I IC : 2299L-W A3620I Applicant : Hewlett Packard Corporation Address : 350 Campus Drive, Marlborough, MA United States Date of Receipt : 01/11/2011 Issued Date : 20/12/2011 Report No. : 11BS004R-RF-US Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 11BS004R-RF-US Page: 2 of 5 Test Report Certification Issued Date : 20/12/2011 Report No. : 11BS004R-RF-US Product Name : Wireless LAN access Point Applicant : Hewlett Packard Corporation Address : 350 Campus Drive, Marlborough, MA United States Manufacturer : Hewlett Packard Corporation Address : 350 Campus Drive, Marlborough, MA United States Model No. : H3C WA3620i-AGN; H3C WA3628i-AGN FCC ID : O9C-WA3620 I IC : 2299L-WA 3620I EUT Voltage : 48Vdc, 0.27A (or POE input) Brand Name : H3C Applicable Standard : FCC OET 65 RSS-102: Issue 4, March, 2010 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Engineering Manager: Marlin Chen) Report No： 11BS004R-RF-US Page: 3 of 5 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 11BS004R-RF-US Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No： 11BS004R-RF-US Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : Wireless LAN access Point Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 6dBi o for 2.4G and 6.3dBi for 5G. Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11b/g/n 2412~2462 313.3286 0.248159 802.11a/n 5180~5320 46.45150 0.039421 802.11a/n 5500~5580 5660~5700 44.46310 0.037734 802.11a/n 5745~5825 521.1947 0.442314 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

Dynamic Frequency Selection (DFS) Test Report FCC Part15 Subpart E & Industry Canada RSS-210 Product Name : Wireless LAN access Point Model No. : H3C WA3620i-AGN; H3C WA3628i-AGN FCC ID : O9C-WA3620i IC : 2299L-WA3620i Applicant : Hewlett Packard Corporation Address : 153 Taylor street, Litterton Massachusetts United States Date of Receipt : 01/11/2011 Test Date : 02/11/2011~ 04/12/2011 Issued Date : 20/12/2011 Report No. : 11BS004R-DFS-US-P08V01 Report Version : V1.2 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. 11BS004R-DFS-US-P08V01 Page: 2 of 64 DFS Test Report Issued Date: 20/12/2011 Report No. : 11BS004R-DFS-US-P08V01 Product Name : Wireless LAN access Point Applicant : Hewlett Packard Corporation Address : 153 Taylor street, Litterton Massachusetts United States Manufacturer : Hewlett Packard Corporation Address : 153 Taylor street, Litterton Massachusetts United States Model No. : H3C WA3620i-AGN; H3C WA3628i-AGN EUT Voltage : 48Vdc, 0.27A (or POE input) Brand Name : H3C Applicable Standard : FCC CFR Title 47 Part 15 Subpart E: 2008 FCC OET Order 06-96A (2006) Industry Canada RSS-210 Issue 8 Test Result : Pass Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Master device Slaver device with radar detection function Operation Mode (5250~5350MHz 5470~5725MHz) : Slaver device without radar detection function Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Engineering Manager: Marlin Chen) 11BS004R-DFS-US-P08V01 Page: 3 of 64 Content Items Page 1. UNII Device Information ··········································································································· 4 2. Test Equipment ························································································································ 6 3. DFS Detection Threshold and Response Requirement ··························································· 7 4. Radar Wave Parameters·········································································································· 8 5. Test Setup ······························································································································ 11 6. Radar Waveform Calibration ··································································································13 7. Test Procedures ····················································································································· 17 7.1. U-NII Detection Bandwidth ·································································································17 7.2. Channel Availability Check ································································································· 17 7.3. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period ·················································································································· 20 7.4. Statistical Performance Check ··························································································· 21 8. Test Result ····························································································································· 22 8.1. Detection Bandwidth ·········································································································· 22 8.2. Channel Available Check ···································································································24 8.2.1. Test result with a radar burst at the beginning of the Channel Availability Check Time ···· 25 8.2.2. Test result with radar burst at the end of the Channel Availability Check Time ················· 25 8.3. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period ·················································································································· 26 8.3.1. Channel Move Time and Closing Transmission Time························································ 26 8.3.2. Non-Occupancy Period ······································································································ 27 8.4. Statistical Performance Check ··························································································· 28 11BS004R-DFS-US-P08V01 Page: 4 of 64 1. UNII Device Information 1. The wireless LAN access point H3C WA3620i-AGN; H3C WA3628i-AGN operates in the following bands: a. 2412~2462MHz b. 5180~5240MHz c. 5260~5320MHz d. 5500~5700MHz e. 5745~5825MHz 2. The maximum mean EIRP of the device for 5GHz band is 22.97dBm, and the minimum possible mean EIRP is 21.26dBm. 3. The device installed with 3*Tx and 3*Rx antenna delivery. Antenna corresponding gains are 6.3dBi for 5GHz. 0dBi gain was used to set the -62dBm threshold level (-62dBm +1 dB) during calibration of the test setup. Antenna information shown below: Antenna Manufacturer Model No. Peak Gain Built-in Antenna Internal Antenna H3C 2701A01E 2.4GHz: 6dBi; 5GHz: 6.3dBi External Antenna Dipole Antenna WHA YU GROUP C5060-510002-A 2.4GHz: 2dBi; 5GHz: 3dBi Panel Antenna H3C ANT-2503C-M3 2.4GHz: 2.5dBi; 5GHz: 4dBi Panel Antenna H3C ANT-2503C-M6 2.4GHz: 2.5dBi; 5GHz: 4.5dBi 4. System test was performed with the designated MPEG test file (download from NTIA) that streams full motion video at 30 frames per second from the Master to the Client IP based system. 5. This Master does not exceed 27dBm EIRP, so no transmit power control is implemented. 6. The Master requires 57.6s for completing its power-on cycle. 7. Information regarding the parameters of the detected Radar Waveforms is not available to the end user. 11BS004R-DFS-US-P08V0…

Text truncated - open the document above for the full version.

Test Report Industry Canada RSS-Gen Issue 3/RSS-210 Issue 8 FCC Part15 Subpart E Product Name : Wireless LAN access Point Model No. : H3C WA3620i-AGN; H3C WA3628i-AGN FCC ID : O9C-WA3620i IC : 2299L-WA3620i Applicant : Hewlett Packard Corporation Address : 153 Taylor street, Litterton Massachusetts United States Date of Receipt : 01/11/2011 Test Date : 02/11/2011~ 04/12/2011 Issued Date : 20/12/2011 Report No. : 11BS004R-RF-US-P09V01 Report Version : V1.2 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 11BS004R-RF-US-P09V01 Page: 2 of 1212 Test Report Certification Issued Date : 20/12/2011 Report No. : 11BS004R-RF-US-P09V01 Product Name : Wireless LAN access Point Applicant : Hewlett Packard Corporation Address : 153 Taylor street, Litterton Massachusetts United States Manufacturer : Hewlett Packard Corporation Address : 153 Taylor street, Litterton Massachusetts United States Model No. : H3C WA3620i-AGN; H3C WA3628i-AGN FCC ID : O9C-WA3620i IC : 2299L-WA3620i EUT Voltage : 48Vdc, 0.27A (or POE input) Brand Name : H3C Applicable Standard : FCC CFR Title 47 Part 15 Subpart E: 2008 ANSI C63.4: 2009; ANSI C63.10: 2009 Industry Canada RSS-Gen Issue 3/RSS-210 Issue 8 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392; IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Engineering Manager: Marlin Chen) Report No： 11BS004R-RF-US-P09V01 Page: 3 of 1212 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 11BS004R-RF-US-P09V01 Page: 4 of 1212 TABLE OF CONTENTS Description Page 1. General Information ....................................................................................................................6 1.1. EUT Description ......................................................................................................................6 1.2. Mode of Operation ..................................................................................................................8 1.3. Tested System Details.............................................................................................................9 1.4. Configuration of Tested System ............................................................................................10 1.5. EUT Exercise Software ......................................................................................................... 11 2. Technical Test............................................................................................................................12 2.1. Summary of Test Result ........................................................................................................12 2.2. Test Environment ..................................................................................................................14 3. Conducted Emission .................................................................................................................15 3.1. Test Equipment .....................................................................................................................15 3.2. Test Setup .............................................................................................................................15 3.3. Limit.......................................................................................................................................16 3.4. Test Procedure ......................................................................................................................16 3.5. Uncertainty ............................................................................................................................16 3.6. Test Result ............................................................................................................................17 4. Radiated Emission ....................................................................................................................19 4.1. Test Equipment .................................................…

Text truncated - open the document above for the full version.

Report No： 11BS004R-RF-US-P09V01 Page: 400 of 1212 Profile: 11BS004R Page No.: 172 Engineer: Toms Site: AC5 Time: 2011/11/21 - 20:49 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 5500MHz by 802.11a (Chain 2) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 5460.000 46.670 56.940 -7.330 54.000 -10.269 AV 2 5470.000 46.656 56.961 -21.644 68.300 -10.305 AV 3 * 5505.825 76.450 86.686 N/A N/A -10.237 AV Report No： 11BS004R-RF-US-P09V01 Page: 401 of 1212 Profile: 11BS004R Page No.: 173 Engineer: Toms Site: AC5 Time: 2011/11/21 - 20:50 Limit: FCC_Part15.407_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 5700MHz by 802.11a (Chain 2) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 * 5704.175 104.891 114.770 N/A N/A -9.879 PK 2 5725.000 60.994 70.768 -27.306 88.300 -9.774 PK Report No： 11BS004R-RF-US-P09V01 Page: 402 of 1212 Profile: 11BS004R Page No.: 174 Engineer: Toms Site: AC5 Time: 2011/11/21 - 21:06 Limit: FCC_Part15.407_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 5700MHz by 802.11a (Chain 2) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 * 5704.467 89.631 99.510 N/A N/A -9.880 AV 2 5725.000 47.831 57.605 -20.469 68.300 -9.774 AV Report No： 11BS004R-RF-US-P09V01 Page: 403 of 1212 Profile: 11BS004R Page No.: 175 Engineer: Toms Site: AC5 Time: 2011/11/21 - 21:08 Limit: FCC_Part15.407_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 5700MHz by 802.11a (Chain 2) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 * 5703.070 92.238 102.114 N/A N/A -9.875 PK 2 5725.000 60.425 70.199 -27.875 88.300 -9.774 PK Report No： 11BS004R-RF-US-P09V01 Page: 404 of 1212 Profile: 11BS004R Page No.: 176 Engineer: Toms Site: AC5 Time: 2011/11/21 - 21:10 Limit: FCC_Part15.407_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode1: Transmit at channel 5700MHz by 802.11a (Chain 2) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 * 5696.277 78.602 88.460 N/A N/A -9.858 AV 2 5725.000 47.453 57.227 -20.847 68.300 -9.774 AV Report No： 11BS004R-RF-US-P09V01 Page: 405 of 1212 Profile: 11BS004R Page No.: 177 Engineer: Toms Site: AC5 Time: 2011/11/21 - 21:15 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode2: Transmit at channel 5180MHz by 802.11n20 (Chain 2) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 5150.000 60.015 70.442 -13.985 74.000 -10.427 PK 2 * 5178.445 101.319 111.762 N/A N/A -10.443 PK Report No： 11BS004R-RF-US-P09V01 Page: 406 of 1212 Profile: 11BS004R Page No.: 178 Engineer: Toms Site: AC5 Time: 2011/11/21 - 21:17 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode2: Transmit at channel 5180MHz by 802.11n20 (Chain 0) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 5150.000 47.025 57.452 -6.975 54.000 -10.427 AV 2 * 5174.080 88.186 98.610 N/A N/A -10.424 AV Report No： 11BS004R-RF-US-P09V01 Page: 407 of 1212 Profile: 11BS004R Page No.: 179 Engineer: Toms Site: AC5 Time: 2011/11/21 - 21:18 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode2: Transmit at channel 5180MHz by 802.11n20 (Chain 0) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 5150.000 59.264 69.691 -14.736 74.000 -10.427 PK 2 * 5173.630 88.472 98.894 N/A N/A -10.423 PK Report No： 11BS004R-RF-US-P09V01 Page: 408 of 1212 Profile: 11BS004R Page No.: 180 Engineer: Toms Site: AC5 Time: 2011/11/21 - 21:19 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Horizontal EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode2: Transmit at channel 5180MHz by 802.11n20 (Chain 0) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 5150.000 46.638 57.065 -7.362 54.000 -10.427 AV 2 * 5173.630 77.076 87.498 N/A N/A -10.423 AV Report No： 11BS004R-RF-US-P09V01 Page: 409 of 1212 Profile: 11BS004R Page No.: 181 Engineer: Toms Site: AC5 Time: 2011/11/21 - 21:24 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: BBHA9120D_499(1-18GHz) Polarity: Vertical EUT: Wireless LAN access Point Power: AC 120V/60Hz Note: Mode2: Transmit at channel 5320MHz by 802.11n20 (Chain 0) No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 * 5323.480 105.028 115.486 N/A N/A -10.458 PK 2 5350.000 59.709 70.208 -14…
